1 Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Type Approval Presentation D. Landat

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting 2 EC 1360/2002 – 270: Type approval of recording equipment and of tachograph cards shall include security related tests, functional tests and interoperability tests. Positive results to each of these tests are stated by an appropriate certificate. Security certificates: actually they are issued by BSI (Germany) or by DCSSI (France). Functionality certificates: Different accredited laboratories. Interoperability certificates: a single laboratory at JRC Ispra. EC 1360/2002 – 278: Interoperability tests are carried out by a single laboratory under the authority and responsibility of the European Commission.

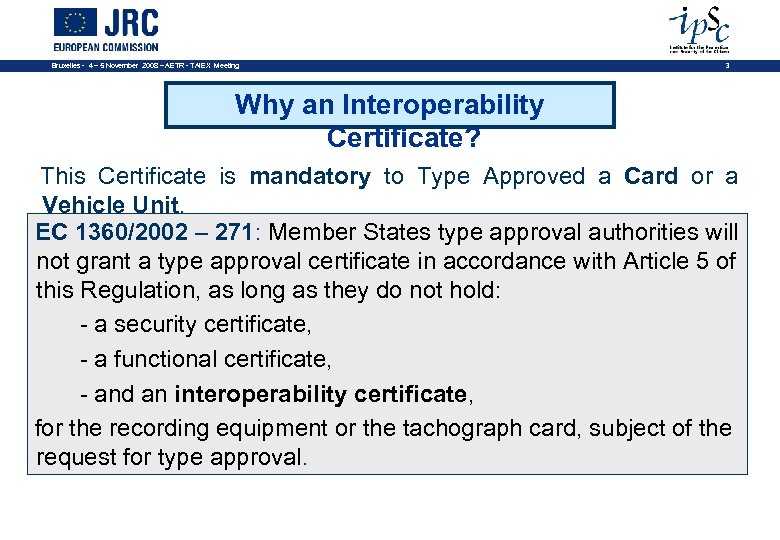

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting 3 Why an Interoperability Certificate? This Certificate is mandatory to Type Approved a Card or a Vehicle Unit. EC 1360/2002 – 271: Member States type approval authorities will not grant a type approval certificate in accordance with Article 5 of this Regulation, as long as they do not hold: - a security certificate, - a functional certificate, - and an interoperability certificate, for the recording equipment or the tachograph card, subject of the request for type approval.

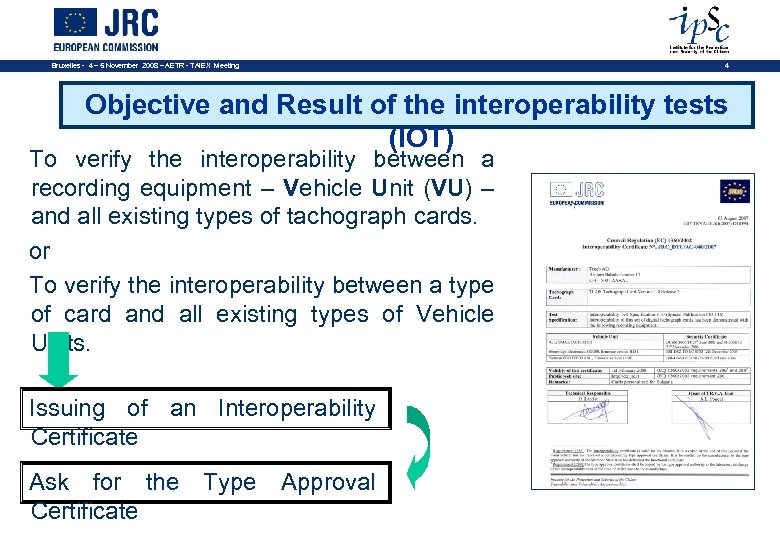

4 Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Objective and Result of the interoperability tests (IOT) To verify the interoperability between a recording equipment – Vehicle Unit (VU) – and all existing types of tachograph cards. or To verify the interoperability between a type of card and all existing types of Vehicle Units. Issuing of an Interoperability Certificate Ask for the Certificate Type Approval

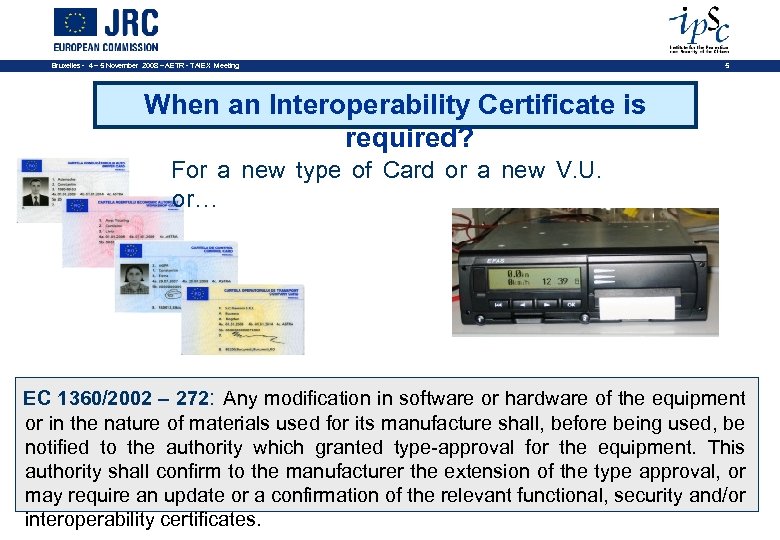

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting 5 When an Interoperability Certificate is required? For a new type of Card or a new V. U. or… EC 1360/2002 – 272: Any modification in software or hardware of the equipment or in the nature of materials used for its manufacture shall, before being used, be notified to the authority which granted type-approval for the equipment. This authority shall confirm to the manufacturer the extension of the type approval, or may require an update or a confirmation of the relevant functional, security and/or interoperability certificates.

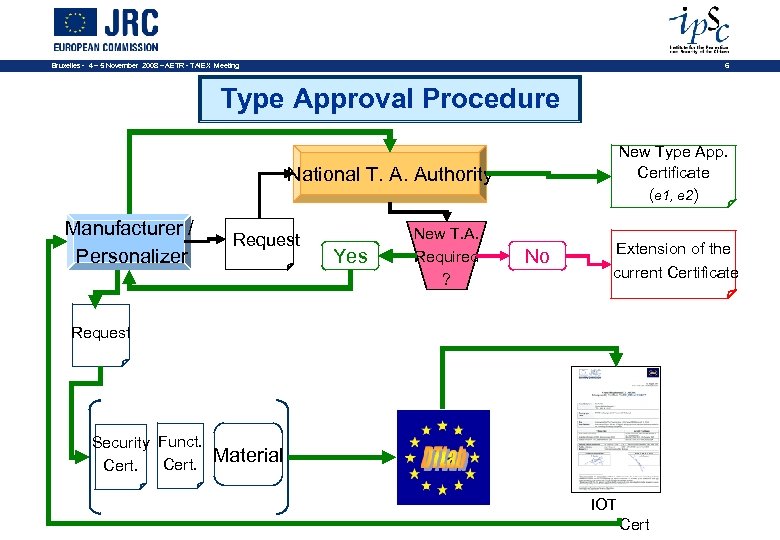

6 Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Type Approval Procedure New Type App. Certificate (e 1, e 2) National T. A. Authority Manufacturer / Personalizer Request Yes New T. A. Required ? No Extension of the current Certificate Request Security Funct. Cert. Material IOT Cert

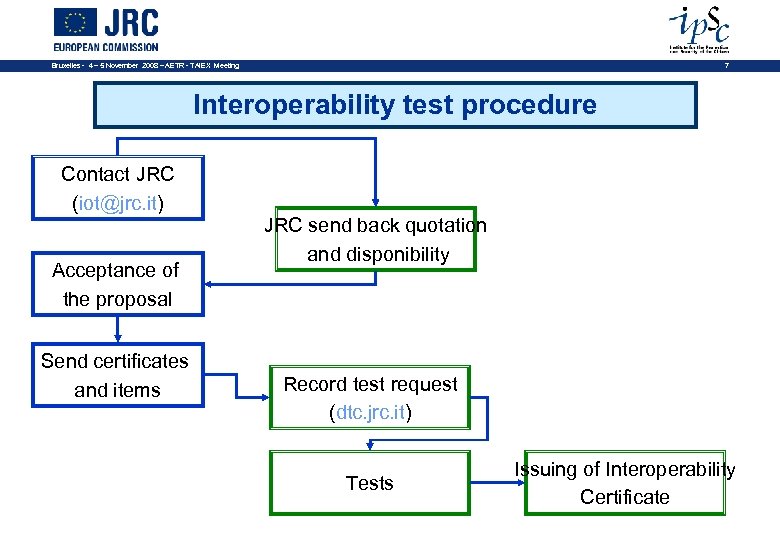

7 Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Interoperability test procedure Contact JRC (iot@jrc. it) Acceptance of the proposal Send certificates and items JRC send back quotation and disponibility Record test request (dtc. jrc. it) Tests Issuing of Interoperability Certificate

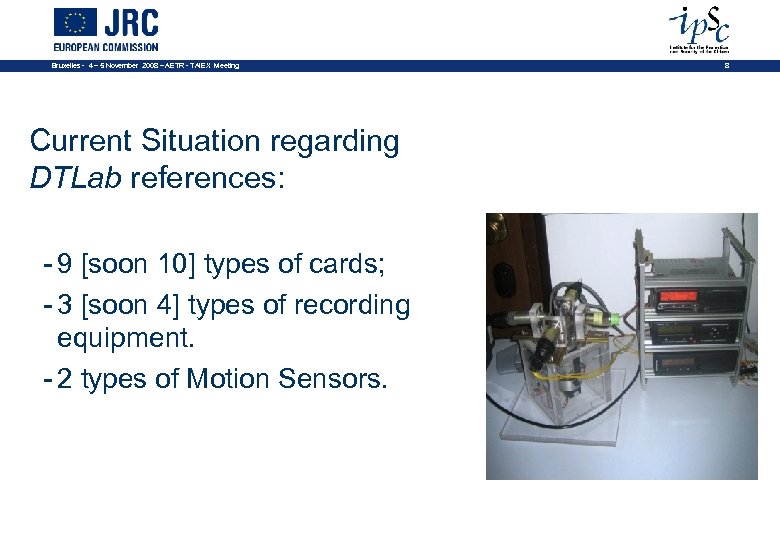

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Current Situation regarding DTLab references: - 9 [soon 10] types of cards; - 3 [soon 4] types of recording equipment. - 2 types of Motion Sensors. 8

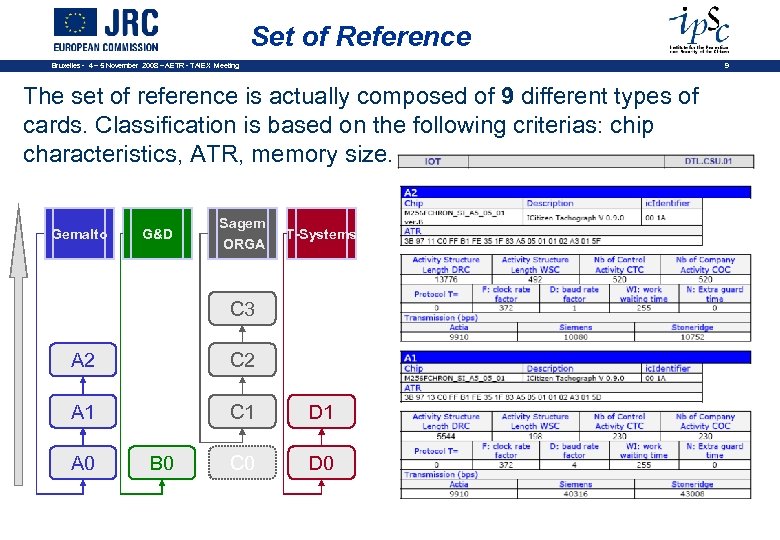

Set of Reference 9 Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting The set of reference is actually composed of 9 different types of cards. Classification is based on the following criterias: chip characteristics, ATR, memory size. Gemalto G&D Sagem ORGA T-Systems C 3 A 2 C 2 A 1 C 1 D 1 C 0 D 0 A 0 B 0

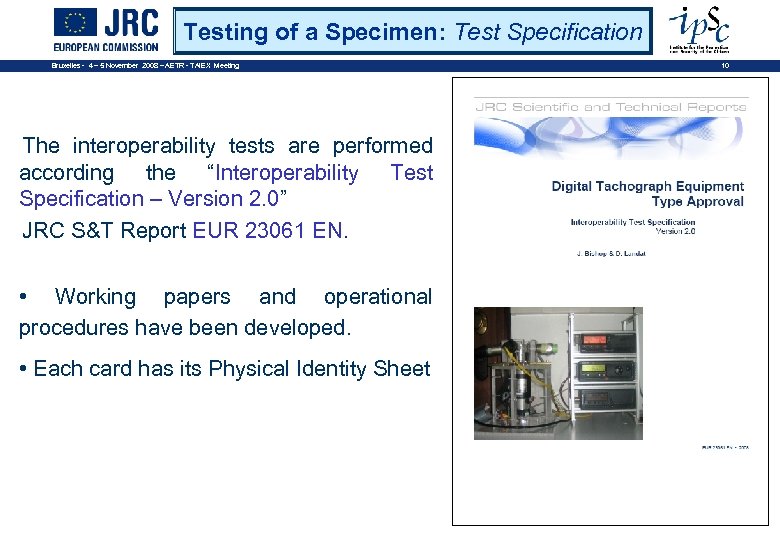

Testing of a Specimen: Test Specification Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting The interoperability tests are performed according the “Interoperability Test Specification – Version 2. 0” JRC S&T Report EUR 23061 EN. • Working papers and operational procedures have been developed. • Each card has its Physical Identity Sheet 10

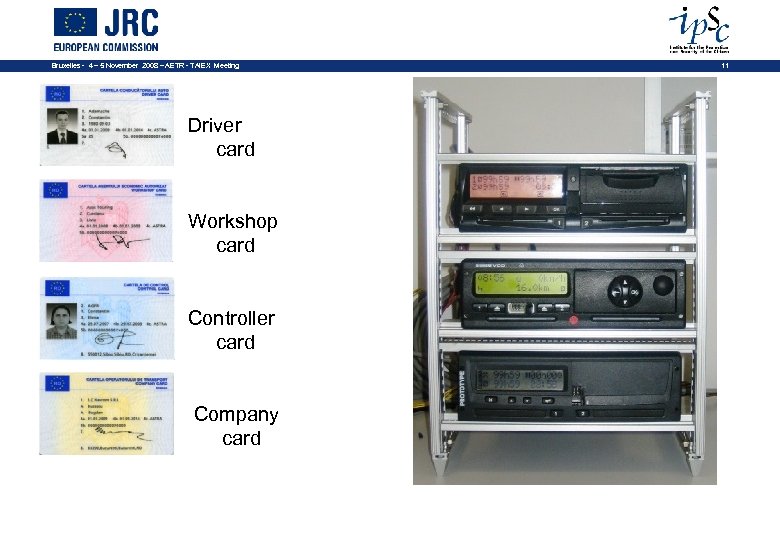

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting Driver card Workshop card Controller card Company card 11

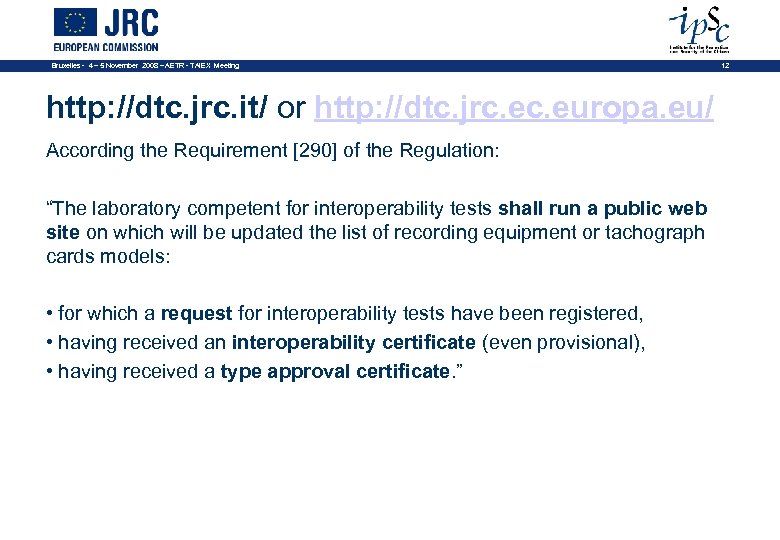

Bruxelles - 4 – 5 November 2008 – AETR - TAIEX Meeting http: //dtc. jrc. it/ or http: //dtc. jrc. europa. eu/ According the Requirement [290] of the Regulation: “The laboratory competent for interoperability tests shall run a public web site on which will be updated the list of recording equipment or tachograph cards models: • for which a request for interoperability tests have been registered, • having received an interoperability certificate (even provisional), • having received a type approval certificate. ” 12
