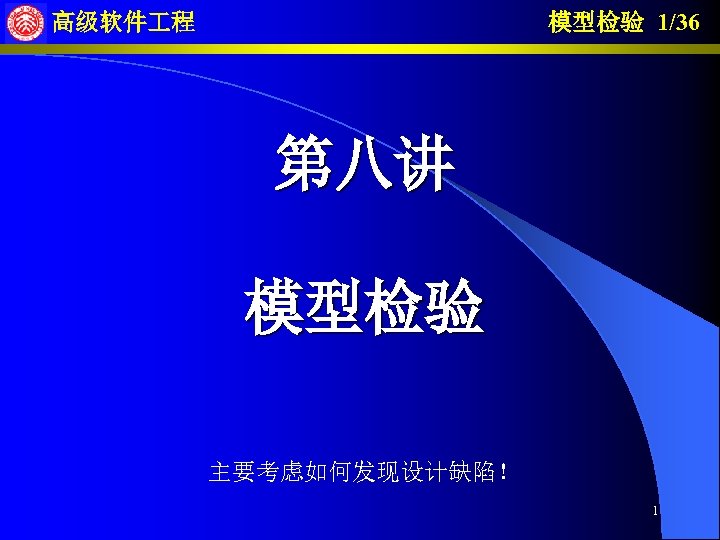

模型检验 1/36 高级软件程第八讲模型检验主要考虑如何发现设计缺陷！ 1

模型检验 2/36 高级软件程内容一、例子二、模型检测概述三、模型检测算法概览四、模型检测具 2

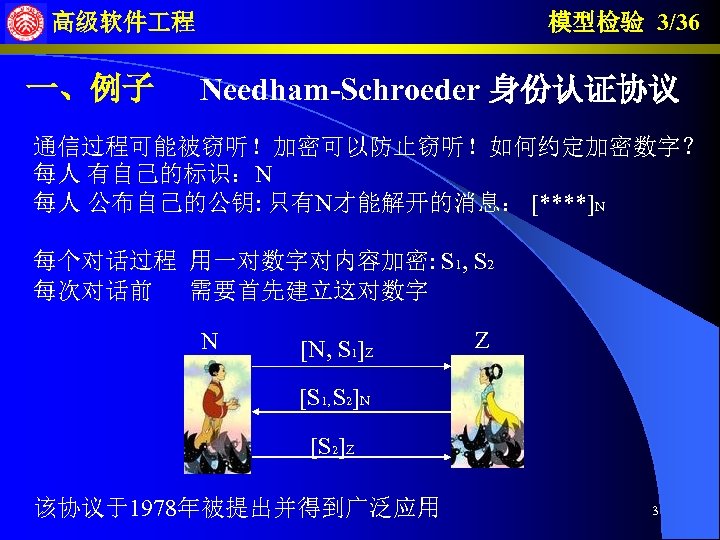

模型检验 3/36 高级软件程一、例子 Needham-Schroeder 身份认证协议通信过程可能被窃听！加密可以防止窃听！如何约定加密数字？每人有自己的标识：N 每人公布自己的公钥: 只有N才能解开的消息： [****]N 每个对话过程用一对数字对内容加密: S 1, S 2 每次对话前需要首先建立这对数字 N [N, S 1]Z Z [S 1, S 2]N [S 2]Z 该协议于1978年被提出并得到广泛应用 3

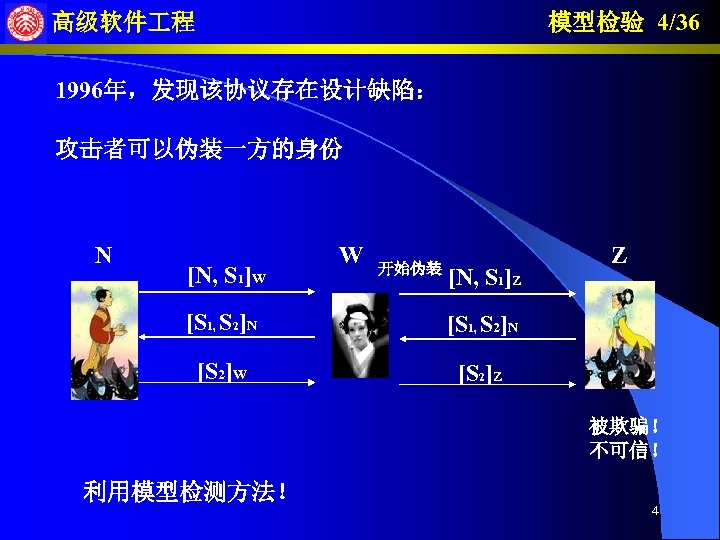

模型检验 4/36 高级软件程 1996年，发现该协议存在设计缺陷：攻击者可以伪装一方的身份 N [N, S 1]W W 开始伪装 [N, S 1]Z [S 1, S 2]N [S 2]W Z [S 2]Z 被欺骗！不可信！利用模型检测方法！ 4

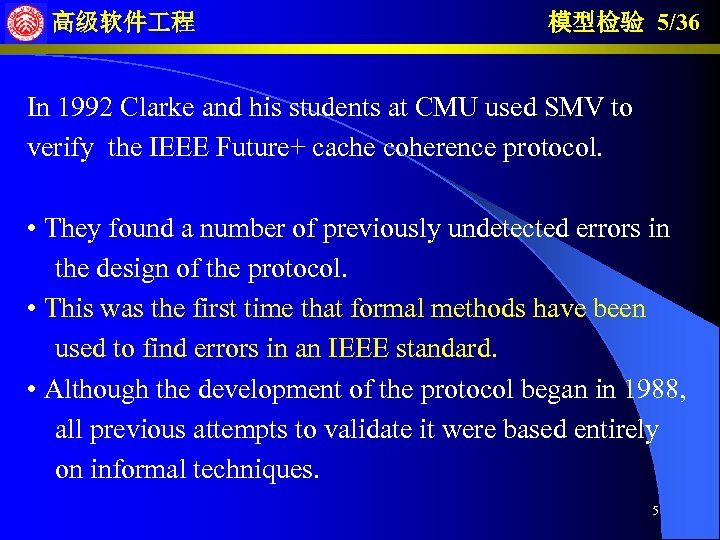

高级软件程模型检验 5/36 In 1992 Clarke and his students at CMU used SMV to verify the IEEE Future+ cache coherence protocol. • They found a number of previously undetected errors in the design of the protocol. • This was the first time that formal methods have been used to find errors in an IEEE standard. • Although the development of the protocol began in 1988, all previous attempts to validate it were based entirely on informal techniques. 5

高级软件程模型检验 6/36 In 1992 Dill and his students at Stanford used Murphito verify the cache coherence protocol of the IEEE Scalable Coherent Interface. • They found several errors, ranging from uninitialized variables to subtle logical errors. • The errors also existed in the complete protocol, although it had been extensively discussed, simulated, and even implemented. 6

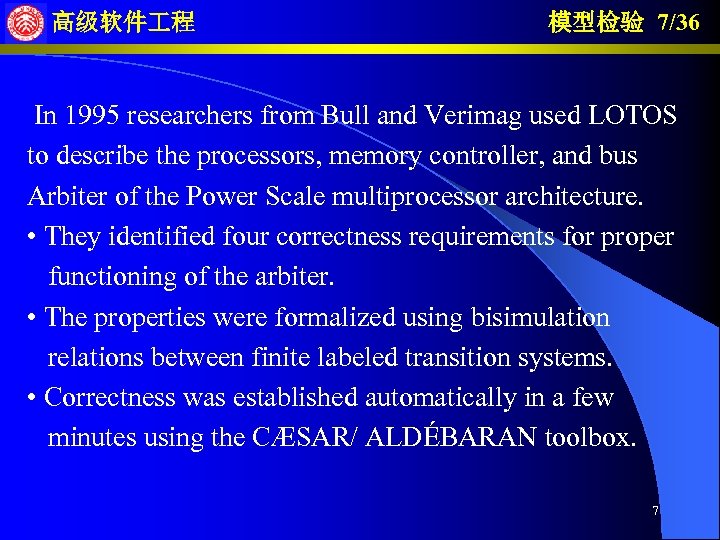

高级软件程模型检验 7/36 In 1995 researchers from Bull and Verimag used LOTOS to describe the processors, memory controller, and bus Arbiter of the Power Scale multiprocessor architecture. • They identified four correctness requirements for proper functioning of the arbiter. • The properties were formalized using bisimulation relations between finite labeled transition systems. • Correctness was established automatically in a few minutes using the CÆSAR/ ALDÉBARAN toolbox. 7

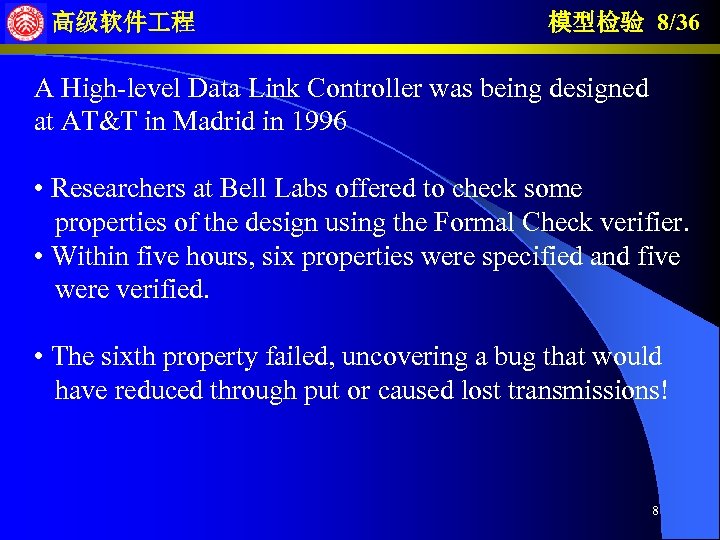

高级软件程模型检验 8/36 A High-level Data Link Controller was being designed at AT&T in Madrid in 1996 • Researchers at Bell Labs offered to check some properties of the design using the Formal Check verifier. • Within five hours, six properties were specified and five were verified. • The sixth property failed, uncovering a bug that would have reduced through put or caused lost transmissions! 8

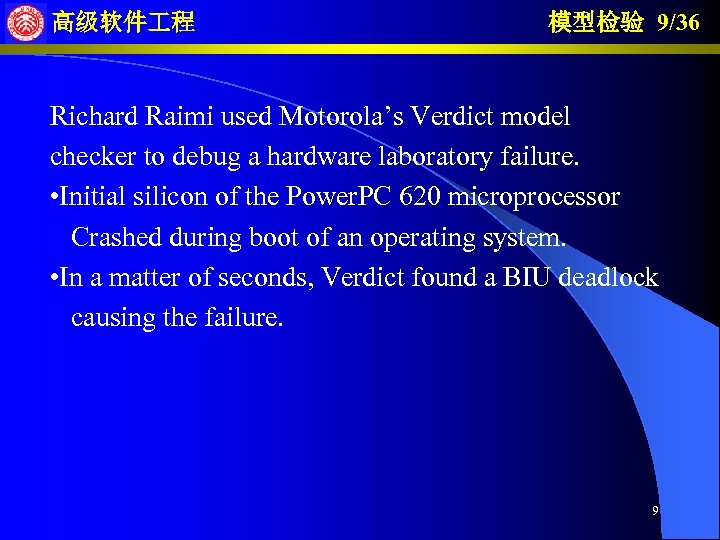

高级软件程模型检验 9/36 Richard Raimi used Motorola’s Verdict model checker to debug a hardware laboratory failure. • Initial silicon of the Power. PC 620 microprocessor Crashed during boot of an operating system. • In a matter of seconds, Verdict found a BIU deadlock causing the failure. 9

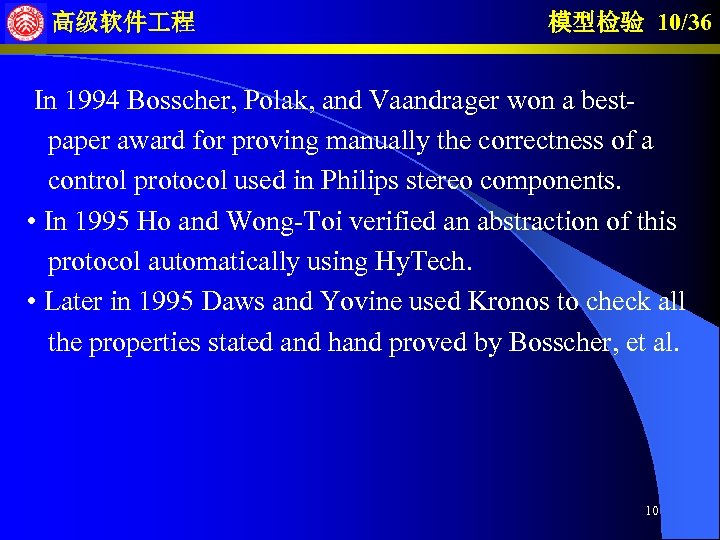

高级软件程模型检验 10/36 In 1994 Bosscher, Polak, and Vaandrager won a bestpaper award for proving manually the correctness of a control protocol used in Philips stereo components. • In 1995 Ho and Wong-Toi verified an abstraction of this protocol automatically using Hy. Tech. • Later in 1995 Daws and Yovine used Kronos to check all the properties stated and hand proved by Bosscher, et al. 10

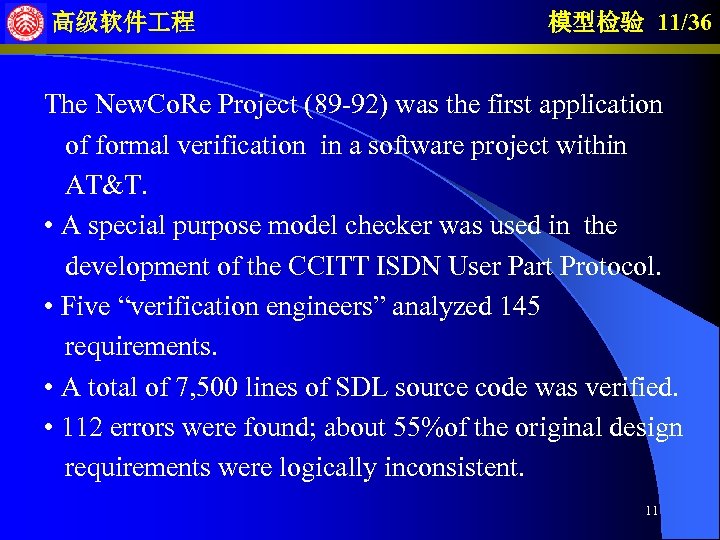

高级软件程模型检验 11/36 The New. Co. Re Project (89 -92) was the first application of formal verification in a software project within AT&T. • A special purpose model checker was used in the development of the CCITT ISDN User Part Protocol. • Five “verification engineers” analyzed 145 requirements. • A total of 7, 500 lines of SDL source code was verified. • 112 errors were found; about 55%of the original design requirements were logically inconsistent. 11

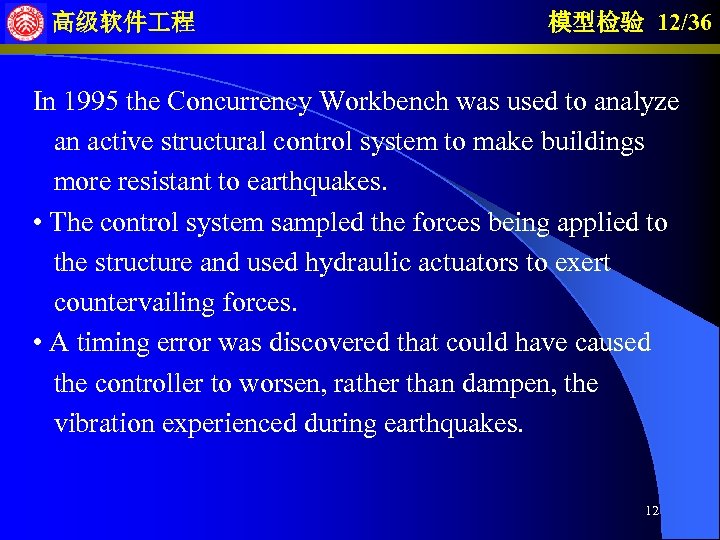

高级软件程模型检验 12/36 In 1995 the Concurrency Workbench was used to analyze an active structural control system to make buildings more resistant to earthquakes. • The control system sampled the forces being applied to the structure and used hydraulic actuators to exert countervailing forces. • A timing error was discovered that could have caused the controller to worsen, rather than dampen, the vibration experienced during earthquakes. 12

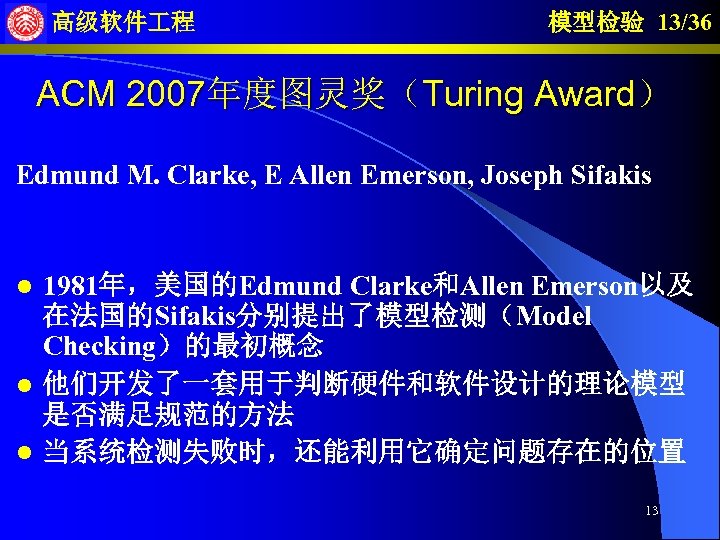

高级软件程模型检验 13/36 ACM 2007年度图灵奖（Turing Award） Edmund M. Clarke, E Allen Emerson, Joseph Sifakis 1981年，美国的Edmund Clarke和Allen Emerson以及在法国的Sifakis分别提出了模型检测（Model Checking）的最初概念 l 他们开发了一套用于判断硬件和软件设计的理论模型是否满足规范的方法 l 当系统检测失败时，还能利用它确定问题存在的位置 l 13

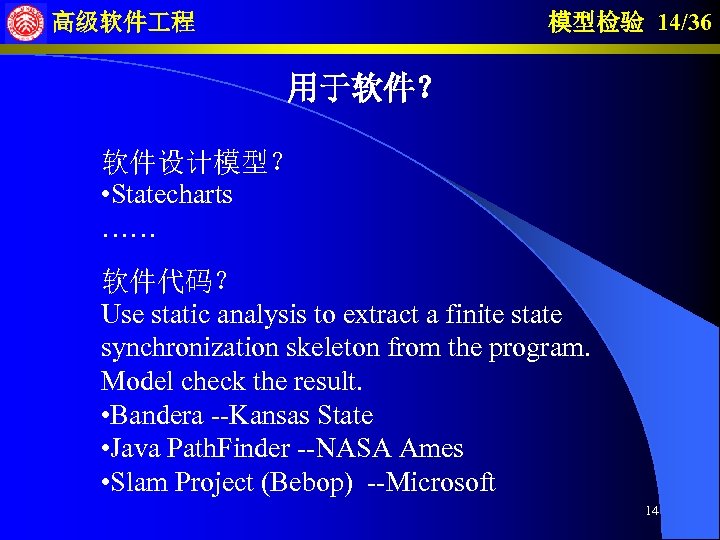

模型检验 14/36 高级软件程用于软件？软件设计模型？ • Statecharts …… 软件代码？ Use static analysis to extract a finite state synchronization skeleton from the program. Model check the result. • Bandera --Kansas State • Java Path. Finder --NASA Ames • Slam Project (Bebop) --Microsoft 14

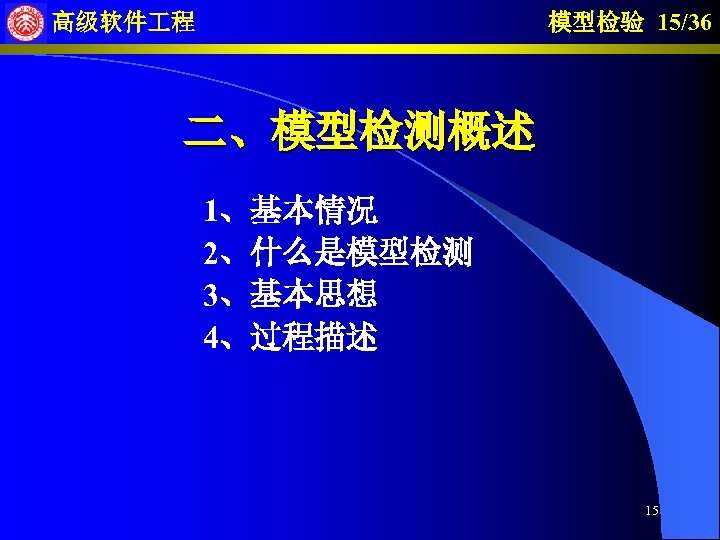

模型检验 15/36 高级软件程二、模型检测概述 1、基本情况 2、什么是模型检测 3、基本思想 4、过程描述 15

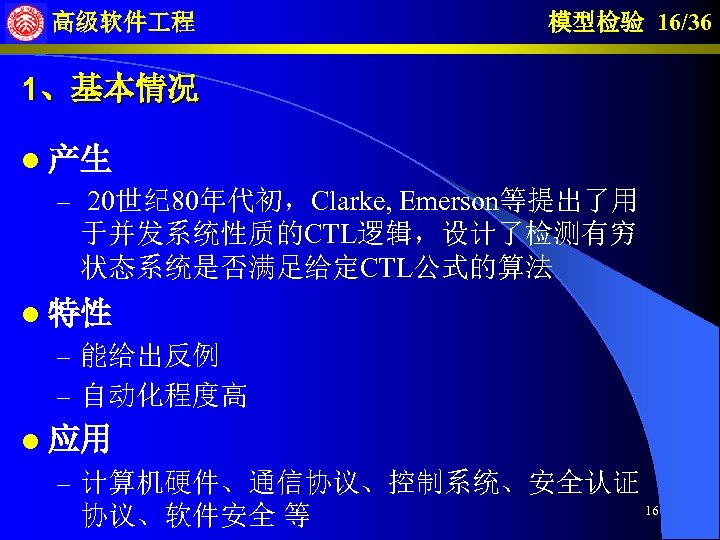

高级软件程模型检验 16/36 1、基本情况 l 产生 – 20世纪 80年代初，Clarke, Emerson等提出了用于并发系统性质的CTL逻辑，设计了检测有穷状态系统是否满足给定CTL公式的算法 l 特性 – 能给出反例 – 自动化程度高 l 应用 – 计算机硬件、通信协议、控制系统、安全认证协议、软件安全等 16

模型检验 17/36 高级软件程 2、什么是模型检测 l 定义[Clarke & Emerson 1981] “Model checking is an automated technique that, given a finite-state model of a system and a logical property, systematically checks whether this property holds for (a given initial state in) that model. ” 给定一个系统的有限状态模型，和一个逻辑性质，系统地检测：这个模型（含初始状态）满足该性质 17

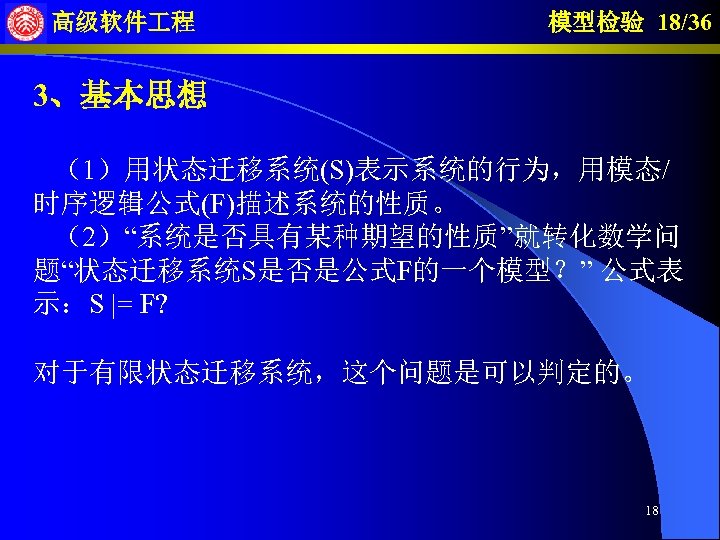

高级软件程模型检验 18/36 3、基本思想（1）用状态迁移系统(S)表示系统的行为，用模态/ 时序逻辑公式(F)描述系统的性质。（2）“系统是否具有某种期望的性质”就转化数学问题“状态迁移系统S是否是公式F的一个模型？” 公式表示：S |= F? 对于有限状态迁移系统，这个问题是可以判定的。 18

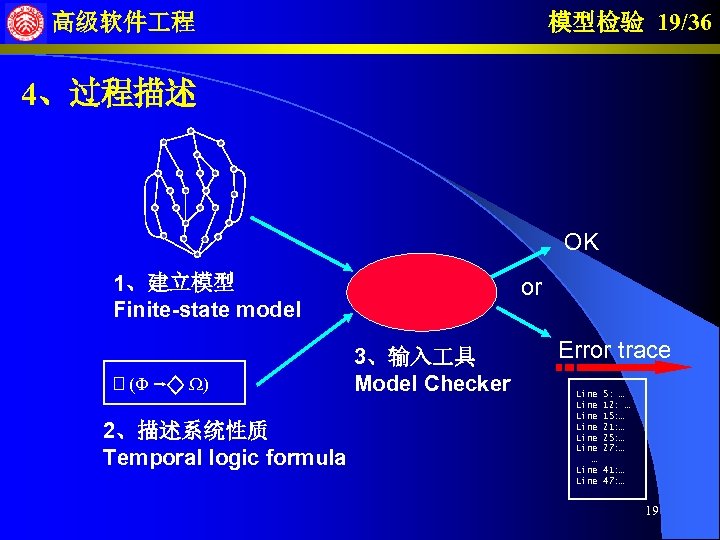

模型检验 19/36 高级软件程 4、过程描述 OK 1、建立模型 Finite-state model (F W) 2、描述系统性质 Temporal logic formula or 3、输入具 Model Checker Error trace Line Line … Line 5: … 12: … 15: … 21: … 25: … 27: … 41: … 47: … 19

模型检验 20/36 高级软件程三、模型检测算法概览 1、系统的表示 2、属性的表示 3、搜索状态空间 2个例子：CTL 与 LTL 20

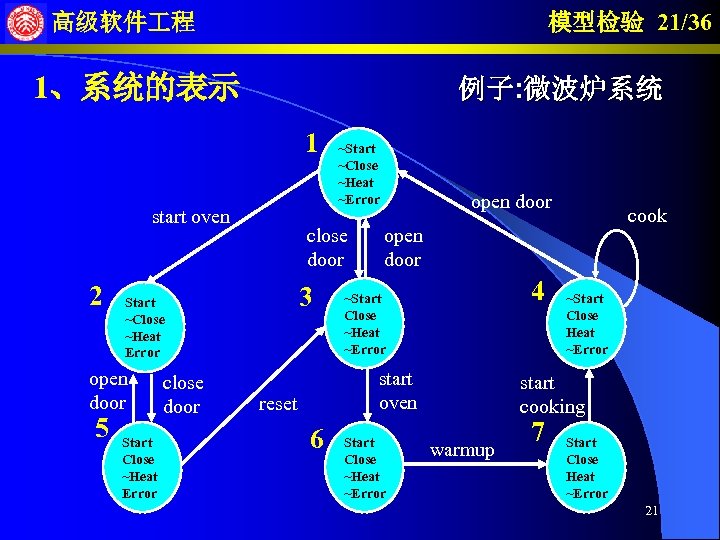

模型检验 21/36 高级软件程 1、系统的表示例子: 微波炉系统 1 start oven 2 5 close door 3 Start ~Close ~Heat Error open door Start Close ~Heat Error close door ~Start ~Close ~Heat ~Error open door 4 ~Start Close ~Heat ~Error start oven reset 6 cook Start Close ~Heat ~Error ~Start Close Heat ~Error start cooking warmup 7 Start Close Heat ~Error 21

高级软件程模型检验 22/36 2、属性表示(Property Specification) 用各种模态/时序逻辑表示： • 计算树逻辑（CTL: Computation Tree Logic） • 线性时序逻辑（LTL: Linear Temporal Logic） • 模态命题 u --演算（u-Calculus）主要检测属性类型：安全性（safety）：坏的事情不会发生。例如：无死锁活性（liveness）：好的事情终会发生。例如：请求响应公平性（fairness）：一致性（consistency）： For any reachable state: if “Start” holds, AG( Start → AF Heat ) then along all outgoing paths, 22 “Heat” eventually holds.

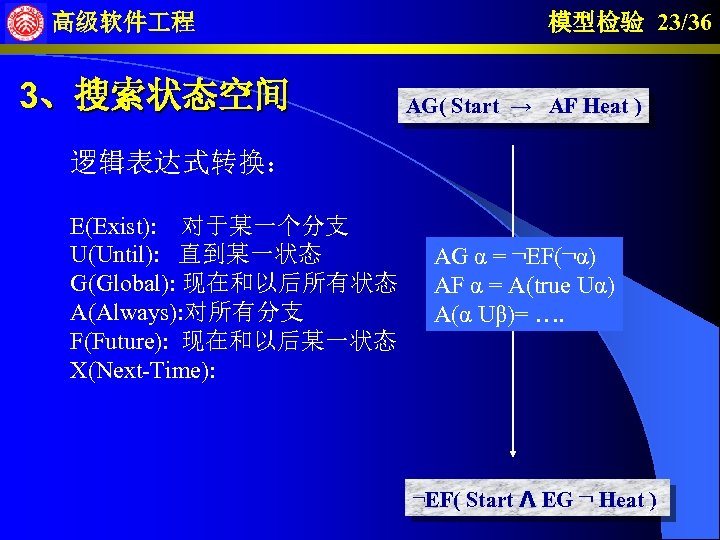

高级软件程 3、搜索状态空间模型检验 23/36 AG( Start → AF Heat ) 逻辑表达式转换： E(Exist): 对于某一个分支 U(Until): 直到某一状态 G(Global): 现在和以后所有状态 A(Always): 对所有分支 F(Future): 现在和以后某一状态 X(Next-Time): AG α = ¬EF(¬α) AF α = A(true Uα) A(α Uβ)= …. ¬EF( Start Λ EG ¬ Heat 23 )

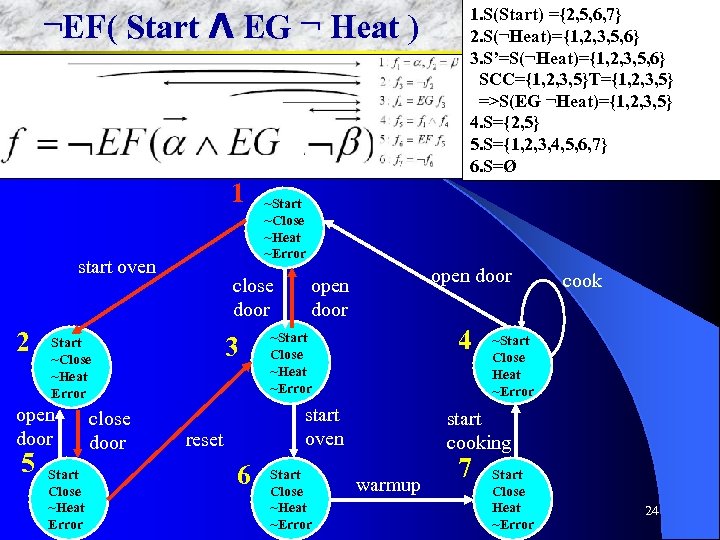

高级软件程 ¬EF( Start Λ EG ¬ Heat ) 1 start oven 2 open door 5 Start Close ~Heat Error close door ~Start ~Close ~Heat ~Error close door 3 Start ~Close ~Heat Error open door 4 ~Start Close ~Heat ~Error start oven reset 6 1. S(Start) ={2, 5, 6, 7} 模型检验 24/36 2. S(¬Heat)={1, 2, 3, 5, 6} 3. S’=S(¬Heat)={1, 2, 3, 5, 6} SCC={1, 2, 3, 5}T={1, 2, 3, 5} =>S(EG ¬Heat)={1, 2, 3, 5} 4. S={2, 5} 5. S={1, 2, 3, 4, 5, 6, 7} 6. S=Ø Start Close ~Heat ~Error cook ~Start Close Heat ~Error start cooking warmup 7 Start Close Heat ~Error 24

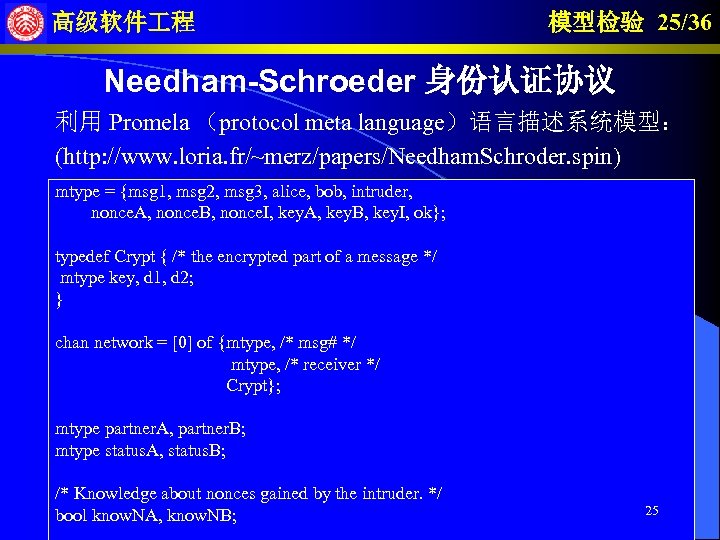

高级软件程模型检验 25/36 Needham-Schroeder 身份认证协议利用 Promela （protocol meta language）语言描述系统模型： (http: //www. loria. fr/~merz/papers/Needham. Schroder. spin) mtype = {msg 1, msg 2, msg 3, alice, bob, intruder, nonce. A, nonce. B, nonce. I, key. A, key. B, key. I, ok}; typedef Crypt { /* the encrypted part of a message */ mtype key, d 1, d 2; } chan network = [0] of {mtype, /* msg# */ mtype, /* receiver */ Crypt}; mtype partner. A, partner. B; mtype status. A, status. B; /* Knowledge about nonces gained by the intruder. */ bool know. NA, know. NB; 25

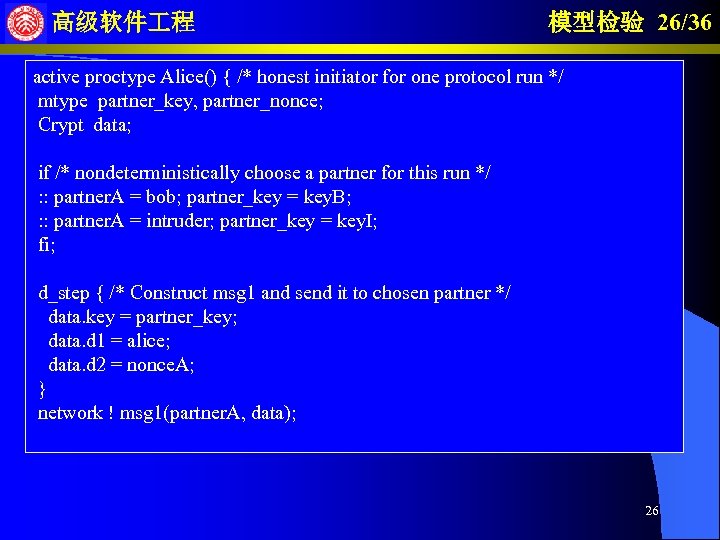

高级软件程模型检验 26/36 active proctype Alice() { /* honest initiator for one protocol run */ mtype partner_key, partner_nonce; Crypt data; if /* nondeterministically choose a partner for this run */ : : partner. A = bob; partner_key = key. B; : : partner. A = intruder; partner_key = key. I; fi; d_step { /* Construct msg 1 and send it to chosen partner */ data. key = partner_key; data. d 1 = alice; data. d 2 = nonce. A; } network ! msg 1(partner. A, data); 26

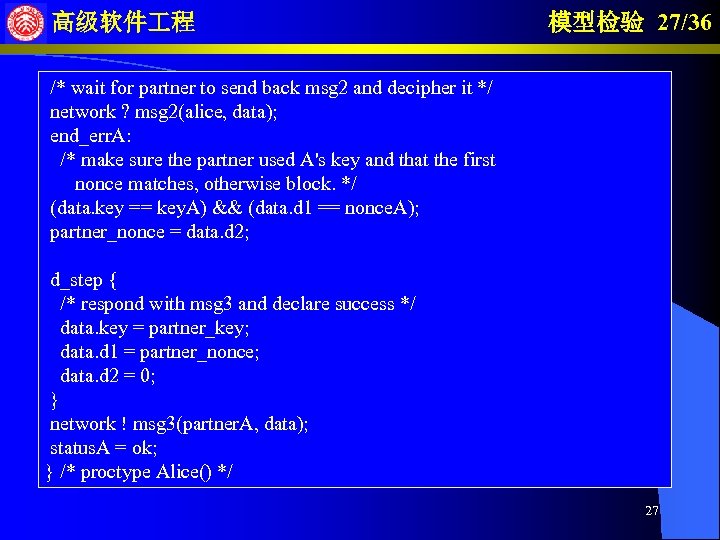

高级软件程模型检验 27/36 /* wait for partner to send back msg 2 and decipher it */ network ? msg 2(alice, data); end_err. A: /* make sure the partner used A's key and that the first nonce matches, otherwise block. */ (data. key == key. A) && (data. d 1 == nonce. A); partner_nonce = data. d 2; d_step { /* respond with msg 3 and declare success */ data. key = partner_key; data. d 1 = partner_nonce; data. d 2 = 0; } network ! msg 3(partner. A, data); status. A = ok; } /* proctype Alice() */ 27

$active高级软件程 honest responder for one run */ proctype Bob() { /* mtype partner_key,$

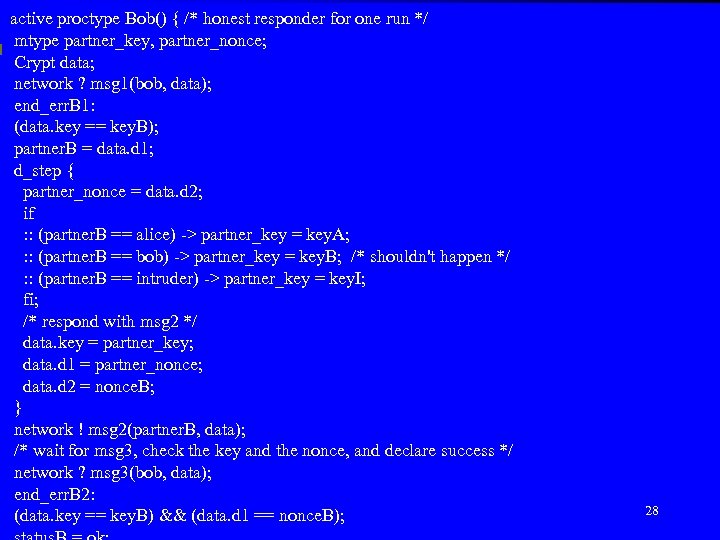

active高级软件程 honest responder for one run */ proctype Bob() { /* mtype partner_key, partner_nonce; Crypt data; network ? msg 1(bob, data); end_err. B 1: (data. key == key. B); partner. B = data. d 1; d_step { partner_nonce = data. d 2; if : : (partner. B == alice) -> partner_key = key. A; : : (partner. B == bob) -> partner_key = key. B; /* shouldn't happen */ : : (partner. B == intruder) -> partner_key = key. I; fi; /* respond with msg 2 */ data. key = partner_key; data. d 1 = partner_nonce; data. d 2 = nonce. B; } network ! msg 2(partner. B, data); /* wait for msg 3, check the key and the nonce, and declare success */ network ? msg 3(bob, data); end_err. B 2: (data. key == key. B) && (data. d 1 == nonce. B); 模型检验 28/36 28

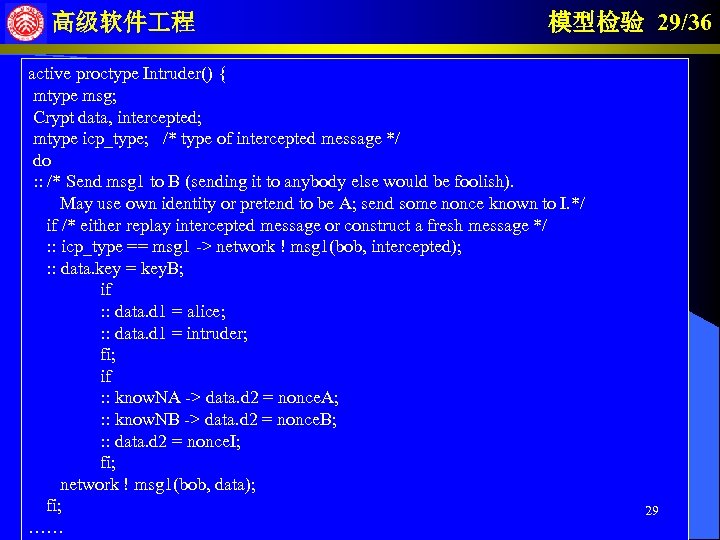

高级软件程模型检验 29/36 active proctype Intruder() { mtype msg; Crypt data, intercepted; mtype icp_type; /* type of intercepted message */ do : : /* Send msg 1 to B (sending it to anybody else would be foolish). May use own identity or pretend to be A; send some nonce known to I. */ if /* either replay intercepted message or construct a fresh message */ : : icp_type == msg 1 -> network ! msg 1(bob, intercepted); : : data. key = key. B; if : : data. d 1 = alice; : : data. d 1 = intruder; fi; if : : know. NA -> data. d 2 = nonce. A; : : know. NB -> data. d 2 = nonce. B; : : data. d 2 = nonce. I; fi; network ! msg 1(bob, data); fi; …… 29

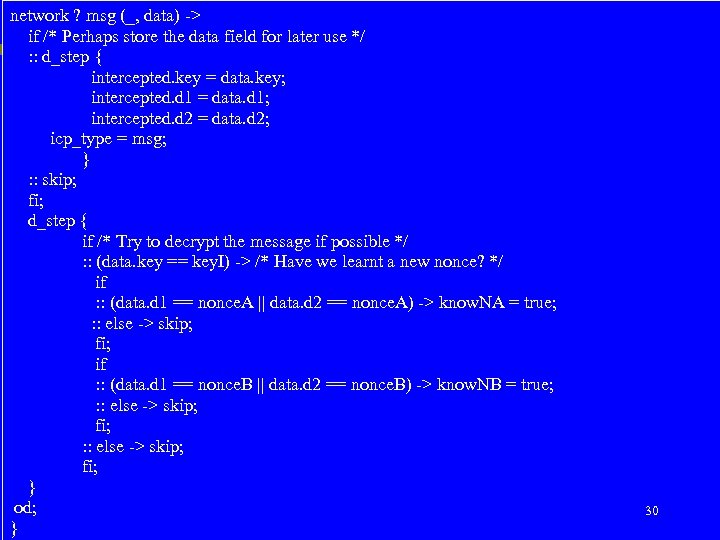

network ? msg (_, data) -> 模型检验 30/36 高级软件程 if /* Perhaps store the data field for later use */ : : d_step { intercepted. key = data. key; intercepted. d 1 = data. d 1; intercepted. d 2 = data. d 2; icp_type = msg; } : : skip; fi; d_step { if /* Try to decrypt the message if possible */ : : (data. key == key. I) -> /* Have we learnt a new nonce? */ if : : (data. d 1 == nonce. A || data. d 2 == nonce. A) -> know. NA = true; : : else -> skip; fi; if : : (data. d 1 == nonce. B || data. d 2 == nonce. B) -> know. NB = true; : : else -> skip; fi; } od; 30 }

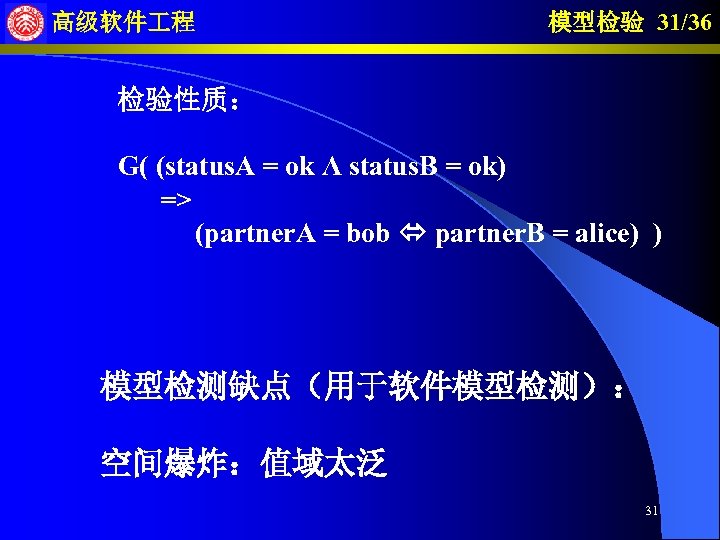

高级软件程模型检验 31/36 检验性质： G( (status. A = ok Λ status. B = ok) => (partner. A = bob partner. B = alice) ) 模型检测缺点（用于软件模型检测）：空间爆炸：值域太泛 31

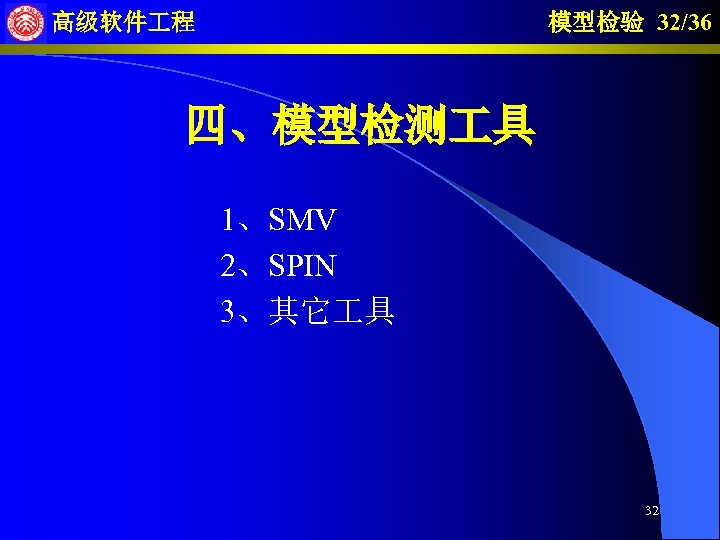

模型检验 32/36 高级软件程四、模型检测具 1、SMV 2、SPIN 3、其它具 32

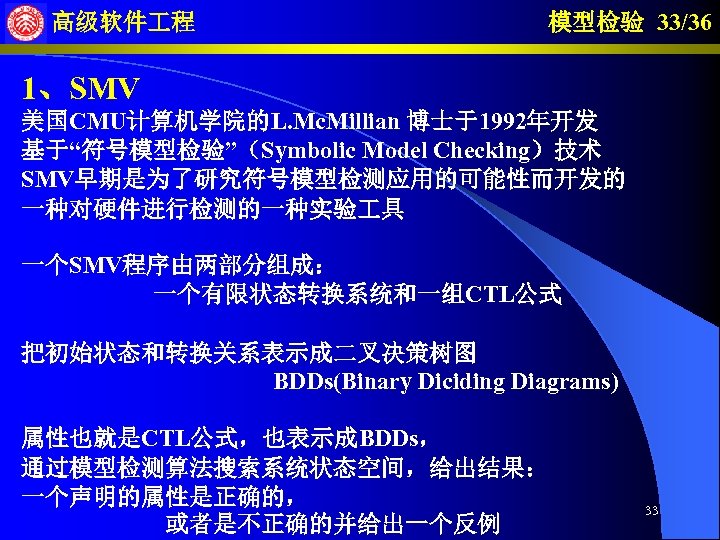

高级软件程模型检验 33/36 1、SMV 美国CMU计算机学院的L. Mc. Millian 博士于1992年开发基于“符号模型检验”（Symbolic Model Checking）技术 SMV早期是为了研究符号模型检测应用的可能性而开发的一种对硬件进行检测的一种实验具一个SMV程序由两部分组成：一个有限状态转换系统和一组CTL公式把初始状态和转换关系表示成二叉决策树图 BDDs(Binary Diciding Diagrams) 属性也就是CTL公式，也表示成BDDs，通过模型检测算法搜索系统状态空间，给出结果：一个声明的属性是正确的，或者是不正确的并给出一个反例 33

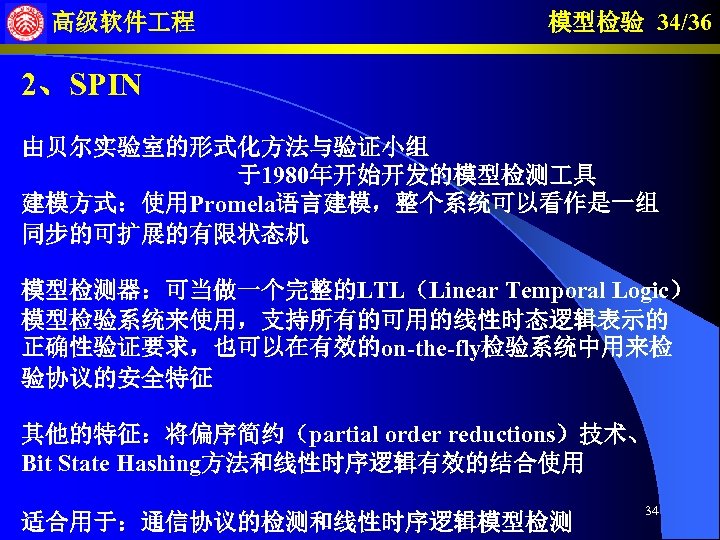

高级软件程模型检验 34/36 2、SPIN 由贝尔实验室的形式化方法与验证小组于1980年开始开发的模型检测具建模方式：使用Promela语言建模，整个系统可以看作是一组同步的可扩展的有限状态机模型检测器：可当做一个完整的LTL（Linear Temporal Logic）模型检验系统来使用，支持所有的可用的线性时态逻辑表示的正确性验证要求，也可以在有效的on-the-fly检验系统中用来检验协议的安全特征其他的特征：将偏序简约（partial order reductions）技术、 Bit State Hashing方法和线性时序逻辑有效的结合使用适合用于：通信协议的检测和线性时序逻辑模型检测 34

高级软件程模型检验 35/36 3、其它具 • PROD • 建模方式：基于Pr/T Petri网，有自己的对Pr/T Petri网的描述语言 • 分析方式：实现可达图的CTL模型检测以及基于on-the-fly方法的LTL验证 Perti 网具：INA、Lola、PEP、Design/CPN… Uppaal和Kronos：是用于时控系统的模型检测具 Caesar Aldebaran(CADP)：是基于LTSs的一组模型检测具 Java Pathfinder 2：是Java程序检测器 Slam：一个检测C程序的检测具 35
