宁波杰达模具机械有限公司 Ningbo Jieda Molding Machine Co

宁波杰达模具机械有限公司 Ningbo Jieda Molding & Machine Co. , Ltd Welcome

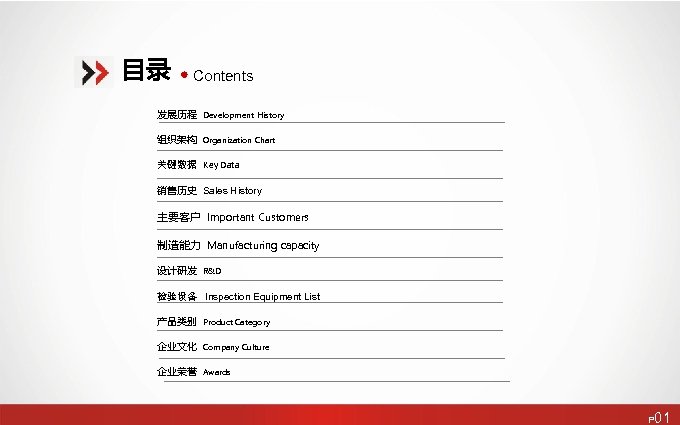

目录 Contents 发展历程 Development History 组织架构 Organization Chart 关键数据 Key Data 销售历史 Sales History 主要客户 Important Customers 制造能力 Manufacturing capacity 设计研发 R&D 检验设备 Inspection Equipment List 产品类别 Product Category 企业文化 Company Culture 企业荣誉 Awards P 01

发展历程 Development History 宁波北仑大契牌门模具制造厂。 In 1987 Beilun Daqi Paimen Mold factory was established. 公司从纯模具制造转模具和产品同时生产的业务模式。 In 2001 the company began manufacturing both die casting molds and die casting products. 1987 2001 2004 宁波杰达模具机械有限公司成立并搬迁至新址。 In 2005 the company moved to the current site and was renamed as Ningbo Jieda Molding &Machine Co. , Ltd. 公司开始涉及外贸业务，走内销和外销相结合的销售路线。 In 2006 the company branched into Foreign trade business. 公司顺利通过ISO 9000: 2000版质量管理体系认证。 In 2004 the company passed ISO 9000. 2005 2015 2006 2010 2013 对客户资源进行整合的同时对产品结构进行了重大调整。规划新厂房建设公司正式涉及汽车产品的业务。 In 2010 the company started automotive components manufacture 我司通过TS 16949: 2009质量管理体系认证。 We are TS 16949 registered. P 02

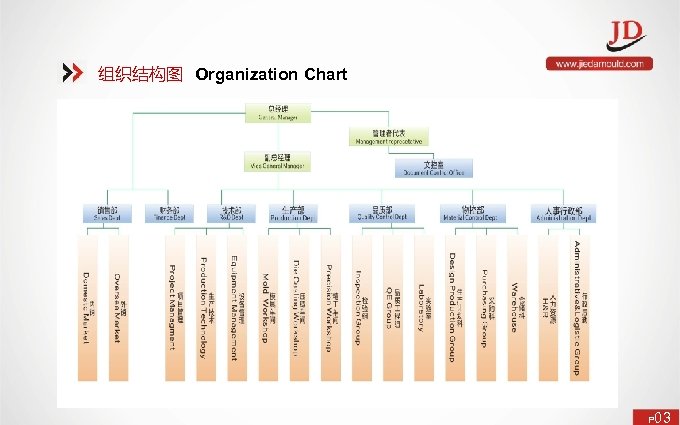

组织结构图 Organization Chart P 03

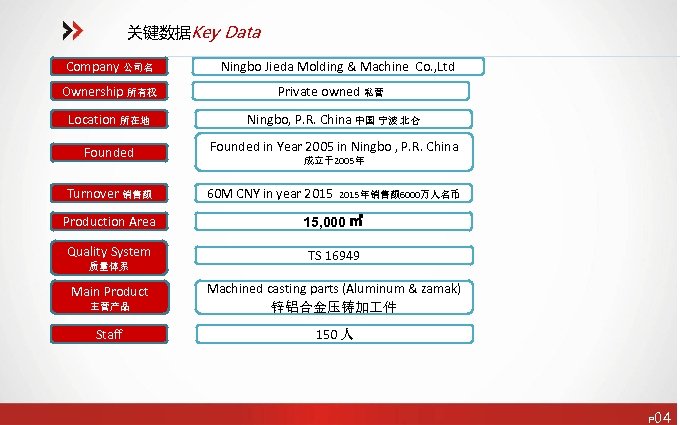

关键数据Key Data Company 公司名 Ningbo Jieda Molding & Machine Co. , Ltd Ownership 所有权 Private owned 私营 Location 所在地 Ningbo, P. R. China 中国宁波北仑 Founded in Year 2005 in Ningbo , P. R. China Turnover 销售额成立于2005年 60 M CNY in year 2015年销售额 6000万人名币 Production Area 15, 000 ㎡ Quality System TS 16949 质量体系主营产品 Machined casting parts (Aluminum & zamak) 锌铝合金压铸加件 Staff 150 人 Main Product P 04

销售历史 Sales History Million CNY 6000 5200 5800 4000 3000 1000 2005 2008 2010 2012 2014 2015 P 05

主要客户 Main Customers P 06

压铸车间 Die Casting Workshop P 07

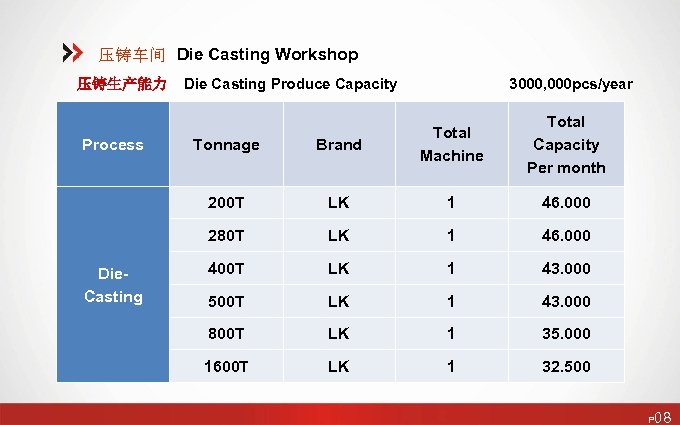

压铸车间 Die Casting Workshop 压铸生产能力 Die Casting Produce Capacity 3000, 000 pcs/year Total Capacity Per month Brand LK 1 46. 000 280 T Die. Casting Tonnage 200 T Process Total Machine LK 1 46. 000 400 T LK 1 43. 000 500 T LK 1 43. 000 800 T LK 1 35. 000 1600 T LK 1 32. 500 P 08

机加车间 Machining Workshop P 09

机加车间 Machining Workshop 机加设备 Machining Equipment Total 21台 Description Brand Country/ Region Qty. Axis Travel/Max CNC Milling Center Ji. RFin. E T-5 Taiwan 1 3 500 mm*390 mm*300 mm CNC Milling Center Ji. RFin LV-8 Taiwan 2 3 800 mm*550 mm CNC Milling Center Wi. A F 400 Korea 2 4 800 mm*460 mm*520 mm CNC Milling Center Wi. A F 400 Korea 4 3 800 mm*460 mm*520 mm CNC Milling Center Wi. A CUT 380 Korea 6 3 520 mm*380 mm*350 mm CNC Lathe Wi. A L 280 Korea 1 2 400 mm*750 mm CNC Lathe Wi. A E 200 C Korea 1 2 410 mm*300 mm CNC Lathe CK 6136 S China 7 2 360 mm*620 mm CNC Lathe CK 6140 S China 1 2 400 mm*620 mm CNC Lathe CK 6156 B China 1 2 500 mm*600 mm CNC Lathe 0636 China 1 2 260 mm*160 mm P 10

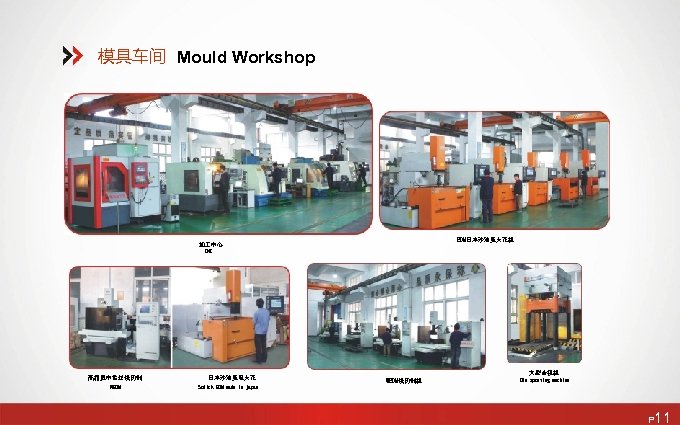

模具车间 Mould Workshop EDM日本沙迪克火花机加中心 CNC 高精度中走丝线切割 WEDM 日本沙迪克电火花大型合模机 WEDM线切割机 Die spotting machine Sodick EDM made in Japan P 11

模具制造能力 Tooling manufacturing capacity 名称 Name 加中心 CNC 中走丝线切割 WEDM 电火花 EDM 合模机 Die Spotting Machine 数量 Qty. 5台 4台 5台 1台品牌 Brand CNC-850＃ WMC-1166 HTM-1000 G FD 6050 C KS 650 B HA 500 BM 50 BM 80 HA 800 160 JM 产地 Originate China Japan China Capacity 20 Sets per month 每月20套 10 12 P P

设计研发 R&D CAD/CAM, CATIA V 5, UG, Pro-E In-House Tooling Design/Manufacturing Tooling FEM (Finite Element Method) Moldflow Simulating P 13

检验设备 Inspection Equipment List Description Brand Manufacture Place Qty. Platform CMM Edwords China Xi. An 1 800*1000*600 Spectrometer SPECTRO MAXX Germany 1 16 Tunnel X-Ray D. See China 1 620*650 mm, Max penetration thickness: 150 mm (Al), Min 0. 2 mm porosity Hardness Tester HY China 1 210 HBS-3000 Tensile Tester TM China 1 WDW-100 E Salt spray HZ China 1 YWX/Q-150 P 14

检测设备 Hardness 硬度测试 Testing Equipment CMM 三坐标 Tensile tester 拉伸测试 P 15

检测设备 Testing equipment Spectrometer 光谱分析 Salt spray 盐雾测试 X-RAY X-光探伤 P 16

汽摩配件 Auto &motorcylce parts P 17 17

后视镜支架 Base Bracket Part Name: Base Frame Weight: 0. 34 kg Cavity: 1+1 DCM : 500 T Application: Automotive Mirror Vehicle/Model: Hyundai LFA& Chrysler UF Raw material: Al. Si 12 Cu 1(Fe) & A 380 Yearly volume: 266, 000 PCS Customer: SMR Part Name: Base Frame Weight: 0. 28 kg Cavity: 1+1 DCM : 500 T Application: Automotive Mirror Vehicle/Model: GM D 2 UC Raw material: Al. Si 12 Cu 1(Fe) Yearly volume: 380, 000 PCS Customer: SMR P 18

后视镜支架 Part Name: Base Frame Weight: 0. 2 kg Cavity: 1+1 DCM : 500 T Application: Automotive Mirror Raw material: A 380 Yearly volume: 300，000 PCS Customer: FICOSA Part Name: Base Frame Weight: 0. 2 kg Cavity: 1+1 DCM : 500 T Application: Automotive Mirror Raw material: A 380 Yearly volume: 3, 000 PCS Customer: FICOSA P 19

手刹 Part Name: Handbrake Weight: 0. 322 kg Cavity: 1 DCM : 500 T Application: Automotive Braking System Raw material: A 380 Yearly volume: 300，000 PCS Customer: FICOSA P 20

灯壳 Lighting Parts 新款灯壳 LED灯壳商场用筒灯新款灯壳 LED灯具新款灯壳地射灯壳电厂专用照明灯壳新款灯壳 LED灯壳 P 21

通讯设备机壳 Die casting housing applied in communication equipment 通讯设备配件通讯设备机壳 P 22

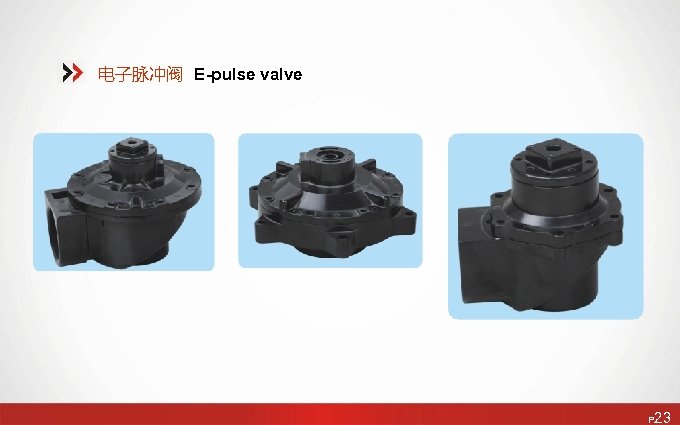

电子脉冲阀 E-pulse valve P 23

电机壳 Die casting applied in motor casing 电机端盖电机壳 P 24

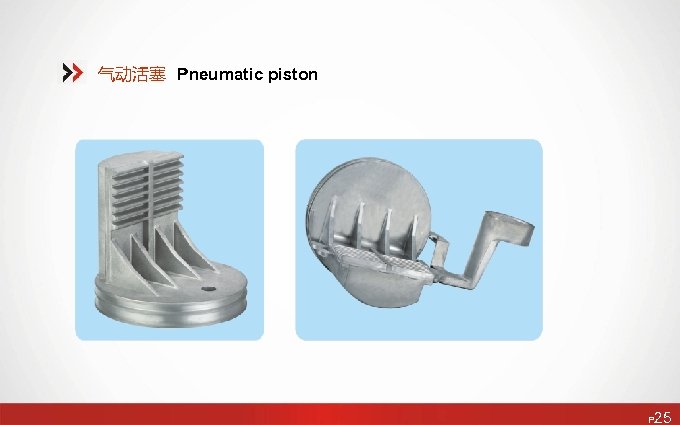

气动活塞 Pneumatic piston P 25

企业文化 Company Culture 消防演习 2013德国汉诺威业博览会体育活动民主生活会员生日 P 26

企业荣誉 Awards P 27

宁波杰达模具机械有限公司 Ningbo Jieda Molding&Machine Co. , Ltd 感谢您的聆听！ Thank you for your attention！
