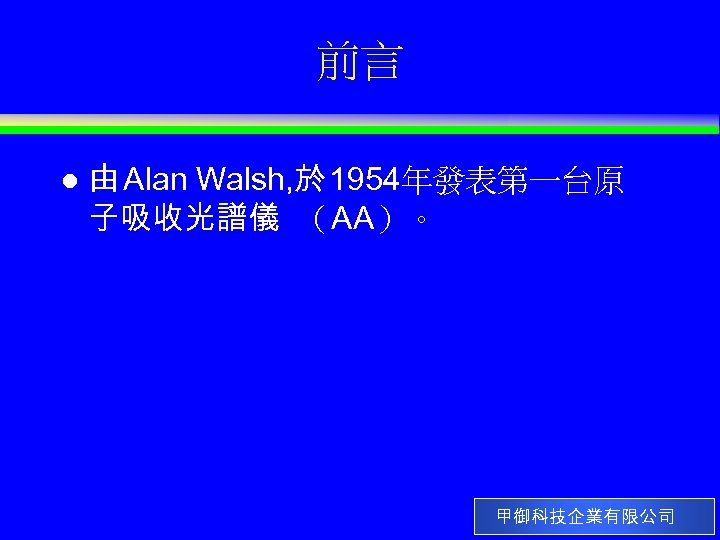

前言 l 由 Alan Walsh, 於 1954年發表第一台原 子吸收光譜儀 (AA)。 甲御科技企業有限公司

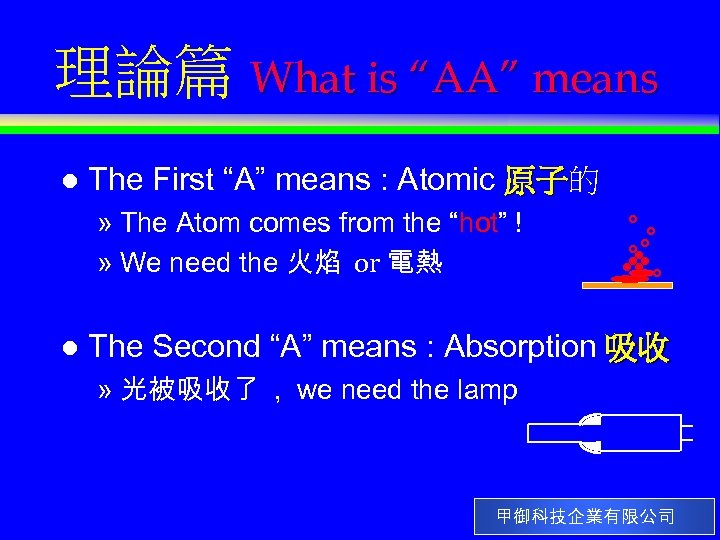

理論篇 What is “AA” means l The First “A” means : Atomic 原子的 原子 » The Atom comes from the “hot” ! » We need the 火焰 or 電熱 l The Second “A” means : Absorption 吸收 » 光被吸收了 , we need the lamp 甲御科技企業有限公司

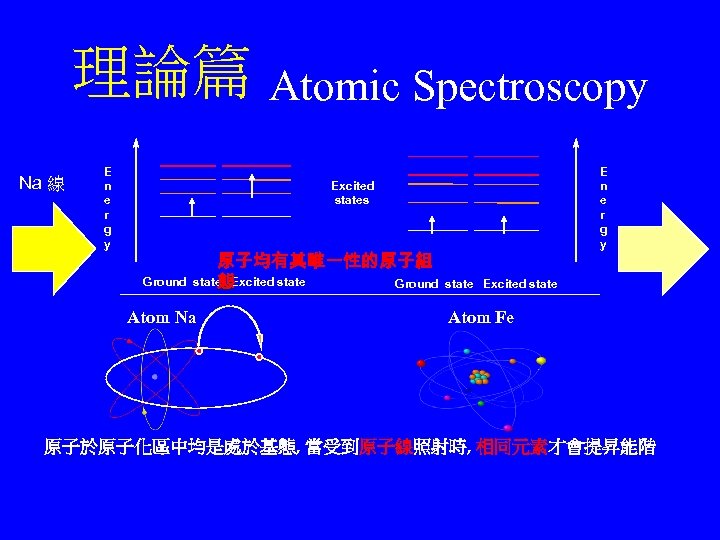

理論篇 Atomic Spectroscopy Na 線 E n e r g y Excited states Ground 原子均有其唯一性的原子組 state Excited state Ground 態 Atom Na state Excited state Atom Fe 原子於原子化區中均是處於基態, 當受到原子線照射時, 相同元素才會提昇能階

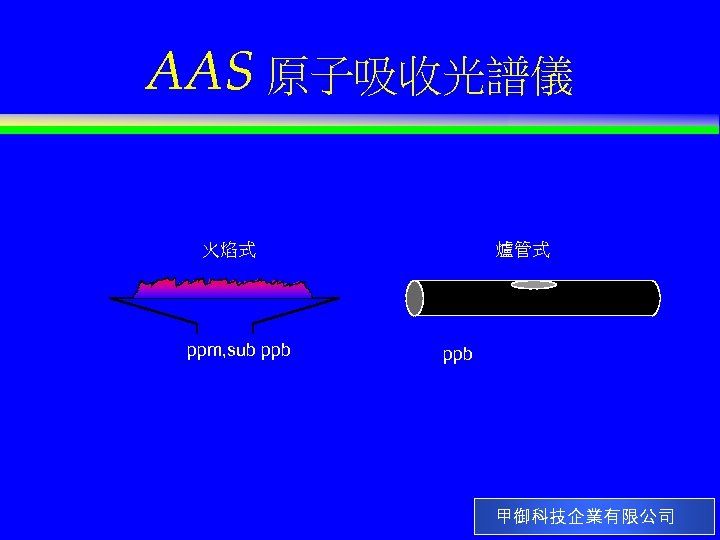

AAS 原子吸收光譜儀 火焰式 ppm, sub ppb 爐管式 ppb 甲御科技企業有限公司

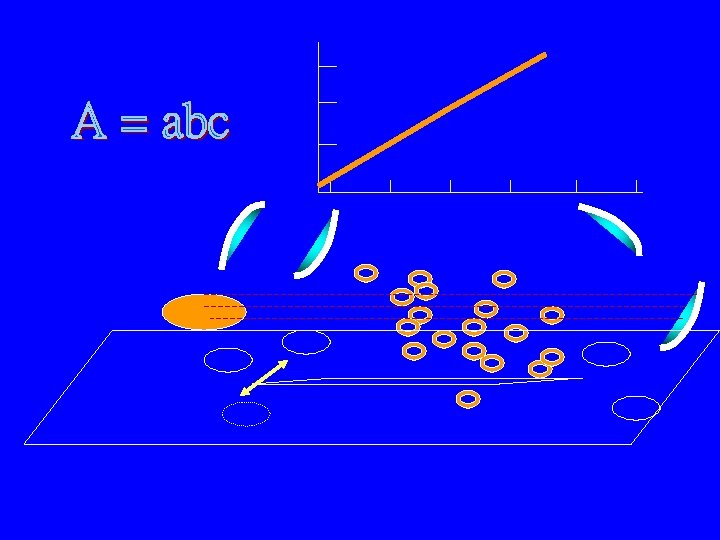

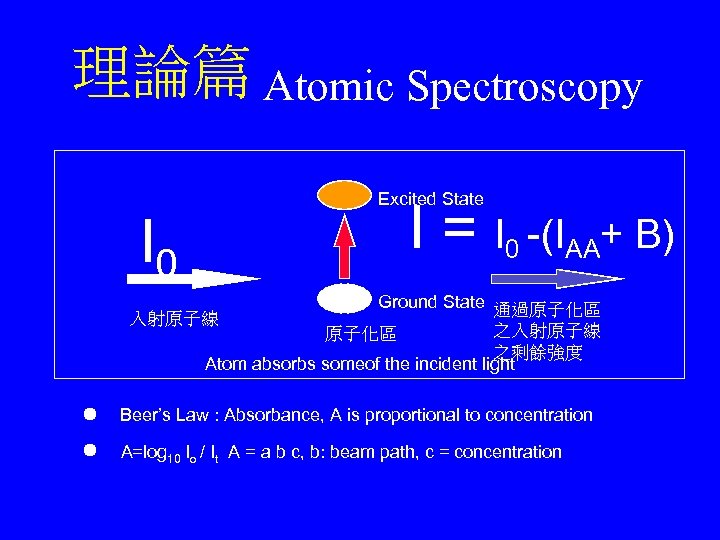

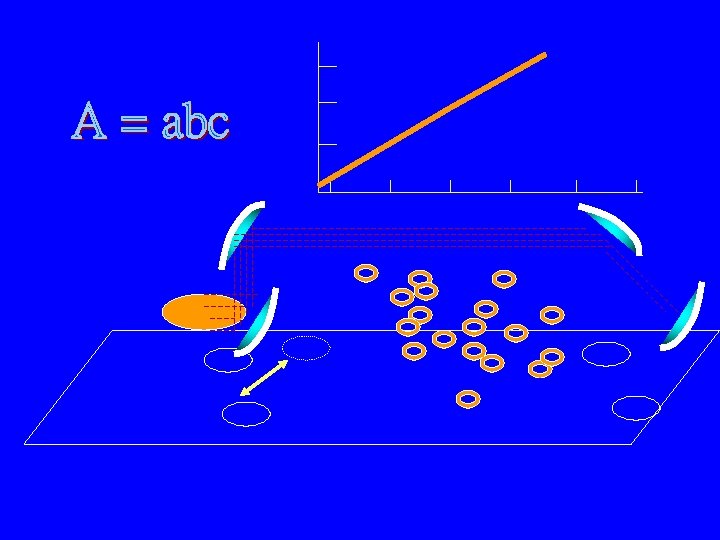

理論篇 Atomic Spectroscopy I 0 Excited State I = I 0 -(IAA+ B) Ground State 通過原子化區 入射原子線 之入射原子線 原子化區 之剩餘強度 Atom absorbs someof the incident light Beer’s Law : Absorbance, A is proportional to concentration A=log 10 Io / It A = a b c, b: beam path, c = concentration

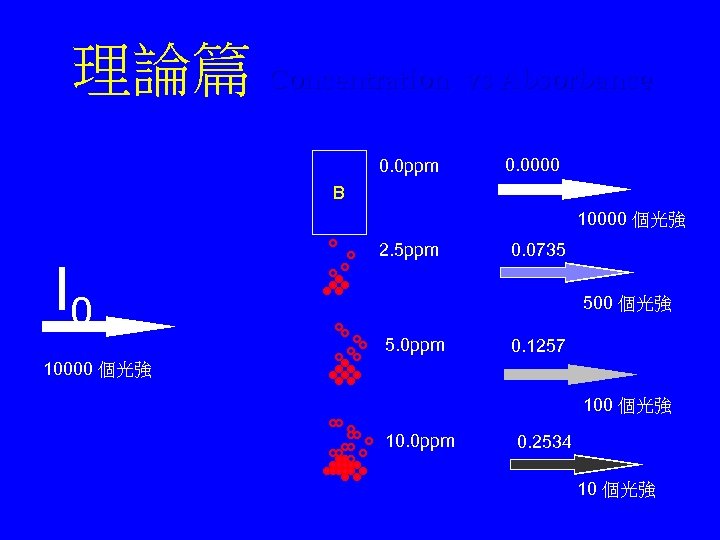

理論篇 Concentration vs Absorbance 0. 0 ppm 0. 0000 B 10000 個光強 I 0 2. 5 ppm 0. 0735 500 個光強 5. 0 ppm 0. 1257 10000 個光強 10. 0 ppm 0. 2534 10 個光強

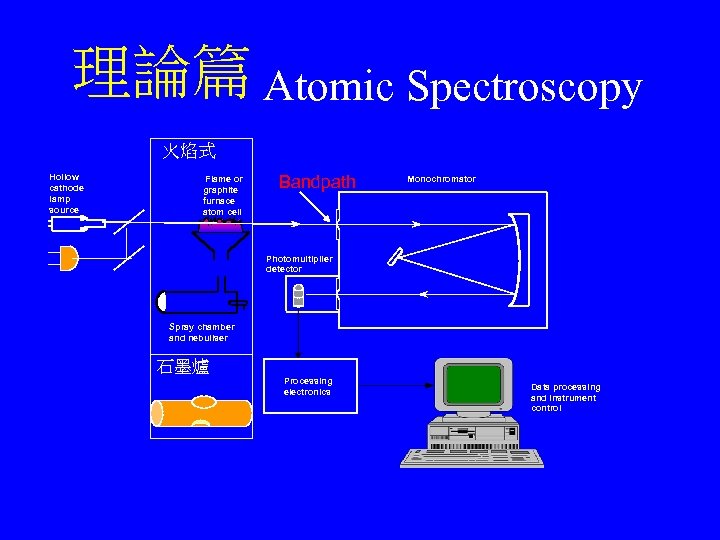

理論篇 Atomic Spectroscopy 火焰式 Hollow cathode lamp source Flame or graphite furnace atom cell Bandpath Monochromator Photomultiplier detector Spray chamber and nebuliser 石墨爐 Processing electronics Data processing and instrument control

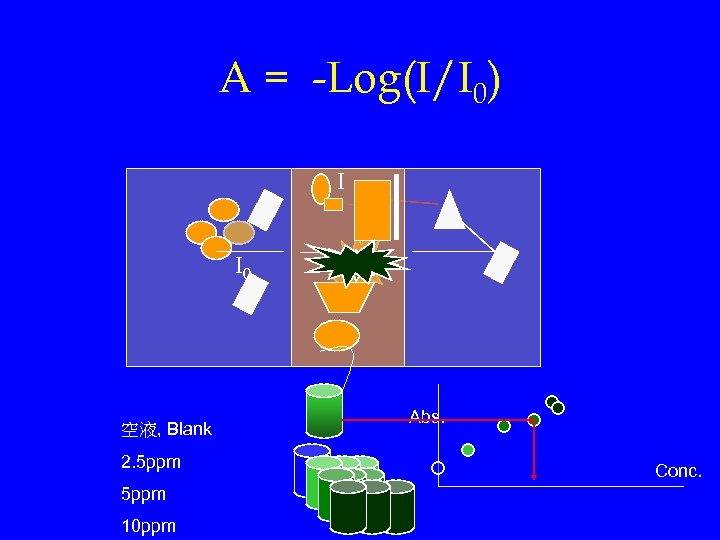

A = -Log(I/I 0) I I 0 空液, Blank 2. 5 ppm 10 ppm Abs. Conc.

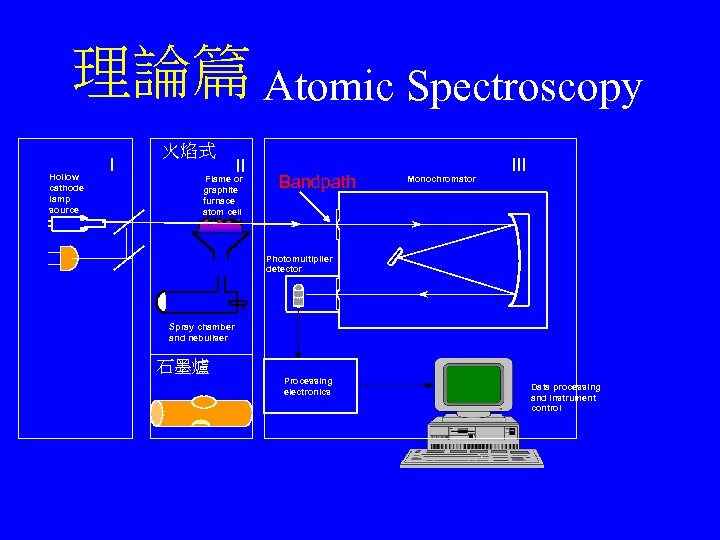

理論篇 Atomic Spectroscopy Hollow cathode lamp source I 火焰式 II Flame or graphite furnace atom cell Bandpath Monochromator III Photomultiplier detector Spray chamber and nebuliser 石墨爐 Processing electronics Data processing and instrument control

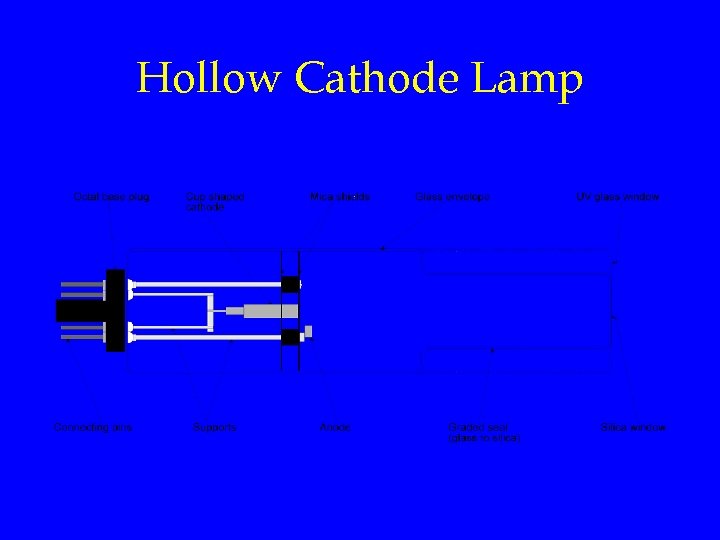

Hollow Cathode Lamp

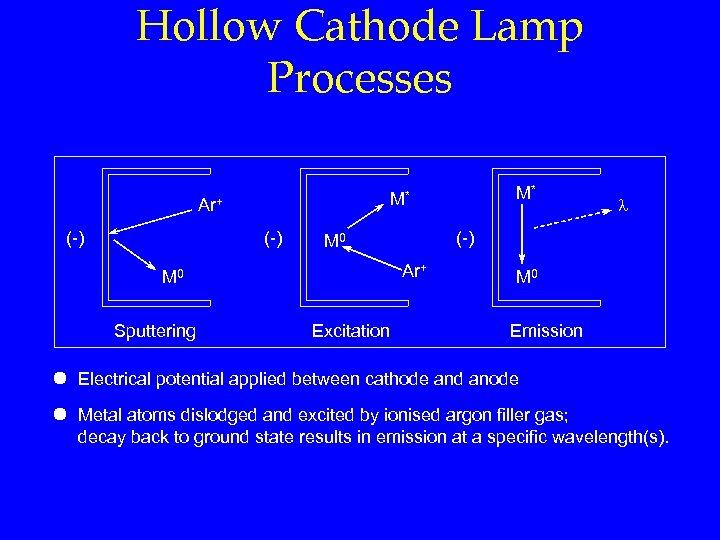

Hollow Cathode Lamp Processes (-) Ar+ Excitation l (-) M 0 Sputtering M* M* Ar+ M 0 Emission Electrical potential applied between cathode and anode Metal atoms dislodged and excited by ionised argon filler gas; decay back to ground state results in emission at a specific wavelength(s).

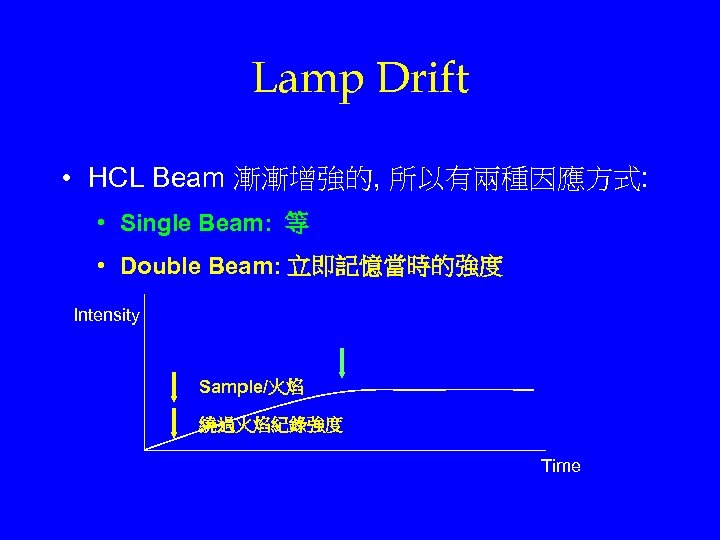

Lamp Drift • HCL Beam 漸漸增強的, 所以有兩種因應方式: • Single Beam: 等 • Double Beam: 立即記憶當時的強度 Intensity Sample/火焰 繞過火焰紀錄強度 Time

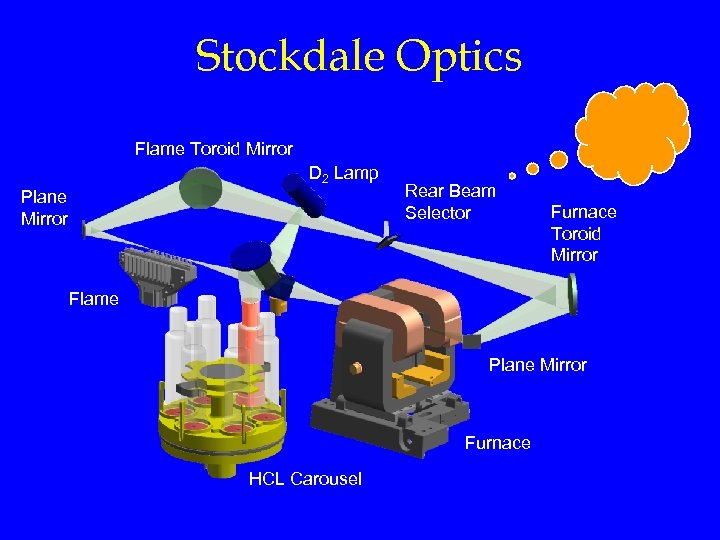

Stockdale Optics Flame Toroid Mirror D 2 Lamp Plane Mirror Rear Beam Selector Furnace Toroid Mirror Flame Plane Mirror Furnace HCL Carousel

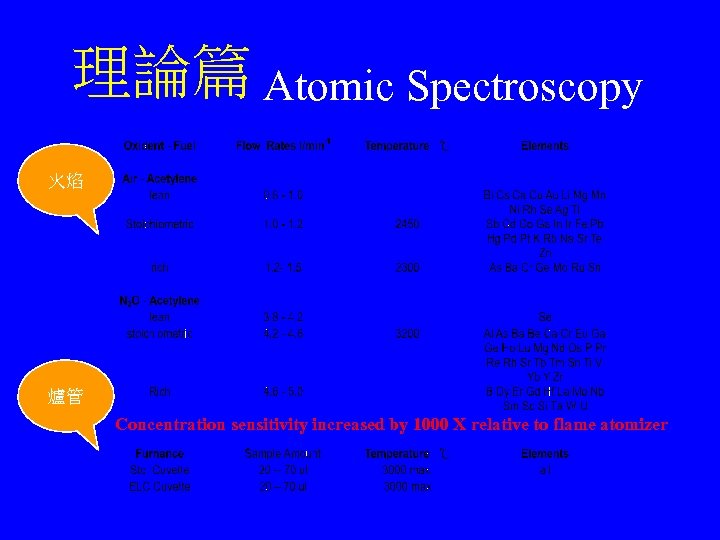

理論篇 Atomic Spectroscopy 火焰 爐管 Concentration sensitivity increased by 1000 X relative to flame atomizer

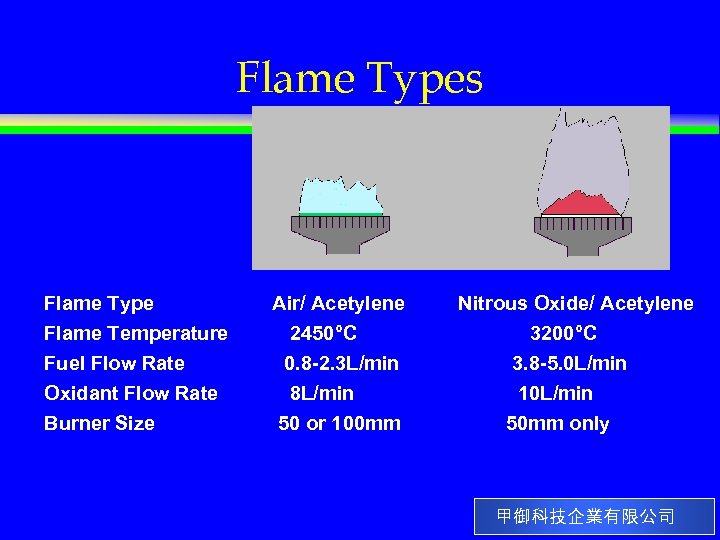

Flame Types Flame Type Flame Temperature Fuel Flow Rate Air/ Acetylene 2450°C 0. 8 -2. 3 L/min Oxidant Flow Rate Burner Size 8 L/min 50 or 100 mm Nitrous Oxide/ Acetylene 3200°C 3. 8 -5. 0 L/min 10 L/min 50 mm only 甲御科技企業有限公司
l. Excellent Burners corrosion resistance l. Slot design optimised for high dissolved solids samples l. Automatic spark ignition system l. Universal 50 mm slot as standard 甲御科技企業有限公司

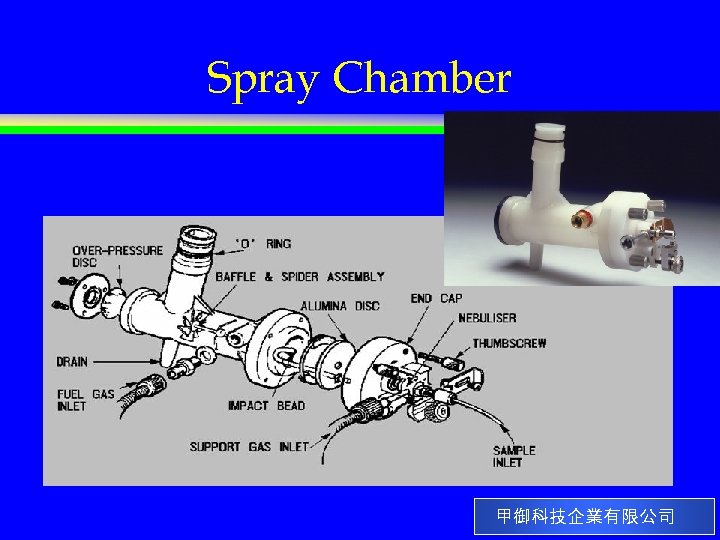

Spray Chamber 甲御科技企業有限公司

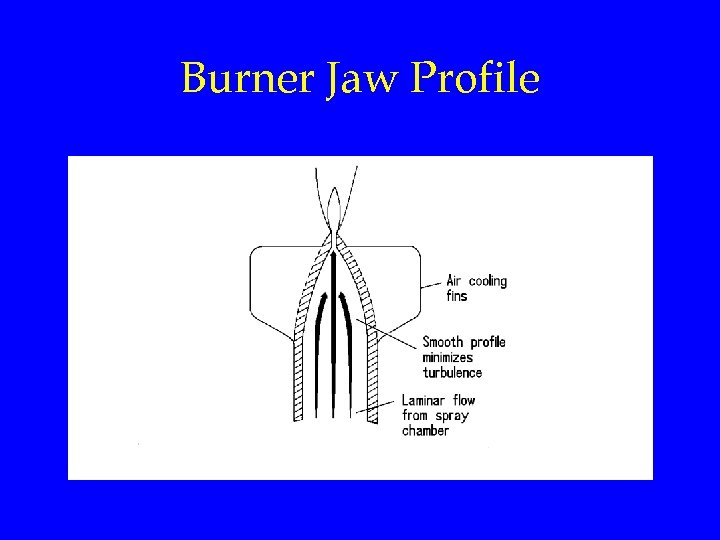

Burner Jaw Profile

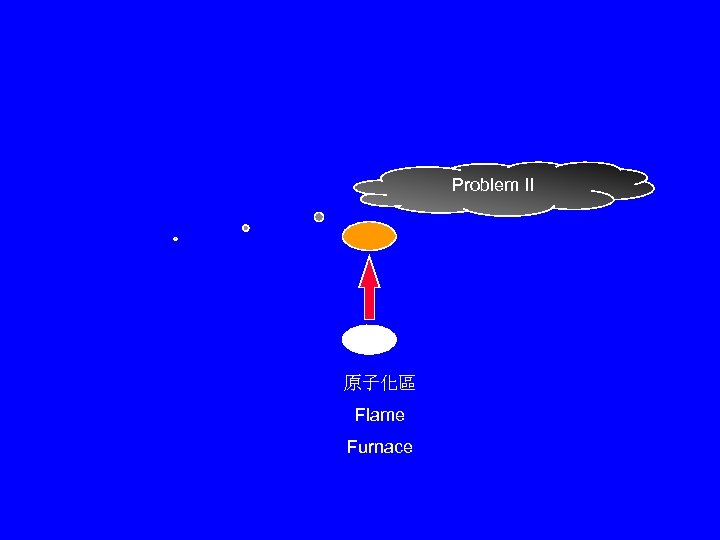

Problem II 原子化區 Flame Furnace

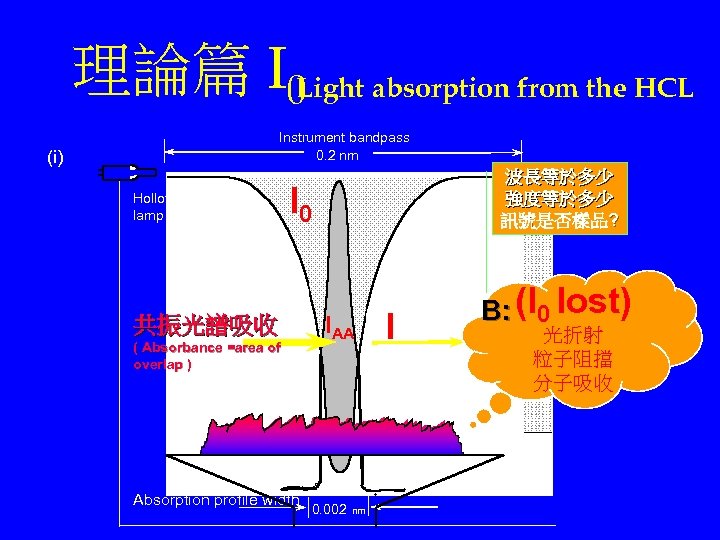

理論篇 I 0 Light absorption from the HCL Instrument bandpass 0. 2 nm (i) Hollow cathode lamp emission 波長等於多少 強度等於多少 訊號是否樣品? I 0 共振光譜吸收 ( Absorbance =area of overlap ) Absorption profile width IAA 0. 002 nm I B: (I 0 lost) 光折射 粒子阻擋 分子吸收

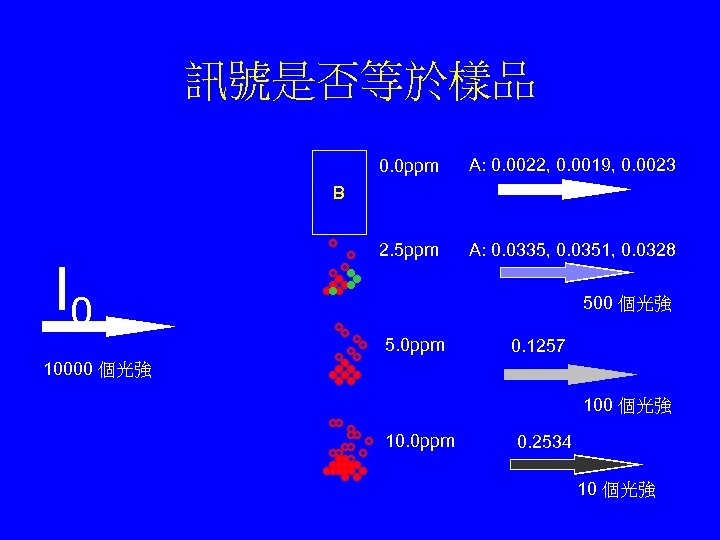

訊號是否等於樣品 0. 0 ppm A: 0. 0022, 0. 0019, 0. 0023 2. 5 ppm A: 0. 0335, 0. 0351, 0. 0328 B I 0 500 個光強 5. 0 ppm 0. 1257 10000 個光強 10. 0 ppm 0. 2534 10 個光強

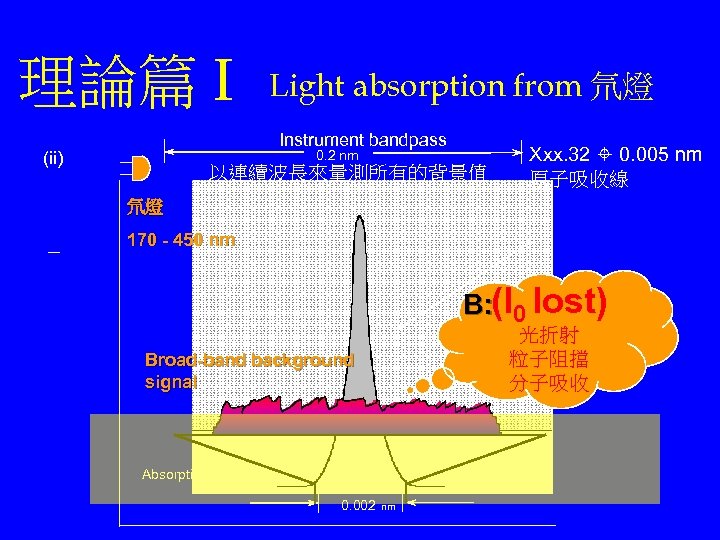

理論篇 I Light absorption from 氘燈 Instrument bandpass 0. 2 nm (ii) 以連續波長來量測所有的背景值 Xxx. 32 0. 005 nm 原子吸收線 氘燈 170 - 450 nm B: (I 0 lost) 光折射 粒子阻擋 分子吸收 Broad-band background signal Absorption profile width 0. 002 nm

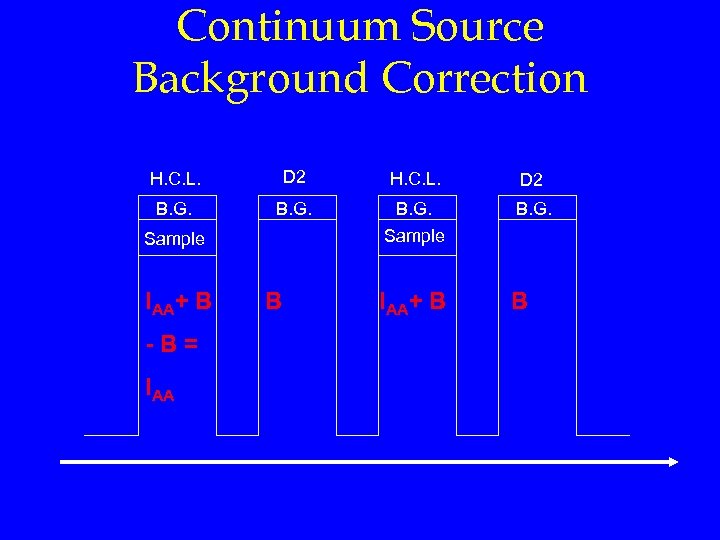

Continuum Source Background Correction H. C. L. D 2 B. G. Sample IAA+ B -B= IAA B IAA+ B B

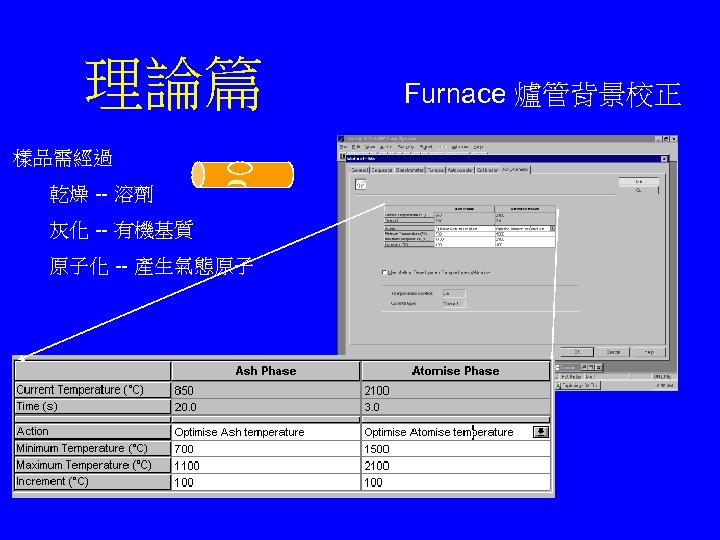

理論篇 樣品需經過 乾燥 -- 溶劑 灰化 -- 有機基質 原子化 -- 產生氣態原子 Furnace 爐管背景校正

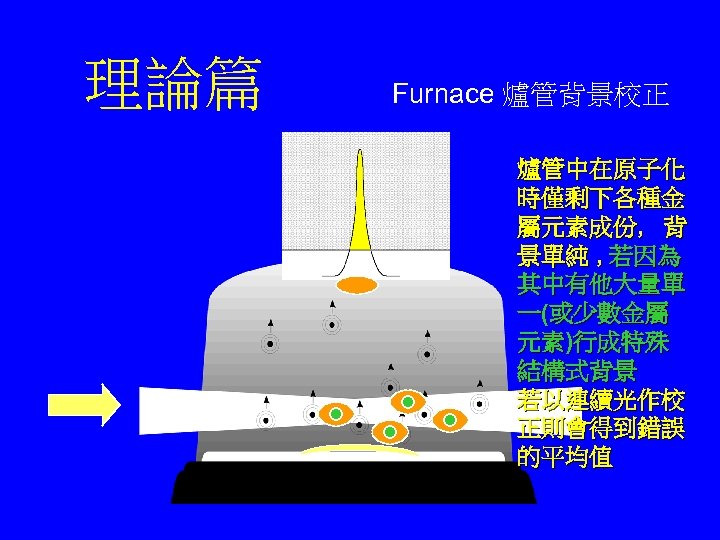

理論篇 Furnace 爐管背景校正 爐管中在原子化 時僅剩下各種金 屬元素成份, 背 景單純 , 若因為 其中有他大量單 一(或少數金屬 元素)行成特殊 結構式背景 若以連續光作校 正則會得到錯誤 的平均值
Zeeman - Absorption Emission Absorption profile split into and components by magnetic field around atomiser. + Normal hollow cathode lamp radiation Static Polariser Magnet OFF : Normal AA system Signal measured = AA + Background Magnet ON : Signal measured = Background only component removed by polariser, HCL measures background only.

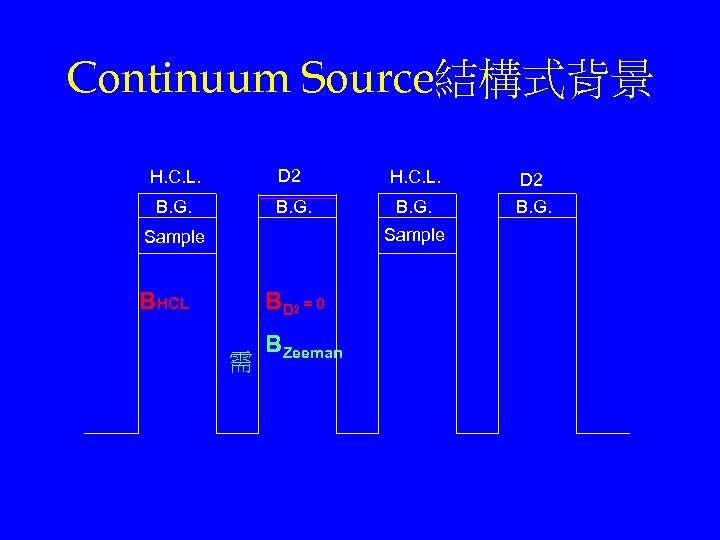

Continuum Source結構式背景 H. C. L. D 2 B. G. Sample BHCL B D 2 = 0 需 BZeeman

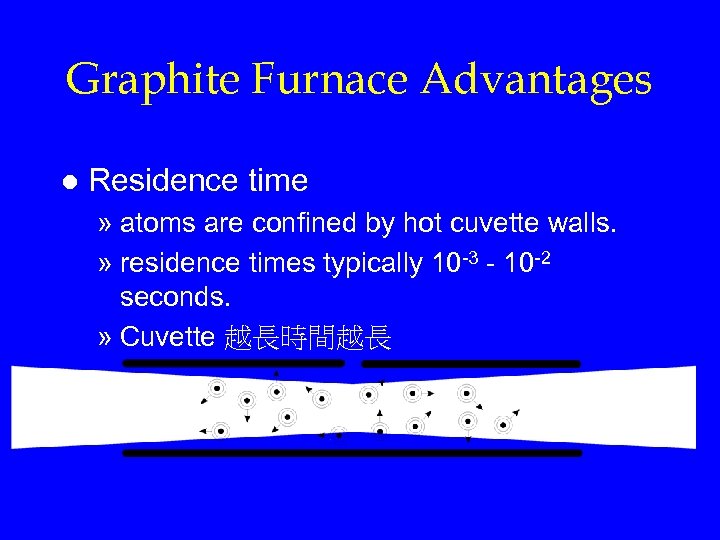

Graphite Furnace Advantages l Residence time » atoms are confined by hot cuvette walls. » residence times typically 10 -3 - 10 -2 seconds. » Cuvette 越長時間越長
Cuvette Heating l Cuvette heated electrically » Voltage around 10 V » Current around 300 A » Power 3 k. W for 3000°C » Rate of temperature increase > 3000°C/second
Cuvette Heating l Cuvette heated electrically » Voltage around 10 V » Current around 300 A » Power 3 k. W for 3000°C » Rate of temperature increase > 3000°C/second

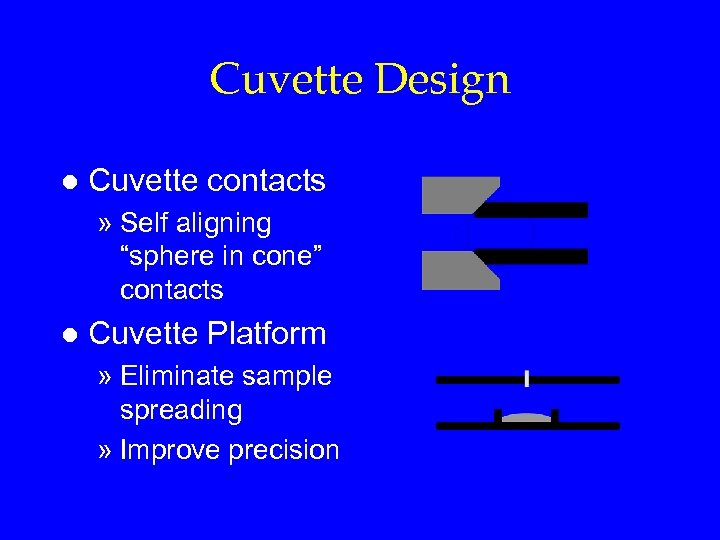

Cuvette Design l Cuvette contacts » Self aligning “sphere in cone” contacts l Cuvette Platform » Eliminate sample spreading » Improve precision

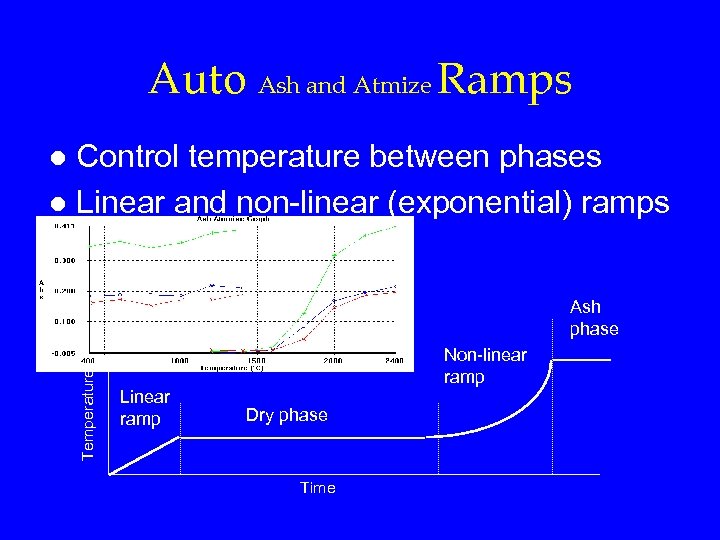

Auto Ash and Atmize Ramps Control temperature between phases l Linear and non-linear (exponential) ramps l Temperature Ash phase Non-linear ramp Linear ramp Dry phase Time

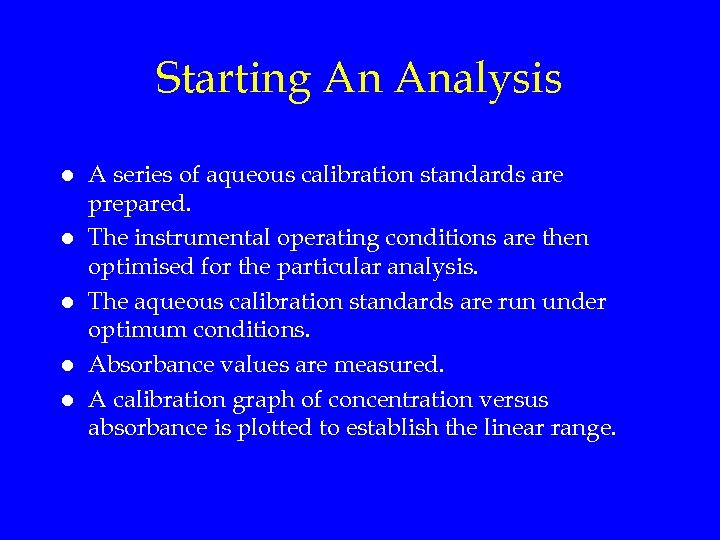

Starting An Analysis l l l A series of aqueous calibration standards are prepared. The instrumental operating conditions are then optimised for the particular analysis. The aqueous calibration standards are run under optimum conditions. Absorbance values are measured. A calibration graph of concentration versus absorbance is plotted to establish the linear range.

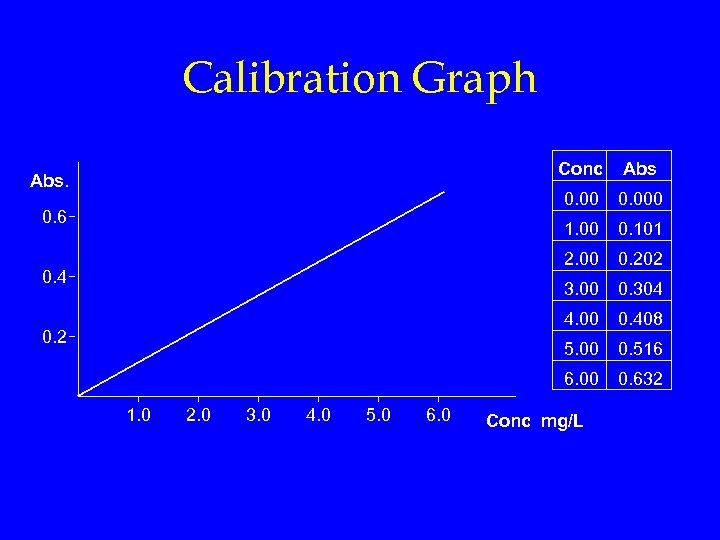

Calibration Graph Conc 4. 0 5. 0 6. 0 0. 516 6. 00 3. 0 0. 408 5. 00 2. 0 0. 304 4. 00 1. 0 0. 202 3. 00 0. 2 0. 101 2. 00 0. 4 0. 000 1. 00 0. 6 Abs 0. 00 Abs. 0. 632 Conc mg/L

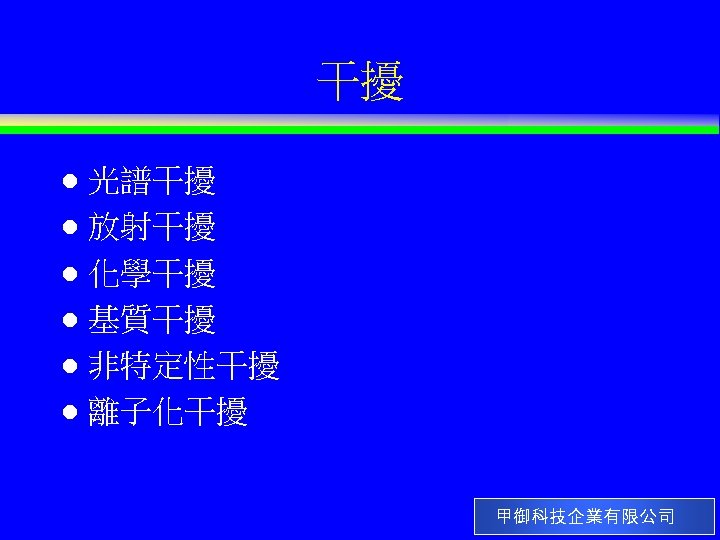

干擾 光譜干擾 l 放射干擾 l 化學干擾 l 基質干擾 l 非特定性干擾 l 離子化干擾 l 甲御科技企業有限公司

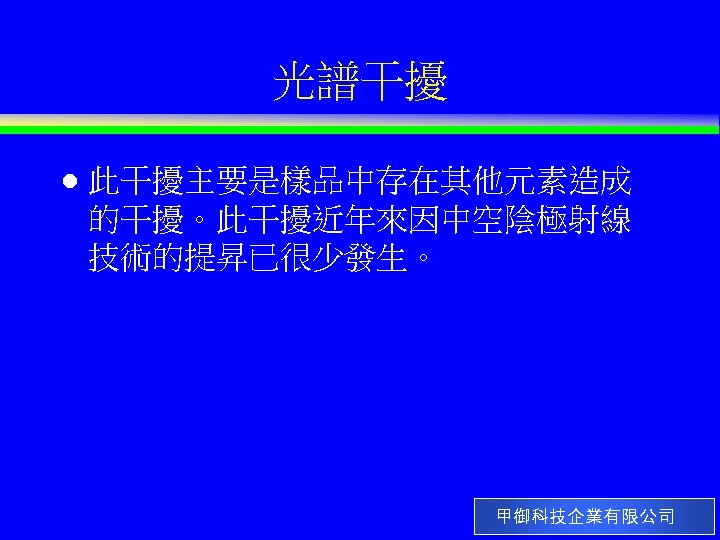

光譜干擾 l 此干擾主要是樣品中存在其他元素造成 的干擾。此干擾近年來因中空陰極射線 技術的提昇已很少發生。 甲御科技企業有限公司

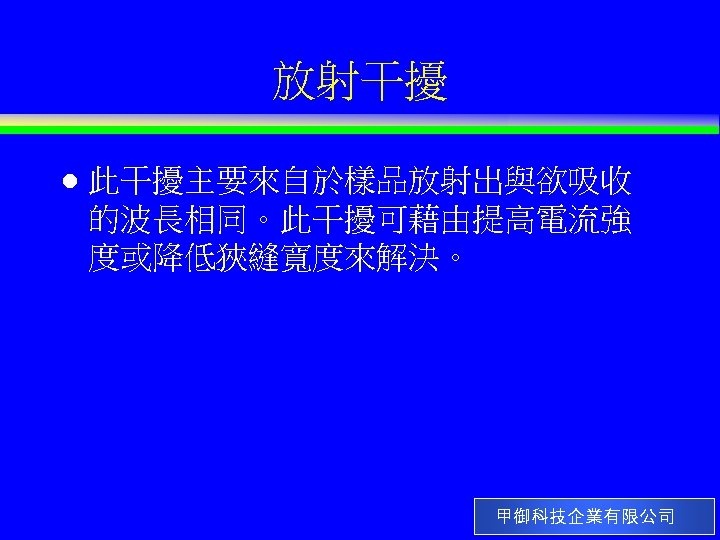

放射干擾 l 此干擾主要來自於樣品放射出與欲吸收 的波長相同。此干擾可藉由提高電流強 度或降低狹縫寬度來解決。 甲御科技企業有限公司

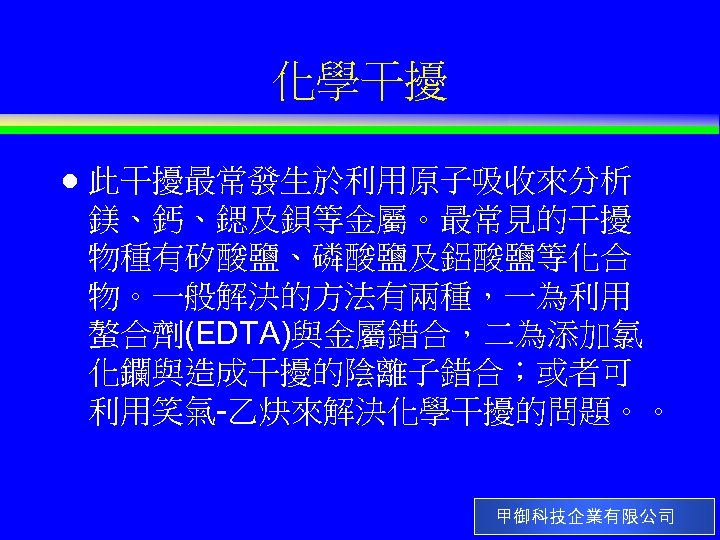

化學干擾 l 此干擾最常發生於利用原子吸收來分析 鎂、鈣、鍶及鋇等金屬。最常見的干擾 物種有矽酸鹽、磷酸鹽及鋁酸鹽等化合 物。一般解決的方法有兩種,一為利用 螯合劑(EDTA)與金屬錯合,二為添加氯 化鑭與造成干擾的陰離子錯合;或者可 利用笑氣-乙炔來解決化學干擾的問題。。 甲御科技企業有限公司
化學干擾之去除 l Ca 3(PO 4)2 l Ca + PO 43 - La. Cl 3 EDTA Ca. Cl 2 Ca-EDTA Air-C 2 H 2 Ca 0 Cao 甲御科技企業有限公司

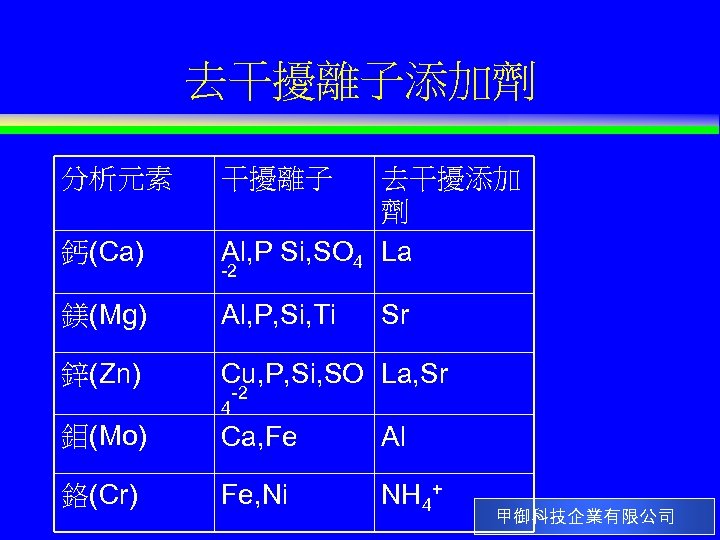

去干擾離子添加劑 分析元素 干擾離子 鈣(Ca) 去干擾添加 劑 Al, P Si, SO 4 La 鎂(Mg) Al, P, Si, Ti 鋅(Zn) Cu, P, Si, SO La, Sr -2 4 Sr -2 鉬(Mo) Ca, Fe Al 鉻(Cr) Fe, Ni NH 4+ 甲御科技企業有限公司

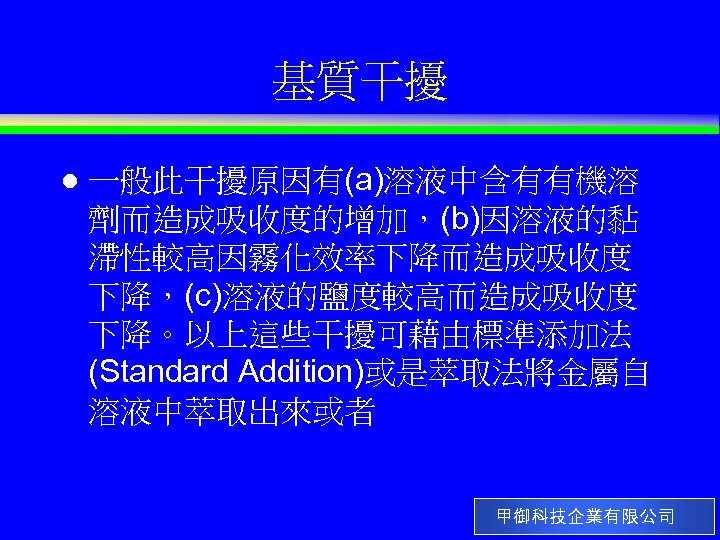

基質干擾 l 一般此干擾原因有(a)溶液中含有有機溶 劑而造成吸收度的增加,(b)因溶液的黏 滯性較高因霧化效率下降而造成吸收度 下降,(c)溶液的鹽度較高而造成吸收度 下降。以上這些干擾可藉由標準添加法 (Standard Addition)或是萃取法將金屬自 溶液中萃取出來或者 甲御科技企業有限公司

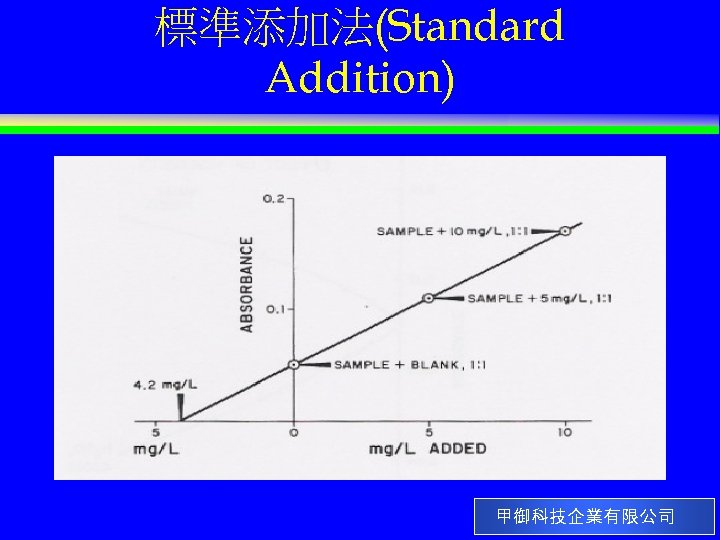

標準添加法(Standard Addition) 甲御科技企業有限公司
非特定性干擾 l 此干擾來自樣品中含有高濃度的鹽類, 此情形最常發生於波長在 250 nm以下, 此干擾可用萃取技術及背景校正來克服。 甲御科技企業有限公司

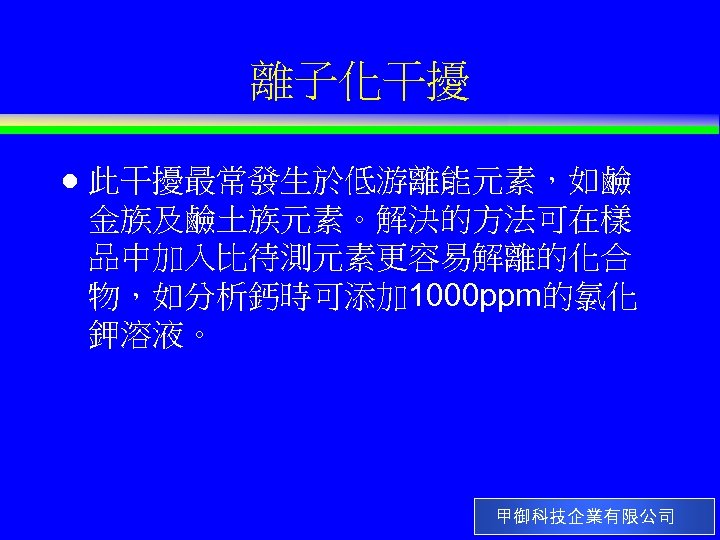

離子化干擾 l 此干擾最常發生於低游離能元素,如鹼 金族及鹼土族元素。解決的方法可在樣 品中加入比待測元素更容易解離的化合 物,如分析鈣時可添加 1000 ppm的氯化 鉀溶液。 甲御科技企業有限公司

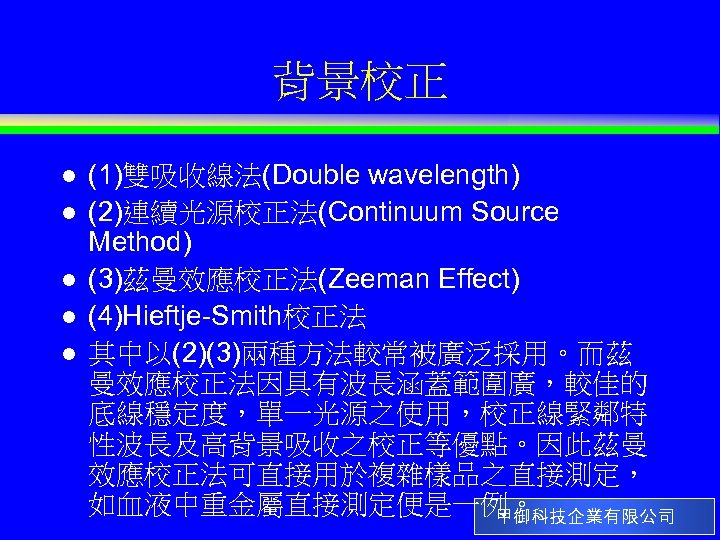

背景校正 l l l (1)雙吸收線法(Double wavelength) (2)連續光源校正法(Continuum Source Method) (3)茲曼效應校正法(Zeeman Effect) (4)Hieftje-Smith校正法 其中以(2)(3)兩種方法較常被廣泛採用。而茲 曼效應校正法因具有波長涵蓋範圍廣,較佳的 底線穩定度,單一光源之使用,校正線緊鄰特 性波長及高背景吸收之校正等優點。因此茲曼 效應校正法可直接用於複雜樣品之直接測定, 如血液中重金屬直接測定便是一例。 甲御科技企業有限公司
