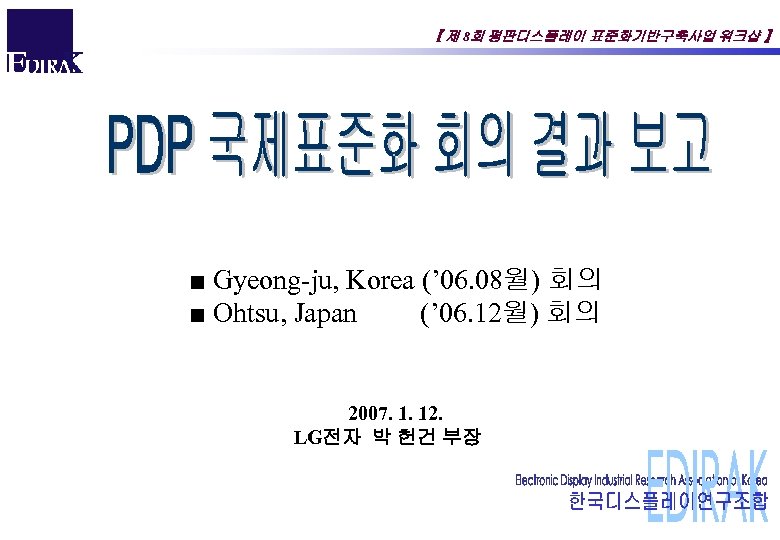

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ■ Gyeong-ju, Korea (’ 06. 08월) 회의 ■ Ohtsu, Japan (’ 06. 12월) 회의 2007. 1. 12. LG전자 박 헌건 부장

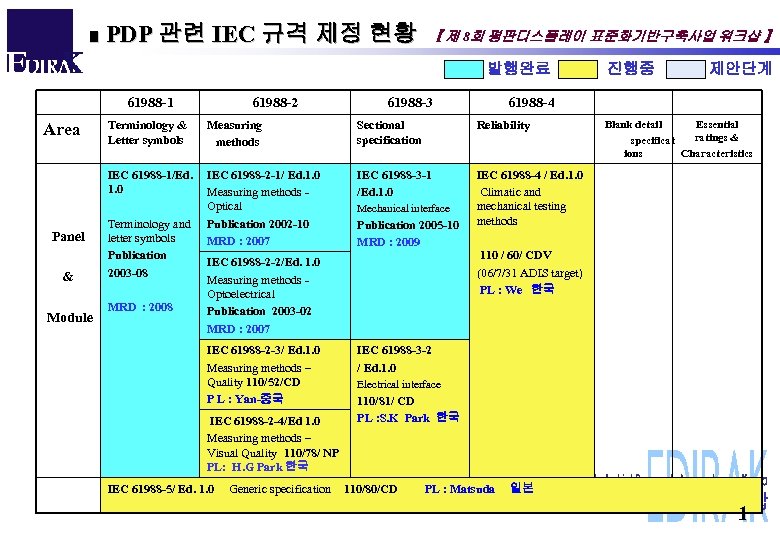

■ PDP 관련 IEC 규격 제정 현황 【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 발행완료 61988 -1 Area Panel & Module Terminology & Letter symbols 61988 -2 Measuring methods 61988 -3 진행중 제안단계 61988 -4 Sectional specification Reliability IEC 61988 -1/Ed. IEC 61988 -2 -1/ Ed. 1. 0 Measuring methods Optical Terminology and Publication 2002 -10 letter symbols MRD : 2007 Publication IEC 61988 -2 -2/Ed. 1. 0 2003 -08 Measuring methods Optoelectrical MRD : 2008 Publication 2003 -02 MRD : 2007 IEC 61988 -3 -1 /Ed. 1. 0 IEC 61988 -4 / Ed. 1. 0 Climatic and mechanical testing methods IEC 61988 -2 -3/ Ed. 1. 0 Measuring methods – Quality 110/52/CD P L : Yan-중국 Blank detail Essential ratings & specificat ions Characteristics IEC 61988 -3 -2 / Ed. 1. 0 IEC 61988 -2 -4/Ed 1. 0 Measuring methods – Visual Quality 110/78/ NP PL: H. G Park 한국 IEC 61988 -5/ Ed. 1. 0 Generic specification Mechanical interface Publication 2005 -10 MRD : 2009 110 / 60/ CDV (06/7/31 ADIS target) PL : We 한국 Electrical interface 110/81/ CD PL : S. K Park 한국 110/80/CD PL : Matsuda 일본 1

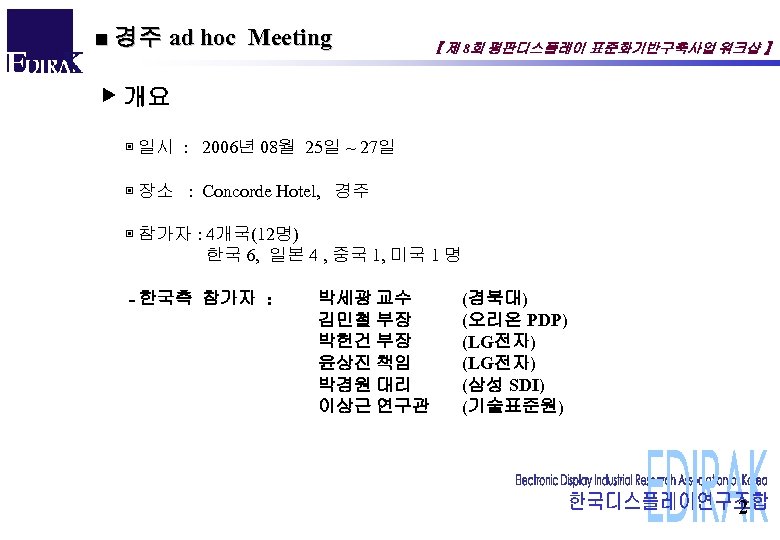

■ 경주 ad hoc Meeting 【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▶ 개요 ▣ 일시 : 2006년 08월 25일 ~ 27일 ▣ 장소 : Concorde Hotel, 경주 ▣ 참가자 : 4개국(12명) 한국 6, 일본 4 , 중국 1, 미국 1 명 - 한국측 참가자 : 박세광 교수 김민철 부장 박헌건 부장 윤상진 책임 박경원 대리 이상근 연구관 (경북대) (오리온 PDP) (LG전자) (삼성 SDI) (기술표준원) 2

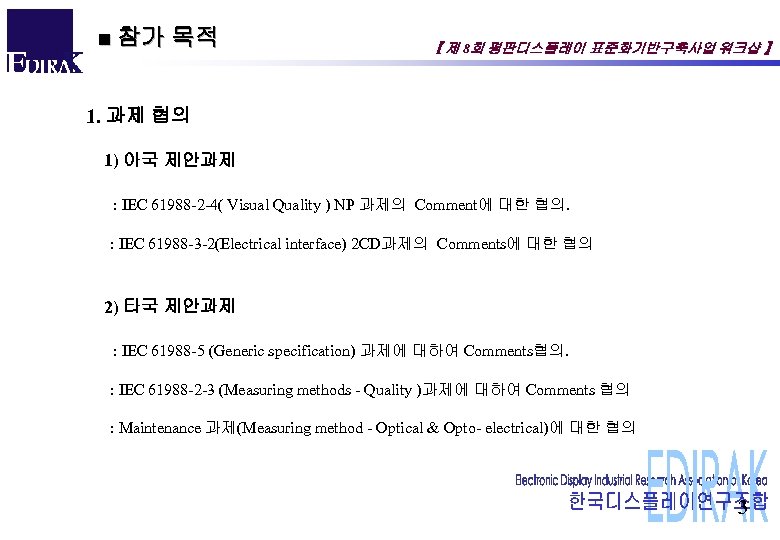

■ 참가 목적 【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 1. 과제 협의 1) 아국 제안과제 : IEC 61988 -2 -4( Visual Quality ) NP 과제의 Comment에 대한 협의. : IEC 61988 -3 -2(Electrical interface) 2 CD과제의 Comments에 대한 협의 2) 타국 제안과제 : IEC 61988 -5 (Generic specification) 과제에 대하여 Comments협의. : IEC 61988 -2 -3 (Measuring methods - Quality )과제에 대하여 Comments 협의 : Maintenance 과제(Measuring method - Optical & Opto- electrical)에 대한 협의 3

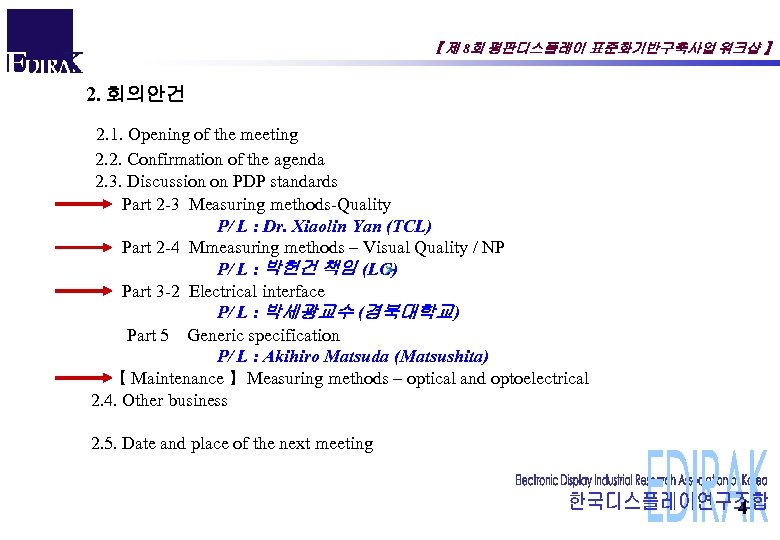

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 2. 회의안건 2. 1. Opening of the meeting 2. 2. Confirmation of the agenda 2. 3. Discussion on PDP standards Part 2 -3 Measuring methods-Quality P/ L : Dr. Xiaolin Yan (TCL) Part 2 -4 Mmeasuring methods – Visual Quality / NP P/ L : 박헌건 책임 (LG) Part 3 -2 Electrical interface P/ L : 박세광교수 (경북대학교) Part 5 Generic specification P/ L : Akihiro Matsuda (Matsushita) 【 Maintenance 】Measuring methods – optical and optoelectrical 2. 4. Other business 2. 5. Date and place of the next meeting 4

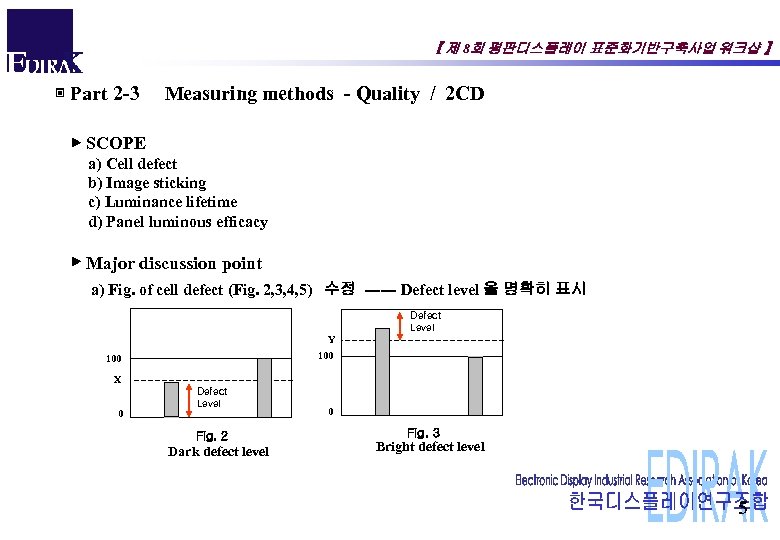

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 2 -3 Measuring methods - Quality / 2 CD ▶ SCOPE a) Cell defect b) Image sticking c) Luminance lifetime d) Panel luminous efficacy ▶ Major discussion point a) Fig. of cell defect (Fig. 2, 3, 4, 5) 수정 ------ Defect level 을 명확히 표시 Defect Level Y 100 X 0 Defect Level Fig. 2 Dark defect level 0 Fig. 3 Bright defect level 5
【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 b) 수명시험을 위한 초기 휘도 측정시점 동작 초기의 휘도 불안정을 해소하기 위해 1일 이후에 초기 휘도측정 Relative Luminance [%] 100 -1 day 0 +1 day Test start Initial value check 6
【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 c) Image sticking 수식변경 Image sticking pattern Image sticking measuring position • IS(R) = (1 - LA 0(R) / Lav(R)) × 100 % • IS(G) = (1 - LA 0(G) / Lav(G)) × 100 % • IS(B) = (1 - LA 0(B) / Lav(B)) × 100 % • IS(R)=[(LA 0, initial(R)/LAav, initial(R) - (LA 0, final(R)/LAav, final(R)] * 100% LA 0, final(R) / Lav, final(R) • IS(R) = (1 - ---------- ) * 100% (최종 제안수식) LA 0, initial(R) / Lav, initial(R) 7

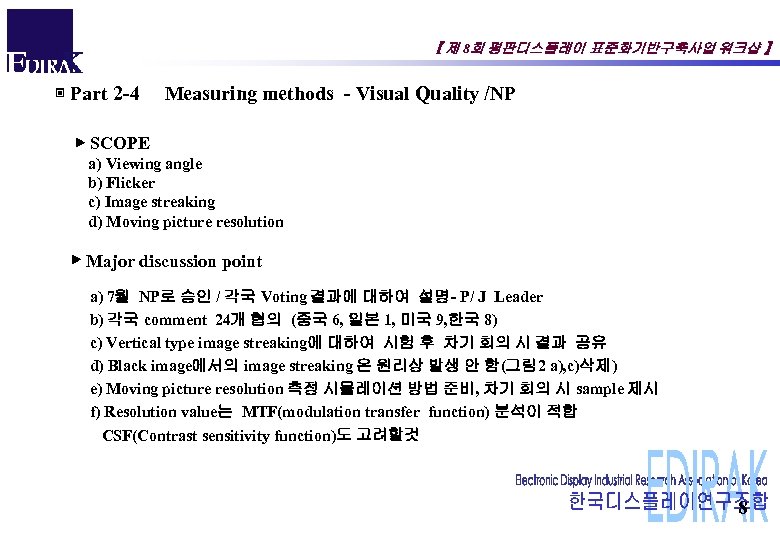

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 2 -4 Measuring methods - Visual Quality /NP ▶ SCOPE a) Viewing angle b) Flicker c) Image streaking d) Moving picture resolution ▶ Major discussion point a) 7월 NP로 승인 / 각국 Voting 결과에 대하여 설명- P/ J Leader b) 각국 comment 24개 협의 (중국 6, 일본 1, 미국 9, 한국 8) c) Vertical type image streaking에 대하여 시험 후 차기 회의 시 결과 공유 d) Black image에서의 image streaking 은 원리상 발생 안 함(그림 2 a), c)삭제) e) Moving picture resolution 측정 시뮬레이션 방법 준비, 차기 회의 시 sample 제시 f) Resolution value는 MTF(modulation transfer function) 분석이 적합 CSF(Contrast sensitivity function)도 고려할것 8

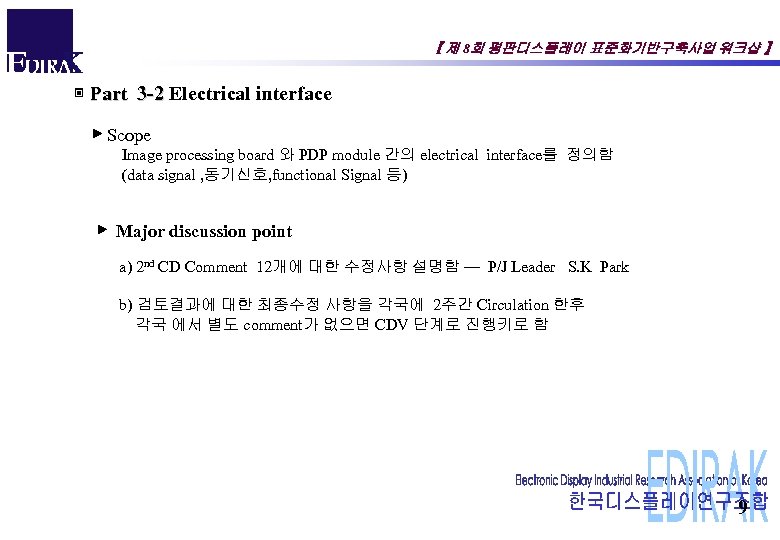

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 3 -2 Electrical interface Part 3 -2 ▶ Scope Image processing board 와 PDP module 간의 electrical interface를 정의함 (data signal , 동기신호, functional Signal 등) ▶ Major discussion point a) 2 nd CD Comment 12개에 대한 수정사항 설명함 — P/J Leader S. K Park b) 검토결과에 대한 최종수정 사항을 각국에 2주간 Circulation 한후 각국 에서 별도 comment가 없으면 CDV 단계로 진행키로 함 9

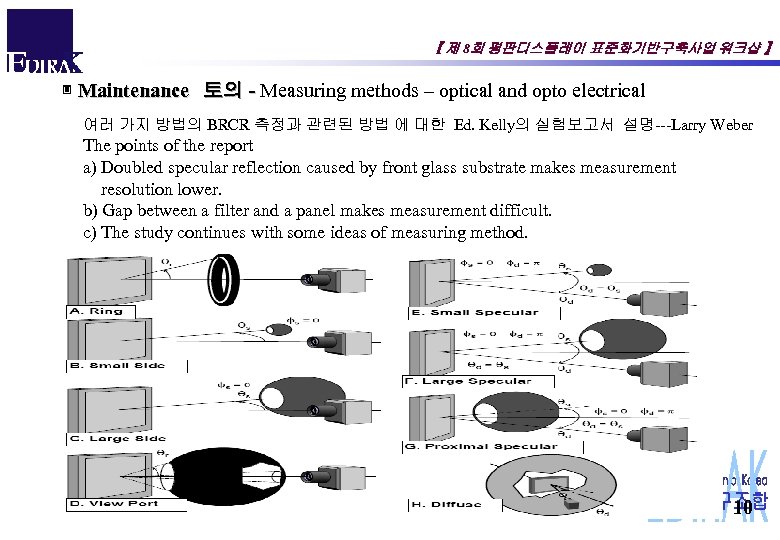

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Maintenance 토의 - Measuring methods – optical and opto electrical - 여러 가지 방법의 BRCR 측정과 관련된 방법 에 대한 Ed. Kelly의 실험보고서 설명---Larry Weber The points of the report a) Doubled specular reflection caused by front glass substrate makes measurement resolution lower. b) Gap between a filter and a panel makes measurement difficult. c) The study continues with some ideas of measuring method. 10

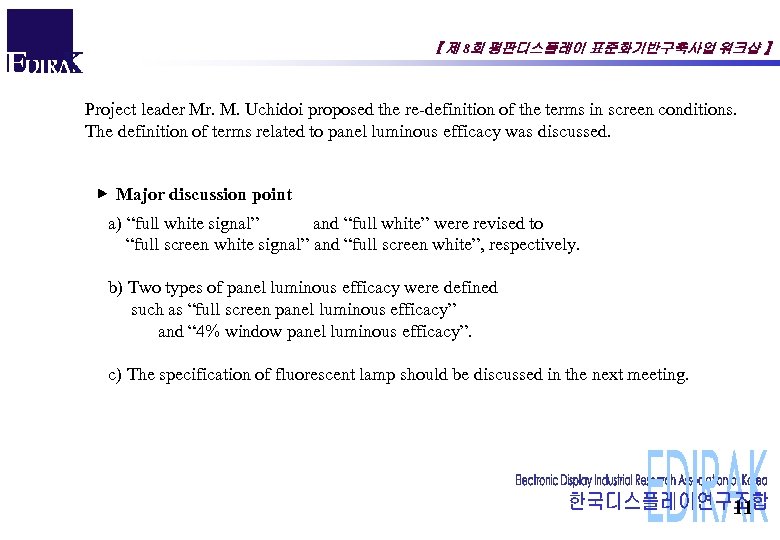

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 Project leader Mr. M. Uchidoi proposed the re-definition of the terms in screen conditions. The definition of terms related to panel luminous efficacy was discussed. ▶ Major discussion point a) “full white signal” and “full white” were revised to “full screen white signal” and “full screen white”, respectively. b) Two types of panel luminous efficacy were defined such as “full screen panel luminous efficacy” and “ 4% window panel luminous efficacy”. c) The specification of fluorescent lamp should be discussed in the next meeting. 11

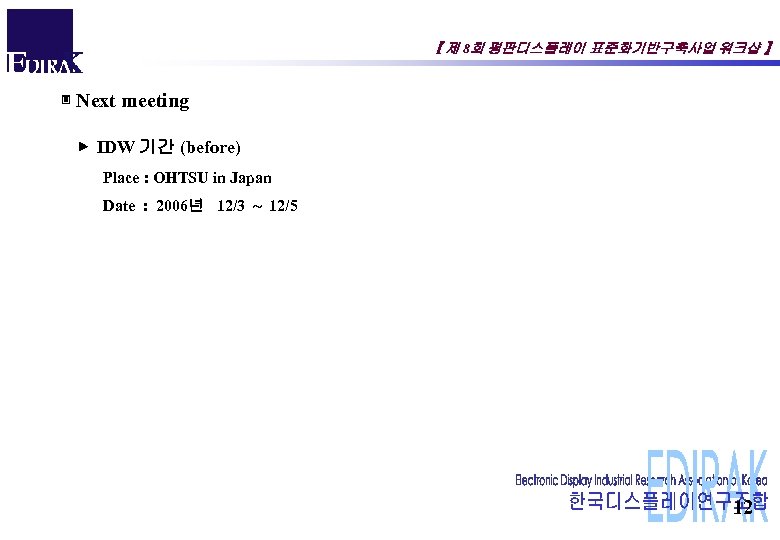

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Next meeting ▶ IDW 기간 (before) Place : OHTSU in Japan Date : 2006년 12/3 ~ 12/5 12

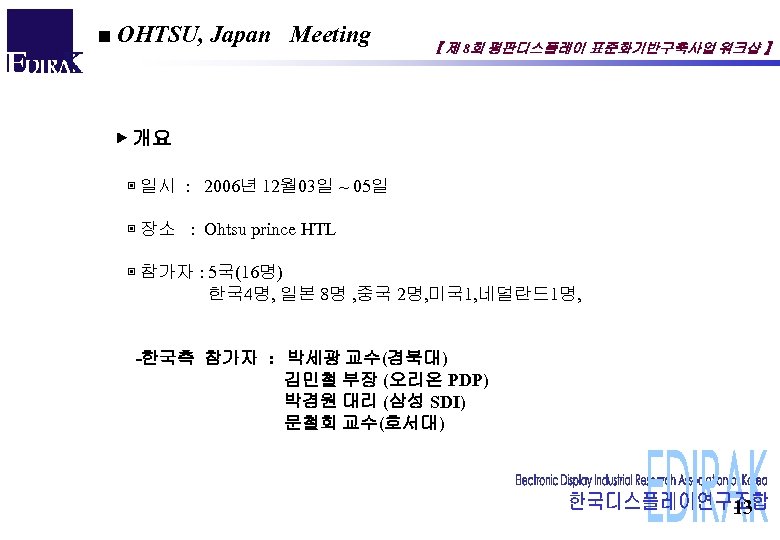

■ OHTSU, Japan Meeting 【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▶ 개요 ▣ 일시 : 2006년 12월 03일 ~ 05일 ▣ 장소 : Ohtsu prince HTL ▣ 참가자 : 5국(16명) 한국 4명, 일본 8명 , 중국 2명, 미국 1, 네덜란드 1명, -한국측 참가자 : 박세광 교수(경북대) 김민철 부장 (오리온 PDP) 박경원 대리 (삼성 SDI) 문철희 교수(호서대) 13

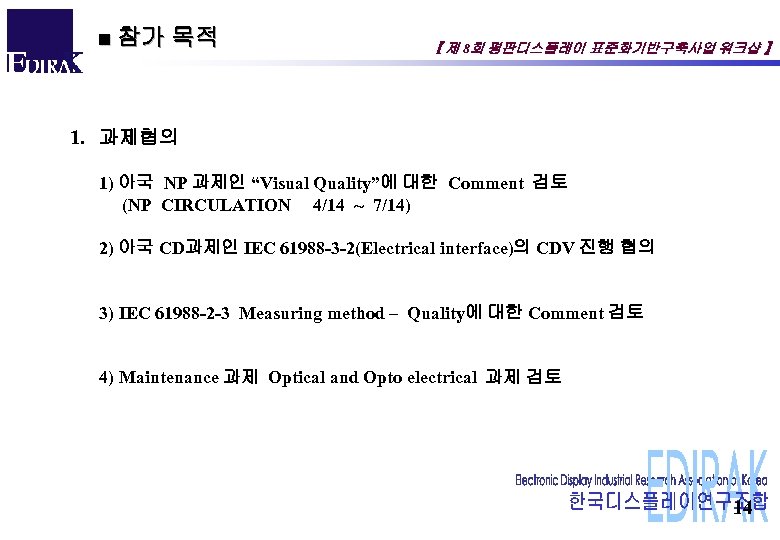

■ 참가 목적 【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 1. 과제협의 1) 아국 NP 과제인 “Visual Quality”에 대한 Comment 검토 (NP CIRCULATION 4/14 ~ 7/14) 2) 아국 CD과제인 IEC 61988 -3 -2(Electrical interface)의 CDV 진행 협의 3) IEC 61988 -2 -3 Measuring method – Quality에 대한 Comment 검토 4) Maintenance 과제 Optical and Opto electrical 과제 검토 14

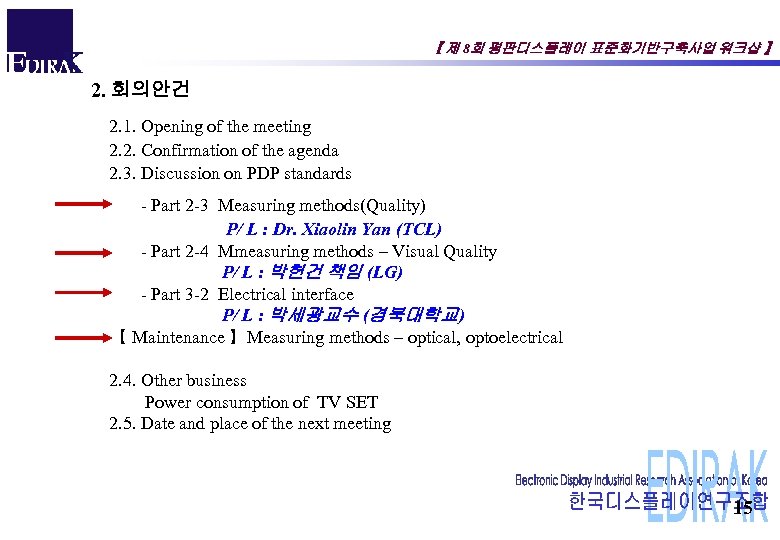

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 2. 회의안건 2. 1. Opening of the meeting 2. 2. Confirmation of the agenda 2. 3. Discussion on PDP standards - Part 2 -3 Measuring methods(Quality) P/ L : Dr. Xiaolin Yan (TCL) - Part 2 -4 Mmeasuring methods – Visual Quality P/ L : 박헌건 책임 (LG) - Part 3 -2 Electrical interface P/ L : 박세광교수 (경북대학교) 【 Maintenance 】Measuring methods – optical, optoelectrical 2. 4. Other business Power consumption of TV SET 2. 5. Date and place of the next meeting 15

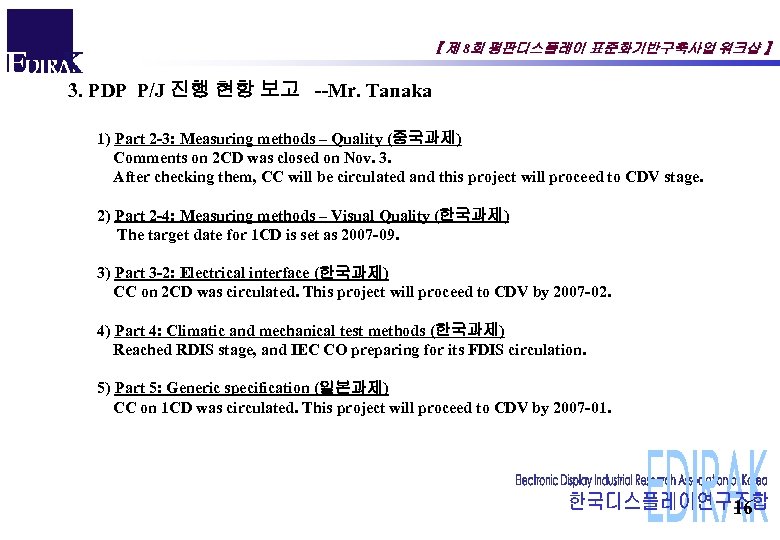

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 3. PDP P/J 진행 현항 보고 --Mr. Tanaka 1) Part 2 -3: Measuring methods – Quality (중국과제) Comments on 2 CD was closed on Nov. 3. After checking them, CC will be circulated and this project will proceed to CDV stage. 2) Part 2 -4: Measuring methods – Visual Quality (한국과제) The target date for 1 CD is set as 2007 -09. 3) Part 3 -2: Electrical interface (한국과제) CC on 2 CD was circulated. This project will proceed to CDV by 2007 -02. 4) Part 4: Climatic and mechanical test methods (한국과제) Reached RDIS stage, and IEC CO preparing for its FDIS circulation. 5) Part 5: Generic specification (일본과제) CC on 1 CD was circulated. This project will proceed to CDV by 2007 -01. 16
【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 2 -3 Measuring methods - Quality / 2 CD ▶ SCOPE 0, 5 H a) Cell defect b) Image sticking c) Luminance lifetime d) Panel luminous efficacy ▶ Major discussion point A-zone 0, 5 V B-zone Fig. 6 a) Cell defect 의 zone구분(그림 6) 에 대한 부가설명 추가 The outer box : total screen area The inner box : A-zone, A-zone 의 center는 Screen center와 일치 The remaining area : B-zone b) Image sticking 측정 시 white뿐만 아니라 R, G, B 모두 측정하고, white chromaticity도 기록. c) Luminance lifetime 측정pattern 협의 : full screen white로 측정. d) Annex에서 지수함수의 표기 수정 17

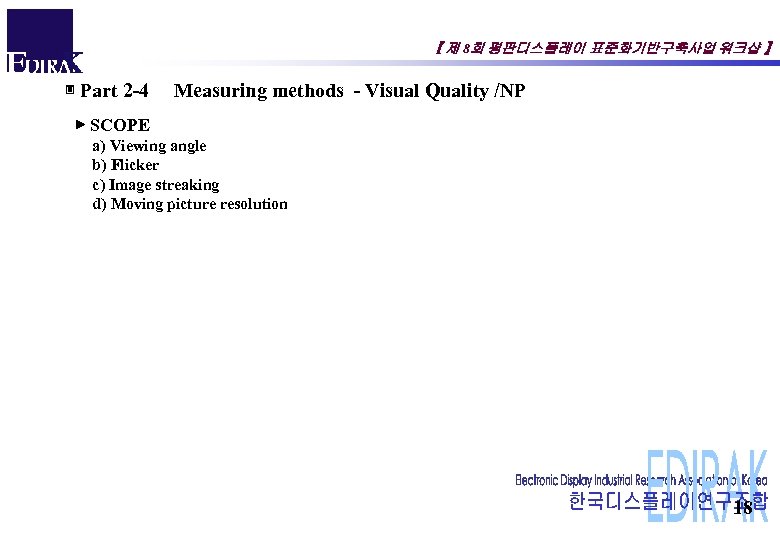

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 2 -4 Measuring methods - Visual Quality /NP ▶ SCOPE a) Viewing angle b) Flicker c) Image streaking d) Moving picture resolution 18

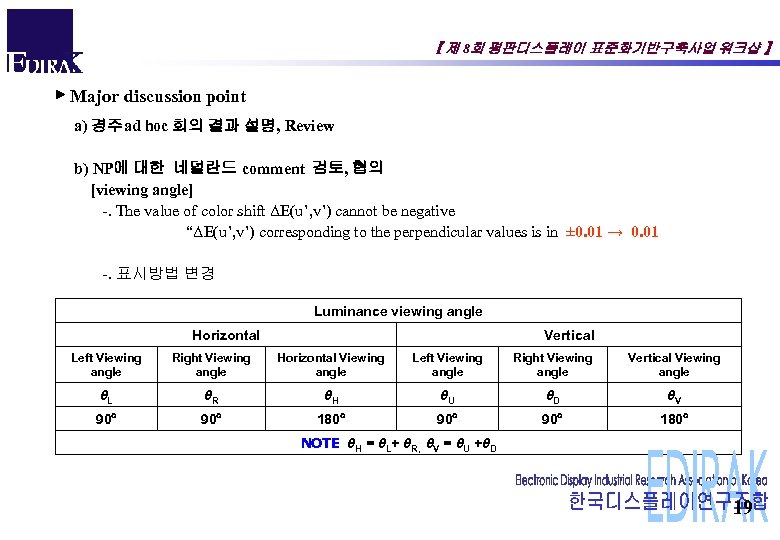

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▶ Major discussion point a) 경주ad hoc 회의 결과 설명, Review b) NP에 대한 네덜란드 comment 검토, 협의 [viewing angle] -. The value of color shift ΔE(u’, v’) cannot be negative “ΔE(u’, v’) corresponding to the perpendicular values is in ± 0. 01 → 0. 01 -. 표시방법 변경 Luminance viewing angle Horizontal Vertical Left Viewing angle Right Viewing angle Horizontal Viewing angle Left Viewing angle Right Viewing angle Vertical Viewing angle θL θR θH θU θD θV 90 90 180 NOTE θH = θL+ θR, θV = θU +θD 19

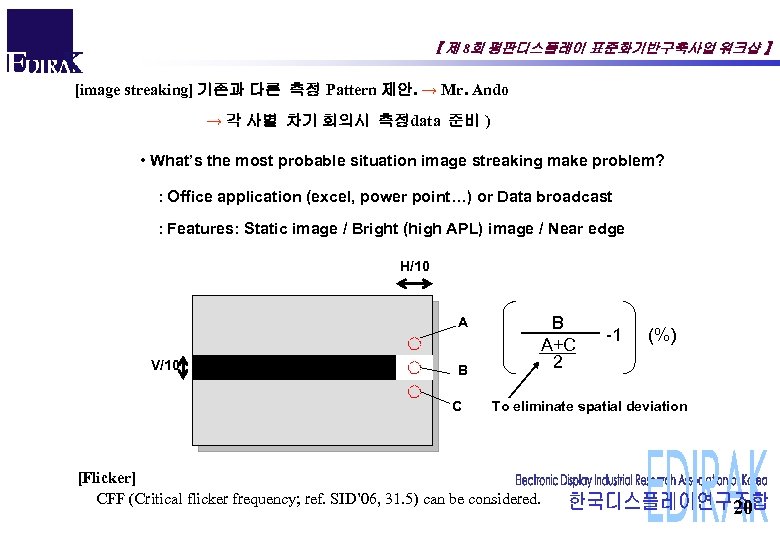

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 [image streaking] 기존과 다른 측정 Pattern 제안. → Mr. Ando → 각 사별 차기 회의시 측정data 준비 ) • What’s the most probable situation image streaking make problem? : Office application (excel, power point…) or Data broadcast : Features: Static image / Bright (high APL) image / Near edge H/10 A V/10 B C B A+C 2 -1 (%) To eliminate spatial deviation [Flicker] CFF (Critical flicker frequency; ref. SID’ 06, 31. 5) can be considered. 20

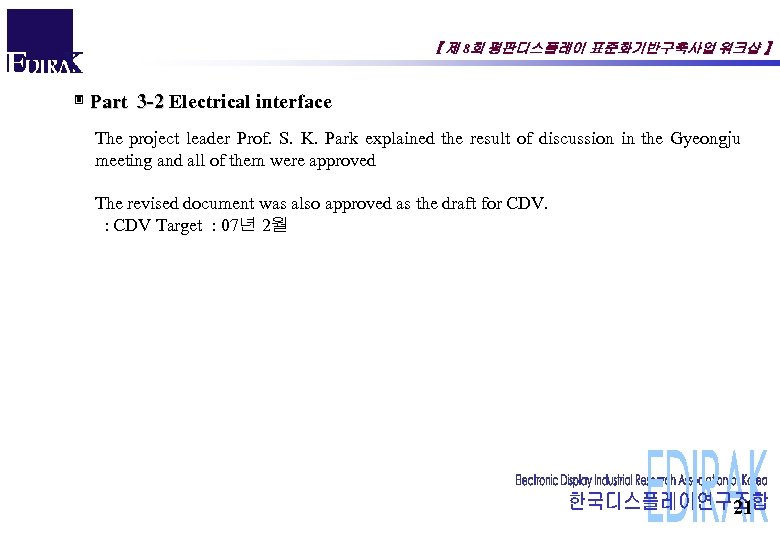

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Part 3 -2 Electrical interface Part 3 -2 The project leader Prof. S. K. Park explained the result of discussion in the Gyeongju meeting and all of them were approved The revised document was also approved as the draft for CDV. : CDV Target : 07년 2월 21

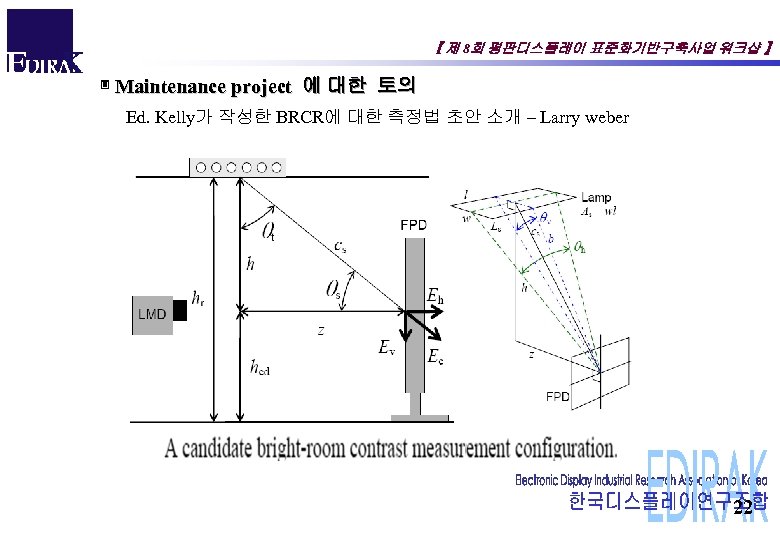

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Maintenance project 에 대한 토의 Ed. Kelly가 작성한 BRCR에 대한 측정법 초안 소개 – Larry weber 22

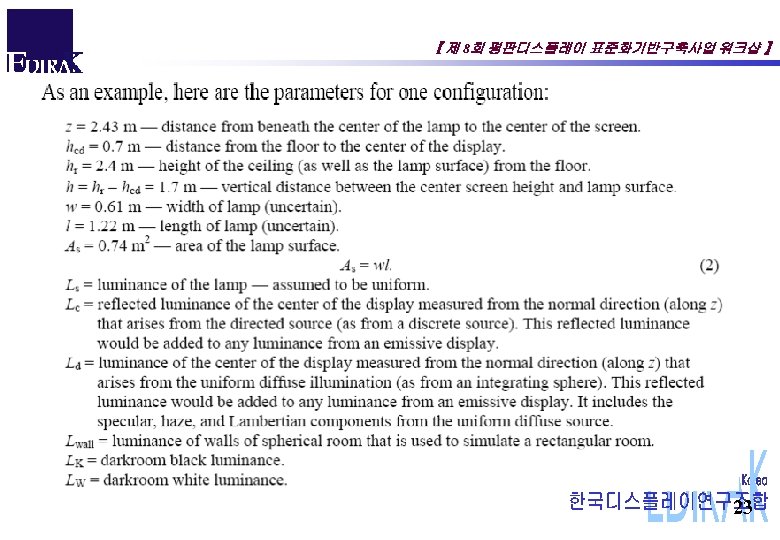

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 23

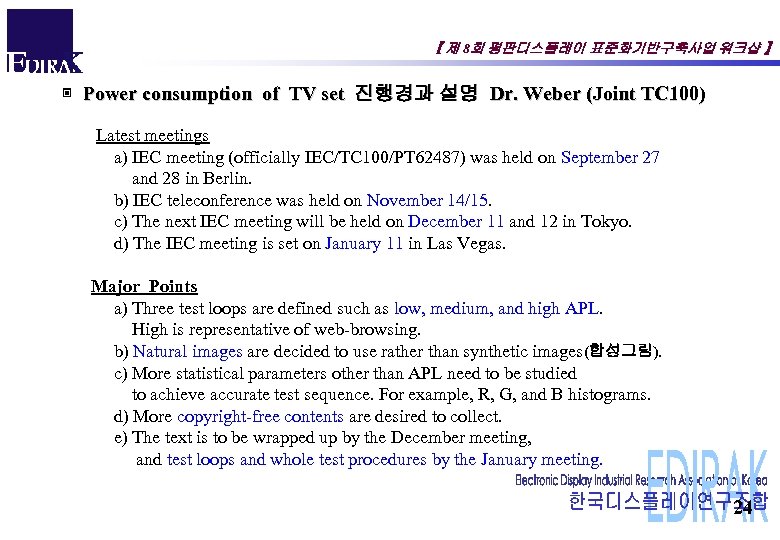

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Power consumption of TV set 진행경과 설명 Dr. Weber (Joint TC 100) Latest meetings a) IEC meeting (officially IEC/TC 100/PT 62487) was held on September 27 and 28 in Berlin. b) IEC teleconference was held on November 14/15. c) The next IEC meeting will be held on December 11 and 12 in Tokyo. d) The IEC meeting is set on January 11 in Las Vegas. Major Points a) Three test loops are defined such as low, medium, and high APL. High is representative of web-browsing. b) Natural images are decided to use rather than synthetic images(합성그림). c) More statistical parameters other than APL need to be studied to achieve accurate test sequence. For example, R, G, and B histograms. d) More copyright-free contents are desired to collect. e) The text is to be wrapped up by the December meeting, and test loops and whole test procedures by the January meeting. 24

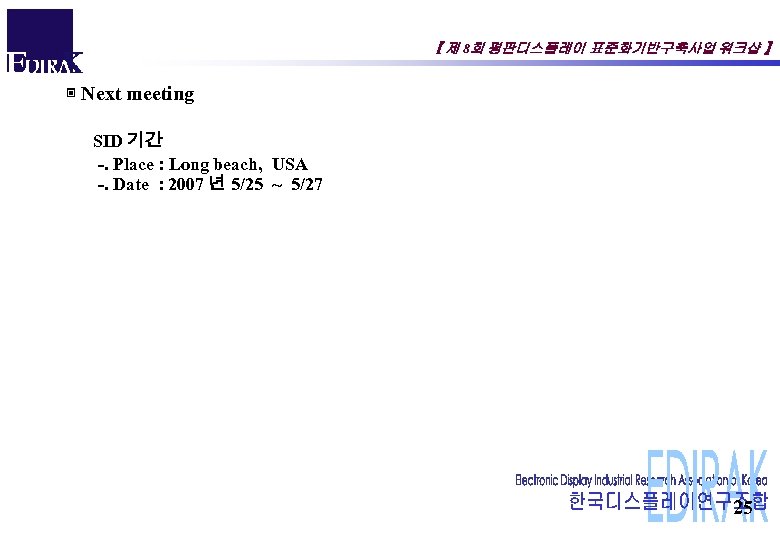

【 제 8회 평판디스플레이 표준화기반구축사업 워크샵 】 ▣ Next meeting SID 기간 -. Place : Long beach, USA -. Date : 2007 년 5/25 ~ 5/27 25
