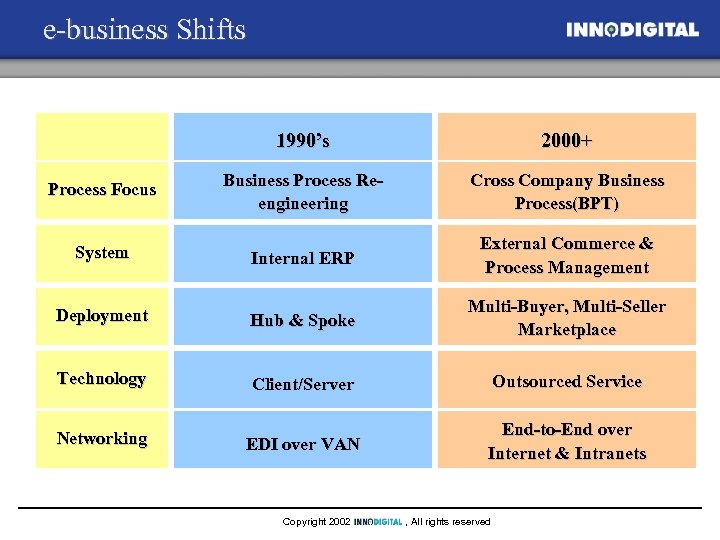

e-business Shifts 1990’s 2000+ Process Focus Business Process Reengineering Cross Company Business Process(BPT) System e-business Shifts 1990’s 2000+ Process Focus Business Process Reengineering Cross Company Business Process(BPT) System Internal ERP External Commerce & Process Management Deployment Hub & Spoke Multi-Buyer, Multi-Seller Marketplace Technology Client/Server Outsourced Service EDI over VAN End-to-End over Internet & Intranets Networking Copyright 2002 , All rights reserved

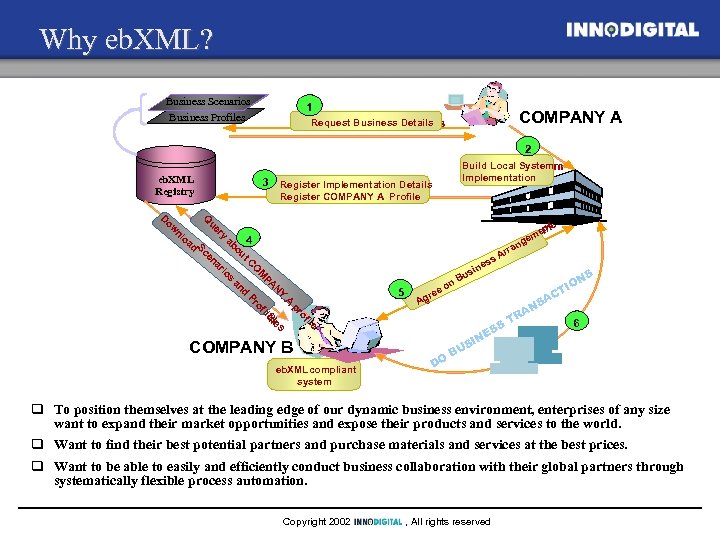

Why eb. XML? Business Scenarios Business Profiles 1 Request Business Details Request. Business Details Why eb. XML? Business Scenarios Business Profiles 1 Request Business Details Request. Business Details COMPANY A 2 eb. XML Registry 3 Build Local System Build. Local System Implementation Register Implementation Details Register COMPANY A Profile e o o f rl pir op A A pr Y Y N NA Y s es le PA PN fiis PA M il f oe fo M O or Pr OO Pr. P t. C d t. C nd uu ou an ad oo an bb ab ss aa os rio yy riro rry aa ue ue en en Qu Q Sc S Sc d d ad oa nll no nl w ow ow D Do t n nte em me ge g ran r. Ar A s 4 s es ns ne sisi uu 5 B nn. B eo eo e grre e e f fiil COMPANY B eb. XMLcompliant eb. XML compliant system AC Ag A DO S BU IN S ES TR S AN NS O TI 6 q To position themselves at the leading edge of our dynamic business environment, enterprises of any size want to expand their market opportunities and expose their products and services to the world. q Want to find their best potential partners and purchase materials and services at the best prices. q Want to be able to easily and efficiently conduct business collaboration with their global partners through systematically flexible process automation. Copyright 2002 , All rights reserved

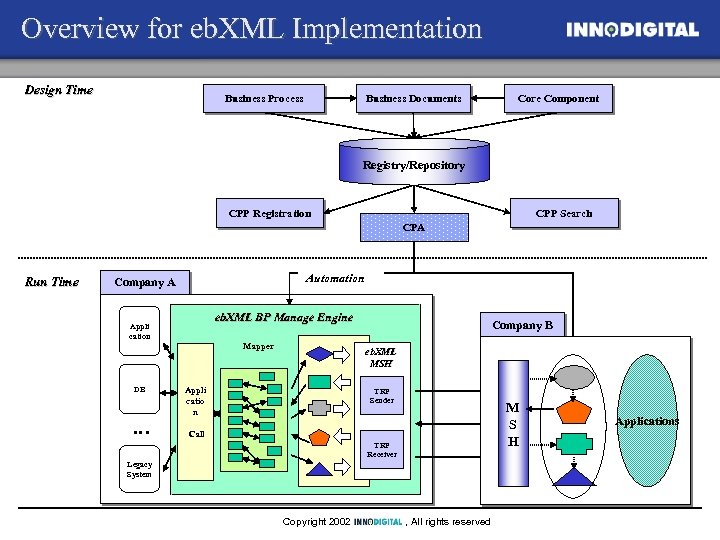

Overview for eb. XML Implementation Design Time Business Process Business Documents Core Component Registry/Repository Overview for eb. XML Implementation Design Time Business Process Business Documents Core Component Registry/Repository CPP Registration CPP Search CPA Run Time Automation Company A eb. XML BP Manage Engine Appli cation Mapper Company B eb. XML MSH . DB … Appli catio n TRP Sender M S H Call TRP Receiver Legacy System Copyright 2002 , All rights reserved Applications

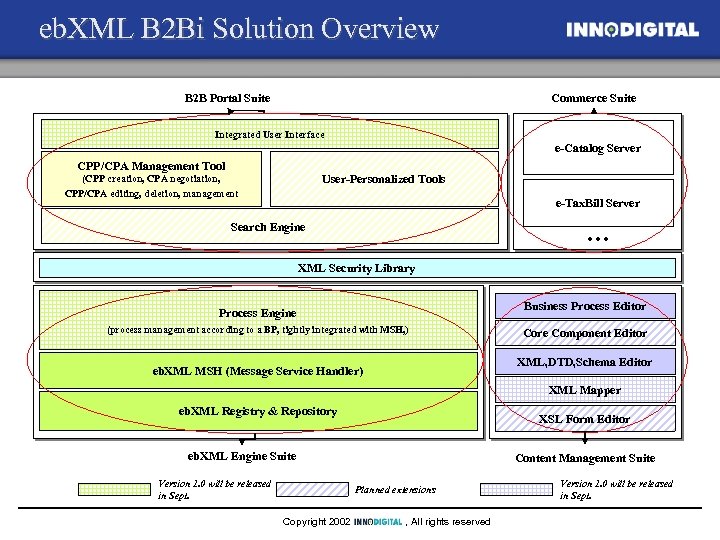

eb. XML B 2 Bi Solution Overview Commerce Suite B 2 B Portal Suite eb. XML B 2 Bi Solution Overview Commerce Suite B 2 B Portal Suite Integrated User Interface e-Catalog Server CPP/CPA Management Tool User-Personalized Tools (CPP creation, CPA negotiation, CPP/CPA editing, deletion, management e-Tax. Bill Server … Search Engine XML Security Library Business Process Editor Process Engine (process management according to a BP, tightly integrated with MSH, ) Core Component Editor XML, DTD, Schema Editor eb. XML MSH (Message Service Handler) XML Mapper eb. XML Registry & Repository XSL Form Editor eb. XML Engine Suite Version 1. 0 will be released in Sept. Content Management Suite Planned extensions Copyright 2002 , All rights reserved Version 1. 0 will be released in Sept.

eb. XML B 2 Bi Solution Overview eb. XML B 2 Bi System Overview eb. XML B 2 Bi Solution Overview eb. XML B 2 Bi System Overview eb. XML Reg. /Rep. 1 Internal system Business eb. XML Reg. /Rep. 2 Integrated DB for Search Engine Trading Partners … Collaboration Management Adapters Application Business Process Engine eb. XML Reg. /Rep. n Mapper Message Server Core Component Editor Business Process Designer Business Collaboration Portal Application Additional editing tools Copyright 2002 , All rights reserved

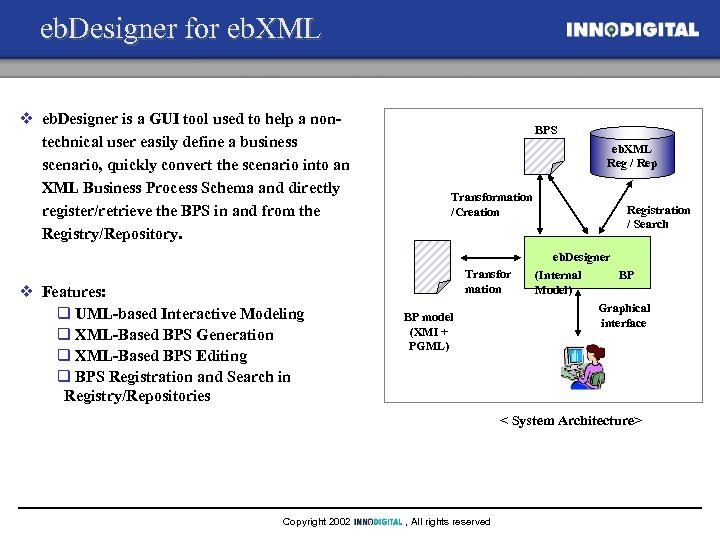

eb. Designer for eb. XML v eb. Designer is a GUI tool used to eb. Designer for eb. XML v eb. Designer is a GUI tool used to help a nontechnical user easily define a business scenario, quickly convert the scenario into an XML Business Process Schema and directly register/retrieve the BPS in and from the Registry/Repository. BPS eb. XML Reg / Rep Transformation /Creation Registration / Search eb. Designer v Features: q UML-based Interactive Modeling q XML-Based BPS Generation q XML-Based BPS Editing q BPS Registration and Search in Registry/Repositories Transfor mation BP model (XMI + PGML) (Internal Model) BP Graphical interface < System Architecture> Copyright 2002 , All rights reserved

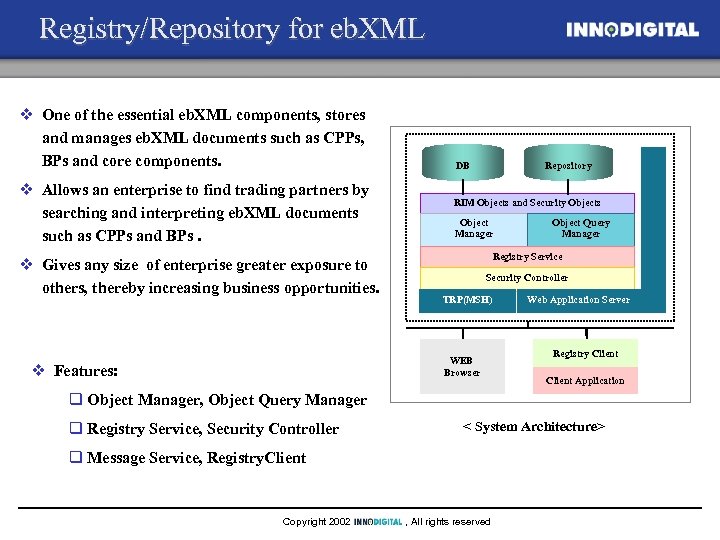

Registry/Repository for eb. XML v One of the essential eb. XML components, stores and Registry/Repository for eb. XML v One of the essential eb. XML components, stores and manages eb. XML documents such as CPPs, BPs and core components. v Allows an enterprise to find trading partners by searching and interpreting eb. XML documents such as CPPs and BPs. v Gives any size of enterprise greater exposure to others, thereby increasing business opportunities. Repository DB RIM Objects and Security Objects Object Manager Registry Service Security Controller TRP(MSH) WEB Browser v Features: Object Query Manager Web Application Server Registry Client Application q Object Manager, Object Query Manager q Registry Service, Security Controller < System Architecture> q Message Service, Registry. Client Copyright 2002 , All rights reserved

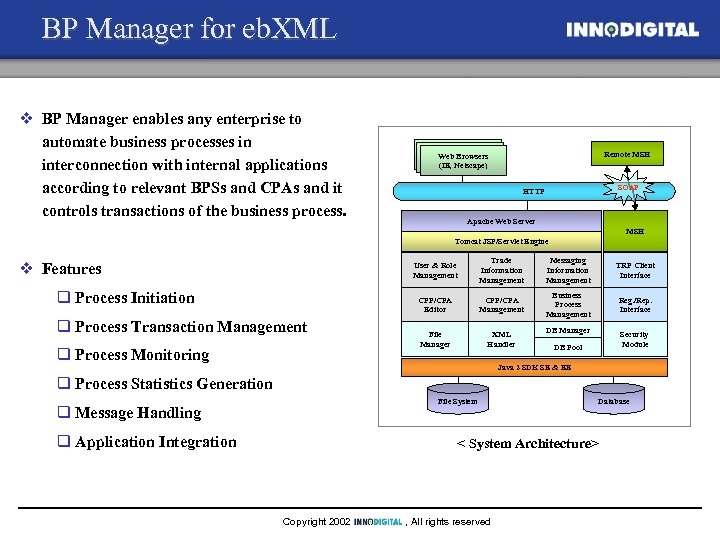

BP Manager for eb. XML v BP Manager enables any enterprise to automate business BP Manager for eb. XML v BP Manager enables any enterprise to automate business processes in interconnection with internal applications according to relevant BPSs and CPAs and it controls transactions of the business process. Web Browsers (IE, Netscape) Remote MSH SOAP HTTP Apache Web Server MSH Tomcat JSP/Servlet Engine User & Role Management q Process Initiation q Process Transaction Management q Process Monitoring Trade Information Management Messaging Information Management TRP Client Interface CPP/CPA Editor v Features CPP/CPA Management Business Process Management Reg. /Rep. Interface File Manager XML Handler DB Manager Security Module DB Pool Java 2 SDK SE & EE q Process Statistics Generation File System q Message Handling q Application Integration Database < System Architecture> Copyright 2002 , All rights reserved

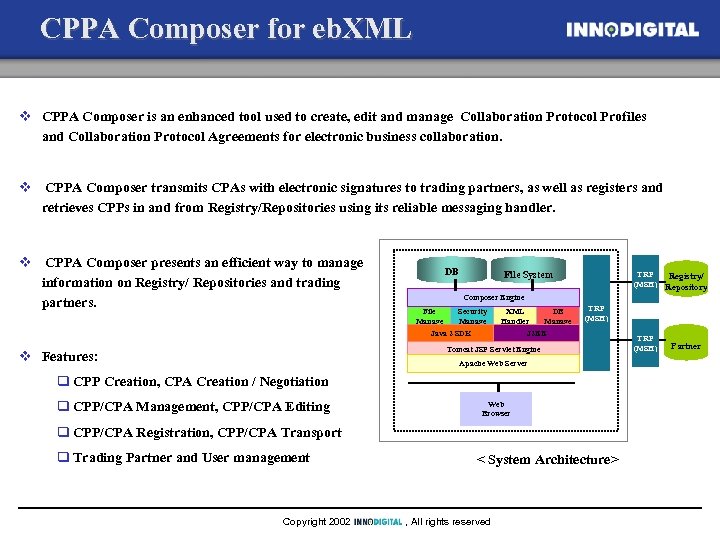

CPPA Composer for eb. XML v CPPA Composer is an enhanced tool used to CPPA Composer for eb. XML v CPPA Composer is an enhanced tool used to create, edit and manage Collaboration Protocol Profiles and Collaboration Protocol Agreements for electronic business collaboration. v CPPA Composer transmits CPAs with electronic signatures to trading partners, as well as registers and retrieves CPPs in and from Registry/Repositories using its reliable messaging handler. v CPPA Composer presents an efficient way to manage information on Registry/ Repositories and trading partners. DB File System TRP (MSH) XML DB Handler Manage J 2 EE r q CPP Creation, CPA Creation / Negotiation Web Browser q CPP/CPA Registration, CPP/CPA Transport q Trading Partner and User management Copyright 2002 Partner TRP (MSH) Apache Web Server q CPP/CPA Management, CPP/CPA Editing TRP (MSH) Composer Engine Security File Manage r. Java 2 SDKr Tomcat JSP Servlet Engine v Features: Registry/ Repository < System Architecture> , All rights reserved

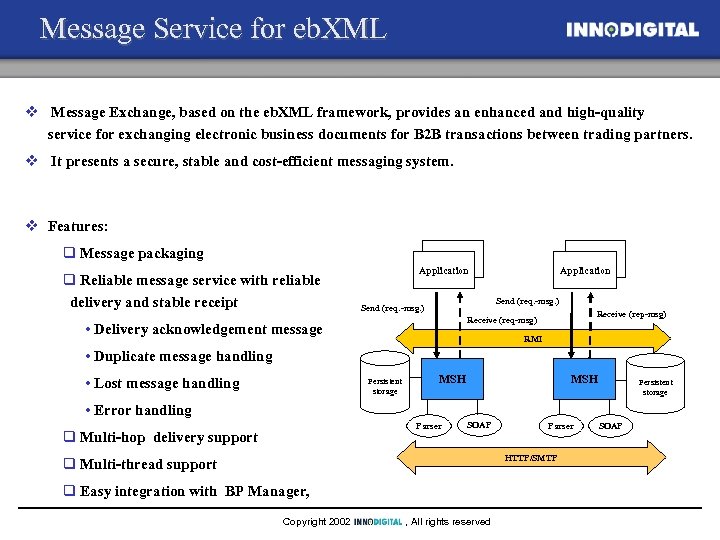

Message Service for eb. XML v Message Exchange, based on the eb. XML framework, Message Service for eb. XML v Message Exchange, based on the eb. XML framework, provides an enhanced and high-quality service for exchanging electronic business documents for B 2 B transactions between trading partners. v It presents a secure, stable and cost-efficient messaging system. v Features: q Message packaging q Reliable message service with reliable delivery and stable receipt Application Send (req. -msg. ) Receive (rep-msg) Receive (req-msg) • Delivery acknowledgement message RMI • Duplicate message handling • Lost message handling Persistent storage MSH Persistent storage • Error handling Parser q Multi-hop delivery support SOAP Parser HTTP/SMTP q Multi-thread support q Easy integration with BP Manager, Copyright 2002 , All rights reserved SOAP

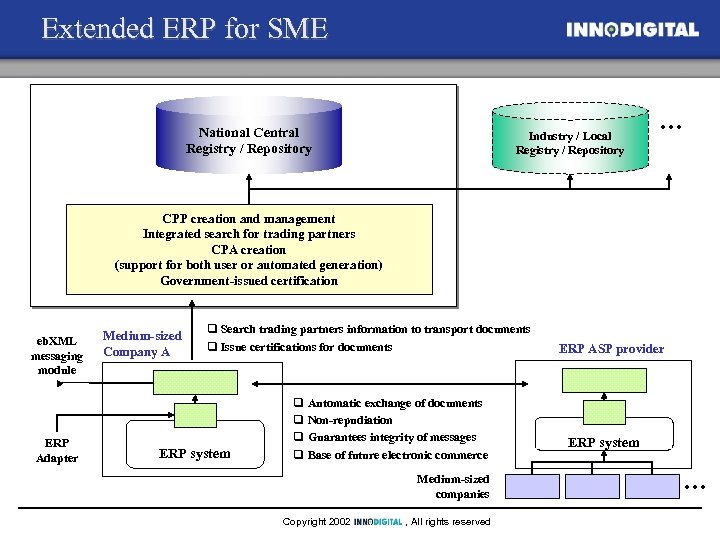

Extended ERP for SME National Central Registry / Repository Industry / Local Registry / Extended ERP for SME National Central Registry / Repository Industry / Local Registry / Repository …. CPP creation and management Integrated search for trading partners CPA creation (support for both user or automated generation) Government-issued certification eb. XML messaging module ERP Adapter Medium-sized Company A q Search trading partners information to transport documents q Issue certifications for documents ERP system q Automatic exchange of documents q Non-repudiation q Guarantees integrity of messages q Base of future electronic commerce Medium-sized companies Copyright 2002 , All rights reserved ERP ASP provider ERP system …

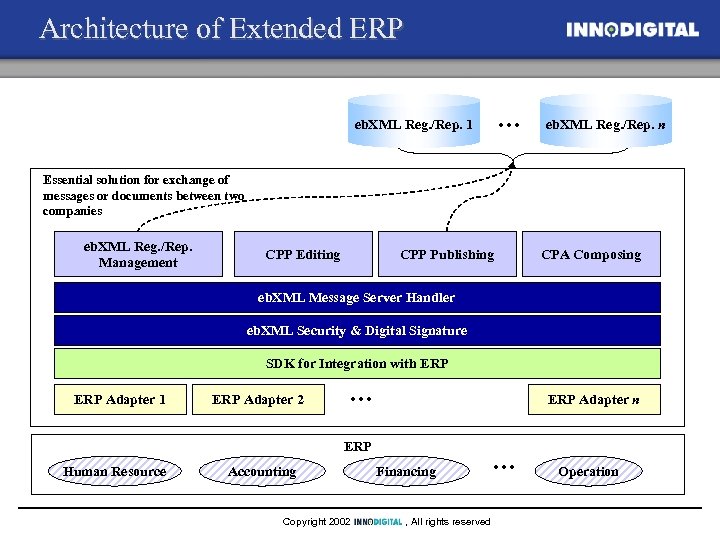

Architecture of Extended ERP … eb. XML Reg. /Rep. 1 eb. XML Reg. /Rep. Architecture of Extended ERP … eb. XML Reg. /Rep. 1 eb. XML Reg. /Rep. n Essential solution for exchange of messages or documents between two companies eb. XML Reg. /Rep. Management CPP Editing CPP Publishing CPA Composing eb. XML Message Server Handler eb. XML Security & Digital Signature SDK for Integration with ERP Adapter 1 ERP Adapter 2 … ERP Adapter n ERP Human Resource Accounting Copyright 2002 Financing , All rights reserved … Operation

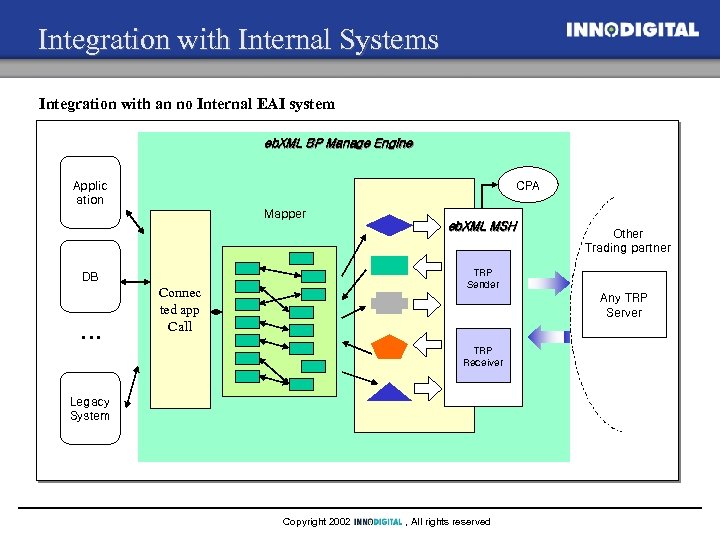

Integration with Internal Systems Integration with an no Internal EAI system eb. XML BP Integration with Internal Systems Integration with an no Internal EAI system eb. XML BP Manage Engine CPA Applic ation Mapper eb. XML MSH. TRP Sender DB … Other Trading partner Connec ted app Call Any TRP Server TRP Receiver Legacy System Copyright 2002 , All rights reserved

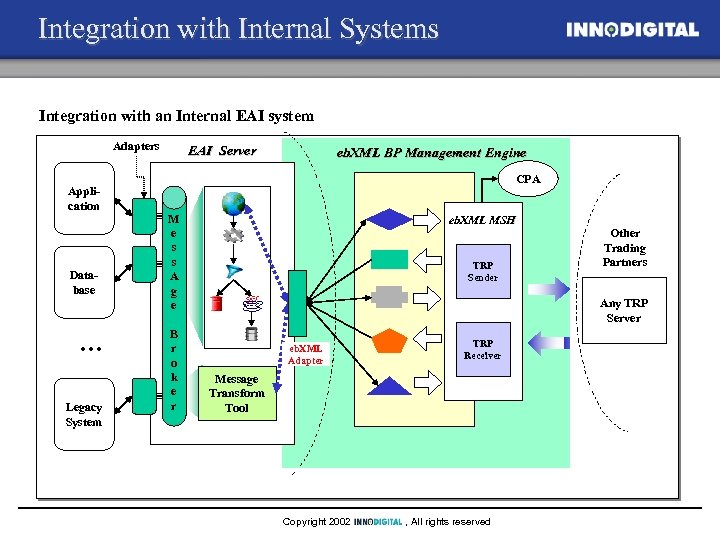

Integration with Internal Systems Integration with an Internal EAI system Adapters Application Database … Integration with Internal Systems Integration with an Internal EAI system Adapters Application Database … Legacy System EAI Server eb. XML BP Management Engine CPA M e s s A g e B r o k e r eb. XML MSH. TRP Sender Other Trading Partners Any TRP Server eb. XML Adapter TRP Receiver Message Transform Tool Copyright 2002 , All rights reserved

AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework III. Promotion & Implementation IV. Conclusion Copyright 2002 , All rights reserved

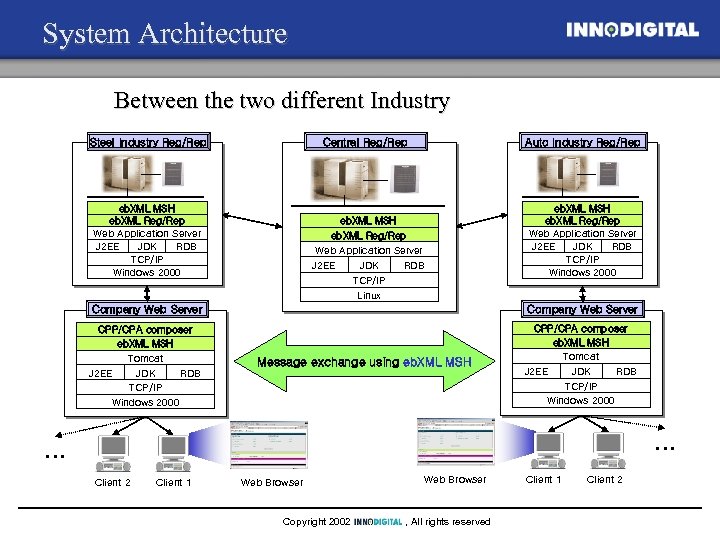

System Architecture Between the two different Industry Steel Industry Reg/Rep Central Reg/Rep eb. XML System Architecture Between the two different Industry Steel Industry Reg/Rep Central Reg/Rep eb. XML MSH eb. XML Reg/Rep Web Application Server J 2 EE JDK RDB TCP/IP Windows 2000 Auto Industry Reg/Rep eb. XML MSH eb. XML Reg/Rep Web Application Server J 2 EE JDK RDB TCP/IP Windows 2000 eb. XML MSH eb. XML Reg/Rep Web Application Server J 2 EE JDK RDB TCP/IP Linux Company Web Server CPP/CPA composer eb. XML MSH Tomcat J 2 EE JDK RDB TCP/IP Windows 2000 Message exchange using eb. XML MSH … … Client 2 Client 1 Web Browser Copyright 2002 Web Browser , All rights reserved Client 1 Client 2

B 2 Bi Suite Demo start Copyright 2002 , All rights reserved B 2 Bi Suite Demo start Copyright 2002 , All rights reserved

AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework III. Promotion & Implementation IV. Conclusion Copyright 2002 , All rights reserved

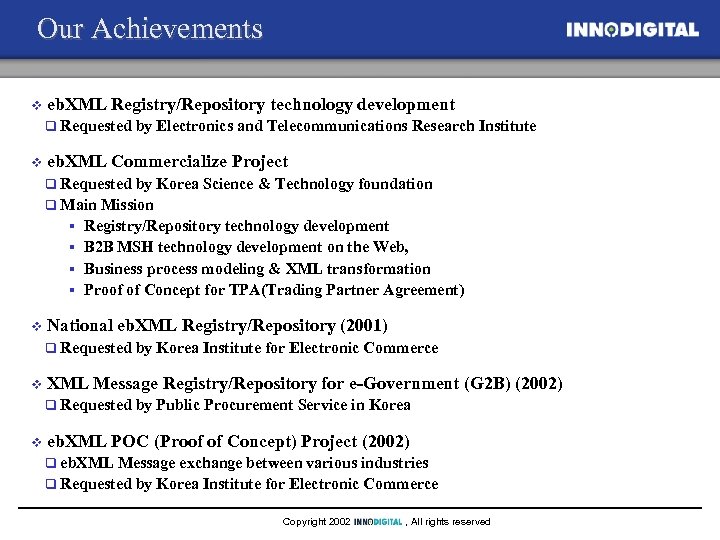

Our Achievements v eb. XML Registry/Repository technology development q v Requested by Electronics and Our Achievements v eb. XML Registry/Repository technology development q v Requested by Electronics and Telecommunications Research Institute eb. XML Commercialize Project Requested by Korea Science & Technology foundation q Main Mission § Registry/Repository technology development § B 2 B MSH technology development on the Web, § Business process modeling & XML transformation § Proof of Concept for TPA(Trading Partner Agreement) q v National eb. XML Registry/Repository (2001) q v XML Message Registry/Repository for e-Government (G 2 B) (2002) q v Requested by Korea Institute for Electronic Commerce Requested by Public Procurement Service in Korea eb. XML POC (Proof of Concept) Project (2002) eb. XML Message exchange between various industries q Requested by Korea Institute for Electronic Commerce q Copyright 2002 , All rights reserved

Global Promotion INDIA SOFT 2002 v Date : Feb 20 -22, 2002. v Venue Global Promotion INDIA SOFT 2002 v Date : Feb 20 -22, 2002. v Venue : New Delhi (India) v Organized by ESC v Achievement q Introduced eb. XML product to Indian companies. XML Europe 2002 v Date : May 19 -24, 2002, v Venue : Barcelona (Spain) v Organized by IDEAlliance & OASIS v Attendee : Samsung SDS, TIBCO, IONA etc v Achievements q Introduced eb. XML product to world companies. Copyright 2002 , All rights reserved

AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework AGENDA I. Introduction of Product II. Demo - Message Exchange using eb. XML Framework III. Promotion & Implementation IV. Conclusion Copyright 2002 , All rights reserved

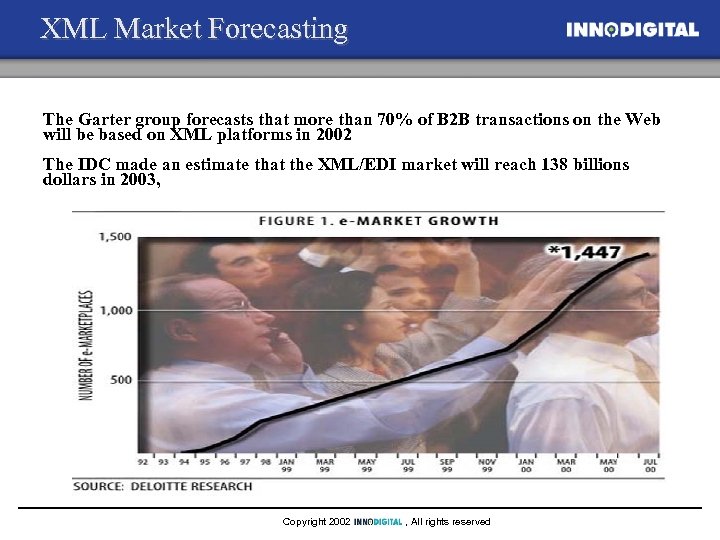

XML Market Forecasting The Garter group forecasts that more than 70% of B 2 XML Market Forecasting The Garter group forecasts that more than 70% of B 2 B transactions on the Web will be based on XML platforms in 2002 The IDC made an estimate that the XML/EDI market will reach 138 billions dollars in 2003, Copyright 2002 , All rights reserved

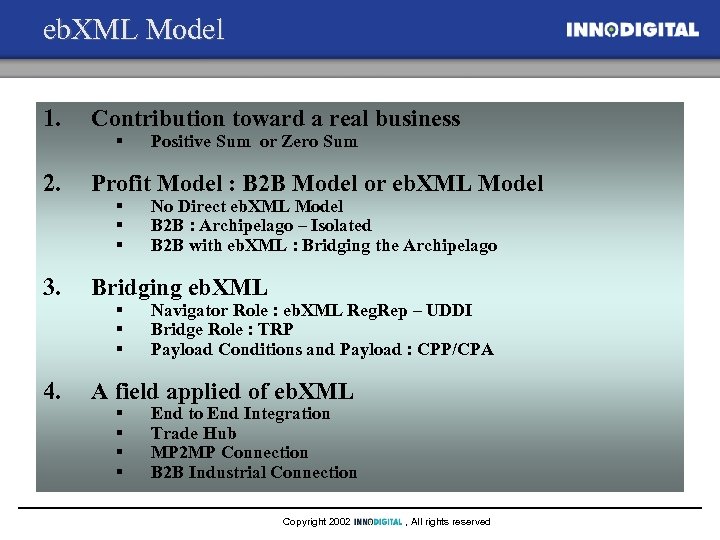

eb. XML Model 1. Contribution toward a real business 2. Profit Model : B eb. XML Model 1. Contribution toward a real business 2. Profit Model : B 2 B Model or eb. XML Model 3. Bridging eb. XML 4. A field applied of eb. XML § § § Positive Sum or Zero Sum No Direct eb. XML Model B 2 B : Archipelago – Isolated B 2 B with eb. XML : Bridging the Archipelago Navigator Role : eb. XML Reg. Rep – UDDI Bridge Role : TRP Payload Conditions and Payload : CPP/CPA End to End Integration Trade Hub MP 2 MP Connection B 2 B Industrial Connection Copyright 2002 , All rights reserved
