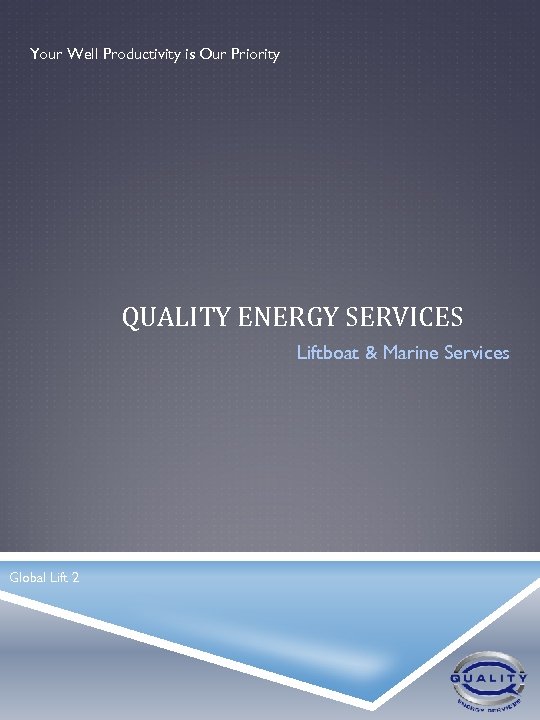

Your Well Productivity is Our Priority QUALITY ENERGY SERVICES Liftboat & Marine Services Global Your Well Productivity is Our Priority QUALITY ENERGY SERVICES Liftboat & Marine Services Global Lift 2

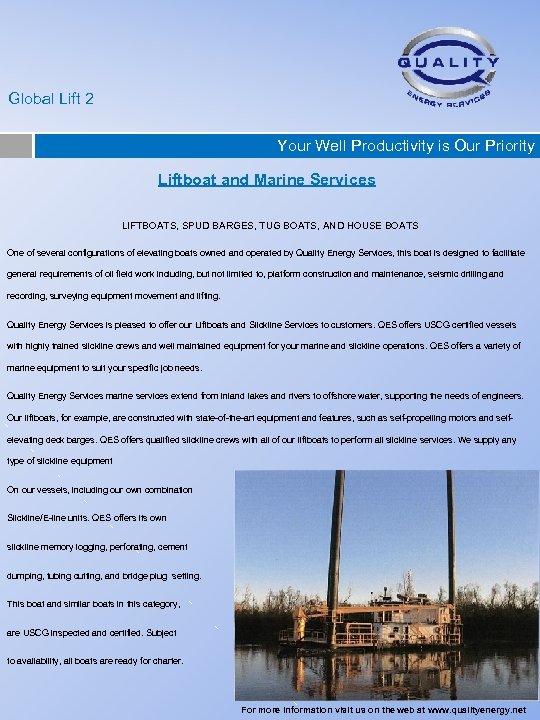

Global Lift 2 Your Well Productivity is Our Priority Liftboat and Marine Services LIFTBOATS, Global Lift 2 Your Well Productivity is Our Priority Liftboat and Marine Services LIFTBOATS, SPUD BARGES, TUG BOATS, AND HOUSE BOATS One of several configurations of elevating boats owned and operated by Quality Energy Services, this boat is designed to facilitate general requirements of oil field work including, but not limited to, platform construction and maintenance, seismic drilling and recording, surveying equipment movement and lifting. Quality Energy Services is pleased to offer our Liftboats and Slickline Services to customers. QES offers USCG certified vessels with highly trained slickline crews and well maintained equipment for your marine and slickline operations. QES offers a variety of marine equipment to suit your specific job needs. Quality Energy Services marine services extend from inland lakes and rivers to offshore water, supporting the needs of engineers. Our liftboats, for example, are constructed with state-of-the-art equipment and features, such as self-propelling motors and selfelevating deck barges. QES offers qualified slickline crews with all of our liftboats to perform all slickline services. We supply any type of slickline equipment On our vessels, including our own combination Slickline/E-line units. QES offers its own slickline memory logging, perforating, cement dumping, tubing cutting, and bridge plug setting. This boat and similar boats in this category, are USCG inspected and certified. Subject to availability, all boats are ready for charter. For more information visit us on the web at www. qualityenergy. net

Global Lift 2 Your Well Productivity is Our Priority Technical Specifications Water Depths Max Global Lift 2 Your Well Productivity is Our Priority Technical Specifications Water Depths Max Water Depth (ft) 65 Design Air Gap (ft) 11 Min. Water Depth (ft) 7 Leg Information Number of Legs 3 Length (ft) 90 Average leg Penetration (ft) 60 Pad Depth (ft) 5 Hull Dimensions Global Lift 2 Official Number: 603827 Main Engine Specification Number of Engines Make Model Estimated Speed (knots) 2 DETROIT 671 7 Length (ft) 60 Width (ft) 24 Depth (ft) 6 Fuel Consumption Per Engine (gallon per hour) 6 Deck Information Total Engine Fuel Consumption (gallon per hour) 24 Usable Deck Area (ft) Max Fixed Load - Holding Capacity (lbs) Deck Load Pressure 800 Generator Specifications Number of Generators Engine Manufacturer Engine Model Output per Generator Fuel Consumption (gallon per day) 45, 000 n/a Length (ft) 34 Width (ft) 39 General Information Crane 10 ton Boom 50 ft Berths 8 2 Detroit 20 kw 55 Capacities Fuel (gallons) Fresh Water Hydraulic Oil (gallons) Crew & Workers (afloat) For more information visit us on the web at www. qualityenergy. net 950 550 8

Randy Landry Sales and Service Locations Quality Energy Services Louisiana Office: 985. 850. 0025 Randy Landry Sales and Service Locations Quality Energy Services Louisiana Office: 985. 850. 0025 Metairie, La 3838 North Causeway Blvd Lakeway Three Suite 3145 Metairie, La 70002 985 -850 -0025 Regional Slickline/Marine Manager E-Mail: [email protected] net Visit us on the web www. qualityenergy. net Our Services Include Slickline & Braided Line Services Liftboat & Marine Services E-Line & Cased Hole Services Reservoir Evaluation Services Caliper & Gas Lift Survey Services Wellhead & Production Valve Services Hot Tap Services Plug & Abandonment Services LND & Inland Workover Rigs Dockside & Offshore Cleaning Services Houma, La 230 Menard Rd Houma, LA 70360 985 -850 -0025 Lafayette, La 1809 Youngsville Hwy Youngsville, La 70592 337 -330 -0104 Mansfield, La 4725 Hwy 84 Mansfield, LA 71052 318 -872 -0725 Texas Bryan, TX 2710 Clarks Lane Bryan, TX 77808 979 -778 -9800 Jourdanton, TX 1620 Lillian Avenue Jourdanton, TX 78026 830 -769 -2048
