Xilinx at Work in Printers ® Xilinx at Work in Printers ®

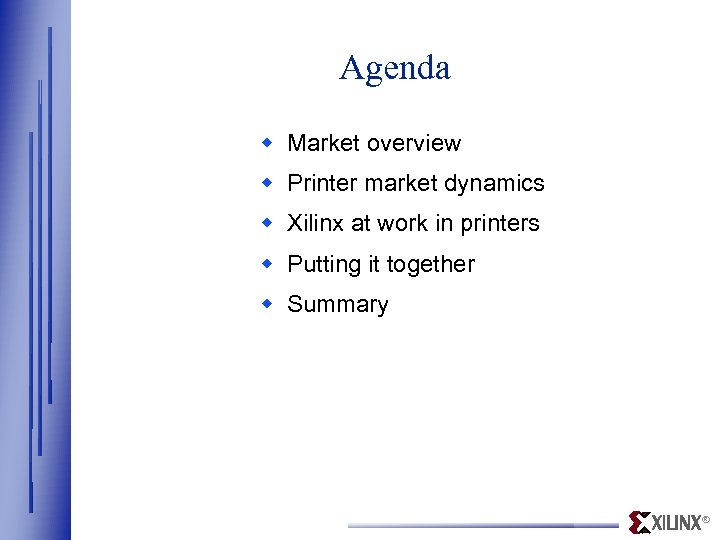

Agenda w Market overview w Printer market dynamics w Xilinx at work in printers Agenda w Market overview w Printer market dynamics w Xilinx at work in printers w Putting it together w Summary ®

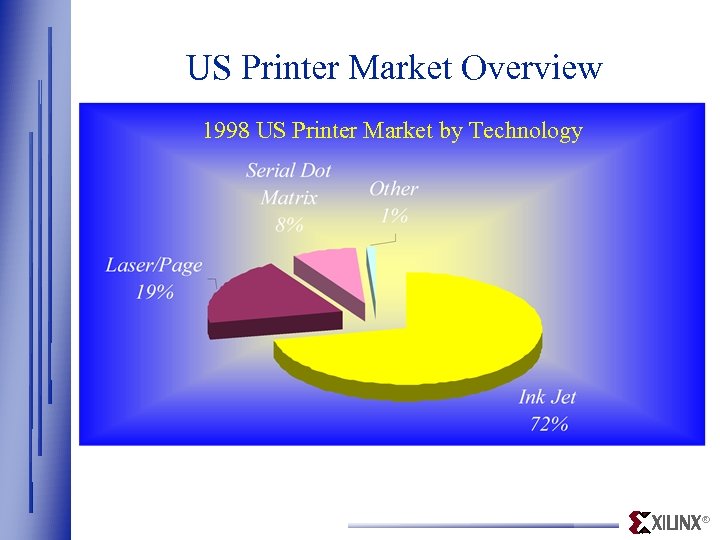

US Printer Market Overview 1998 US Printer Market by Technology ® US Printer Market Overview 1998 US Printer Market by Technology ®

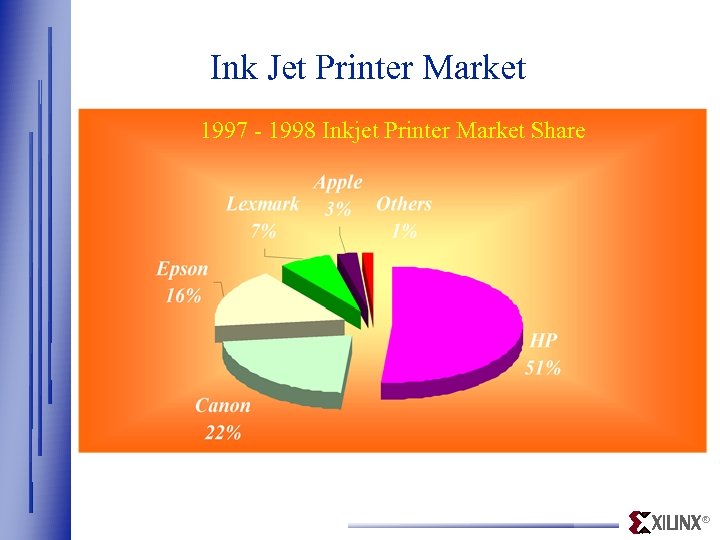

Ink Jet Printer Market 1997 - 1998 Inkjet Printer Market Share ® Ink Jet Printer Market 1997 - 1998 Inkjet Printer Market Share ®

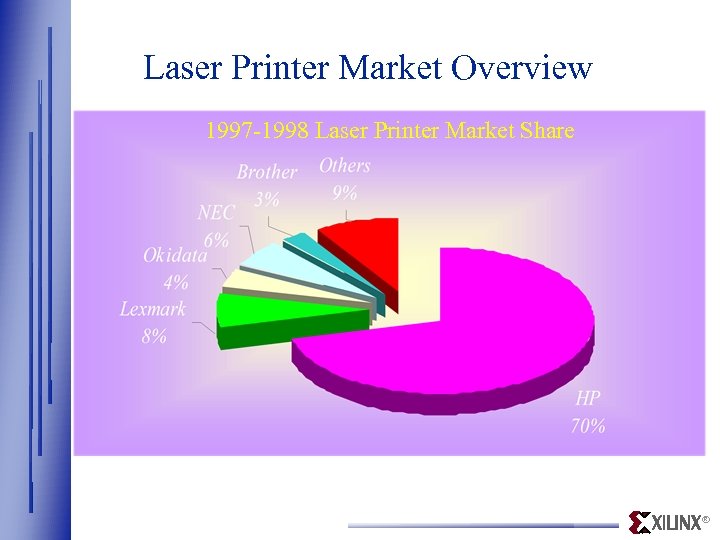

Laser Printer Market Overview 1997 -1998 Laser Printer Market Share ® Laser Printer Market Overview 1997 -1998 Laser Printer Market Share ®

Printer Market Dynamics w Extremely competitive market — Total printer cost especially for Inkjet Printer Market Dynamics w Extremely competitive market — Total printer cost especially for Inkjet & Laser printers — Printing cost per page w Feature driven — Print quality - resolution — Support for various printing media - plain paper, photographic paper, glossy paper, overhead film, transfers etc. — Scalable fonts — Speed w Proprietary technology abounds — Resolution enhancement w Emerging & residual standards co-exist — Centronics interface — USB, Firewire ®

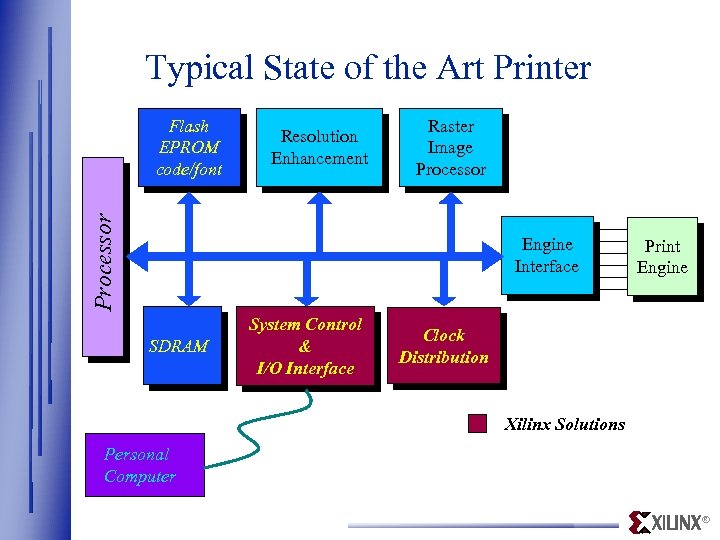

Typical State of the Art Printer Resolution Enhancement Raster Image Processor Flash EPROM code/font Typical State of the Art Printer Resolution Enhancement Raster Image Processor Flash EPROM code/font Engine Interface SDRAM System Control & I/O Interface Print Engine Clock Distribution Xilinx Solutions Personal Computer ®

Spartan Features and Benefits Features Benefits Fully programmable I/O Provides interface to many I/O Spartan Features and Benefits Features Benefits Fully programmable I/O Provides interface to many I/O standards enabling easy interface between ASSPs and/or the processor Power Down feature Reduces power consumption to allow conformance to Energy Star rating Boundary Scan Provides low cost and efficient manufacturing DLL (Digital Delay Lock Loop) Provides easy clock deskew among multiple devices Distributed and block RAM Easy to implement high speed memory buffer between ASSPs and/or the processor Advanced process technology Provides low cost with high performance for high volume applications ®

Xilinx Solution for Low End Printers Engine Interface System Control & I/O Interface Print Xilinx Solution for Low End Printers Engine Interface System Control & I/O Interface Print Engine Clock Distribution Xilinx Solutions Personal Computer Workload performed by PC Performance bottlenecked by S/W features ®

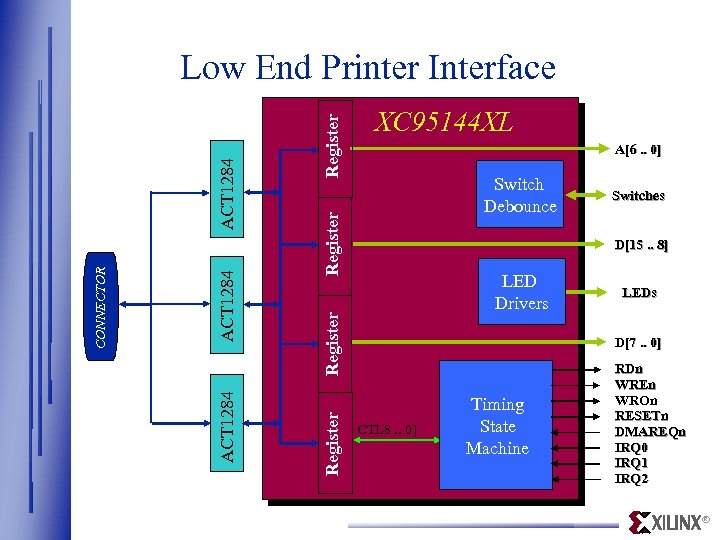

A[6. . 0] Switch Debounce Register XC 95144 XL Switches D[15. . 8] LED A[6. . 0] Switch Debounce Register XC 95144 XL Switches D[15. . 8] LED Drivers Register ACT 1284 CONNECTOR ACT 1284 Low End Printer Interface LEDs D[7. . 0] CTL 8. . 0] Timing State Machine RDn WREn WROn RESETn DMAREQn IRQ 0 IRQ 1 IRQ 2 ®

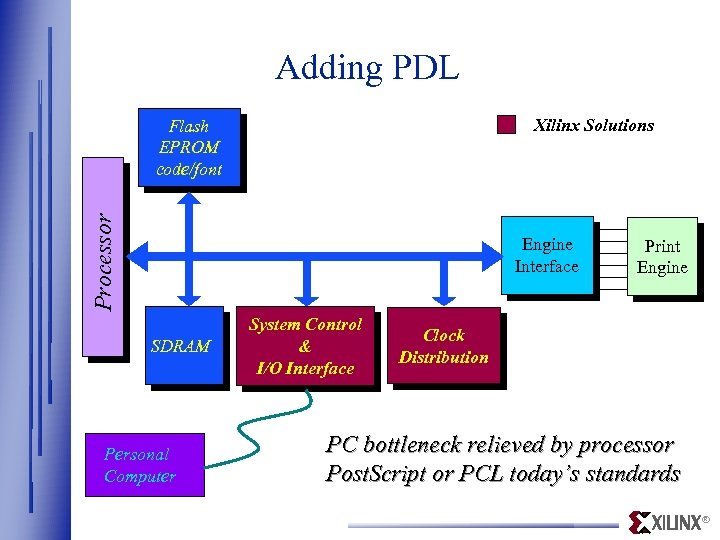

Adding PDL Xilinx Solutions Processor Flash EPROM code/font Engine Interface SDRAM Personal Computer System Adding PDL Xilinx Solutions Processor Flash EPROM code/font Engine Interface SDRAM Personal Computer System Control & I/O Interface Print Engine Clock Distribution PC bottleneck relieved by processor Post. Script or PCL today’s standards ®

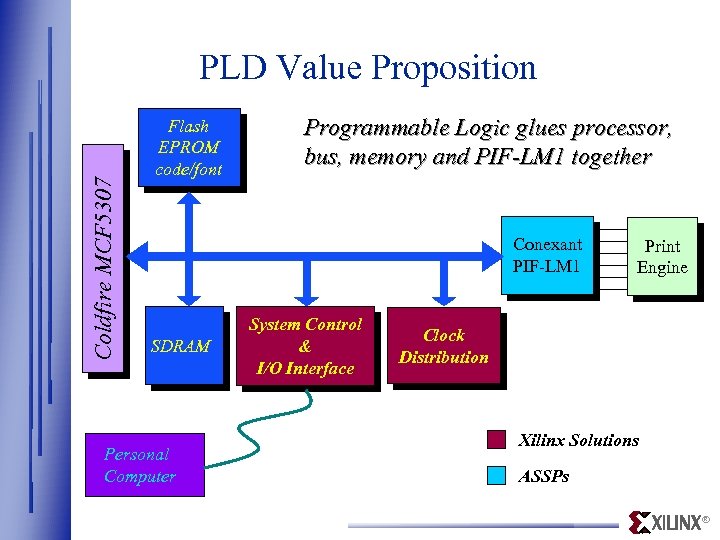

Coldfire MCF 5307 PLD Value Proposition Flash EPROM code/font Programmable Logic glues processor, bus, Coldfire MCF 5307 PLD Value Proposition Flash EPROM code/font Programmable Logic glues processor, bus, memory and PIF-LM 1 together Conexant PIF-LM 1 SDRAM Personal Computer System Control & I/O Interface Print Engine Clock Distribution Xilinx Solutions ASSPs ®

Coldfire MCF 5307 Adding RIP and RET Flash EPROM code/font Resolution Enhancement Raster Image Coldfire MCF 5307 Adding RIP and RET Flash EPROM code/font Resolution Enhancement Raster Image Processor Conexant PIF-LM 1 SDRAM System Control & I/O Interface Clock Distribution Print Engine Xilinx Solutions ASSPs Personal Computer Programmable glue logic expands to allow additional features ®

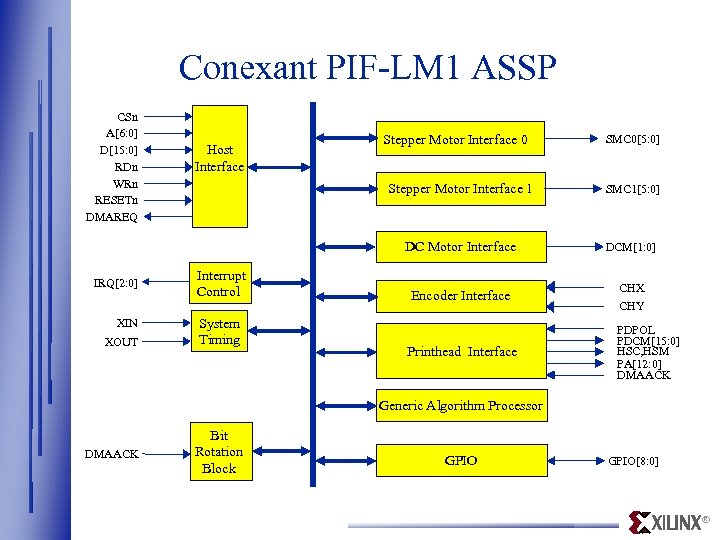

Conexant PIF-LM 1 ASSP CSn A[6: 0] D[15: 0] RDn WRn RESETn DMAREQ Host Conexant PIF-LM 1 ASSP CSn A[6: 0] D[15: 0] RDn WRn RESETn DMAREQ Host Interface Stepper Motor Interface 0 SMC 0[5: 0] XIN XOUT Interrupt Control System Timing SMC 1[5: 0] DC Motor Interface IRQ[2: 0] Stepper Motor Interface 1 DCM[1: 0] Encoder Interface CHX CHY Printhead Interface PDPOL PDCM[15: 0] HSC, HSM PA[12: 0] DMAACK Generic Algorithm Processor DMAACK Bit Rotation Block GPIO[8: 0] ®

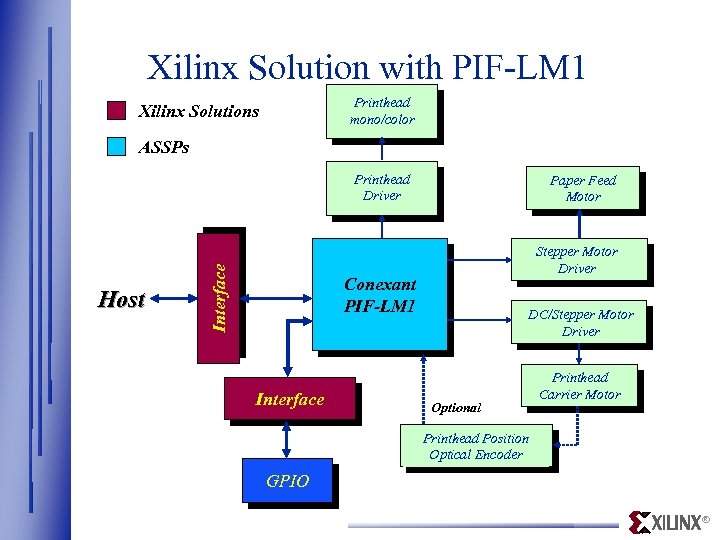

Xilinx Solution with PIF-LM 1 Printhead mono/color Xilinx Solutions ASSPs Host Interface Printhead Driver Xilinx Solution with PIF-LM 1 Printhead mono/color Xilinx Solutions ASSPs Host Interface Printhead Driver Paper Feed Motor Stepper Motor Driver Conexant PIF-LM 1 Interface DC/Stepper Motor Driver Optional Printhead Carrier Motor Printhead Position Optical Encoder GPIO ®

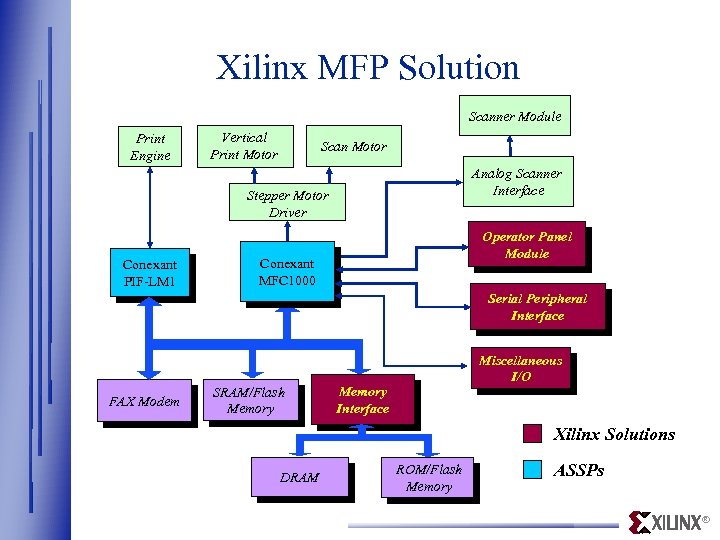

Xilinx MFP Solution Scanner Module Print Engine Vertical Print Motor Scan Motor Analog Scanner Xilinx MFP Solution Scanner Module Print Engine Vertical Print Motor Scan Motor Analog Scanner Interface Stepper Motor Driver Conexant PIF-LM 1 Operator Panel Module Conexant MFC 1000 Serial Peripheral Interface FAX Modem SRAM/Flash Memory Miscellaneous I/O Memory Interface Xilinx Solutions DRAM ROM/Flash Memory ASSPs ®

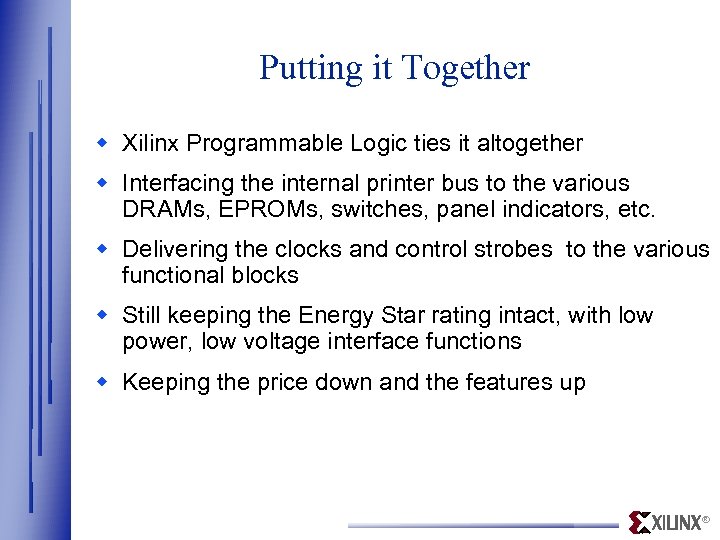

Putting it Together w Xilinx Programmable Logic ties it altogether w Interfacing the internal Putting it Together w Xilinx Programmable Logic ties it altogether w Interfacing the internal printer bus to the various DRAMs, EPROMs, switches, panel indicators, etc. w Delivering the clocks and control strobes to the various functional blocks w Still keeping the Energy Star rating intact, with low power, low voltage interface functions w Keeping the price down and the features up ®

Driving Down The Cost of FPGAs Spartan-III System Gates 250 K Spartan-II 100 K Driving Down The Cost of FPGAs Spartan-III System Gates 250 K Spartan-II 100 K Spartan-XL 40 K $10 30 K 1998 1999 2000 2001 ®

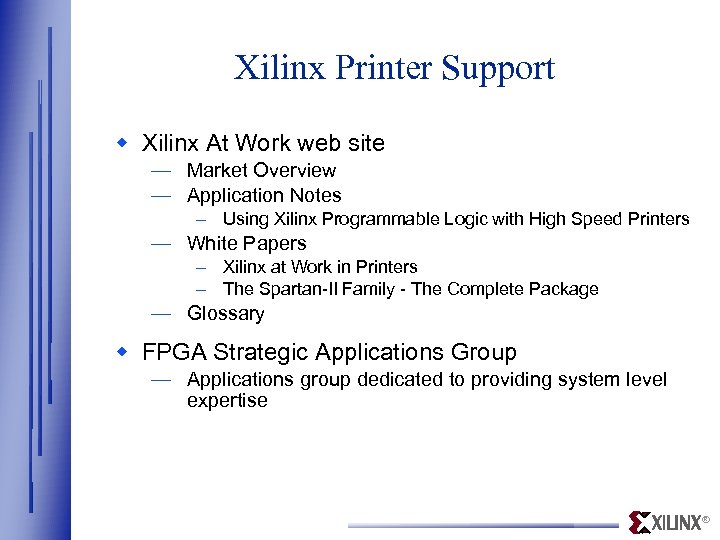

Xilinx Printer Support w Xilinx At Work web site — Market Overview — Application Xilinx Printer Support w Xilinx At Work web site — Market Overview — Application Notes – Using Xilinx Programmable Logic with High Speed Printers — White Papers – Xilinx at Work in Printers – The Spartan-II Family - The Complete Package — Glossary w FPGA Strategic Applications Group — Applications group dedicated to providing system level expertise ®

Summary w Xilinx Cool. Runner, XC 9500 XL and Spartan FPGAs deliver cost effective Summary w Xilinx Cool. Runner, XC 9500 XL and Spartan FPGAs deliver cost effective solutions for a broad spectrum of Printer Solutions including — Ink jet printers — Laser printers — MFPs w Classic one-stop shopping with Xilinx Programmable Solutions ®
