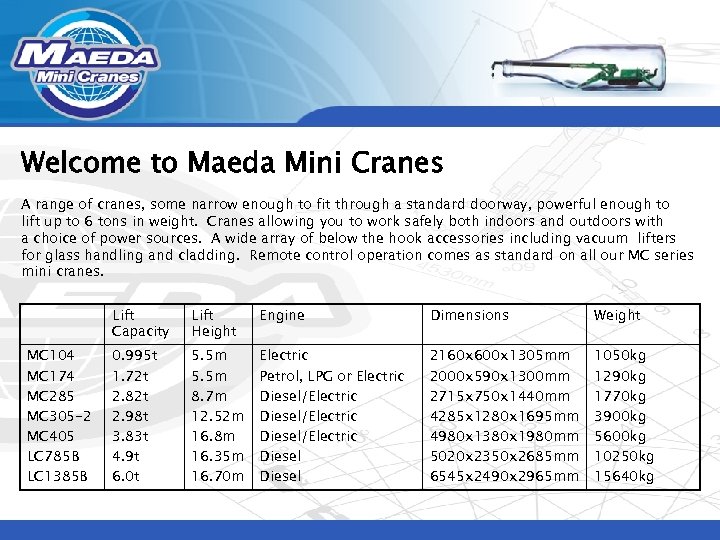

Welcome to Maeda Mini Cranes A range of cranes, some narrow enough to fit Welcome to Maeda Mini Cranes A range of cranes, some narrow enough to fit through a standard doorway, powerful enough to lift up to 6 tons in weight. Cranes allowing you to work safely both indoors and outdoors with a choice of power sources. A wide array of below the hook accessories including vacuum lifters for glass handling and cladding. Remote control operation comes as standard on all our MC series mini cranes. Lift Capacity MC 104 MC 174 MC 285 MC 305 -2 MC 405 LC 785 B LC 1385 B Lift Height Engine Dimensions Weight 0. 995 t 1. 72 t 2. 82 t 2. 98 t 3. 83 t 4. 9 t 6. 0 t 5. 5 m 8. 7 m 12. 52 m 16. 8 m 16. 35 m 16. 70 m Electric Petrol, LPG or Electric Diesel/Electric Diesel 2160 x 600 x 1305 mm 2000 x 590 x 1300 mm 2715 x 750 x 1440 mm 4285 x 1280 x 1695 mm 4980 x 1380 x 1980 mm 5020 x 2350 x 2685 mm 6545 x 2490 x 2965 mm 1050 kg 1290 kg 1770 kg 3900 kg 5600 kg 10250 kg 15640 kg

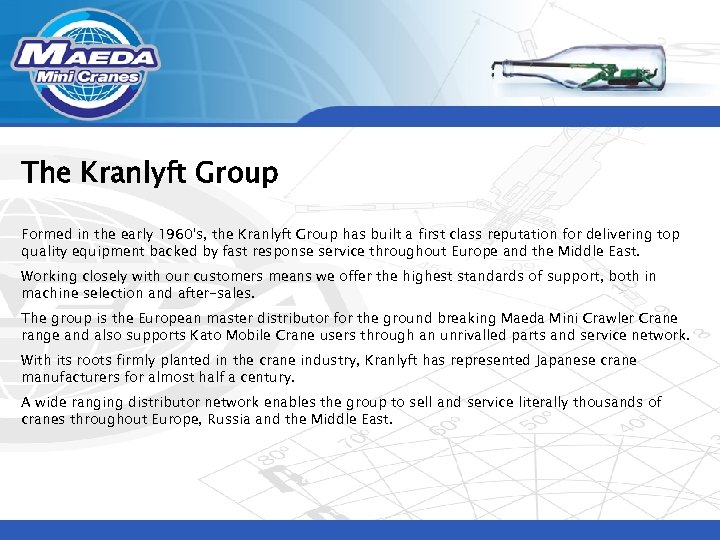

The Kranlyft Group Formed in the early 1960's, the Kranlyft Group has built a The Kranlyft Group Formed in the early 1960's, the Kranlyft Group has built a first class reputation for delivering top quality equipment backed by fast response service throughout Europe and the Middle East. Working closely with our customers means we offer the highest standards of support, both in machine selection and after-sales. The group is the European master distributor for the ground breaking Maeda Mini Crawler Crane range and also supports Kato Mobile Crane users through an unrivalled parts and service network. With its roots firmly planted in the crane industry, Kranlyft has represented Japanese crane manufacturers for almost half a century. A wide ranging distributor network enables the group to sell and service literally thousands of cranes throughout Europe, Russia and the Middle East.

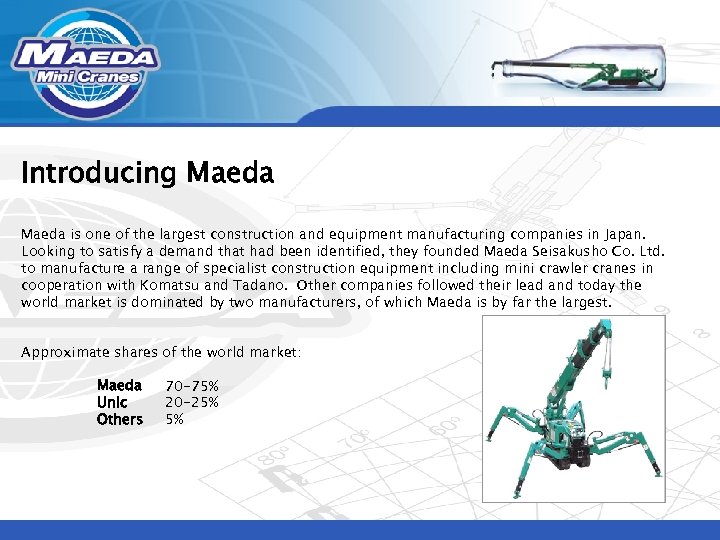

Introducing Maeda is one of the largest construction and equipment manufacturing companies in Japan. Introducing Maeda is one of the largest construction and equipment manufacturing companies in Japan. Looking to satisfy a demand that had been identified, they founded Maeda Seisakusho Co. Ltd. to manufacture a range of specialist construction equipment including mini crawler cranes in cooperation with Komatsu and Tadano. Other companies followed their lead and today the world market is dominated by two manufacturers, of which Maeda is by far the largest. Approximate shares of the world market: Maeda Unic Others 70 -75% 20 -25% 5%

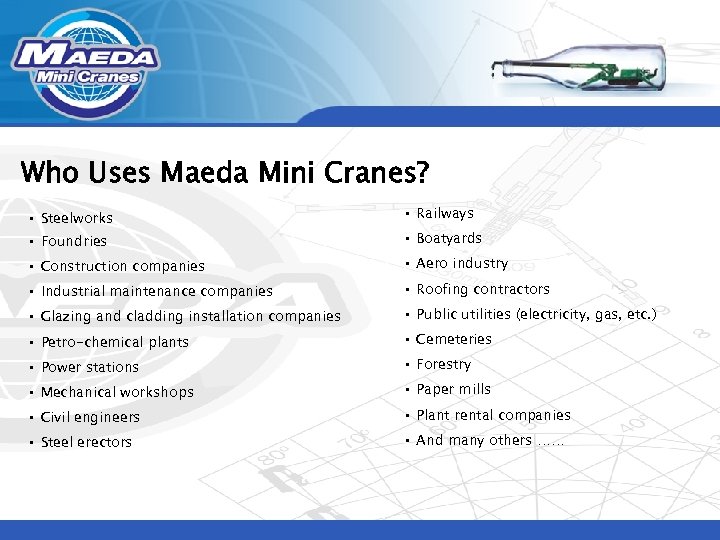

Who Uses Maeda Mini Cranes? • Steelworks • Railways • Foundries • Boatyards • Who Uses Maeda Mini Cranes? • Steelworks • Railways • Foundries • Boatyards • Construction companies • Aero industry • Industrial maintenance companies • Roofing contractors • Glazing and cladding installation companies • Public utilities (electricity, gas, etc. ) • Petro-chemical plants • Cemeteries • Power stations • Forestry • Mechanical workshops • Paper mills • Civil engineers • Plant rental companies • Steel erectors • And many others ……

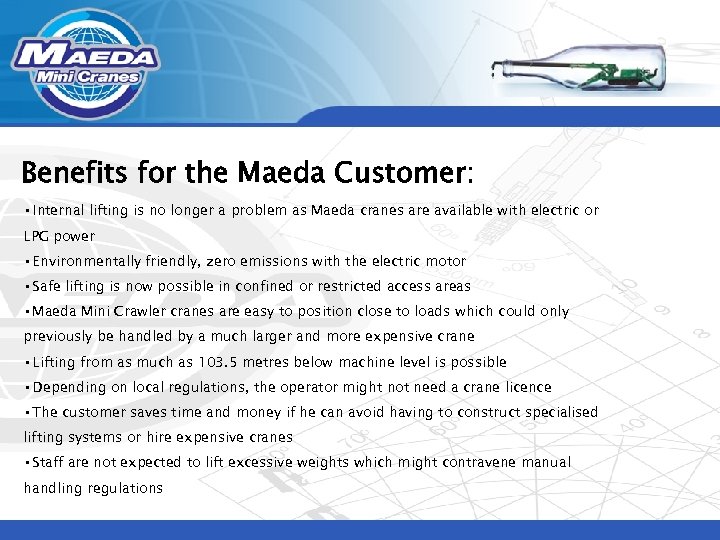

Benefits for the Maeda Customer: • Internal lifting is no longer a problem as Benefits for the Maeda Customer: • Internal lifting is no longer a problem as Maeda cranes are available with electric or LPG power • Environmentally friendly, zero emissions with the electric motor • Safe lifting is now possible in confined or restricted access areas • Maeda Mini Crawler cranes are easy to position close to loads which could only previously be handled by a much larger and more expensive crane • Lifting from as much as 103. 5 metres below machine level is possible • Depending on local regulations, the operator might not need a crane licence • The customer saves time and money if he can avoid having to construct specialised lifting systems or hire expensive cranes • Staff are not expected to lift excessive weights which might contravene manual handling regulations

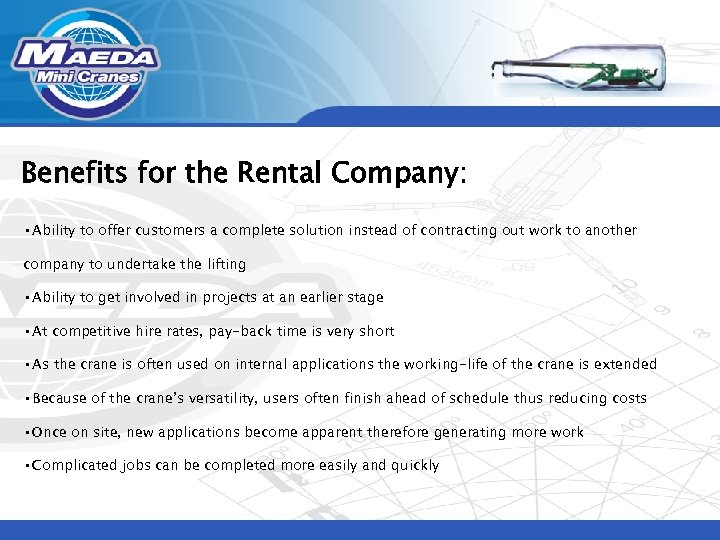

Benefits for the Rental Company: • Ability to offer customers a complete solution instead Benefits for the Rental Company: • Ability to offer customers a complete solution instead of contracting out work to another company to undertake the lifting • Ability to get involved in projects at an earlier stage • At competitive hire rates, pay-back time is very short • As the crane is often used on internal applications the working-life of the crane is extended • Because of the crane’s versatility, users often finish ahead of schedule thus reducing costs • Once on site, new applications become apparent therefore generating more work • Complicated jobs can be completed more easily and quickly

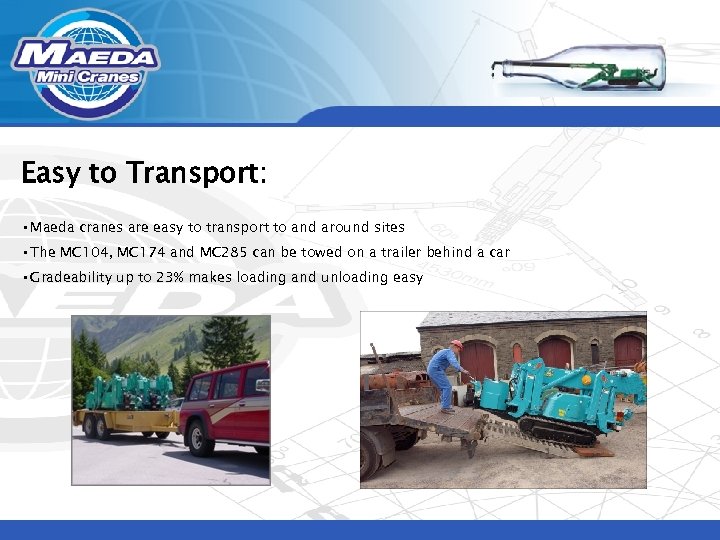

Easy to Transport: • Maeda cranes are easy to transport to and around sites Easy to Transport: • Maeda cranes are easy to transport to and around sites • The MC 104, MC 174 and MC 285 can be towed on a trailer behind a car • Gradeability up to 23% makes loading and unloading easy

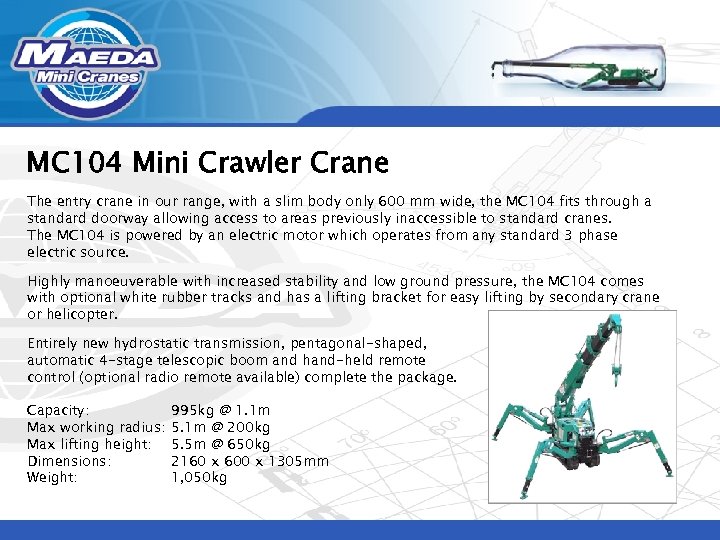

MC 104 Mini Crawler Crane The entry crane in our range, with a slim MC 104 Mini Crawler Crane The entry crane in our range, with a slim body only 600 mm wide, the MC 104 fits through a standard doorway allowing access to areas previously inaccessible to standard cranes. The MC 104 is powered by an electric motor which operates from any standard 3 phase electric source. Highly manoeuverable with increased stability and low ground pressure, the MC 104 comes with optional white rubber tracks and has a lifting bracket for easy lifting by secondary crane or helicopter. Entirely new hydrostatic transmission, pentagonal-shaped, automatic 4 -stage telescopic boom and hand-held remote control (optional radio remote available) complete the package. Capacity: Max working radius: Max lifting height: Dimensions: Weight: 995 kg @ 1. 1 m 5. 1 m @ 200 kg 5. 5 m @ 650 kg 2160 x 600 x 1305 mm 1, 050 kg

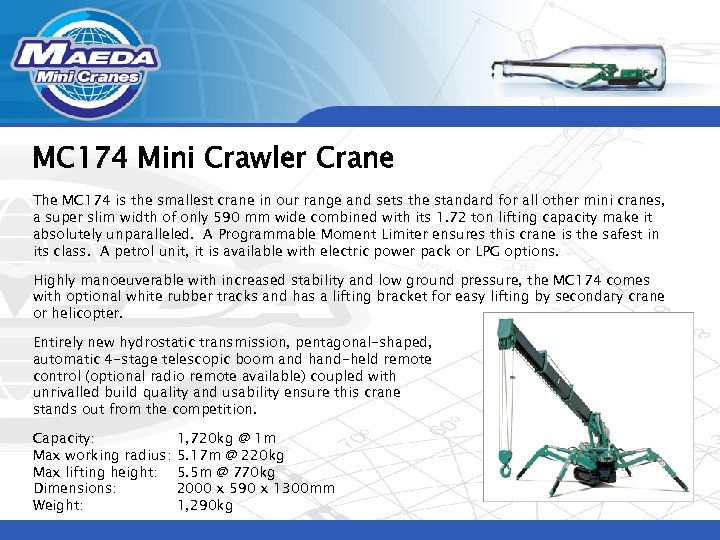

MC 174 Mini Crawler Crane The MC 174 is the smallest crane in our MC 174 Mini Crawler Crane The MC 174 is the smallest crane in our range and sets the standard for all other mini cranes, a super slim width of only 590 mm wide combined with its 1. 72 ton lifting capacity make it absolutely unparalleled. A Programmable Moment Limiter ensures this crane is the safest in its class. A petrol unit, it is available with electric power pack or LPG options. Highly manoeuverable with increased stability and low ground pressure, the MC 174 comes with optional white rubber tracks and has a lifting bracket for easy lifting by secondary crane or helicopter. Entirely new hydrostatic transmission, pentagonal-shaped, automatic 4 -stage telescopic boom and hand-held remote control (optional radio remote available) coupled with unrivalled build quality and usability ensure this crane stands out from the competition. Capacity: Max working radius: Max lifting height: Dimensions: Weight: 1, 720 kg @ 1 m 5. 17 m @ 220 kg 5. 5 m @ 770 kg 2000 x 590 x 1300 mm 1, 290 kg

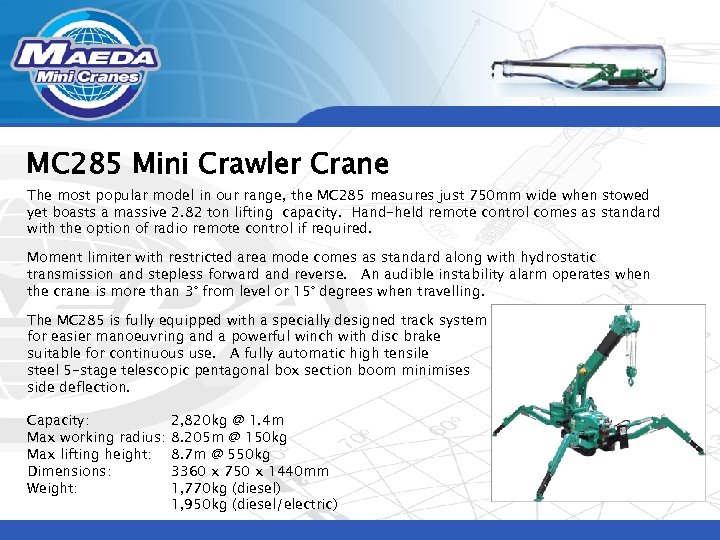

MC 285 Mini Crawler Crane The most popular model in our range, the MC MC 285 Mini Crawler Crane The most popular model in our range, the MC 285 measures just 750 mm wide when stowed yet boasts a massive 2. 82 ton lifting capacity. Hand-held remote control comes as standard with the option of radio remote control if required. Moment limiter with restricted area mode comes as standard along with hydrostatic transmission and stepless forward and reverse. An audible instability alarm operates when the crane is more than 3° from level or 15° degrees when travelling. The MC 285 is fully equipped with a specially designed track system for easier manoeuvring and a powerful winch with disc brake suitable for continuous use. A fully automatic high tensile steel 5 -stage telescopic pentagonal box section boom minimises side deflection. Capacity: Max working radius: Max lifting height: Dimensions: Weight: 2, 820 kg @ 1. 4 m 8. 205 m @ 150 kg 8. 7 m @ 550 kg 3360 x 750 x 1440 mm 1, 770 kg (diesel) 1, 950 kg (diesel/electric)

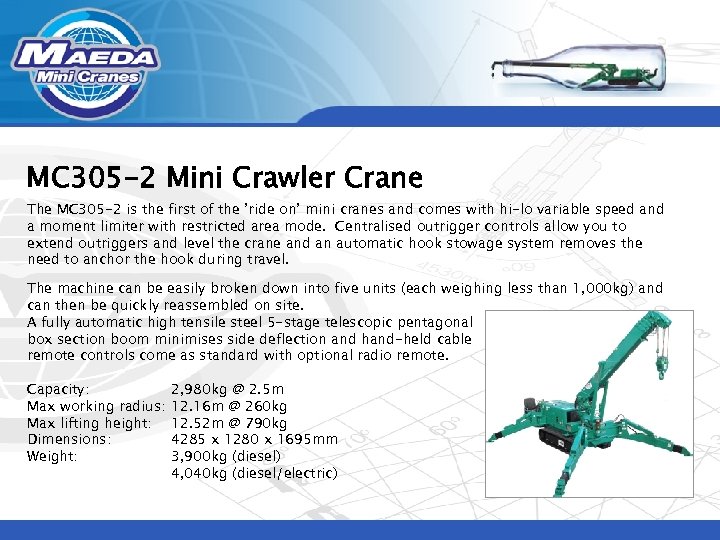

MC 305 -2 Mini Crawler Crane The MC 305 -2 is the first of MC 305 -2 Mini Crawler Crane The MC 305 -2 is the first of the ’ride on’ mini cranes and comes with hi-lo variable speed and a moment limiter with restricted area mode. Centralised outrigger controls allow you to extend outriggers and level the crane and an automatic hook stowage system removes the need to anchor the hook during travel. The machine can be easily broken down into five units (each weighing less than 1, 000 kg) and can then be quickly reassembled on site. A fully automatic high tensile steel 5 -stage telescopic pentagonal box section boom minimises side deflection and hand-held cable remote controls come as standard with optional radio remote. Capacity: Max working radius: Max lifting height: Dimensions: Weight: 2, 980 kg @ 2. 5 m 12. 16 m @ 260 kg 12. 52 m @ 790 kg 4285 x 1280 x 1695 mm 3, 900 kg (diesel) 4, 040 kg (diesel/electric)

MC 405 Mini Crawler Crane The MC 405 is the most powerful of the MC 405 Mini Crawler Crane The MC 405 is the most powerful of the Maeda Mini Crane range with an outstanding 3. 83 tons of lifting capacity. This fantastic model also has a pick and carry duty of up to 500 kg. Features that come as standard include variable (hi/lo) travel speeds, programmable moment limiter, hydrostatic transmission, centralised controls, automatic hook stowage system, tilt sensor/alarm, powerful two speed winch and a hydraulic disc brake. A fully automatic high tensile steel 5 -stage telescopic pentagonal box section boom minimises side deflection and hand-held cable remote controls come as standard with optional radio remote. Capacity: Max working radius: Max lifting height: Optional Fly Jib: Pick and Carry: Dimensions: Weight: 3, 830 kg x 2. 7 m 16 m x 210 kg 16. 8 m x 1130 kg 20. 7 m @ 520 kg 500 kg 4980 x 1380 x 1980 mm 5, 600 kg (diesel) 5, 750 kg (diesel/electric)

LC 785 B Crawler Crane The Maeda crawler crane range begins with the LC LC 785 B Crawler Crane The Maeda crawler crane range begins with the LC 785 B, boasting a monstrous 4. 9 tons lifting capacity whilst using no outriggers. An optional fly-jib completes the package. Features include a five stage boom - the longest in its class, virtually zero tail swing, onetouch wide opening engine cover, two speed hi/lo winch, derrick cylinder guard to prevent accidental damage and front blade. The well-insulated and ergonomically designed cab comes with high capacity air conditioning and makes this crane a pleasure to operate. This crawler crane is a class leader in safety on site. Capacity: Max working radius: Max lifting height: Optional Fly Jib: Pick and Carry: Dimensions: Weight: 4, 900 kg @ 2. 1 m 14. 52 m @ 200 kg 16. 35 m @ 1400 kg 20. 3 m @ 430 kg 2, 000 kg 5020 x 2350 x 2685 mm 10, 250 kg

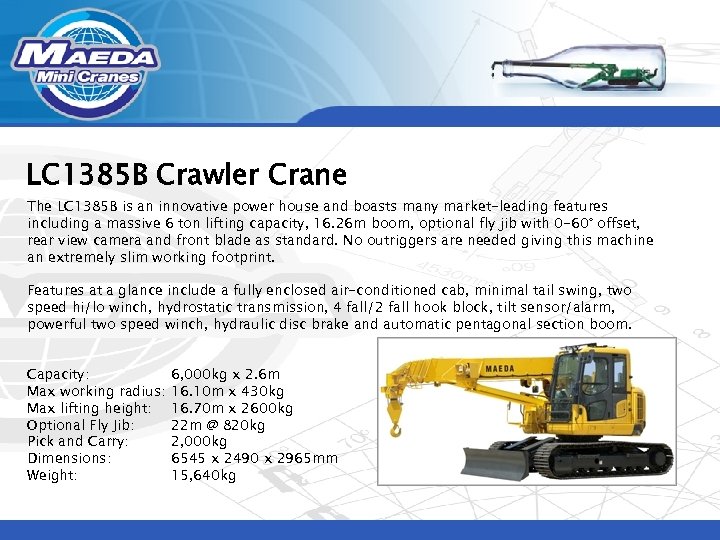

LC 1385 B Crawler Crane The LC 1385 B is an innovative power house LC 1385 B Crawler Crane The LC 1385 B is an innovative power house and boasts many market-leading features including a massive 6 ton lifting capacity, 16. 26 m boom, optional fly jib with 0 -60° offset, rear view camera and front blade as standard. No outriggers are needed giving this machine an extremely slim working footprint. Features at a glance include a fully enclosed air-conditioned cab, minimal tail swing, two speed hi/lo winch, hydrostatic transmission, 4 fall/2 fall hook block, tilt sensor/alarm, powerful two speed winch, hydraulic disc brake and automatic pentagonal section boom. Capacity: Max working radius: Max lifting height: Optional Fly Jib: Pick and Carry: Dimensions: Weight: 6, 000 kg x 2. 6 m 16. 10 m x 430 kg 16. 70 m x 2600 kg 22 m @ 820 kg 2, 000 kg 6545 x 2490 x 2965 mm 15, 640 kg

Maeda Case Study – Glass Handling A Maeda MC 285 at work in a Maeda Case Study – Glass Handling A Maeda MC 285 at work in a Belgian football stadium replacing 6 panels of glass that had been damaged during the season. It was a tricky job as the only way to get to the glass was through the stadium and up the stairs. No problem for the MC 285 however – proving just how versatile these Mini Cranes can be.

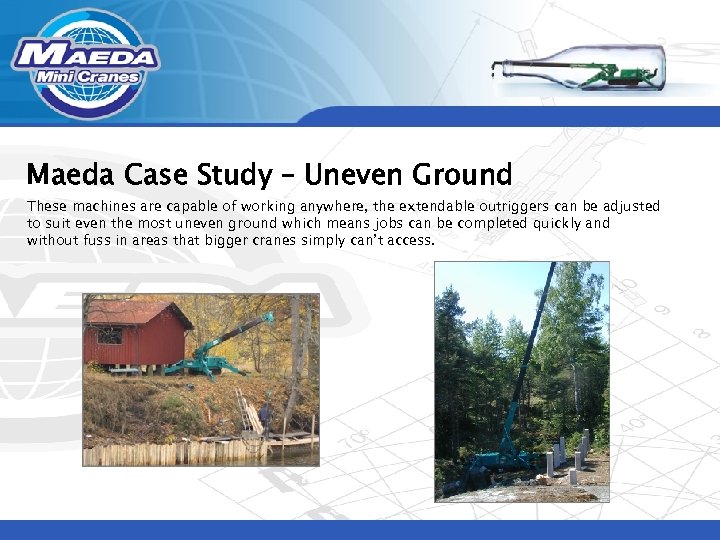

Maeda Case Study – Uneven Ground These machines are capable of working anywhere, the Maeda Case Study – Uneven Ground These machines are capable of working anywhere, the extendable outriggers can be adjusted to suit even the most uneven ground which means jobs can be completed quickly and without fuss in areas that bigger cranes simply can’t access.

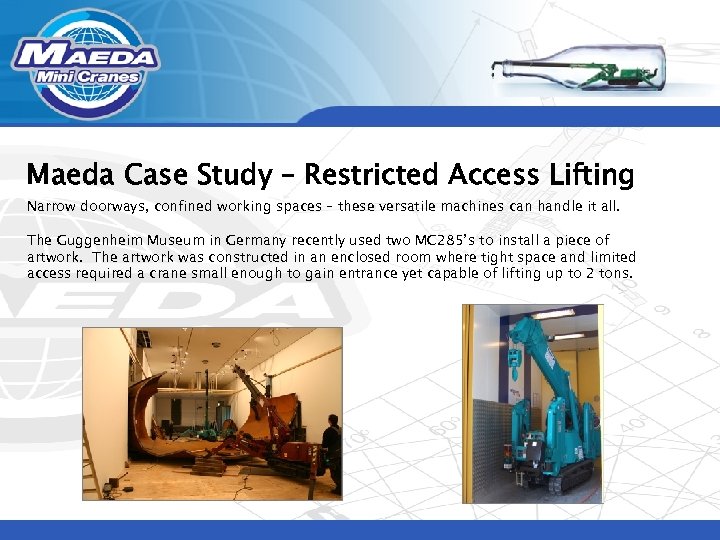

Maeda Case Study – Restricted Access Lifting Narrow doorways, confined working spaces – these Maeda Case Study – Restricted Access Lifting Narrow doorways, confined working spaces – these versatile machines can handle it all. The Guggenheim Museum in Germany recently used two MC 285’s to install a piece of artwork. The artwork was constructed in an enclosed room where tight space and limited access required a crane small enough to gain entrance yet capable of lifting up to 2 tons.

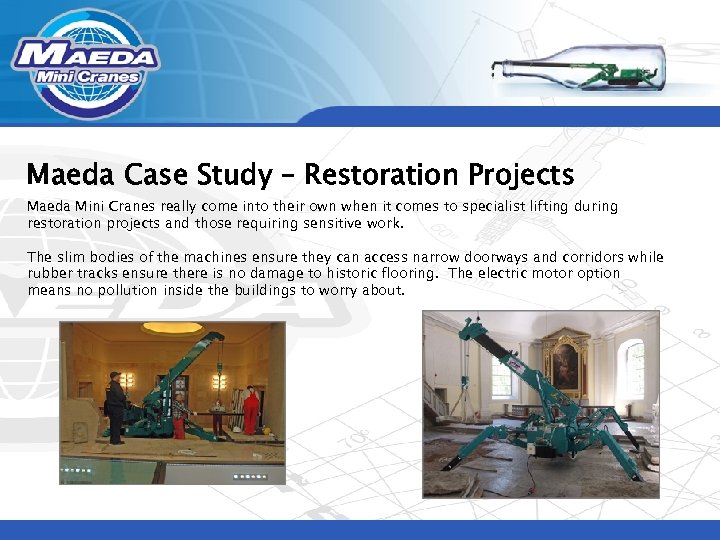

Maeda Case Study – Restoration Projects Maeda Mini Cranes really come into their own Maeda Case Study – Restoration Projects Maeda Mini Cranes really come into their own when it comes to specialist lifting during restoration projects and those requiring sensitive work. The slim bodies of the machines ensure they can access narrow doorways and corridors while rubber tracks ensure there is no damage to historic flooring. The electric motor option means no pollution inside the buildings to worry about.

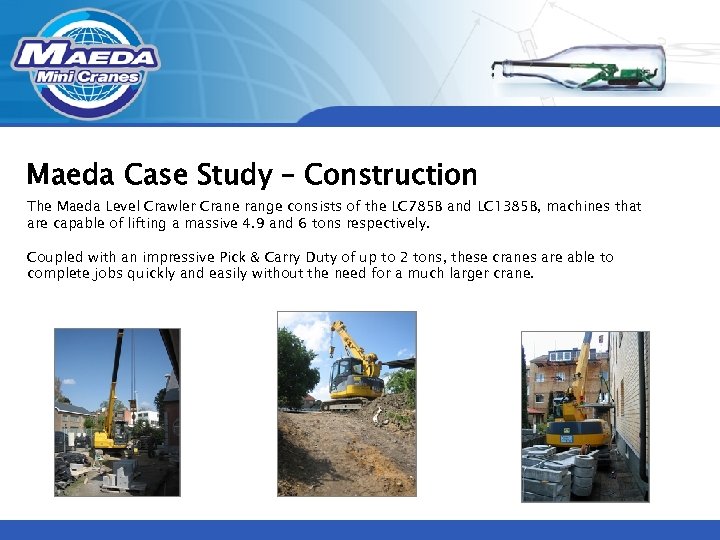

Maeda Case Study – Construction The Maeda Level Crawler Crane range consists of the Maeda Case Study – Construction The Maeda Level Crawler Crane range consists of the LC 785 B and LC 1385 B, machines that are capable of lifting a massive 4. 9 and 6 tons respectively. Coupled with an impressive Pick & Carry Duty of up to 2 tons, these cranes are able to complete jobs quickly and easily without the need for a much larger crane.

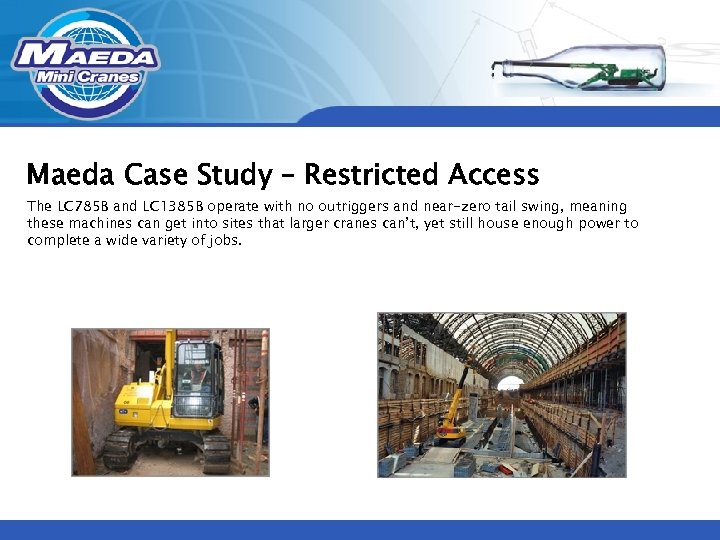

Maeda Case Study – Restricted Access The LC 785 B and LC 1385 B Maeda Case Study – Restricted Access The LC 785 B and LC 1385 B operate with no outriggers and near-zero tail swing, meaning these machines can get into sites that larger cranes can’t, yet still house enough power to complete a wide variety of jobs.

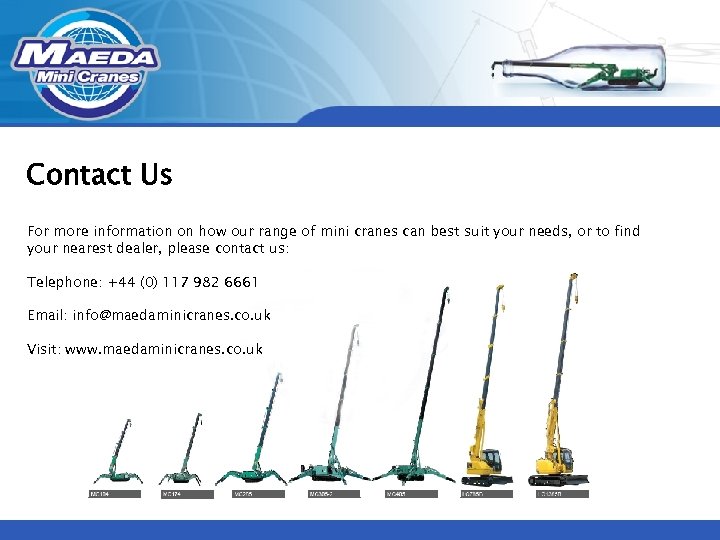

Contact Us For more information on how our range of mini cranes can best Contact Us For more information on how our range of mini cranes can best suit your needs, or to find your nearest dealer, please contact us: Telephone: +44 (0) 117 982 6661 Email: [email protected] co. uk Visit: www. maedaminicranes. co. uk
