  • Количество слайдов: 24

Vehicle GENI Testbed: Challenges and Experiments WINLAB, March 27 2007 Break out Moderator, Mario Vehicle GENI Testbed: Challenges and Experiments WINLAB, March 27 2007 Break out Moderator, Mario Gerla UCLA

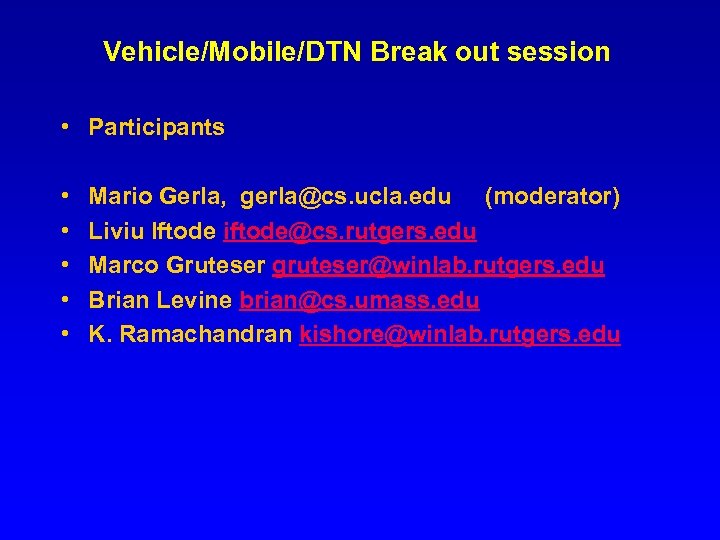

Vehicle/Mobile/DTN Break out session • Participants • • • Mario Gerla, gerla@cs. ucla. edu Vehicle/Mobile/DTN Break out session • Participants • • • Mario Gerla, [email protected] ucla. edu (moderator) Liviu Iftode [email protected] rutgers. edu Marco Gruteser [email protected] rutgers. edu Brian Levine [email protected] umass. edu K. Ramachandran [email protected] rutgers. edu

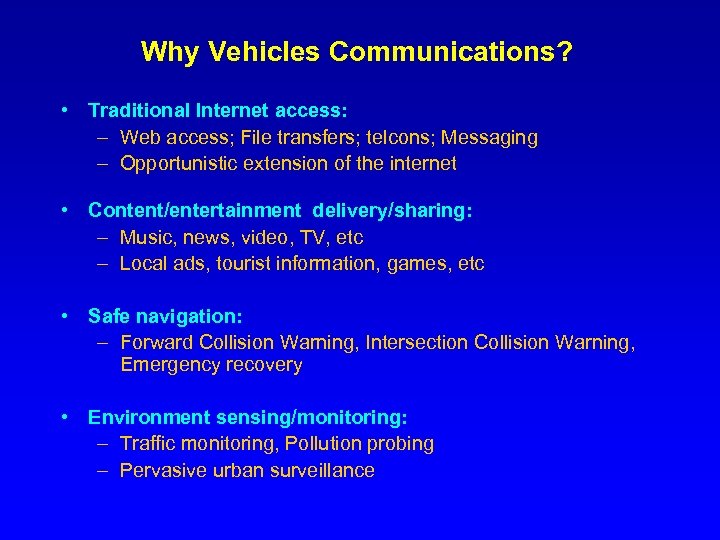

Why Vehicles Communications? • Traditional Internet access: – Web access; File transfers; telcons; Messaging Why Vehicles Communications? • Traditional Internet access: – Web access; File transfers; telcons; Messaging – Opportunistic extension of the internet • Content/entertainment delivery/sharing: – Music, news, video, TV, etc – Local ads, tourist information, games, etc • Safe navigation: – Forward Collision Warning, Intersection Collision Warning, Emergency recovery • Environment sensing/monitoring: – Traffic monitoring, Pollution probing – Pervasive urban surveillance

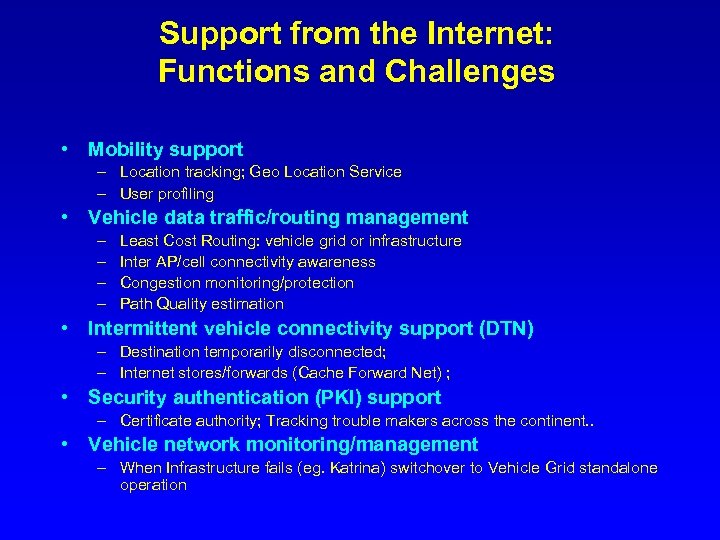

Support from the Internet: Functions and Challenges • Mobility support – Location tracking; Geo Support from the Internet: Functions and Challenges • Mobility support – Location tracking; Geo Location Service – User profiling • Vehicle data traffic/routing management – – Least Cost Routing: vehicle grid or infrastructure Inter AP/cell connectivity awareness Congestion monitoring/protection Path Quality estimation • Intermittent vehicle connectivity support (DTN) – Destination temporarily disconnected; – Internet stores/forwards (Cache Forward Net) ; • Security authentication (PKI) support – Certificate authority; Tracking trouble makers across the continent. . • Vehicle network monitoring/management – When Infrastructure fails (eg. Katrina) switchover to Vehicle Grid standalone operation

GENI Experiment Examples • • Geo Location Service Infrastructure Routing Support Centralized Security Applications: GENI Experiment Examples • • Geo Location Service Infrastructure Routing Support Centralized Security Applications: – Car torrent – Urban sensing – Emergency Urban Evacuation

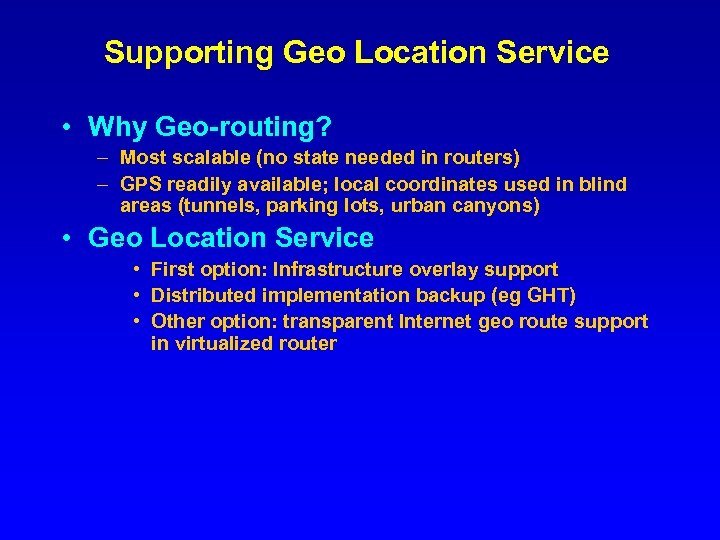

Supporting Geo Location Service • Why Geo-routing? – Most scalable (no state needed in Supporting Geo Location Service • Why Geo-routing? – Most scalable (no state needed in routers) – GPS readily available; local coordinates used in blind areas (tunnels, parking lots, urban canyons) • Geo Location Service • First option: Infrastructure overlay support • Distributed implementation backup (eg GHT) • Other option: transparent Internet geo route support in virtualized router

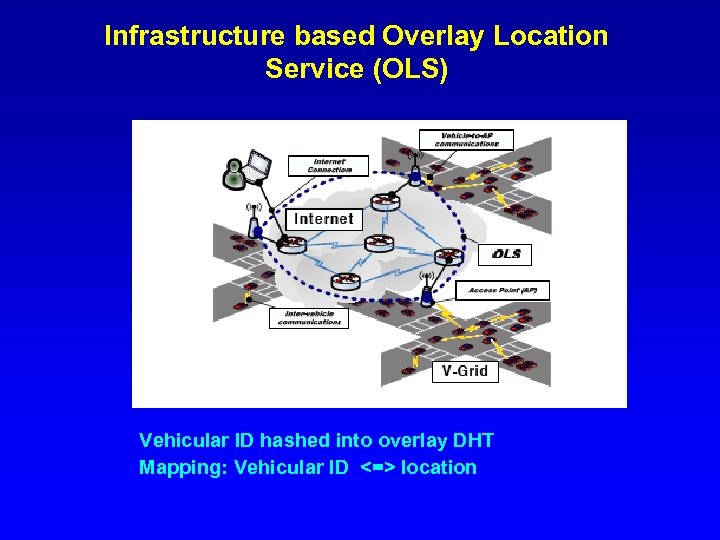

Infrastructure based Overlay Location Service (OLS) Vehicular ID hashed into overlay DHT Mapping: Vehicular Infrastructure based Overlay Location Service (OLS) Vehicular ID hashed into overlay DHT Mapping: Vehicular ID <=> location

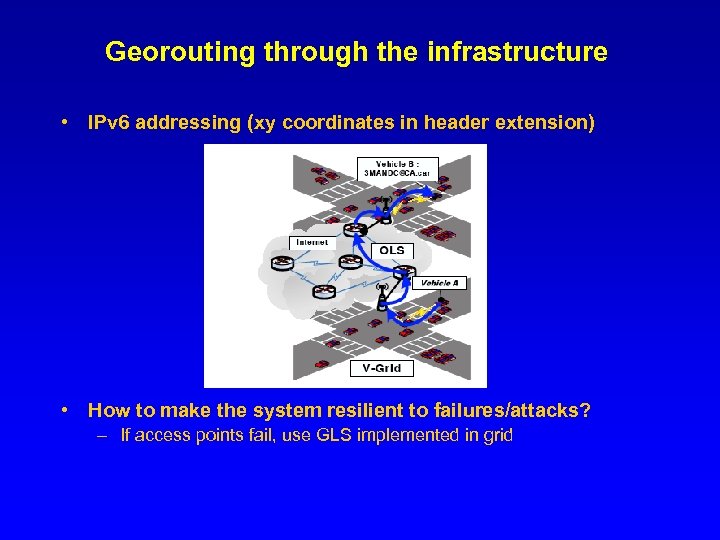

Georouting through the infrastructure • IPv 6 addressing (xy coordinates in header extension) • Georouting through the infrastructure • IPv 6 addressing (xy coordinates in header extension) • How to make the system resilient to failures/attacks? – If access points fail, use GLS implemented in grid

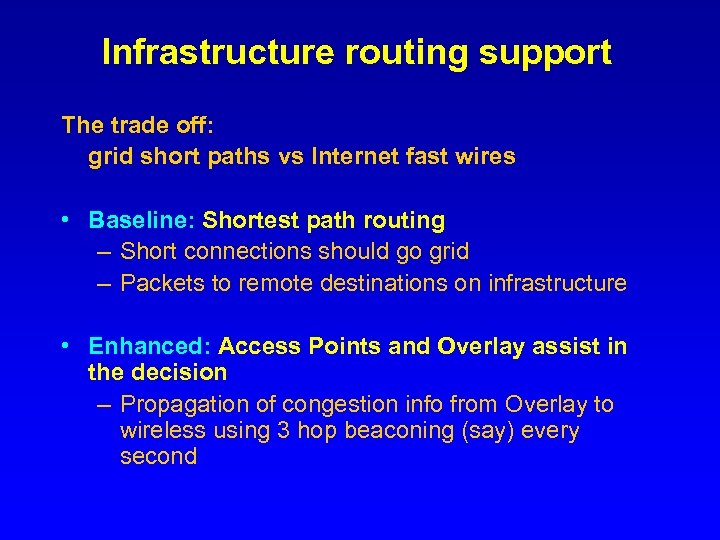

Infrastructure routing support The trade off: grid short paths vs Internet fast wires • Infrastructure routing support The trade off: grid short paths vs Internet fast wires • Baseline: Shortest path routing – Short connections should go grid – Packets to remote destinations on infrastructure • Enhanced: Access Points and Overlay assist in the decision – Propagation of congestion info from Overlay to wireless using 3 hop beaconing (say) every second

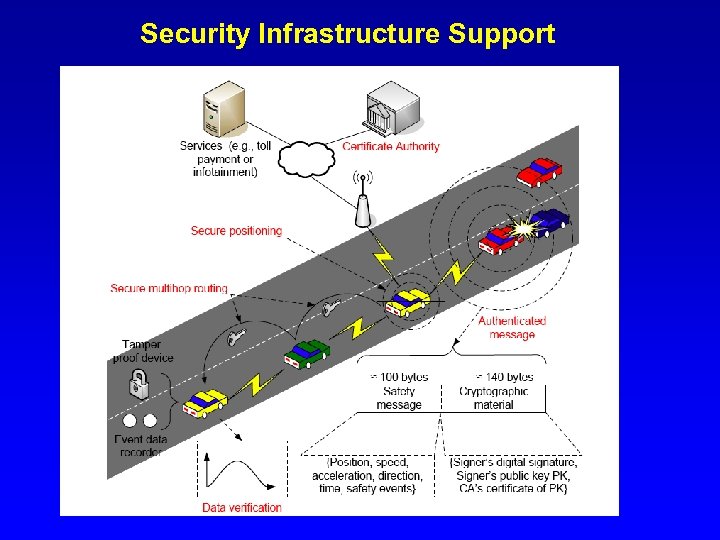

Security Infrastructure Support Security Infrastructure Support

Appl #1: Co-operative Download-Car Torrent Internet Vehicle-Vehicle Communication Exchanging Pieces of File Later Appl #1: Co-operative Download-Car Torrent Internet Vehicle-Vehicle Communication Exchanging Pieces of File Later

Appl #2 Accident Scenario witnessing Appl #2 Accident Scenario witnessing

Appl #2 Accident Scenario (cont) • • Designated Cars (eg, busses, taxicabs, UPS, police Appl #2 Accident Scenario (cont) • • Designated Cars (eg, busses, taxicabs, UPS, police agents, etc): – Continuously collect images on the street (store data locally) – Process the data and detect an event – Classify the event as Meta-data (Type, Option, Location, Vehicle ID) – Post it on distributed index -> Epidemic Dissemination Police retrieve data from designated cars Meta-data : Img, -. (10, 10), V 10

Appl#3 Evacuation Scenario • Dense urban area evacuated because of attack or natural disaster Appl#3 Evacuation Scenario • Dense urban area evacuated because of attack or natural disaster • Infrastructure obliterated - must rely on Car to Car communications • Evacuation of vehicles and people – Static evacuation plans will not work in hostile attacks – Distributed sensing of damage and road availability – Distributed, collaborative evacuation strategy computation

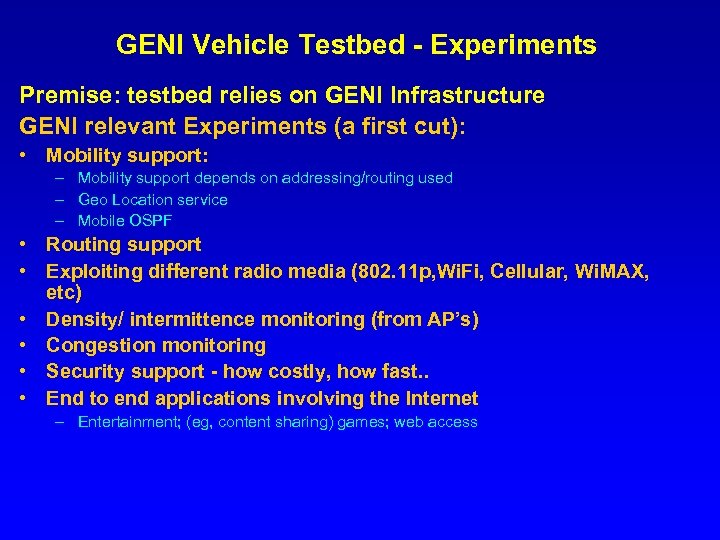

GENI Vehicle Testbed - Experiments Premise: testbed relies on GENI Infrastructure GENI relevant Experiments GENI Vehicle Testbed - Experiments Premise: testbed relies on GENI Infrastructure GENI relevant Experiments (a first cut): • Mobility support: – Mobility support depends on addressing/routing used – Geo Location service – Mobile OSPF • Routing support • Exploiting different radio media (802. 11 p, Wi. Fi, Cellular, Wi. MAX, etc) • Density/ intermittence monitoring (from AP’s) • Congestion monitoring • Security support - how costly, how fast. . • End to end applications involving the Internet – Entertainment; (eg, content sharing) games; web access

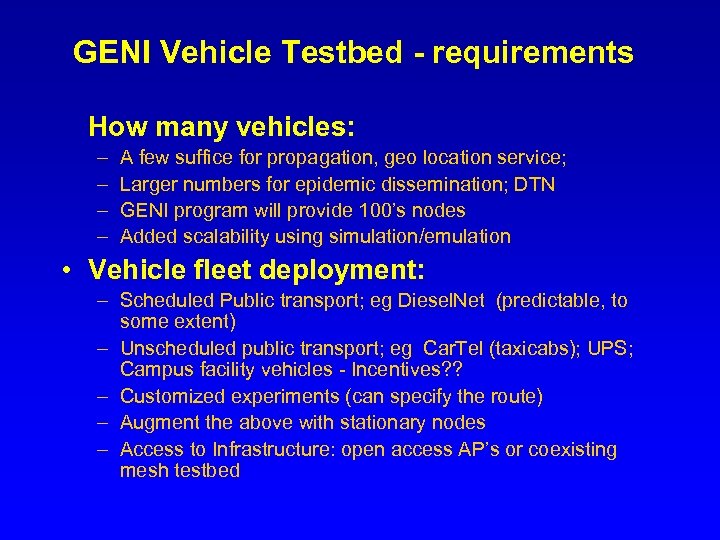

GENI Vehicle Testbed - requirements How many vehicles: – – A few suffice for GENI Vehicle Testbed - requirements How many vehicles: – – A few suffice for propagation, geo location service; Larger numbers for epidemic dissemination; DTN GENI program will provide 100’s nodes Added scalability using simulation/emulation • Vehicle fleet deployment: – Scheduled Public transport; eg Diesel. Net (predictable, to some extent) – Unscheduled public transport; eg Car. Tel (taxicabs); UPS; Campus facility vehicles - Incentives? ? – Customized experiments (can specify the route) – Augment the above with stationary nodes – Access to Infrastructure: open access AP’s or coexisting mesh testbed

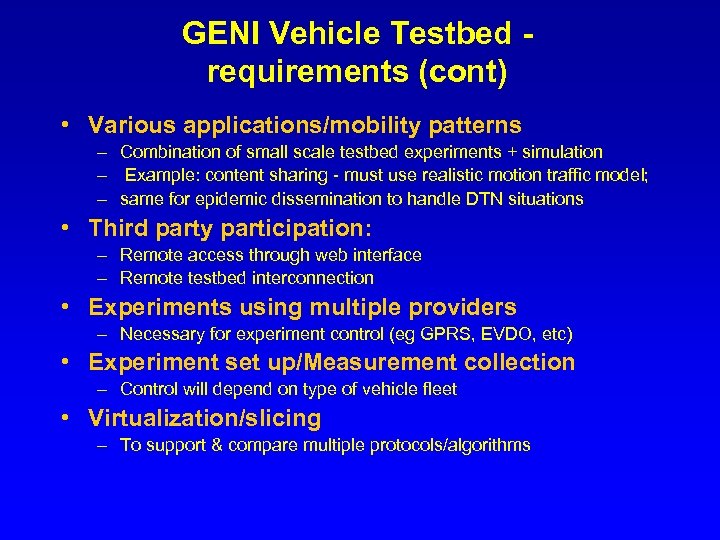

GENI Vehicle Testbed requirements (cont) • Various applications/mobility patterns – Combination of small scale GENI Vehicle Testbed requirements (cont) • Various applications/mobility patterns – Combination of small scale testbed experiments + simulation – Example: content sharing - must use realistic motion traffic model; – same for epidemic dissemination to handle DTN situations • Third party participation: – Remote access through web interface – Remote testbed interconnection • Experiments using multiple providers – Necessary for experiment control (eg GPRS, EVDO, etc) • Experiment set up/Measurement collection – Control will depend on type of vehicle fleet • Virtualization/slicing – To support & compare multiple protocols/algorithms

Simulation Support Simulation Support

C -V e T Campus Vehicular Testbed E. Giordano, A. Ghosh, G. Marfia, S. C -V e T Campus Vehicular Testbed E. Giordano, A. Ghosh, G. Marfia, S. Ho, J. S. Park, Ph. D System Design: Giovanni Pau, Ph. D Advisor: Mario Gerla, Ph. D

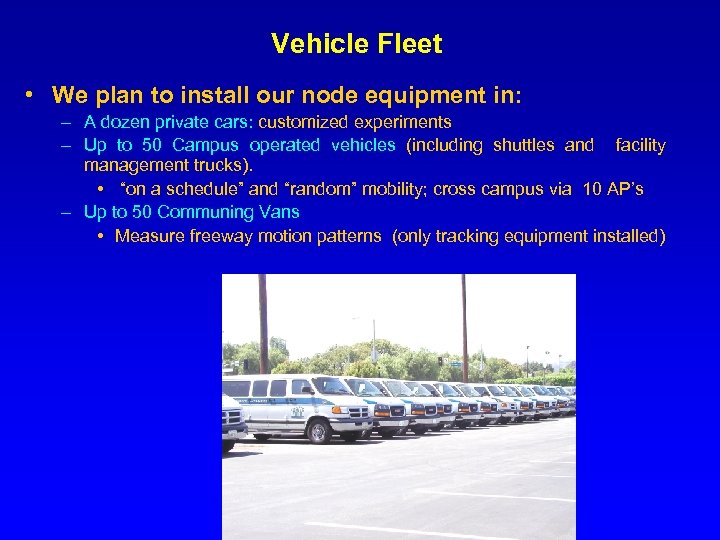

Vehicle Fleet • We plan to install our node equipment in: – A dozen Vehicle Fleet • We plan to install our node equipment in: – A dozen private cars: customized experiments – Up to 50 Campus operated vehicles (including shuttles and facility management trucks). • “on a schedule” and “random” mobility; cross campus via 10 AP’s – Up to 50 Communing Vans • Measure freeway motion patterns (only tracking equipment installed)

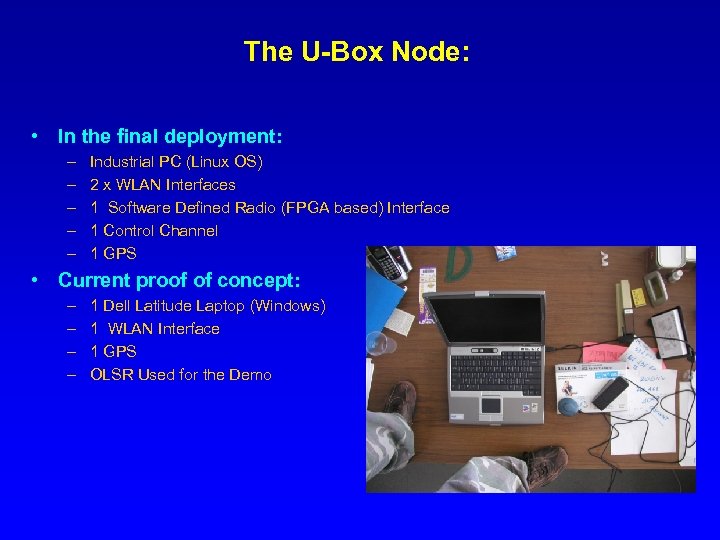

The U-Box Node: • In the final deployment: – – – Industrial PC (Linux The U-Box Node: • In the final deployment: – – – Industrial PC (Linux OS) 2 x WLAN Interfaces 1 Software Defined Radio (FPGA based) Interface 1 Control Channel 1 GPS • Current proof of concept: – – 1 Dell Latitude Laptop (Windows) 1 WLAN Interface 1 GPS OLSR Used for the Demo

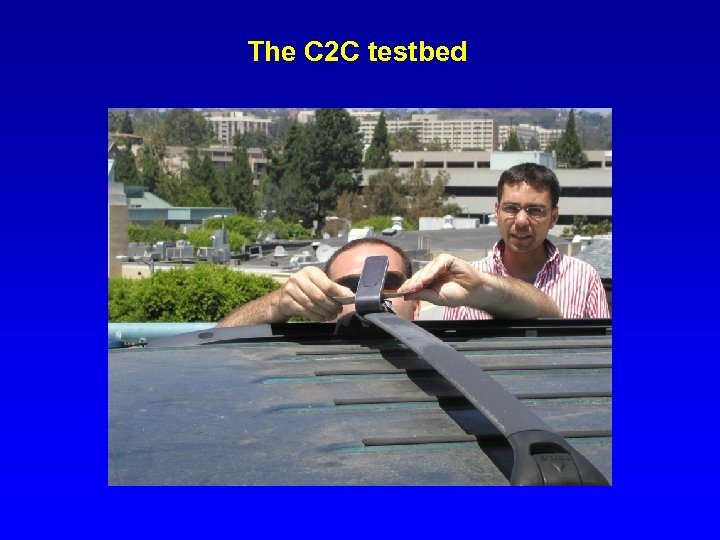

The C 2 C testbed The C 2 C testbed

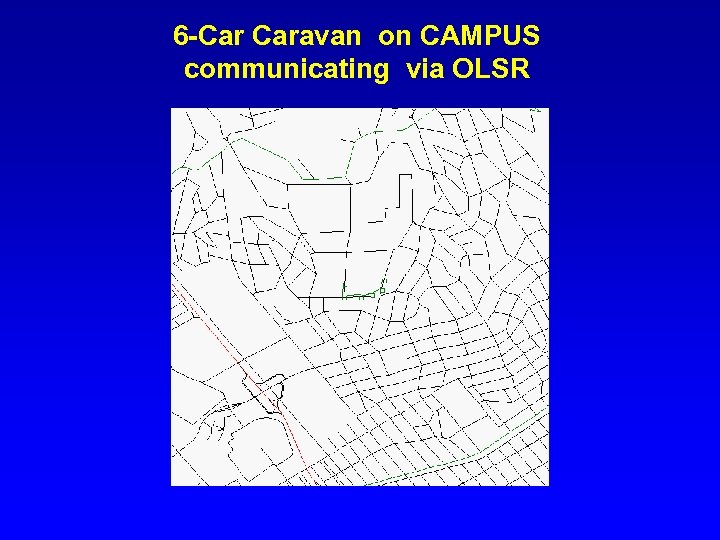

6 -Car Caravan on CAMPUS communicating via OLSR 6 -Car Caravan on CAMPUS communicating via OLSR
