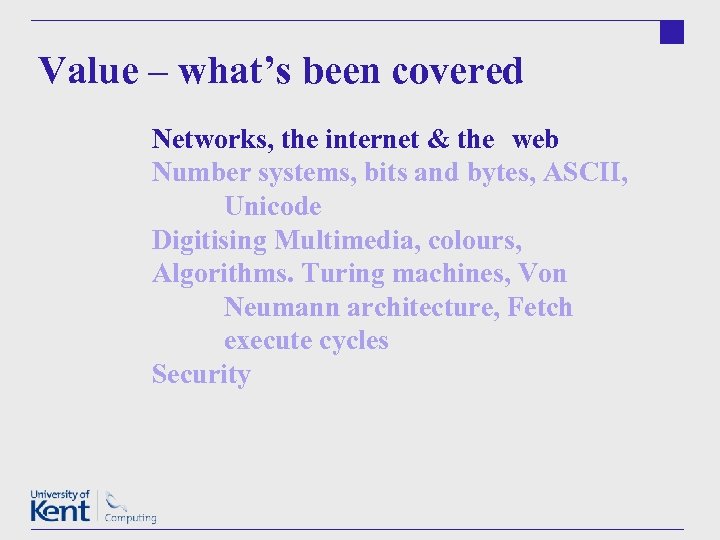

Value – what’s been covered Networks, the internet & the web Number systems, bits Value – what’s been covered Networks, the internet & the web Number systems, bits and bytes, ASCII, Unicode Digitising Multimedia, colours, Algorithms. Turing machines, Von Neumann architecture, Fetch execute cycles Security

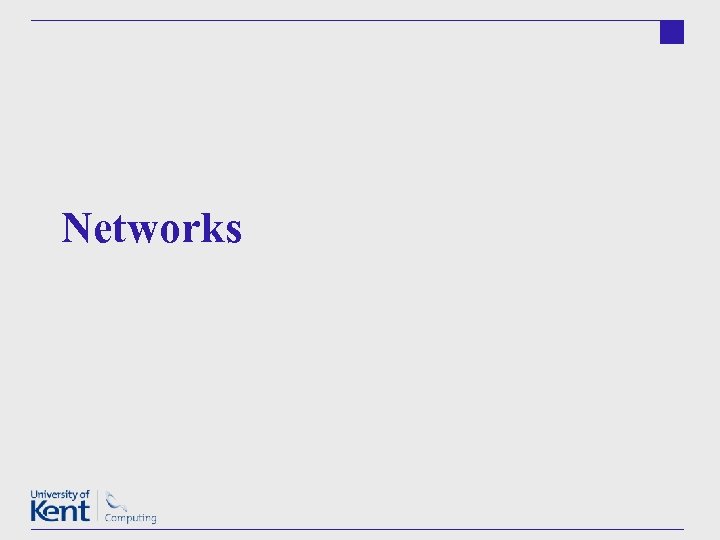

Networks Networks

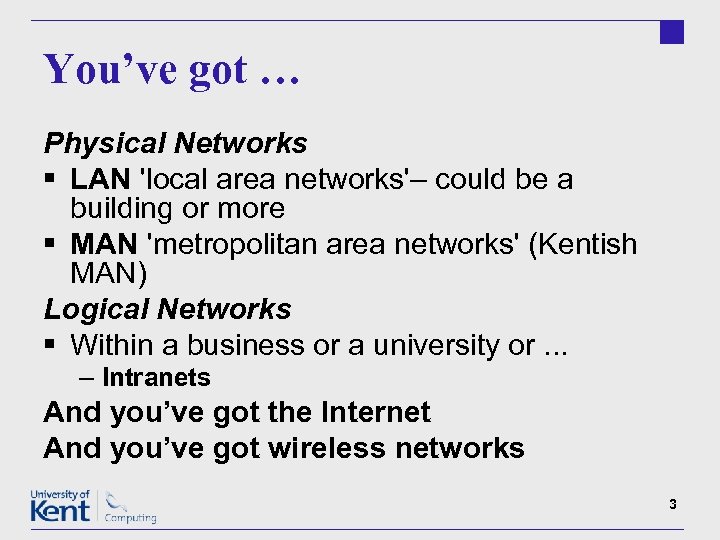

You’ve got … Physical Networks § LAN 'local area networks'– could be a building You’ve got … Physical Networks § LAN 'local area networks'– could be a building or more § MAN 'metropolitan area networks' (Kentish MAN) Logical Networks § Within a business or a university or. . . – Intranets And you’ve got the Internet And you’ve got wireless networks 3

What is the Internet § It’s a network of networks, a global supernetwork – What is the Internet § It’s a network of networks, a global supernetwork – and it’s not just any such – Overall, it works in a specific kind of way and it is really global. § As we know it, it was invented 30 years ago and deployed 20 years ago. 4

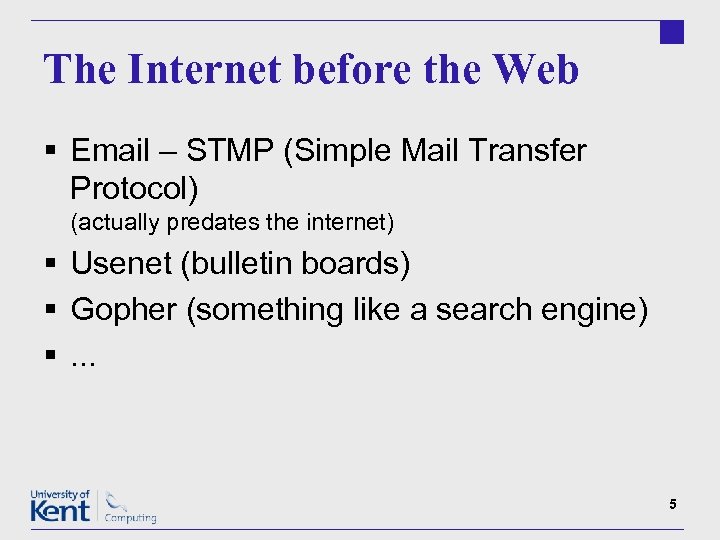

The Internet before the Web § Email – STMP (Simple Mail Transfer Protocol) (actually The Internet before the Web § Email – STMP (Simple Mail Transfer Protocol) (actually predates the internet) § Usenet (bulletin boards) § Gopher (something like a search engine) §. . . 5

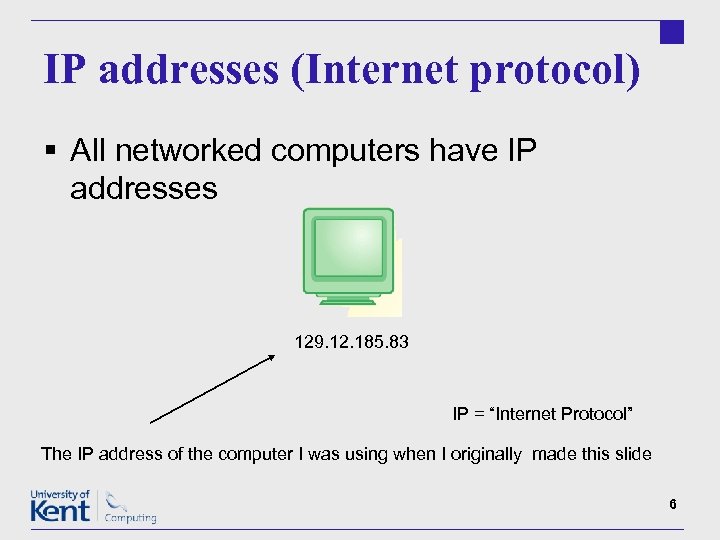

IP addresses (Internet protocol) § All networked computers have IP addresses 129. 12. 185. IP addresses (Internet protocol) § All networked computers have IP addresses 129. 12. 185. 83 IP = “Internet Protocol” The IP address of the computer I was using when I originally made this slide 6

IP addresses § A unique number that refers to a device on a network IP addresses § A unique number that refers to a device on a network § What have IP addresses? Web-sites, servers, your pc, the printer in the hallway. . . (some are static – they stay the same, some are dynamic, . . . ) § IP addresses are used over LANs as well as over the Internet § www. cs. kent. ac. uk resolves to 129. 12. 4. 58 § www. kent. ac. uk resolves to 129. 12. 200. 17 § www. gre. ac. uk resolves to 193. 60. 49. 86 § www. whitehouse. gov resolves to. . . 84. 53. 134. 9 and 84. 53. 134. 14 [among others] 7

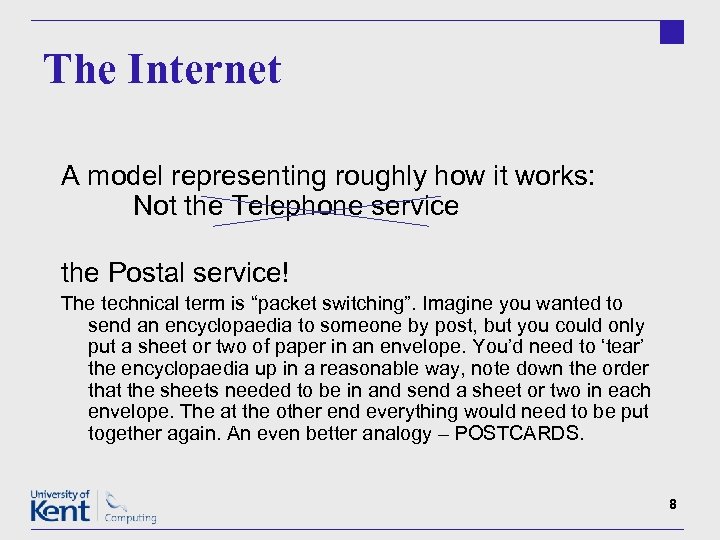

The Internet A model representing roughly how it works: Not the Telephone service the The Internet A model representing roughly how it works: Not the Telephone service the Postal service! The technical term is “packet switching”. Imagine you wanted to send an encyclopaedia to someone by post, but you could only put a sheet or two of paper in an envelope. You’d need to ‘tear’ the encyclopaedia up in a reasonable way, note down the order that the sheets needed to be in and send a sheet or two in each envelope. The at the other end everything would need to be put together again. An even better analogy – POSTCARDS. 8

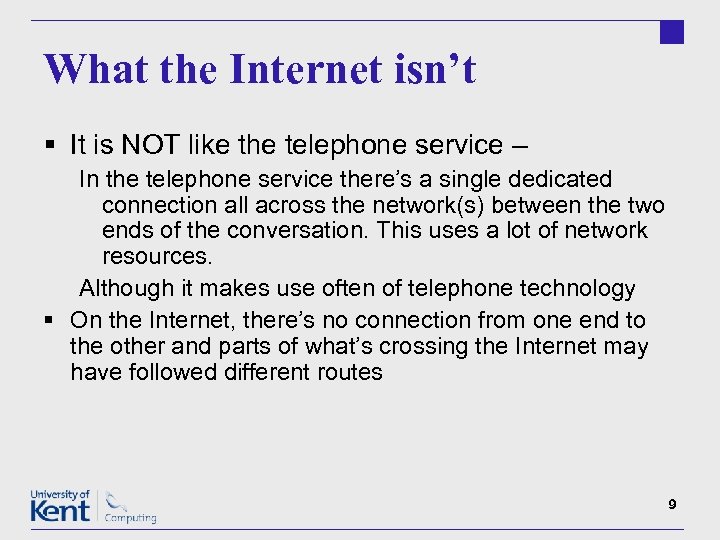

What the Internet isn’t § It is NOT like the telephone service – In What the Internet isn’t § It is NOT like the telephone service – In the telephone service there’s a single dedicated connection all across the network(s) between the two ends of the conversation. This uses a lot of network resources. Although it makes use often of telephone technology § On the Internet, there’s no connection from one end to the other and parts of what’s crossing the Internet may have followed different routes 9

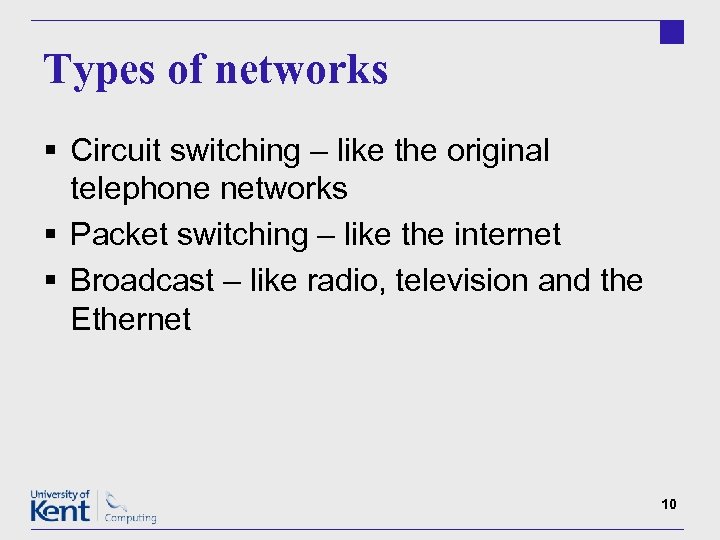

Types of networks § Circuit switching – like the original telephone networks § Packet Types of networks § Circuit switching – like the original telephone networks § Packet switching – like the internet § Broadcast – like radio, television and the Ethernet 10

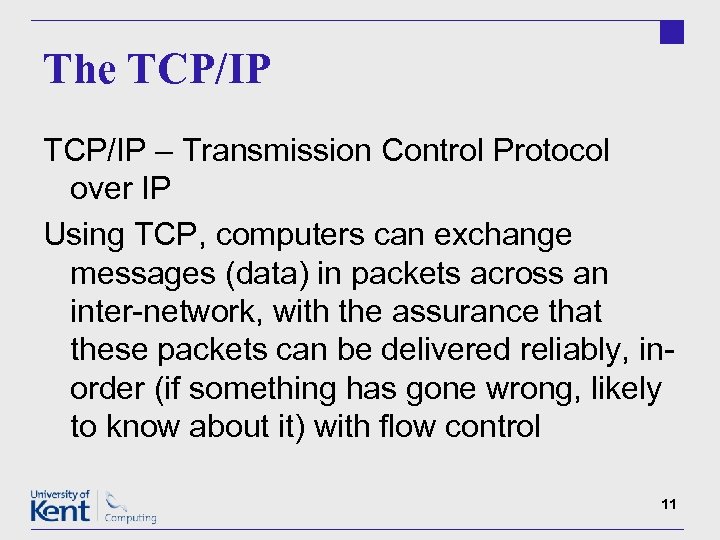

The TCP/IP – Transmission Control Protocol over IP Using TCP, computers can exchange messages The TCP/IP – Transmission Control Protocol over IP Using TCP, computers can exchange messages (data) in packets across an inter-network, with the assurance that these packets can be delivered reliably, inorder (if something has gone wrong, likely to know about it) with flow control 11

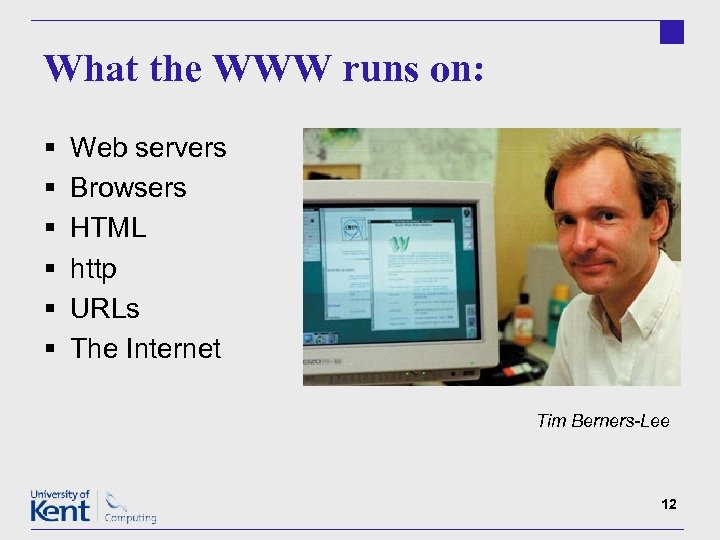

What the WWW runs on: § § § Web servers Browsers HTML http URLs What the WWW runs on: § § § Web servers Browsers HTML http URLs The Internet Tim Berners-Lee 12

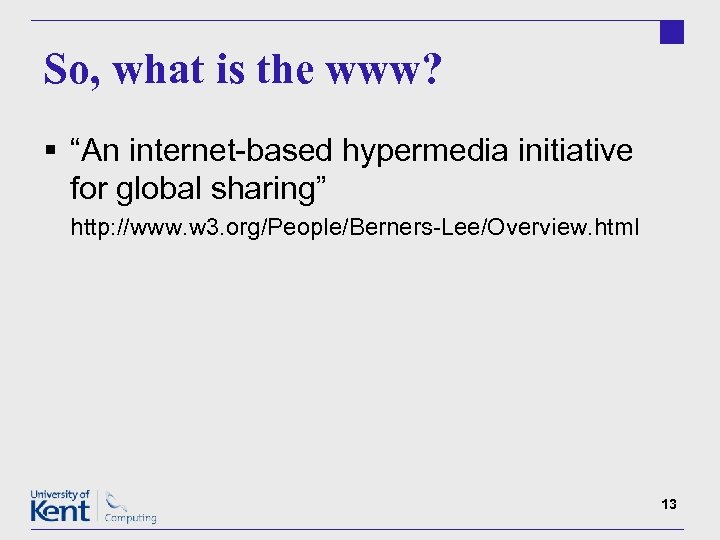

So, what is the www? § “An internet-based hypermedia initiative for global sharing” http: So, what is the www? § “An internet-based hypermedia initiative for global sharing” http: //www. w 3. org/People/Berners-Lee/Overview. html 13

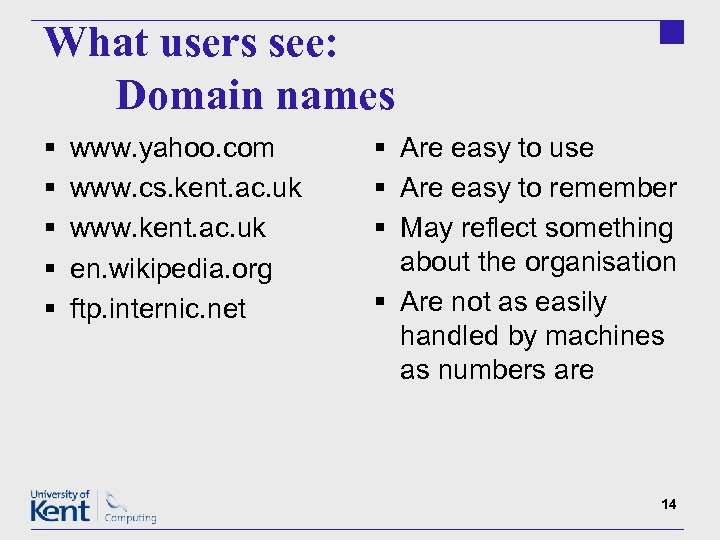

What users see: Domain names § § § www. yahoo. com www. cs. kent. What users see: Domain names § § § www. yahoo. com www. cs. kent. ac. uk www. kent. ac. uk en. wikipedia. org ftp. internic. net § Are easy to use § Are easy to remember § May reflect something about the organisation § Are not as easily handled by machines as numbers are 14

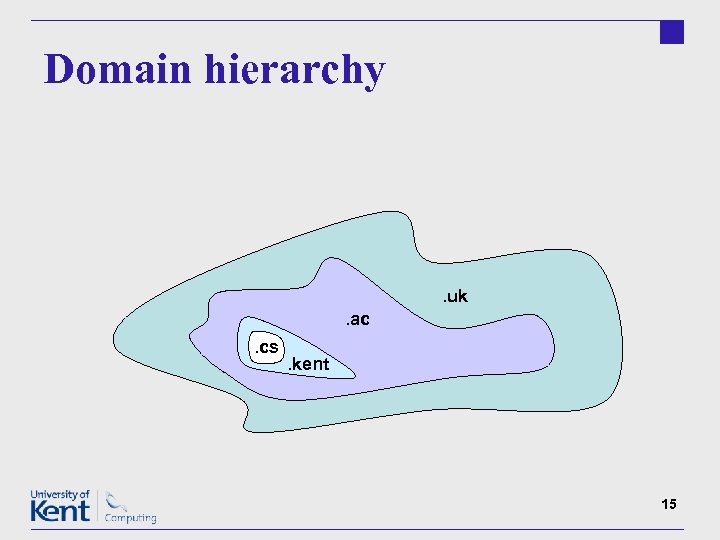

Domain hierarchy . uk. ac. cs . kent 15 Domain hierarchy . uk. ac. cs . kent 15

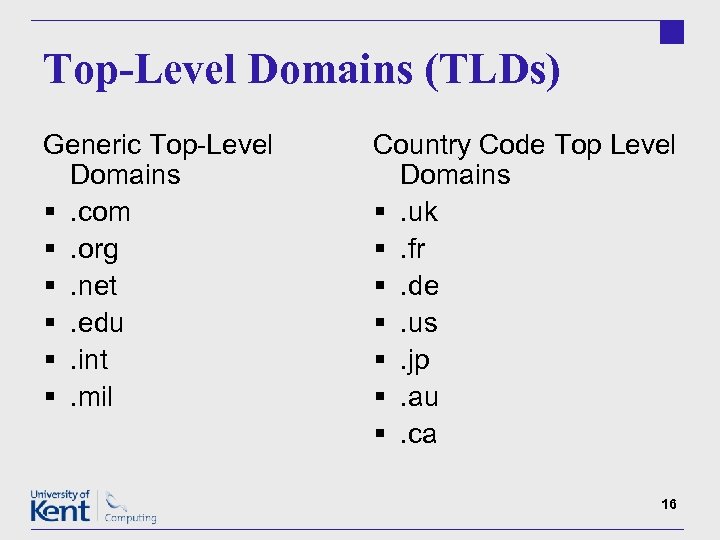

Top-Level Domains (TLDs) Generic Top-Level Domains §. com §. org §. net §. edu Top-Level Domains (TLDs) Generic Top-Level Domains §. com §. org §. net §. edu §. int §. mil Country Code Top Level Domains §. uk §. fr §. de §. us §. jp §. au §. ca 16

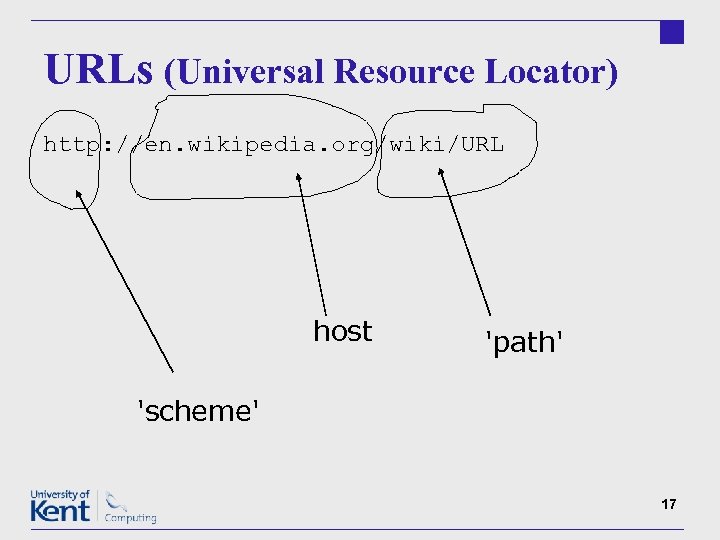

URLs (Universal Resource Locator) http: //en. wikipedia. org/wiki/URL host 'path' 'scheme' 17 URLs (Universal Resource Locator) http: //en. wikipedia. org/wiki/URL host 'path' 'scheme' 17

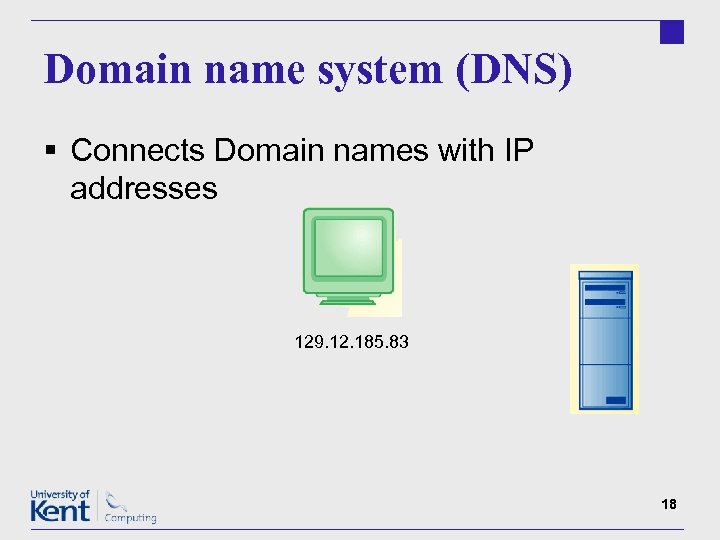

Domain name system (DNS) § Connects Domain names with IP addresses 129. 12. 185. Domain name system (DNS) § Connects Domain names with IP addresses 129. 12. 185. 83 18

Protocols § Communication protocols specify how computers can talk to each other. § Networks Protocols § Communication protocols specify how computers can talk to each other. § Networks need agreed upon conventions of how to communicate. Protocols set down these procedures, often by specifying the format of a message and how errors are to be handled. 19

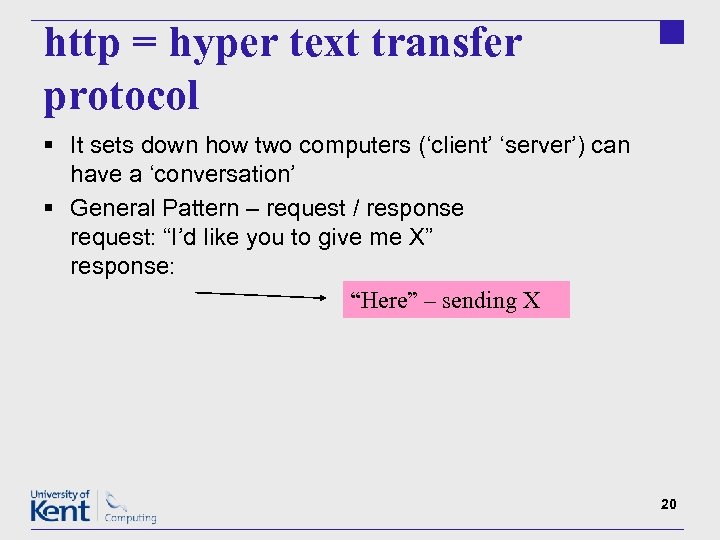

http = hyper text transfer protocol § It sets down how two computers (‘client’ http = hyper text transfer protocol § It sets down how two computers (‘client’ ‘server’) can have a ‘conversation’ § General Pattern – request / response request: “I’d like you to give me X” response: “Here” – sending X 20

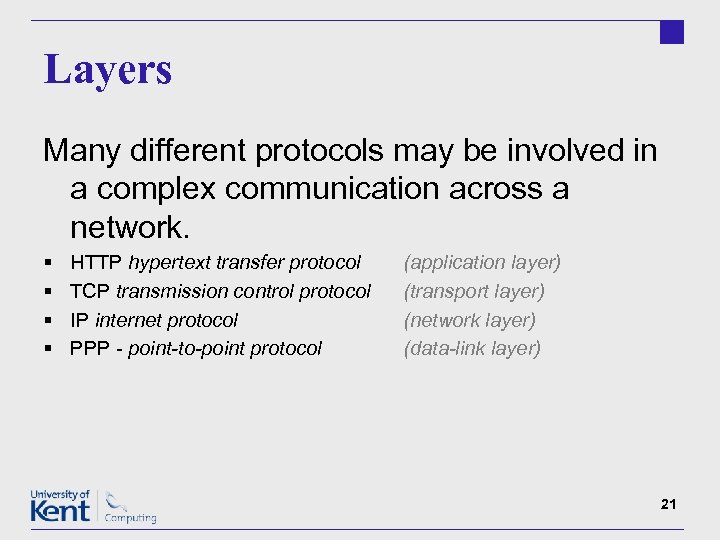

Layers Many different protocols may be involved in a complex communication across a network. Layers Many different protocols may be involved in a complex communication across a network. § § HTTP hypertext transfer protocol TCP transmission control protocol IP internet protocol PPP - point-to-point protocol (application layer) (transport layer) (network layer) (data-link layer) 21

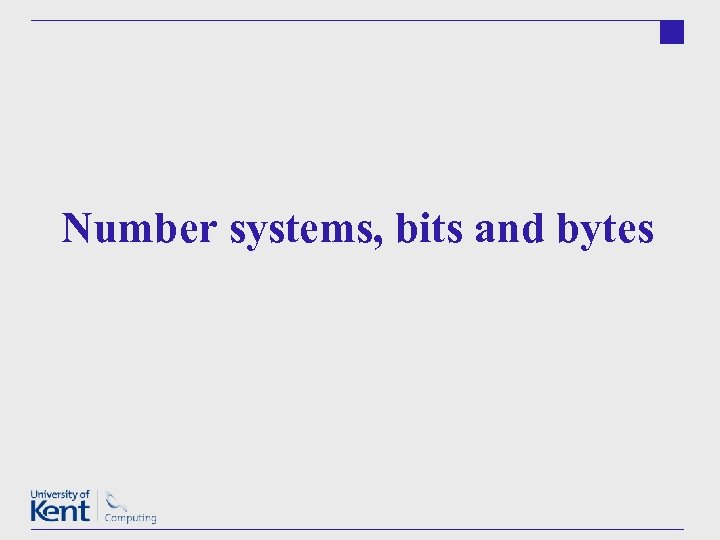

Number systems, bits and bytes Number systems, bits and bytes

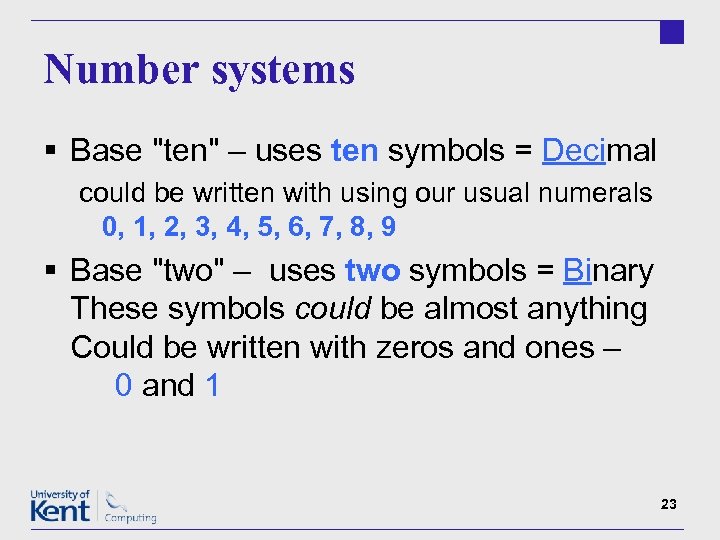

Number systems § Base Number systems § Base "ten" – uses ten symbols = Decimal could be written with using our usual numerals 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 § Base "two" – uses two symbols = Binary These symbols could be almost anything Could be written with zeros and ones – 0 and 1 23

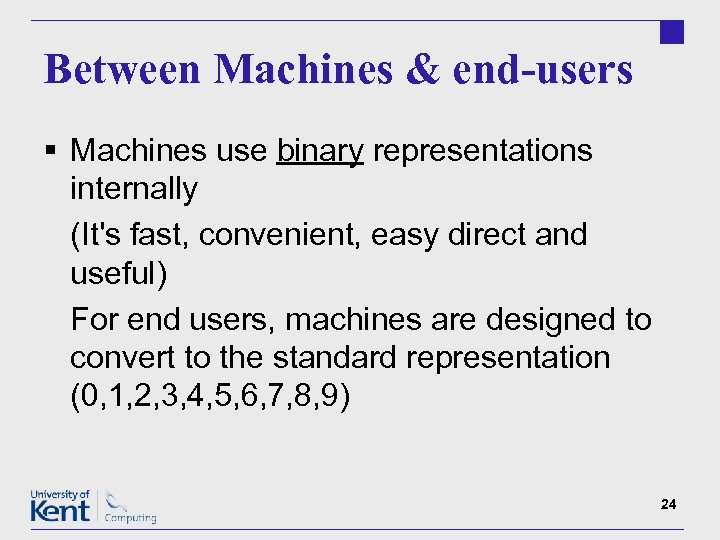

Between Machines & end-users § Machines use binary representations internally (It's fast, convenient, easy Between Machines & end-users § Machines use binary representations internally (It's fast, convenient, easy direct and useful) For end users, machines are designed to convert to the standard representation (0, 1, 2, 3, 4, 5, 6, 7, 8, 9) 24

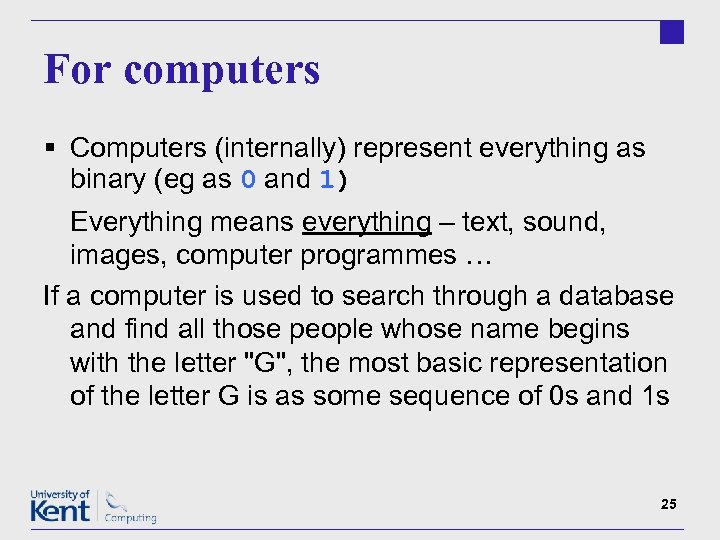

For computers § Computers (internally) represent everything as binary (eg as 0 and 1) For computers § Computers (internally) represent everything as binary (eg as 0 and 1) Everything means everything – text, sound, images, computer programmes … If a computer is used to search through a database and find all those people whose name begins with the letter "G", the most basic representation of the letter G is as some sequence of 0 s and 1 s 25

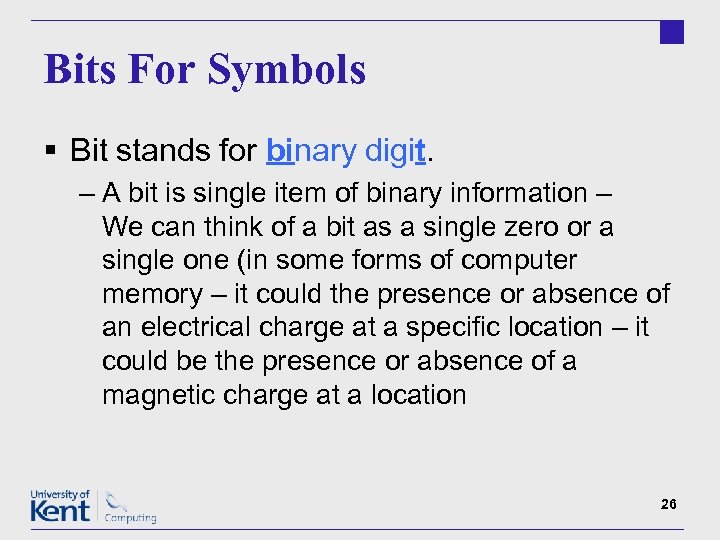

Bits For Symbols § Bit stands for binary digit. – A bit is single Bits For Symbols § Bit stands for binary digit. – A bit is single item of binary information – We can think of a bit as a single zero or a single one (in some forms of computer memory – it could the presence or absence of an electrical charge at a specific location – it could be the presence or absence of a magnetic charge at a location 26

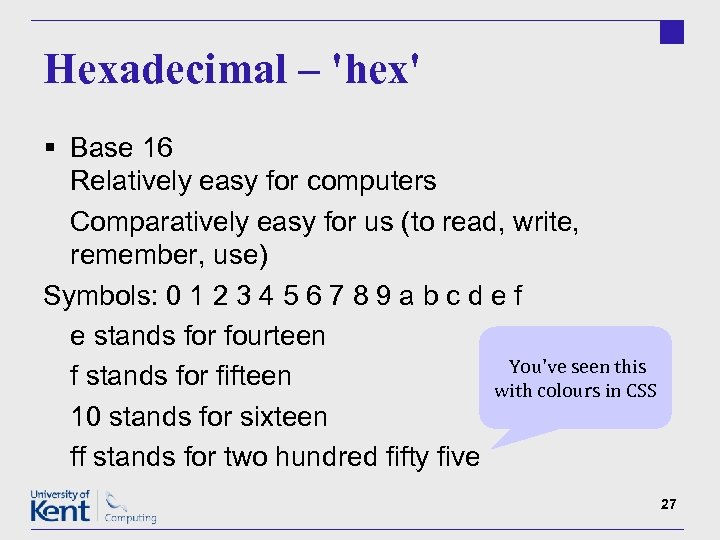

Hexadecimal – 'hex' § Base 16 Relatively easy for computers Comparatively easy for us Hexadecimal – 'hex' § Base 16 Relatively easy for computers Comparatively easy for us (to read, write, remember, use) Symbols: 0 1 2 3 4 5 6 7 8 9 a b c d e f e stands for fourteen You've seen this f stands for fifteen with colours in CSS 10 stands for sixteen ff stands for two hundred fifty five 27

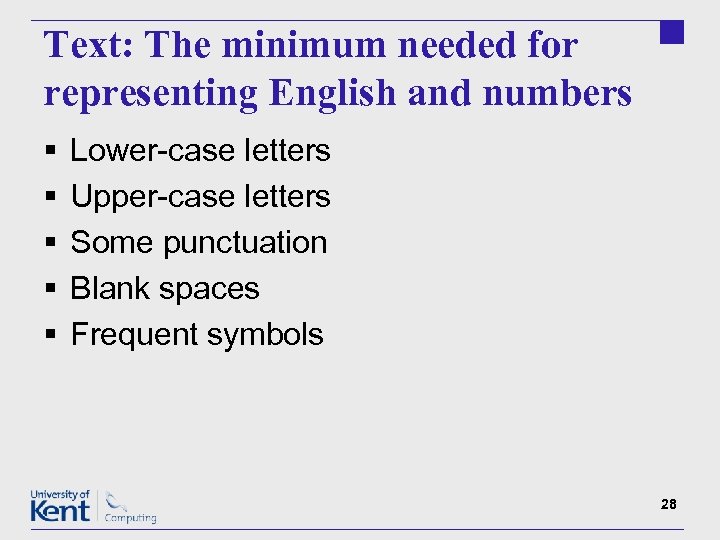

Text: The minimum needed for representing English and numbers § § § Lower-case letters Text: The minimum needed for representing English and numbers § § § Lower-case letters Upper-case letters Some punctuation Blank spaces Frequent symbols 28

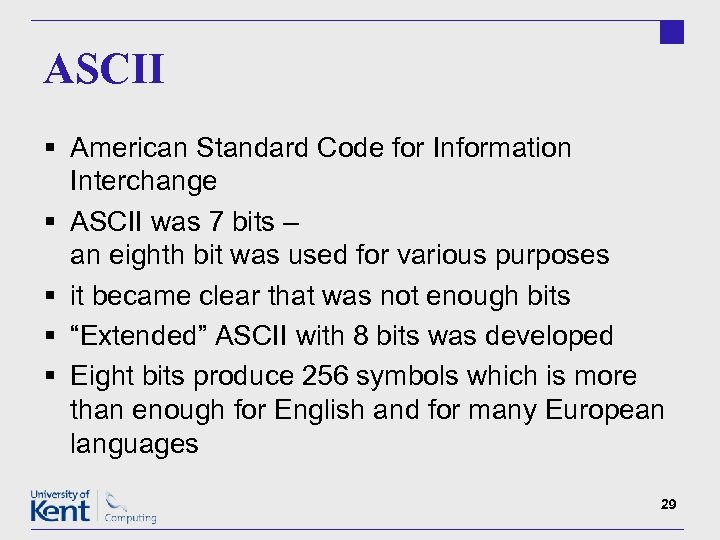

ASCII § American Standard Code for Information Interchange § ASCII was 7 bits – ASCII § American Standard Code for Information Interchange § ASCII was 7 bits – an eighth bit was used for various purposes § it became clear that was not enough bits § “Extended” ASCII with 8 bits was developed § Eight bits produce 256 symbols which is more than enough for English and for many European languages 29

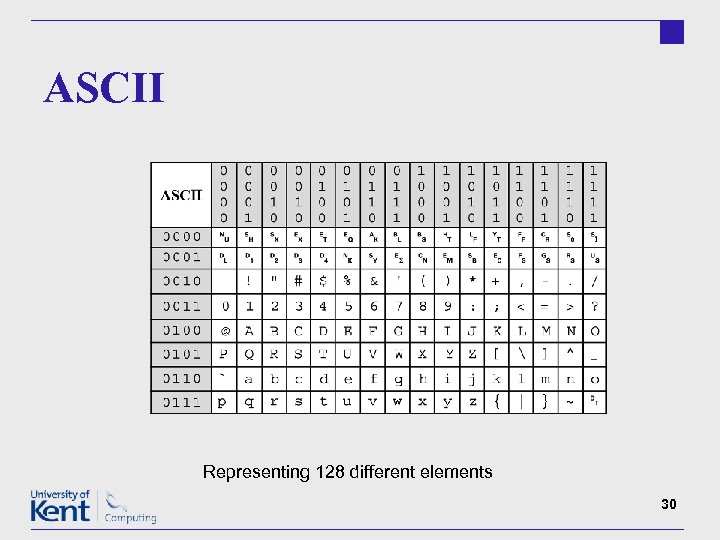

ASCII Representing 128 different elements 30 ASCII Representing 128 different elements 30

Representation 31 Representation 31

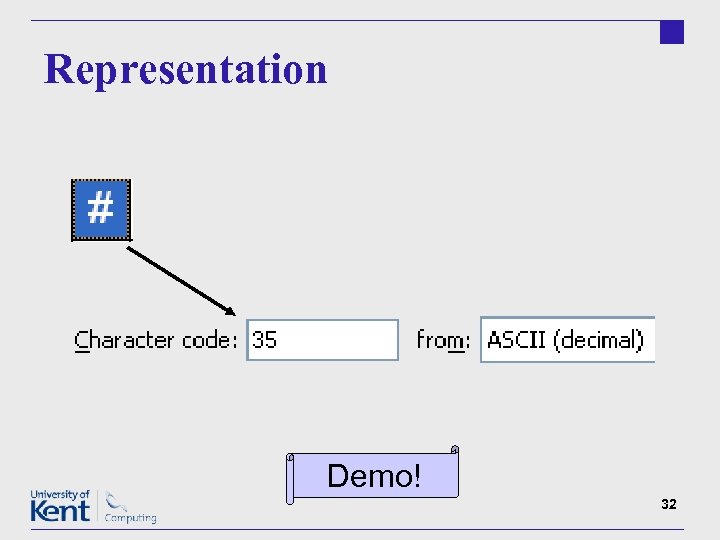

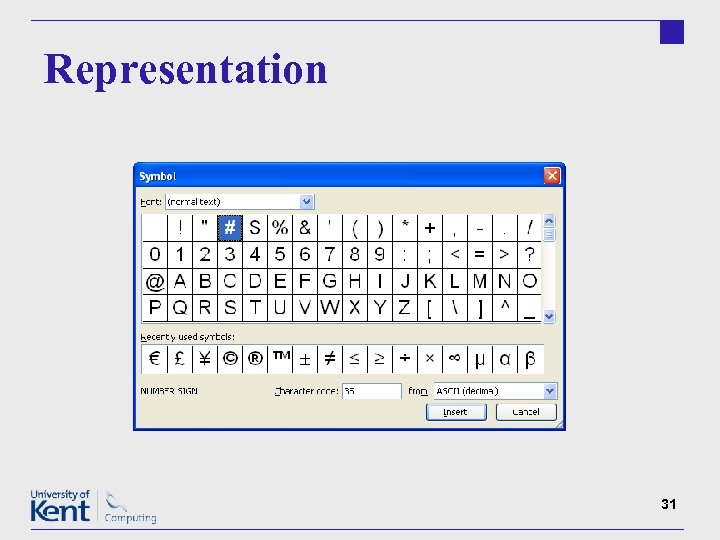

Representation Demo! 32 Representation Demo! 32

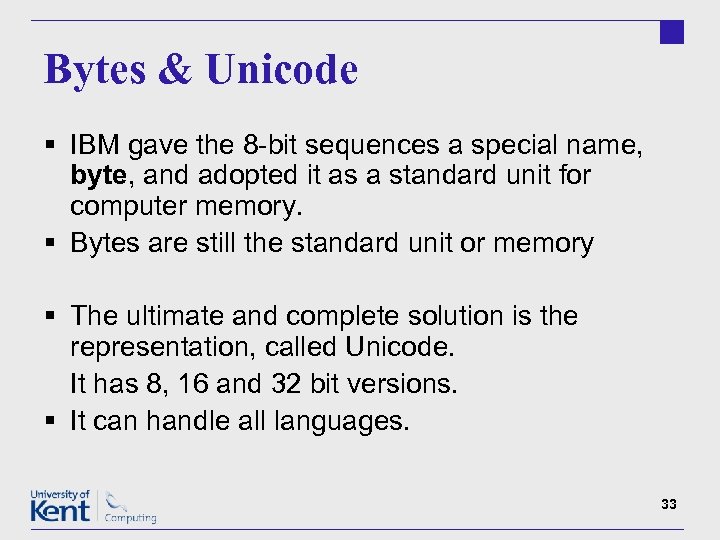

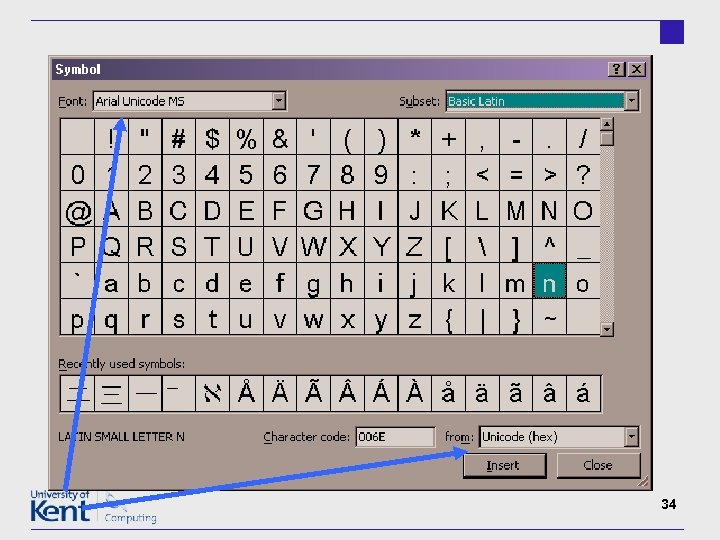

Bytes & Unicode § IBM gave the 8 -bit sequences a special name, byte, Bytes & Unicode § IBM gave the 8 -bit sequences a special name, byte, and adopted it as a standard unit for computer memory. § Bytes are still the standard unit or memory § The ultimate and complete solution is the representation, called Unicode. It has 8, 16 and 32 bit versions. § It can handle all languages. 33

34 34

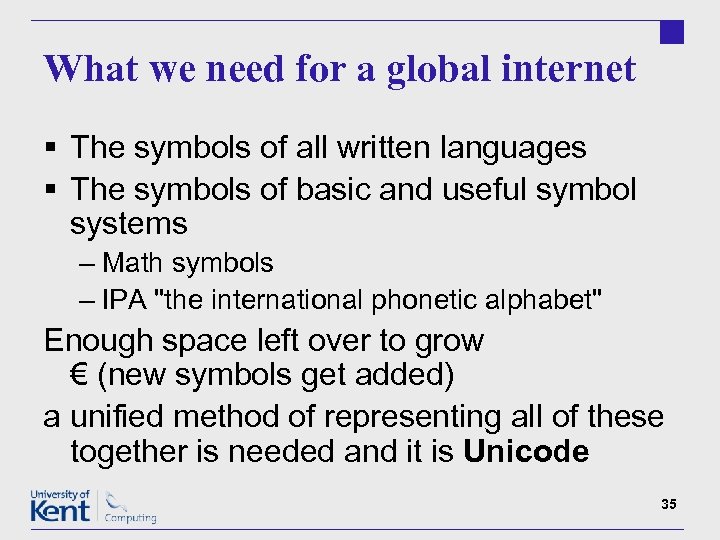

What we need for a global internet § The symbols of all written languages What we need for a global internet § The symbols of all written languages § The symbols of basic and useful symbol systems – Math symbols – IPA "the international phonetic alphabet" Enough space left over to grow € (new symbols get added) a unified method of representing all of these together is needed and it is Unicode 35

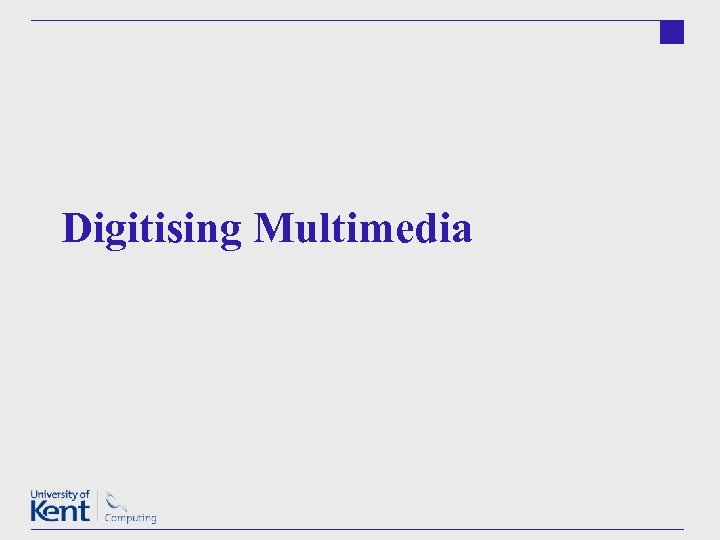

Digitising Multimedia Digitising Multimedia

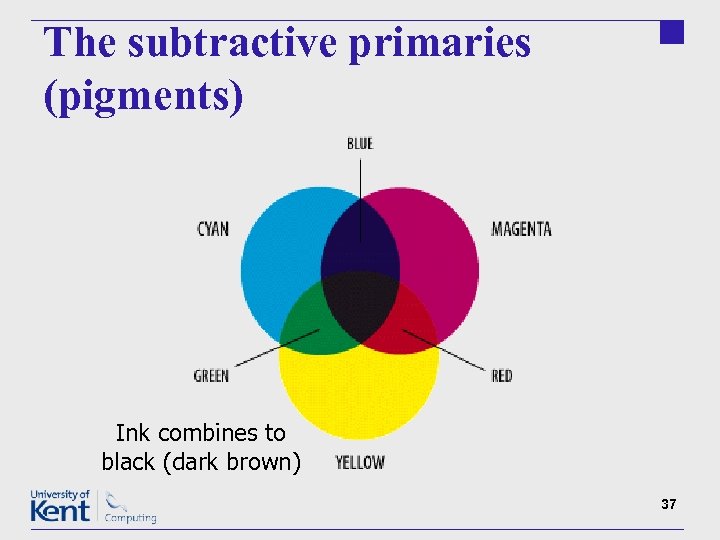

The subtractive primaries (pigments) Ink combines to black (dark brown) 37 The subtractive primaries (pigments) Ink combines to black (dark brown) 37

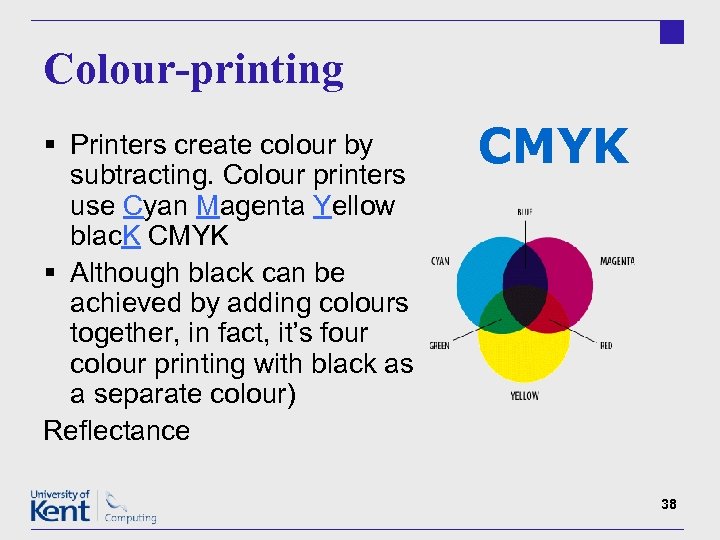

Colour-printing § Printers create colour by subtracting. Colour printers use Cyan Magenta Yellow blac. Colour-printing § Printers create colour by subtracting. Colour printers use Cyan Magenta Yellow blac. K CMYK § Although black can be achieved by adding colours together, in fact, it’s four colour printing with black as a separate colour) Reflectance CMYK 38

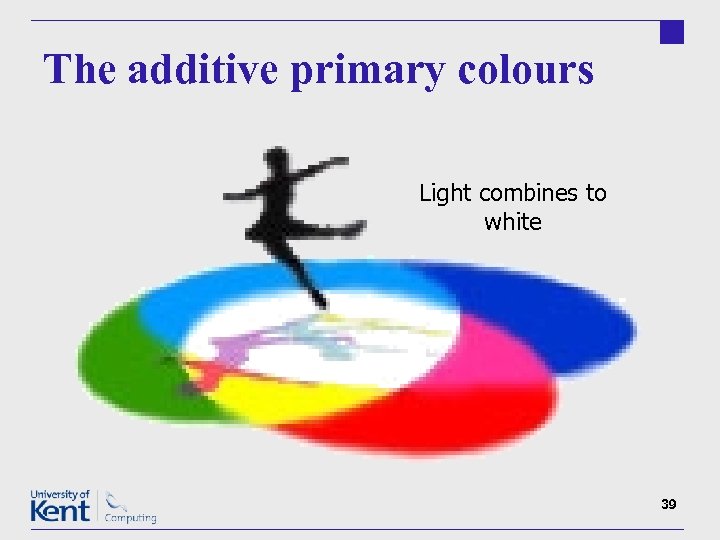

The additive primary colours Light combines to white 39 The additive primary colours Light combines to white 39

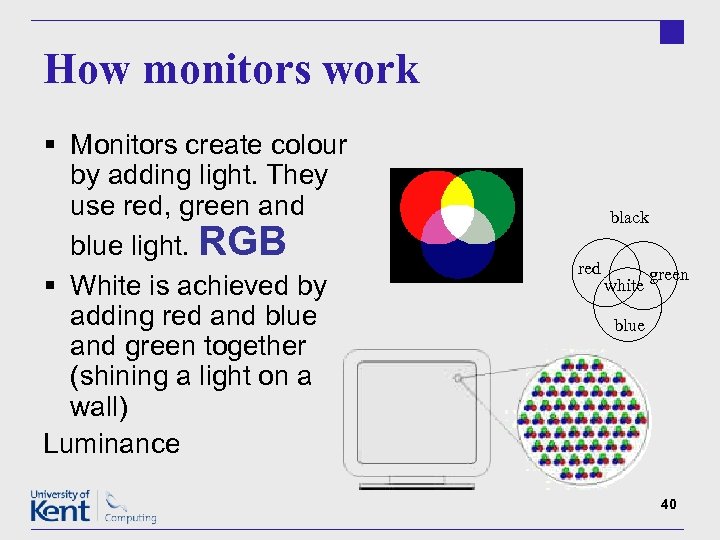

How monitors work § Monitors create colour by adding light. They use red, green How monitors work § Monitors create colour by adding light. They use red, green and blue light. RGB § White is achieved by adding red and blue and green together (shining a light on a wall) Luminance black red white green blue 40

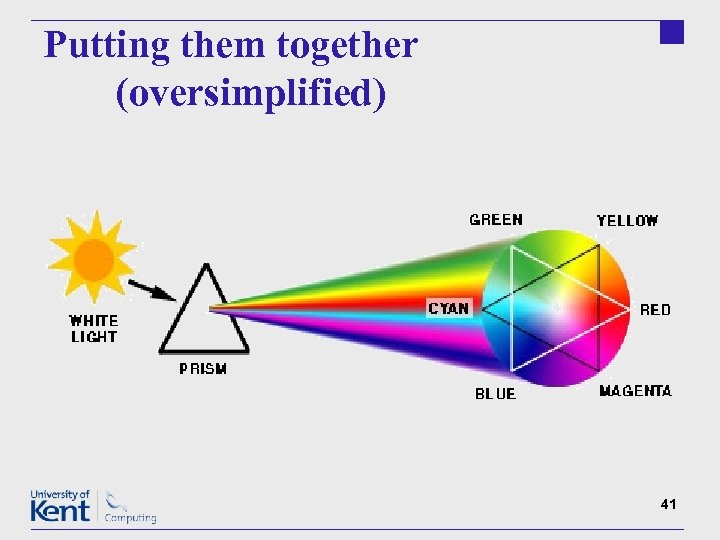

Putting them together (oversimplified) 41 Putting them together (oversimplified) 41

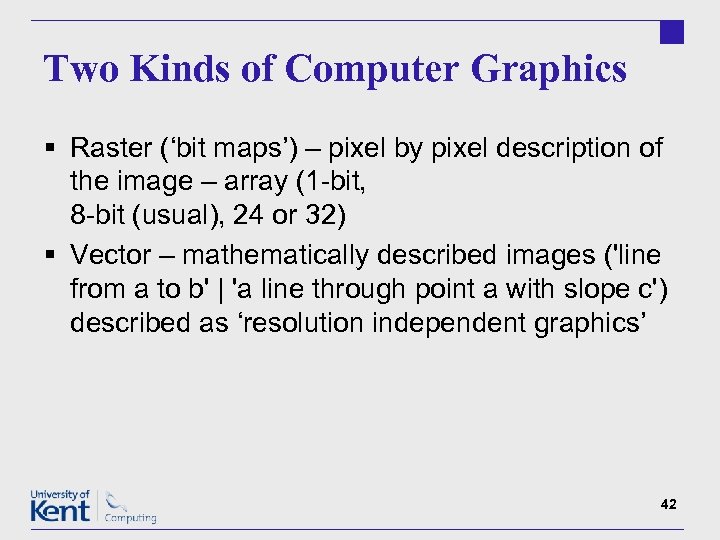

Two Kinds of Computer Graphics § Raster (‘bit maps’) – pixel by pixel description Two Kinds of Computer Graphics § Raster (‘bit maps’) – pixel by pixel description of the image – array (1 -bit, 8 -bit (usual), 24 or 32) § Vector – mathematically described images ('line from a to b' | 'a line through point a with slope c') described as ‘resolution independent graphics’ 42

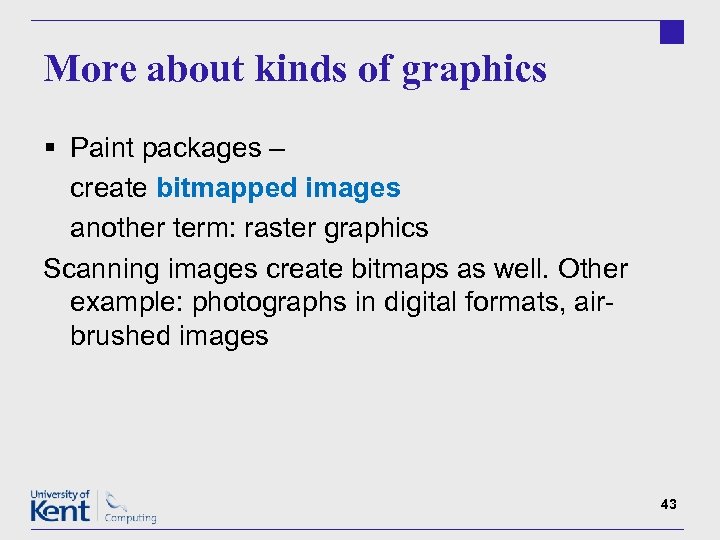

More about kinds of graphics § Paint packages – create bitmapped images another term: More about kinds of graphics § Paint packages – create bitmapped images another term: raster graphics Scanning images create bitmaps as well. Other example: photographs in digital formats, airbrushed images 43

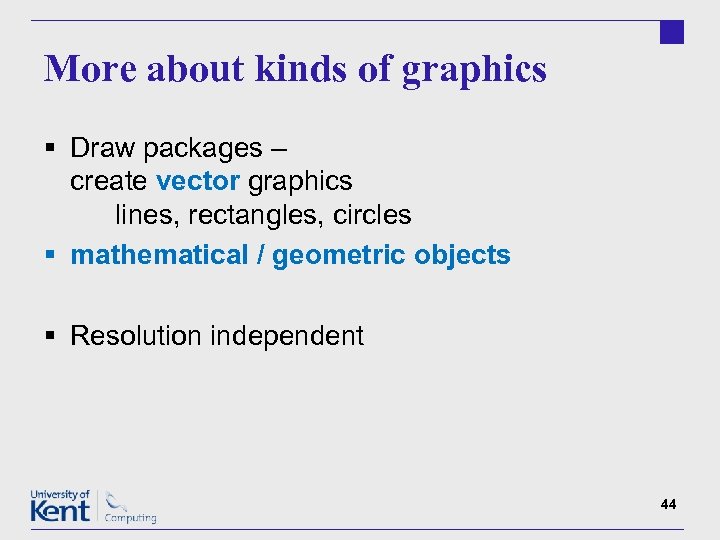

More about kinds of graphics § Draw packages – create vector graphics lines, rectangles, More about kinds of graphics § Draw packages – create vector graphics lines, rectangles, circles § mathematical / geometric objects § Resolution independent 44

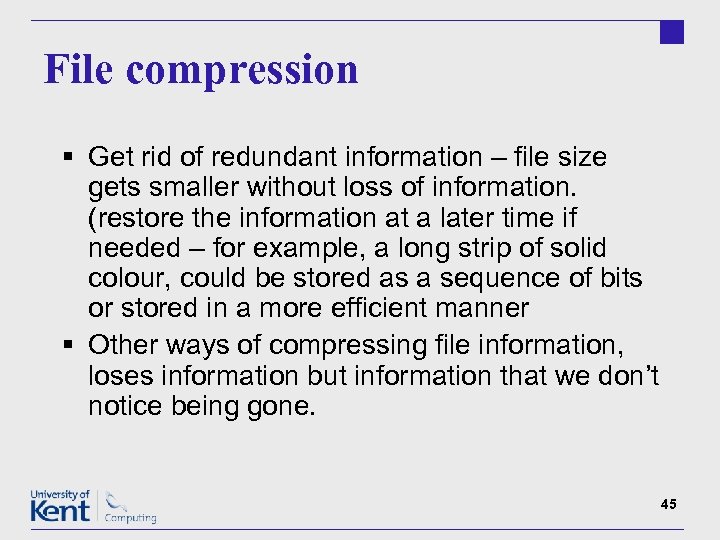

File compression § Get rid of redundant information – file size gets smaller without File compression § Get rid of redundant information – file size gets smaller without loss of information. (restore the information at a later time if needed – for example, a long strip of solid colour, could be stored as a sequence of bits or stored in a more efficient manner § Other ways of compressing file information, loses information but information that we don’t notice being gone. 45

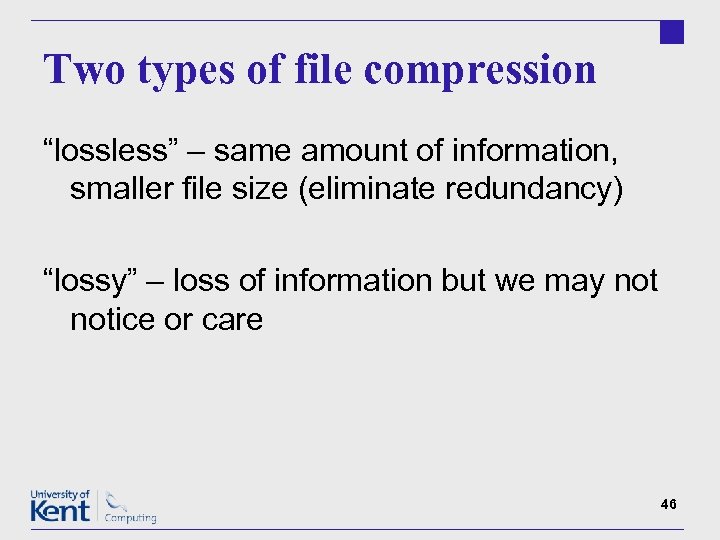

Two types of file compression “lossless” – same amount of information, smaller file size Two types of file compression “lossless” – same amount of information, smaller file size (eliminate redundancy) “lossy” – loss of information but we may notice or care 46

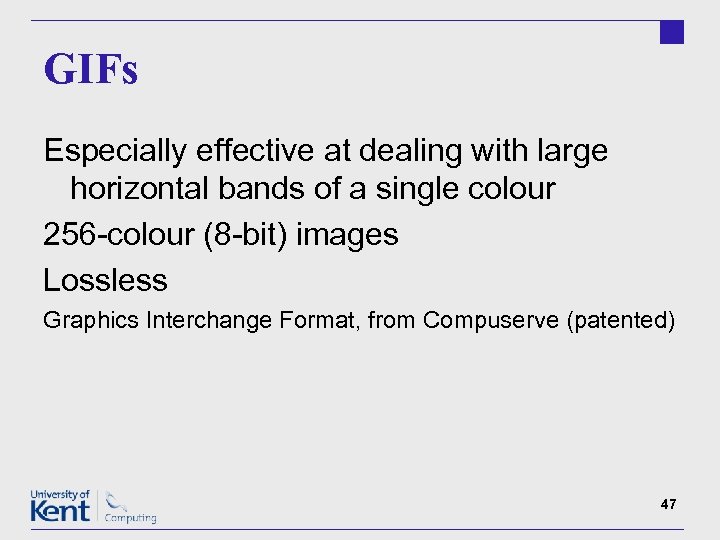

GIFs Especially effective at dealing with large horizontal bands of a single colour 256 GIFs Especially effective at dealing with large horizontal bands of a single colour 256 -colour (8 -bit) images Lossless Graphics Interchange Format, from Compuserve (patented) 47

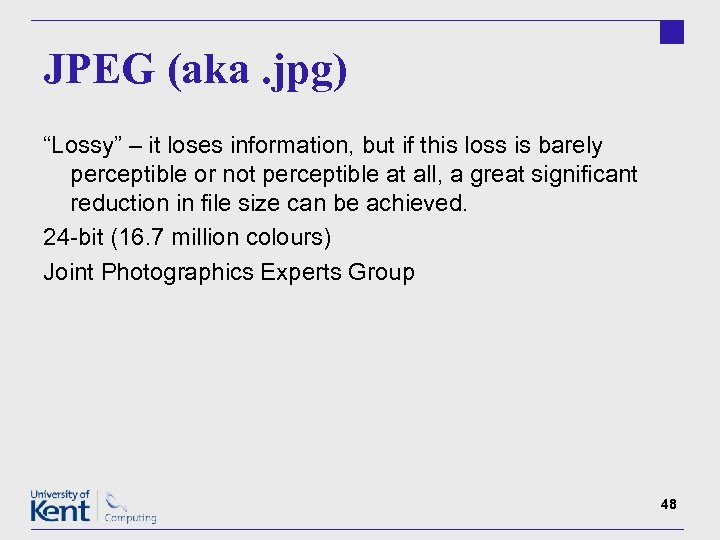

JPEG (aka. jpg) “Lossy” – it loses information, but if this loss is barely JPEG (aka. jpg) “Lossy” – it loses information, but if this loss is barely perceptible or not perceptible at all, a great significant reduction in file size can be achieved. 24 -bit (16. 7 million colours) Joint Photographics Experts Group 48

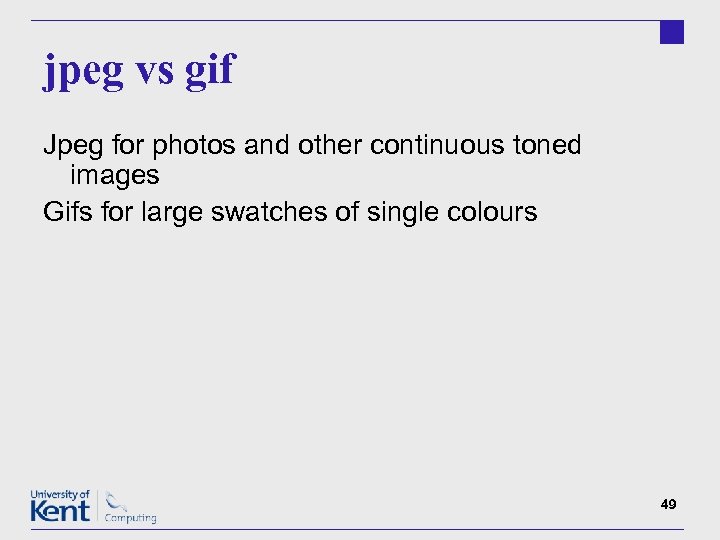

jpeg vs gif Jpeg for photos and other continuous toned images Gifs for large jpeg vs gif Jpeg for photos and other continuous toned images Gifs for large swatches of single colours 49

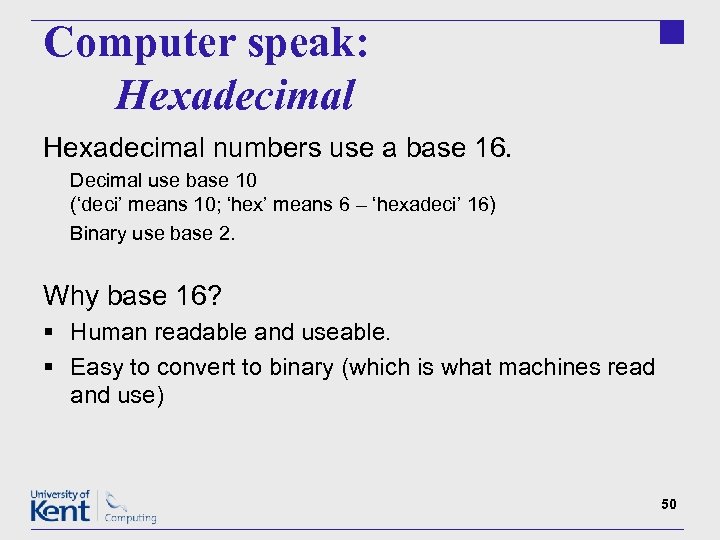

Computer speak: Hexadecimal numbers use a base 16. Decimal use base 10 (‘deci’ means Computer speak: Hexadecimal numbers use a base 16. Decimal use base 10 (‘deci’ means 10; ‘hex’ means 6 – ‘hexadeci’ 16) Binary use base 2. Why base 16? § Human readable and useable. § Easy to convert to binary (which is what machines read and use) 50

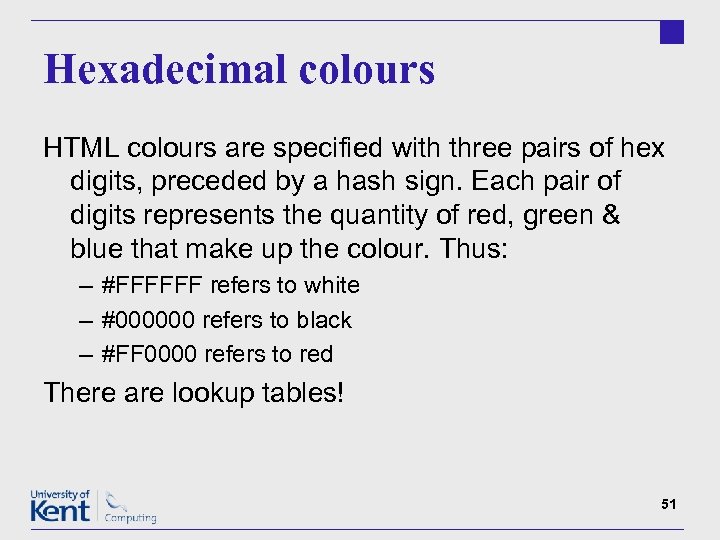

Hexadecimal colours HTML colours are specified with three pairs of hex digits, preceded by Hexadecimal colours HTML colours are specified with three pairs of hex digits, preceded by a hash sign. Each pair of digits represents the quantity of red, green & blue that make up the colour. Thus: – #FFFFFF refers to white – #000000 refers to black – #FF 0000 refers to red There are lookup tables! 51

Anti-aliasing Apparent smoothing out of the edges of images is called: Anti-aliasing The 'jaggies' Anti-aliasing Apparent smoothing out of the edges of images is called: Anti-aliasing The 'jaggies' 52

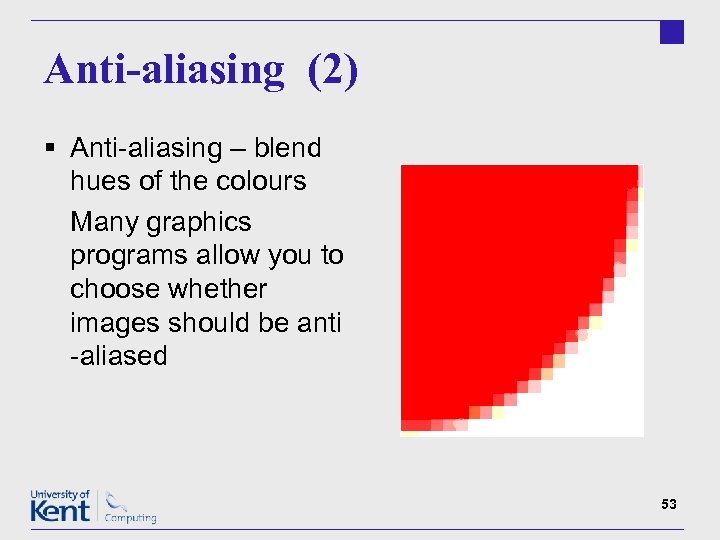

Anti-aliasing (2) § Anti-aliasing – blend hues of the colours Many graphics programs allow Anti-aliasing (2) § Anti-aliasing – blend hues of the colours Many graphics programs allow you to choose whether images should be anti -aliased 53

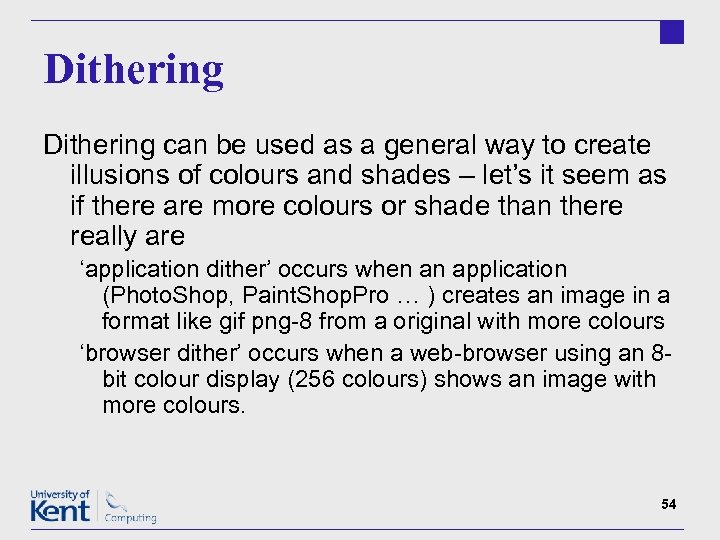

Dithering can be used as a general way to create illusions of colours and Dithering can be used as a general way to create illusions of colours and shades – let’s it seem as if there are more colours or shade than there really are ‘application dither’ occurs when an application (Photo. Shop, Paint. Shop. Pro … ) creates an image in a format like gif png-8 from a original with more colours ‘browser dither’ occurs when a web-browser using an 8 bit colour display (256 colours) shows an image with more colours. 54

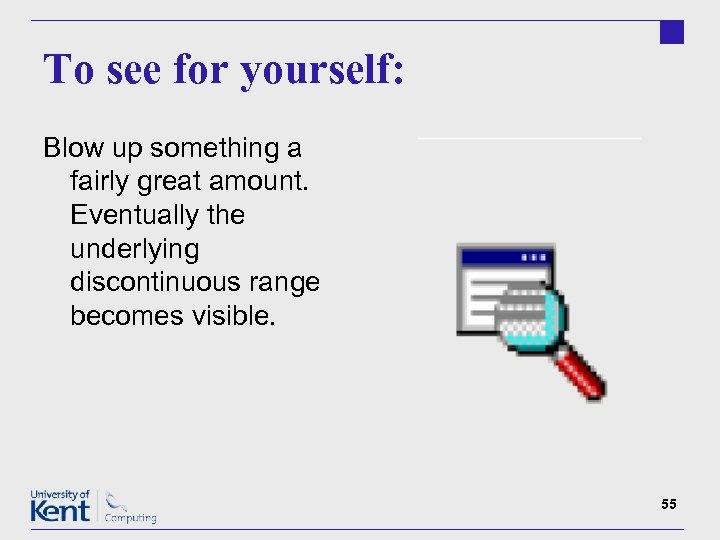

To see for yourself: Blow up something a fairly great amount. Eventually the underlying To see for yourself: Blow up something a fairly great amount. Eventually the underlying discontinuous range becomes visible. 55

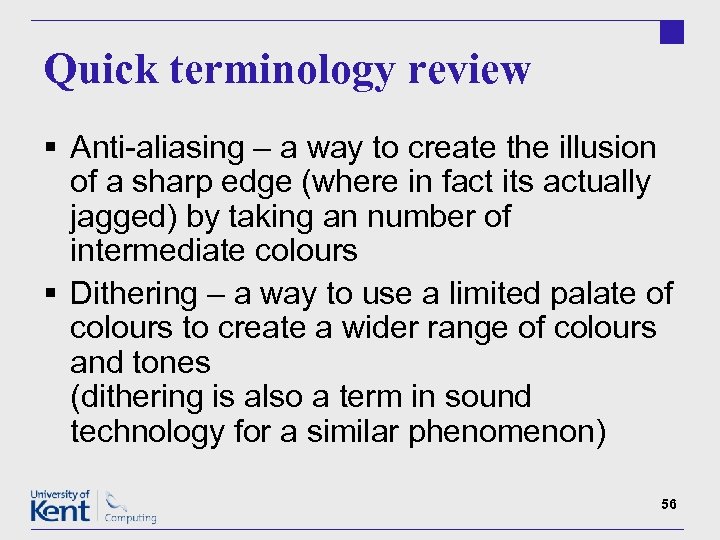

Quick terminology review § Anti-aliasing – a way to create the illusion of a Quick terminology review § Anti-aliasing – a way to create the illusion of a sharp edge (where in fact its actually jagged) by taking an number of intermediate colours § Dithering – a way to use a limited palate of colours to create a wider range of colours and tones (dithering is also a term in sound technology for a similar phenomenon) 56

Algorithms § Turing machines § Von Neumann Architecture § Fetch execute cycle Algorithms § Turing machines § Von Neumann Architecture § Fetch execute cycle

Historical perspectives – Turing's machine § Alan Turing – developed the abstract notion of Historical perspectives – Turing's machine § Alan Turing – developed the abstract notion of a "Turing machine": – NOT a physical machine, but a mathematical model of one type of very simple abstract calculating device – He proved that there were Turing machines (Universal machines) that were capable of calculating anything and everything that any Turing machine could calculate (given enough time and enough memory) 58

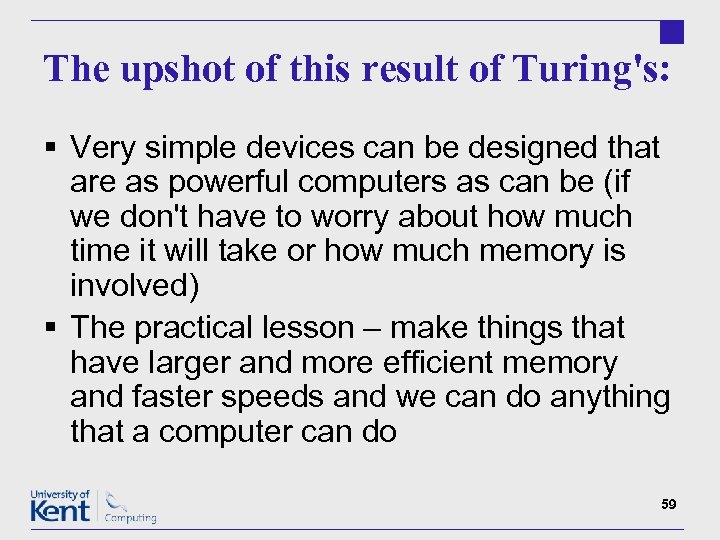

The upshot of this result of Turing's: § Very simple devices can be designed The upshot of this result of Turing's: § Very simple devices can be designed that are as powerful computers as can be (if we don't have to worry about how much time it will take or how much memory is involved) § The practical lesson – make things that have larger and more efficient memory and faster speeds and we can do anything that a computer can do 59

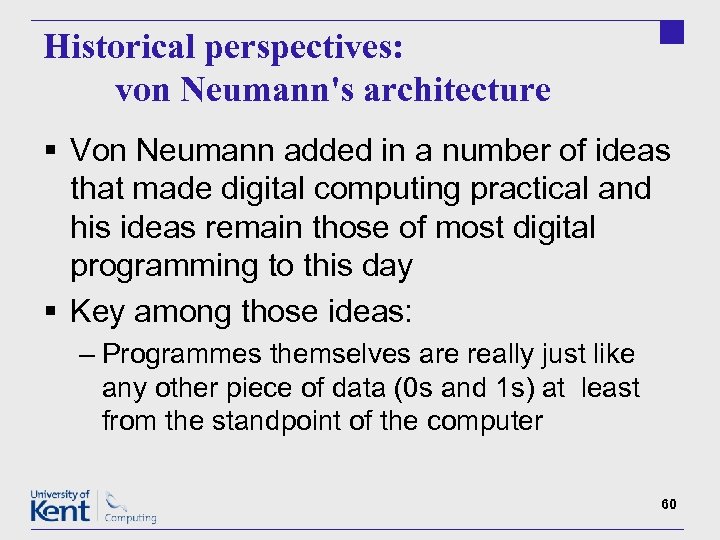

Historical perspectives: von Neumann's architecture § Von Neumann added in a number of ideas Historical perspectives: von Neumann's architecture § Von Neumann added in a number of ideas that made digital computing practical and his ideas remain those of most digital programming to this day § Key among those ideas: – Programmes themselves are really just like any other piece of data (0 s and 1 s) at least from the standpoint of the computer 60

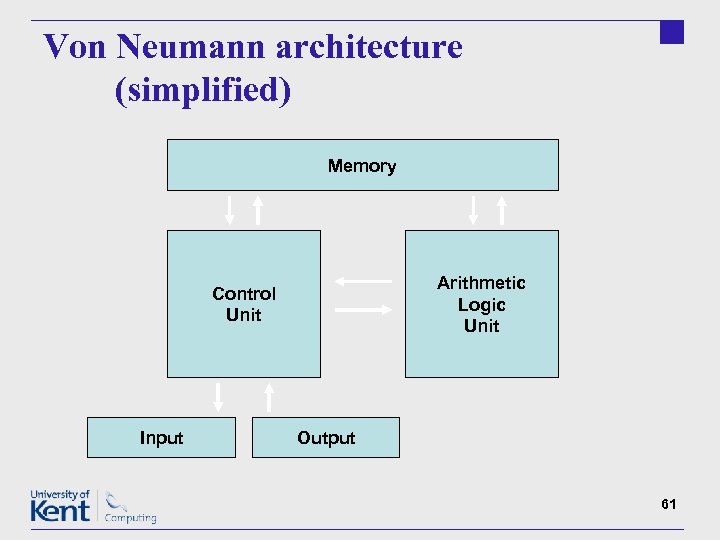

Von Neumann architecture (simplified) Memory Arithmetic Logic Unit Control Unit Input Output 61 Von Neumann architecture (simplified) Memory Arithmetic Logic Unit Control Unit Input Output 61

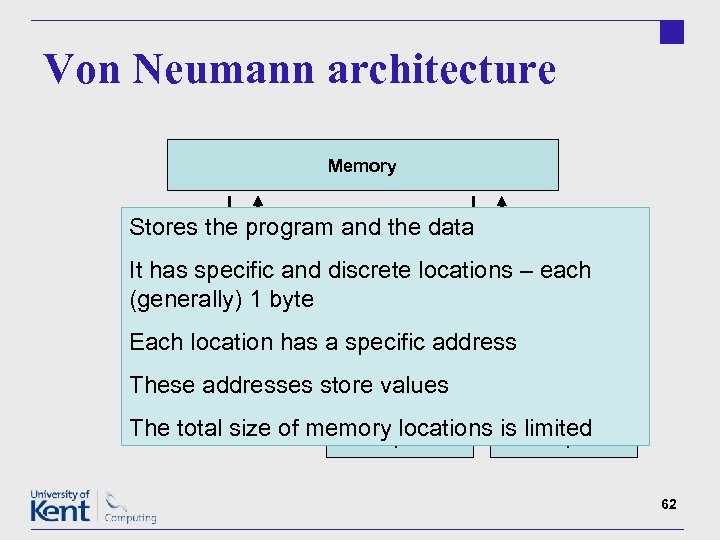

Von Neumann architecture Memory Stores the program and the data Arithmetic It has specific Von Neumann architecture Memory Stores the program and the data Arithmetic It has specific and discrete locations – each Logic Control (generally) 1 byte Unit Accumulator Each location has a specific address These addresses store values The total size of memory locations is limited Input Output 62

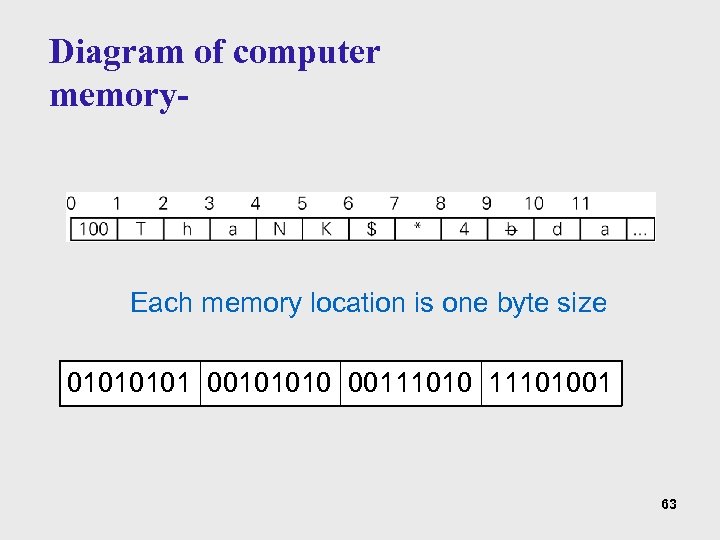

Diagram of computer memory- Each memory location is one byte size 0101 00101010 0011101001 Diagram of computer memory- Each memory location is one byte size 0101 00101010 0011101001 63

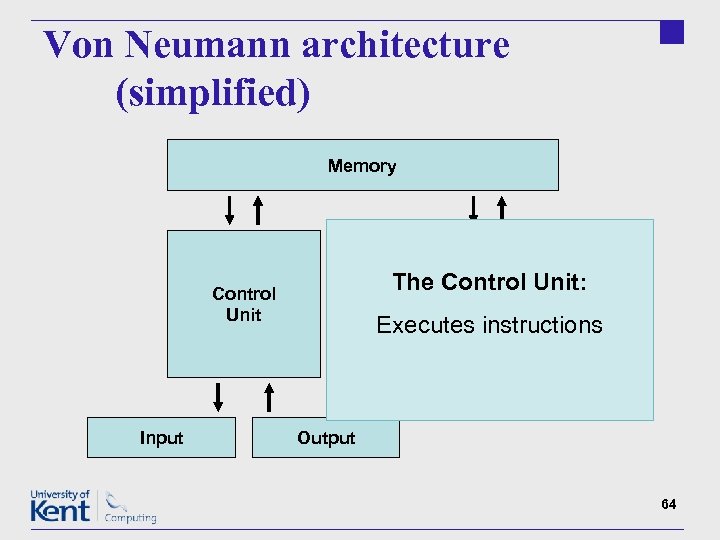

Von Neumann architecture (simplified) Memory The Arithmetic Unit: Control Unit Input Logic Unit Executes Von Neumann architecture (simplified) Memory The Arithmetic Unit: Control Unit Input Logic Unit Executes instructions Output 64

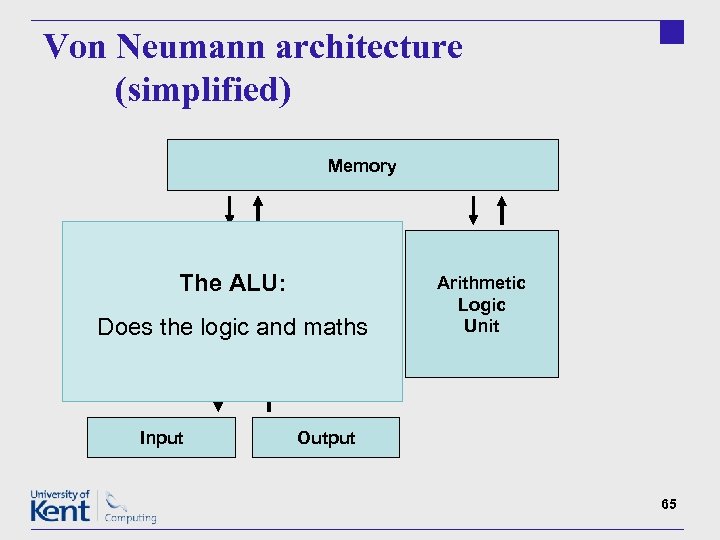

Von Neumann architecture (simplified) Memory The ALU: Control Unit Does the logic and maths Von Neumann architecture (simplified) Memory The ALU: Control Unit Does the logic and maths Input Arithmetic Logic Unit Output 65

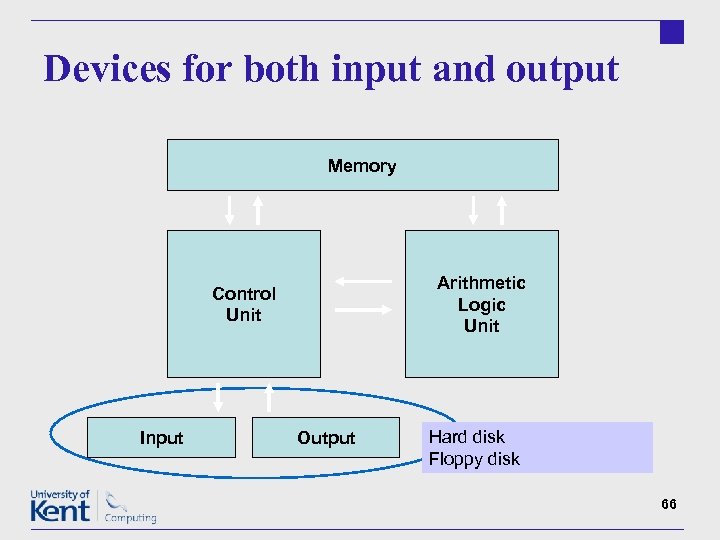

Devices for both input and output Memory Arithmetic Logic Unit Control Unit Input Output Devices for both input and output Memory Arithmetic Logic Unit Control Unit Input Output Hard disk Floppy disk 66

Input devices Memory Arithmetic Logic Unit Control Unit Input Mouse Keyboard Output Scanner 67 Input devices Memory Arithmetic Logic Unit Control Unit Input Mouse Keyboard Output Scanner 67

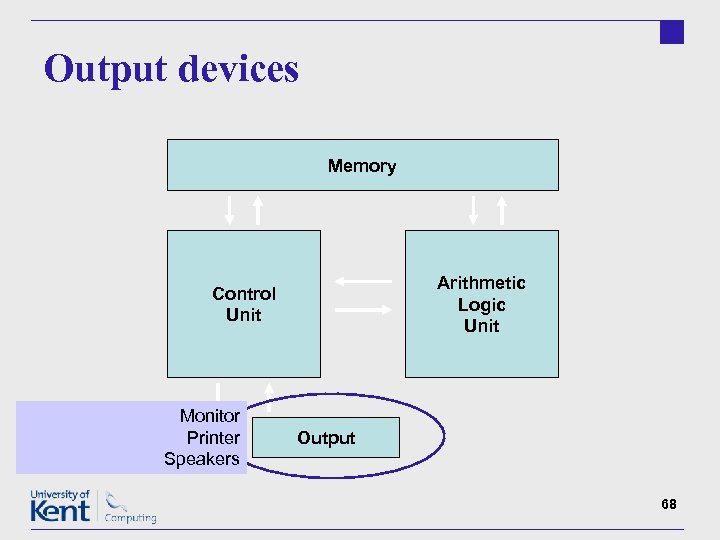

Output devices Memory Arithmetic Logic Unit Control Unit Monitor Input Printer Speakers Output 68 Output devices Memory Arithmetic Logic Unit Control Unit Monitor Input Printer Speakers Output 68

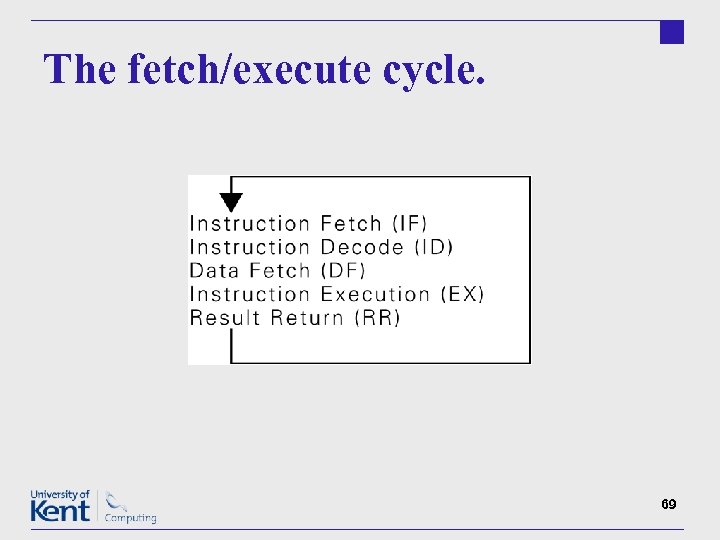

The fetch/execute cycle. 69 The fetch/execute cycle. 69

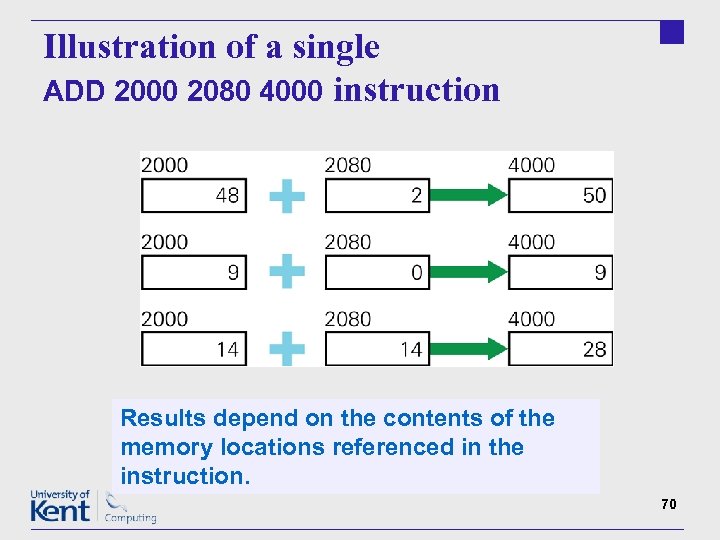

Illustration of a single ADD 2000 2080 4000 instruction Results depend on the contents Illustration of a single ADD 2000 2080 4000 instruction Results depend on the contents of the memory locations referenced in the instruction. 70

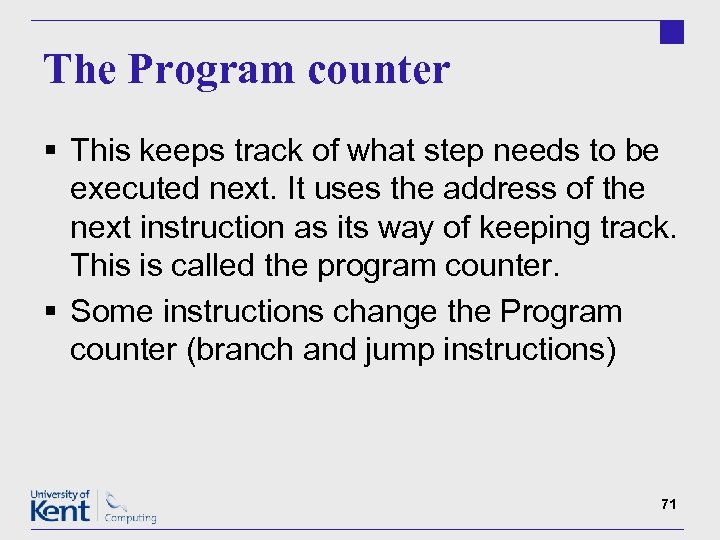

The Program counter § This keeps track of what step needs to be executed The Program counter § This keeps track of what step needs to be executed next. It uses the address of the next instruction as its way of keeping track. This is called the program counter. § Some instructions change the Program counter (branch and jump instructions) 71

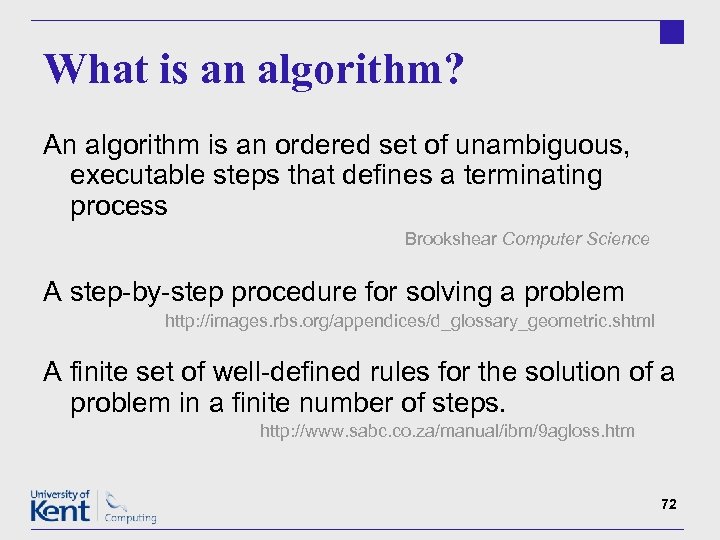

What is an algorithm? An algorithm is an ordered set of unambiguous, executable steps What is an algorithm? An algorithm is an ordered set of unambiguous, executable steps that defines a terminating process Brookshear Computer Science A step-by-step procedure for solving a problem http: //images. rbs. org/appendices/d_glossary_geometric. shtml A finite set of well-defined rules for the solution of a problem in a finite number of steps. http: //www. sabc. co. za/manual/ibm/9 agloss. htm 72

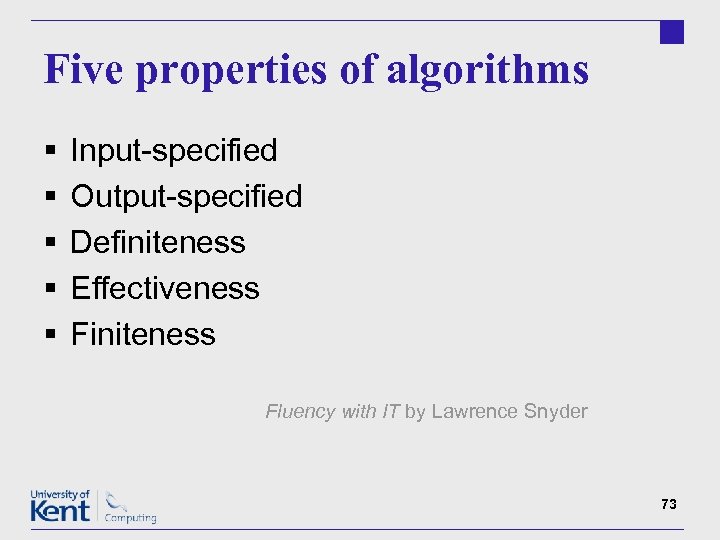

Five properties of algorithms § § § Input-specified Output-specified Definiteness Effectiveness Finiteness Fluency with Five properties of algorithms § § § Input-specified Output-specified Definiteness Effectiveness Finiteness Fluency with IT by Lawrence Snyder 73

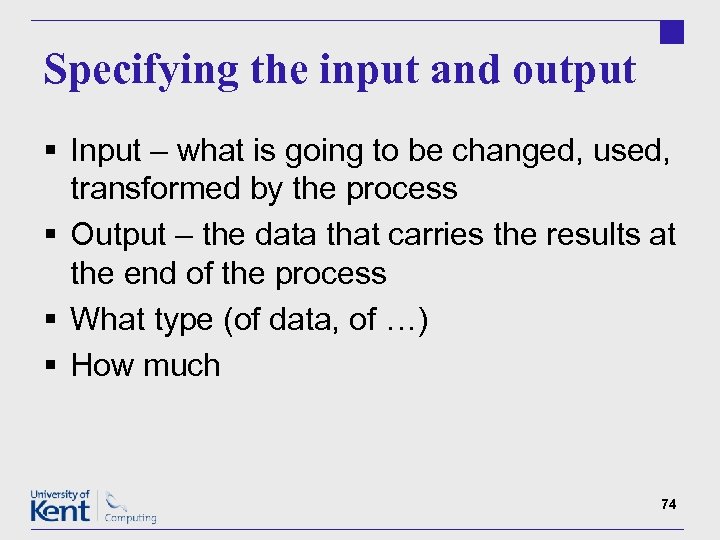

Specifying the input and output § Input – what is going to be changed, Specifying the input and output § Input – what is going to be changed, used, transformed by the process § Output – the data that carries the results at the end of the process § What type (of data, of …) § How much 74

Alphabetise and file your company's correspondence Input: A stack of folders. Each folder contains Alphabetise and file your company's correspondence Input: A stack of folders. Each folder contains a letter to your company. At the moment, there is no order to the folders. Output: The same folders in the stack, but in alphabetical order This is an example of sorting – Sorting is a very common algorithmic process for computers. (Here we have alphabetical sorting for example. With any of these, the efficiency of the process is important, but that's for later for now. . . ) 75

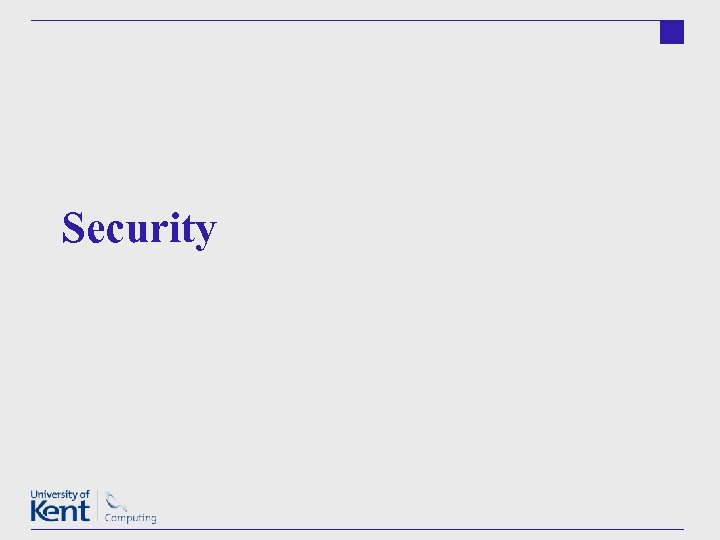

Security Security

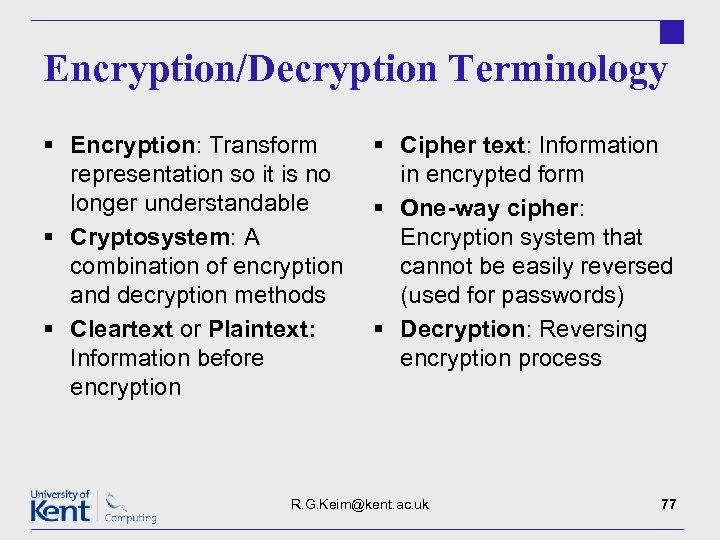

Encryption/Decryption Terminology § Encryption: Transform representation so it is no longer understandable § Cryptosystem: Encryption/Decryption Terminology § Encryption: Transform representation so it is no longer understandable § Cryptosystem: A combination of encryption and decryption methods § Cleartext or Plaintext: Information before encryption § Cipher text: Information in encrypted form § One-way cipher: Encryption system that cannot be easily reversed (used for passwords) § Decryption: Reversing encryption process R. G. [email protected] ac. uk 77

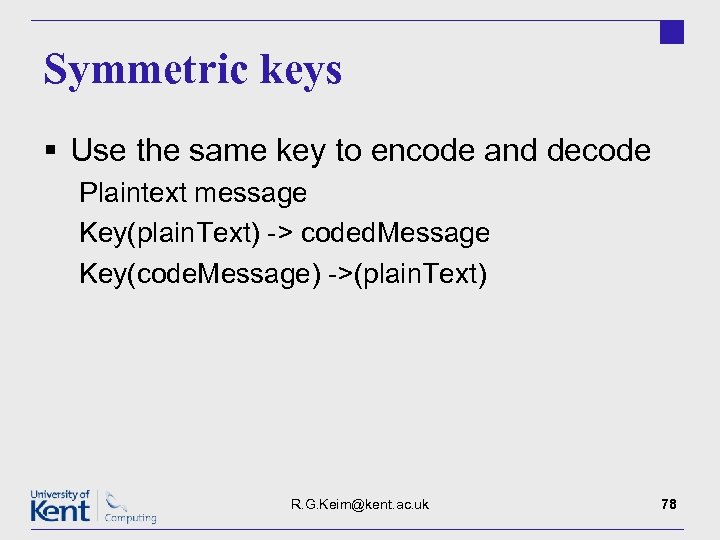

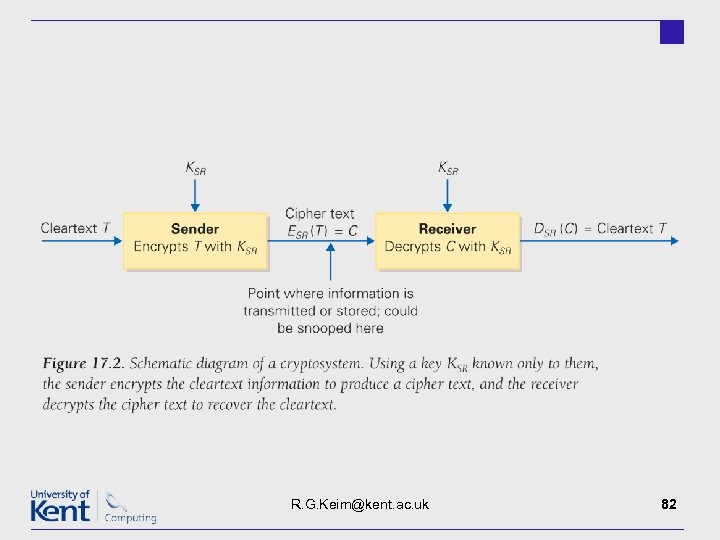

Symmetric keys § Use the same key to encode and decode Plaintext message Key(plain. Symmetric keys § Use the same key to encode and decode Plaintext message Key(plain. Text) -> coded. Message Key(code. Message) ->(plain. Text) R. G. [email protected] ac. uk 78

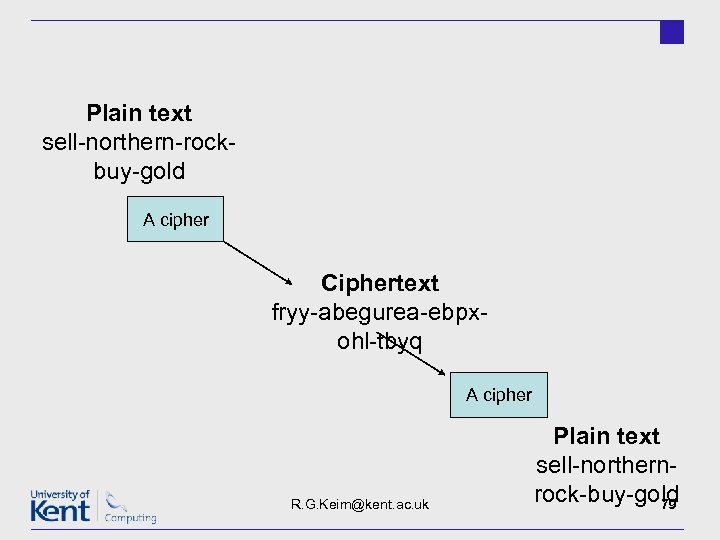

Plain text sell-northern-rockbuy-gold A cipher Ciphertext fryy-abegurea-ebpxohl-tbyq A cipher R. G. Keim@kent. ac. uk Plain text sell-northern-rockbuy-gold A cipher Ciphertext fryy-abegurea-ebpxohl-tbyq A cipher R. G. [email protected] ac. uk Plain text sell-northernrock-buy-gold 79

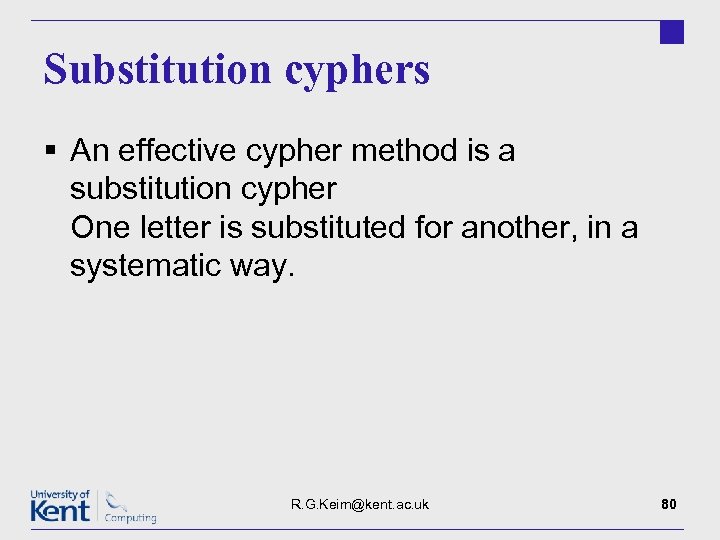

Substitution cyphers § An effective cypher method is a substitution cypher One letter is Substitution cyphers § An effective cypher method is a substitution cypher One letter is substituted for another, in a systematic way. R. G. [email protected] ac. uk 80

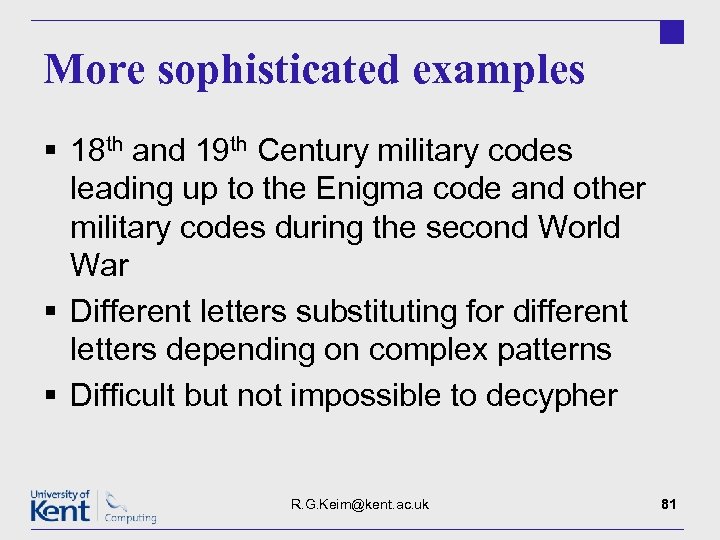

More sophisticated examples § 18 th and 19 th Century military codes leading up More sophisticated examples § 18 th and 19 th Century military codes leading up to the Enigma code and other military codes during the second World War § Different letters substituting for different letters depending on complex patterns § Difficult but not impossible to decypher R. G. [email protected] ac. uk 81

R. G. Keim@kent. ac. uk 82 R. G. [email protected] ac. uk 82

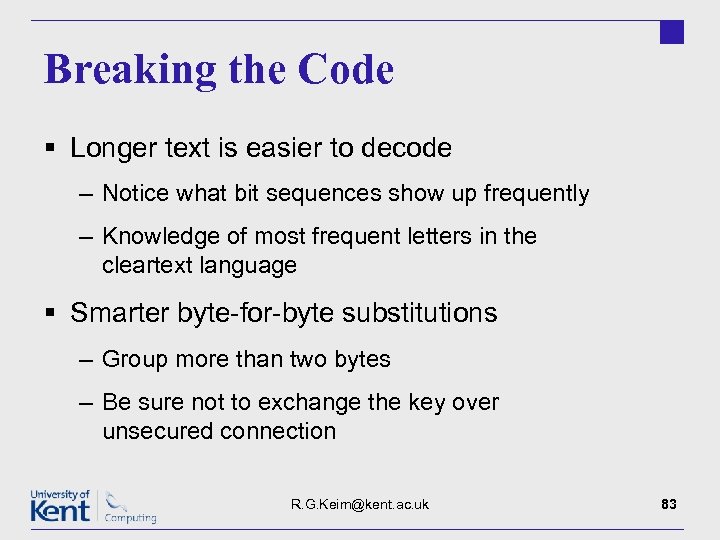

Breaking the Code § Longer text is easier to decode – Notice what bit Breaking the Code § Longer text is easier to decode – Notice what bit sequences show up frequently – Knowledge of most frequent letters in the cleartext language § Smarter byte-for-byte substitutions – Group more than two bytes – Be sure not to exchange the key over unsecured connection R. G. [email protected] ac. uk 83

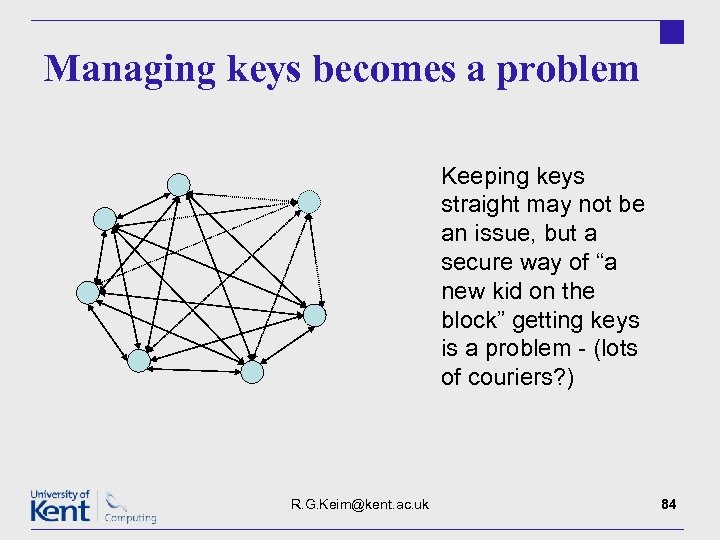

Managing keys becomes a problem Keeping keys straight may not be an issue, but Managing keys becomes a problem Keeping keys straight may not be an issue, but a secure way of “a new kid on the block” getting keys is a problem - (lots of couriers? ) R. G. [email protected] ac. uk 84

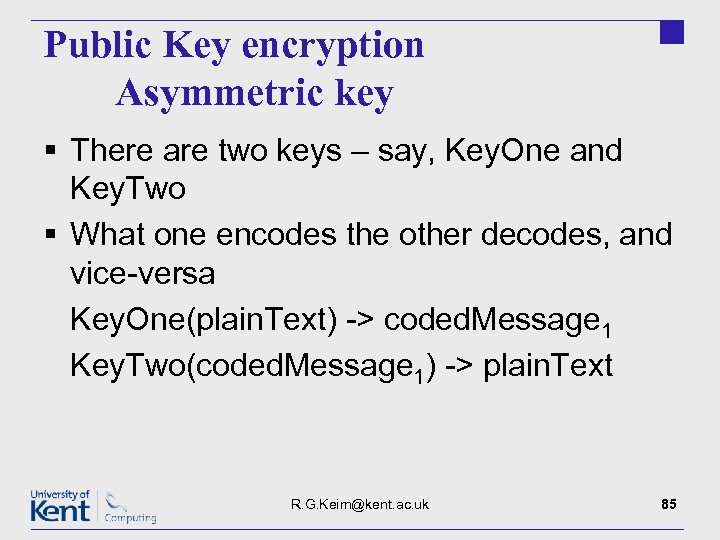

Public Key encryption Asymmetric key § There are two keys – say, Key. One Public Key encryption Asymmetric key § There are two keys – say, Key. One and Key. Two § What one encodes the other decodes, and vice-versa Key. One(plain. Text) -> coded. Message 1 Key. Two(coded. Message 1) -> plain. Text R. G. [email protected] ac. uk 85

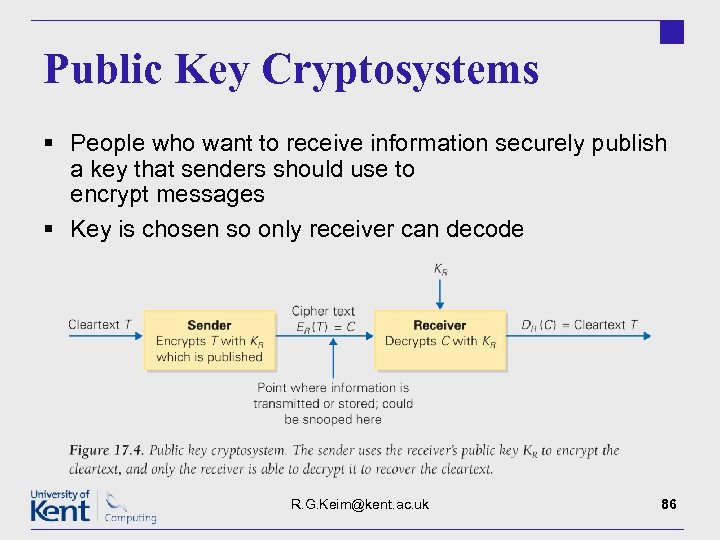

Public Key Cryptosystems § People who want to receive information securely publish a key Public Key Cryptosystems § People who want to receive information securely publish a key that senders should use to encrypt messages § Key is chosen so only receiver can decode R. G. [email protected] ac. uk 86

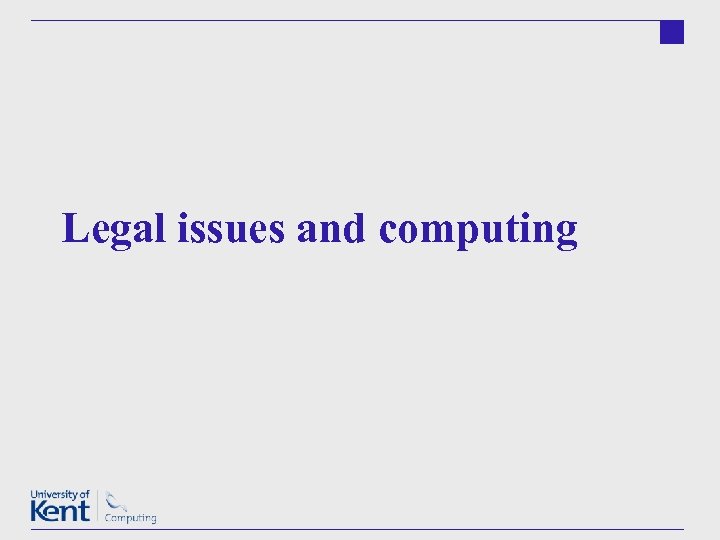

Legal issues and computing Legal issues and computing

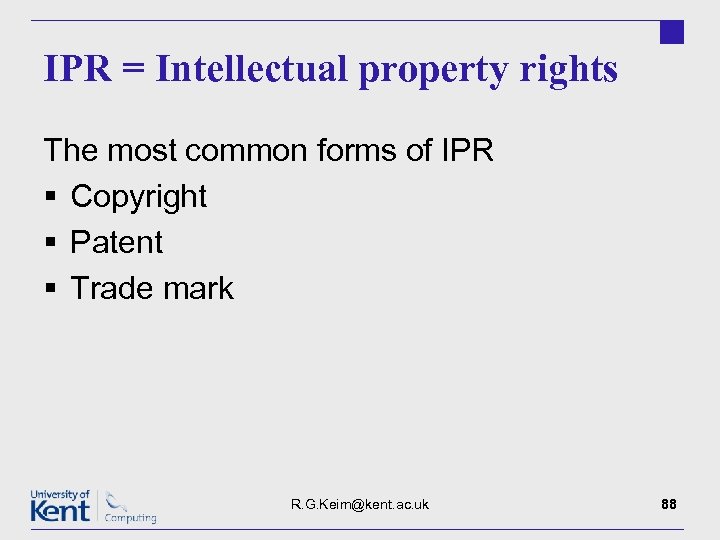

IPR = Intellectual property rights The most common forms of IPR § Copyright § IPR = Intellectual property rights The most common forms of IPR § Copyright § Patent § Trade mark R. G. [email protected] ac. uk 88

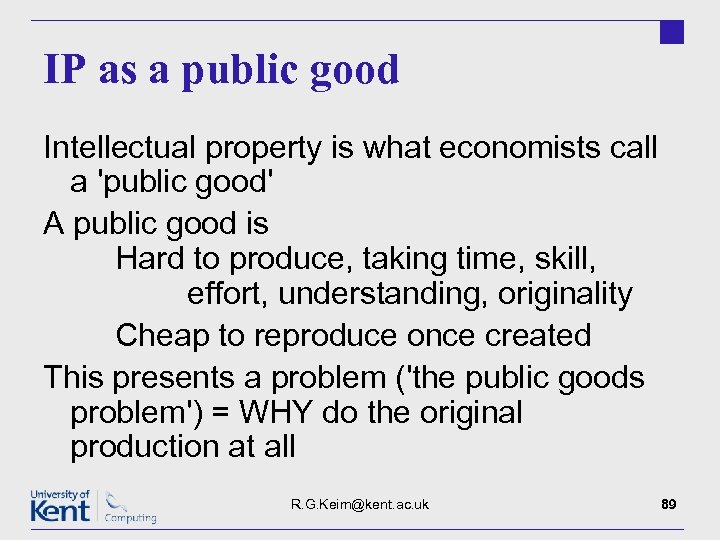

IP as a public good Intellectual property is what economists call a 'public good' IP as a public good Intellectual property is what economists call a 'public good' A public good is Hard to produce, taking time, skill, effort, understanding, originality Cheap to reproduce once created This presents a problem ('the public goods problem') = WHY do the original production at all R. G. [email protected] ac. uk 89

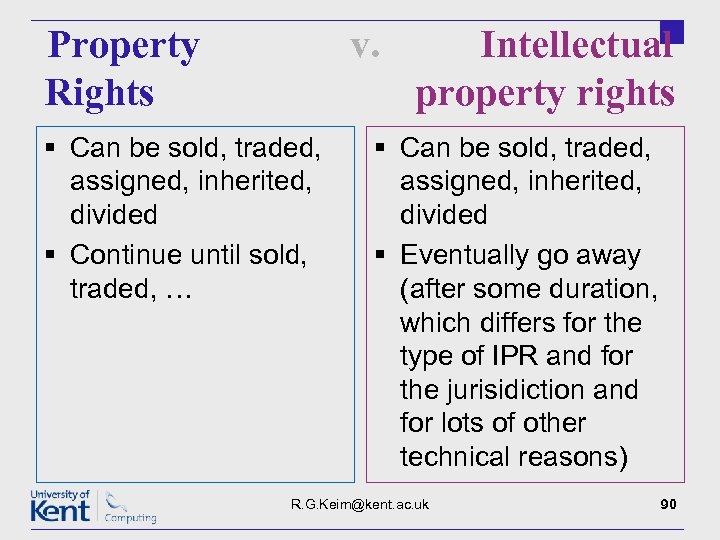

Property Rights v. § Can be sold, traded, assigned, inherited, divided § Continue until Property Rights v. § Can be sold, traded, assigned, inherited, divided § Continue until sold, traded, … Intellectual property rights § Can be sold, traded, assigned, inherited, divided § Eventually go away (after some duration, which differs for the type of IPR and for the jurisidiction and for lots of other technical reasons) R. G. [email protected] ac. uk 90

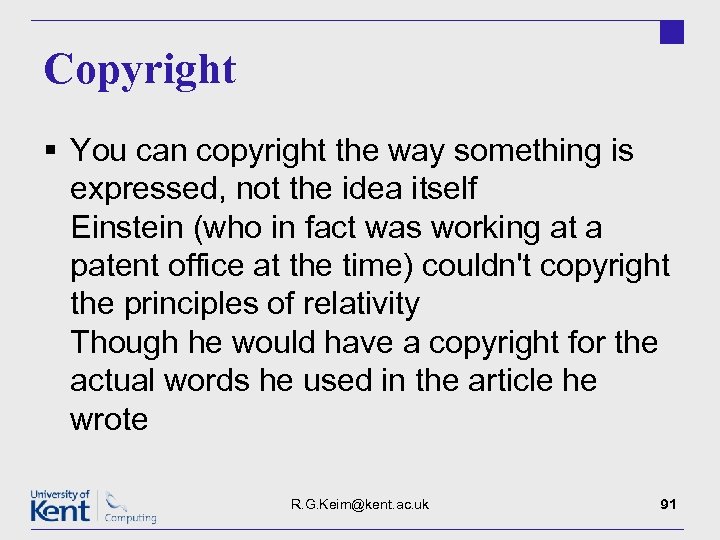

Copyright § You can copyright the way something is expressed, not the idea itself Copyright § You can copyright the way something is expressed, not the idea itself Einstein (who in fact was working at a patent office at the time) couldn't copyright the principles of relativity Though he would have a copyright for the actual words he used in the article he wrote R. G. [email protected] ac. uk 91

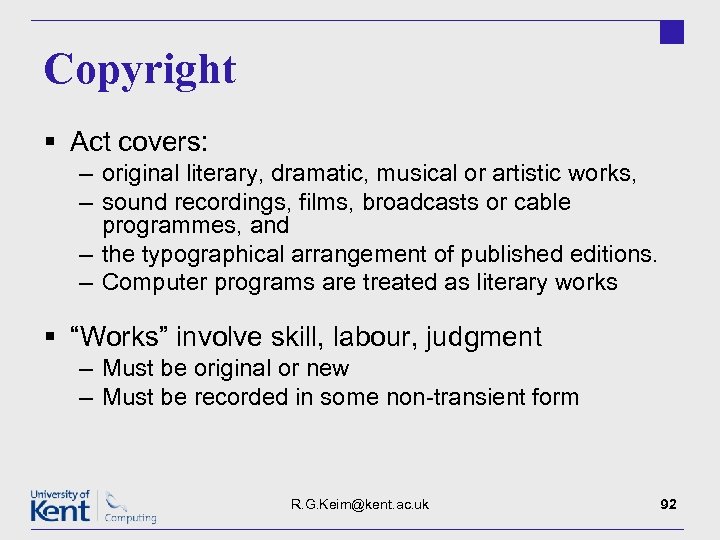

Copyright § Act covers: – original literary, dramatic, musical or artistic works, – sound Copyright § Act covers: – original literary, dramatic, musical or artistic works, – sound recordings, films, broadcasts or cable programmes, and – the typographical arrangement of published editions. – Computer programs are treated as literary works § “Works” involve skill, labour, judgment – Must be original or new – Must be recorded in some non-transient form R. G. [email protected] ac. uk 92

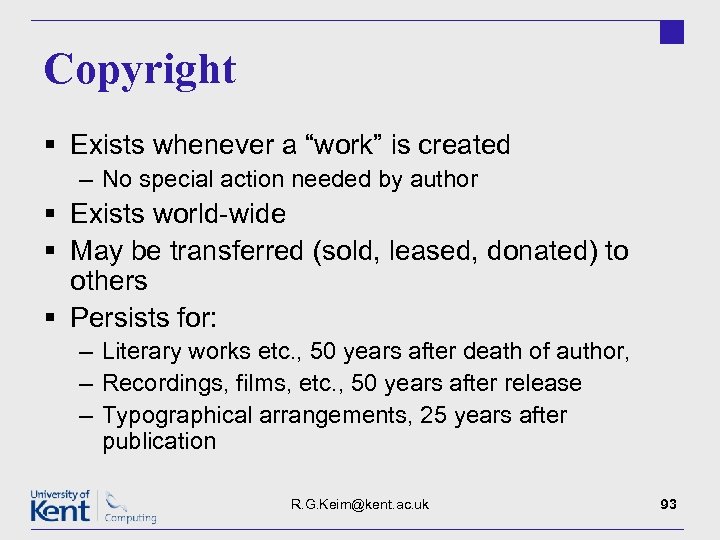

Copyright § Exists whenever a “work” is created – No special action needed by Copyright § Exists whenever a “work” is created – No special action needed by author § Exists world-wide § May be transferred (sold, leased, donated) to others § Persists for: – Literary works etc. , 50 years after death of author, – Recordings, films, etc. , 50 years after release – Typographical arrangements, 25 years after publication R. G. [email protected] ac. uk 93

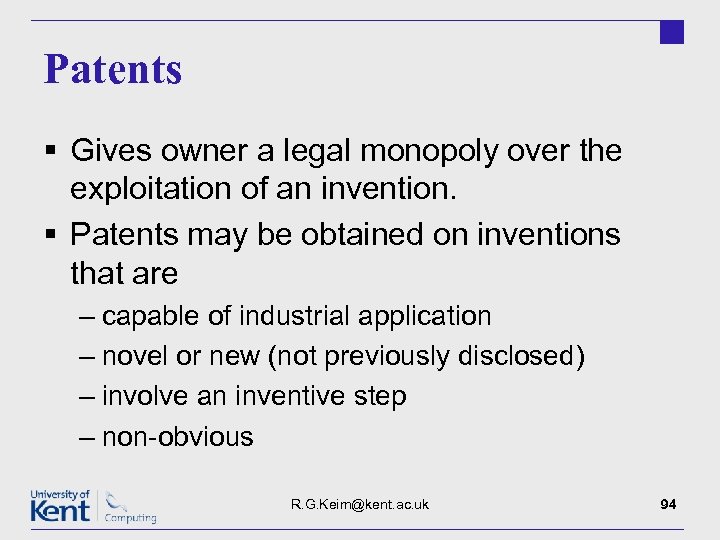

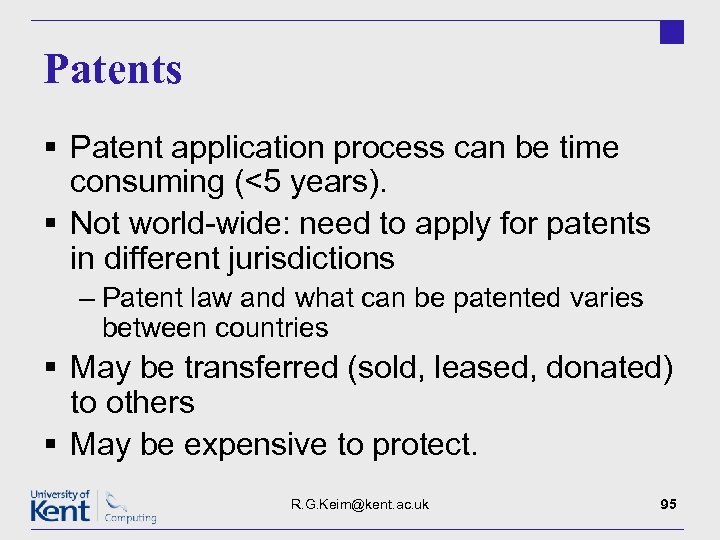

Patents § Gives owner a legal monopoly over the exploitation of an invention. § Patents § Gives owner a legal monopoly over the exploitation of an invention. § Patents may be obtained on inventions that are – capable of industrial application – novel or new (not previously disclosed) – involve an inventive step – non-obvious R. G. [email protected] ac. uk 94

Patents § Patent application process can be time consuming (<5 years). § Not world-wide: Patents § Patent application process can be time consuming (<5 years). § Not world-wide: need to apply for patents in different jurisdictions – Patent law and what can be patented varies between countries § May be transferred (sold, leased, donated) to others § May be expensive to protect. R. G. [email protected] ac. uk 95
