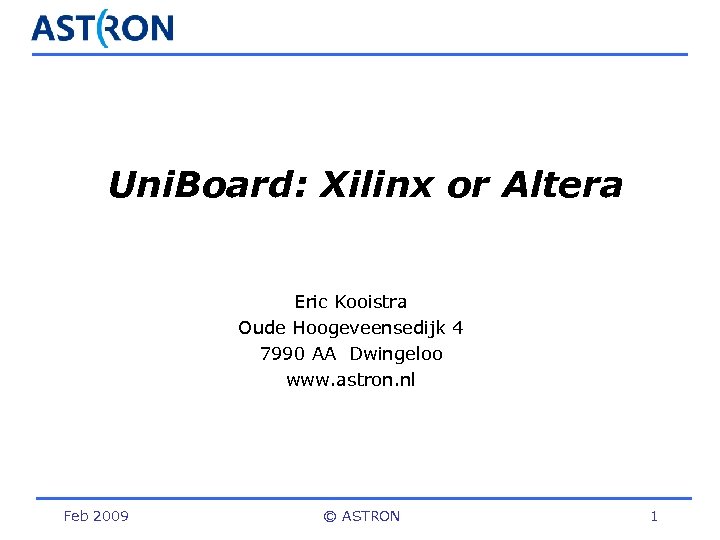

Uni. Board: Xilinx or Altera Eric Kooistra Oude Hoogeveensedijk 4 7990 AA Dwingeloo www. Uni. Board: Xilinx or Altera Eric Kooistra Oude Hoogeveensedijk 4 7990 AA Dwingeloo www. astron. nl Feb 2009 © ASTRON 1

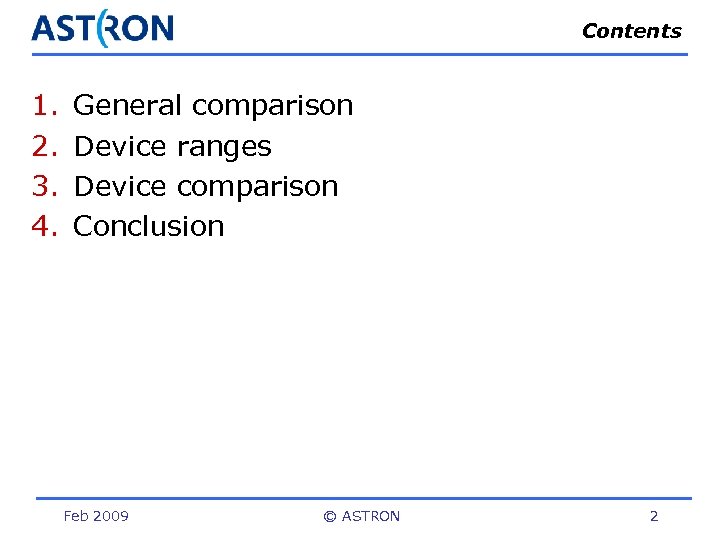

Contents 1. 2. 3. 4. General comparison Device ranges Device comparison Conclusion Feb 2009 Contents 1. 2. 3. 4. General comparison Device ranges Device comparison Conclusion Feb 2009 © ASTRON 2

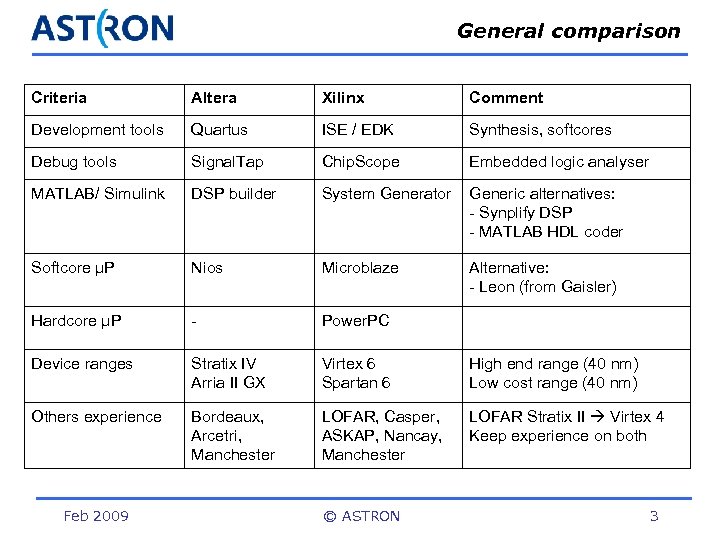

General comparison Criteria Altera Xilinx Comment Development tools Quartus ISE / EDK Synthesis, softcores General comparison Criteria Altera Xilinx Comment Development tools Quartus ISE / EDK Synthesis, softcores Debug tools Signal. Tap Chip. Scope Embedded logic analyser MATLAB/ Simulink DSP builder System Generator Generic alternatives: - Synplify DSP - MATLAB HDL coder Softcore μP Nios Microblaze Alternative: - Leon (from Gaisler) Hardcore μP - Power. PC Device ranges Stratix IV Arria II GX Virtex 6 Spartan 6 High end range (40 nm) Low cost range (40 nm) Others experience Bordeaux, Arcetri, Manchester LOFAR, Casper, ASKAP, Nancay, Manchester LOFAR Stratix II Virtex 4 Keep experience on both Feb 2009 © ASTRON 3

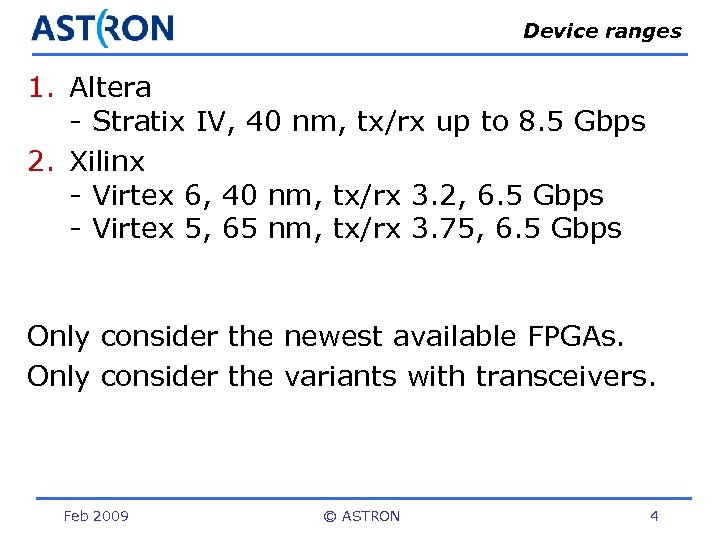

Device ranges 1. Altera - Stratix IV, 40 nm, tx/rx up to 8. 5 Device ranges 1. Altera - Stratix IV, 40 nm, tx/rx up to 8. 5 Gbps 2. Xilinx - Virtex 6, 40 nm, tx/rx 3. 2, 6. 5 Gbps - Virtex 5, 65 nm, tx/rx 3. 75, 6. 5 Gbps Only consider the newest available FPGAs. Only consider the variants with transceivers. Feb 2009 © ASTRON 4

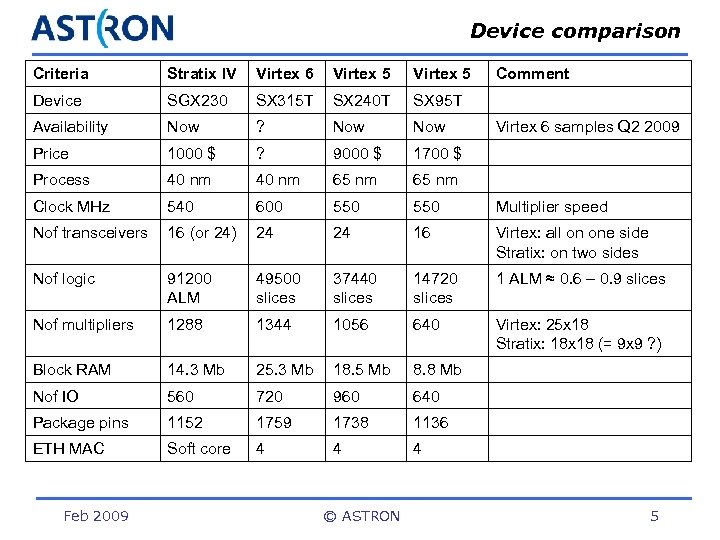

Device comparison Criteria Stratix IV Virtex 6 Virtex 5 Device SGX 230 SX 315 Device comparison Criteria Stratix IV Virtex 6 Virtex 5 Device SGX 230 SX 315 T SX 240 T SX 95 T Availability Now ? Now Price 1000 $ ? 9000 $ 1700 $ Process 40 nm 65 nm Clock MHz 540 600 550 Multiplier speed Nof transceivers 16 (or 24) 24 24 16 Virtex: all on one side Stratix: on two sides Nof logic 91200 ALM 49500 slices 37440 slices 14720 slices 1 ALM ≈ 0. 6 – 0. 9 slices Nof multipliers 1288 1344 1056 640 Virtex: 25 x 18 Stratix: 18 x 18 (= 9 x 9 ? ) Block RAM 14. 3 Mb 25. 3 Mb 18. 5 Mb 8. 8 Mb Nof IO 560 720 960 640 Package pins 1152 1759 1738 1136 ETH MAC Soft core 4 4 4 Feb 2009 © ASTRON Comment Virtex 6 samples Q 2 2009 5

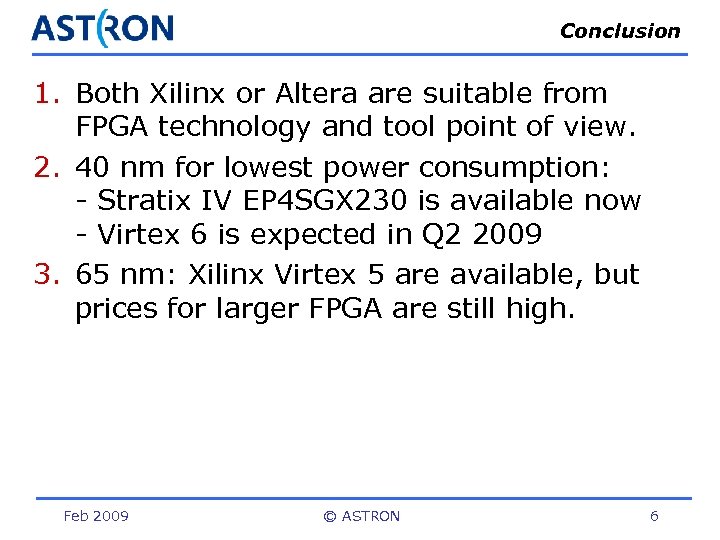

Conclusion 1. Both Xilinx or Altera are suitable from FPGA technology and tool point Conclusion 1. Both Xilinx or Altera are suitable from FPGA technology and tool point of view. 2. 40 nm for lowest power consumption: - Stratix IV EP 4 SGX 230 is available now - Virtex 6 is expected in Q 2 2009 3. 65 nm: Xilinx Virtex 5 are available, but prices for larger FPGA are still high. Feb 2009 © ASTRON 6
