TRIGON BASED AUTHENTICATION, AUTHORIZATION AND DISTRIBUTION OF ENCRYPTED KEYS WITH GLOBUS MIDDLEWARE Anitha Kumari TRIGON BASED AUTHENTICATION, AUTHORIZATION AND DISTRIBUTION OF ENCRYPTED KEYS WITH GLOBUS MIDDLEWARE Anitha Kumari K 08 MW 01 II ME – Software Engineering

CONTENTS Introduction Work Done Problem Definition Existing System Proposed Methodology Feasibility Analysis and System CONTENTS Introduction Work Done Problem Definition Existing System Proposed Methodology Feasibility Analysis and System Requirements Scope Results Literature Survey Publications References Conclusion Timeline Chart

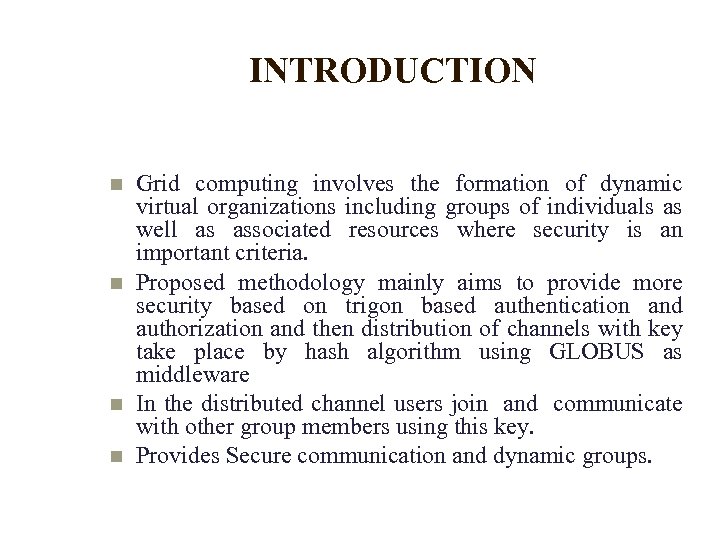

INTRODUCTION Grid computing involves the formation of dynamic virtual organizations including groups of individuals INTRODUCTION Grid computing involves the formation of dynamic virtual organizations including groups of individuals as well as associated resources where security is an important criteria. Proposed methodology mainly aims to provide more security based on trigon based authentication and authorization and then distribution of channels with key take place by hash algorithm using GLOBUS as middleware In the distributed channel users join and communicate with other group members using this key. Provides Secure communication and dynamic groups.

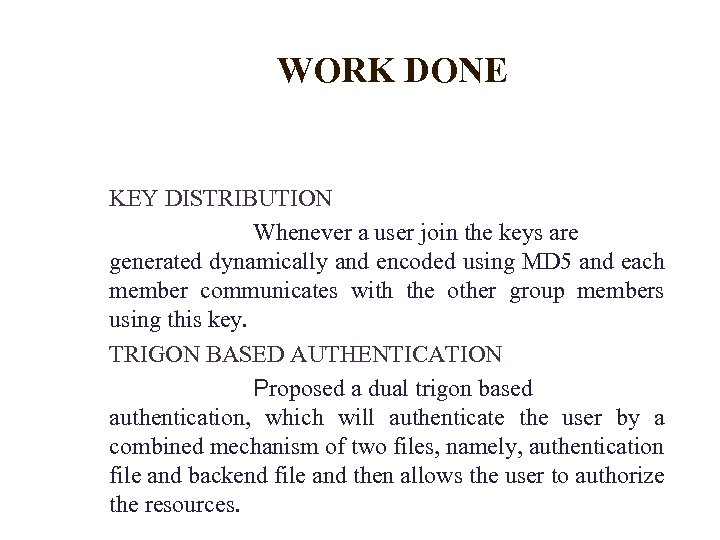

WORK DONE KEY DISTRIBUTION Whenever a user join the keys are generated dynamically and WORK DONE KEY DISTRIBUTION Whenever a user join the keys are generated dynamically and encoded using MD 5 and each member communicates with the other group members using this key. TRIGON BASED AUTHENTICATION Proposed a dual trigon based authentication, which will authenticate the user by a combined mechanism of two files, namely, authentication file and backend file and then allows the user to authorize the resources.

PROBLEM DEFINITION Taking the security as the main constraint in grid computing environment, we PROBLEM DEFINITION Taking the security as the main constraint in grid computing environment, we are proposing a trigon based authentication and authorization, and then distribution of channels by MD 5 algorithm to reduce computational load using GLOBUS as middleware.

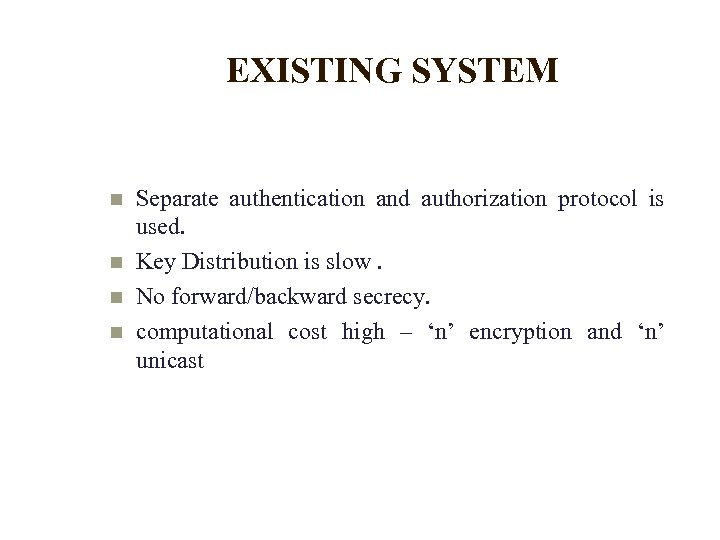

EXISTING SYSTEM Separate authentication and authorization protocol is used. Key Distribution is slow. No EXISTING SYSTEM Separate authentication and authorization protocol is used. Key Distribution is slow. No forward/backward secrecy. computational cost high – ‘n’ encryption and ‘n’ unicast

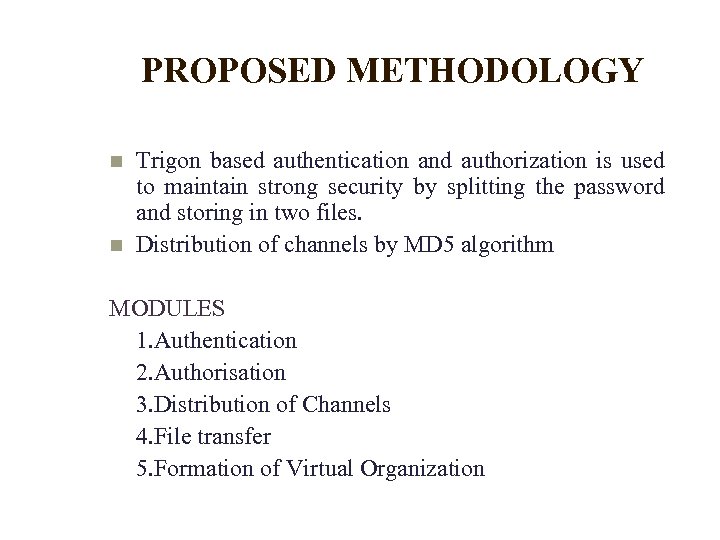

PROPOSED METHODOLOGY Trigon based authentication and authorization is used to maintain strong security by PROPOSED METHODOLOGY Trigon based authentication and authorization is used to maintain strong security by splitting the password and storing in two files. Distribution of channels by MD 5 algorithm MODULES 1. Authentication 2. Authorisation 3. Distribution of Channels 4. File transfer 5. Formation of Virtual Organization

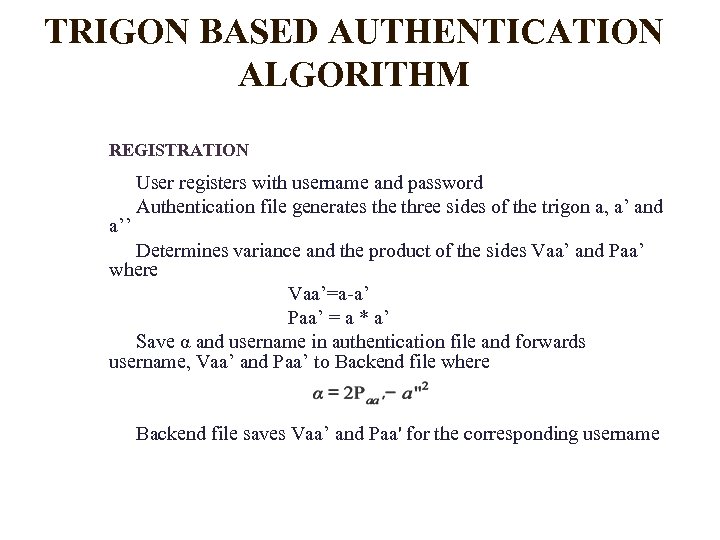

TRIGON BASED AUTHENTICATION ALGORITHM REGISTRATION a’’ User registers with username and password Authentication file TRIGON BASED AUTHENTICATION ALGORITHM REGISTRATION a’’ User registers with username and password Authentication file generates the three sides of the trigon a, a’ and Determines variance and the product of the sides Vaa’ and Paa’ where Vaa’=a-a’ Paa’ = a * a’ Save α and username in authentication file and forwards username, Vaa’ and Paa’ to Backend file where Backend file saves Vaa’ and Paa' for the corresponding username

REGISTRATION – FLOW DIAGRAM REGISTRATION – FLOW DIAGRAM

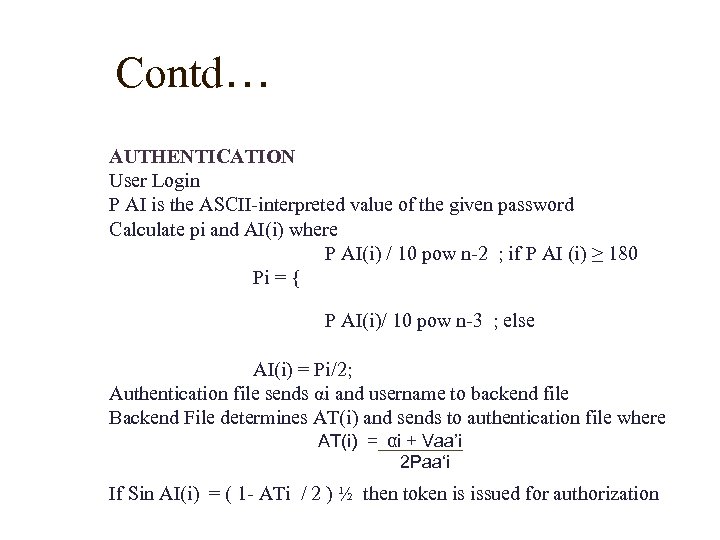

Contd… AUTHENTICATION User Login P AI is the ASCII-interpreted value of the given password Contd… AUTHENTICATION User Login P AI is the ASCII-interpreted value of the given password Calculate pi and AI(i) where P AI(i) / 10 pow n-2 ; if P AI (i) ≥ 180 Pi = { P AI(i)/ 10 pow n-3 ; else AI(i) = Pi/2; Authentication file sends αi and username to backend file Backend File determines AT(i) and sends to authentication file where AT(i) = αi + Vaa’i 2 Paa‘i If Sin AI(i) = ( 1 - ATi / 2 ) ½ then token is issued for authorization

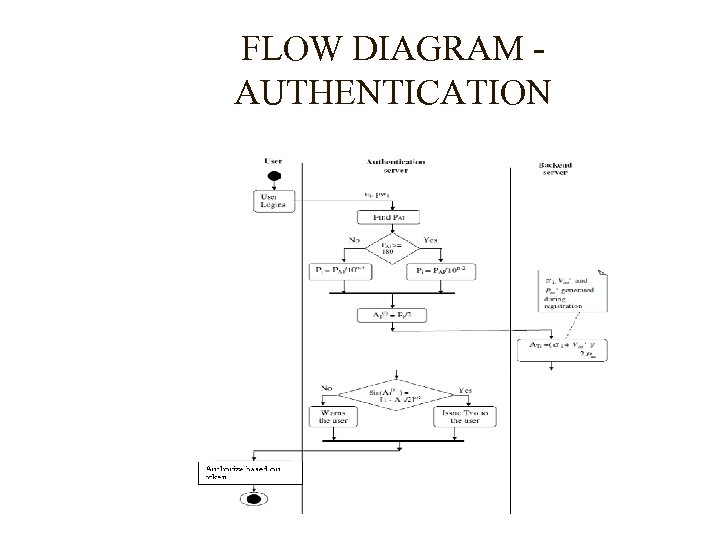

FLOW DIAGRAM AUTHENTICATION FLOW DIAGRAM AUTHENTICATION

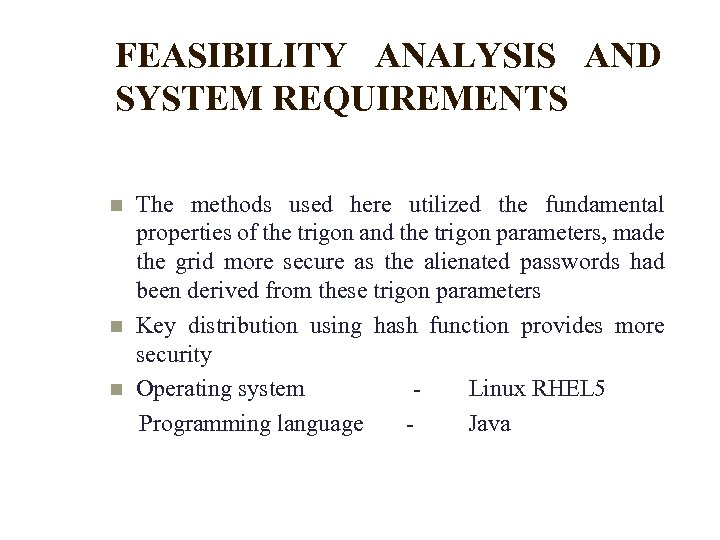

FEASIBILITY ANALYSIS AND SYSTEM REQUIREMENTS The methods used here utilized the fundamental properties of FEASIBILITY ANALYSIS AND SYSTEM REQUIREMENTS The methods used here utilized the fundamental properties of the trigon and the trigon parameters, made the grid more secure as the alienated passwords had been derived from these trigon parameters Key distribution using hash function provides more security Operating system Linux RHEL 5 Programming language Java

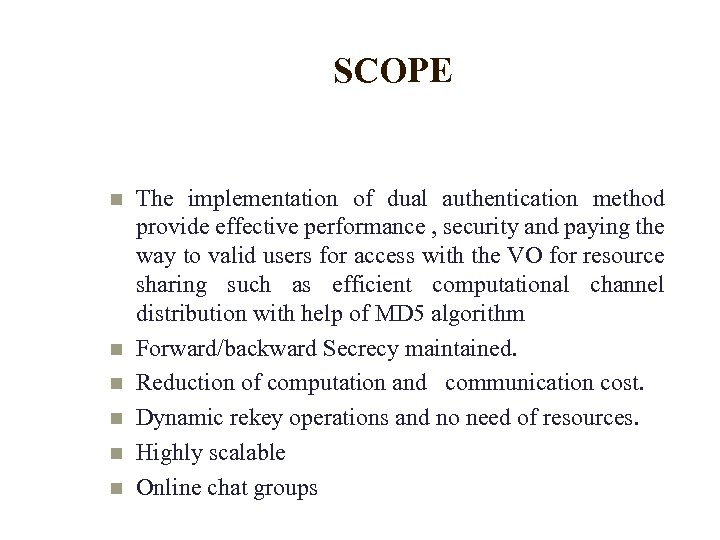

SCOPE The implementation of dual authentication method provide effective performance , security and paying SCOPE The implementation of dual authentication method provide effective performance , security and paying the way to valid users for access with the VO for resource sharing such as efficient computational channel distribution with help of MD 5 algorithm Forward/backward Secrecy maintained. Reduction of computation and communication cost. Dynamic rekey operations and no need of resources. Highly scalable Online chat groups

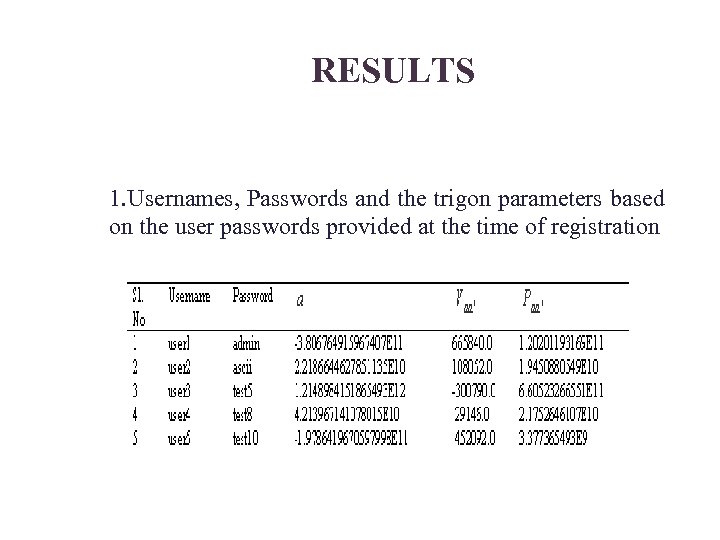

RESULTS 1. Usernames, Passwords and the trigon parameters based on the user passwords provided RESULTS 1. Usernames, Passwords and the trigon parameters based on the user passwords provided at the time of registration

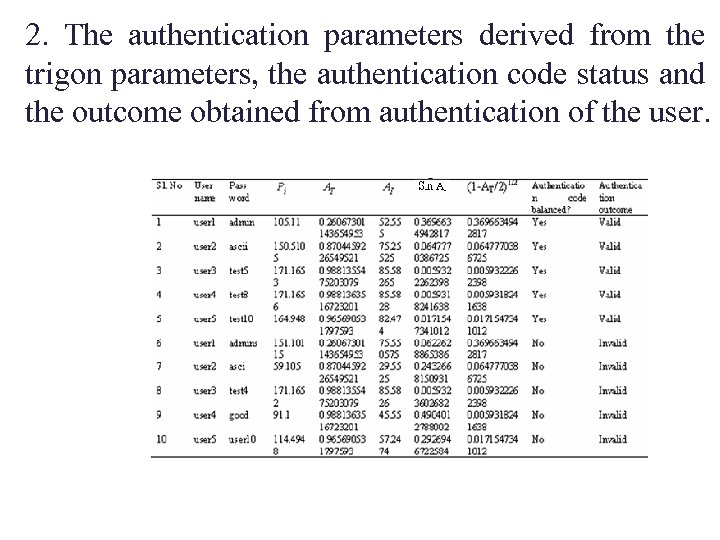

2. The authentication parameters derived from the trigon parameters, the authentication code status and 2. The authentication parameters derived from the trigon parameters, the authentication code status and the outcome obtained from authentication of the user.

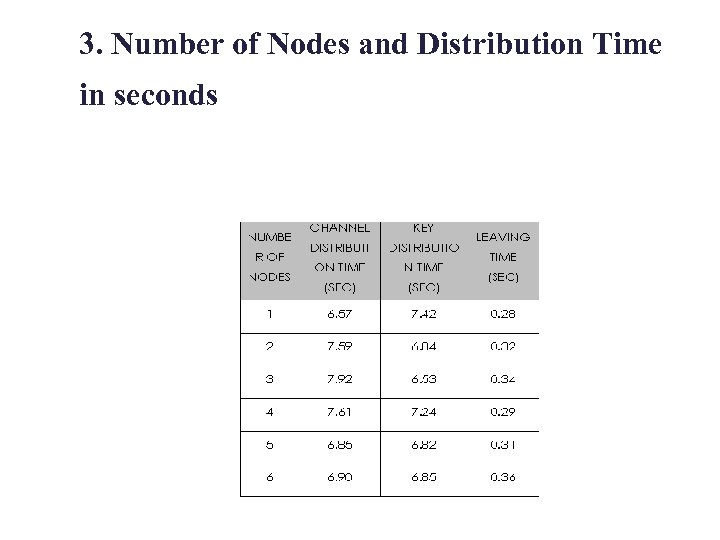

3. Number of Nodes and Distribution Time in seconds 3. Number of Nodes and Distribution Time in seconds

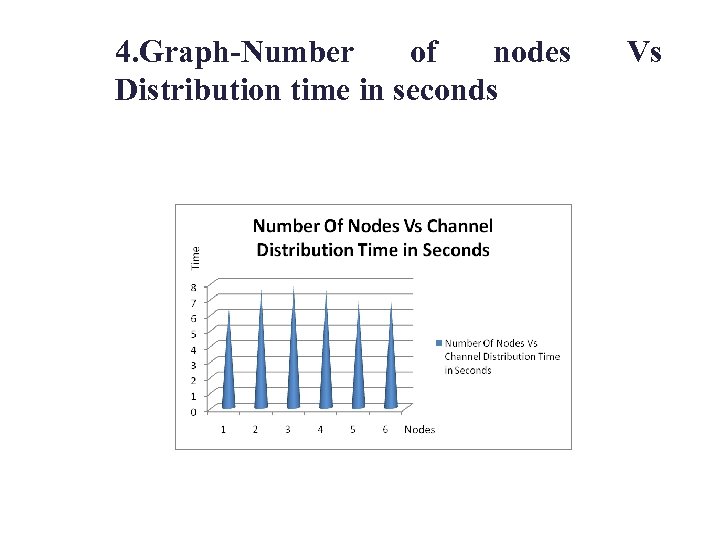

4. Graph-Number of nodes Distribution time in seconds Vs 4. Graph-Number of nodes Distribution time in seconds Vs

5. SAMPLE OUTPUT eff 3. stdout User Name : sud Password : sudhi Alpha 5. SAMPLE OUTPUT eff 3. stdout User Name : sud Password : sudhi Alpha : -3. 5455917266588135 E 10 Vp : -196944. 0 Pp : 2. 32466659417 E 11 Token is : 0. 0071645152852578735 Pi : 90. 4105 Authentication token 0. 0071645152852578735 User Token : 0. 4964177423574 Reg. Token : 0. 4964177423574 Valid User file length: 2 hash: e 44 fea 3 bec 53 bcea 3 b 7513 ccef 5857 ac New channel discovered cse

JOB SUBMISSION JOB SUBMISSION

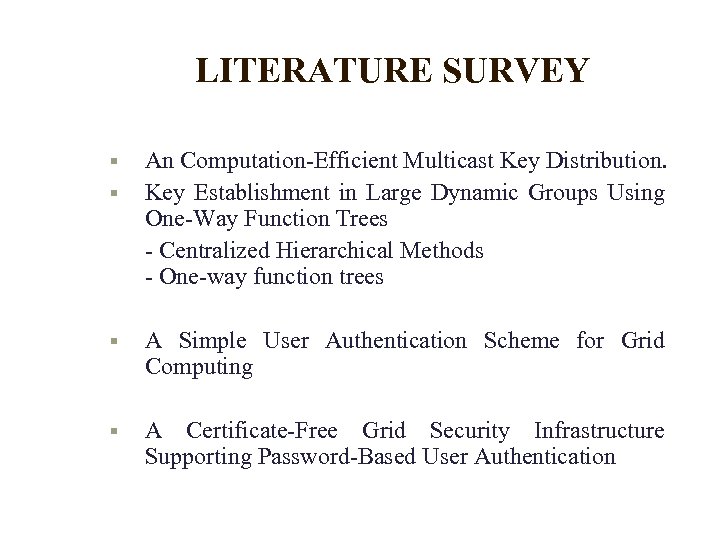

LITERATURE SURVEY An Computation-Efficient Multicast Key Distribution. Key Establishment in Large Dynamic Groups Using LITERATURE SURVEY An Computation-Efficient Multicast Key Distribution. Key Establishment in Large Dynamic Groups Using One-Way Function Trees - Centralized Hierarchical Methods - One-way function trees A Simple User Authentication Scheme for Grid Computing A Certificate-Free Grid Security Infrastructure Supporting Password-Based User Authentication

PUBLICATIONS AUTHENTICATION PUBLICATION PUBLICATIONS AUTHENTICATION PUBLICATION "International Journal of Computer Science and Information Security" Dec 2009, vol 6, pp (064 -072). Accepted in National level Conference (NCSSS) in BIT.

REFERENCES 1. Rongxing Lu, Zhenfu Cao, Zhenchuan Chai, and Xiaohui Liang, REFERENCES 1. Rongxing Lu, Zhenfu Cao, Zhenchuan Chai, and Xiaohui Liang, "A Simple User Authentication Scheme for Grid Computing, International Journal of Network Security, vol. 7, no. 2, Pp. 202– 206, September 2008. 2. J. Crampton, H. W. Lim, K. G. Paterson and G. Price, "A Certificate. Free Grid Security Infrastructure Supporting Password-Based User Authentication" In Proceedings of the 6 th Annual PKI R&D Workshop 2007, pp. 103 -118, Gaithersburg, Maryland, USA, 2007. 3. Computation-Efficient Multicast Key Distribution -Lihao Xu, Senior Member, IEEE, and Cheng Huang, Member, ieee transactions on parallel and distributed systems, vol. 19, no. 5, may 2008 4. Key Establishment in Large Dynamic Groups Using One-Way Function Trees -Alan T. Sherman and David A. Mc. Grew, Member, ieee transactions on software engineering, vol. 29, no. 5, may 2003

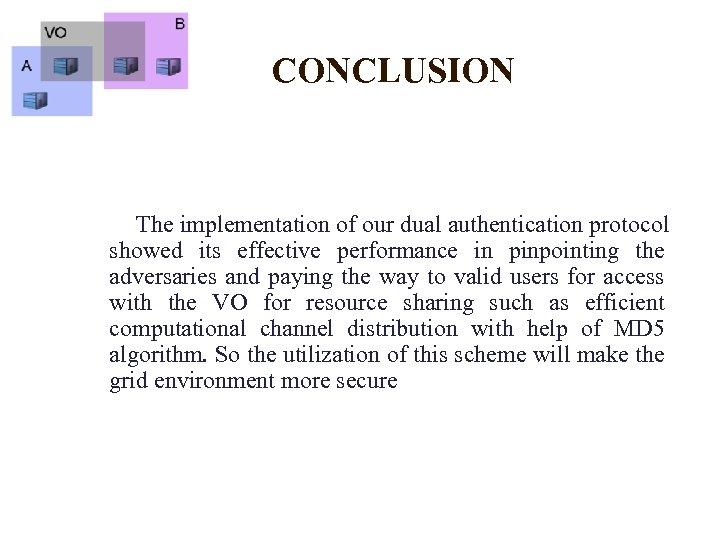

CONCLUSION The implementation of our dual authentication protocol showed its effective performance in pinpointing CONCLUSION The implementation of our dual authentication protocol showed its effective performance in pinpointing the adversaries and paying the way to valid users for access with the VO for resource sharing such as efficient computational channel distribution with help of MD 5 algorithm. So the utilization of this scheme will make the grid environment more secure

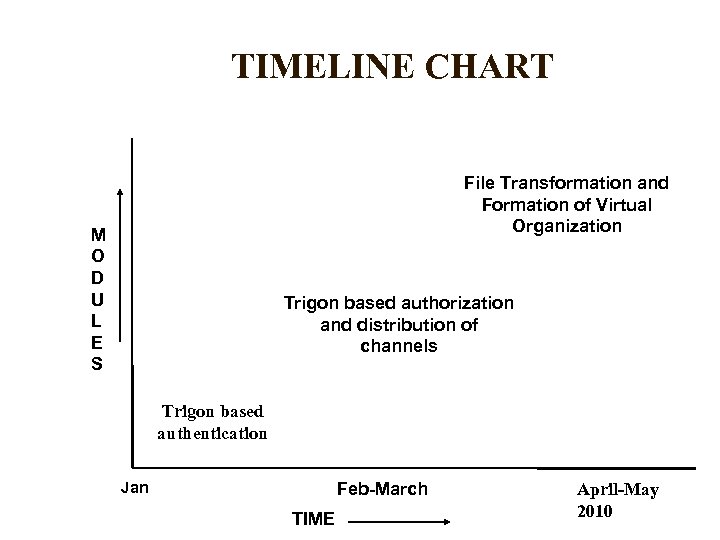

TIMELINE CHART File Transformation and Formation of Virtual Organization M O D U L TIMELINE CHART File Transformation and Formation of Virtual Organization M O D U L E S Trigon based authorization and distribution of channels Trigon based authentication Jan Feb-March TIME April-May 2010

THANK YOU THANK YOU
