Thursday, March 15, 2018 The Challenge for Thursday, March 15, 2018 The Challenge for

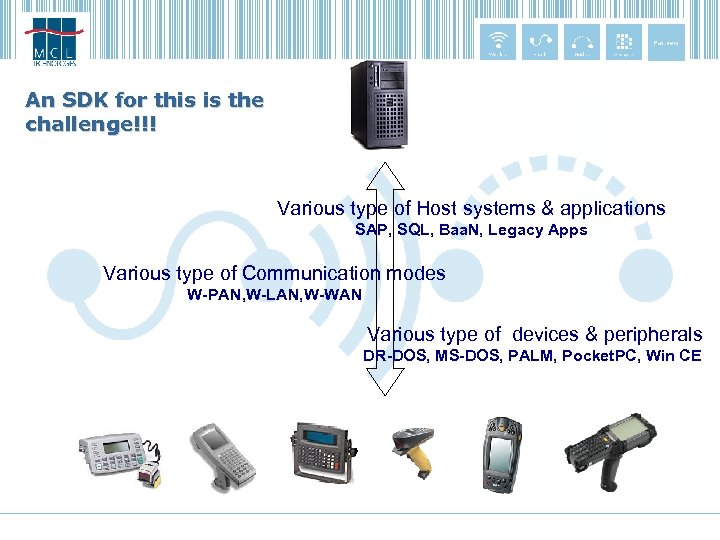

An SDK for this is the challenge!!! Various type of Host systems & applications An SDK for this is the challenge!!! Various type of Host systems & applications SAP, SQL, Baa. N, Legacy Apps Various type of Communication modes W-PAN, W-LAN, W-WAN Various type of devices & peripherals DR-DOS, MS-DOS, PALM, Pocket. PC, Win CE

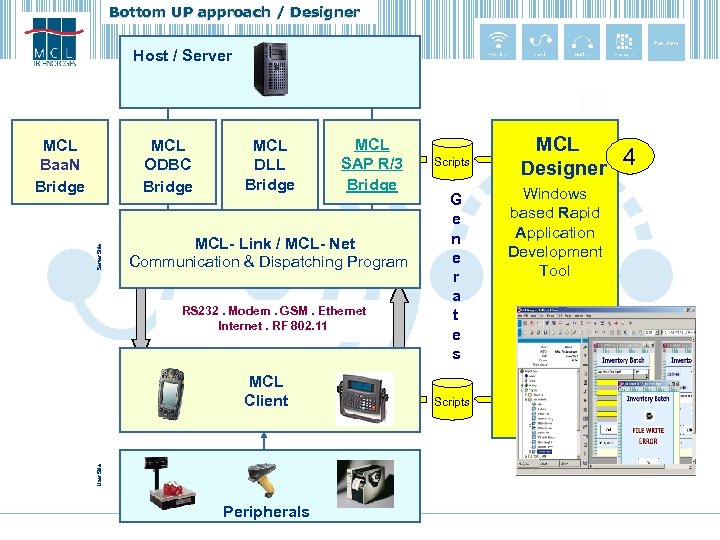

Bottom UP approach / Designer Host / Server MCL ODBC Bridge Server Side MCL Bottom UP approach / Designer Host / Server MCL ODBC Bridge Server Side MCL Baa. N Bridge MCL DLL Bridge MCL SAP R/3 Bridge MCL- Link / MCL- Net Communication & Dispatching Program RS 232. Modem. GSM. Ethernet Internet. RF 802. 11 User Side MCL Client Peripherals Scripts G e n e r a t e s Scripts MCL Designer Windows based Rapid Application Development Tool 4

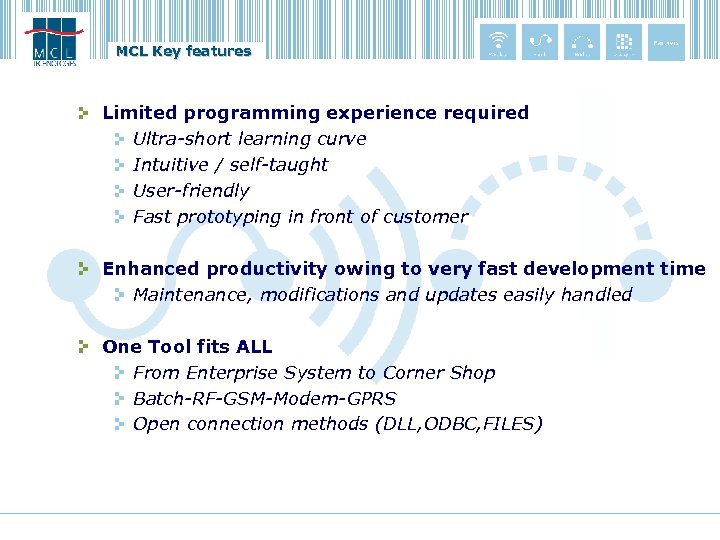

MCL Key features Limited programming experience required Ultra-short learning curve Intuitive / self-taught User-friendly MCL Key features Limited programming experience required Ultra-short learning curve Intuitive / self-taught User-friendly Fast prototyping in front of customer Enhanced productivity owing to very fast development time Maintenance, modifications and updates easily handled One Tool fits ALL From Enterprise System to Corner Shop Batch-RF-GSM-Modem-GPRS Open connection methods (DLL, ODBC, FILES)

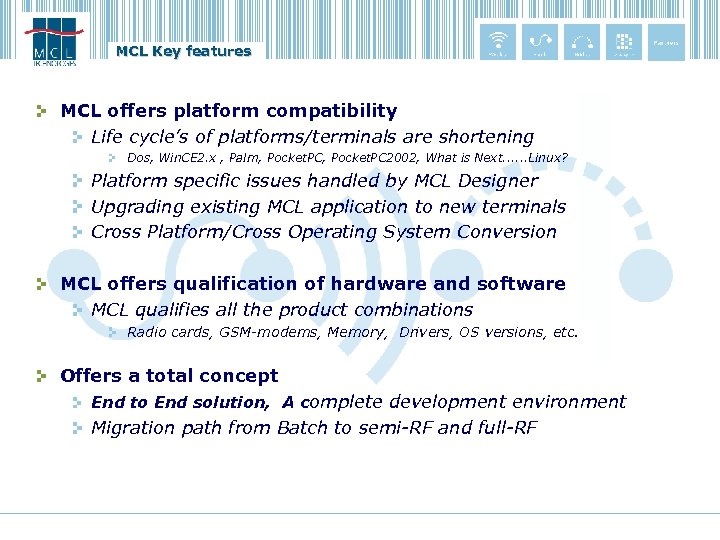

MCL Key features MCL offers platform compatibility Life cycle’s of platforms/terminals are shortening Dos, MCL Key features MCL offers platform compatibility Life cycle’s of platforms/terminals are shortening Dos, Win. CE 2. x , Palm, Pocket. PC 2002, What is Next. . . Linux? Platform specific issues handled by MCL Designer Upgrading existing MCL application to new terminals Cross Platform/Cross Operating System Conversion MCL offers qualification of hardware and software MCL qualifies all the product combinations Radio cards, GSM-modems, Memory, Drivers, OS versions, etc. Offers a total concept End to End solution, A complete development environment Migration path from Batch to semi-RF and full-RF

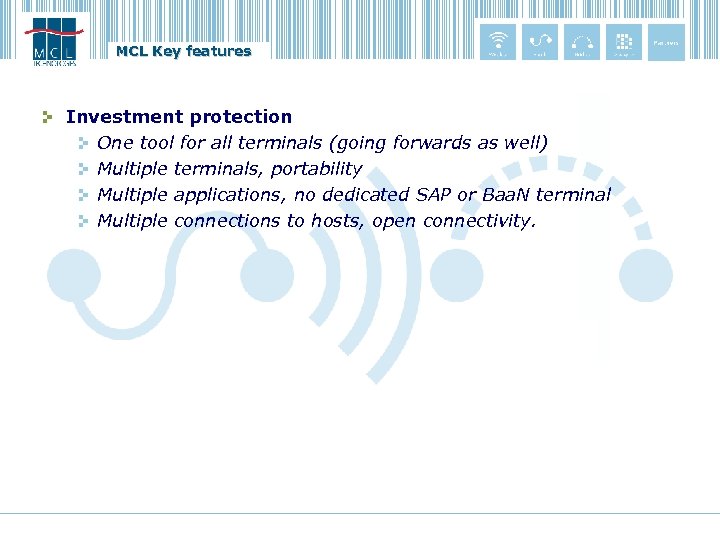

MCL Key features Investment protection One tool for all terminals (going forwards as well) MCL Key features Investment protection One tool for all terminals (going forwards as well) Multiple terminals, portability Multiple applications, no dedicated SAP or Baa. N terminal Multiple connections to hosts, open connectivity.

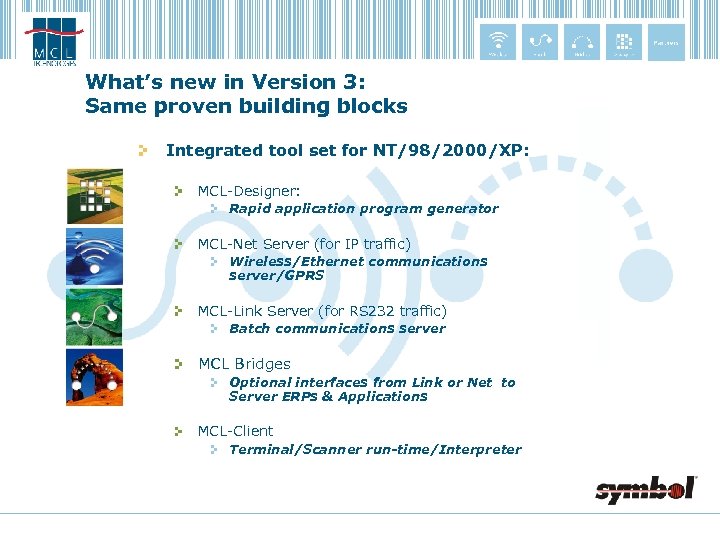

What’s new in Version 3: Same proven building blocks Integrated tool set for NT/98/2000/XP: What’s new in Version 3: Same proven building blocks Integrated tool set for NT/98/2000/XP: MCL-Designer: Rapid application program generator MCL-Net Server (for IP traffic) Wireless/Ethernet communications server/GPRS MCL-Link Server (for RS 232 traffic) Batch communications server MCL Bridges Optional interfaces from Link or Net to Server ERPs & Applications MCL-Client Terminal/Scanner run-time/Interpreter

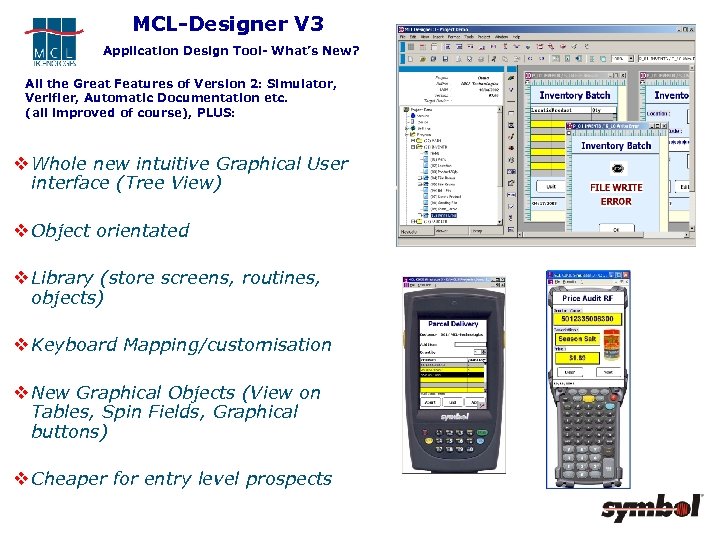

MCL-Designer V 3 Application Design Tool- What’s New? All the Great Features of Version MCL-Designer V 3 Application Design Tool- What’s New? All the Great Features of Version 2: Simulator, Verifier, Automatic Documentation etc. (all improved of course), PLUS: v Whole new intuitive Graphical User interface (Tree View) v Object orientated v Library (store screens, routines, objects) v Keyboard Mapping/customisation v New Graphical Objects (View on Tables, Spin Fields, Graphical buttons) v Cheaper for entry level prospects

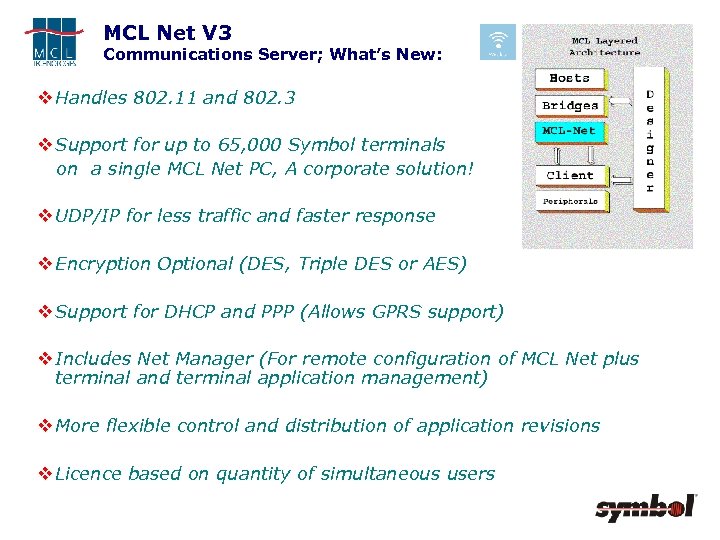

MCL Net V 3 Communications Server; What’s New: v Handles 802. 11 and 802. MCL Net V 3 Communications Server; What’s New: v Handles 802. 11 and 802. 3 v Support for up to 65, 000 Symbol terminals on a single MCL Net PC, A corporate solution! v UDP/IP for less traffic and faster response v Encryption Optional (DES, Triple DES or AES) v Support for DHCP and PPP (Allows GPRS support) v Includes Net Manager (For remote configuration of MCL Net plus terminal and terminal application management) v More flexible control and distribution of application revisions v Licence based on quantity of simultaneous users

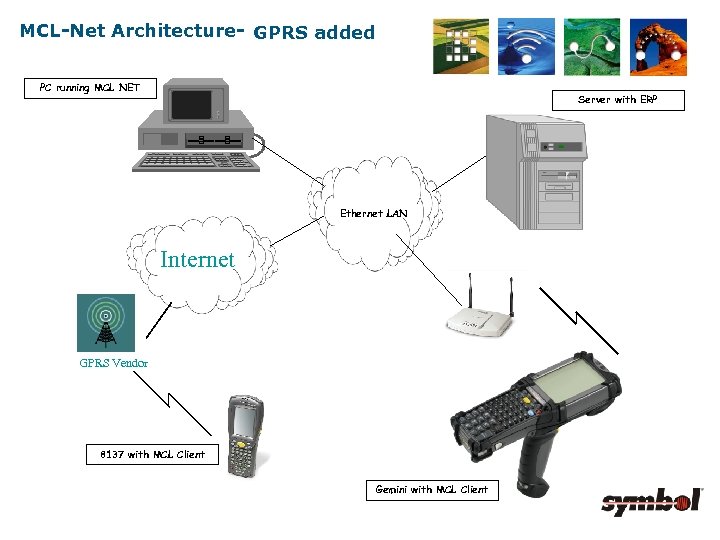

MCL-Net Architecture- GPRS added PC running MCL NET Server with ERP Ethernet LAN Internet MCL-Net Architecture- GPRS added PC running MCL NET Server with ERP Ethernet LAN Internet GPRS Vendor 8137 with MCL Client Gemini with MCL Client

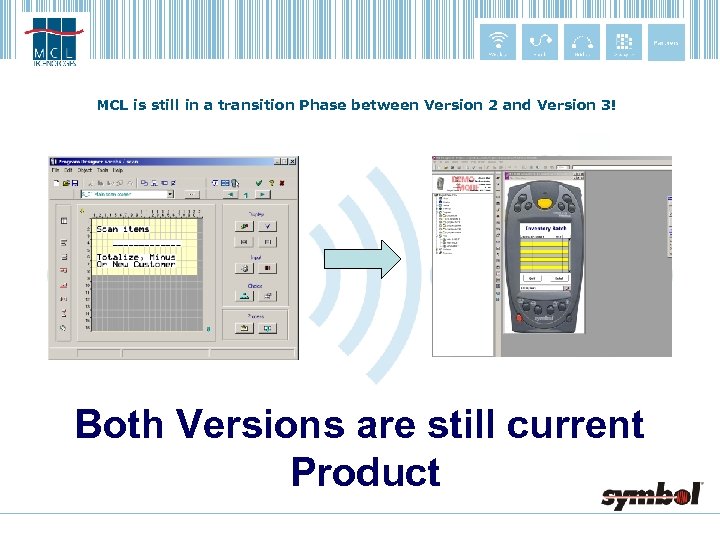

MCL is still in a transition Phase between Version 2 and Version 3! Both MCL is still in a transition Phase between Version 2 and Version 3! Both Versions are still current Product

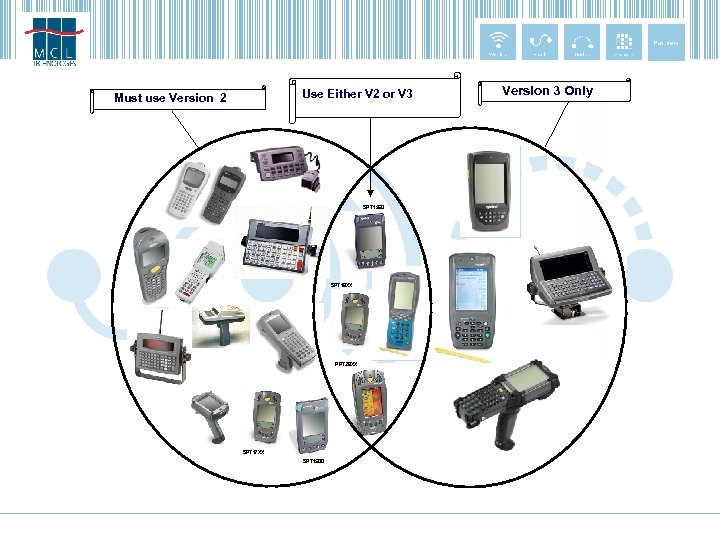

Use Either V 2 or V 3 Must use Version 2 SPT 1550 SPT Use Either V 2 or V 3 Must use Version 2 SPT 1550 SPT 18 XX PPT 28 XX SPT 17 XX SPT 1500 Version 3 Only

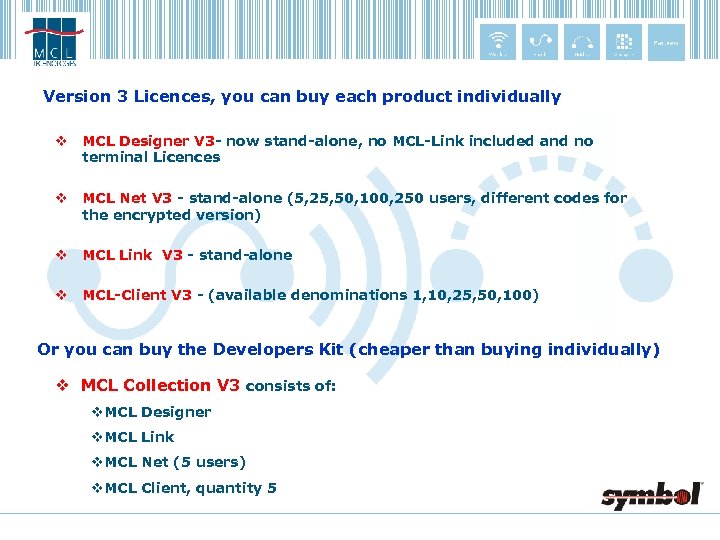

Version 3 Licences, you can buy each product individually v MCL Designer V 3 Version 3 Licences, you can buy each product individually v MCL Designer V 3 - now stand-alone, no MCL-Link included and no terminal Licences v MCL Net V 3 - stand-alone (5, 25, 50, 100, 250 users, different codes for the encrypted version) v MCL Link V 3 - stand-alone v MCL-Client V 3 - (available denominations 1, 10, 25, 50, 100) Or you can buy the Developers Kit (cheaper than buying individually) v MCL Collection V 3 consists of: v. MCL Designer v. MCL Link v. MCL Net (5 users) v. MCL Client, quantity 5
