The Dipole Industry Magnetic Measurement An example of project partially developed by EN-ICE Workshop, The Dipole Industry Magnetic Measurement An example of project partially developed by EN-ICE Workshop, 23 April 2009 Hubert REYMOND - EN-ICE-MTA 1

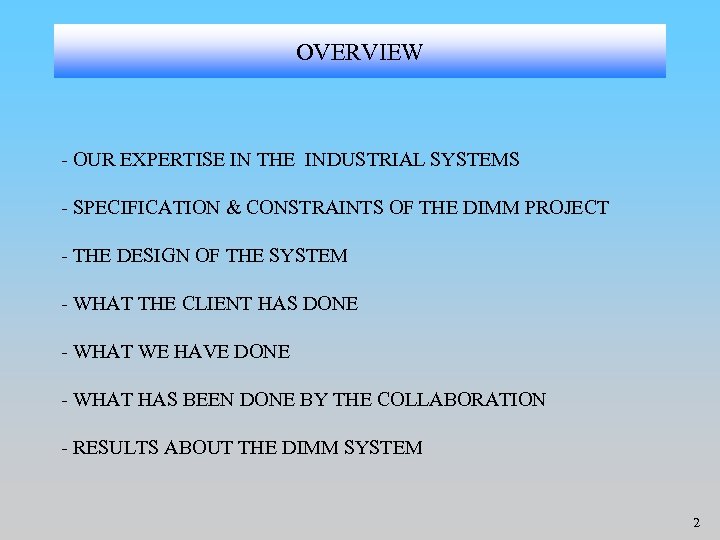

OVERVIEW - OUR EXPERTISE IN THE INDUSTRIAL SYSTEMS - SPECIFICATION & CONSTRAINTS OF THE OVERVIEW - OUR EXPERTISE IN THE INDUSTRIAL SYSTEMS - SPECIFICATION & CONSTRAINTS OF THE DIMM PROJECT - THE DESIGN OF THE SYSTEM - WHAT THE CLIENT HAS DONE - WHAT WE HAVE DONE - WHAT HAS BEEN DONE BY THE COLLABORATION - RESULTS ABOUT THE DIMM SYSTEM 2

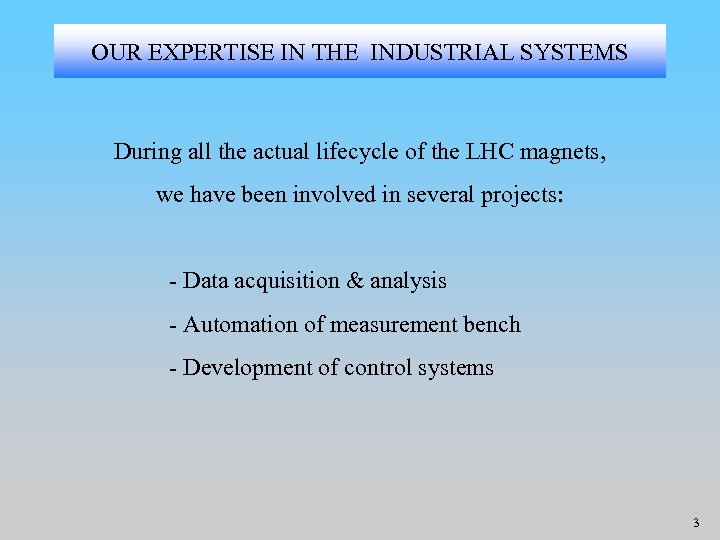

OUR EXPERTISE IN THE INDUSTRIAL SYSTEMS During all the actual lifecycle of the LHC OUR EXPERTISE IN THE INDUSTRIAL SYSTEMS During all the actual lifecycle of the LHC magnets, we have been involved in several projects: - Data acquisition & analysis - Automation of measurement bench - Development of control systems 3

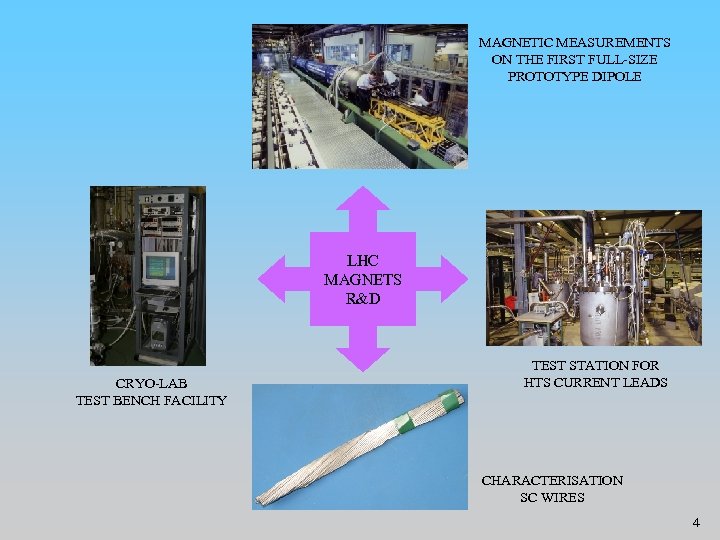

MAGNETIC MEASUREMENTS ON THE FIRST FULL-SIZE PROTOTYPE DIPOLE LHC MAGNETS R&D CRYO-LAB TEST BENCH MAGNETIC MEASUREMENTS ON THE FIRST FULL-SIZE PROTOTYPE DIPOLE LHC MAGNETS R&D CRYO-LAB TEST BENCH FACILITY TEST STATION FOR HTS CURRENT LEADS CHARACTERISATION SC WIRES 4

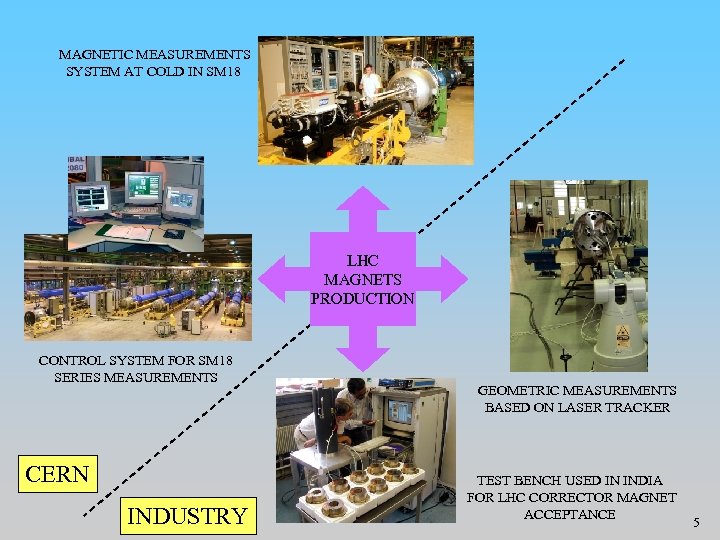

MAGNETIC MEASUREMENTS SYSTEM AT COLD IN SM 18 LHC MAGNETS PRODUCTION CONTROL SYSTEM FOR MAGNETIC MEASUREMENTS SYSTEM AT COLD IN SM 18 LHC MAGNETS PRODUCTION CONTROL SYSTEM FOR SM 18 SERIES MEASUREMENTS CERN INDUSTRY GEOMETRIC MEASUREMENTS BASED ON LASER TRACKER TEST BENCH USED IN INDIA FOR LHC CORRECTOR MAGNET ACCEPTANCE 5

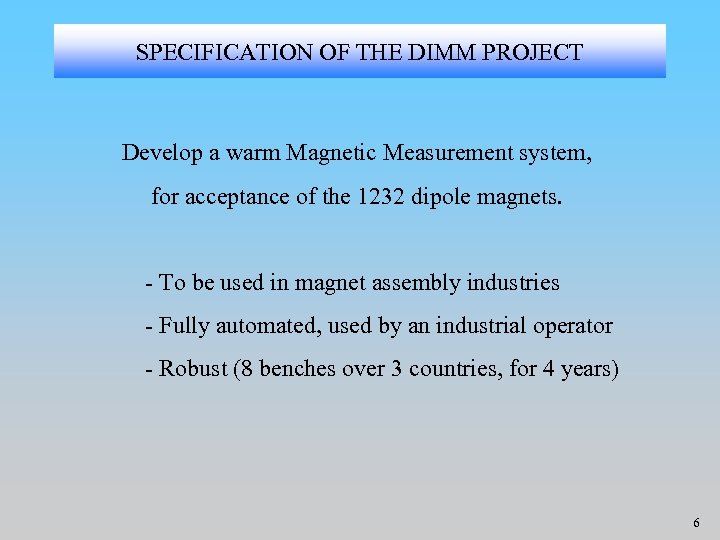

SPECIFICATION OF THE DIMM PROJECT Develop a warm Magnetic Measurement system, for acceptance of SPECIFICATION OF THE DIMM PROJECT Develop a warm Magnetic Measurement system, for acceptance of the 1232 dipole magnets. - To be used in magnet assembly industries - Fully automated, used by an industrial operator - Robust (8 benches over 3 countries, for 4 years) 6

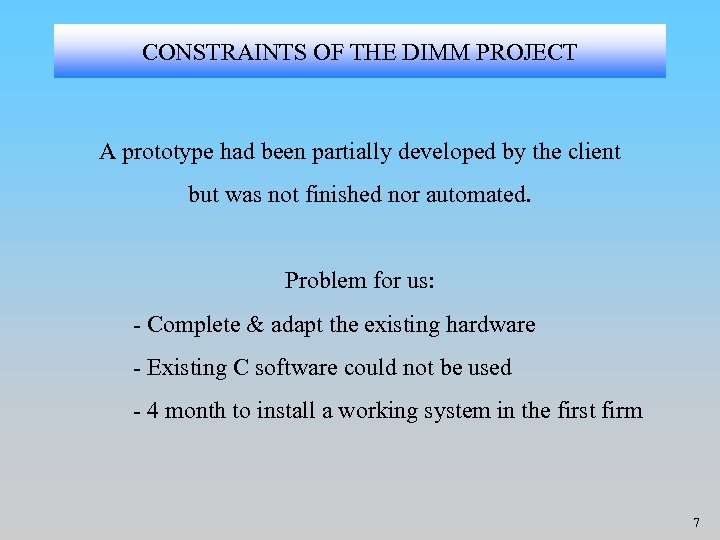

CONSTRAINTS OF THE DIMM PROJECT A prototype had been partially developed by the client CONSTRAINTS OF THE DIMM PROJECT A prototype had been partially developed by the client but was not finished nor automated. Problem for us: - Complete & adapt the existing hardware - Existing C software could not be used - 4 month to install a working system in the first firm 7

THE PROPOSITIONS ISSUED FROM THE COLLABORATION The completed DIMM system Client 8 THE PROPOSITIONS ISSUED FROM THE COLLABORATION The completed DIMM system Client 8

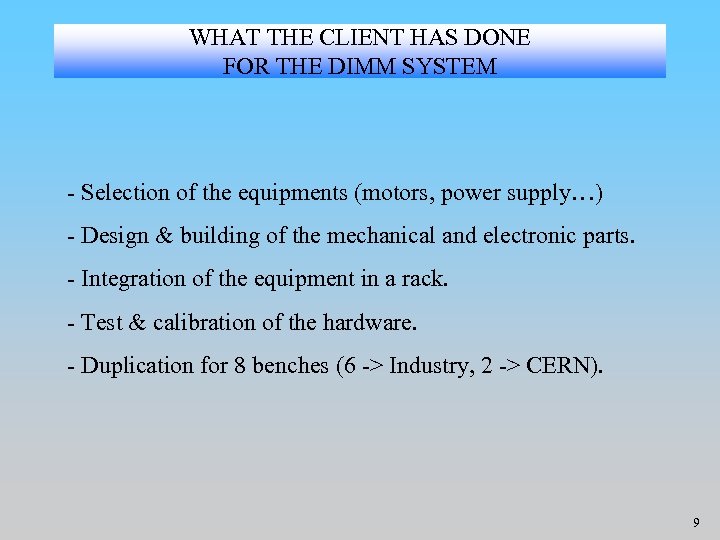

WHAT THE CLIENT HAS DONE FOR THE DIMM SYSTEM - Selection of the equipments WHAT THE CLIENT HAS DONE FOR THE DIMM SYSTEM - Selection of the equipments (motors, power supply…) - Design & building of the mechanical and electronic parts. - Integration of the equipment in a rack. - Test & calibration of the hardware. - Duplication for 8 benches (6 -> Industry, 2 -> CERN). 9

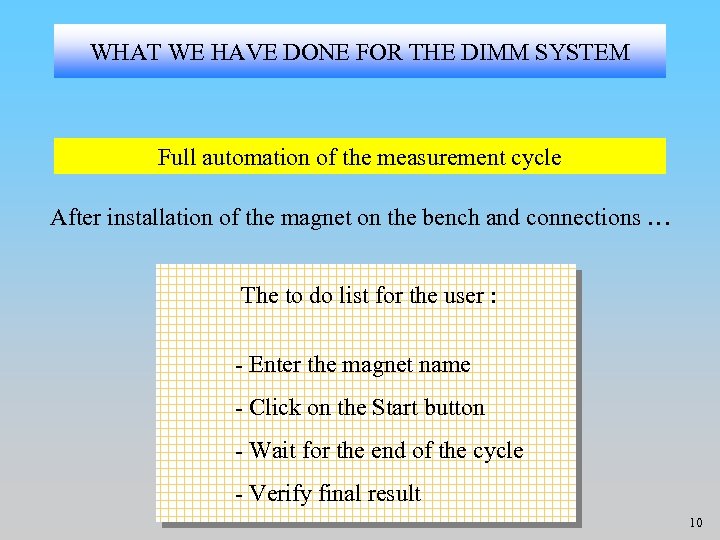

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Full automation of the measurement cycle WHAT WE HAVE DONE FOR THE DIMM SYSTEM Full automation of the measurement cycle After installation of the magnet on the bench and connections … The to do list for the user : - Enter the magnet name - Click on the Start button - Wait for the end of the cycle - Verify final result 10

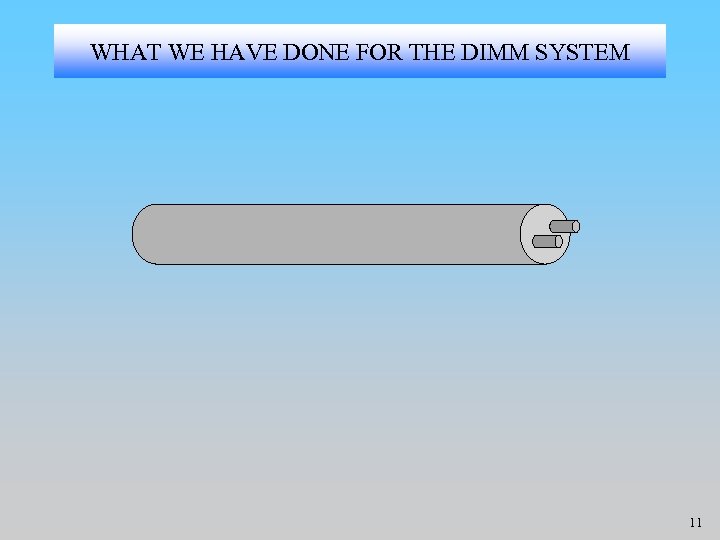

WHAT WE HAVE DONE FOR THE DIMM SYSTEM 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM 11

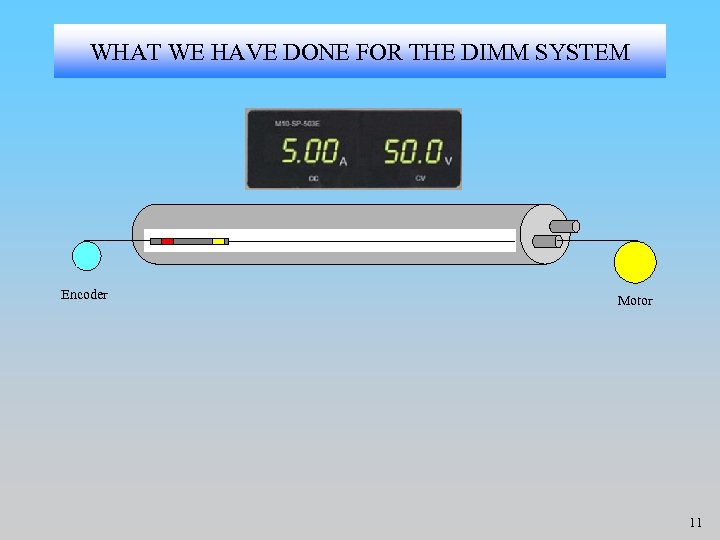

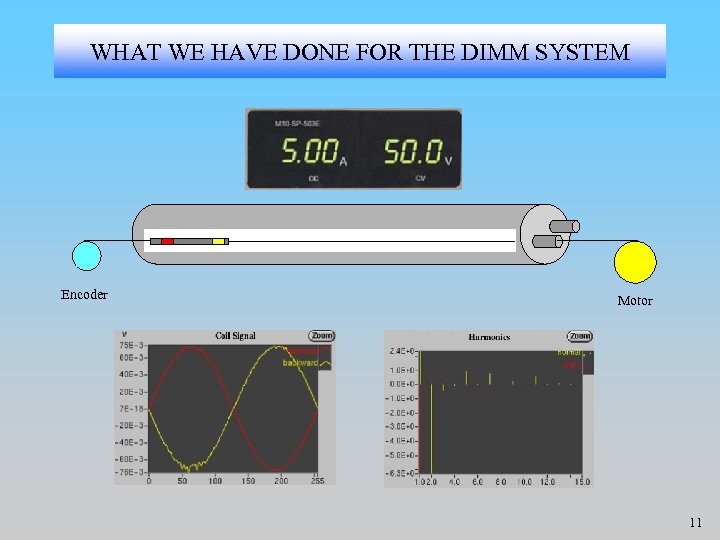

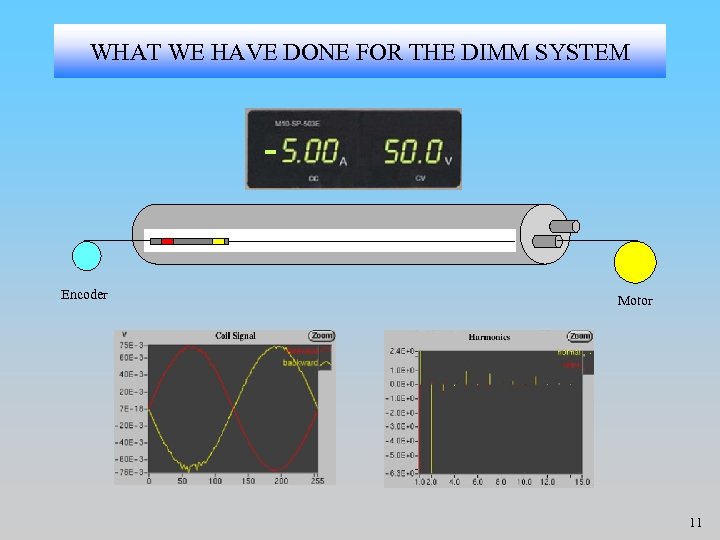

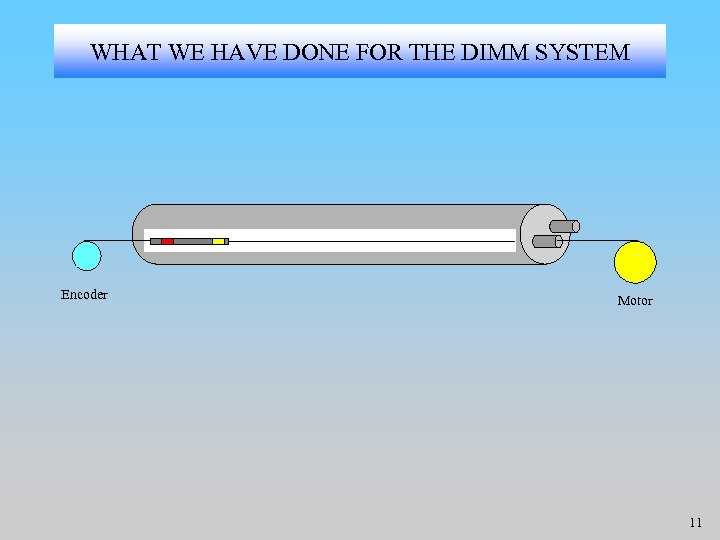

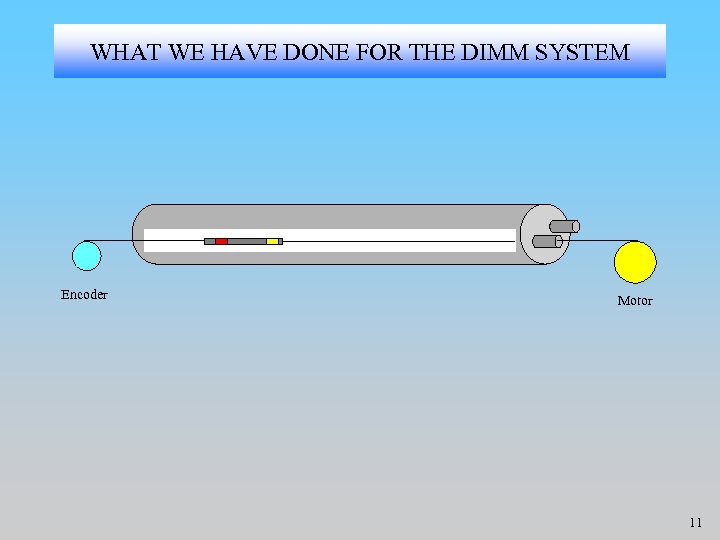

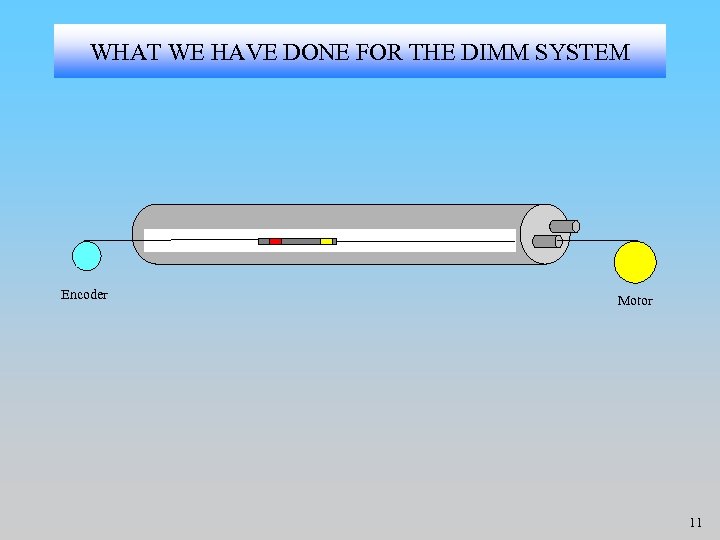

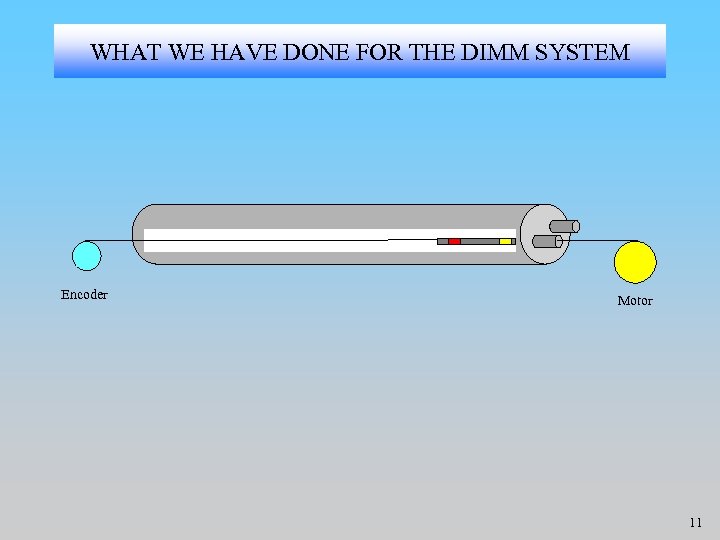

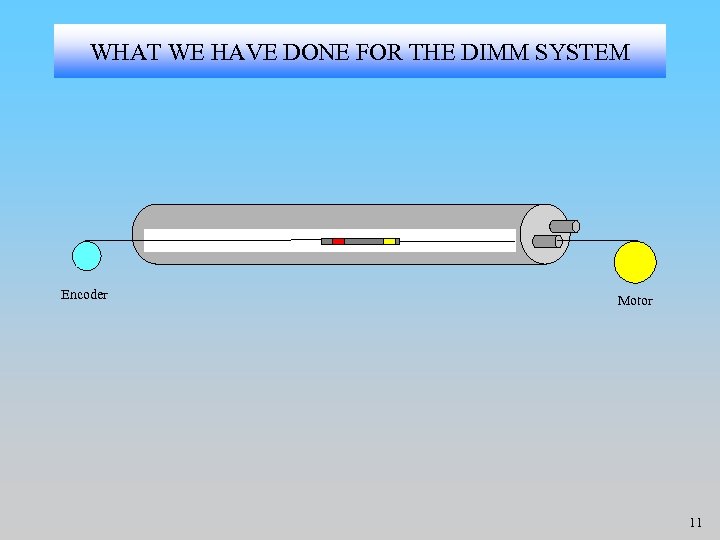

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

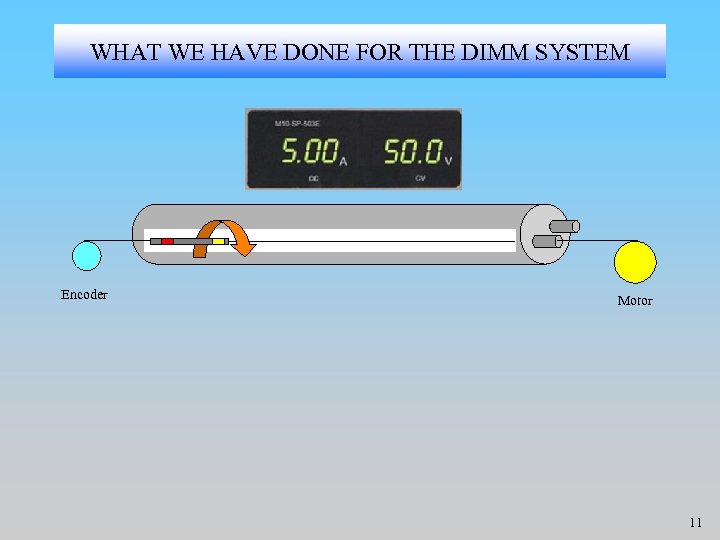

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11 WHAT WE HAVE DONE FOR THE DIMM SYSTEM Encoder Motor 11

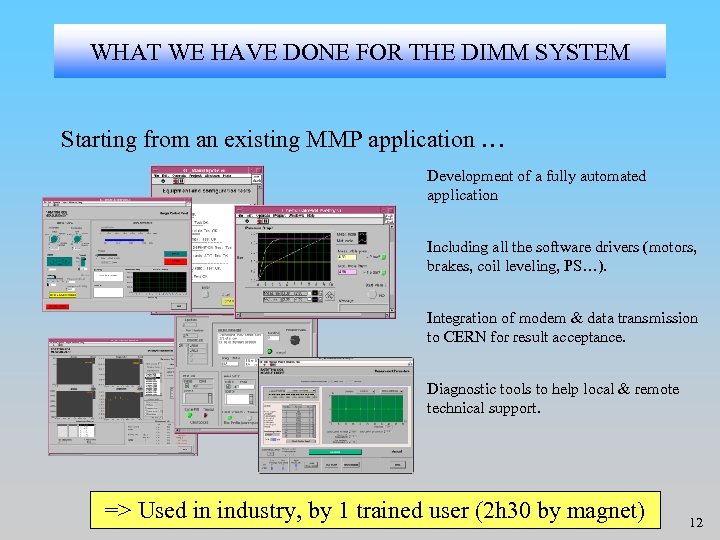

WHAT WE HAVE DONE FOR THE DIMM SYSTEM Starting from an existing MMP application WHAT WE HAVE DONE FOR THE DIMM SYSTEM Starting from an existing MMP application … Development of a fully automated application Including all the software drivers (motors, brakes, coil leveling, PS…). Integration of modem & data transmission to CERN for result acceptance. Diagnostic tools to help local & remote technical support. => Used in industry, by 1 trained user (2 h 30 by magnet) 12

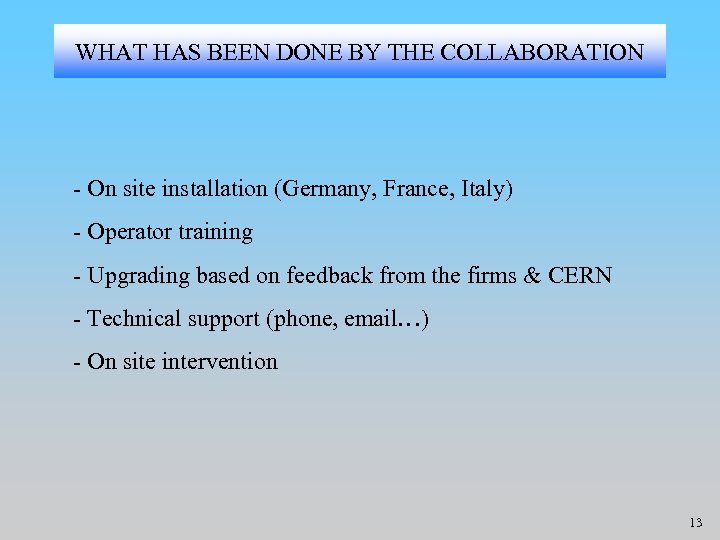

WHAT HAS BEEN DONE BY THE COLLABORATION - On site installation (Germany, France, Italy) WHAT HAS BEEN DONE BY THE COLLABORATION - On site installation (Germany, France, Italy) - Operator training - Upgrading based on feedback from the firms & CERN - Technical support (phone, email…) - On site intervention 13

THE RESULTS ABOUT THE DIMM SYSTEM - Fully automated system, so used by operator THE RESULTS ABOUT THE DIMM SYSTEM - Fully automated system, so used by operator from the firm - DIMM systems have found several collared coils out of tolerance -> indispensable to assure field quality for the LHC -> real mechanical defects found in the position indicated - Good correlation found between warm & cold measurements -> reduction of the cold MM in SM 18 by > 80% 14

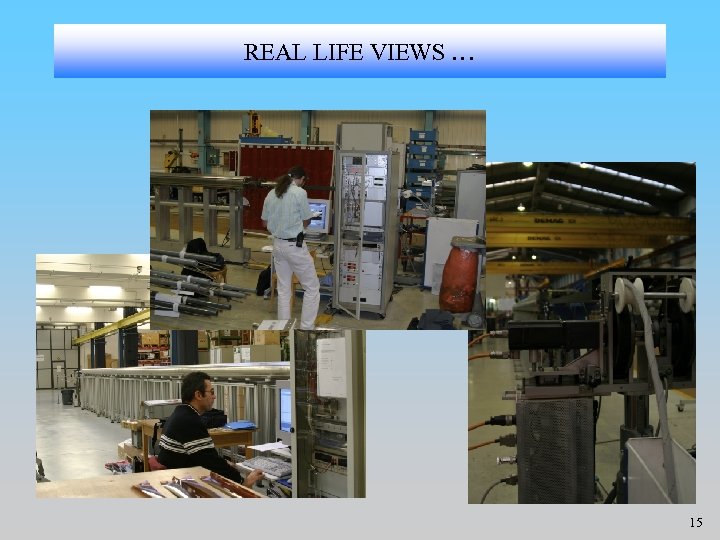

REAL LIFE VIEWS … 15 REAL LIFE VIEWS … 15

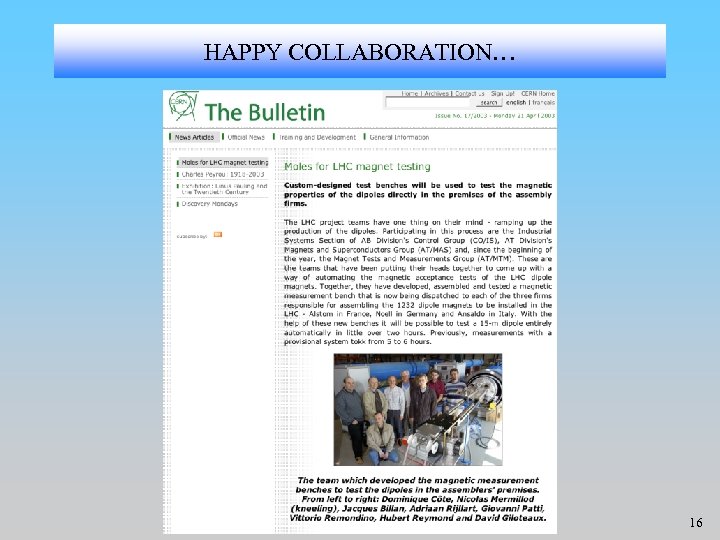

HAPPY COLLABORATION… 16 HAPPY COLLABORATION… 16
