TETRA Data Applications for Gas and Oil Dubai, September 2013 Funk-Electronic Piciorgros Gmb. H TETRA Data Applications for Gas and Oil Dubai, September 2013 Funk-Electronic Piciorgros Gmb. H Michael D. Piciorgros (CEO)

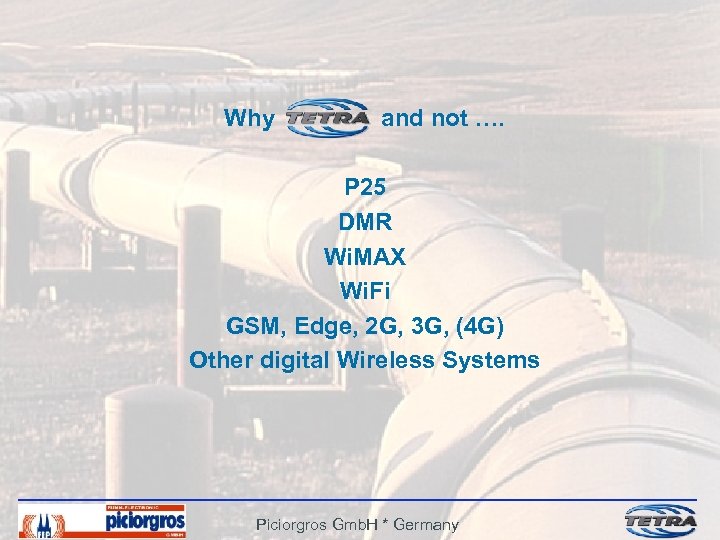

Why and not …. P 25 DMR Wi. MAX Wi. Fi GSM, Edge, 2 Why and not …. P 25 DMR Wi. MAX Wi. Fi GSM, Edge, 2 G, 3 G, (4 G) Other digital Wireless Systems Piciorgros Gmb. H * Germany

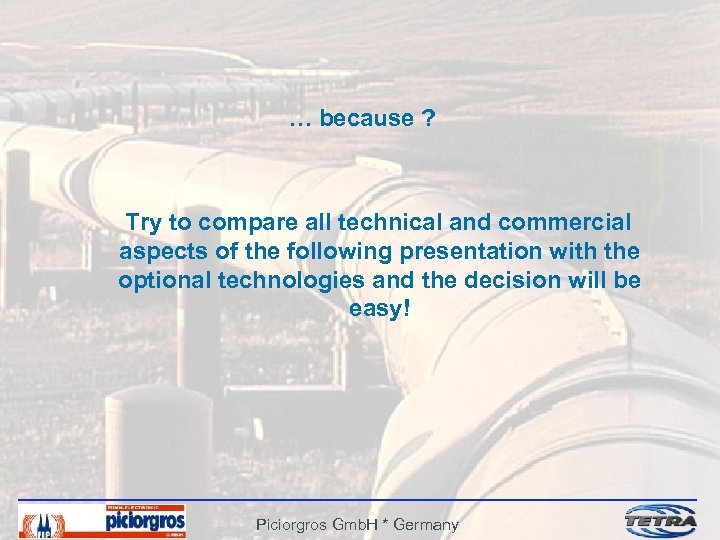

… because ? Try to compare all technical and commercial aspects of the following … because ? Try to compare all technical and commercial aspects of the following presentation with the optional technologies and the decision will be easy! Piciorgros Gmb. H * Germany

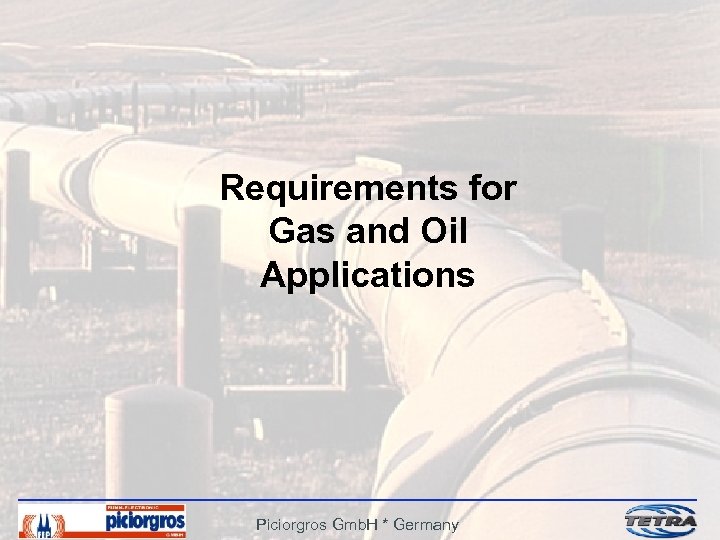

Requirements for Gas and Oil Applications Piciorgros Gmb. H * Germany Requirements for Gas and Oil Applications Piciorgros Gmb. H * Germany

Typical Requirements for Gas and Oil n Remote measurement of physical values at the Typical Requirements for Gas and Oil n Remote measurement of physical values at the Wellheads: Temperature Pressure Flow Rate Alarms n Measurement for Cathodic Corrosion Protection (CP): Voltage Current Alarms n Siren Alarming at Plants Action in Control Direction (from Control Room) n Leak Detection (and other) Alarms Action in Alarm Direction (to Control Room) Piciorgros Gmb. H * Germany

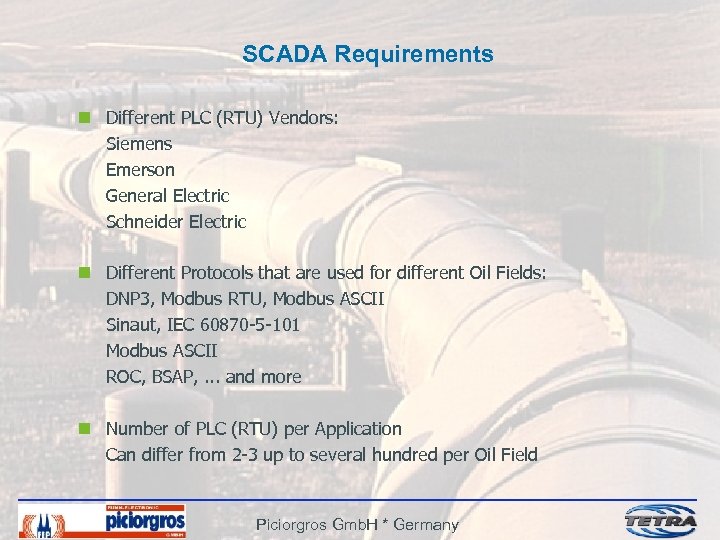

SCADA Requirements n Different PLC (RTU) Vendors: Siemens Emerson General Electric Schneider Electric n SCADA Requirements n Different PLC (RTU) Vendors: Siemens Emerson General Electric Schneider Electric n Different Protocols that are used for different Oil Fields: DNP 3, Modbus RTU, Modbus ASCII Sinaut, IEC 60870 -5 -101 Modbus ASCII ROC, BSAP, . . . and more n Number of PLC (RTU) per Application Can differ from 2 -3 up to several hundred per Oil Field Piciorgros Gmb. H * Germany

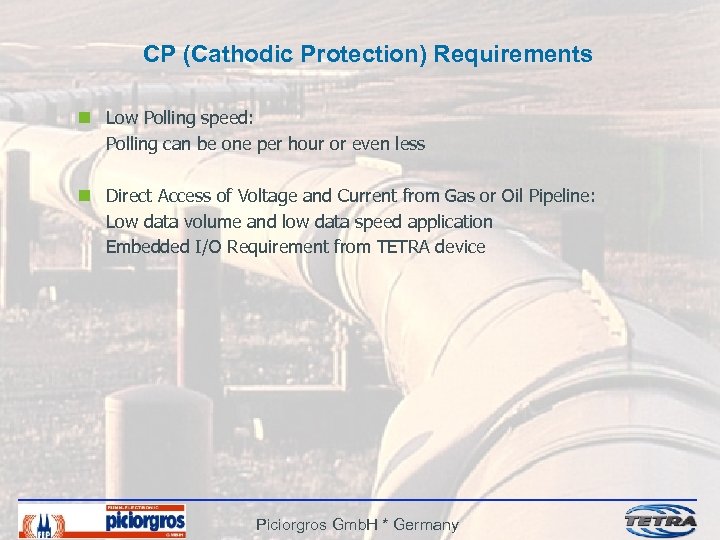

CP (Cathodic Protection) Requirements n Low Polling speed: Polling can be one per hour CP (Cathodic Protection) Requirements n Low Polling speed: Polling can be one per hour or even less n Direct Access of Voltage and Current from Gas or Oil Pipeline: Low data volume and low data speed application Embedded I/O Requirement from TETRA device Piciorgros Gmb. H * Germany

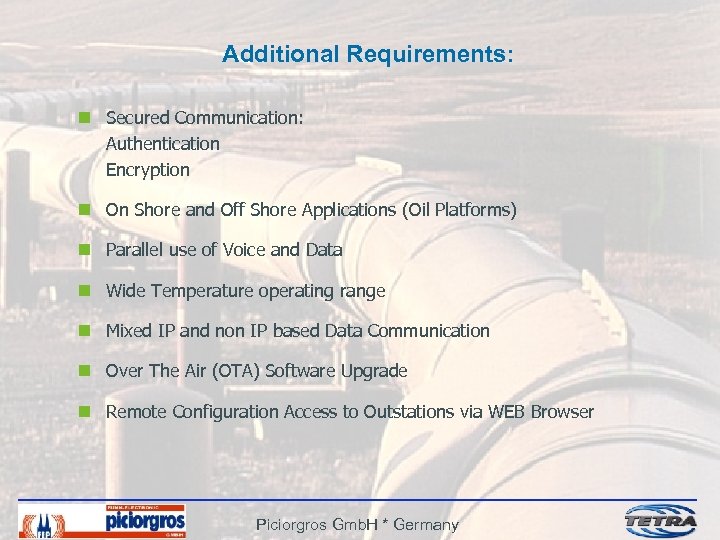

Additional Requirements: n Secured Communication: Authentication Encryption n On Shore and Off Shore Applications Additional Requirements: n Secured Communication: Authentication Encryption n On Shore and Off Shore Applications (Oil Platforms) n Parallel use of Voice and Data n Wide Temperature operating range n Mixed IP and non IP based Data Communication n Over The Air (OTA) Software Upgrade n Remote Configuration Access to Outstations via WEB Browser Piciorgros Gmb. H * Germany

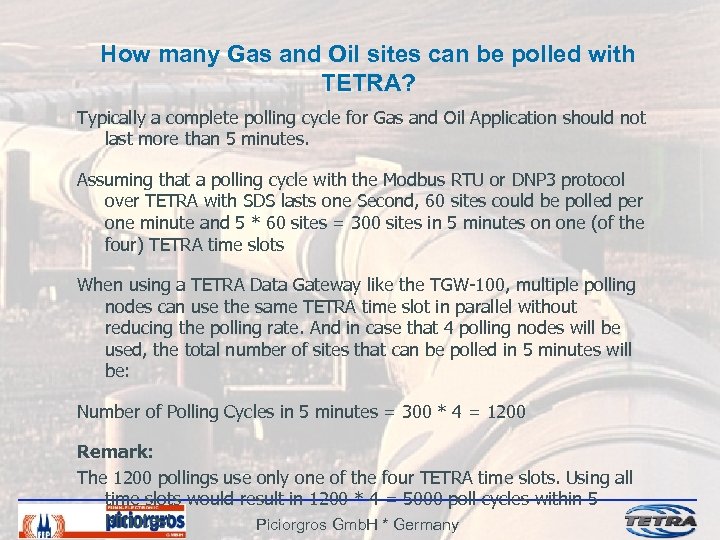

How many Gas and Oil sites can be polled with TETRA? Typically a complete How many Gas and Oil sites can be polled with TETRA? Typically a complete polling cycle for Gas and Oil Application should not last more than 5 minutes. Assuming that a polling cycle with the Modbus RTU or DNP 3 protocol over TETRA with SDS lasts one Second, 60 sites could be polled per one minute and 5 * 60 sites = 300 sites in 5 minutes on one (of the four) TETRA time slots When using a TETRA Data Gateway like the TGW-100, multiple polling nodes can use the same TETRA time slot in parallel without reducing the polling rate. And in case that 4 polling nodes will be used, the total number of sites that can be polled in 5 minutes will be: Number of Polling Cycles in 5 minutes = 300 * 4 = 1200 Remark: The 1200 pollings use only one of the four TETRA time slots. Using all time slots would result in 1200 * 4 = 5000 poll cycles within 5 Minutes! Piciorgros Gmb. H * Germany

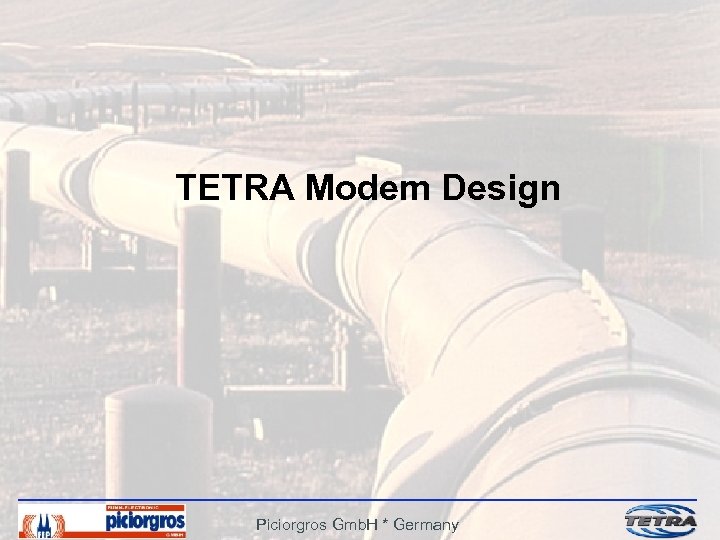

TETRA Modem Design Piciorgros Gmb. H * Germany TETRA Modem Design Piciorgros Gmb. H * Germany

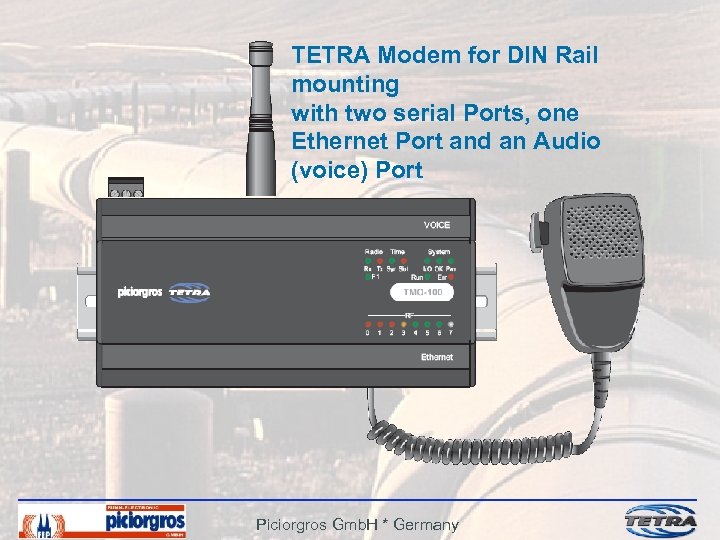

TETRA Modem for DIN Rail mounting with two serial Ports, one Ethernet Port and TETRA Modem for DIN Rail mounting with two serial Ports, one Ethernet Port and an Audio (voice) Port Piciorgros Gmb. H * Germany

TETRA Modem as before with additional embedded analog and digital I/O Piciorgros Gmb. H TETRA Modem as before with additional embedded analog and digital I/O Piciorgros Gmb. H * Germany

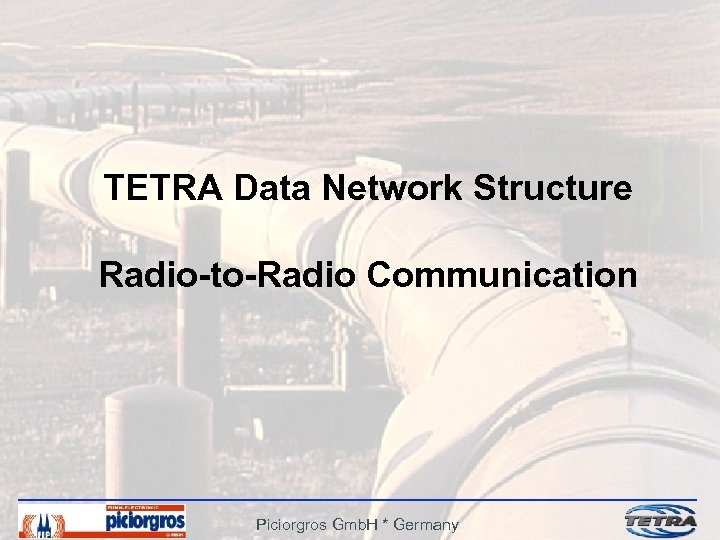

TETRA Data Network Structure Radio-to-Radio Communication Piciorgros Gmb. H * Germany TETRA Data Network Structure Radio-to-Radio Communication Piciorgros Gmb. H * Germany

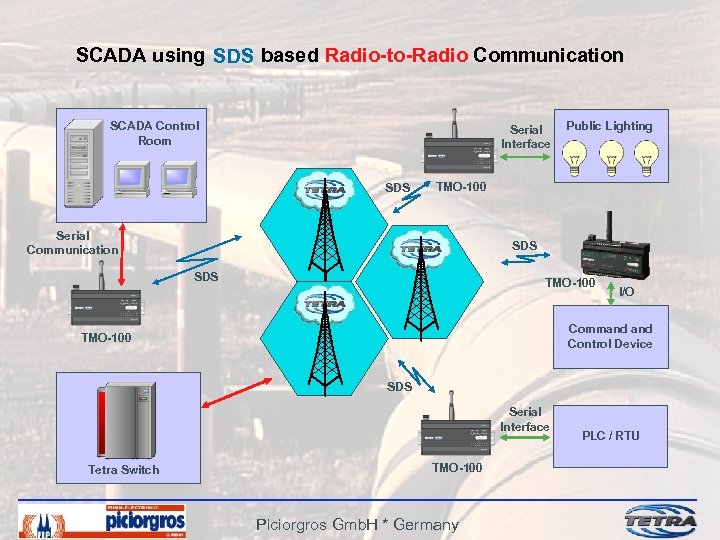

SCADA using SDS based Radio-to-Radio Communication SCADA Control Room Serial Interface SDS Public Lighting SCADA using SDS based Radio-to-Radio Communication SCADA Control Room Serial Interface SDS Public Lighting TMO-100 Serial Communication SDS TMO-100 I/O Command Control Device TMO-100 SDS Serial Interface Tetra Switch TMO-100 Piciorgros Gmb. H * Germany PLC / RTU

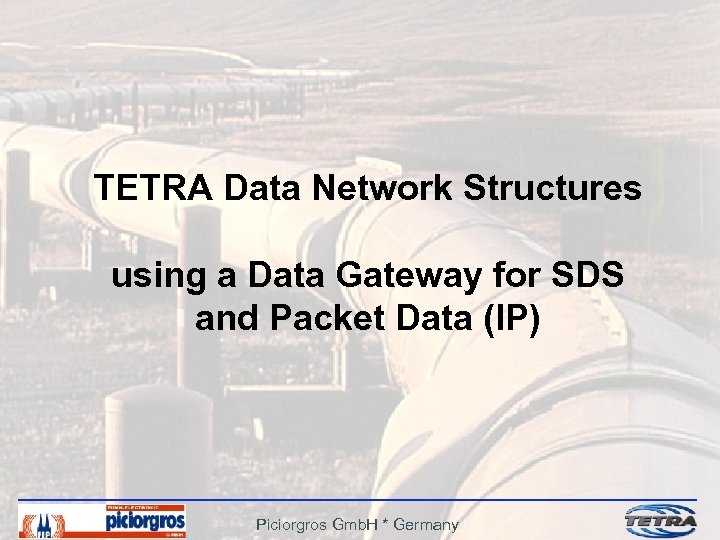

TETRA Data Network Structures using a Data Gateway for SDS and Packet Data (IP) TETRA Data Network Structures using a Data Gateway for SDS and Packet Data (IP) Piciorgros Gmb. H * Germany

Highly Redundant TETRA Packet Data and SDS Gateway for SCADA Critical Operation Piciorgros Gmb. Highly Redundant TETRA Packet Data and SDS Gateway for SCADA Critical Operation Piciorgros Gmb. H * Germany

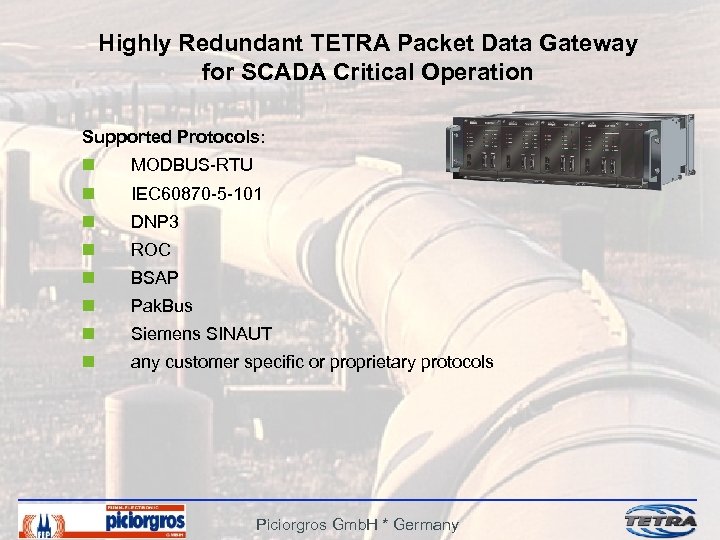

Highly Redundant TETRA Packet Data Gateway for SCADA Critical Operation Supported Protocols: n MODBUS-RTU Highly Redundant TETRA Packet Data Gateway for SCADA Critical Operation Supported Protocols: n MODBUS-RTU n IEC 60870 -5 -101 n DNP 3 n ROC n BSAP n Pak. Bus n Siemens SINAUT n any customer specific or proprietary protocols Piciorgros Gmb. H * Germany

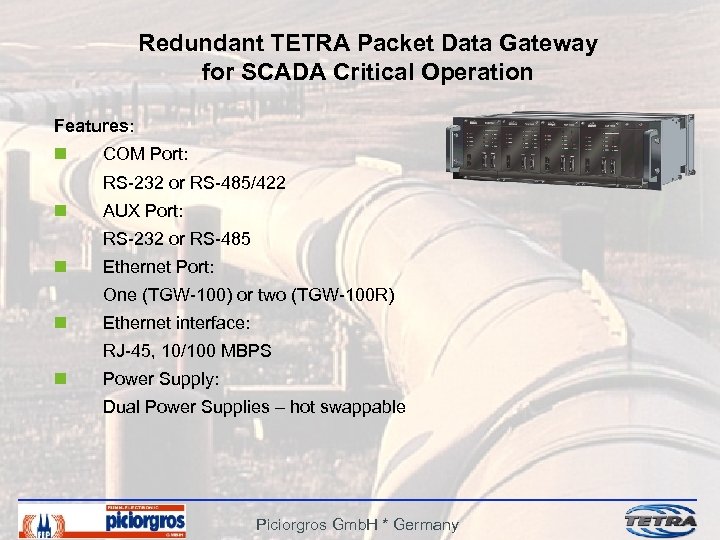

Redundant TETRA Packet Data Gateway for SCADA Critical Operation Features: n COM Port: RS-232 Redundant TETRA Packet Data Gateway for SCADA Critical Operation Features: n COM Port: RS-232 or RS-485/422 n AUX Port: RS-232 or RS-485 n Ethernet Port: One (TGW-100) or two (TGW-100 R) n Ethernet interface: RJ-45, 10/100 MBPS n Power Supply: Dual Power Supplies – hot swappable Piciorgros Gmb. H * Germany

SCADA – using a TETRA SDS Gateway SCADA Control Room TMO-100 I/O … or SCADA – using a TETRA SDS Gateway SCADA Control Room TMO-100 I/O … or Serial Interface SDS Two Serial Interfaces SDS TGW-100 SDS Gateway TMO-100 Command Control Line Device IP Communication SDS Serial Interface Tetra Switch TMO-100 Piciorgros Gmb. H * Germany Analog and Digital I/O PLC / RTU

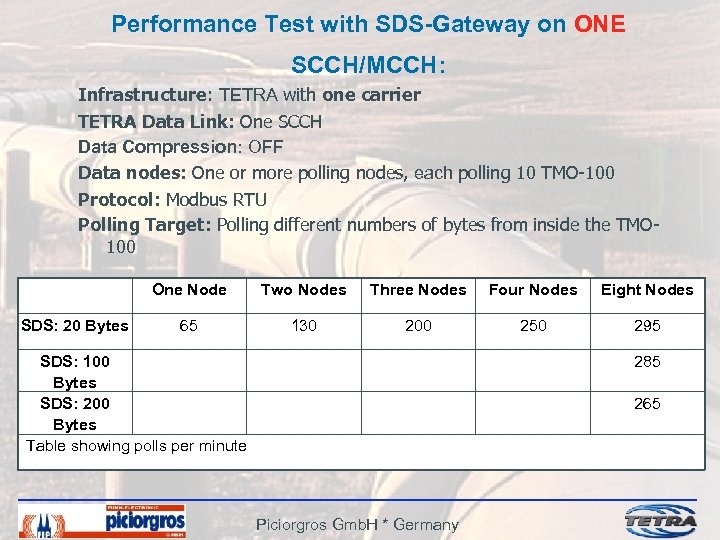

Performance Test with SDS-Gateway on ONE SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Performance Test with SDS-Gateway on ONE SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Link: One SCCH Data Compression: OFF Data nodes: One or more polling nodes, each polling 10 TMO-100 Protocol: Modbus RTU Polling Target: Polling different numbers of bytes from inside the TMO 100 One Node SDS: 20 Bytes Two Nodes Three Nodes Four Nodes Eight Nodes 65 130 200 250 295 SDS: 100 Bytes SDS: 200 Bytes Table showing polls per minute 285 265 Piciorgros Gmb. H * Germany

Performance Test with SDS-Gateway on FOUR SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Performance Test with SDS-Gateway on FOUR SCCH/MCCH: Infrastructure: TETRA with one carrier TETRA Data Link: MCCH plus three SCCH Data Compression: OFF Data nodes: One or more polling nodes, each polling 10 TMO-100 Protocol: Modbus RTU Polling Target: Polling different numbers of bytes from inside the TMO 100 One Node Three Nodes Four Nodes 16 Nodes (on each TS) SDS: 20 Bytes Two Nodes (on each TS) 210 410 600 760 880 SDS: 100 Bytes SDS: 200 Bytes Table showing total polls (on all time slots) per minute (values rounded) Piciorgros Gmb. H * Germany

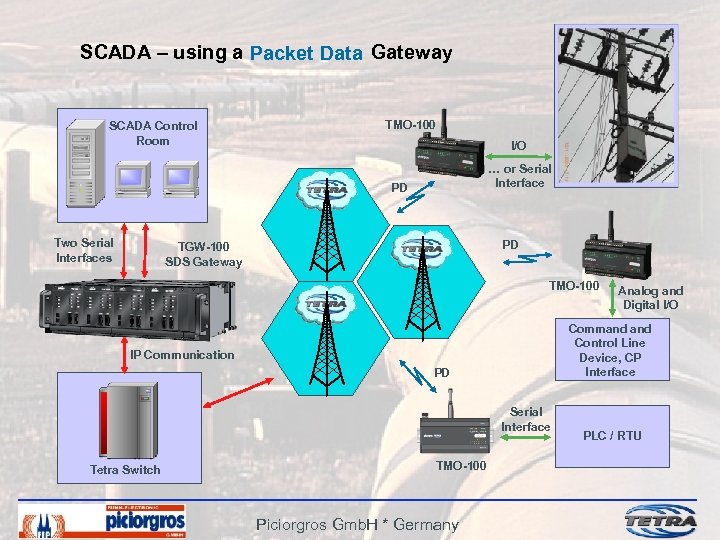

SCADA – using a Packet Data Gateway SCADA Control Room TMO-100 I/O … or SCADA – using a Packet Data Gateway SCADA Control Room TMO-100 I/O … or Serial Interface PD Two Serial Interfaces PD TGW-100 SDS Gateway TMO-100 Command Control Line Device, CP Interface IP Communication PD Serial Interface Tetra Switch TMO-100 Piciorgros Gmb. H * Germany Analog and Digital I/O PLC / RTU

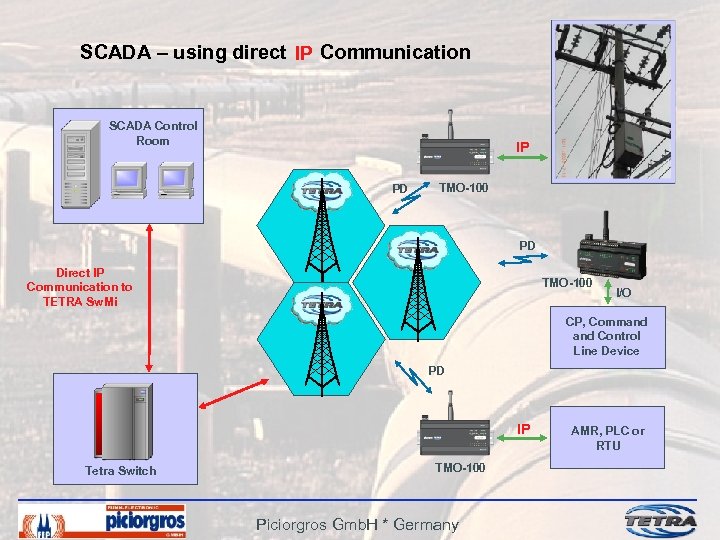

SCADA – using direct IP Communication SCADA Control Room IP PD TMO-100 PD Direct SCADA – using direct IP Communication SCADA Control Room IP PD TMO-100 PD Direct IP Communication to TETRA Sw. Mi TMO-100 I/O CP, Command Control Line Device PD IP Tetra Switch TMO-100 Piciorgros Gmb. H * Germany AMR, PLC or RTU

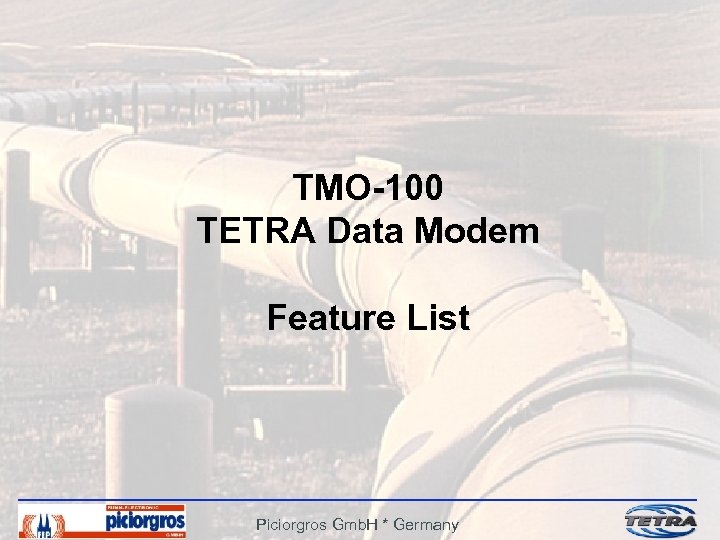

TMO-100 TETRA Data Modem Feature List Piciorgros Gmb. H * Germany TMO-100 TETRA Data Modem Feature List Piciorgros Gmb. H * Germany

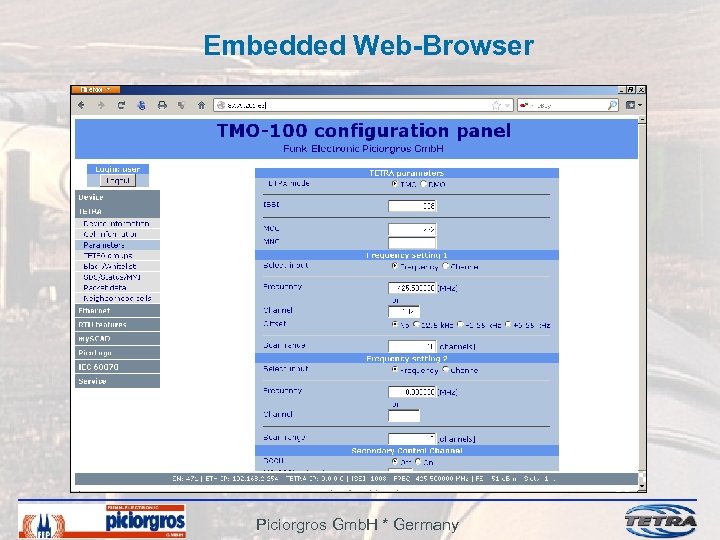

Embedded Web-Browser Piciorgros Gmb. H * Germany Embedded Web-Browser Piciorgros Gmb. H * Germany

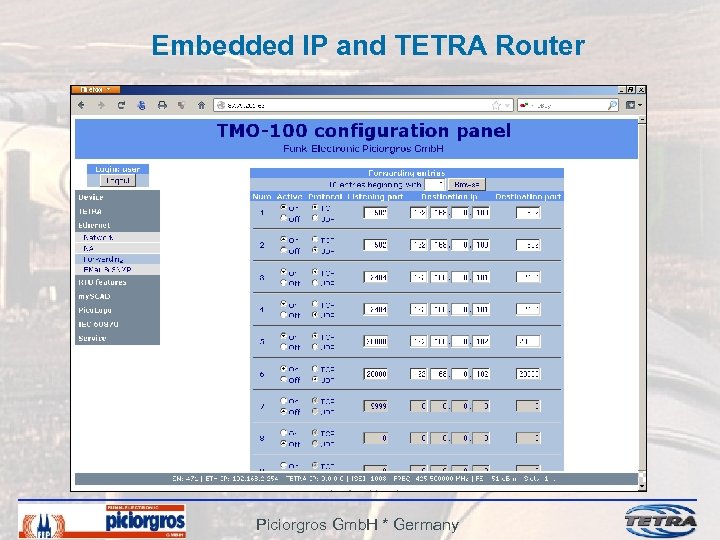

Embedded IP and TETRA Router Piciorgros Gmb. H * Germany Embedded IP and TETRA Router Piciorgros Gmb. H * Germany

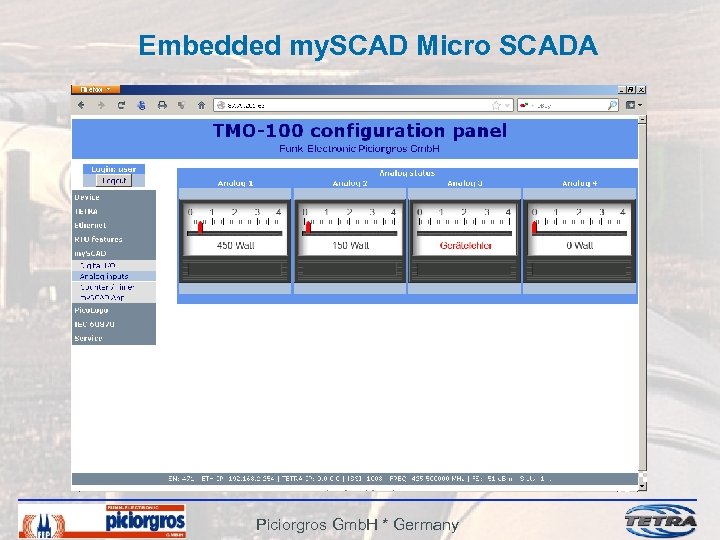

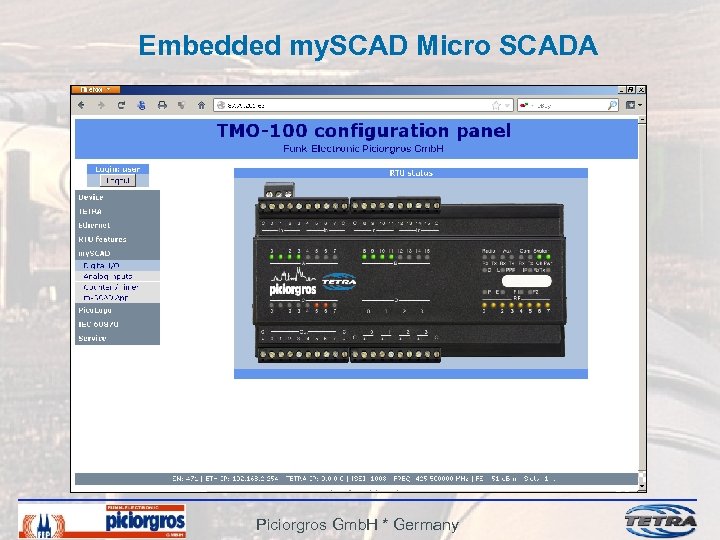

Embedded my. SCAD Micro SCADA Piciorgros Gmb. H * Germany Embedded my. SCAD Micro SCADA Piciorgros Gmb. H * Germany

Embedded my. SCAD Micro SCADA Piciorgros Gmb. H * Germany Embedded my. SCAD Micro SCADA Piciorgros Gmb. H * Germany

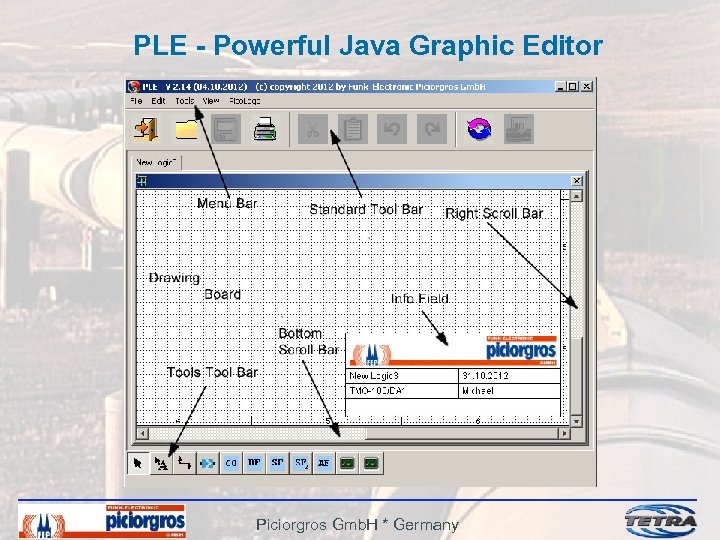

PLE - Powerful Java Graphic Editor Piciorgros Gmb. H * Germany PLE - Powerful Java Graphic Editor Piciorgros Gmb. H * Germany

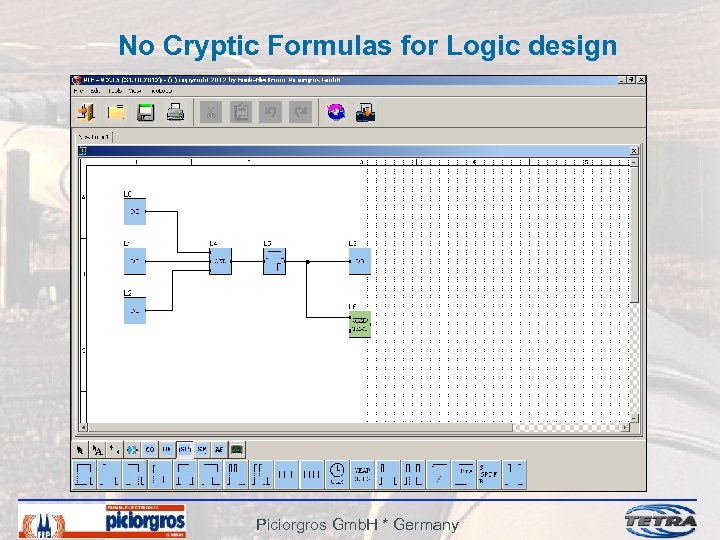

No Cryptic Formulas for Logic design Piciorgros Gmb. H * Germany No Cryptic Formulas for Logic design Piciorgros Gmb. H * Germany

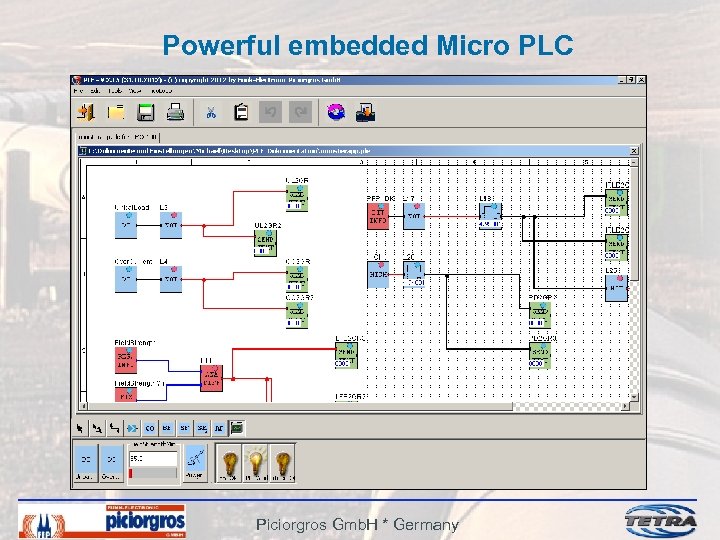

Powerful embedded Micro PLC Piciorgros Gmb. H * Germany Powerful embedded Micro PLC Piciorgros Gmb. H * Germany

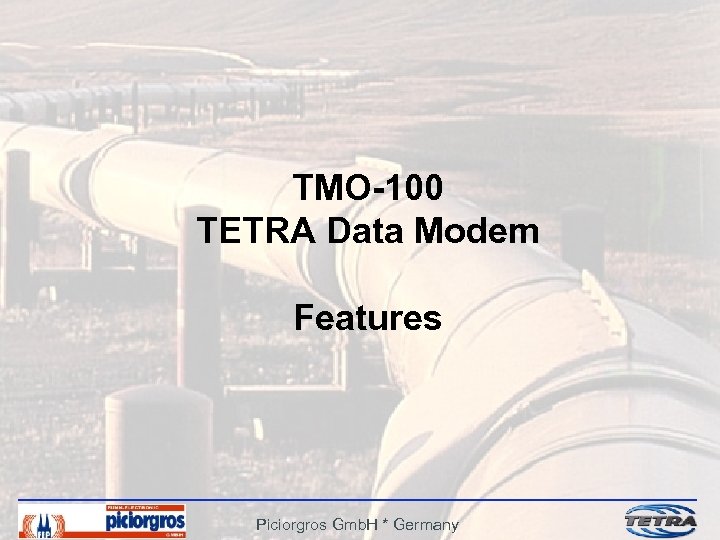

TMO-100 TETRA Data Modem Features Piciorgros Gmb. H * Germany TMO-100 TETRA Data Modem Features Piciorgros Gmb. H * Germany

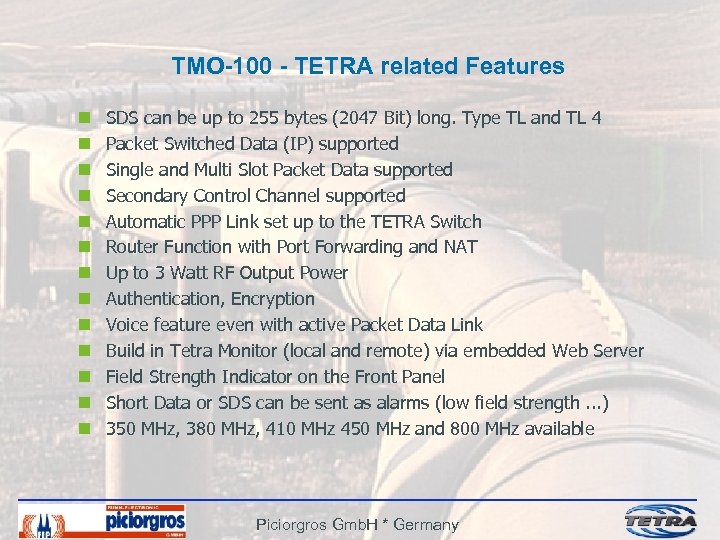

TMO-100 - TETRA related Features n n n n SDS can be up to TMO-100 - TETRA related Features n n n n SDS can be up to 255 bytes (2047 Bit) long. Type TL and TL 4 Packet Switched Data (IP) supported Single and Multi Slot Packet Data supported Secondary Control Channel supported Automatic PPP Link set up to the TETRA Switch Router Function with Port Forwarding and NAT Up to 3 Watt RF Output Power Authentication, Encryption Voice feature even with active Packet Data Link Build in Tetra Monitor (local and remote) via embedded Web Server Field Strength Indicator on the Front Panel Short Data or SDS can be sent as alarms (low field strength. . . ) 350 MHz, 380 MHz, 410 MHz 450 MHz and 800 MHz available Piciorgros Gmb. H * Germany

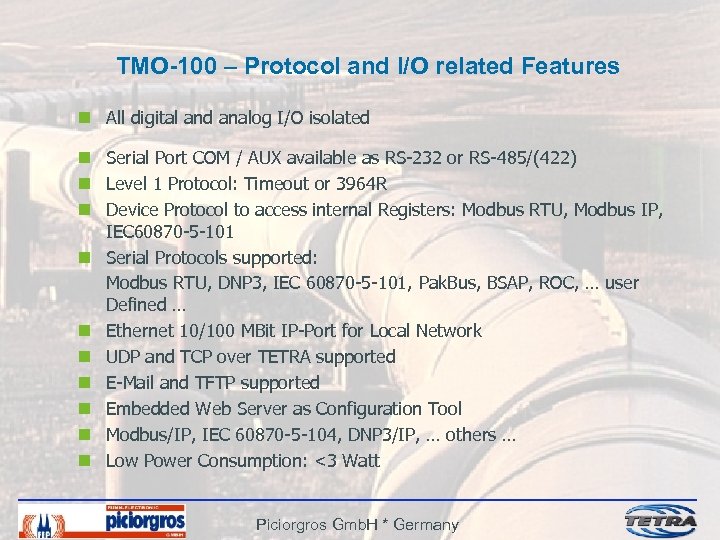

TMO-100 – Protocol and I/O related Features n All digital and analog I/O isolated TMO-100 – Protocol and I/O related Features n All digital and analog I/O isolated n Serial Port COM / AUX available as RS-232 or RS-485/(422) n Level 1 Protocol: Timeout or 3964 R n Device Protocol to access internal Registers: Modbus RTU, Modbus IP, IEC 60870 -5 -101 n Serial Protocols supported: Modbus RTU, DNP 3, IEC 60870 -5 -101, Pak. Bus, BSAP, ROC, … user Defined … n Ethernet 10/100 MBit IP-Port for Local Network n UDP and TCP over TETRA supported n E-Mail and TFTP supported n Embedded Web Server as Configuration Tool n Modbus/IP, IEC 60870 -5 -104, DNP 3/IP, … others … n Low Power Consumption: <3 Watt Piciorgros Gmb. H * Germany

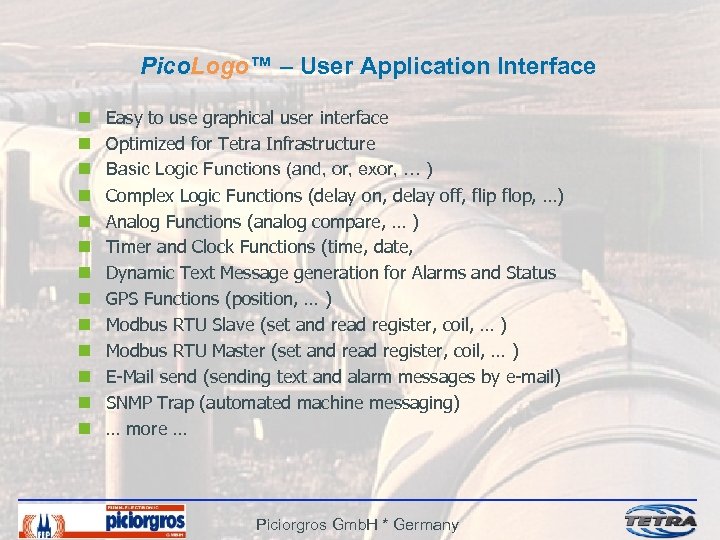

Pico. Logo™ – User Application Interface n n n n Easy to use graphical Pico. Logo™ – User Application Interface n n n n Easy to use graphical user interface Optimized for Tetra Infrastructure Basic Logic Functions (and, or, exor, … ) Complex Logic Functions (delay on, delay off, flip flop, …) Analog Functions (analog compare, … ) Timer and Clock Functions (time, date, Dynamic Text Message generation for Alarms and Status GPS Functions (position, … ) Modbus RTU Slave (set and read register, coil, … ) Modbus RTU Master (set and read register, coil, … ) E-Mail send (sending text and alarm messages by e-mail) SNMP Trap (automated machine messaging) … more … Piciorgros Gmb. H * Germany

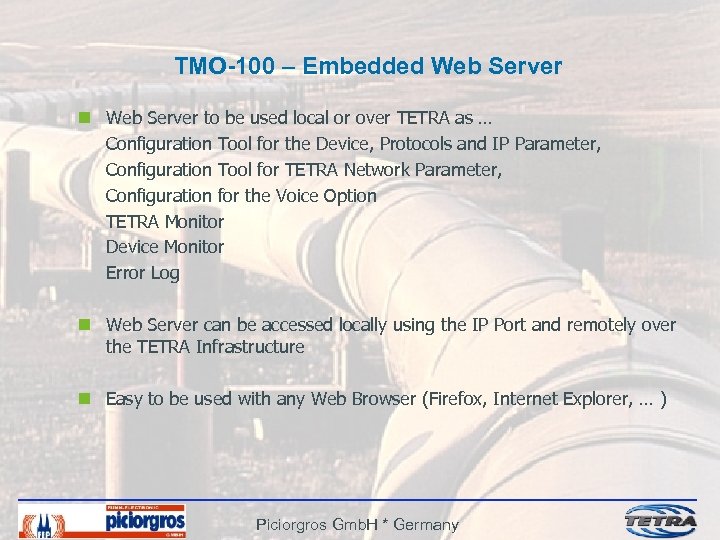

TMO-100 – Embedded Web Server n Web Server to be used local or over TMO-100 – Embedded Web Server n Web Server to be used local or over TETRA as … Configuration Tool for the Device, Protocols and IP Parameter, Configuration Tool for TETRA Network Parameter, Configuration for the Voice Option TETRA Monitor Device Monitor Error Log n Web Server can be accessed locally using the IP Port and remotely over the TETRA Infrastructure n Easy to be used with any Web Browser (Firefox, Internet Explorer, … ) Piciorgros Gmb. H * Germany

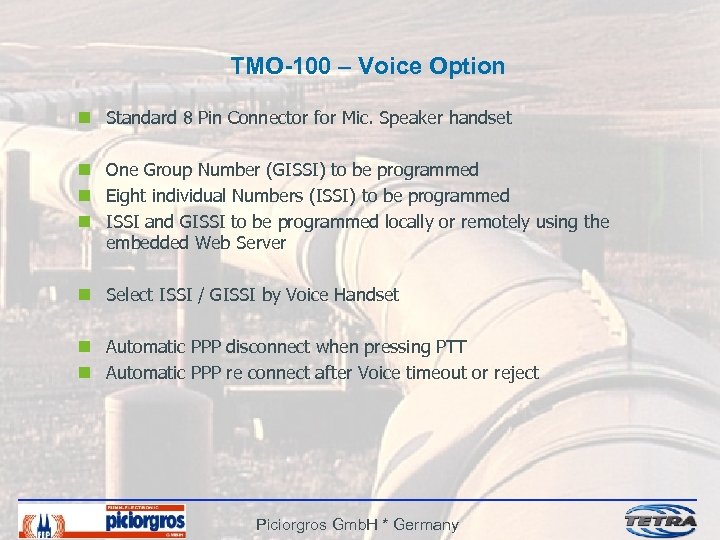

TMO-100 – Voice Option n Standard 8 Pin Connector for Mic. Speaker handset n TMO-100 – Voice Option n Standard 8 Pin Connector for Mic. Speaker handset n One Group Number (GISSI) to be programmed n Eight individual Numbers (ISSI) to be programmed n ISSI and GISSI to be programmed locally or remotely using the embedded Web Server n Select ISSI / GISSI by Voice Handset n Automatic PPP disconnect when pressing PTT n Automatic PPP re connect after Voice timeout or reject Piciorgros Gmb. H * Germany

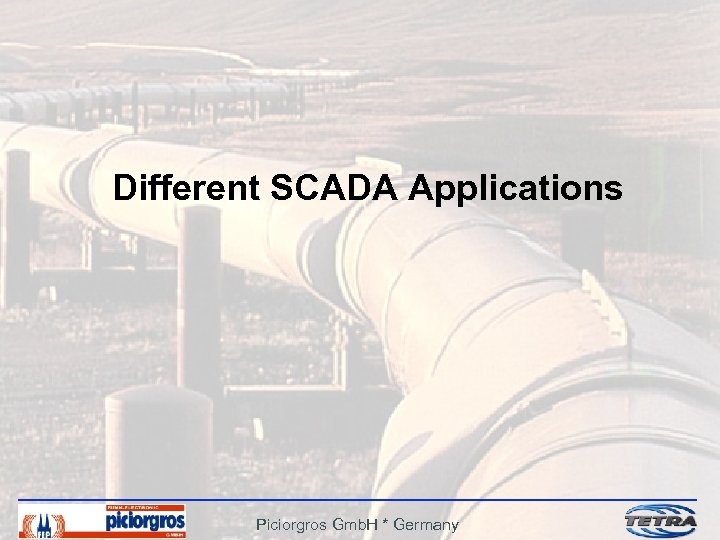

Different SCADA Applications Piciorgros Gmb. H * Germany Different SCADA Applications Piciorgros Gmb. H * Germany

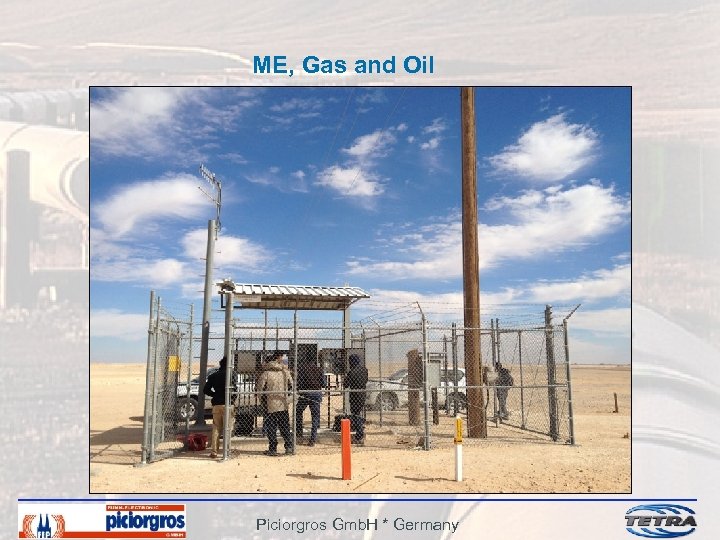

ME, Gas and Oil Piciorgros Gmb. H * Germany ME, Gas and Oil Piciorgros Gmb. H * Germany

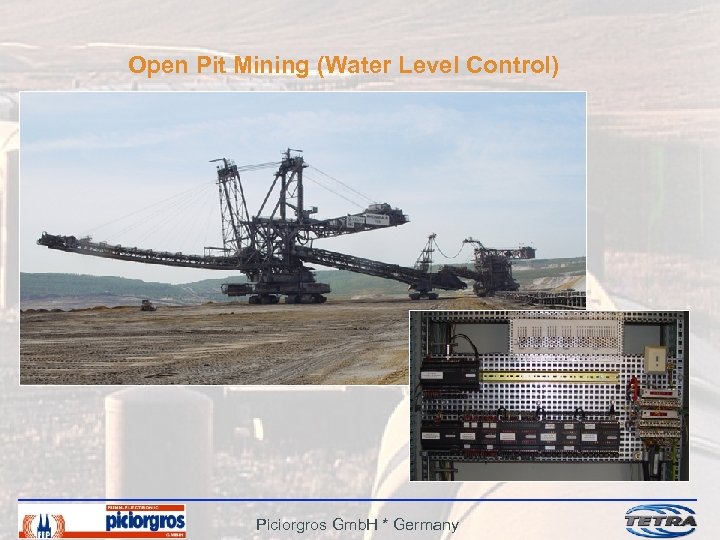

Open Pit Mining (Water Level Control) Piciorgros Gmb. H * Germany Open Pit Mining (Water Level Control) Piciorgros Gmb. H * Germany

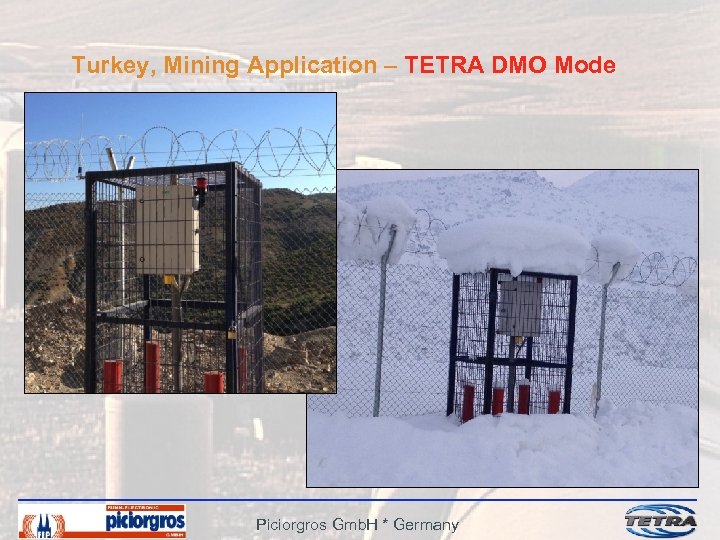

Turkey, Mining Application – TETRA DMO Mode Piciorgros Gmb. H * Germany Turkey, Mining Application – TETRA DMO Mode Piciorgros Gmb. H * Germany

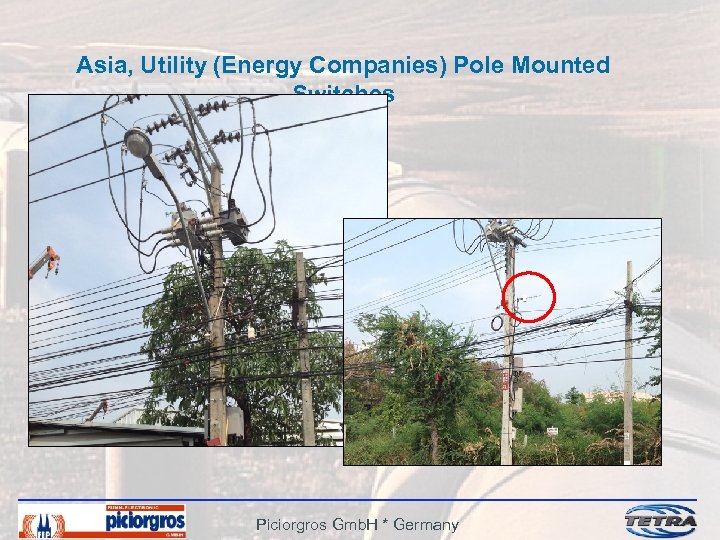

Asia, Utility (Energy Companies) Pole Mounted Switches Piciorgros Gmb. H * Germany Asia, Utility (Energy Companies) Pole Mounted Switches Piciorgros Gmb. H * Germany

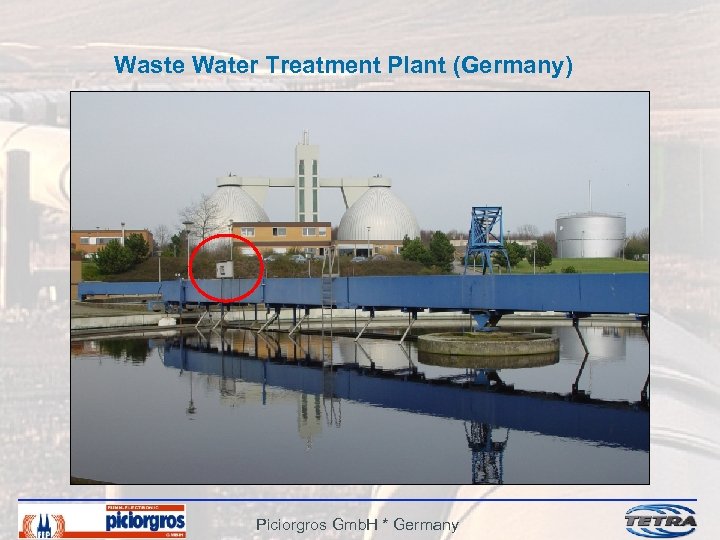

Waste Water Treatment Plant (Germany) Piciorgros Gmb. H * Germany Waste Water Treatment Plant (Germany) Piciorgros Gmb. H * Germany

Piciorgros Gmb. H * Germany Piciorgros Gmb. H * Germany

Funk - Electronic Piciorgros Gmb. H Claudiastr. 5 51145 Köln-Porz Germany Thank you very Funk - Electronic Piciorgros Gmb. H Claudiastr. 5 51145 Köln-Porz Germany Thank you very much for your interest in our Products www. piciorgros. com www. tetramodem. com Piciorgros Gmb. H * Germany
