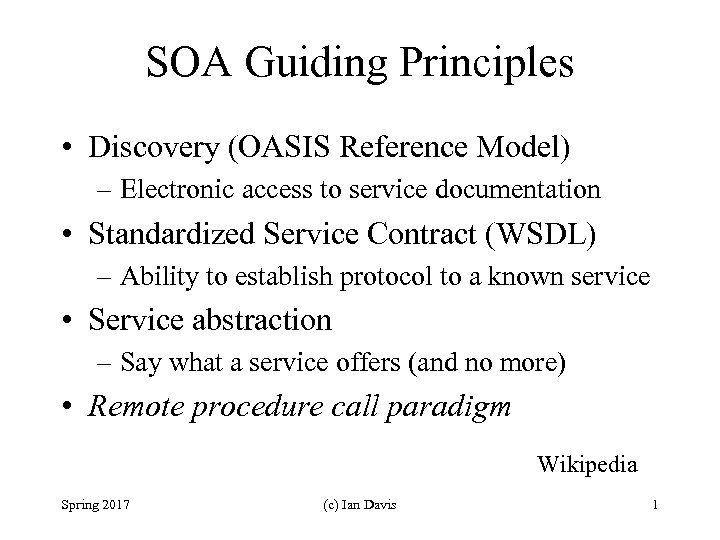

SOA Guiding Principles • Discovery (OASIS Reference Model) – Electronic access to service documentation SOA Guiding Principles • Discovery (OASIS Reference Model) – Electronic access to service documentation • Standardized Service Contract (WSDL) – Ability to establish protocol to a known service • Service abstraction – Say what a service offers (and no more) • Remote procedure call paradigm Wikipedia Spring 2017 (c) Ian Davis 1

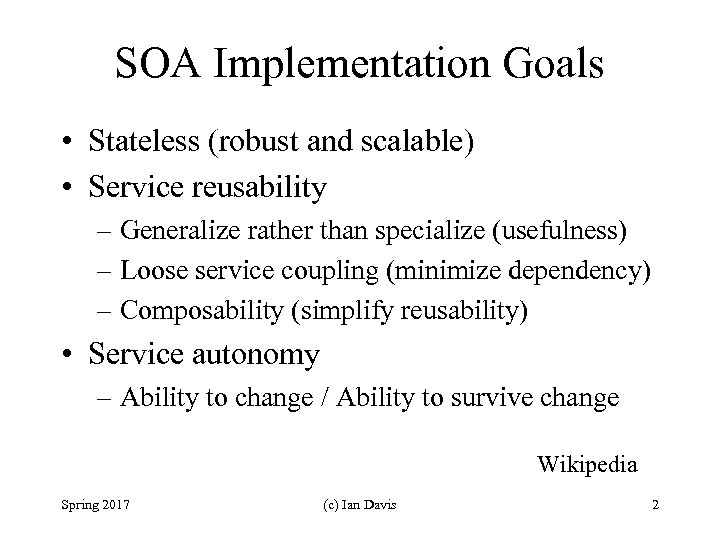

SOA Implementation Goals • Stateless (robust and scalable) • Service reusability – Generalize rather SOA Implementation Goals • Stateless (robust and scalable) • Service reusability – Generalize rather than specialize (usefulness) – Loose service coupling (minimize dependency) – Composability (simplify reusability) • Service autonomy – Ability to change / Ability to survive change Wikipedia Spring 2017 (c) Ian Davis 2

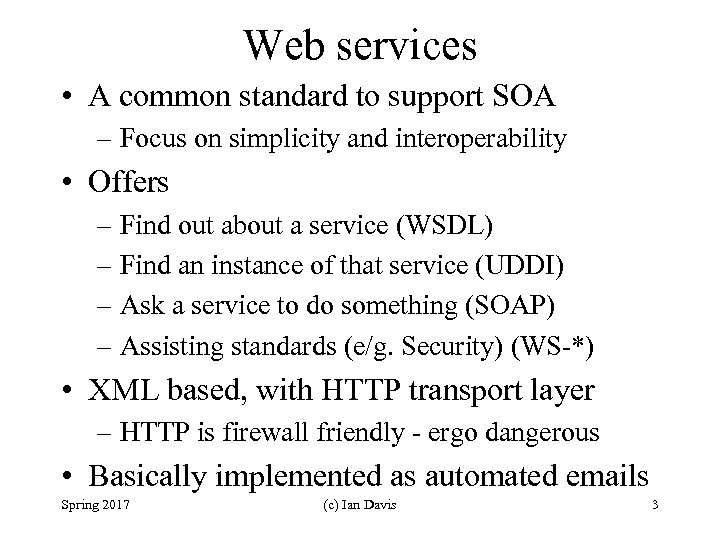

Web services • A common standard to support SOA – Focus on simplicity and Web services • A common standard to support SOA – Focus on simplicity and interoperability • Offers – Find out about a service (WSDL) – Find an instance of that service (UDDI) – Ask a service to do something (SOAP) – Assisting standards (e/g. Security) (WS-*) • XML based, with HTTP transport layer – HTTP is firewall friendly - ergo dangerous • Basically implemented as automated emails Spring 2017 (c) Ian Davis 3

REST Versus SOA • REST – A simple client server interface (Text based) – REST Versus SOA • REST – A simple client server interface (Text based) – What the server does is encoded in the message – Familiar well understood established standard – Transparency w. r. t. client requests – Must know URL of end point – Circumvents firewalls (requires only HTTP) – If you want it you create it • No security, reliability, etc. – Message paradigm Spring 2017 (c) Ian Davis 4

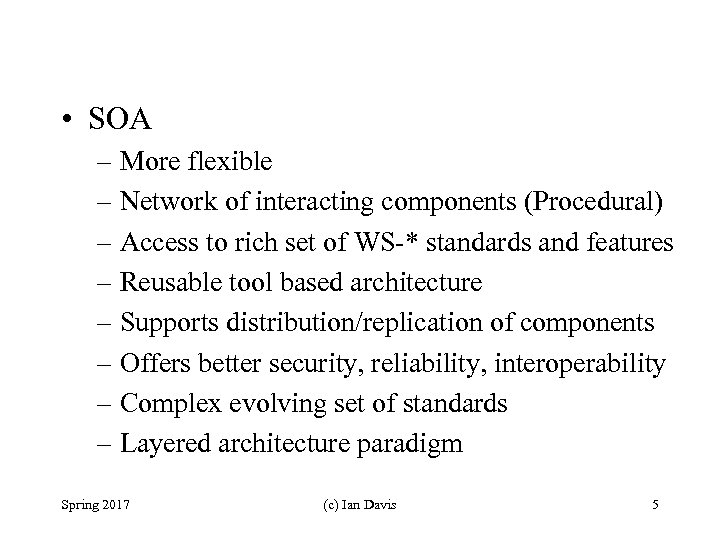

 • SOA – More flexible – Network of interacting components (Procedural) – Access • SOA – More flexible – Network of interacting components (Procedural) – Access to rich set of WS-* standards and features – Reusable tool based architecture – Supports distribution/replication of components – Offers better security, reliability, interoperability – Complex evolving set of standards – Layered architecture paradigm Spring 2017 (c) Ian Davis 5

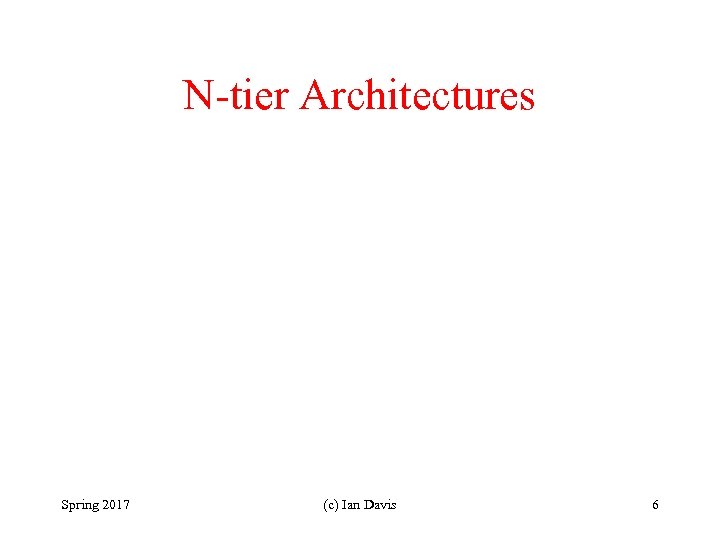

N-tier Architectures Spring 2017 (c) Ian Davis 6 N-tier Architectures Spring 2017 (c) Ian Davis 6

Action Domain Responder Stateful Request Java. Script Browser Many scripts PHP SQL HTML • Action Domain Responder Stateful Request Java. Script Browser Many scripts PHP SQL HTML • Typical web development style – https: //github. com/pmjones/adr Spring 2017 (c) Ian Davis 7

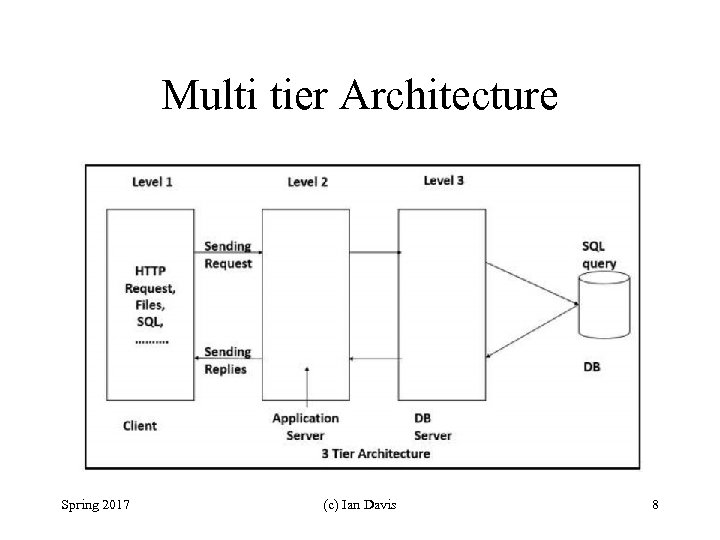

Multi tier Architecture Spring 2017 (c) Ian Davis 8 Multi tier Architecture Spring 2017 (c) Ian Davis 8

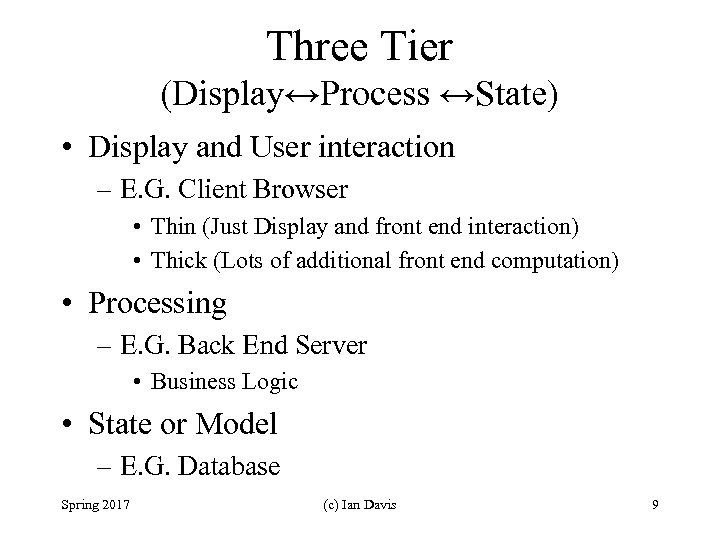

Three Tier (Display↔Process ↔State) • Display and User interaction – E. G. Client Browser Three Tier (Display↔Process ↔State) • Display and User interaction – E. G. Client Browser • Thin (Just Display and front end interaction) • Thick (Lots of additional front end computation) • Processing – E. G. Back End Server • Business Logic • State or Model – E. G. Database Spring 2017 (c) Ian Davis 9

– Source: Wikipedia Spring 2017 (c) Ian Davis 10 – Source: Wikipedia Spring 2017 (c) Ian Davis 10

Multi Tier • More than three tiers – Routing between Display and Process – Multi Tier • More than three tiers – Routing between Display and Process – Distributed Processing – Distributed Database Layer Spring 2017 (c) Ian Davis 11

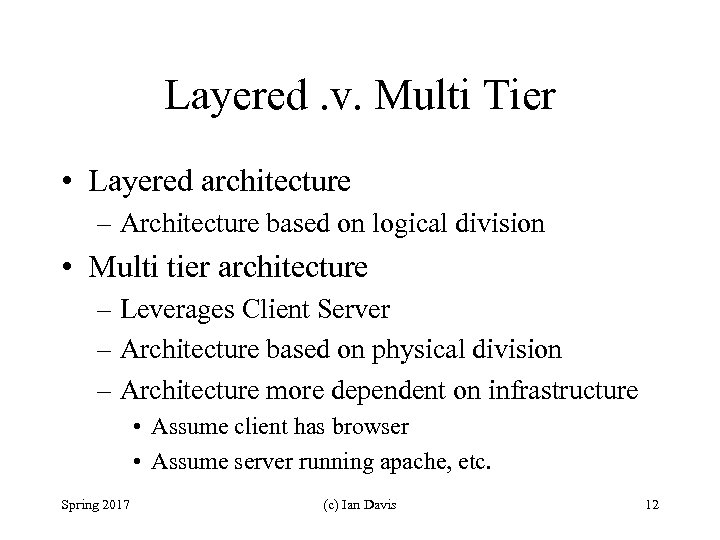

Layered. v. Multi Tier • Layered architecture – Architecture based on logical division • Layered. v. Multi Tier • Layered architecture – Architecture based on logical division • Multi tier architecture – Leverages Client Server – Architecture based on physical division – Architecture more dependent on infrastructure • Assume client has browser • Assume server running apache, etc. Spring 2017 (c) Ian Davis 12

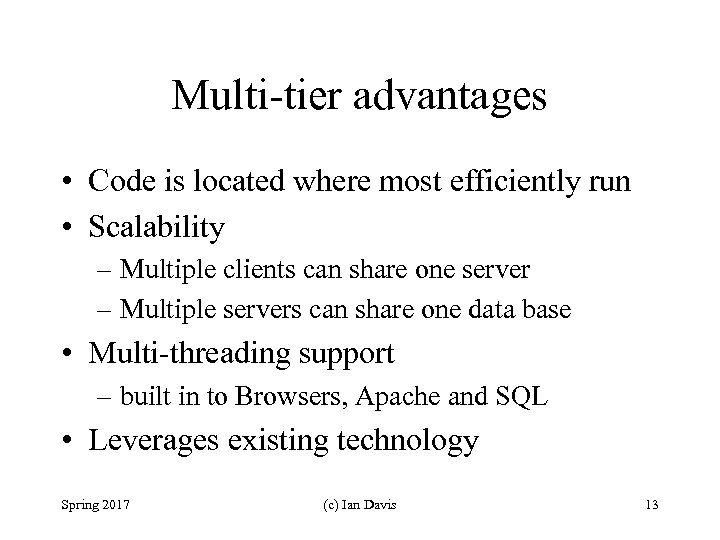

Multi-tier advantages • Code is located where most efficiently run • Scalability – Multiple Multi-tier advantages • Code is located where most efficiently run • Scalability – Multiple clients can share one server – Multiple servers can share one data base • Multi-threading support – built in to Browsers, Apache and SQL • Leverages existing technology Spring 2017 (c) Ian Davis 13

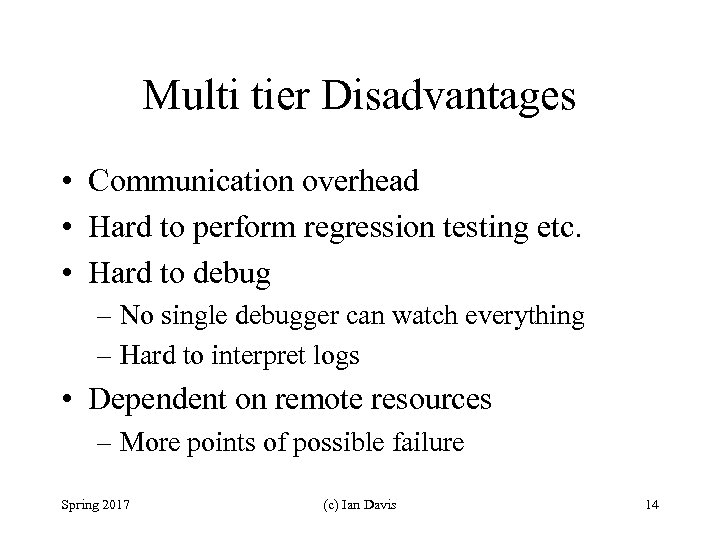

Multi tier Disadvantages • Communication overhead • Hard to perform regression testing etc. • Multi tier Disadvantages • Communication overhead • Hard to perform regression testing etc. • Hard to debug – No single debugger can watch everything – Hard to interpret logs • Dependent on remote resources – More points of possible failure Spring 2017 (c) Ian Davis 14

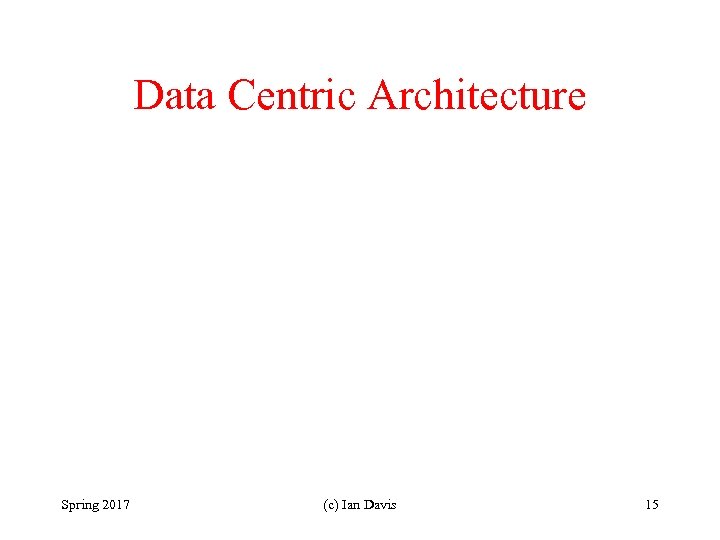

Data Centric Architecture Spring 2017 (c) Ian Davis 15 Data Centric Architecture Spring 2017 (c) Ian Davis 15

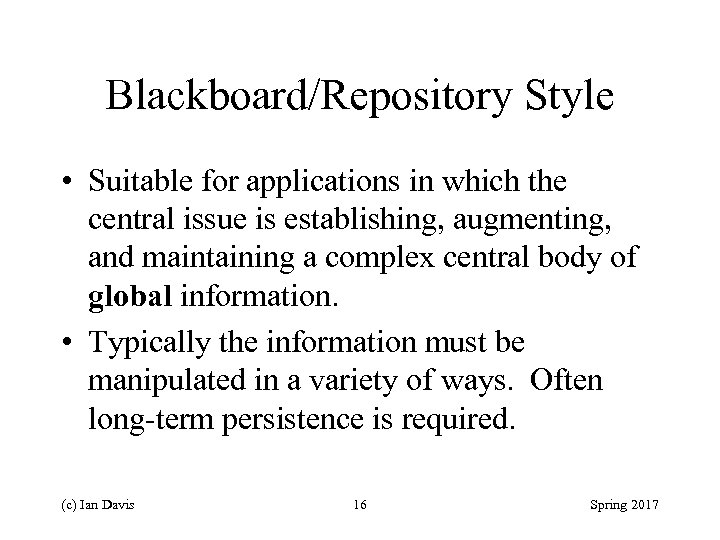

Blackboard/Repository Style • Suitable for applications in which the central issue is establishing, augmenting, Blackboard/Repository Style • Suitable for applications in which the central issue is establishing, augmenting, and maintaining a complex central body of global information. • Typically the information must be manipulated in a variety of ways. Often long-term persistence is required. (c) Ian Davis 16 Spring 2017

Repository Style (Cont’d) • Components: – A central “global” data structure representing the correct Repository Style (Cont’d) • Components: – A central “global” data structure representing the correct (or known) state of the system. – A collection of independent components that operate on the central data structure. • Connectors: – Typically procedure calls or direct memory accesses. (c) Ian Davis 17 Spring 2017

Repository Style (Cont’d) (c) Ian Davis 18 Spring 2017 Repository Style (Cont’d) (c) Ian Davis 18 Spring 2017

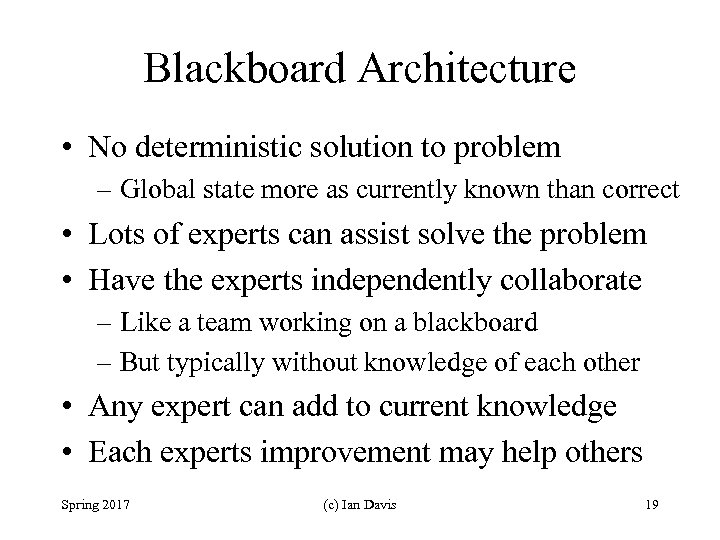

Blackboard Architecture • No deterministic solution to problem – Global state more as currently Blackboard Architecture • No deterministic solution to problem – Global state more as currently known than correct • Lots of experts can assist solve the problem • Have the experts independently collaborate – Like a team working on a blackboard – But typically without knowledge of each other • Any expert can add to current knowledge • Each experts improvement may help others Spring 2017 (c) Ian Davis 19

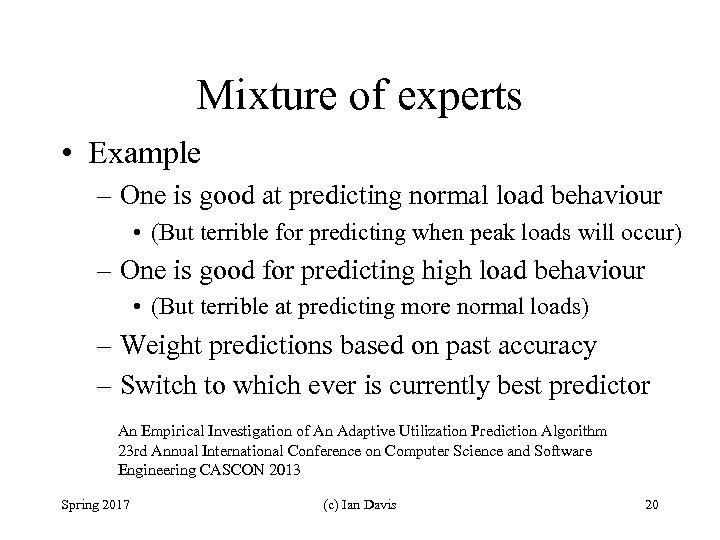

Mixture of experts • Example – One is good at predicting normal load behaviour Mixture of experts • Example – One is good at predicting normal load behaviour • (But terrible for predicting when peak loads will occur) – One is good for predicting high load behaviour • (But terrible at predicting more normal loads) – Weight predictions based on past accuracy – Switch to which ever is currently best predictor An Empirical Investigation of An Adaptive Utilization Prediction Algorithm 23 rd Annual International Conference on Computer Science and Software Engineering CASCON 2013 Spring 2017 (c) Ian Davis 20

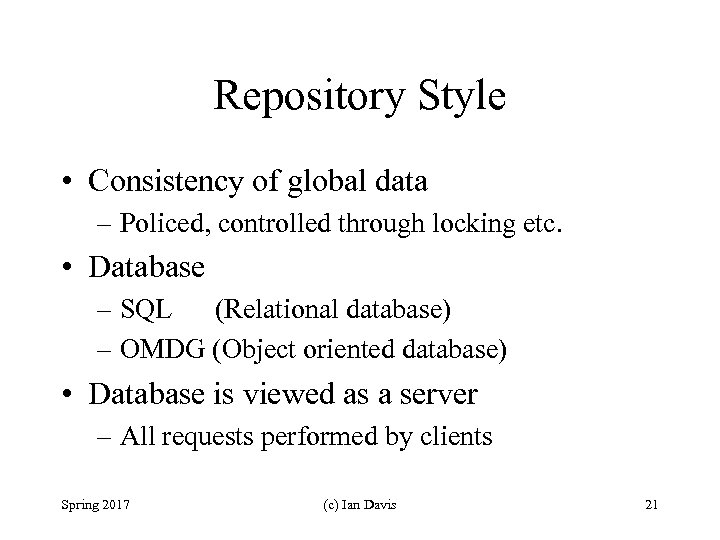

Repository Style • Consistency of global data – Policed, controlled through locking etc. • Repository Style • Consistency of global data – Policed, controlled through locking etc. • Database – SQL (Relational database) – OMDG (Object oriented database) • Database is viewed as a server – All requests performed by clients Spring 2017 (c) Ian Davis 21

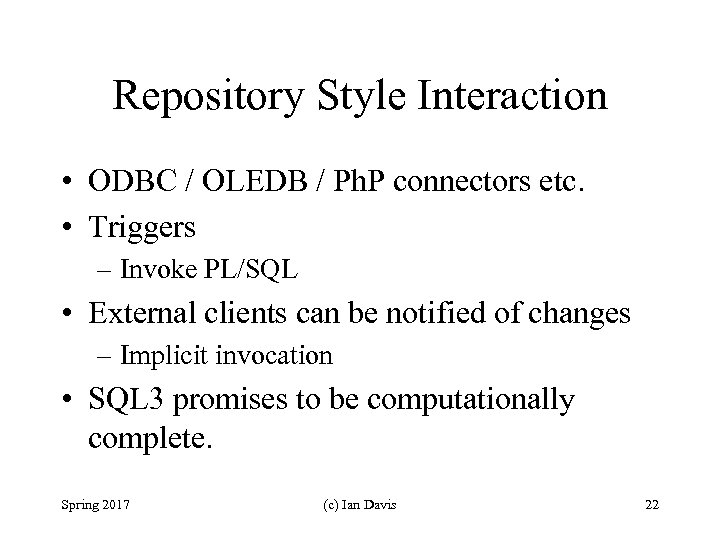

Repository Style Interaction • ODBC / OLEDB / Ph. P connectors etc. • Triggers Repository Style Interaction • ODBC / OLEDB / Ph. P connectors etc. • Triggers – Invoke PL/SQL • External clients can be notified of changes – Implicit invocation • SQL 3 promises to be computationally complete. Spring 2017 (c) Ian Davis 22

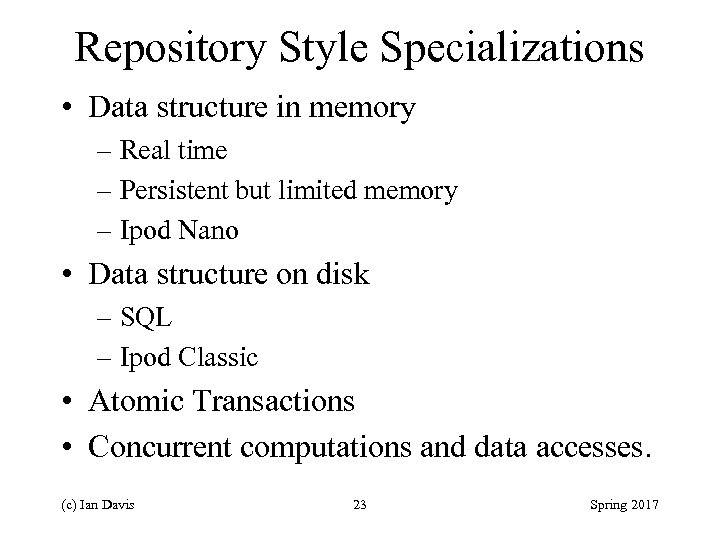

Repository Style Specializations • Data structure in memory – Real time – Persistent but Repository Style Specializations • Data structure in memory – Real time – Persistent but limited memory – Ipod Nano • Data structure on disk – SQL – Ipod Classic • Atomic Transactions • Concurrent computations and data accesses. (c) Ian Davis 23 Spring 2017

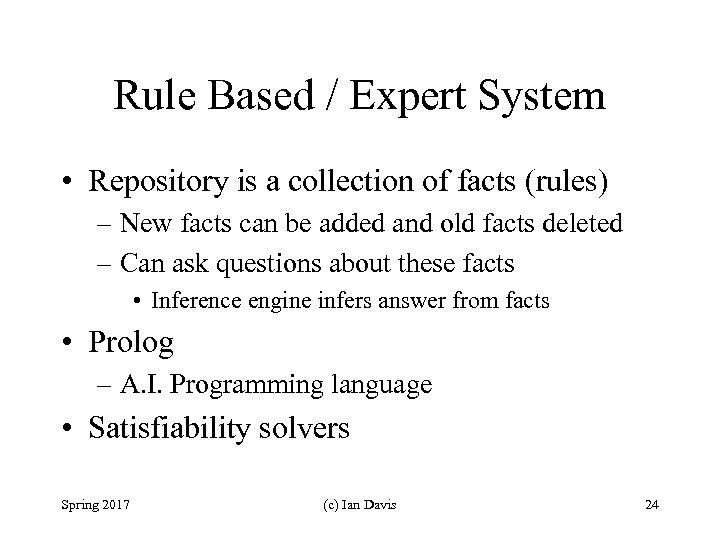

Rule Based / Expert System • Repository is a collection of facts (rules) – Rule Based / Expert System • Repository is a collection of facts (rules) – New facts can be added and old facts deleted – Can ask questions about these facts • Inference engine infers answer from facts • Prolog – A. I. Programming language • Satisfiability solvers Spring 2017 (c) Ian Davis 24

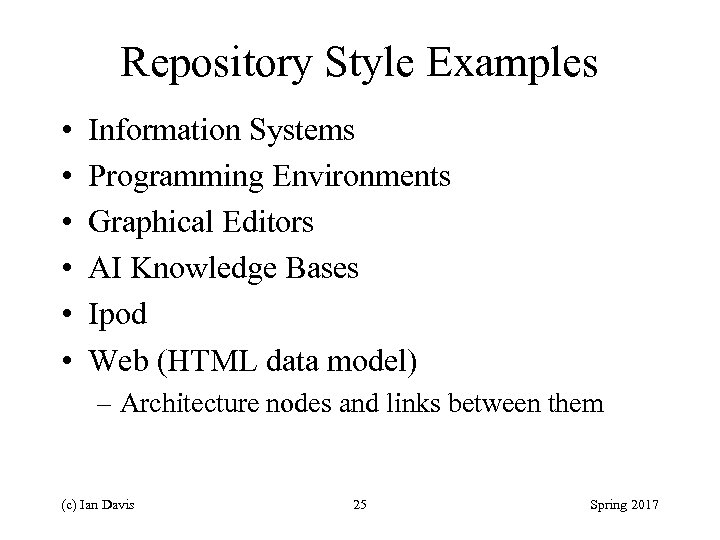

Repository Style Examples • • • Information Systems Programming Environments Graphical Editors AI Knowledge Repository Style Examples • • • Information Systems Programming Environments Graphical Editors AI Knowledge Bases Ipod Web (HTML data model) – Architecture nodes and links between them (c) Ian Davis 25 Spring 2017

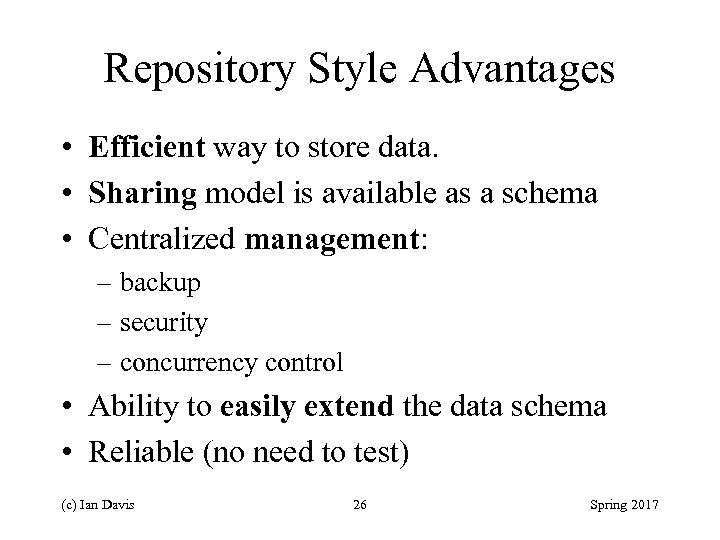

Repository Style Advantages • Efficient way to store data. • Sharing model is available Repository Style Advantages • Efficient way to store data. • Sharing model is available as a schema • Centralized management: – backup – security – concurrency control • Ability to easily extend the data schema • Reliable (no need to test) (c) Ian Davis 26 Spring 2017

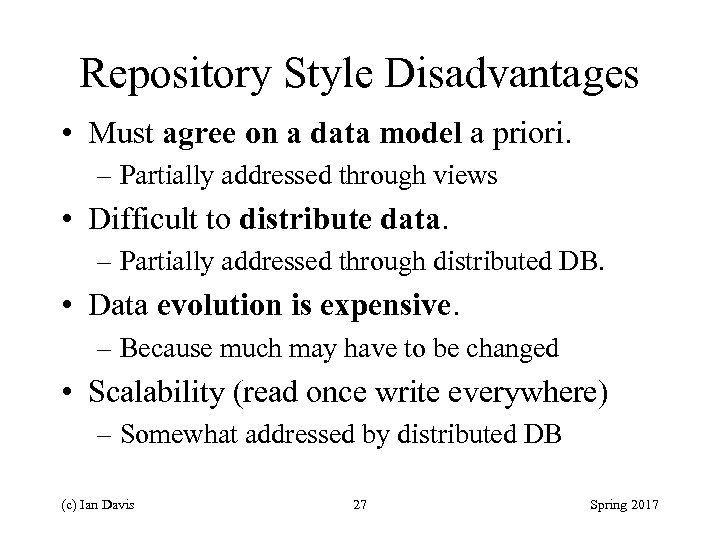

Repository Style Disadvantages • Must agree on a data model a priori. – Partially Repository Style Disadvantages • Must agree on a data model a priori. – Partially addressed through views • Difficult to distribute data. – Partially addressed through distributed DB. • Data evolution is expensive. – Because much may have to be changed • Scalability (read once write everywhere) – Somewhat addressed by distributed DB (c) Ian Davis 27 Spring 2017

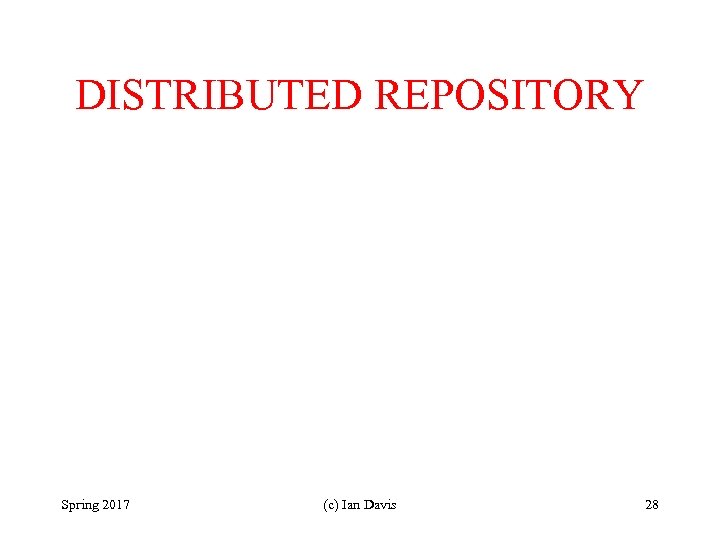

DISTRIBUTED REPOSITORY Spring 2017 (c) Ian Davis 28 DISTRIBUTED REPOSITORY Spring 2017 (c) Ian Davis 28

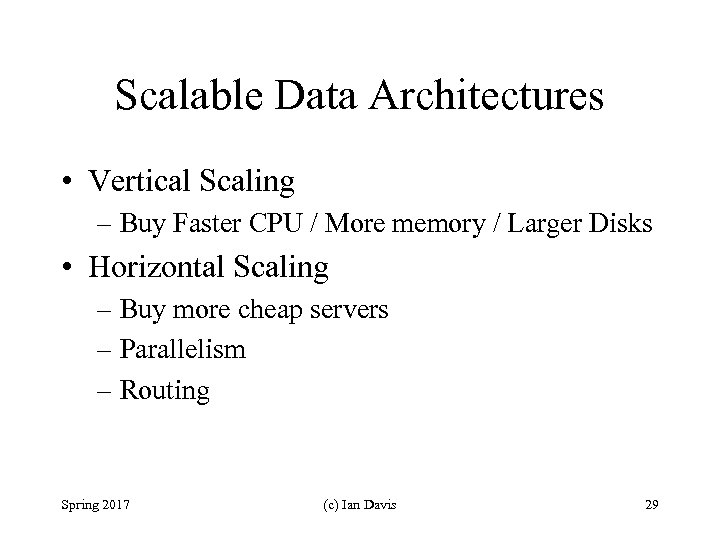

Scalable Data Architectures • Vertical Scaling – Buy Faster CPU / More memory / Scalable Data Architectures • Vertical Scaling – Buy Faster CPU / More memory / Larger Disks • Horizontal Scaling – Buy more cheap servers – Parallelism – Routing Spring 2017 (c) Ian Davis 29

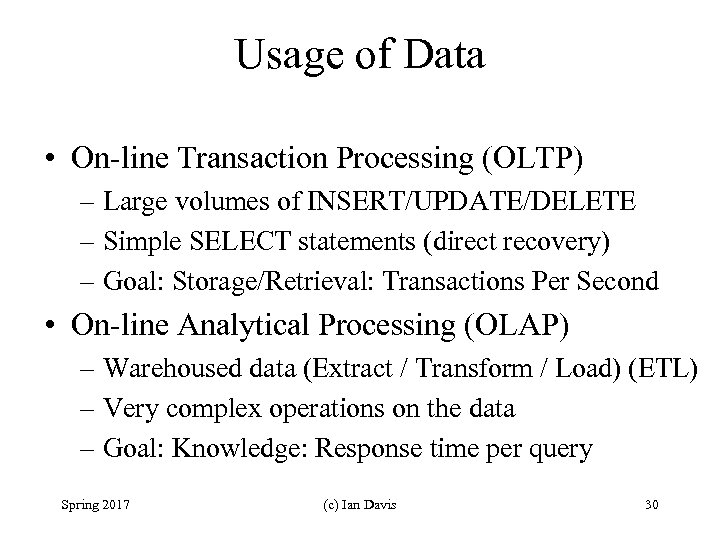

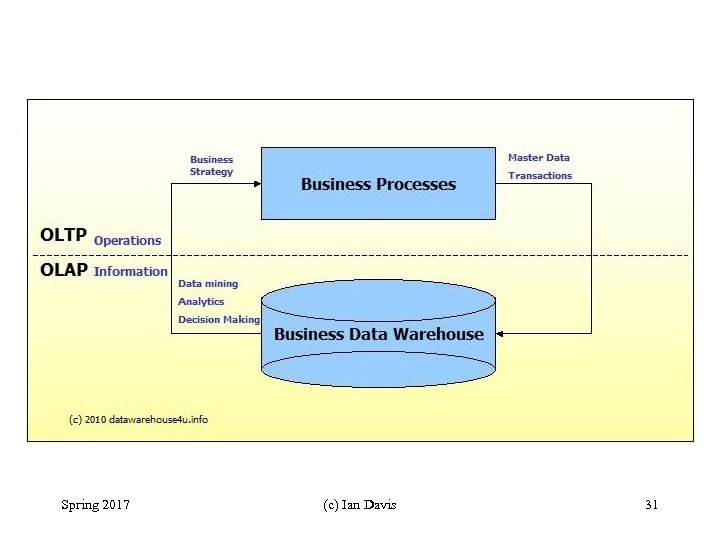

Usage of Data • On-line Transaction Processing (OLTP) – Large volumes of INSERT/UPDATE/DELETE – Usage of Data • On-line Transaction Processing (OLTP) – Large volumes of INSERT/UPDATE/DELETE – Simple SELECT statements (direct recovery) – Goal: Storage/Retrieval: Transactions Per Second • On-line Analytical Processing (OLAP) – Warehoused data (Extract / Transform / Load) (ETL) – Very complex operations on the data – Goal: Knowledge: Response time per query Spring 2017 (c) Ian Davis 30

Spring 2017 (c) Ian Davis 31 Spring 2017 (c) Ian Davis 31

Spring 2017 (c) Ian Davis 32 Spring 2017 (c) Ian Davis 32

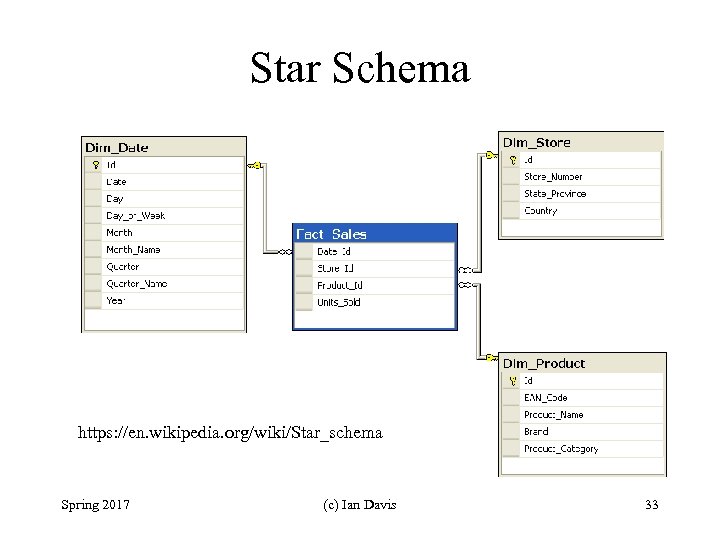

Star Schema https: //en. wikipedia. org/wiki/Star_schema Spring 2017 (c) Ian Davis 33 Star Schema https: //en. wikipedia. org/wiki/Star_schema Spring 2017 (c) Ian Davis 33

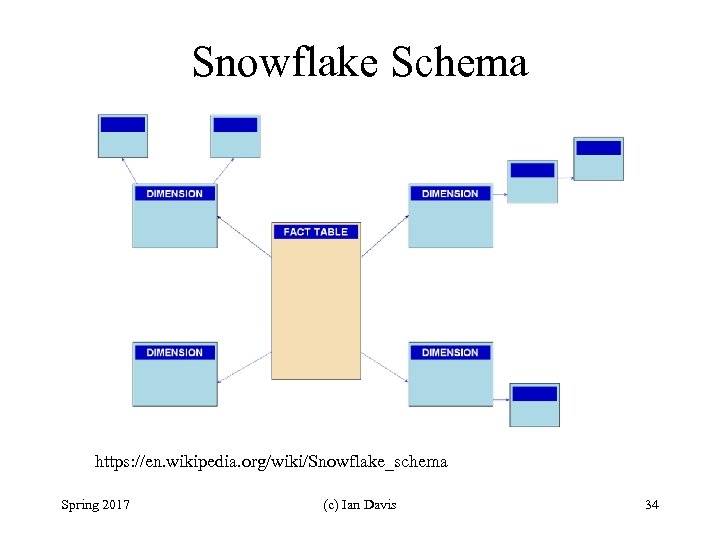

Snowflake Schema https: //en. wikipedia. org/wiki/Snowflake_schema Spring 2017 (c) Ian Davis 34 Snowflake Schema https: //en. wikipedia. org/wiki/Snowflake_schema Spring 2017 (c) Ian Davis 34

RDBMS SQL systems • • • Spring 2017 My. SQL (Free) Oracle DB 2 RDBMS SQL systems • • • Spring 2017 My. SQL (Free) Oracle DB 2 SQL Server Etc. (c) Ian Davis 35
