Quality Assurance in Maxillofacial Imaging Dr. Enrique Platin Clinical Professor UNC School of Dentistry Quality Assurance in Maxillofacial Imaging Dr. Enrique Platin Clinical Professor UNC School of Dentistry Oral and maxillofacial Radiology

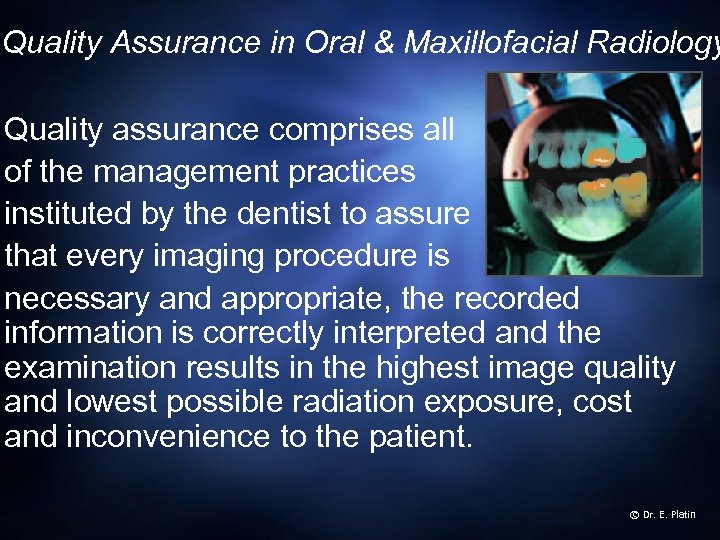

Quality Assurance in Oral & Maxillofacial Radiology Quality assurance comprises all of the management Quality Assurance in Oral & Maxillofacial Radiology Quality assurance comprises all of the management practices instituted by the dentist to assure that every imaging procedure is necessary and appropriate, the recorded information is correctly interpreted and the examination results in the highest image quality and lowest possible radiation exposure, cost and inconvenience to the patient. © Dr. E. Platin

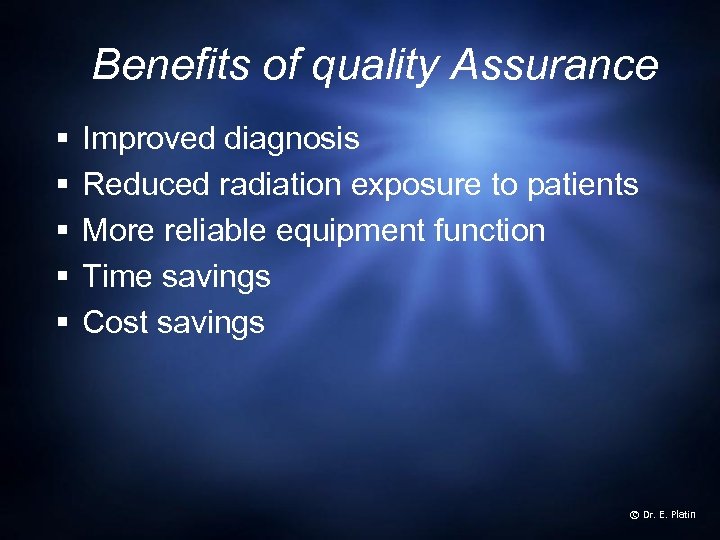

Benefits of quality Assurance § § § Improved diagnosis Reduced radiation exposure to patients Benefits of quality Assurance § § § Improved diagnosis Reduced radiation exposure to patients More reliable equipment function Time savings Cost savings © Dr. E. Platin

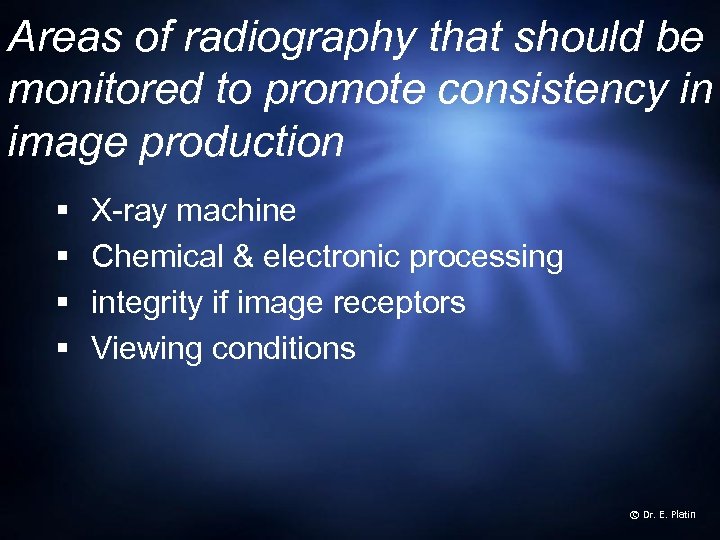

Areas of radiography that should be monitored to promote consistency in image production § Areas of radiography that should be monitored to promote consistency in image production § § X-ray machine Chemical & electronic processing integrity if image receptors Viewing conditions © Dr. E. Platin

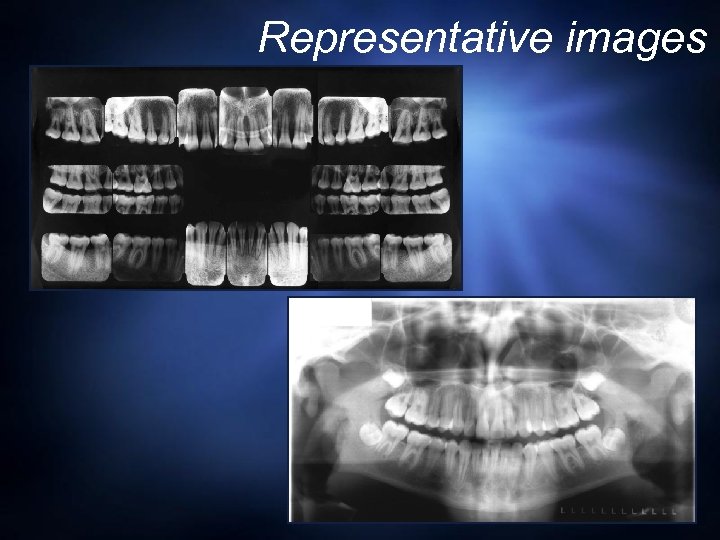

Representative images © Dr. E. Platin Representative images © Dr. E. Platin

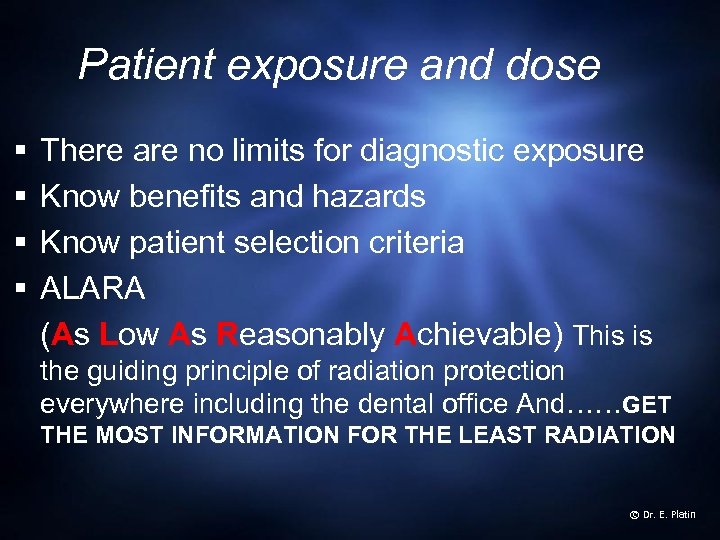

Patient exposure and dose § § There are no limits for diagnostic exposure Know Patient exposure and dose § § There are no limits for diagnostic exposure Know benefits and hazards Know patient selection criteria ALARA (As Low As Reasonably Achievable) This is the guiding principle of radiation protection everywhere including the dental office And……GET THE MOST INFORMATION FOR THE LEAST RADIATION © Dr. E. Platin

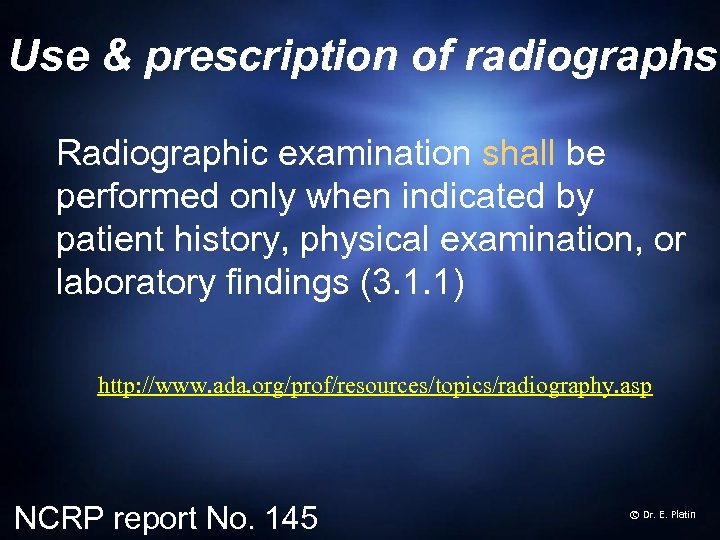

Use & prescription of radiographs Radiographic examination shall be performed only when indicated by Use & prescription of radiographs Radiographic examination shall be performed only when indicated by patient history, physical examination, or laboratory findings (3. 1. 1) http: //www. ada. org/prof/resources/topics/radiography. asp NCRP report No. 145 © Dr. E. Platin

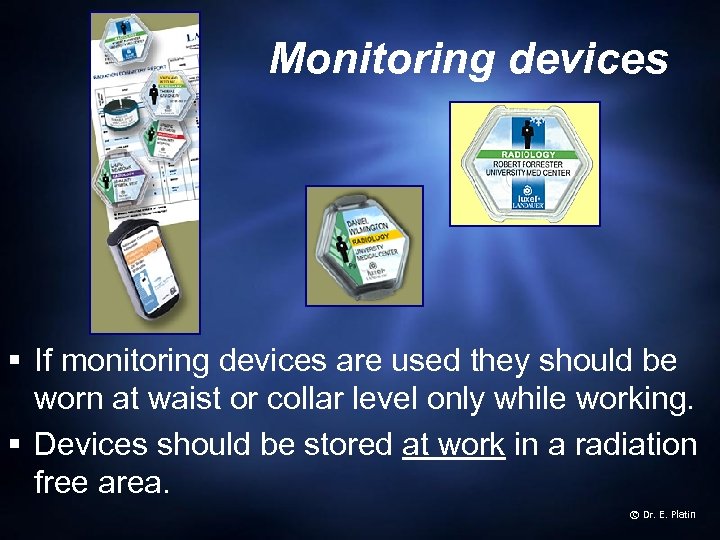

Monitoring devices § If monitoring devices are used they should be worn at waist Monitoring devices § If monitoring devices are used they should be worn at waist or collar level only while working. § Devices should be stored at work in a radiation free area. © Dr. E. Platin

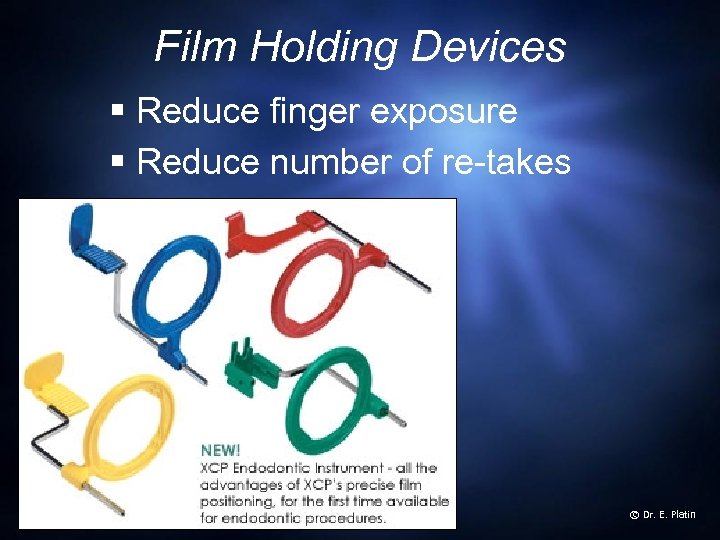

Film Holding Devices § Reduce finger exposure § Reduce number of re-takes © Dr. Film Holding Devices § Reduce finger exposure § Reduce number of re-takes © Dr. E. Platin

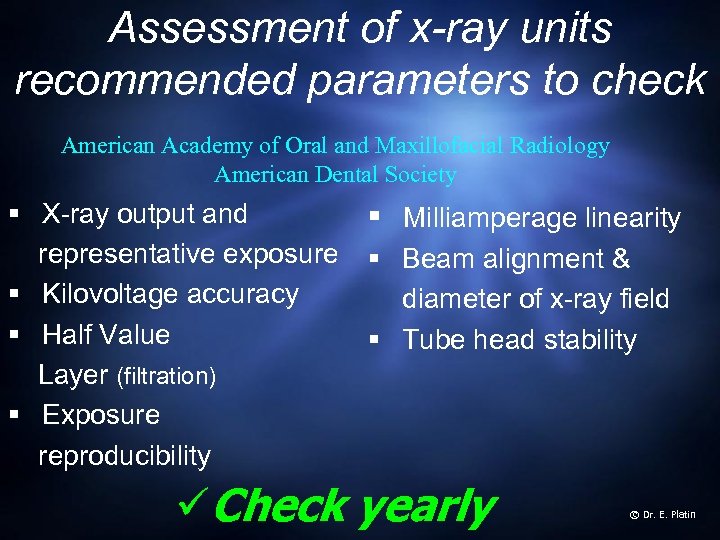

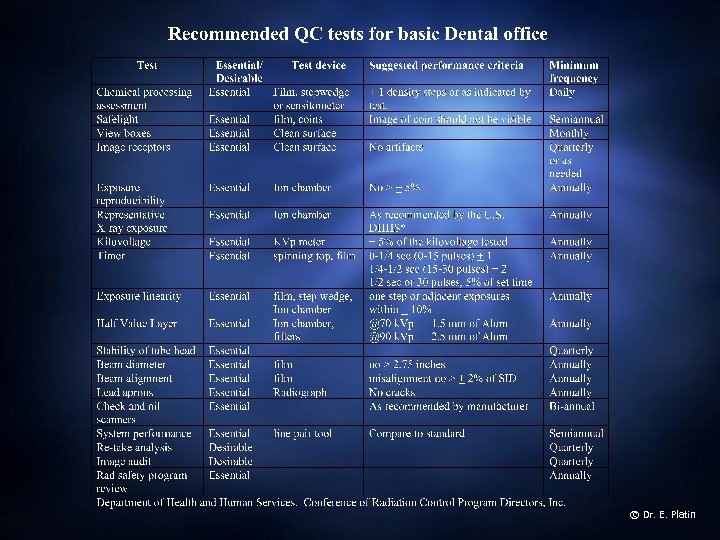

Assessment of x-ray units recommended parameters to check American Academy of Oral and Maxillofacial Assessment of x-ray units recommended parameters to check American Academy of Oral and Maxillofacial Radiology American Dental Society § X-ray output and representative exposure § Kilovoltage accuracy § Half Value Layer (filtration) § Exposure reproducibility § Milliamperage linearity § Beam alignment & diameter of x-ray field § Tube head stability üCheck yearly © Dr. E. Platin

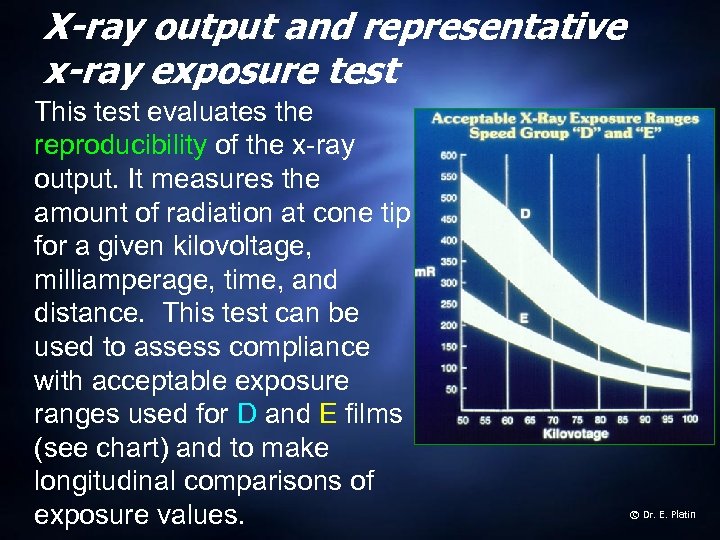

X-ray output and representative x-ray exposure test This test evaluates the reproducibility of the X-ray output and representative x-ray exposure test This test evaluates the reproducibility of the x-ray output. It measures the amount of radiation at cone tip for a given kilovoltage, milliamperage, time, and distance. This test can be used to assess compliance with acceptable exposure ranges used for D and E films (see chart) and to make longitudinal comparisons of exposure values. © Dr. E. Platin

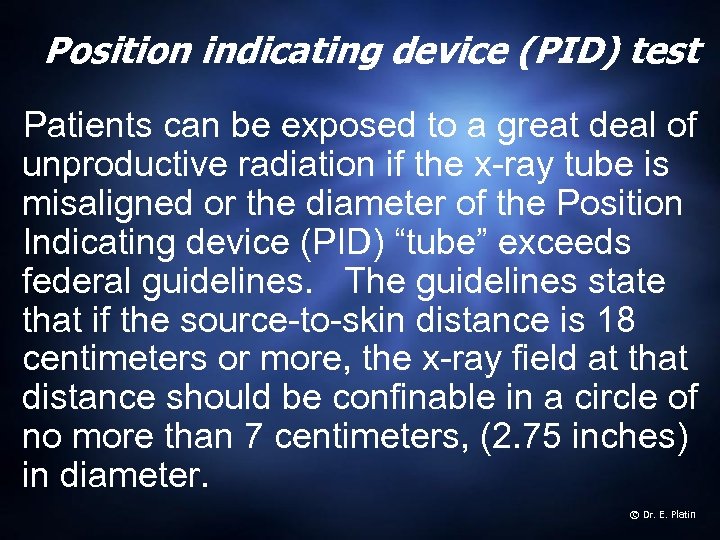

Position indicating device (PID) test Patients can be exposed to a great deal of Position indicating device (PID) test Patients can be exposed to a great deal of unproductive radiation if the x-ray tube is misaligned or the diameter of the Position Indicating device (PID) “tube” exceeds federal guidelines. The guidelines state that if the source-to-skin distance is 18 centimeters or more, the x-ray field at that distance should be confinable in a circle of no more than 7 centimeters, (2. 75 inches) in diameter. © Dr. E. Platin

Procedure To check the beam alignment and the diameter of the PID do as Procedure To check the beam alignment and the diameter of the PID do as follows. Place a film large enough to cover the diameter of the PID on a flat surface, or arrange four No. 2 films in a cross pattern as shown above; place the PID flush to the films so that approximately half of each film is covered and make an exposure to blacken the films. © Dr. E. Platin

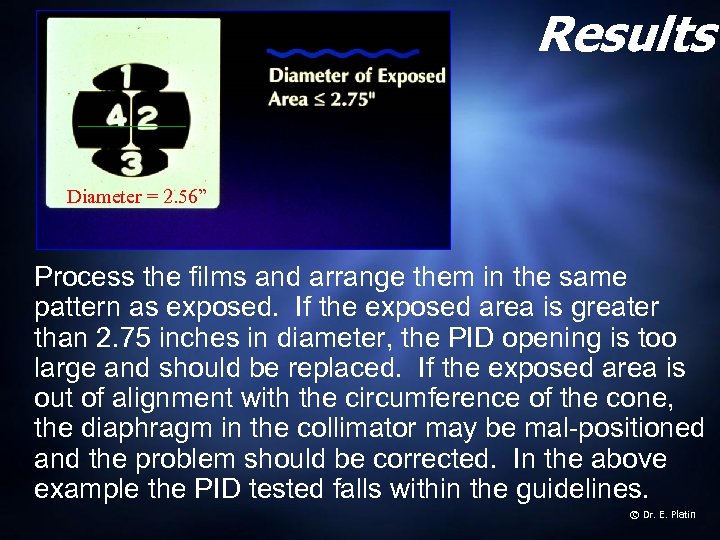

Results Diameter = 2. 56” Process the films and arrange them in the same Results Diameter = 2. 56” Process the films and arrange them in the same pattern as exposed. If the exposed area is greater than 2. 75 inches in diameter, the PID opening is too large and should be replaced. If the exposed area is out of alignment with the circumference of the cone, the diaphragm in the collimator may be mal-positioned and the problem should be corrected. In the above example the PID tested falls within the guidelines. © Dr. E. Platin

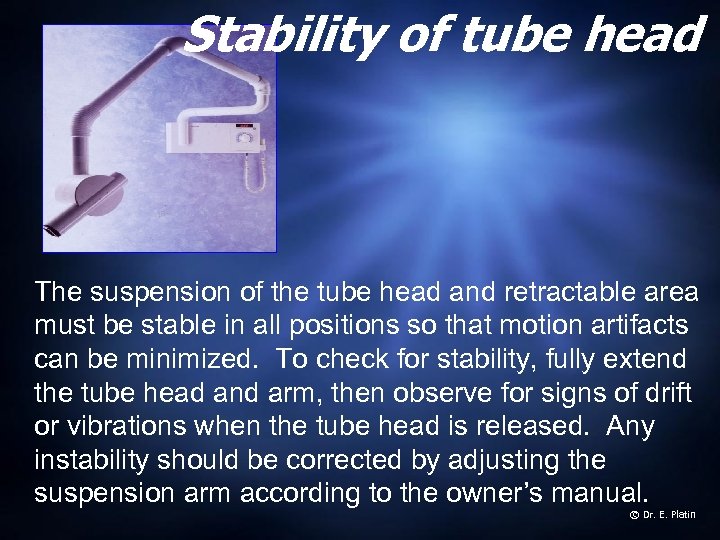

Stability of tube head The suspension of the tube head and retractable area must Stability of tube head The suspension of the tube head and retractable area must be stable in all positions so that motion artifacts can be minimized. To check for stability, fully extend the tube head and arm, then observe for signs of drift or vibrations when the tube head is released. Any instability should be corrected by adjusting the suspension arm according to the owner’s manual. © Dr. E. Platin

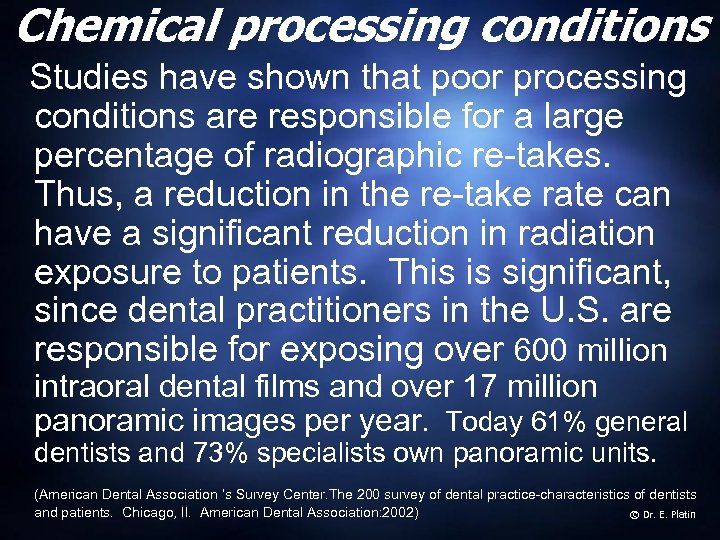

Chemical processing conditions Studies have shown that poor processing conditions are responsible for a Chemical processing conditions Studies have shown that poor processing conditions are responsible for a large percentage of radiographic re-takes. Thus, a reduction in the re-take rate can have a significant reduction in radiation exposure to patients. This is significant, since dental practitioners in the U. S. are responsible for exposing over 600 million intraoral dental films and over 17 million panoramic images per year. Today 61% general dentists and 73% specialists own panoramic units. (American Dental Association ‘s Survey Center. The 200 survey of dental practice-characteristics of dentists and patients. Chicago, Il. American Dental Association: 2002) © Dr. E. Platin

Processing pitfalls (automatic processor) Dark images can result from high developer temperatures, long development Processing pitfalls (automatic processor) Dark images can result from high developer temperatures, long development times or overactive developers. Check thermostat, adjust it if necessary. Also, inspect the transport system for excessive wear of the gears and sprockets, and check the roller alignment and lubrication. Check the replenishing mechanism as the developer may be overactive. High water temperatures can also be responsible for dark films. Periodically check mixing valve adjustment and correct settings if appropriate. © Dr. E. Platin

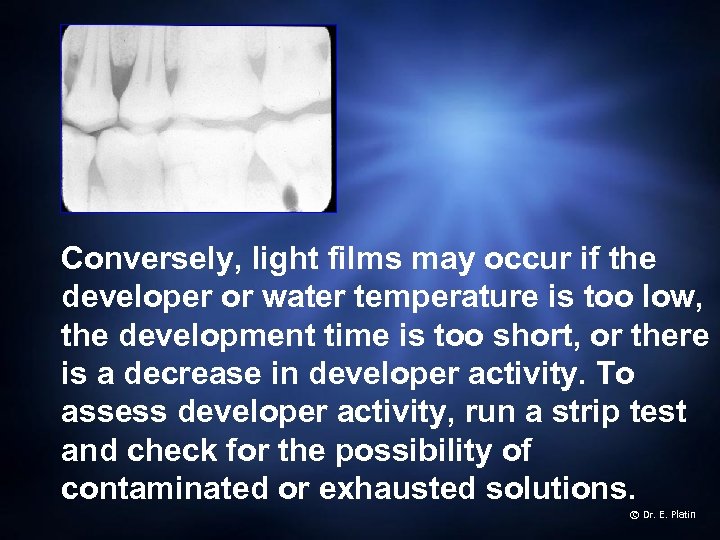

Conversely, light films may occur if the developer or water temperature is too low, Conversely, light films may occur if the developer or water temperature is too low, the development time is too short, or there is a decrease in developer activity. To assess developer activity, run a strip test and check for the possibility of contaminated or exhausted solutions. © Dr. E. Platin

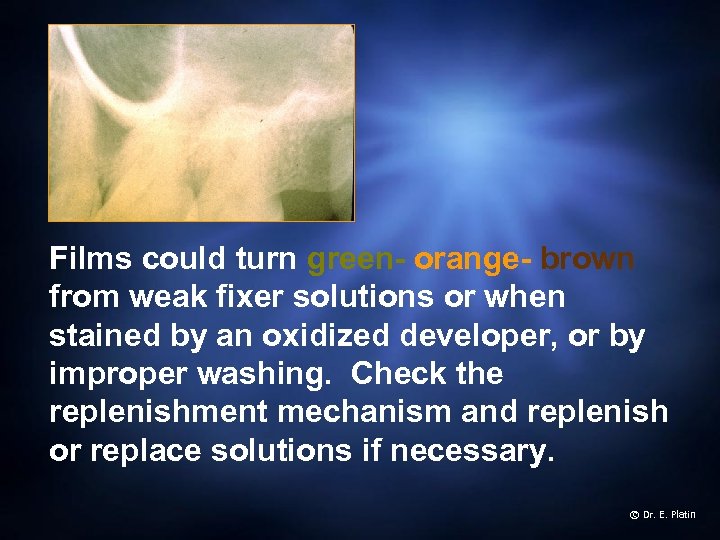

Films could turn green- orange- brown from weak fixer solutions or when stained by Films could turn green- orange- brown from weak fixer solutions or when stained by an oxidized developer, or by improper washing. Check the replenishment mechanism and replenish or replace solutions if necessary. © Dr. E. Platin

Safelighting Safelights provide adequate lighting without fogging the film. A light emitting diode LED Safelighting Safelights provide adequate lighting without fogging the film. A light emitting diode LED safelight or universal safelight filter such as the kodak GBX is recommended for both intraoral and extraoral films. The wattage of the bulb should not exceed 15 and should be placed at least 4 feet away from the working surface. © Dr. E. Platin

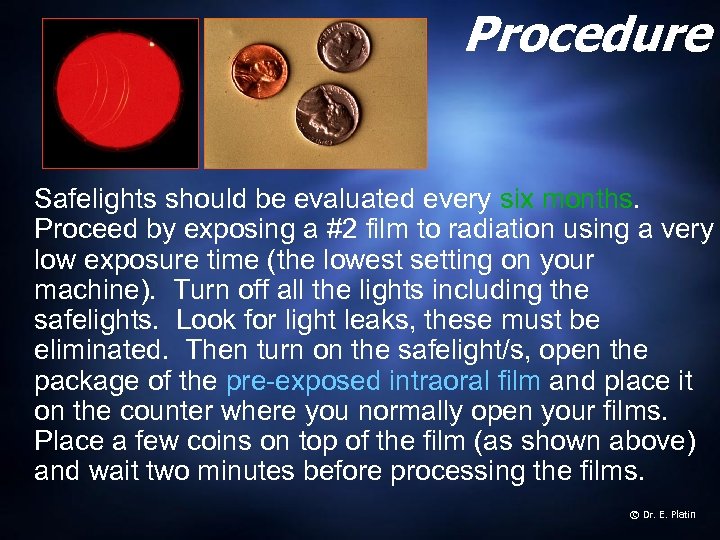

Procedure Safelights should be evaluated every six months. Proceed by exposing a #2 film Procedure Safelights should be evaluated every six months. Proceed by exposing a #2 film to radiation using a very low exposure time (the lowest setting on your machine). Turn off all the lights including the safelights. Look for light leaks, these must be eliminated. Then turn on the safelight/s, open the package of the pre-exposed intraoral film and place it on the counter where you normally open your films. Place a few coins on top of the film (as shown above) and wait two minutes before processing the films. © Dr. E. Platin

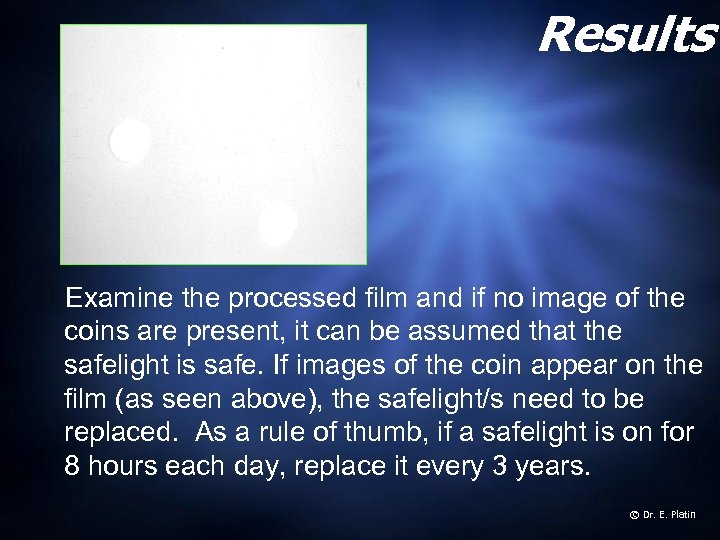

Results Examine the processed film and if no image of the coins are present, Results Examine the processed film and if no image of the coins are present, it can be assumed that the safelight is safe. If images of the coin appear on the film (as seen above), the safelight/s need to be replaced. As a rule of thumb, if a safelight is on for 8 hours each day, replace it every 3 years. © Dr. E. Platin

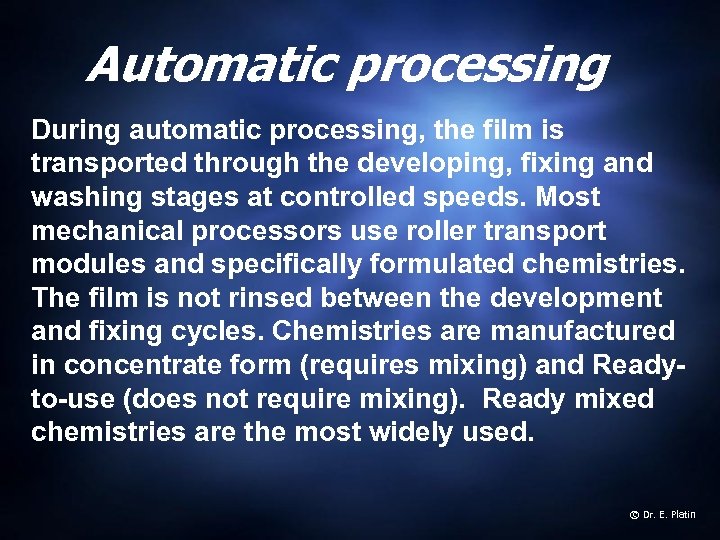

Automatic processing During automatic processing, the film is transported through the developing, fixing and Automatic processing During automatic processing, the film is transported through the developing, fixing and washing stages at controlled speeds. Most mechanical processors use roller transport modules and specifically formulated chemistries. The film is not rinsed between the development and fixing cycles. Chemistries are manufactured in concentrate form (requires mixing) and Readyto-use (does not require mixing). Ready mixed chemistries are the most widely used. © Dr. E. Platin

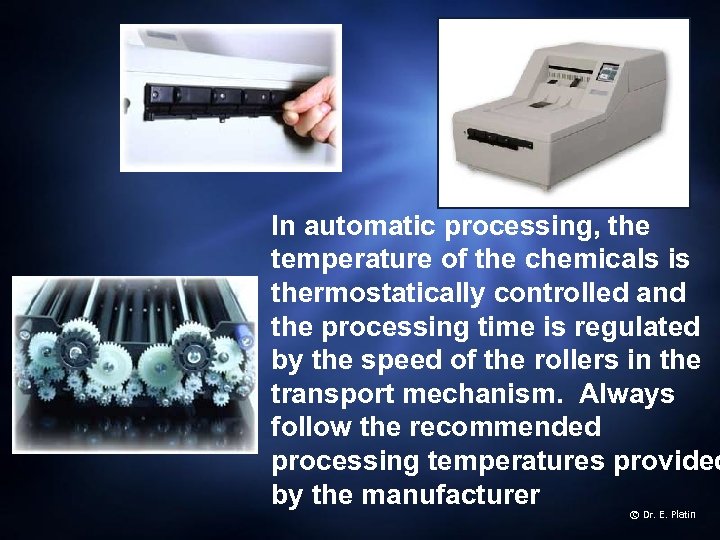

In automatic processing, the temperature of the chemicals is thermostatically controlled and the processing In automatic processing, the temperature of the chemicals is thermostatically controlled and the processing time is regulated by the speed of the rollers in the transport mechanism. Always follow the recommended processing temperatures provided by the manufacturer © Dr. E. Platin

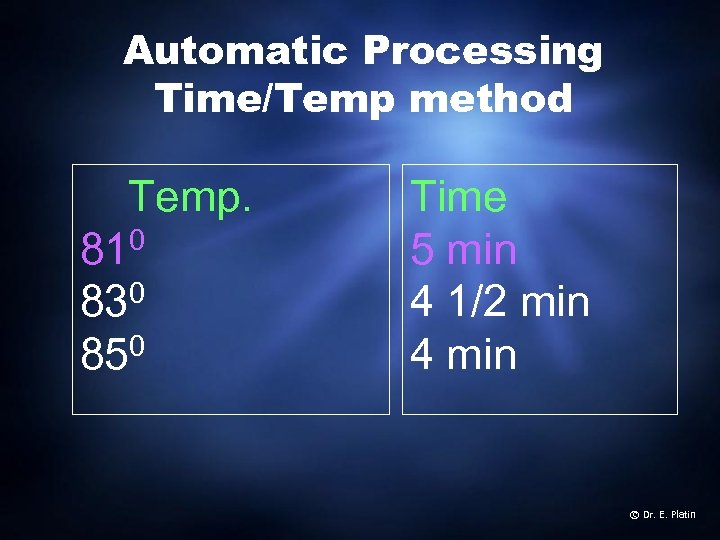

Automatic Processing Time/Temp method Temp. 810 0 83 0 85 Time 5 min 4 Automatic Processing Time/Temp method Temp. 810 0 83 0 85 Time 5 min 4 1/2 min 4 min © Dr. E. Platin

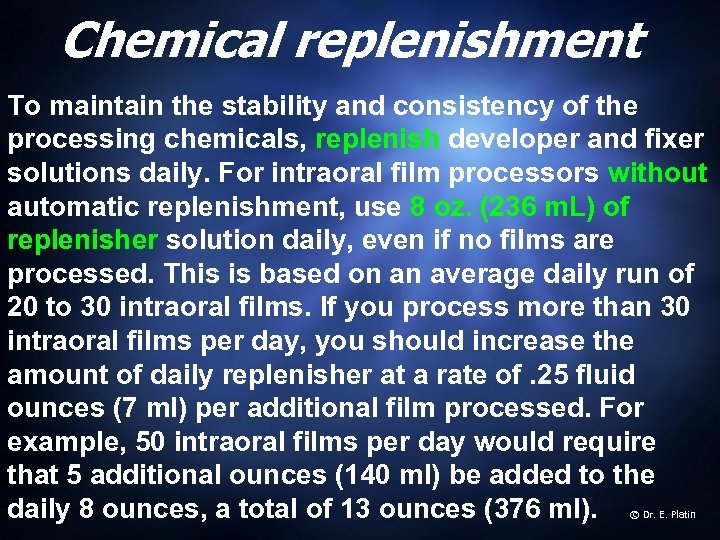

Chemical Replenishment Chemical solutions should be replenished daily by adding 8 ounces (236 ml) Chemical Replenishment Chemical solutions should be replenished daily by adding 8 ounces (236 ml) of developer and fixer to maintain optimal concentration. This should be done regardless of the levels of chemicals visible in the tank. (It may be necessary to remove some of the existing solutions before adding replenisher. This prevent solutions in tanks from overflowing. © Dr. E. Platin

Chemical replenishment To maintain the stability and consistency of the processing chemicals, replenish developer Chemical replenishment To maintain the stability and consistency of the processing chemicals, replenish developer and fixer solutions daily. For intraoral film processors without automatic replenishment, use 8 oz. (236 m. L) of replenisher solution daily, even if no films are processed. This is based on an average daily run of 20 to 30 intraoral films. If you process more than 30 intraoral films per day, you should increase the amount of daily replenisher at a rate of. 25 fluid ounces (7 ml) per additional film processed. For example, 50 intraoral films per day would require that 5 additional ounces (140 ml) be added to the daily 8 ounces, a total of 13 ounces (376 ml). © Dr. E. Platin

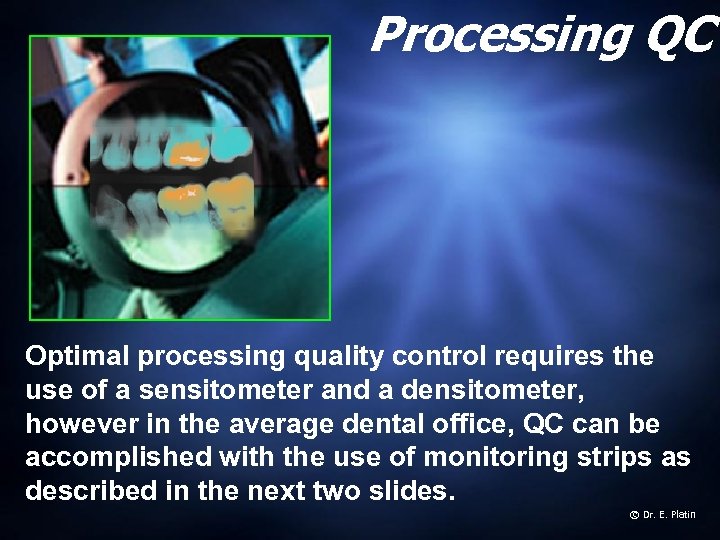

Processing QC Optimal processing quality control requires the use of a sensitometer and a Processing QC Optimal processing quality control requires the use of a sensitometer and a densitometer, however in the average dental office, QC can be accomplished with the use of monitoring strips as described in the next two slides. © Dr. E. Platin

Dental Radiographic Normalizing and Monitoring Device The DRNMD has a reference (strip) that can Dental Radiographic Normalizing and Monitoring Device The DRNMD has a reference (strip) that can be used to compare the films that are exposed daily to monitor processor performance. Follow the instruction on the tool to perform QC. Daily strip Comparison of strip with reference Image of reference step wedge Dental Radiographic Normalizing & Monitoring Device http: //www. cspmedicalstore. com/s. nl/sc. 2/category. 1628/. f © Dr. E. Platin

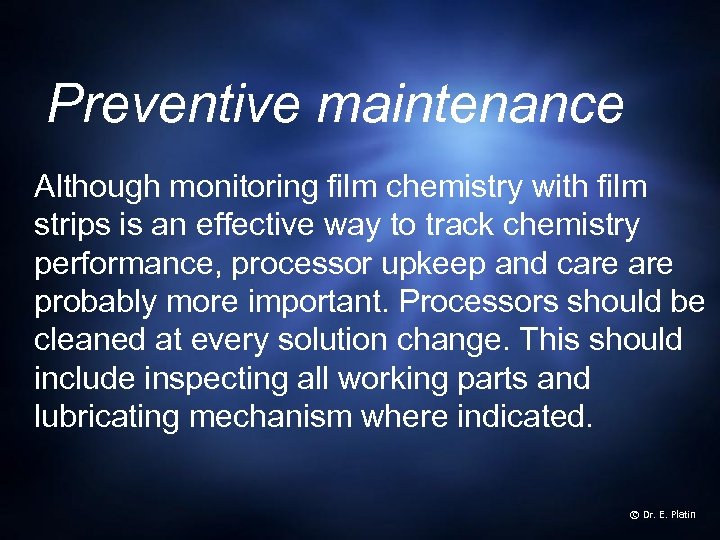

Preventive maintenance Although monitoring film chemistry with film strips is an effective way to Preventive maintenance Although monitoring film chemistry with film strips is an effective way to track chemistry performance, processor upkeep and care probably more important. Processors should be cleaned at every solution change. This should include inspecting all working parts and lubricating mechanism where indicated. © Dr. E. Platin

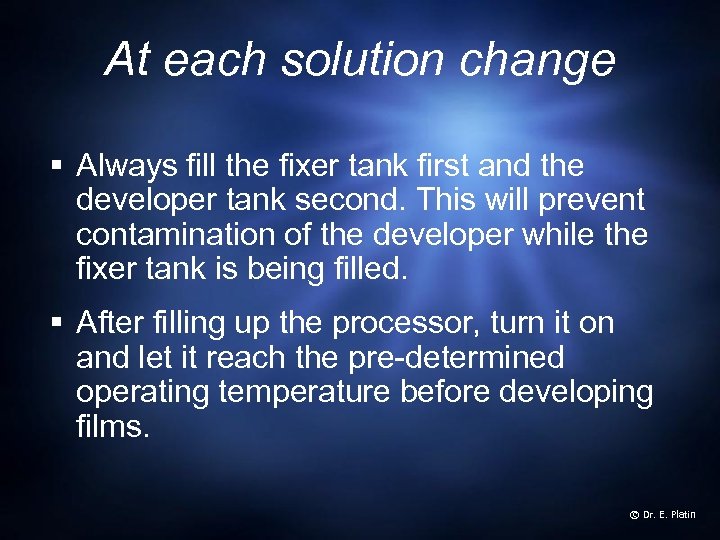

At each solution change § Always fill the fixer tank first and the developer At each solution change § Always fill the fixer tank first and the developer tank second. This will prevent contamination of the developer while the fixer tank is being filled. § After filling up the processor, turn it on and let it reach the pre-determined operating temperature before developing films. © Dr. E. Platin

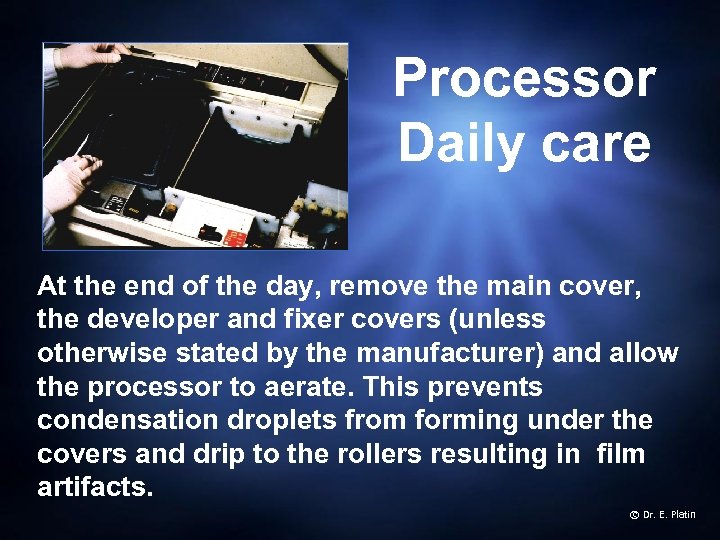

Processor Daily care At the end of the day, remove the main cover, the Processor Daily care At the end of the day, remove the main cover, the developer and fixer covers (unless otherwise stated by the manufacturer) and allow the processor to aerate. This prevents condensation droplets from forming under the covers and drip to the rollers resulting in film artifacts. © Dr. E. Platin

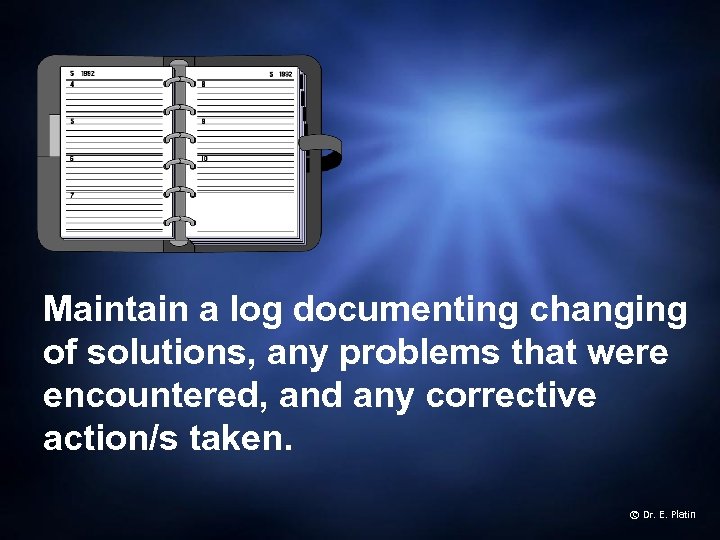

Maintain a log documenting changing of solutions, any problems that were encountered, and any Maintain a log documenting changing of solutions, any problems that were encountered, and any corrective action/s taken. © Dr. E. Platin

Helpful checklist for automatic processing § Clean tanks and rollers thoroughly with a non-abrasive Helpful checklist for automatic processing § Clean tanks and rollers thoroughly with a non-abrasive brush to remove chemical deposits and contaminants. Use a bland soap or commercial cleaner. § Rinse rollers thoroughly to remove any trace of soap or cleaner. § Inspect rollers, gears, and turning mechanism for signs of wear. © Dr. E. Platin

Summary 1. Clean processors regularly 2. Replenish solutions daily 3. Check dev. temperature daily Summary 1. Clean processors regularly 2. Replenish solutions daily 3. Check dev. temperature daily 4. Perform Q. C. daily © Dr. E. Platin

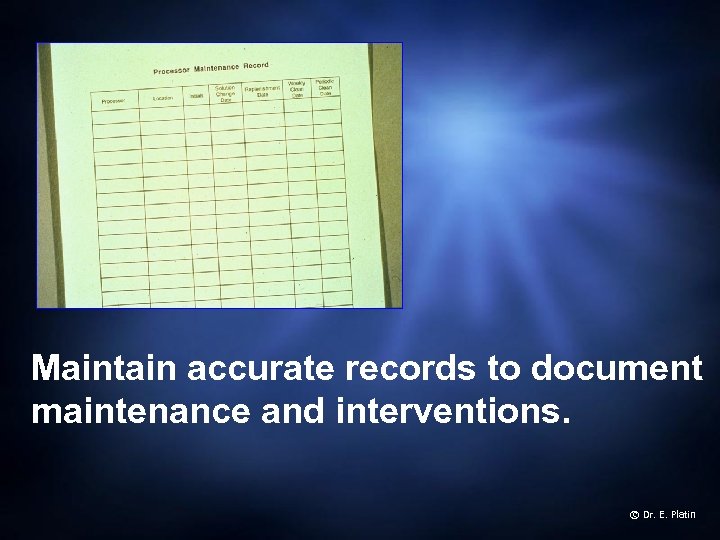

Maintain accurate records to document maintenance and interventions. © Dr. E. Platin Maintain accurate records to document maintenance and interventions. © Dr. E. Platin

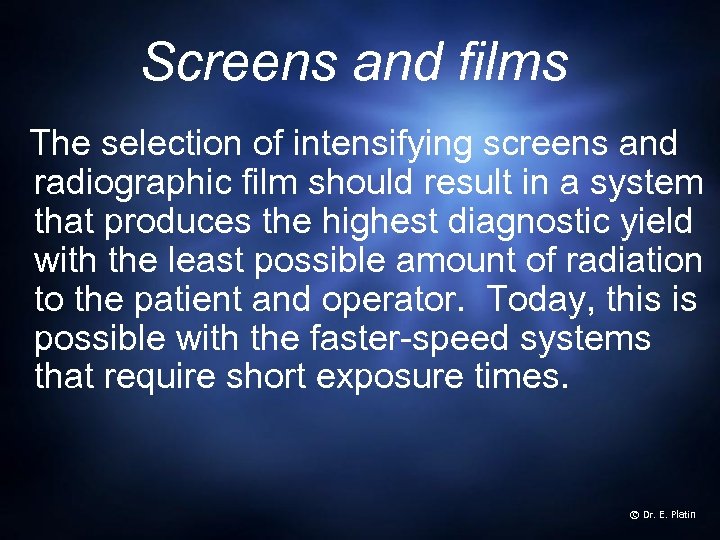

Screens and films The selection of intensifying screens and radiographic film should result in Screens and films The selection of intensifying screens and radiographic film should result in a system that produces the highest diagnostic yield with the least possible amount of radiation to the patient and operator. Today, this is possible with the faster-speed systems that require short exposure times. © Dr. E. Platin

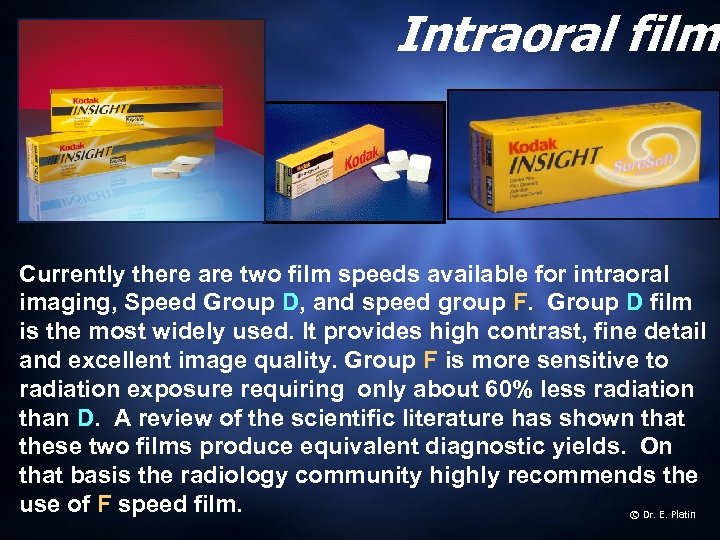

Intraoral film Currently there are two film speeds available for intraoral imaging, Speed Group Intraoral film Currently there are two film speeds available for intraoral imaging, Speed Group D, and speed group F. Group D film is the most widely used. It provides high contrast, fine detail and excellent image quality. Group F is more sensitive to radiation exposure requiring only about 60% less radiation than D. A review of the scientific literature has shown that these two films produce equivalent diagnostic yields. On that basis the radiology community highly recommends the use of F speed film. © Dr. E. Platin

Extraoral film Extraoral or screen film is primarily designed to be used with intensifying Extraoral film Extraoral or screen film is primarily designed to be used with intensifying screens. The selection of the film should be based on the clinical application. Ideally, one should select the most sensitive system without compromising diagnostic quality. © Dr. E. Platin

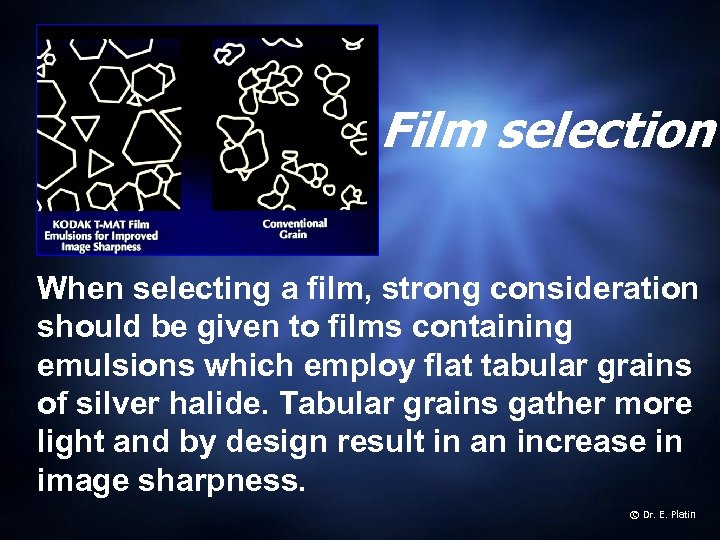

Film selection When selecting a film, strong consideration should be given to films containing Film selection When selecting a film, strong consideration should be given to films containing emulsions which employ flat tabular grains of silver halide. Tabular grains gather more light and by design result in an increase in image sharpness. © Dr. E. Platin

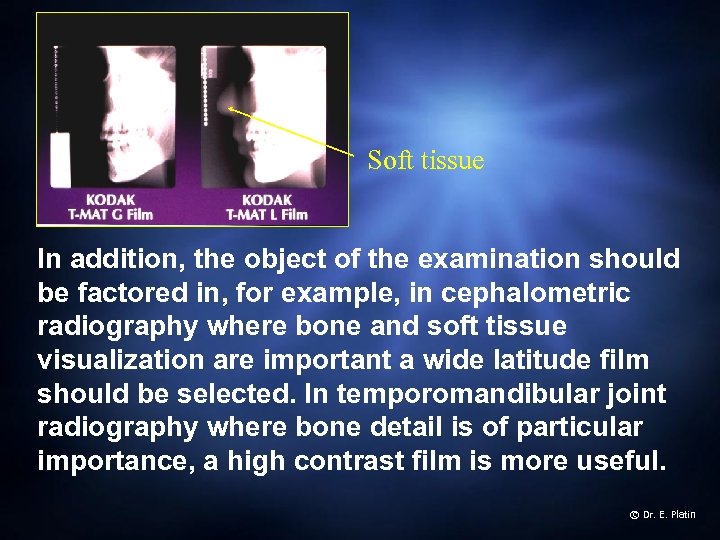

Soft tissue In addition, the object of the examination should be factored in, for Soft tissue In addition, the object of the examination should be factored in, for example, in cephalometric radiography where bone and soft tissue visualization are important a wide latitude film should be selected. In temporomandibular joint radiography where bone detail is of particular importance, a high contrast film is more useful. © Dr. E. Platin

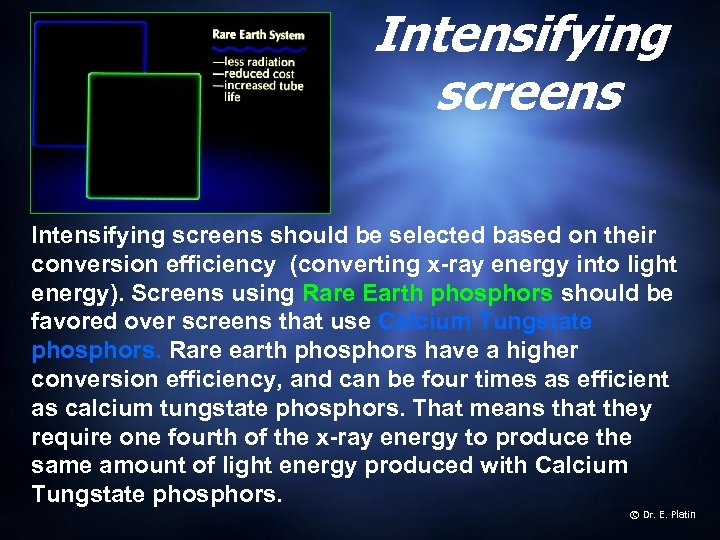

Intensifying screens should be selected based on their conversion efficiency (converting x-ray energy into Intensifying screens should be selected based on their conversion efficiency (converting x-ray energy into light energy). Screens using Rare Earth phosphors should be favored over screens that use Calcium Tungstate phosphors. Rare earth phosphors have a higher conversion efficiency, and can be four times as efficient as calcium tungstate phosphors. That means that they require one fourth of the x-ray energy to produce the same amount of light energy produced with Calcium Tungstate phosphors. © Dr. E. Platin

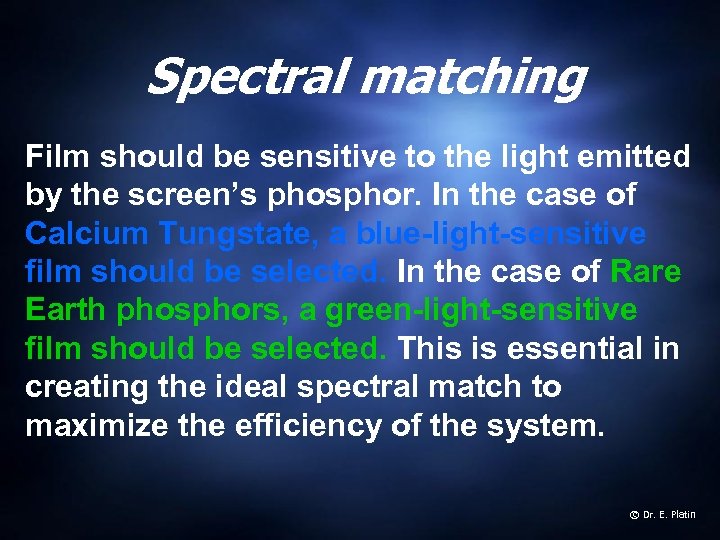

Spectral matching Film should be sensitive to the light emitted by the screen’s phosphor. Spectral matching Film should be sensitive to the light emitted by the screen’s phosphor. In the case of Calcium Tungstate, a blue-light-sensitive film should be selected. In the case of Rare Earth phosphors, a green-light-sensitive film should be selected. This is essential in creating the ideal spectral match to maximize the efficiency of the system. © Dr. E. Platin

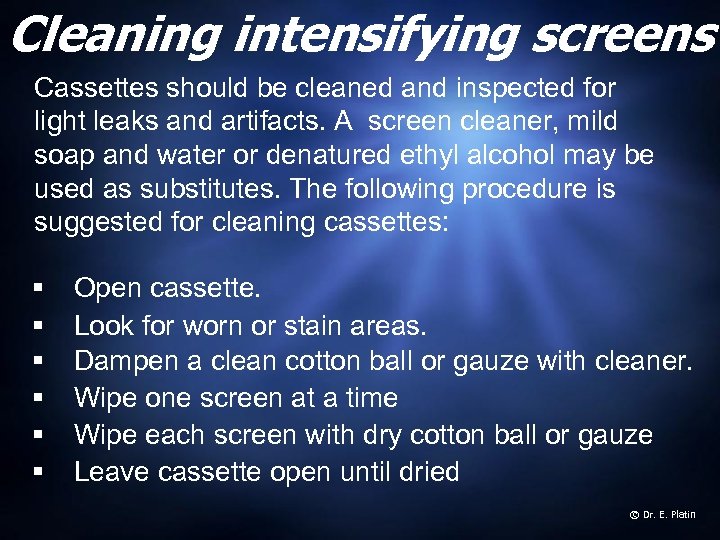

Cleaning intensifying screens Cassettes should be cleaned and inspected for light leaks and artifacts. Cleaning intensifying screens Cassettes should be cleaned and inspected for light leaks and artifacts. A screen cleaner, mild soap and water or denatured ethyl alcohol may be used as substitutes. The following procedure is suggested for cleaning cassettes: § § § Open cassette. Look for worn or stain areas. Dampen a clean cotton ball or gauze with cleaner. Wipe one screen at a time Wipe each screen with dry cotton ball or gauze Leave cassette open until dried © Dr. E. Platin

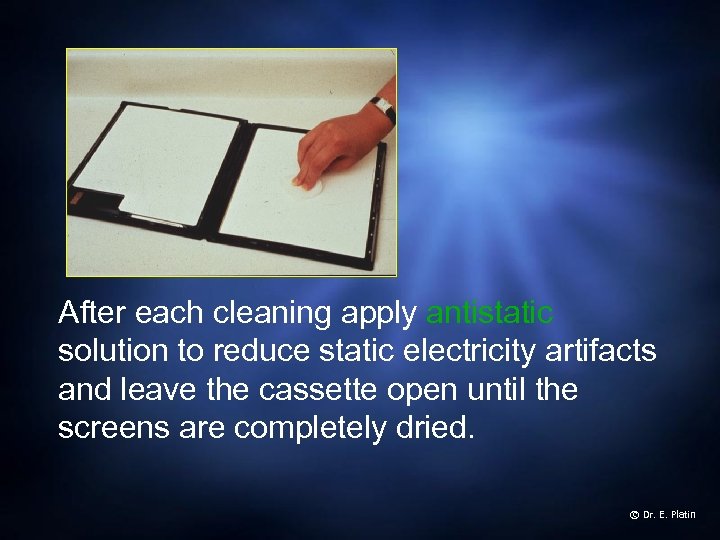

After each cleaning apply antistatic solution to reduce static electricity artifacts and leave the After each cleaning apply antistatic solution to reduce static electricity artifacts and leave the cassette open until the screens are completely dried. © Dr. E. Platin

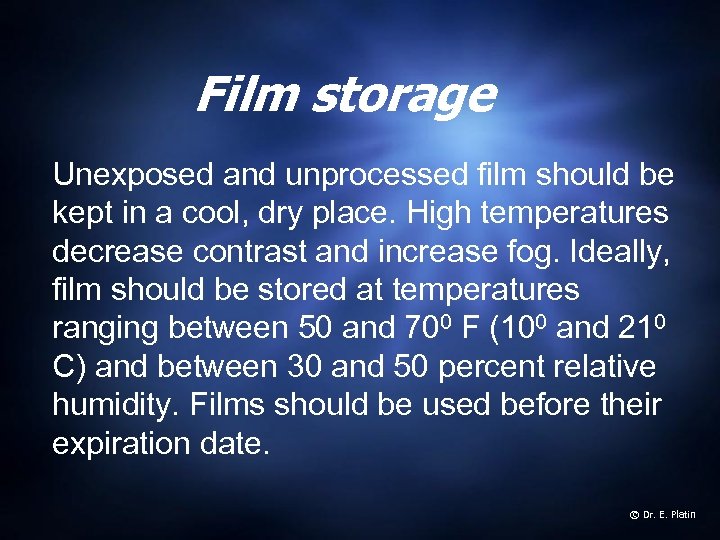

Film storage Unexposed and unprocessed film should be kept in a cool, dry place. Film storage Unexposed and unprocessed film should be kept in a cool, dry place. High temperatures decrease contrast and increase fog. Ideally, film should be stored at temperatures ranging between 50 and 700 F (100 and 210 C) and between 30 and 50 percent relative humidity. Films should be used before their expiration date. © Dr. E. Platin

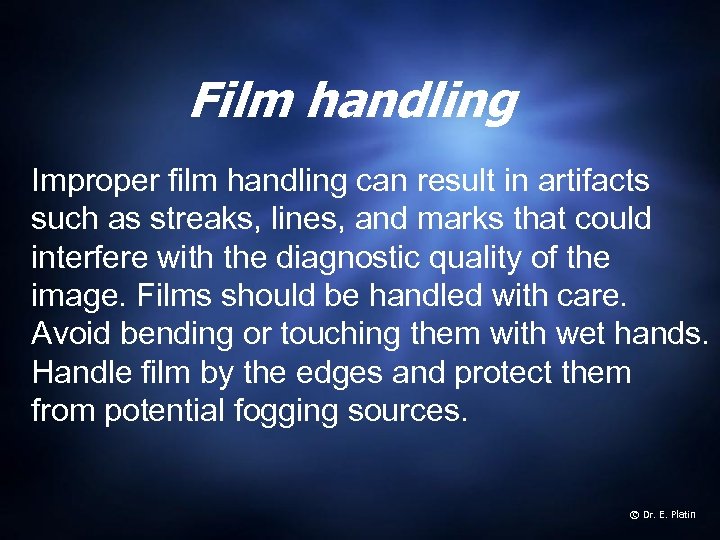

Film handling Improper film handling can result in artifacts such as streaks, lines, and Film handling Improper film handling can result in artifacts such as streaks, lines, and marks that could interfere with the diagnostic quality of the image. Films should be handled with care. Avoid bending or touching them with wet hands. Handle film by the edges and protect them from potential fogging sources. © Dr. E. Platin

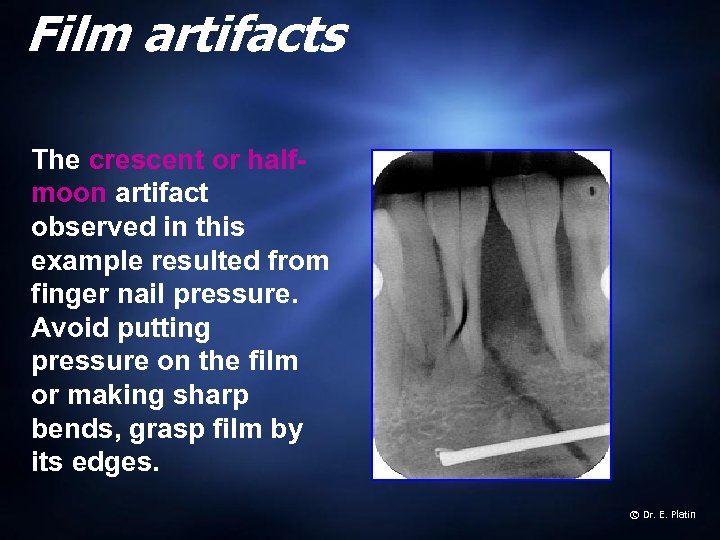

Film artifacts The crescent or halfmoon artifact observed in this example resulted from finger Film artifacts The crescent or halfmoon artifact observed in this example resulted from finger nail pressure. Avoid putting pressure on the film or making sharp bends, grasp film by its edges. © Dr. E. Platin

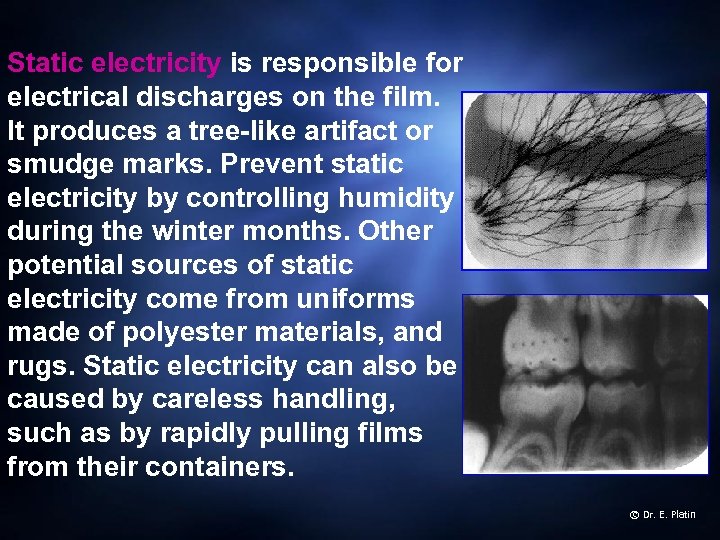

Static electricity is responsible for electrical discharges on the film. It produces a tree-like Static electricity is responsible for electrical discharges on the film. It produces a tree-like artifact or smudge marks. Prevent static electricity by controlling humidity during the winter months. Other potential sources of static electricity come from uniforms made of polyester materials, and rugs. Static electricity can also be caused by careless handling, such as by rapidly pulling films from their containers. © Dr. E. Platin

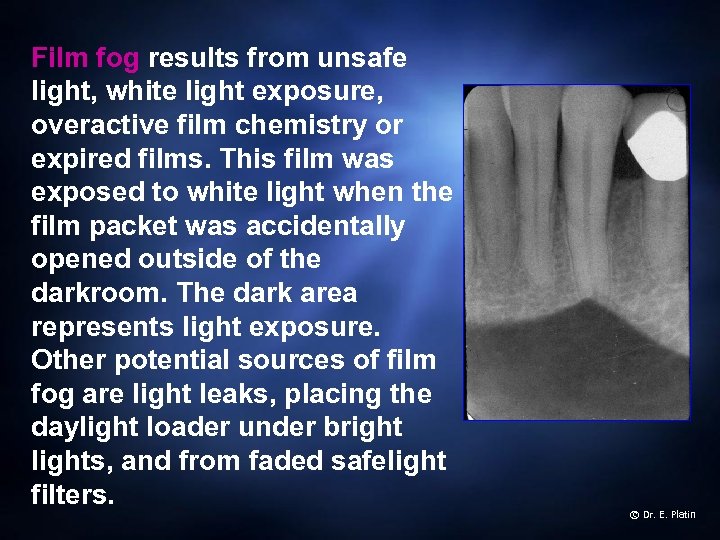

Film fog results from unsafe light, white light exposure, overactive film chemistry or expired Film fog results from unsafe light, white light exposure, overactive film chemistry or expired films. This film was exposed to white light when the film packet was accidentally opened outside of the darkroom. The dark area represents light exposure. Other potential sources of film fog are light leaks, placing the daylight loader under bright lights, and from faded safelight filters. © Dr. E. Platin

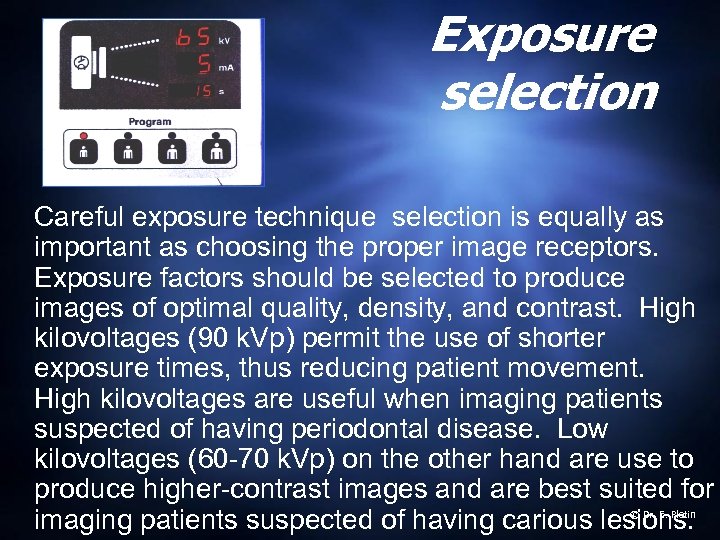

Exposure selection Careful exposure technique selection is equally as important as choosing the proper Exposure selection Careful exposure technique selection is equally as important as choosing the proper image receptors. Exposure factors should be selected to produce images of optimal quality, density, and contrast. High kilovoltages (90 k. Vp) permit the use of shorter exposure times, thus reducing patient movement. High kilovoltages are useful when imaging patients suspected of having periodontal disease. Low kilovoltages (60 -70 k. Vp) on the other hand are use to produce higher-contrast images and are best suited for imaging patients suspected of having carious lesions. © Dr. E. Platin

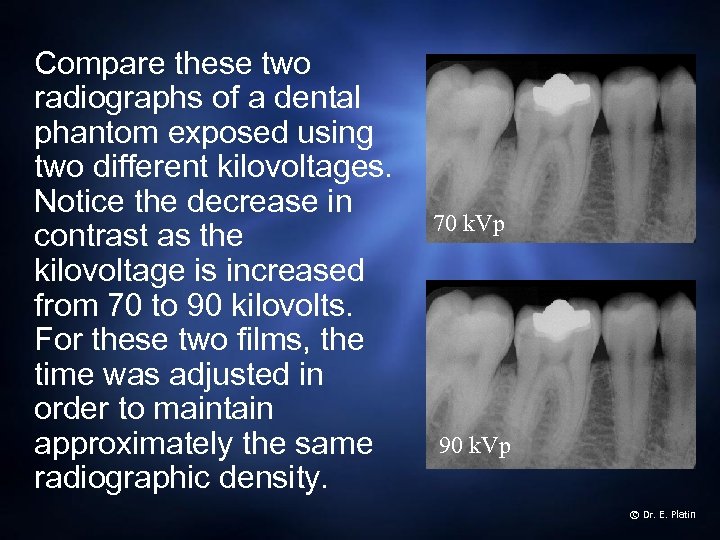

Compare these two radiographs of a dental phantom exposed using two different kilovoltages. Notice Compare these two radiographs of a dental phantom exposed using two different kilovoltages. Notice the decrease in contrast as the kilovoltage is increased from 70 to 90 kilovolts. For these two films, the time was adjusted in order to maintain approximately the same radiographic density. 70 k. Vp 90 k. Vp © Dr. E. Platin

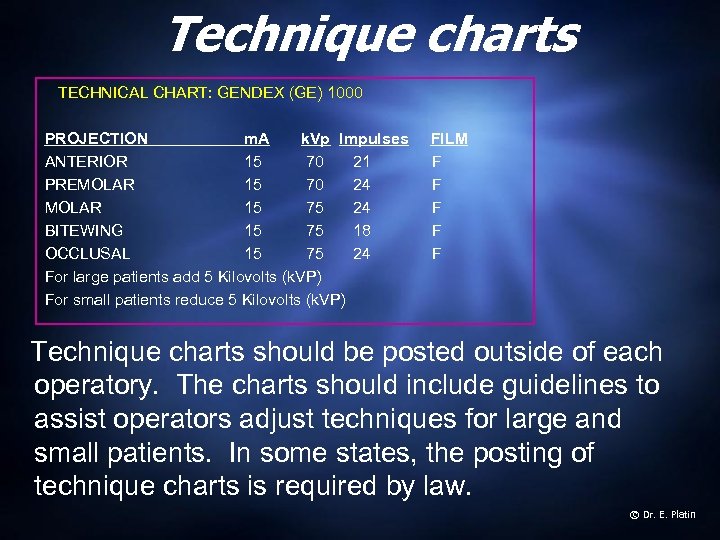

Technique charts TECHNICAL CHART: GENDEX (GE) 1000 PROJECTION m. A k. Vp Impulses ANTERIOR Technique charts TECHNICAL CHART: GENDEX (GE) 1000 PROJECTION m. A k. Vp Impulses ANTERIOR 15 70 21 PREMOLAR 15 70 24 MOLAR 15 75 24 BITEWING 15 75 18 OCCLUSAL 15 75 24 For large patients add 5 Kilovolts (k. VP) For small patients reduce 5 Kilovolts (k. VP) FILM F F F Technique charts should be posted outside of each operatory. The charts should include guidelines to assist operators adjust techniques for large and small patients. In some states, the posting of technique charts is required by law. © Dr. E. Platin

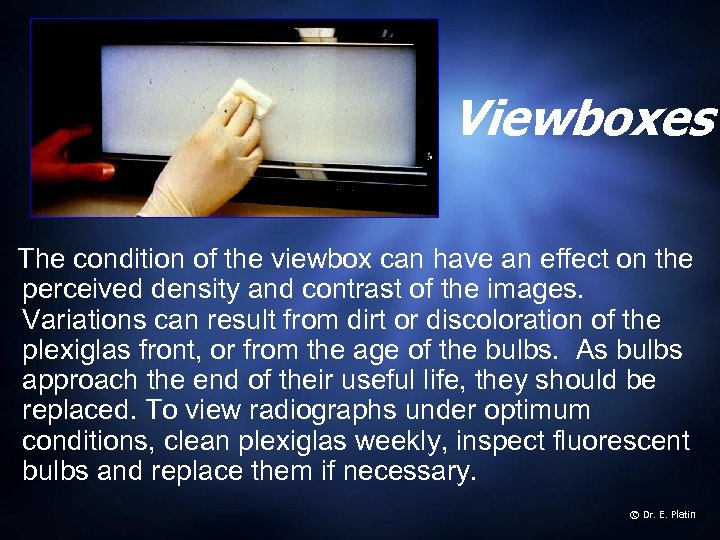

Viewboxes The condition of the viewbox can have an effect on the perceived density Viewboxes The condition of the viewbox can have an effect on the perceived density and contrast of the images. Variations can result from dirt or discoloration of the plexiglas front, or from the age of the bulbs. As bulbs approach the end of their useful life, they should be replaced. To view radiographs under optimum conditions, clean plexiglas weekly, inspect fluorescent bulbs and replace them if necessary. © Dr. E. Platin

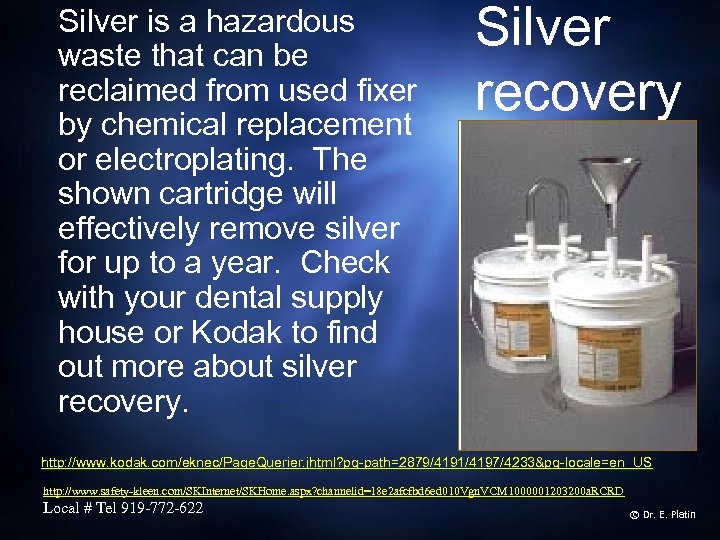

Silver is a hazardous waste that can be reclaimed from used fixer by chemical Silver is a hazardous waste that can be reclaimed from used fixer by chemical replacement or electroplating. The shown cartridge will effectively remove silver for up to a year. Check with your dental supply house or Kodak to find out more about silver recovery. Silver recovery http: //www. kodak. com/eknec/Page. Querier. jhtml? pq-path=2879/4191/4197/4233&pq-locale=en_US http: //www. safety-kleen. com/SKInternet/SKHome. aspx? channelid=18 e 2 afcfbd 6 ed 010 Vgn. VCM 1000001203200 a. RCRD Local # Tel 919 -772 -622 © Dr. E. Platin

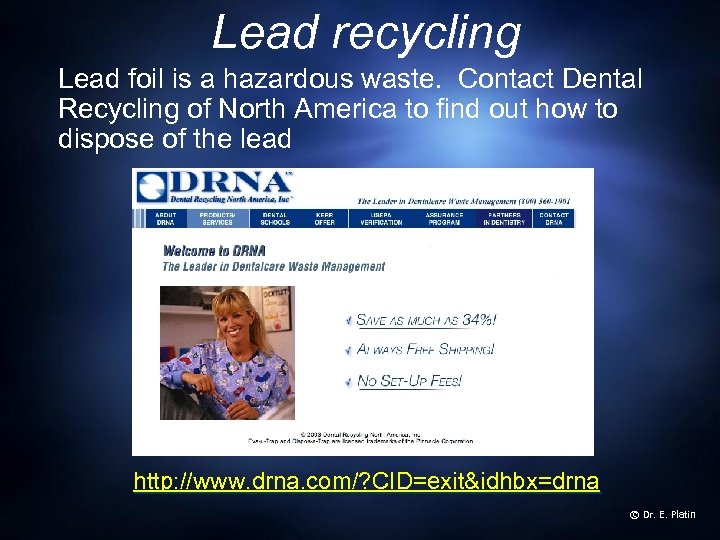

Lead recycling Lead foil is a hazardous waste. Contact Dental Recycling of North America Lead recycling Lead foil is a hazardous waste. Contact Dental Recycling of North America to find out how to dispose of the lead http: //www. drna. com/? CID=exit&idhbx=drna © Dr. E. Platin

Digital Radiography As digital radiography continues to emerge, quality control systems will have to Digital Radiography As digital radiography continues to emerge, quality control systems will have to be implemented to monitor receptors, scanners and monitors performance. Presently, users have to rely on guidelines set by manufacturers. However, some universal guidelines could be applied to all receptors (PSP, CCD, CMOS), and some output devices such as monitors, printers and copying media. © Dr. E. Platin

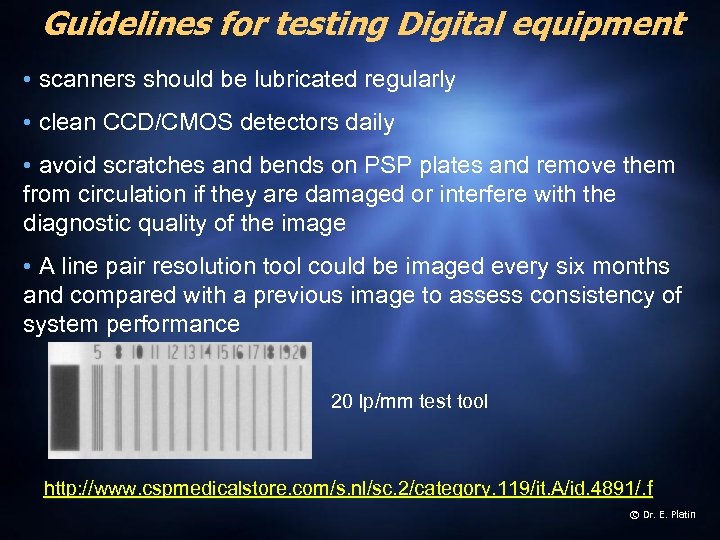

Guidelines for testing Digital equipment • scanners should be lubricated regularly • clean CCD/CMOS Guidelines for testing Digital equipment • scanners should be lubricated regularly • clean CCD/CMOS detectors daily • avoid scratches and bends on PSP plates and remove them from circulation if they are damaged or interfere with the diagnostic quality of the image • A line pair resolution tool could be imaged every six months and compared with a previous image to assess consistency of system performance 20 lp/mm test tool http: //www. cspmedicalstore. com/s. nl/sc. 2/category. 119/it. A/id. 4891/. f © Dr. E. Platin

© Dr. E. Platin © Dr. E. Platin

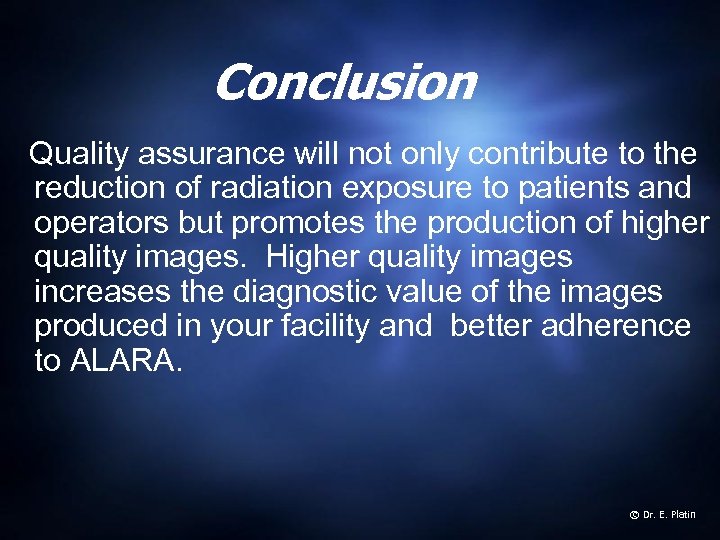

Conclusion Quality assurance will not only contribute to the reduction of radiation exposure to Conclusion Quality assurance will not only contribute to the reduction of radiation exposure to patients and operators but promotes the production of higher quality images. Higher quality images increases the diagnostic value of the images produced in your facility and better adherence to ALARA. © Dr. E. Platin
