"Professional Series – Red label" : Super tower or Super mid-tower cases with elegant, clean line designs. "Aluminum – Silver label" : Unique “Full aluminum” cases targeting at power users, professionals and gamers. Yellow "Ultimate Gaming Series – Black label" : Ultimate gaming cases targeting at the extreme gamers. This Series offers gamers with most functions, expandability and Extreme cooling. "Compact – Blue Label" : Small form factor case series including cube cases, mini-ITX and Mini-Tower (Micro-ATX). PGS Introduction "Value Series" : Best VALUE gaming cases with the highest C/P Ratio (Cost to Performance ratio).

Vs-9 is a Superb Gaming case which is affordable by everyone. This case is Vs-9 is a Superb Gaming case which is affordable by everyone. This case is one of the BEST VALUE case in the market today if not the BEST VALUE case. The Chassis is solidly constructed with 0. 6 mm Japanese steel. It is also beautifully finished with "All Black" interior and it includes many advanced features even for the most demanding gamers and enthusiasts. It has great expandability and versatility. The chassis supports 9 x 5 1/4" devices or 4 x 5 1/4" devices and 5 x 3. 5" HDDs with the use of HDD adaptors. A SSD Drive can be installed on the bottom of the chassis. Vs-9 also supports long high end VGA cards up to 295 mm. Vs-9 also provides un-rival air flow and cooling. Users can install up to max 7 fans - 3 x 12 cm intake front fans (optional) with the use of fan brackets, 2 x 12 cm or 14 cm side panel fans (optional), 1 x 12 cm Back Exhaust fan (included) and 1 x 12 cm or 14 cm intake bottom fan (optional). Vent holes are pre-drilled on the top chassis panel for the hot air to exist easily. Each HDD can be individually cooled by mounting a 12 cm fan on the HDD convertor bracket. Bottom PSU position will suck in cold air and help cool your system. Ease of installation is also one of Vs-9's advance features. The chassis is completely screw-less and cable management clips are pre-mounted on the MB plate to reduce the cable mess inside your chassis. A CPU hole is pre-drilled on the MB plate for easy mounting or assembly of your CPU cooler. The side panel design is compatible with Intel's TAC 2. 0 standards. The unique vent hole design and position allow users to mount 1 x 12 cm or 14 cm fan in any position or it can support maximum 2 x 12 cm or 14 cm fans on the side panel. Water-cooling holes are pre-drilled to support water cooling systems. The Vs-9 is the best Gaming case your money can buy !! Design Concept Vs-9

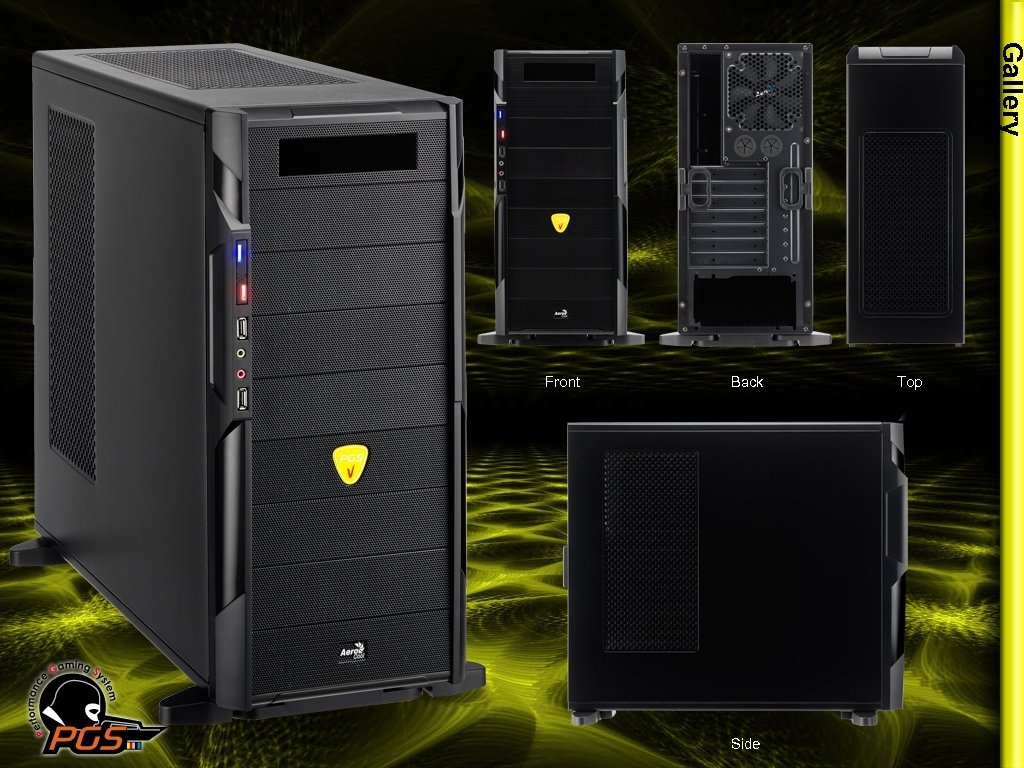

Gallery Front Back Side Top Gallery Front Back Side Top

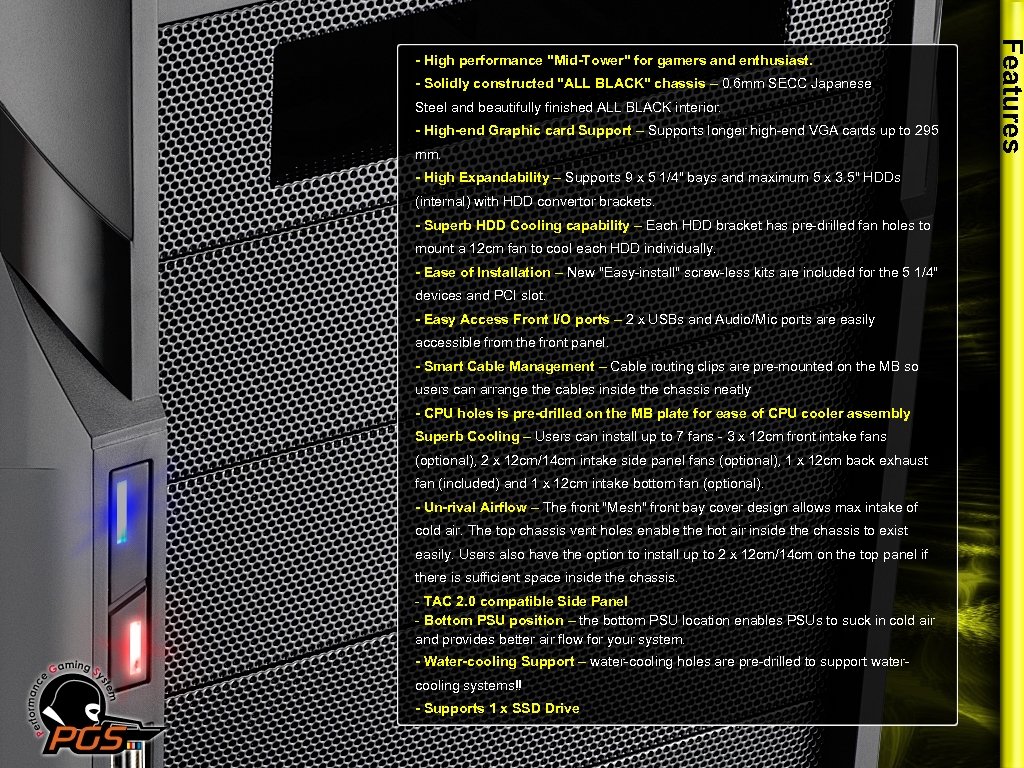

- Solidly constructed - Solidly constructed "ALL BLACK" chassis – 0. 6 mm SECC Japanese Steel and beautifully finished ALL BLACK interior. - High-end Graphic card Support – Supports longer high-end VGA cards up to 295 mm. - High Expandability – Supports 9 x 5 1/4" bays and maximum 5 x 3. 5" HDDs (internal) with HDD convertor brackets. - Superb HDD Cooling capability – Each HDD bracket has pre-drilled fan holes to mount a 12 cm fan to cool each HDD individually. - Ease of Installation – New "Easy-install" screw-less kits are included for the 5 1/4" devices and PCI slot. - Easy Access Front I/O ports – 2 x USBs and Audio/Mic ports are easily accessible from the front panel. - Smart Cable Management – Cable routing clips are pre-mounted on the MB so users can arrange the cables inside the chassis neatly - CPU holes is pre-drilled on the MB plate for ease of CPU cooler assembly Superb Cooling – Users can install up to 7 fans - 3 x 12 cm front intake fans (optional), 2 x 12 cm/14 cm intake side panel fans (optional), 1 x 12 cm back exhaust fan (included) and 1 x 12 cm intake bottom fan (optional). - Un-rival Airflow – The front "Mesh" front bay cover design allows max intake of cold air. The top chassis vent holes enable the hot air inside the chassis to exist easily. Users also have the option to install up to 2 x 12 cm/14 cm on the top panel if there is sufficient space inside the chassis. - TAC 2. 0 compatible Side Panel - Bottom PSU position – the bottom PSU location enables PSUs to suck in cold air and provides better air flow for your system. - Water-cooling Support – water-cooling holes are pre-drilled to support watercooling systems!! - Supports 1 x SSD Drive Features - High performance "Mid-Tower" for gamers and enthusiast.

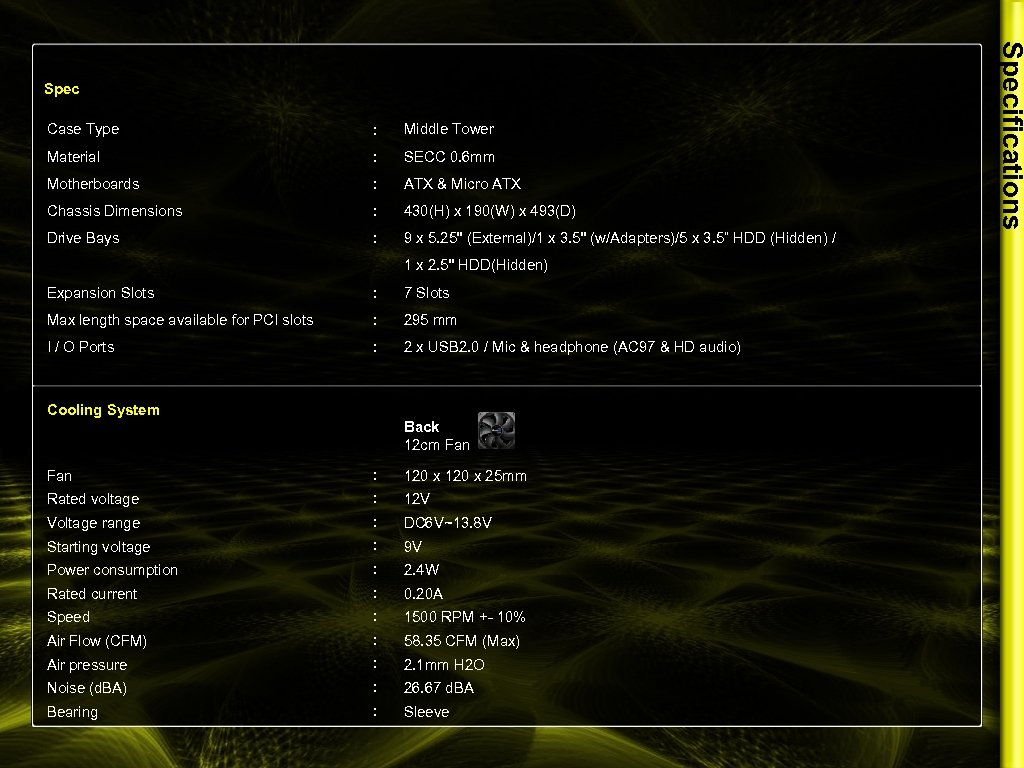

Case Type : Middle Tower Material : SECC 0. 6 mm Motherboards : ATX Case Type : Middle Tower Material : SECC 0. 6 mm Motherboards : ATX & Micro ATX Chassis Dimensions : 430(H) x 190(W) x 493(D) Drive Bays : 9 x 5. 25" (External)/1 x 3. 5" (w/Adapters)/5 x 3. 5” HDD (Hidden) / 1 x 2. 5" HDD(Hidden) Expansion Slots : 7 Slots Max length space available for PCI slots : 295 mm I / O Ports : 2 x USB 2. 0 / Mic & headphone (AC 97 & HD audio) Cooling System Back 12 cm Fan : 120 x 25 mm Rated voltage : 12 V Voltage range : DC 6 V~13. 8 V Starting voltage : 9 V Power consumption : 2. 4 W Rated current : 0. 20 A Speed : 1500 RPM +- 10% Air Flow (CFM) : 58. 35 CFM (Max) Air pressure : 2. 1 mm H 2 O Noise (d. BA) : 26. 67 d. BA Bearing : Sleeve Specifications Spec

Air Flow Superb airflow - install up to 7 fans !! 1. Front - Air Flow Superb airflow - install up to 7 fans !! 1. Front - 3 x 12 cm fan (optional)-(w/Fan adaptor) 2. Back - 1 x 12 cm fan (included) 3. Side - 2 x 14 or 12 cm fan (optional) 4. Bottom - 1 x 14 or 12 cm fan (optional)

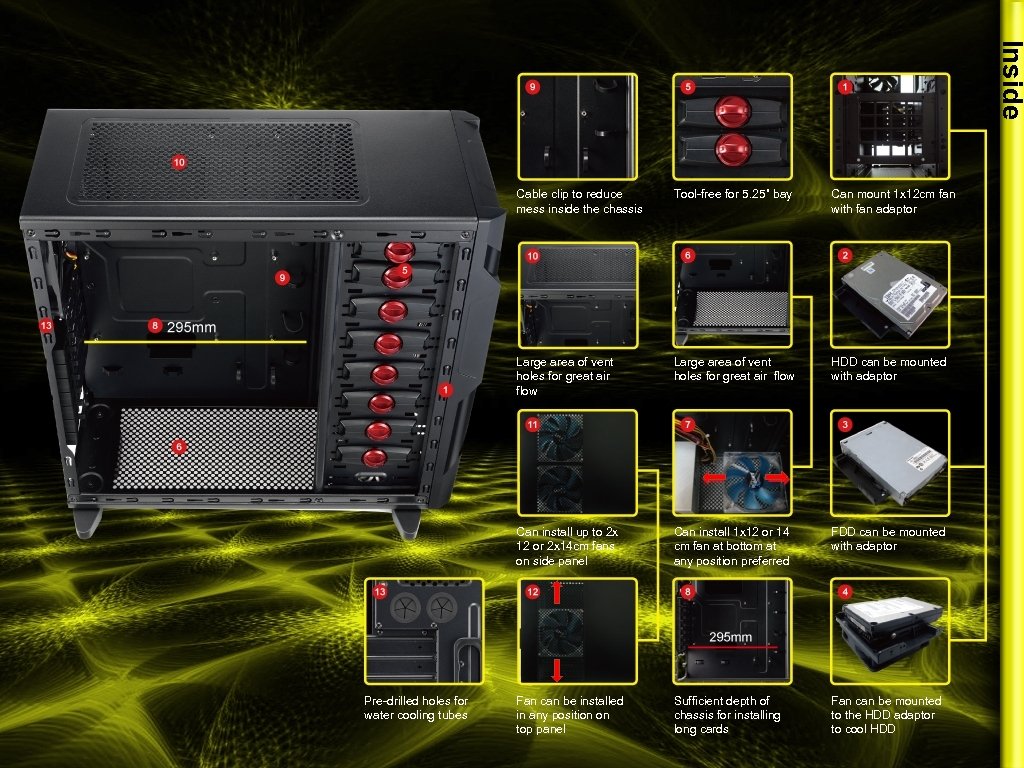

Inside Cable clip to reduce mess inside the chassis Can mount 1 x 12 Inside Cable clip to reduce mess inside the chassis Can mount 1 x 12 cm fan with fan adaptor Large area of vent holes for great air flow HDD can be mounted with adaptor Can install up to 2 x 12 or 2 x 14 cm fans on side panel Pre-drilled holes for water cooling tubes Tool-free for 5. 25” bay Can install 1 x 12 or 14 cm fan at bottom at any position preferred FDD can be mounted with adaptor Fan can be installed in any position on top panel Sufficient depth of chassis for installing long cards Fan can be mounted to the HDD adaptor to cool HDD

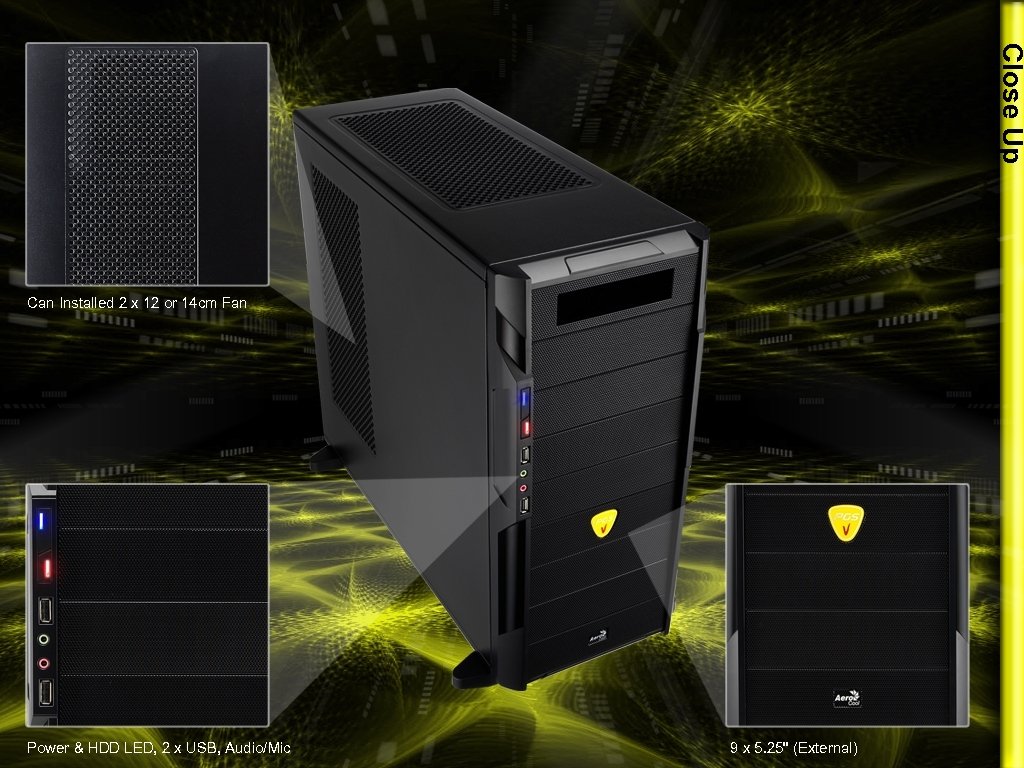

Close Up Can Installed 2 x 12 or 14 cm Fan Power & HDD Close Up Can Installed 2 x 12 or 14 cm Fan Power & HDD LED, 2 x USB, Audio/Mic 9 x 5. 25" (External)
