Pro. Curve 4200 vl NDA Presentation April 2008 © 2008 Hewlett-Packard Development Company, L. Pro. Curve 4200 vl NDA Presentation April 2008 © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

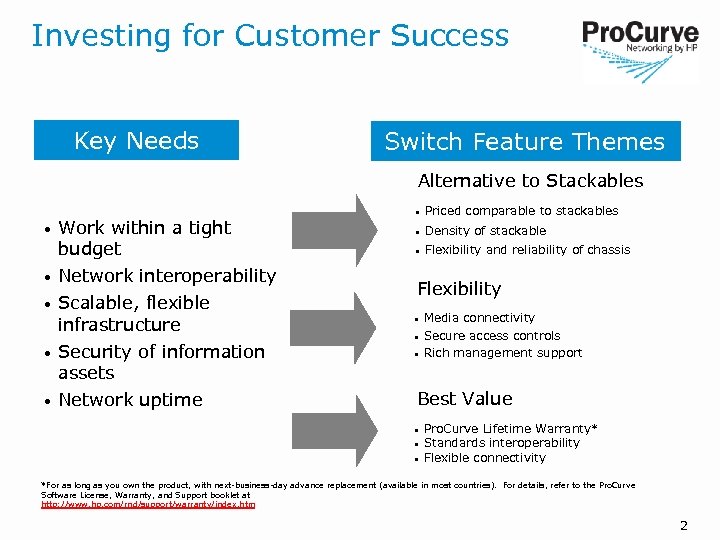

Investing for Customer Success Key Needs Switch Feature Themes Alternative to Stackables • • Investing for Customer Success Key Needs Switch Feature Themes Alternative to Stackables • • • Work within a tight budget Network interoperability Scalable, flexible infrastructure Security of information assets Network uptime • Priced comparable to stackables • Density of stackable • Flexibility and reliability of chassis Flexibility • Media connectivity • Secure access controls • Rich management support Best Value • Pro. Curve Lifetime Warranty* • Standards interoperability • Flexible connectivity *For as long as you own the product, with next-business-day advance replacement (available in most countries). For details, refer to the Pro. Curve Software License, Warranty, and Support booklet at http: //www. hp. com/rnd/support/warranty/index. htm 2

Pro. Curve Chassis Switch Portfolio Positioning 9300 • Multi-protocol routing (IP, IPX, AT) • Pro. Curve Chassis Switch Portfolio Positioning 9300 • Multi-protocol routing (IP, IPX, AT) • Gigabit optimized • Wire-speed Layer 4 services Functionality • Redundant high availability • High network Scalability 8100 8200 • Alternative to other vendor’s stackables • 10/100 and Gigabit optimized • Traditional edge services 4200 5400 5300 • Resilient high availability • Gig/10 G balanced • L 2 -L 4 features • Core-to-edge unified • Pro. Vision ASIC, Versatile Intelligent Port • Gigabit Po. E optimized • Wire-speed intelligent edge services • Programmable ASIC • 10/100 and Gigabit optimized • Intelligent edge services 4100 • Fast Path Technology • 10/100 optimized • Layer 2+IP static routes Price/Performance 3

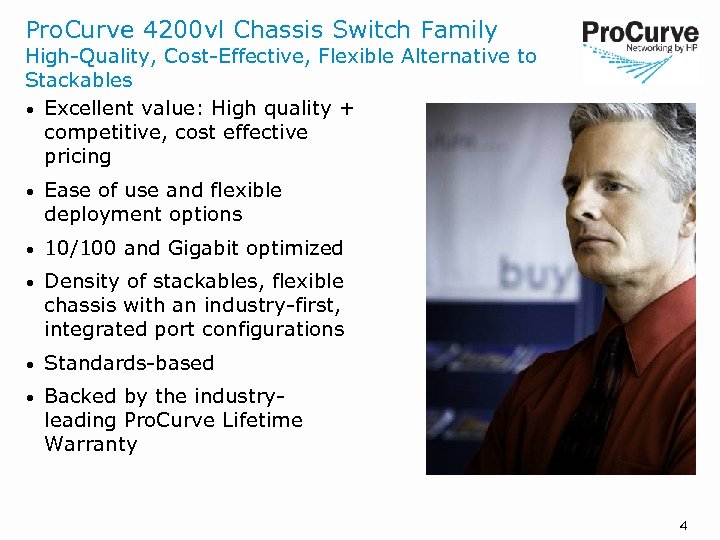

Pro. Curve 4200 vl Chassis Switch Family High-Quality, Cost-Effective, Flexible Alternative to Stackables • Pro. Curve 4200 vl Chassis Switch Family High-Quality, Cost-Effective, Flexible Alternative to Stackables • Excellent value: High quality + competitive, cost effective pricing • Ease of use and flexible deployment options • 10/100 and Gigabit optimized • Density of stackables, flexible chassis with an industry-first, integrated port configurations • Standards-based • Backed by the industryleading Pro. Curve Lifetime Warranty 4

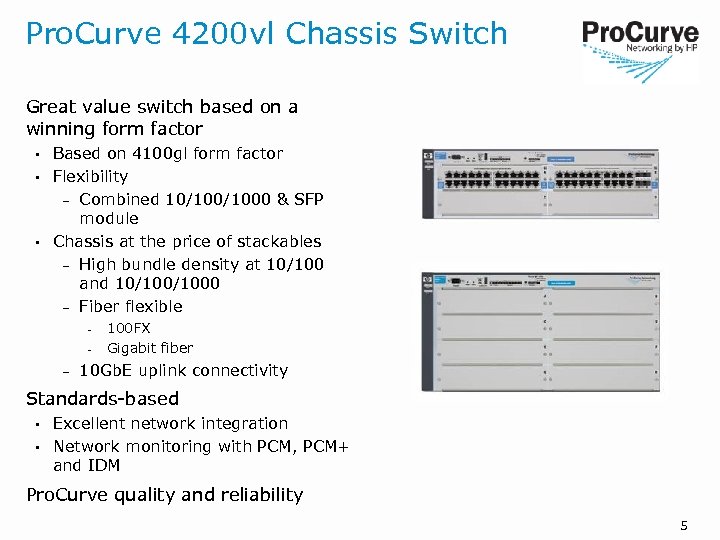

Pro. Curve 4200 vl Chassis Switch Great value switch based on a winning form Pro. Curve 4200 vl Chassis Switch Great value switch based on a winning form factor • • • Based on 4100 gl form factor Flexibility – Combined 10/1000 & SFP module Chassis at the price of stackables – High bundle density at 10/100 and 10/1000 – Fiber flexible - – 100 FX Gigabit fiber 10 Gb. E uplink connectivity Standards-based • • Excellent network integration Network monitoring with PCM, PCM+ and IDM Pro. Curve quality and reliability 5

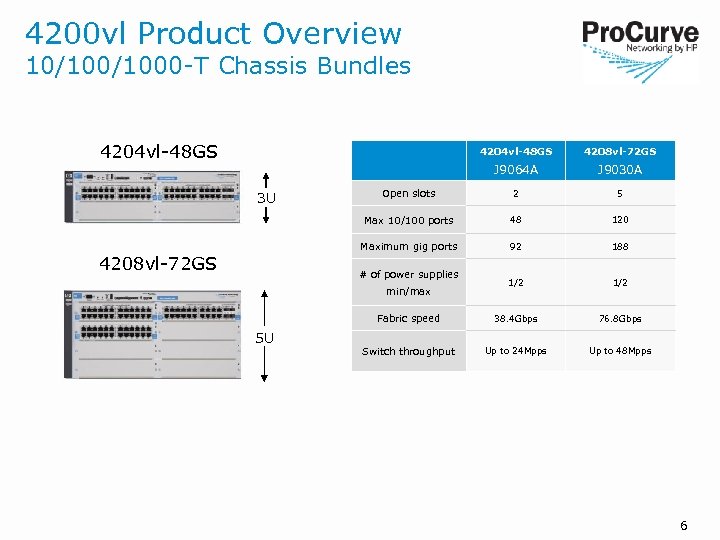

4200 vl Product Overview 10/1000 -T Chassis Bundles 4204 vl-48 GS J 9064 A 4200 vl Product Overview 10/1000 -T Chassis Bundles 4204 vl-48 GS J 9064 A Open slots 2 5 48 120 Maximum gig ports 92 188 1/2 Fabric speed 4208 vl-72 GS J 9030 A Max 10/100 ports 3 U 4208 vl-72 GS 38. 4 Gbps 76. 8 Gbps Switch throughput Up to 24 Mpps Up to 48 Mpps # of power supplies min/max 5 U 6

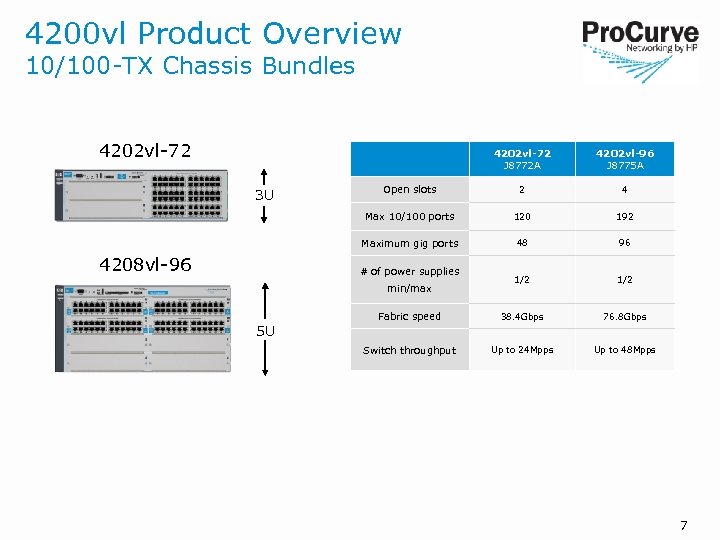

4200 vl Product Overview 10/100 -TX Chassis Bundles 4202 vl-72 J 8772 A 2 4200 vl Product Overview 10/100 -TX Chassis Bundles 4202 vl-72 J 8772 A 2 4 120 192 Maximum gig ports 4208 vl-96 Open slots Max 10/100 ports 3 U 4202 vl-96 J 8775 A 48 96 1/2 Fabric speed 38. 4 Gbps 76. 8 Gbps Switch throughput Up to 24 Mpps Up to 48 Mpps # of power supplies min/max 5 U 7

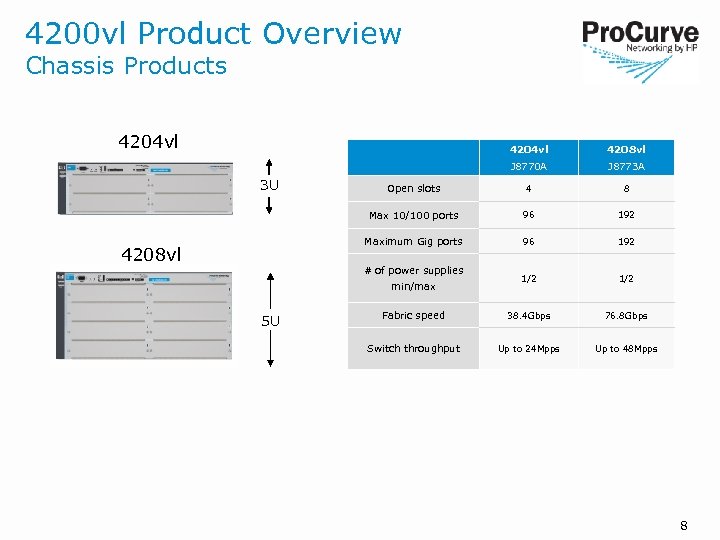

4200 vl Product Overview Chassis Products 4204 vl J 8770 A Open slots 4 4200 vl Product Overview Chassis Products 4204 vl J 8770 A Open slots 4 8 96 192 Maximum Gig ports 4208 vl J 8773 A Max 10/100 ports 3 U 4208 vl 96 192 1/2 Fabric speed 38. 4 Gbps 76. 8 Gbps Switch throughput Up to 24 Mpps Up to 48 Mpps # of power supplies min/max 5 U 8

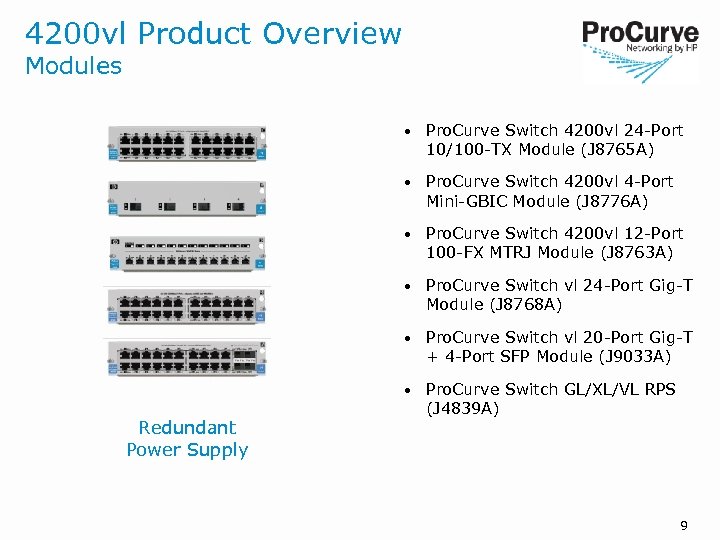

4200 vl Product Overview Modules • • Pro. Curve Switch 4200 vl 4 -Port 4200 vl Product Overview Modules • • Pro. Curve Switch 4200 vl 4 -Port Mini-GBIC Module (J 8776 A) • Pro. Curve Switch 4200 vl 12 -Port 100 -FX MTRJ Module (J 8763 A) • Pro. Curve Switch vl 24 -Port Gig-T Module (J 8768 A) • Pro. Curve Switch vl 20 -Port Gig-T + 4 -Port SFP Module (J 9033 A) • Redundant Power Supply Pro. Curve Switch 4200 vl 24 -Port 10/100 -TX Module (J 8765 A) Pro. Curve Switch GL/XL/VL RPS (J 4839 A) 9

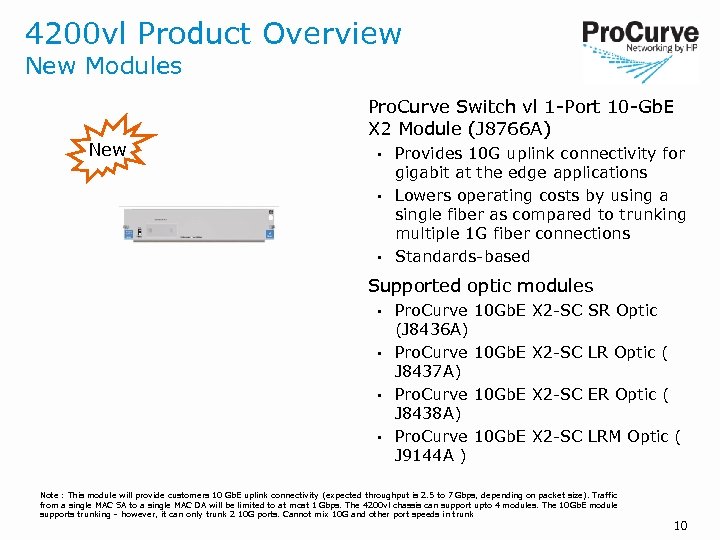

4200 vl Product Overview New Modules New Pro. Curve Switch vl 1 -Port 10 4200 vl Product Overview New Modules New Pro. Curve Switch vl 1 -Port 10 -Gb. E X 2 Module (J 8766 A) • • • Provides 10 G uplink connectivity for gigabit at the edge applications Lowers operating costs by using a single fiber as compared to trunking multiple 1 G fiber connections Standards-based Supported optic modules • • Pro. Curve 10 Gb. E X 2 -SC SR Optic (J 8436 A) Pro. Curve 10 Gb. E X 2 -SC LR Optic ( J 8437 A) Pro. Curve 10 Gb. E X 2 -SC ER Optic ( J 8438 A) Pro. Curve 10 Gb. E X 2 -SC LRM Optic ( J 9144 A ) Note : This module will provide customers 10 Gb. E uplink connectivity (expected throughput is 2. 5 to 7 Gbps, depending on packet size). Traffic from a single MAC SA to a single MAC DA will be limited to at most 1 Gbps. The 4200 vl chassis can support upto 4 modules. The 10 Gb. E module supports trunking – however, it can only trunk 2 10 G ports. Cannot mix 10 G and other port speeds in trunk 10

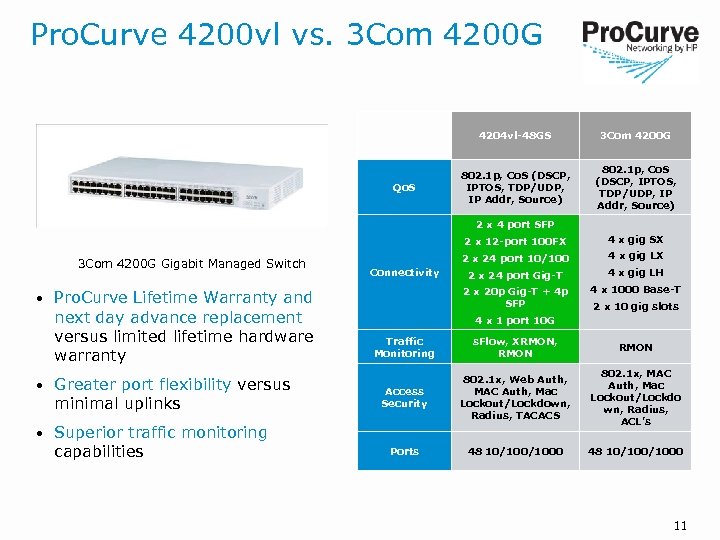

Pro. Curve 4200 vl vs. 3 Com 4200 G 4204 vl-48 GS Qo. S Pro. Curve 4200 vl vs. 3 Com 4200 G 4204 vl-48 GS Qo. S 3 Com 4200 G 802. 1 p, Co. S (DSCP, IPTOS, TDP/UDP, IP Addr, Source) 2 x 4 port SFP 2 x 12 -port 100 FX 3 Com 4200 G Gigabit Managed Switch • Pro. Curve Lifetime Warranty and next day advance replacement versus limited lifetime hardware warranty • Greater port flexibility versus minimal uplinks • Superior traffic monitoring capabilities 2 x 24 port 10/100 4 x gig LX 2 x 24 port Gig-T 4 x gig LH 2 x 20 p Gig-T + 4 p SFP Connectivity 4 x gig SX 4 x 1000 Base-T 2 x 10 gig slots 4 x 1 port 10 G Traffic Monitoring s. Flow, XRMON, RMON Access Security 802. 1 x, Web Auth, MAC Auth, Mac Lockout/Lockdown, Radius, TACACS 802. 1 x, MAC Auth, Mac Lockout/Lockdo wn, Radius, ACL’s Ports 48 10/100/1000 11

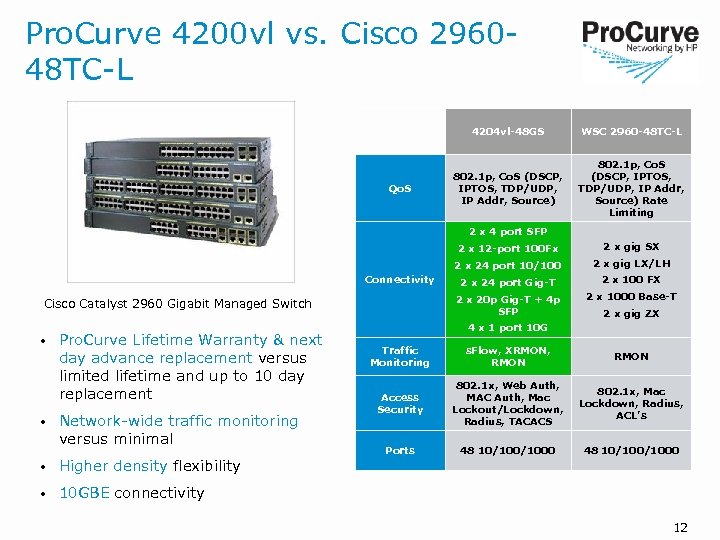

Pro. Curve 4200 vl vs. Cisco 296048 TC-L 4204 vl-48 GS Qo. S WSC Pro. Curve 4200 vl vs. Cisco 296048 TC-L 4204 vl-48 GS Qo. S WSC 2960 -48 TC-L 802. 1 p, Co. S (DSCP, IPTOS, TDP/UDP, IP Addr, Source) Rate Limiting 2 x 4 port SFP 2 x 12 -port 100 Fx 2 x 24 port 10/100 Cisco Catalyst 2960 Gigabit Managed Switch • • Pro. Curve Lifetime Warranty & next day advance replacement versus limited lifetime and up to 10 day replacement Network-wide traffic monitoring versus minimal • Higher density flexibility • 2 x gig LX/LH 2 x 24 port Gig-T 2 x 100 FX 2 x 20 p Gig-T + 4 p SFP Connectivity 2 x gig SX 2 x 1000 Base-T 2 x gig ZX 4 x 1 port 10 G Traffic Monitoring s. Flow, XRMON, RMON Access Security 802. 1 x, Web Auth, MAC Auth, Mac Lockout/Lockdown, Radius, TACACS 802. 1 x, Mac Lockdown, Radius, ACL’s Ports 48 10/100/1000 10 GBE connectivity 12

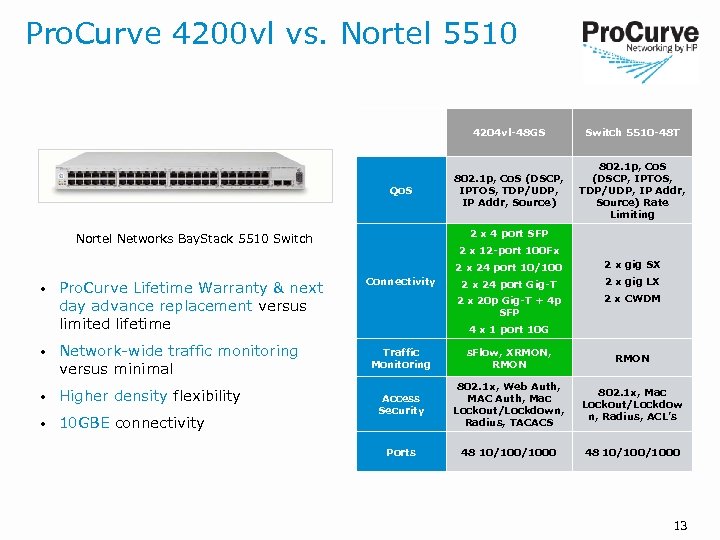

Pro. Curve 4200 vl vs. Nortel 5510 4204 vl-48 GS Qo. S Switch 5510 Pro. Curve 4200 vl vs. Nortel 5510 4204 vl-48 GS Qo. S Switch 5510 -48 T 802. 1 p, Co. S (DSCP, IPTOS, TDP/UDP, IP Addr, Source) Rate Limiting 2 x 4 port SFP Nortel Networks Bay. Stack 5510 Switch 2 x 12 -port 100 Fx 2 x 24 port 10/100 • Pro. Curve Lifetime Warranty & next day advance replacement versus limited lifetime • Network-wide traffic monitoring versus minimal • Higher density flexibility • 10 GBE connectivity 2 x 24 port Gig-T 2 x gig LX 2 x 20 p Gig-T + 4 p SFP Connectivity 2 x gig SX 2 x CWDM 4 x 1 port 10 G Traffic Monitoring s. Flow, XRMON, RMON Access Security 802. 1 x, Web Auth, MAC Auth, Mac Lockout/Lockdown, Radius, TACACS 802. 1 x, Mac Lockout/Lockdow n, Radius, ACL’s Ports 48 10/100/1000 13

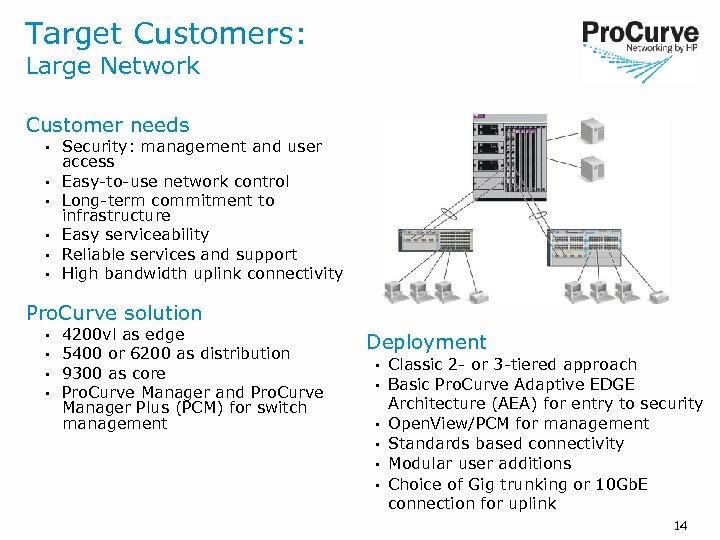

Target Customers: Large Network Customer needs • • • Security: management and user access Target Customers: Large Network Customer needs • • • Security: management and user access Easy-to-use network control Long-term commitment to infrastructure Easy serviceability Reliable services and support High bandwidth uplink connectivity Pro. Curve solution • • 4200 vl as edge 5400 or 6200 as distribution 9300 as core Pro. Curve Manager and Pro. Curve Manager Plus (PCM) for switch management Deployment • • • Classic 2 - or 3 -tiered approach Basic Pro. Curve Adaptive EDGE Architecture (AEA) for entry to security Open. View/PCM for management Standards based connectivity Modular user additions Choice of Gig trunking or 10 Gb. E connection for uplink 14

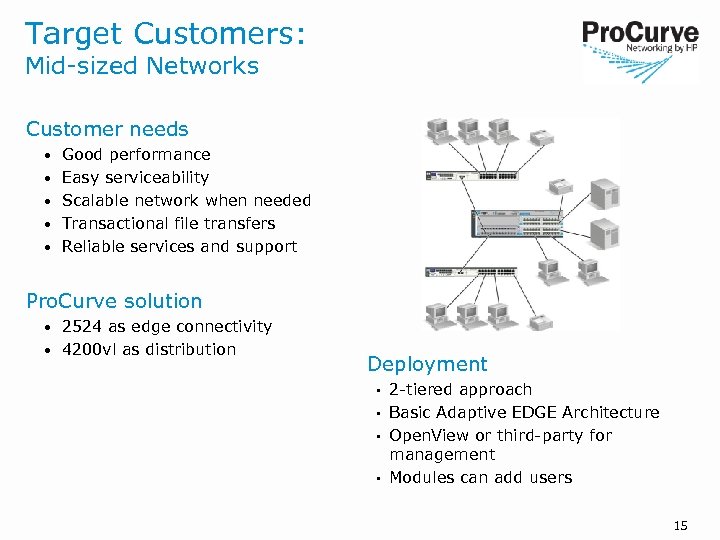

Target Customers: Mid-sized Networks Customer needs • • • Good performance Easy serviceability Scalable Target Customers: Mid-sized Networks Customer needs • • • Good performance Easy serviceability Scalable network when needed Transactional file transfers Reliable services and support Pro. Curve solution • • 2524 as edge connectivity 4200 vl as distribution Deployment • • 2 -tiered approach Basic Adaptive EDGE Architecture Open. View or third-party for management Modules can add users 15

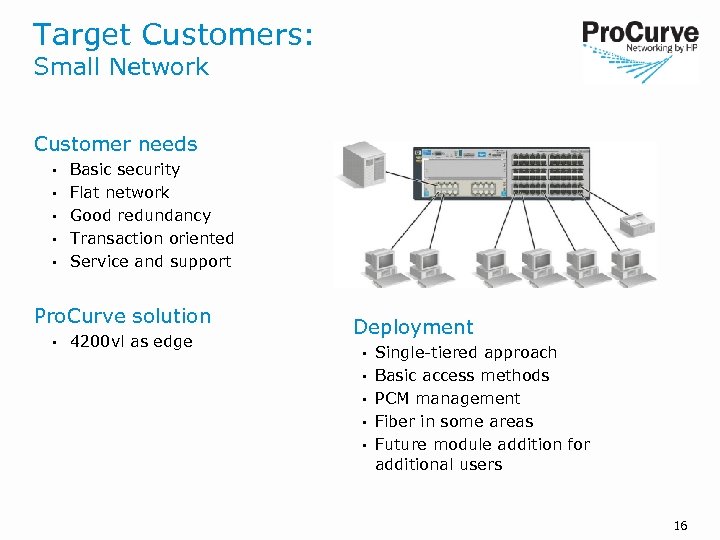

Target Customers: Small Network Customer needs • • • Basic security Flat network Good Target Customers: Small Network Customer needs • • • Basic security Flat network Good redundancy Transaction oriented Service and support Pro. Curve solution • 4200 vl as edge Deployment • • • Single-tiered approach Basic access methods PCM management Fiber in some areas Future module addition for additional users 16

Update: Pro. Curve 10 -Gb. E X 2 -SC LRM Optic NDA Presentation April Update: Pro. Curve 10 -Gb. E X 2 -SC LRM Optic NDA Presentation April 2008 © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

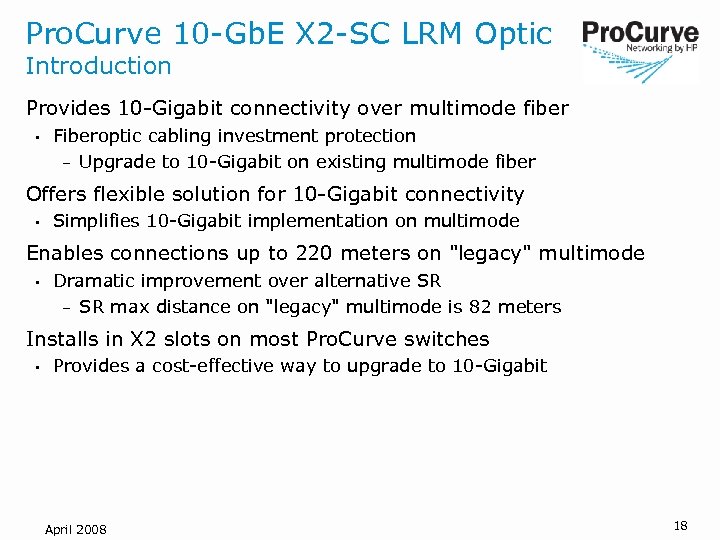

Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Introduction Provides 10 -Gigabit Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Introduction Provides 10 -Gigabit connectivity over multimode fiber • Fiberoptic cabling investment protection – Upgrade to 10 -Gigabit on existing multimode fiber Offers flexible solution for 10 -Gigabit connectivity • Simplifies 10 -Gigabit implementation on multimode Enables connections up to 220 meters on "legacy" multimode • Dramatic improvement over alternative SR – SR max distance on "legacy" multimode is 82 meters Installs in X 2 slots on most Pro. Curve switches • Provides a cost-effective way to upgrade to 10 -Gigabit April 2008 18

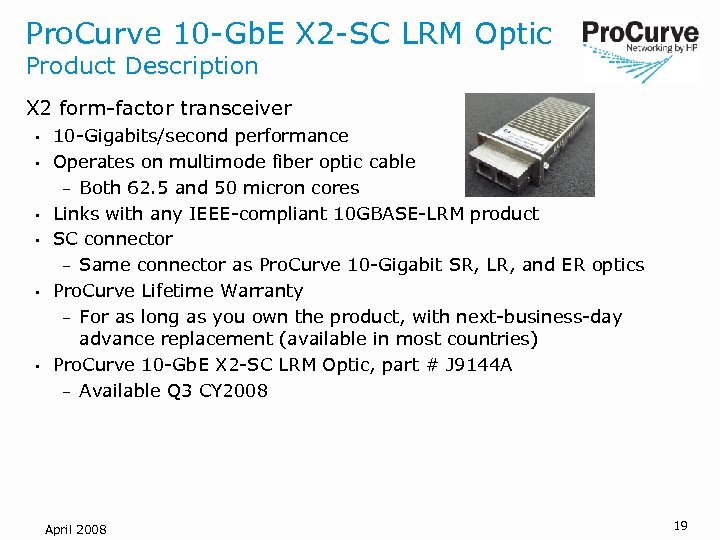

Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Product Description X 2 Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Product Description X 2 form-factor transceiver • • • 10 -Gigabits/second performance Operates on multimode fiber optic cable – Both 62. 5 and 50 micron cores Links with any IEEE-compliant 10 GBASE-LRM product SC connector – Same connector as Pro. Curve 10 -Gigabit SR, LR, and ER optics Pro. Curve Lifetime Warranty – For as long as you own the product, with next-business-day advance replacement (available in most countries) Pro. Curve 10 -Gb. E X 2 -SC LRM Optic, part # J 9144 A – Available Q 3 CY 2008 April 2008 19

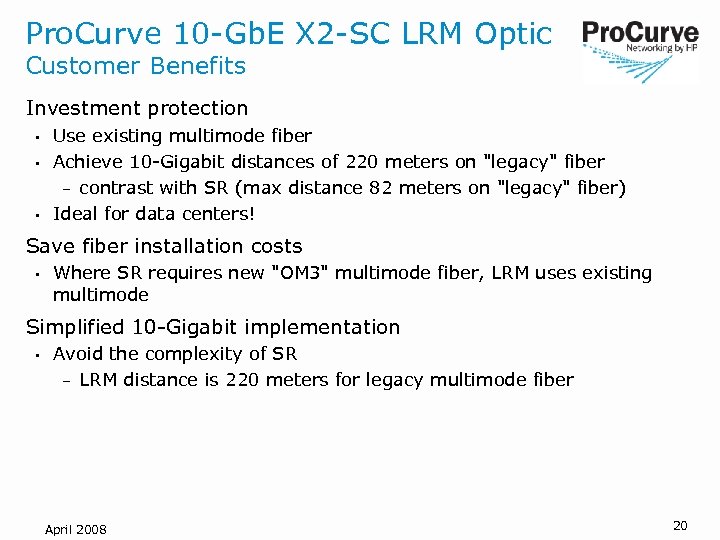

Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Customer Benefits Investment protection Pro. Curve 10 -Gb. E X 2 -SC LRM Optic Customer Benefits Investment protection • • • Use existing multimode fiber Achieve 10 -Gigabit distances of 220 meters on "legacy" fiber – contrast with SR (max distance 82 meters on "legacy" fiber) Ideal for data centers! Save fiber installation costs • Where SR requires new "OM 3" multimode fiber, LRM uses existing multimode Simplified 10 -Gigabit implementation • Avoid the complexity of SR – LRM distance is 220 meters for legacy multimode fiber April 2008 20

Summary The Pro. Curve 10 -Gb. E X 2 -SC LRM Optic adds a Summary The Pro. Curve 10 -Gb. E X 2 -SC LRM Optic adds a flexible 10 -Gigabit alternative to these Pro. Curve switches: • 2900, 3500 yl, 4200 vl, 5400 zl, 6200 yl, 8200 zl Enables simplified upgrade to 10 -Gigabit on existing multimode fiber optic cable • Cabling infrastructure investment protection Available in Q 3 CY 2008 April 2008 21

Backup Slides © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is Backup Slides © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

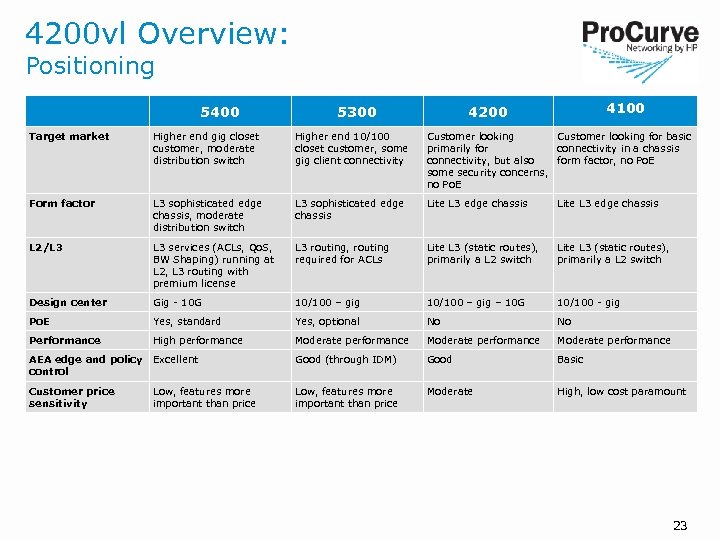

4200 vl Overview: Positioning 5400 5300 4100 4200 Target market Higher end gig closet 4200 vl Overview: Positioning 5400 5300 4100 4200 Target market Higher end gig closet customer, moderate distribution switch Higher end 10/100 closet customer, some gig client connectivity Customer looking for basic primarily for connectivity in a chassis connectivity, but also form factor, no Po. E some security concerns, no Po. E Form factor L 3 sophisticated edge chassis, moderate distribution switch L 3 sophisticated edge chassis Lite L 3 edge chassis L 2/L 3 services (ACLs, Qo. S, BW Shaping) running at L 2, L 3 routing with premium license L 3 routing, routing required for ACLs Lite L 3 (static routes), primarily a L 2 switch Design center Gig - 10 G 10/100 – gig – 10 G 10/100 - gig Po. E Yes, standard Yes, optional No No Performance High performance Moderate performance AEA edge and policy control Excellent Good (through IDM) Good Basic Customer price sensitivity Low, features more important than price Moderate High, low cost paramount 23

Pro. Curve Switch 4200 vl Series Feature Highlights Layer 3 IP routing • Static Pro. Curve Switch 4200 vl Series Feature Highlights Layer 3 IP routing • Static IP routing (16 routes) Convergence • Traffic prioritization: 802. 1 p • Class of service: 8 priority queues into 4 output queues Diff. Serv, IP address, IP TOS, L 3 Protocol, TCP/UDP port #, source port IGMPv 3: data driven and snooping • Qo. S • LLDP and LLDP-MED • Port mirroring: ingress/egress Manageability • Layer 4 prioritization: TCP/UDP ports Layer 2 switching • RMON, XRMON, s. Flow • Custom banner • • BOOTP/DHCP/TIMEP/SNTP • DHCP Option 82 • 802. 1 Q: 256 VLANs (4096 VLAN IDs) • DHCP snooping • Group VLAN registration protocol • Dual product code images • HP IP virtual stacking • Friendly port names • Auto MDIX configuration • Syslog • Find-fix-inform Resiliency / high availability • 802. 1 s multi-instance spanning tree • • Legacy support for IEEE 802. 1 d and IEEE 802. 1 w LACP, Pro. Curve trunking 36 trunk groups • Up to 8 ports per trunk • • Redundant power supply • Device broadcast throttling • HOT-swappable modules • Uni-Directional Link Detection (UDLD) 24

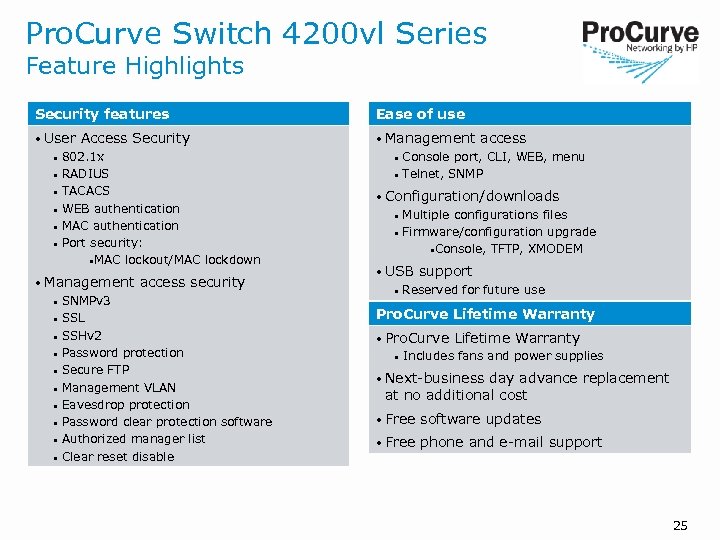

Pro. Curve Switch 4200 vl Series Feature Highlights Security features Ease of use • Pro. Curve Switch 4200 vl Series Feature Highlights Security features Ease of use • User Access Security • Management access • • • 802. 1 x RADIUS TACACS WEB authentication MAC authentication Port security: • MAC lockout/MAC lockdown • Management access security • • • SNMPv 3 SSL SSHv 2 Password protection Secure FTP Management VLAN Eavesdrop protection Password clear protection software Authorized manager list Clear reset disable Console port, CLI, WEB, menu • Telnet, SNMP • • Configuration/downloads Multiple configurations files • Firmware/configuration upgrade • Console, TFTP, XMODEM • • USB support • Reserved for future use Pro. Curve Lifetime Warranty • Includes fans and power supplies • Next-business day advance replacement at no additional cost • Free software updates • Free phone and e-mail support 25

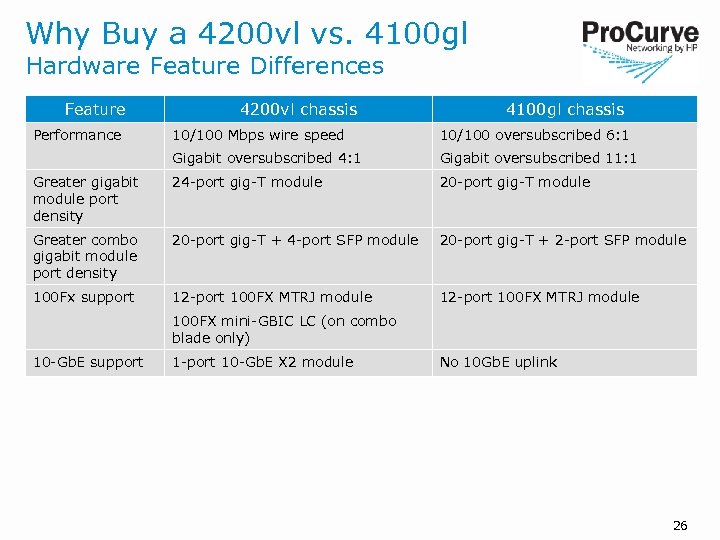

Why Buy a 4200 vl vs. 4100 gl Hardware Feature Differences Feature Performance 4200 Why Buy a 4200 vl vs. 4100 gl Hardware Feature Differences Feature Performance 4200 vl chassis 4100 gl chassis 10/100 Mbps wire speed 10/100 oversubscribed 6: 1 Gigabit oversubscribed 4: 1 Gigabit oversubscribed 11: 1 Greater gigabit module port density 24 -port gig-T module 20 -port gig-T module Greater combo gigabit module port density 20 -port gig-T + 4 -port SFP module 20 -port gig-T + 2 -port SFP module 100 Fx support 12 -port 100 FX MTRJ module 100 FX mini-GBIC LC (on combo blade only) 10 -Gb. E support 1 -port 10 -Gb. E X 2 module No 10 Gb. E uplink 26

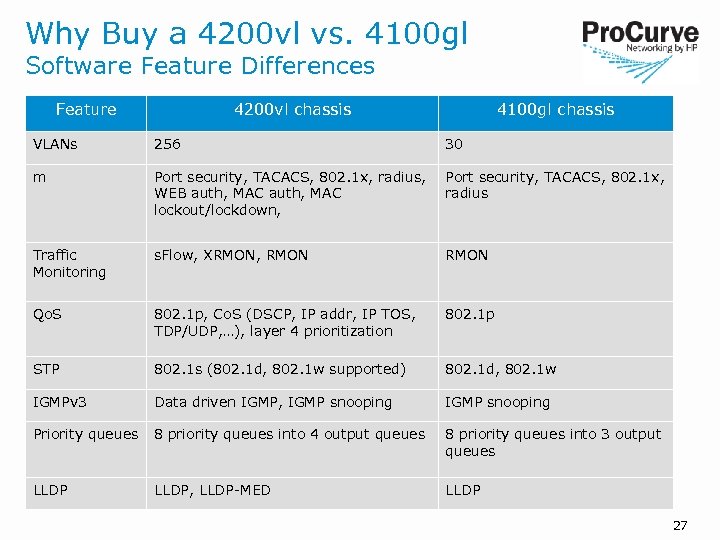

Why Buy a 4200 vl vs. 4100 gl Software Feature Differences Feature 4200 vl Why Buy a 4200 vl vs. 4100 gl Software Feature Differences Feature 4200 vl chassis 4100 gl chassis VLANs 256 30 m Port security, TACACS, 802. 1 x, radius, Port security, TACACS, 802. 1 x, WEB auth, MAC radius lockout/lockdown, Traffic Monitoring s. Flow, XRMON, RMON Qo. S 802. 1 p, Co. S (DSCP, IP addr, IP TOS, TDP/UDP, …), layer 4 prioritization 802. 1 p STP 802. 1 s (802. 1 d, 802. 1 w supported) 802. 1 d, 802. 1 w IGMPv 3 Data driven IGMP, IGMP snooping Priority queues 8 priority queues into 4 output queues 8 priority queues into 3 output queues LLDP, LLDP-MED LLDP 27

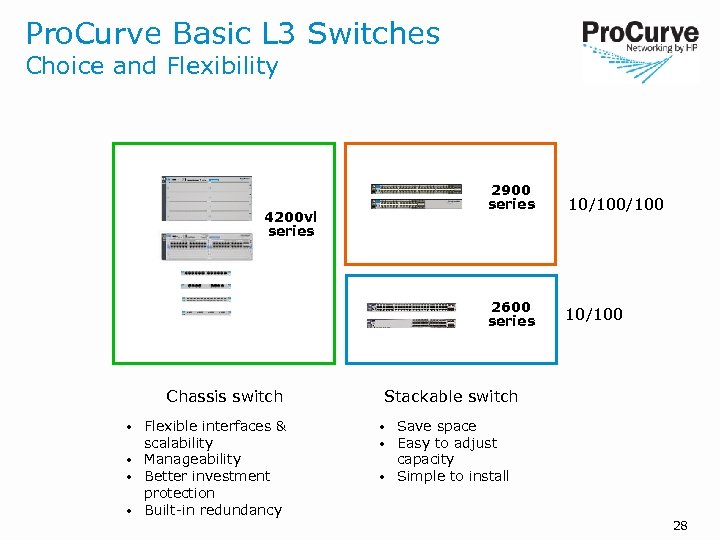

Pro. Curve Basic L 3 Switches Choice and Flexibility 2900 series Chassis switch • Pro. Curve Basic L 3 Switches Choice and Flexibility 2900 series Chassis switch • • Flexible interfaces & scalability Manageability Better investment protection Built-in redundancy 10/100 2600 series 4200 vl series 10/100 Stackable switch • • • Save space Easy to adjust capacity Simple to install 28

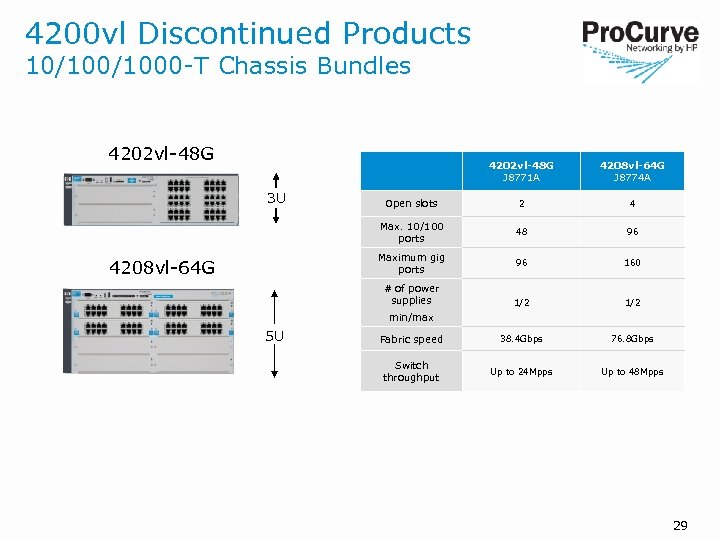

4200 vl Discontinued Products 10/1000 -T Chassis Bundles 4202 vl-48 G J 8771 A 4200 vl Discontinued Products 10/1000 -T Chassis Bundles 4202 vl-48 G J 8771 A 2 4 48 96 Maximum gig ports 4208 vl-64 G Open slots Max. 10/100 ports 3 U 4208 vl-64 G J 8774 A 96 160 1/2 Fabric speed 38. 4 Gbps 76. 8 Gbps Switch throughput Up to 24 Mpps Up to 48 Mpps # of power supplies min/max 5 U 29

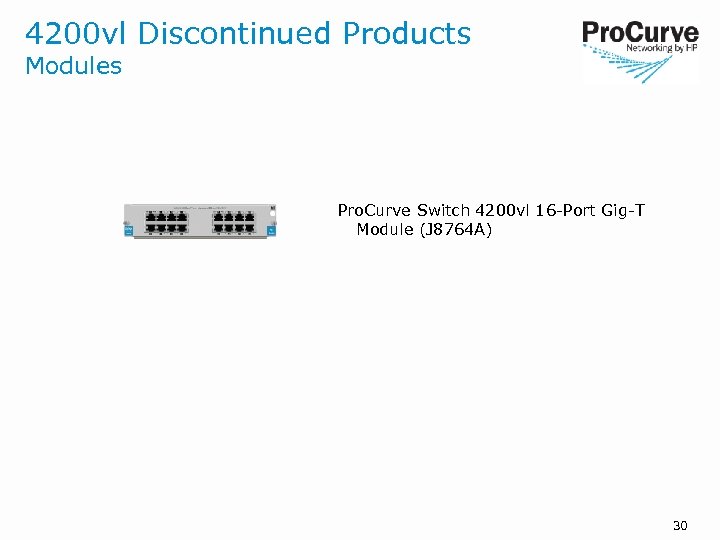

4200 vl Discontinued Products Modules Pro. Curve Switch 4200 vl 16 -Port Gig-T Module 4200 vl Discontinued Products Modules Pro. Curve Switch 4200 vl 16 -Port Gig-T Module (J 8764 A) 30
