PRMS/MMS: A Model and Modeling Framework for Use in Water- and Environmental. Resources Management PRMS/MMS: A Model and Modeling Framework for Use in Water- and Environmental. Resources Management George Leavesley USGS, Denver, Colorado USA

Overview n n n PRMS MMS Focus Areas in Model Development Model Processes n Overview n n n PRMS MMS Focus Areas in Model Development Model Processes n Toolbox n n Summary

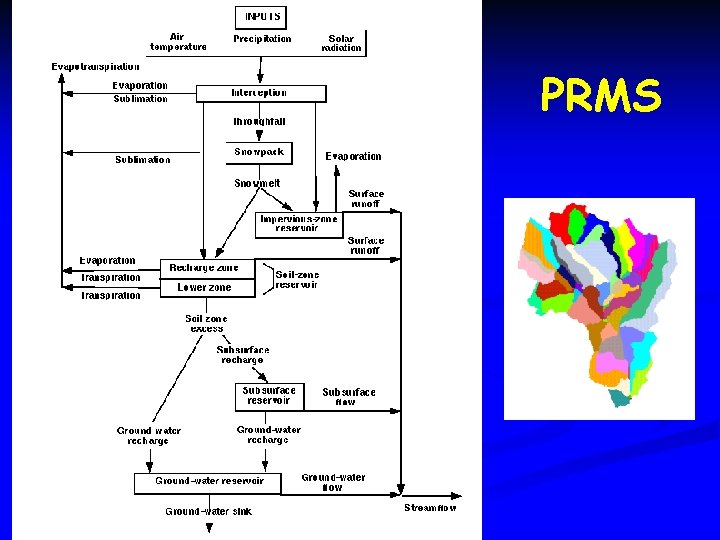

PRMS PRMS

PRMS Features Modular Design n Deterministic n Distributed Parameter n Daily and Storm Mode PRMS Features Modular Design n Deterministic n Distributed Parameter n Daily and Storm Mode n User Modifiable n

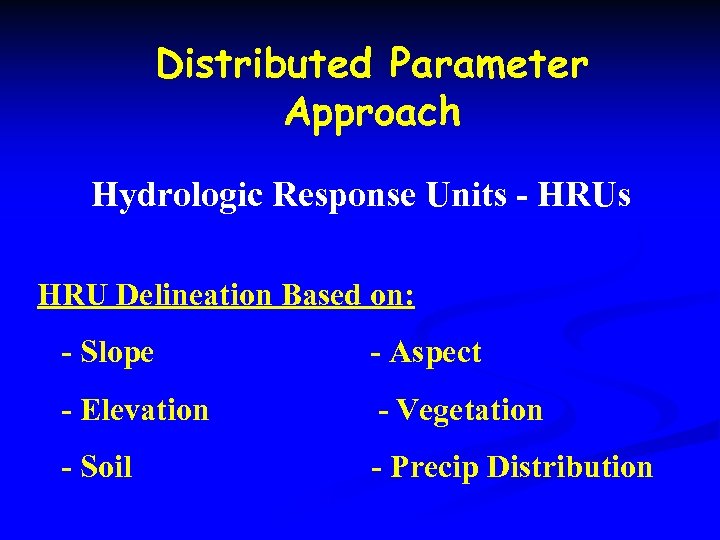

Distributed Parameter Approach Hydrologic Response Units - HRUs HRU Delineation Based on: - Slope Distributed Parameter Approach Hydrologic Response Units - HRUs HRU Delineation Based on: - Slope - Aspect - Elevation - Vegetation - Soil - Precip Distribution

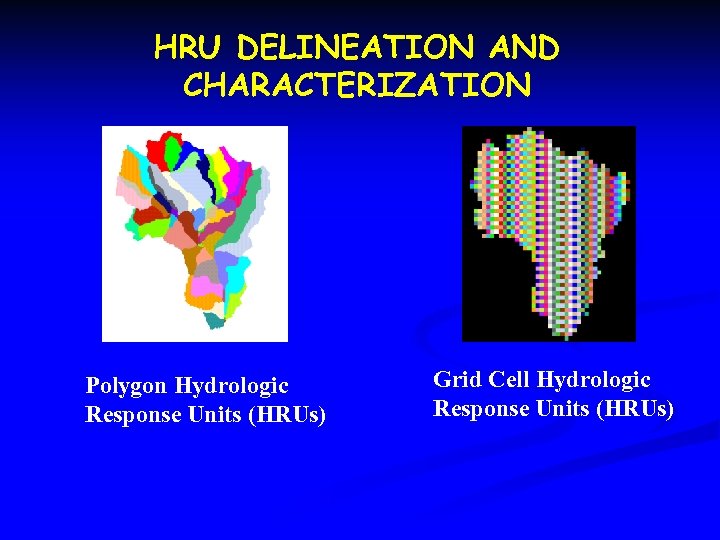

HRU DELINEATION AND CHARACTERIZATION Polygon Hydrologic Response Units (HRUs) Grid Cell Hydrologic Response Units HRU DELINEATION AND CHARACTERIZATION Polygon Hydrologic Response Units (HRUs) Grid Cell Hydrologic Response Units (HRUs)

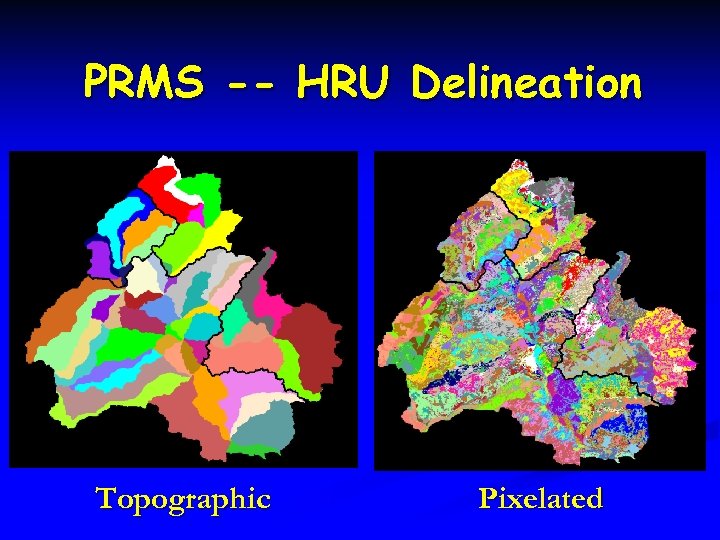

PRMS -- HRU Delineation Topographic Pixelated PRMS -- HRU Delineation Topographic Pixelated

CASCADING FLOW PLANES 1 2 1 3 7 8 Overland Flow Path 10 9 CASCADING FLOW PLANES 1 2 1 3 7 8 Overland Flow Path 10 9 1 3 Channel Segment 3 Channel Junction 2 4 6 Overland Flow Plane 2 4 5 12 width Grass/Agriculture Bare Ground/Rock 11 Trees length Shrubs

The Modular Modeling System (MMS) An integrated system of computer software developed to: n The Modular Modeling System (MMS) An integrated system of computer software developed to: n n n Provide a common framework for model development and operational applications Facilitate the integration of multi-disciplinary modeling approaches for use in addressing complex, multiobjective, resource-management problems Provide a toolbox-approach to the development of resource-management, decision-support systems

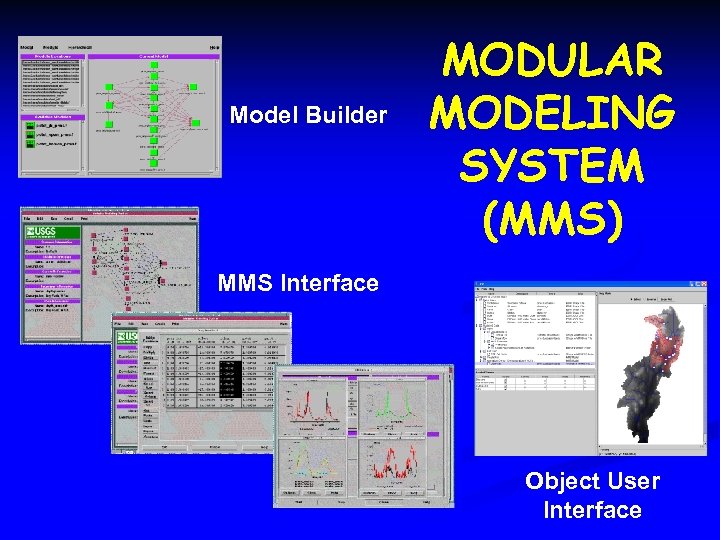

Model Builder MODULAR MODELING SYSTEM (MMS) MMS Interface Object User Interface Model Builder MODULAR MODELING SYSTEM (MMS) MMS Interface Object User Interface

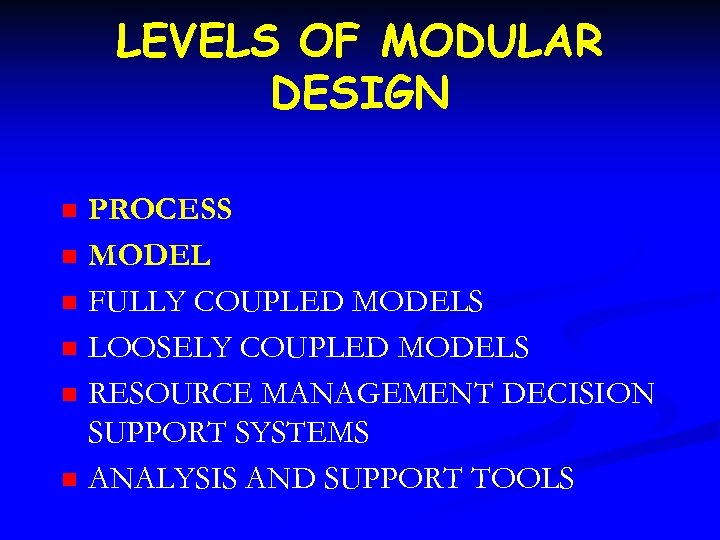

LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED MODELS RESOURCE MANAGEMENT DECISION SUPPORT SYSTEMS ANALYSIS AND SUPPORT TOOLS

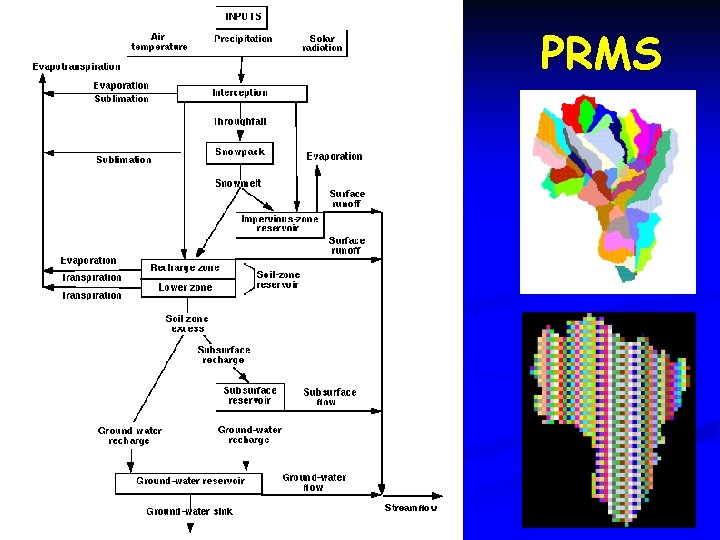

PRMS PRMS

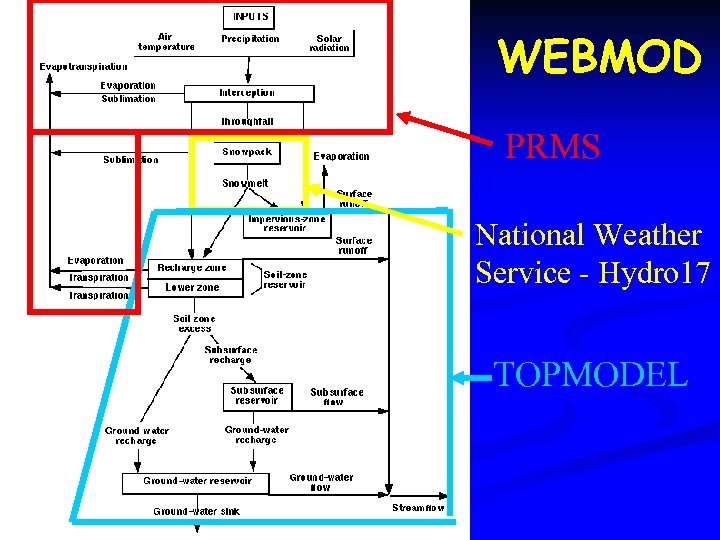

WEBMOD PRMS National Weather Service - Hydro 17 TOPMODEL WEBMOD PRMS National Weather Service - Hydro 17 TOPMODEL

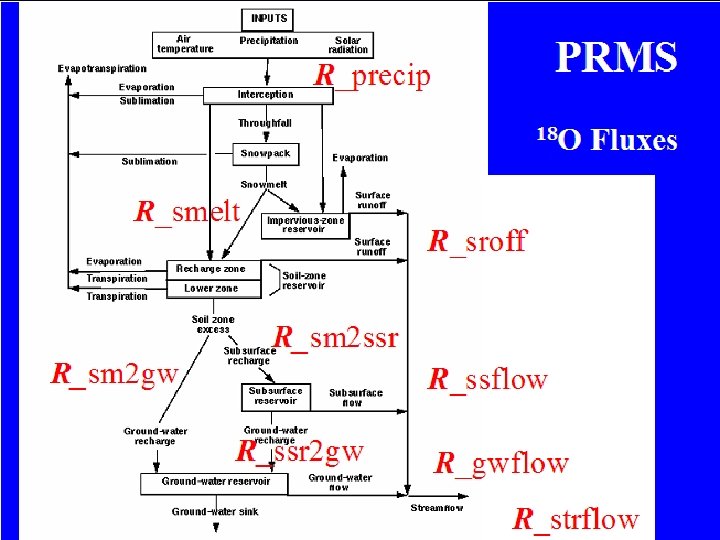

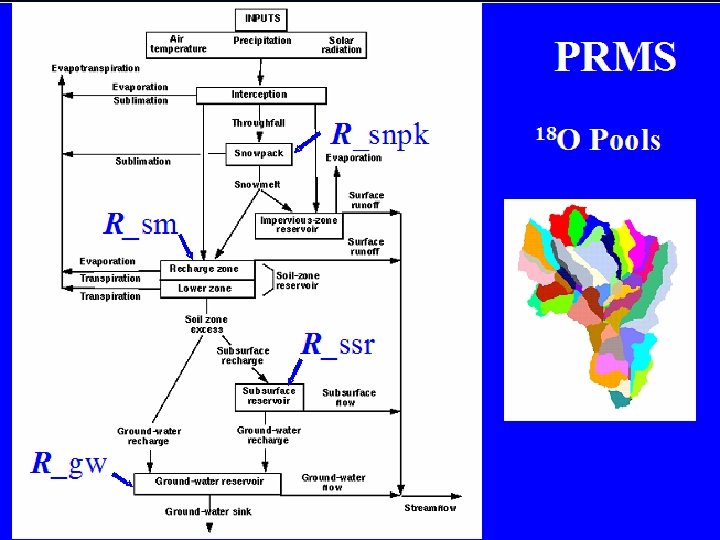

Use Chemical and Isotopic Tracers to Evaluate Next step: Use tracers to constrain the Use Chemical and Isotopic Tracers to Evaluate Next step: Use tracers to constrain the hydrologic Paths Simulated Flowsolutions and Residence Times

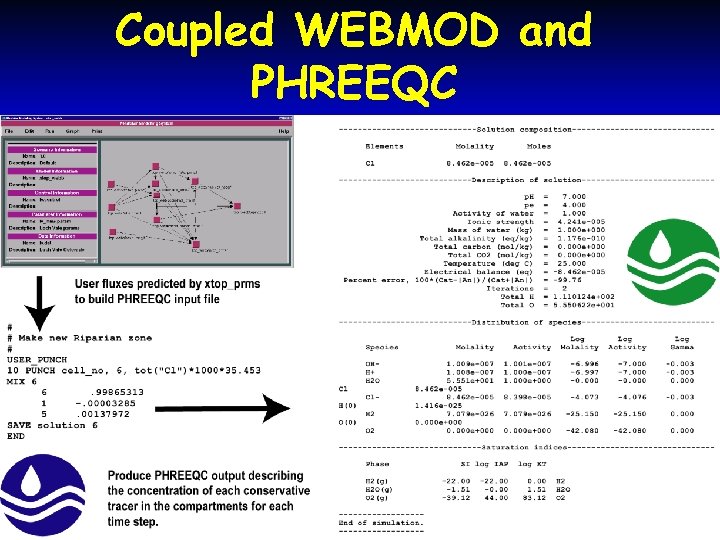

Coupled WEBMOD and PHREEQC Coupled WEBMOD and PHREEQC

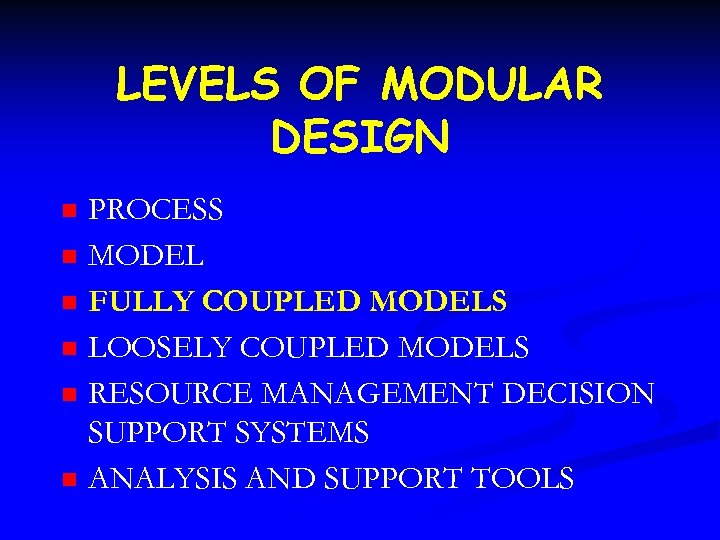

LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED MODELS RESOURCE MANAGEMENT DECISION SUPPORT SYSTEMS ANALYSIS AND SUPPORT TOOLS

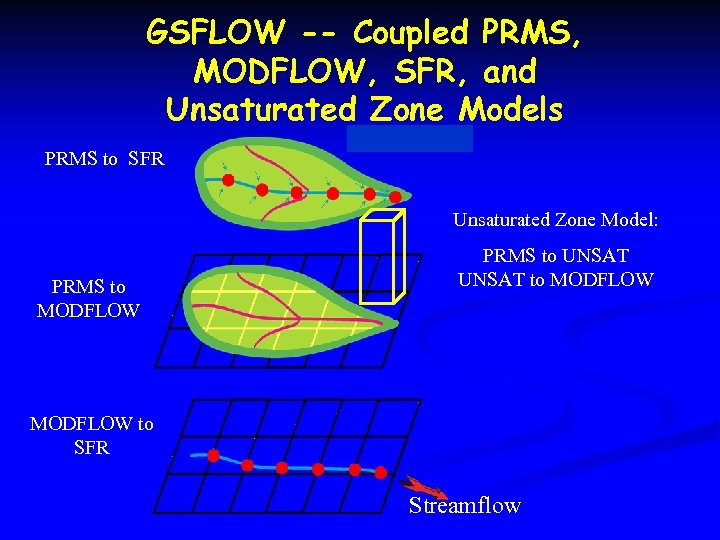

GSFLOW -- Coupled PRMS, MODFLOW, SFR, and Unsaturated Zone Models PRMS to SFR Unsaturated GSFLOW -- Coupled PRMS, MODFLOW, SFR, and Unsaturated Zone Models PRMS to SFR Unsaturated Zone Model: PRMS to MODFLOW PRMS to UNSAT to MODFLOW to SFR Streamflow

Sagehen Creek Model 2 x vertical exaggeration Springs Stream gage Sagehen Creek Model 2 x vertical exaggeration Springs Stream gage

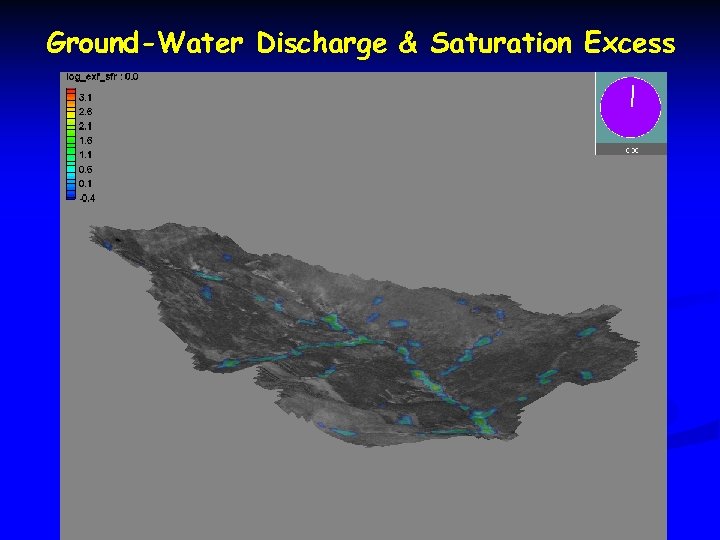

Ground-Water Discharge & Saturation Excess Ground-Water Discharge & Saturation Excess

LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED MODELS RESOURCE MANAGEMENT DECISION SUPPORT SYSTEMS ANALYSIS AND SUPPORT TOOLS

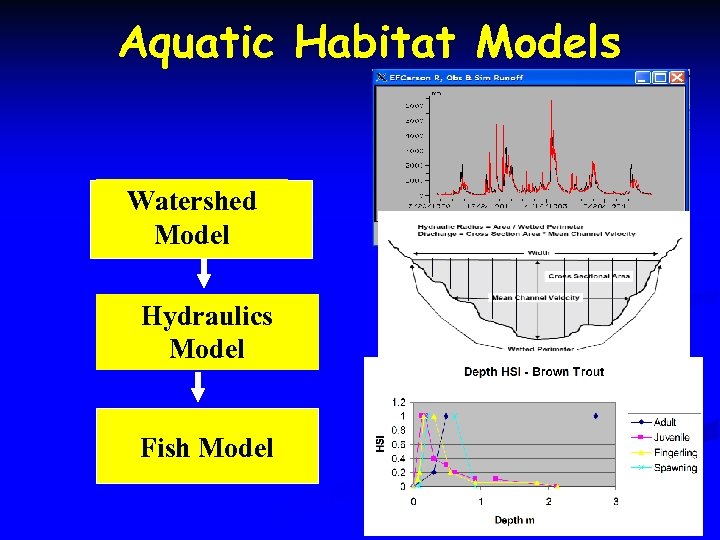

Aquatic Habitat Models Watershed Model Hydraulics Model Fish Model Aquatic Habitat Models Watershed Model Hydraulics Model Fish Model

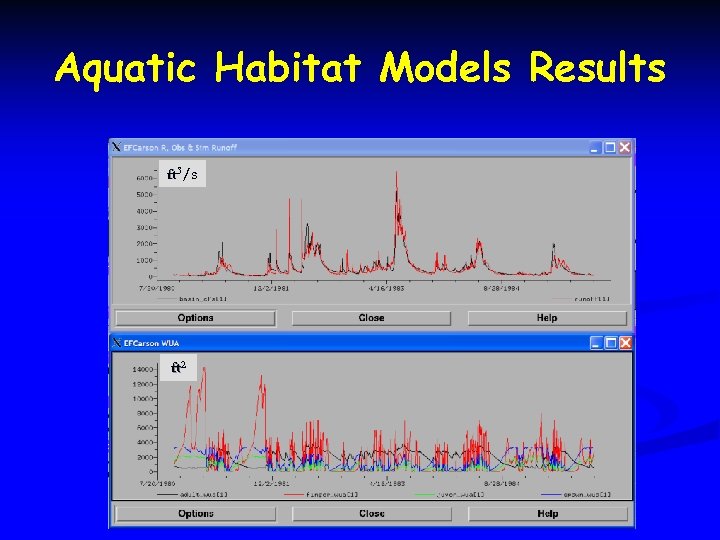

Aquatic Habitat Models Results ft 3/s ft 2 Aquatic Habitat Models Results ft 3/s ft 2

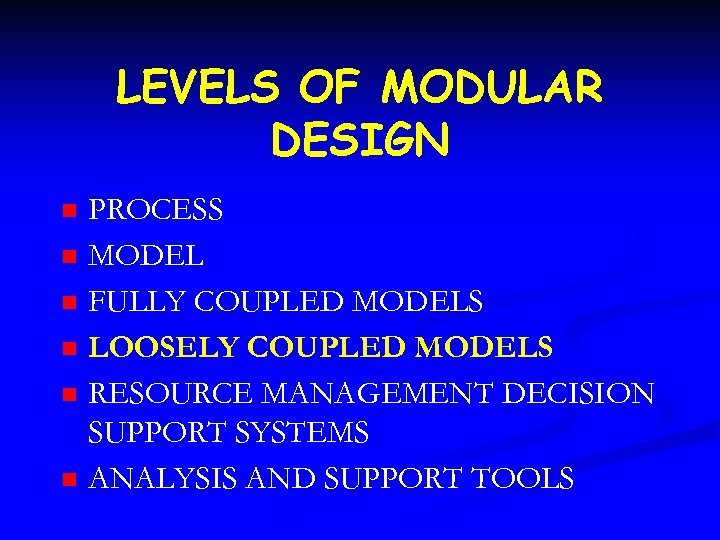

LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED LEVELS OF MODULAR DESIGN n n n PROCESS MODEL FULLY COUPLED MODELS LOOSELY COUPLED MODELS RESOURCE MANAGEMENT DECISION SUPPORT SYSTEMS ANALYSIS AND SUPPORT TOOLS

Recreation Watershed and River Systems Management Program Municipal & Industrial Irrigation Hydropower Research and Recreation Watershed and River Systems Management Program Municipal & Industrial Irrigation Hydropower Research and development of decision support systems and their application to achieve an equitable balance among water resource issues. Riparian Habitat Endangered Species

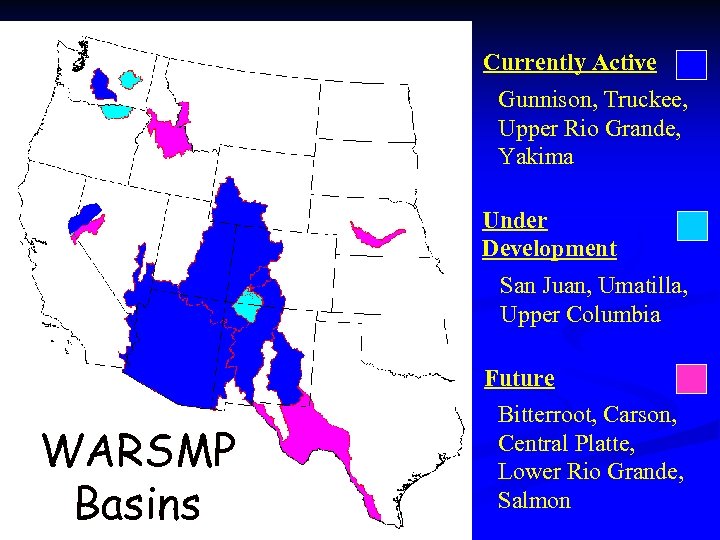

Currently Active Gunnison, Truckee, Upper Rio Grande, Yakima Under Development San Juan, Umatilla, Upper Currently Active Gunnison, Truckee, Upper Rio Grande, Yakima Under Development San Juan, Umatilla, Upper Columbia WARSMP Basins Future Bitterroot, Carson, Central Platte, Lower Rio Grande, Salmon

Generic DSS Framework for a Wide Range of Management Issues Climate Data Source DMI Generic DSS Framework for a Wide Range of Management Issues Climate Data Source DMI Any Database DMI Any Resource Management Model DMI MMI Object User Interface for data visualization and modeling Modular Modeling System Physical Process Models

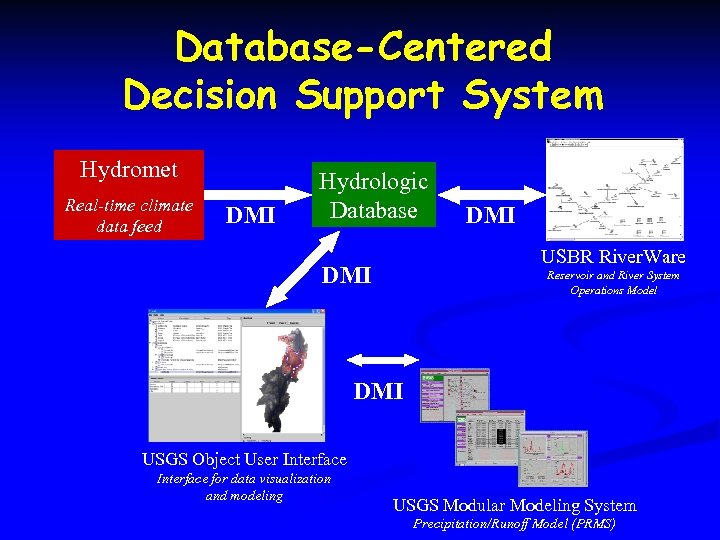

Database-Centered Decision Support System Hydromet Real-time climate data feed DMI Hydrologic Database DMI USBR Database-Centered Decision Support System Hydromet Real-time climate data feed DMI Hydrologic Database DMI USBR River. Ware DMI Reservoir and River System Operations Model DMI USGS Object User Interface for data visualization and modeling USGS Modular Modeling System Precipitation/Runoff Model (PRMS)

OBJECT USER INTEFACE (OUI) OBJECT USER INTEFACE (OUI)

Environmental Database-Centered Decision Support System (DSS) Resource Management Alternatives DMI Object User Interface DMI Environmental Database-Centered Decision Support System (DSS) Resource Management Alternatives DMI Object User Interface DMI Interface for data visualization and modeling DMI SIMPPLLE Vegetation Dynamics Models (USFS) Resource Database DMI Modular Modeling System Physical Process Models

Focus Area Model Processes n n n Precipitation Distribution Snow accumulation and melt proceses Focus Area Model Processes n n n Precipitation Distribution Snow accumulation and melt proceses Parameter estimation in ungauged basins

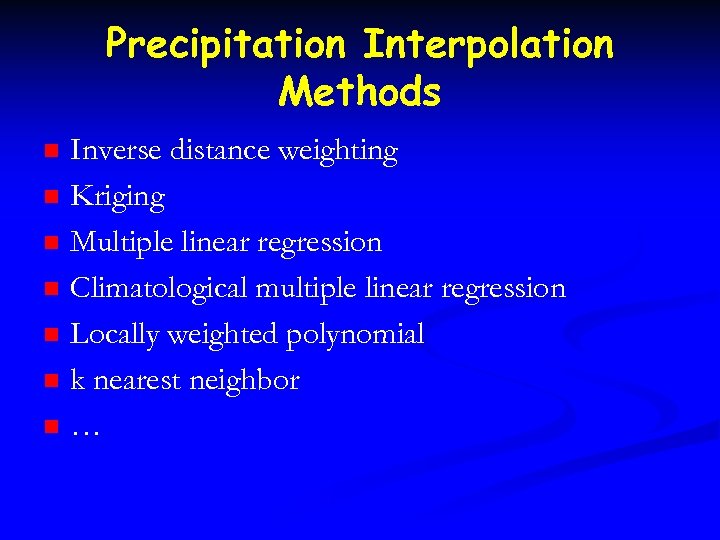

Precipitation Interpolation Methods n n n n Inverse distance weighting Kriging Multiple linear regression Precipitation Interpolation Methods n n n n Inverse distance weighting Kriging Multiple linear regression Climatological multiple linear regression Locally weighted polynomial k nearest neighbor …

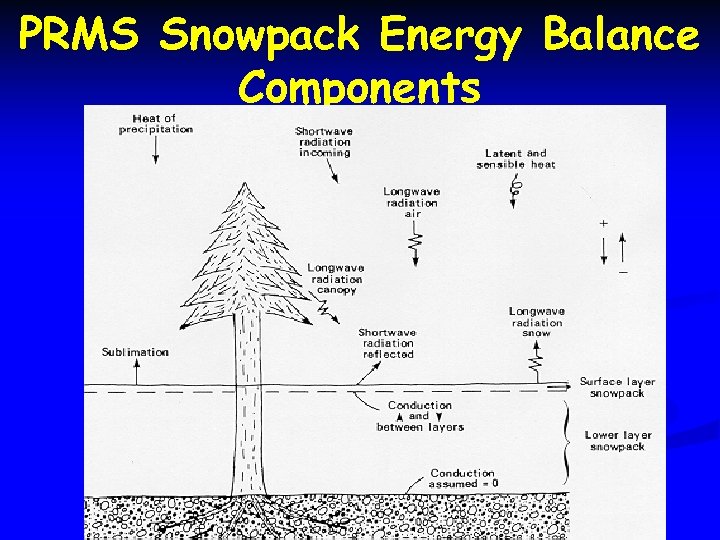

PRMS Snowpack Energy Balance Components PRMS Snowpack Energy Balance Components

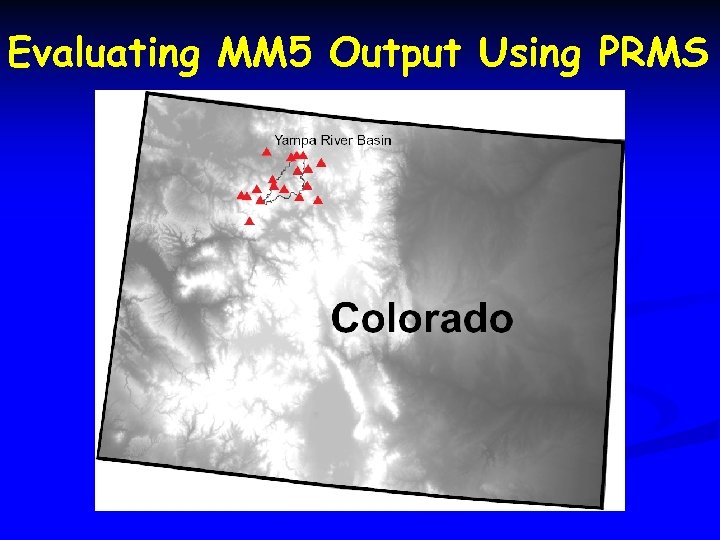

Evaluating MM 5 Output Using PRMS Evaluating MM 5 Output Using PRMS

Nested Domains for MM 5 Nested Domains for MM 5

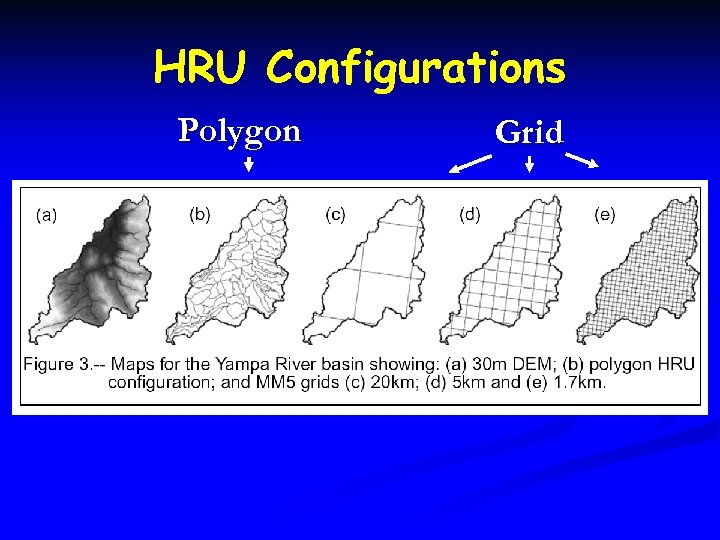

HRU Configurations Polygon Grid HRU Configurations Polygon Grid

HRU Configurations HRU Configurations

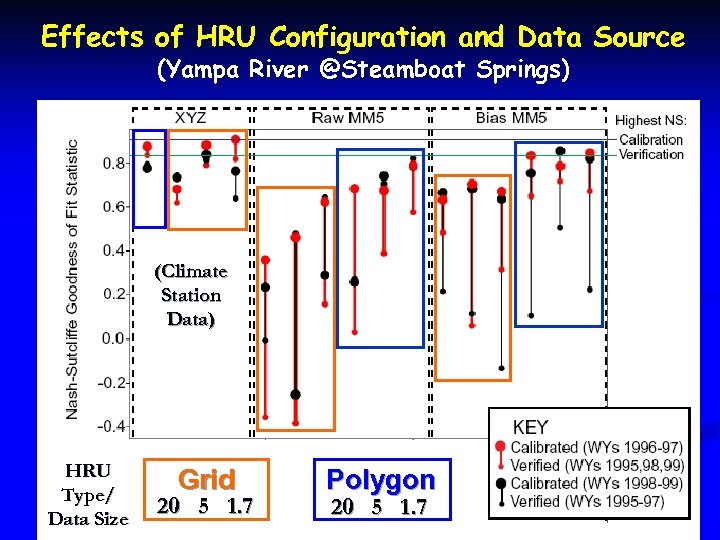

Effects of HRU Configuration and Data Source (Yampa River @Steamboat Springs) (Climate Station Data) Effects of HRU Configuration and Data Source (Yampa River @Steamboat Springs) (Climate Station Data) HRU Type/ Data Size Grid 20 5 1. 7 Polygon 20 5 1. 7

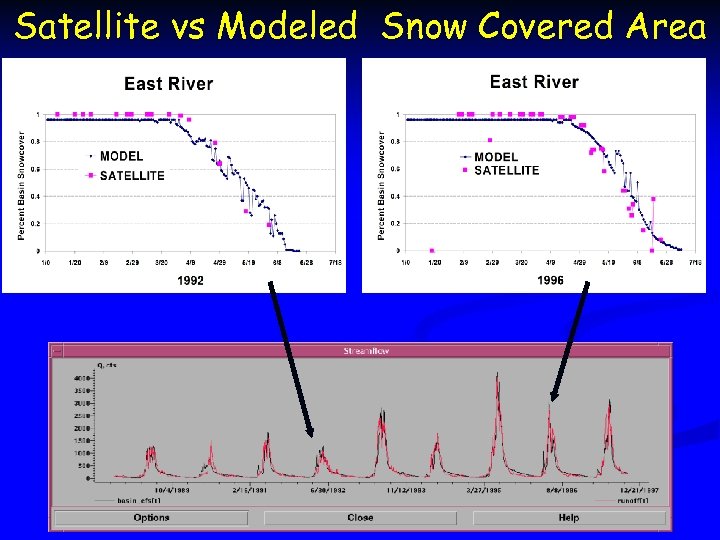

Satellite vs Modeled Snow Covered Area east Satellite vs Modeled Snow Covered Area east

Animas Basin Snowcovered Area Year 2000 Simulated Measured (MODIS Satellite) Error Range <= 0. Animas Basin Snowcovered Area Year 2000 Simulated Measured (MODIS Satellite) Error Range <= 0. 1

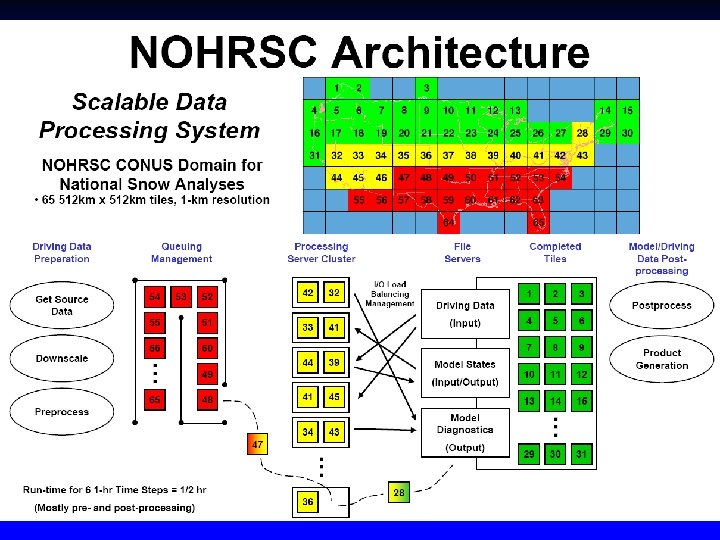

NOHRSC Snow Modeling Framework 2 Hourly Input Gridded Data (1 km) Temperature Relative Humidity NOHRSC Snow Modeling Framework 2 Hourly Input Gridded Data (1 km) Temperature Relative Humidity Wind Speed Solar Radiation Atmos. Radiation Precipitation Type Data Assimilation Snow Energy and Mass Balance Model Blowing Snow Model Static Gridded Data (1 km) Soils Properties Land Use/Cover Forest Properties 1 Snow Observations Radiative Transfer Model State Variables for Multiple Vertical Snow & Soil Layers 1 Snow Water Equivalent Snow Depth Snow Temperature Liquid Water Content Snow Sublimation Snow Melt Snow Cover 3 NSA Product Generation Interactive Maps Digital Data Discussions

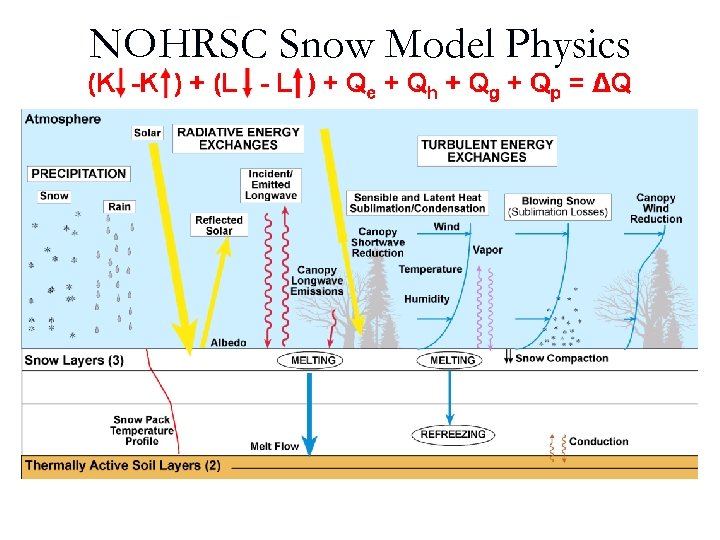

NOHRSC Snow Model Physics NOHRSC Snow Model Physics

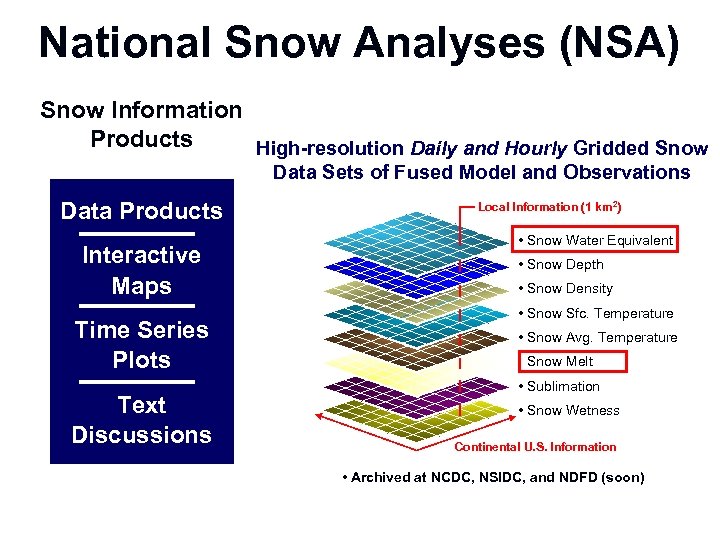

National Snow Analyses (NSA) Snow Information Products High-resolution Daily and Hourly Gridded Snow Data National Snow Analyses (NSA) Snow Information Products High-resolution Daily and Hourly Gridded Snow Data Sets of Fused Model and Observations Data Products Interactive Maps Time Series Plots Text Discussions Local Information (1 km 2) • Snow Water Equivalent • Snow Depth • Snow Density • Snow Sfc. Temperature • Snow Avg. Temperature • Snow Melt • Sublimation • Snow Wetness Continental U. S. Information • Archived at NCDC, NSIDC, and NDFD (soon)

Animas River @ Durango 1805 km 2 Animas River @ Durango 1805 km 2

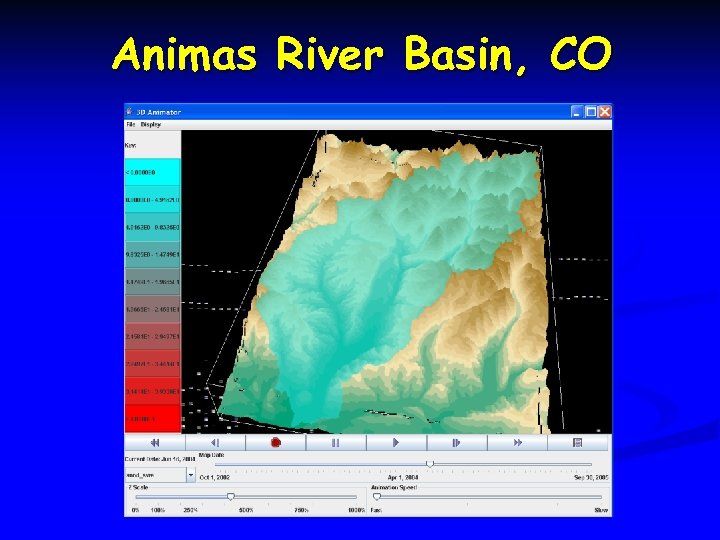

Animas River Basin, CO Animas River Basin, CO

Predicted and Measured Streamflow Animas Basin, CO 1990 - 2005 PREDICTED MEASURED Predicted and Measured Streamflow Animas Basin, CO 1990 - 2005 PREDICTED MEASURED

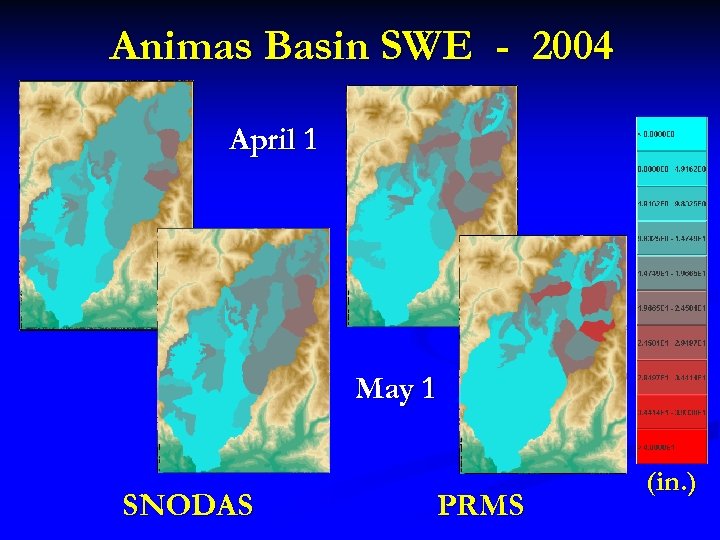

Animas Basin SWE - 2004 April 1 May 1 SNODAS PRMS (in. ) Animas Basin SWE - 2004 April 1 May 1 SNODAS PRMS (in. )

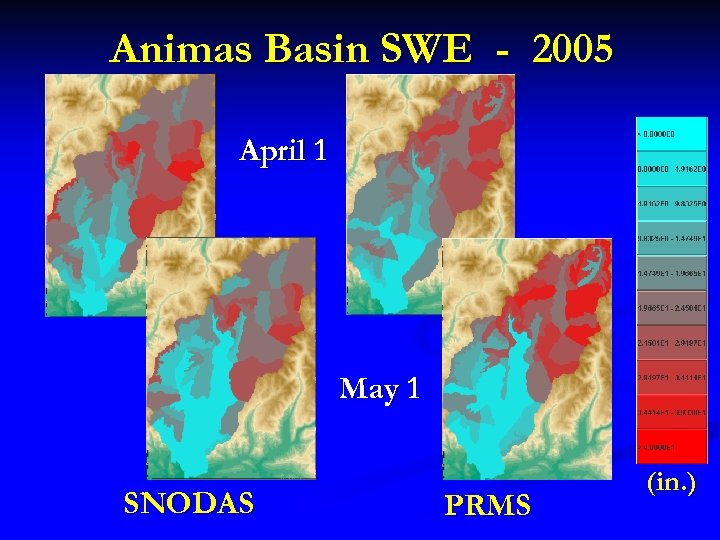

Animas Basin SWE - 2005 April 1 May 1 SNODAS PRMS (in. ) Animas Basin SWE - 2005 April 1 May 1 SNODAS PRMS (in. )

SWE Difference on Selected HRUs SWE_diff = SNODAS - PRMS SWE Difference on Selected HRUs SWE_diff = SNODAS - PRMS

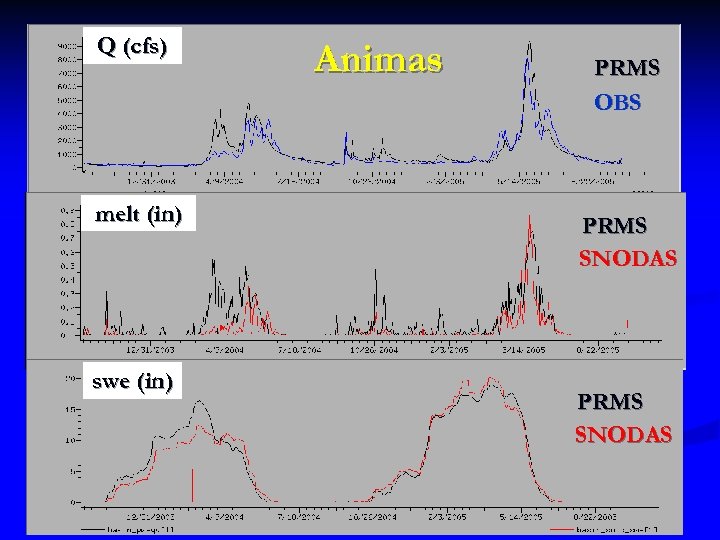

Q (cfs) melt (in) swe (in) Animas PRMS OBS PRMS SNODAS Q (cfs) melt (in) swe (in) Animas PRMS OBS PRMS SNODAS

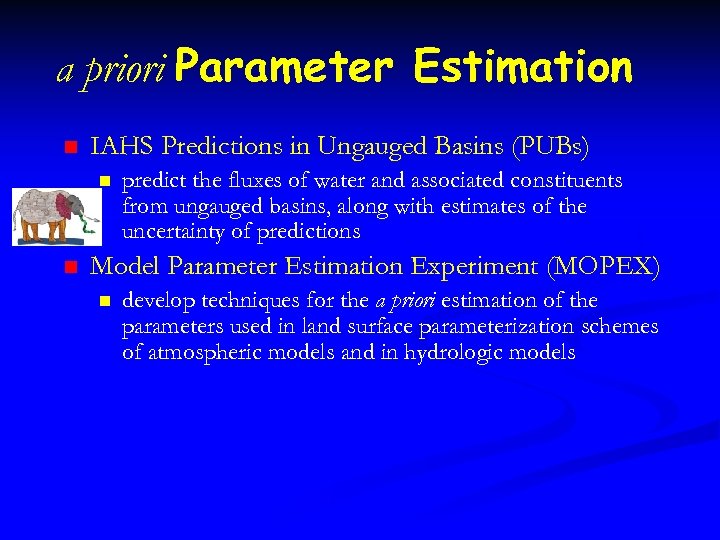

a priori Parameter Estimation n IAHS Predictions in Ungauged Basins (PUBs) n n predict a priori Parameter Estimation n IAHS Predictions in Ungauged Basins (PUBs) n n predict the fluxes of water and associated constituents from ungauged basins, along with estimates of the uncertainty of predictions Model Parameter Estimation Experiment (MOPEX) n develop techniques for the a priori estimation of the parameters used in land surface parameterization schemes of atmospheric models and in hydrologic models

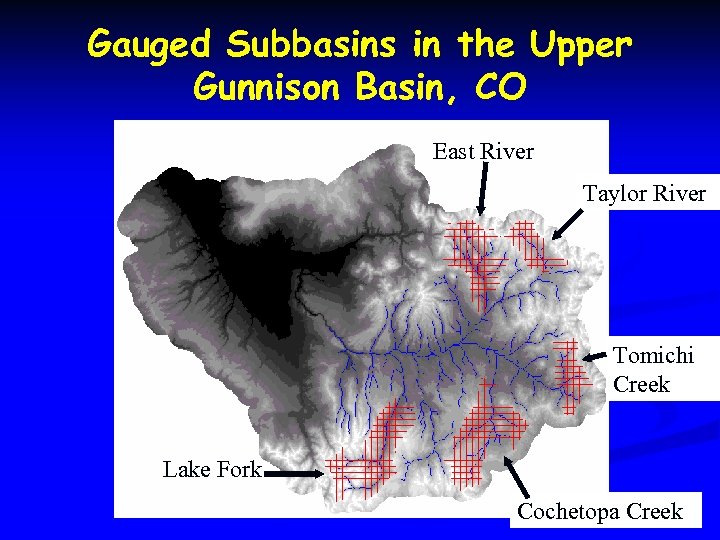

Gauged Subbasins in the Upper Gunnison Basin, CO East River Taylor River Tomichi Creek Gauged Subbasins in the Upper Gunnison Basin, CO East River Taylor River Tomichi Creek Lake Fork Cochetopa Creek

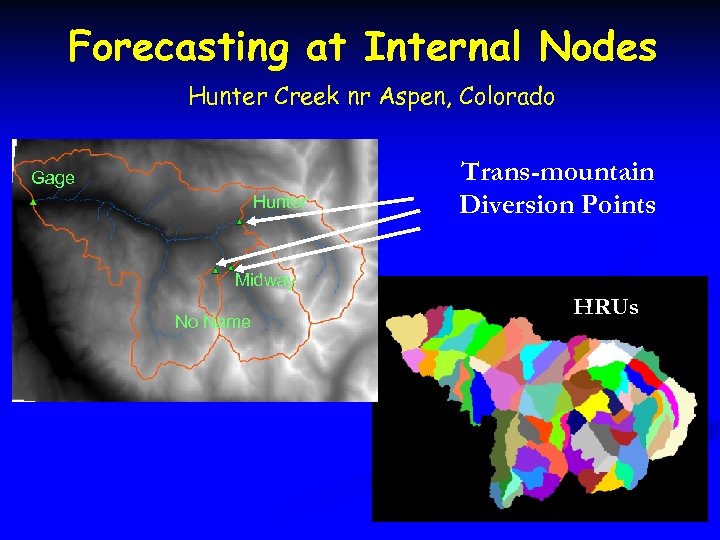

Forecasting at Internal Nodes Hunter Creek nr Aspen, Colorado Gage Hunter Trans-mountain Diversion Points Forecasting at Internal Nodes Hunter Creek nr Aspen, Colorado Gage Hunter Trans-mountain Diversion Points Midway No Name HRUs

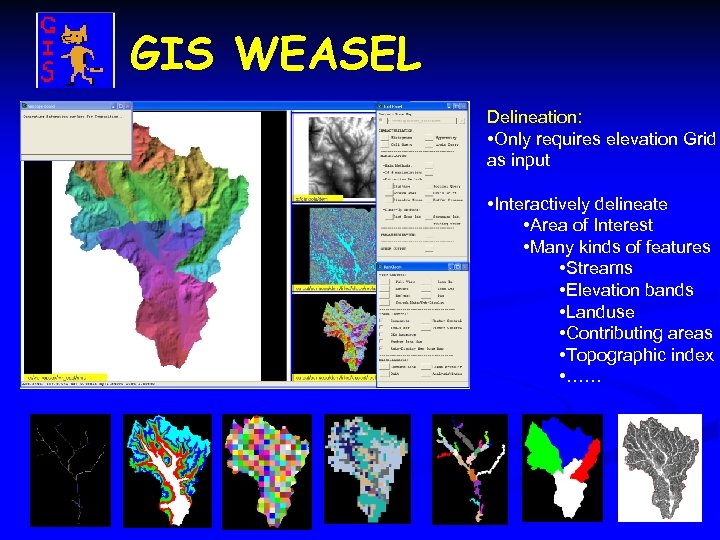

GIS WEASEL Delineation: • Only requires elevation Grid as input • Interactively delineate • GIS WEASEL Delineation: • Only requires elevation Grid as input • Interactively delineate • Area of Interest • Many kinds of features • Streams • Elevation bands • Landuse • Contributing areas • Topographic index • ……

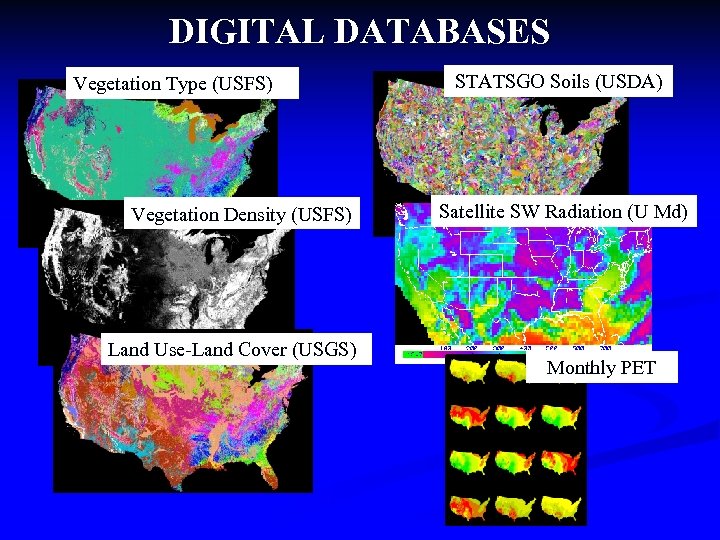

DIGITAL DATABASES Vegetation Type (USFS) Vegetation Density (USFS) Land Use-Land Cover (USGS) STATSGO Soils DIGITAL DATABASES Vegetation Type (USFS) Vegetation Density (USFS) Land Use-Land Cover (USGS) STATSGO Soils (USDA) Satellite SW Radiation (U Md) Monthly PET

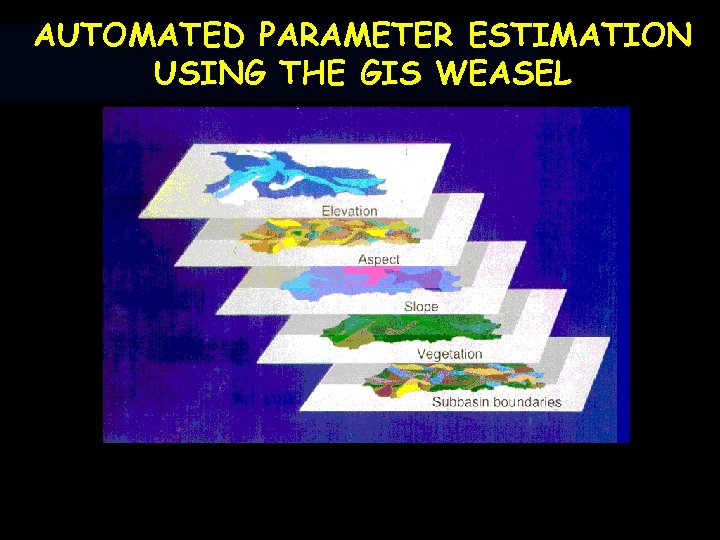

AUTOMATED PARAMETER ESTIMATION USING THE GIS WEASEL AUTOMATED PARAMETER ESTIMATION USING THE GIS WEASEL

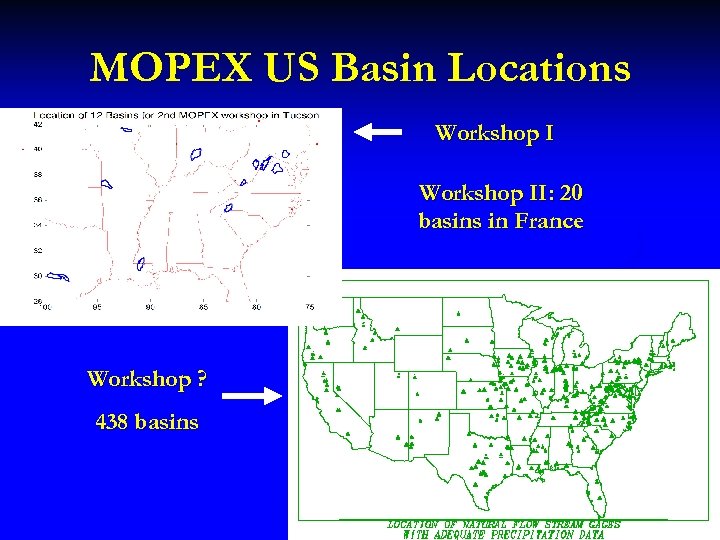

MOPEX US Basin Locations Workshop II: 20 basins in France Workshop ? 438 basins MOPEX US Basin Locations Workshop II: 20 basins in France Workshop ? 438 basins

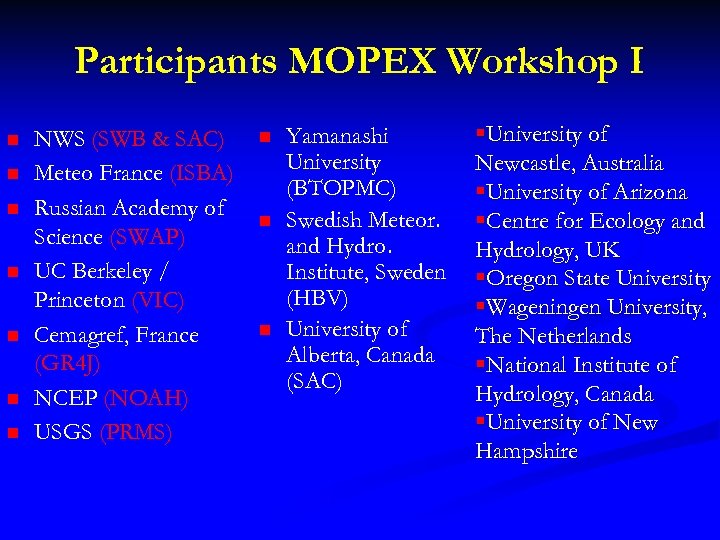

Participants MOPEX Workshop I n n n n NWS (SWB & SAC) Meteo France Participants MOPEX Workshop I n n n n NWS (SWB & SAC) Meteo France (ISBA) Russian Academy of Science (SWAP) UC Berkeley / Princeton (VIC) Cemagref, France (GR 4 J) NCEP (NOAH) USGS (PRMS) n n n Yamanashi University (BTOPMC) Swedish Meteor. and Hydro. Institute, Sweden (HBV) University of Alberta, Canada (SAC) §University of Newcastle, Australia §University of Arizona §Centre for Ecology and Hydrology, UK §Oregon State University §Wageningen University, The Netherlands §National Institute of Hydrology, Canada §University of New Hampshire

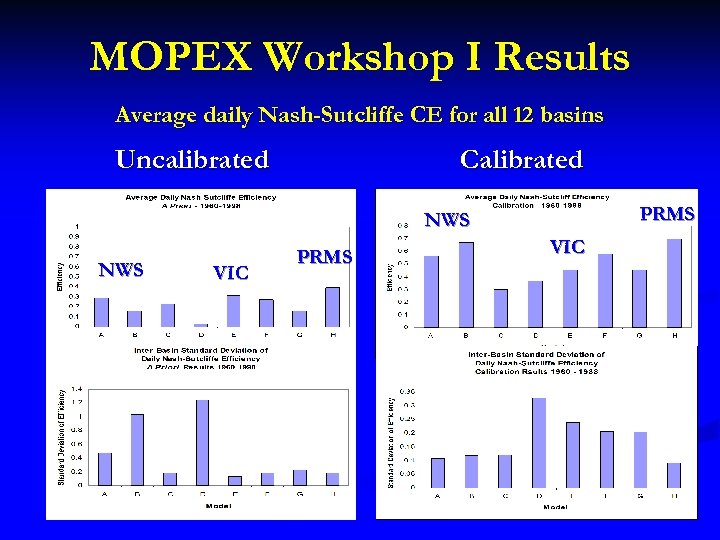

MOPEX Workshop I Results Average daily Nash-Sutcliffe CE for all 12 basins Uncalibrated Calibrated MOPEX Workshop I Results Average daily Nash-Sutcliffe CE for all 12 basins Uncalibrated Calibrated PRMS NWS VIC PRMS VIC

Ensemble Modeling 10 Model Ensemble Ensemble Modeling 10 Model Ensemble

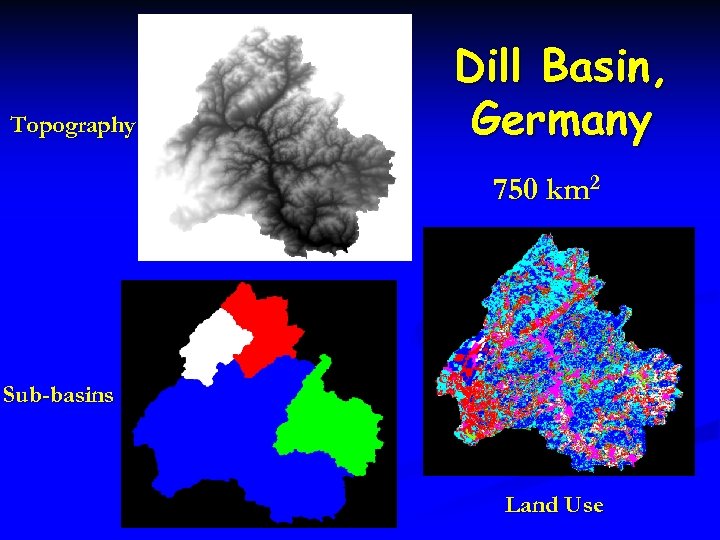

Topography Dill Basin, Germany 750 km 2 Sub-basins Land Use Topography Dill Basin, Germany 750 km 2 Sub-basins Land Use

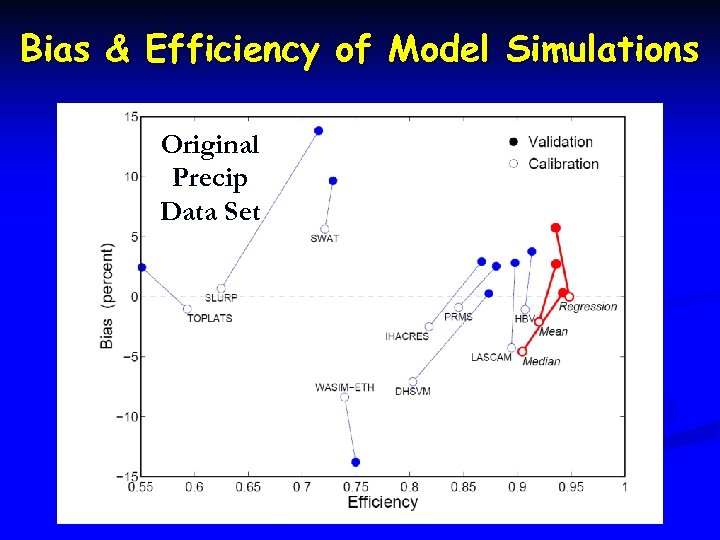

Bias & Efficiency of Model Simulations Original Precip Data Set Bias & Efficiency of Model Simulations Original Precip Data Set

Focus Area Toolbox Focus Area Toolbox

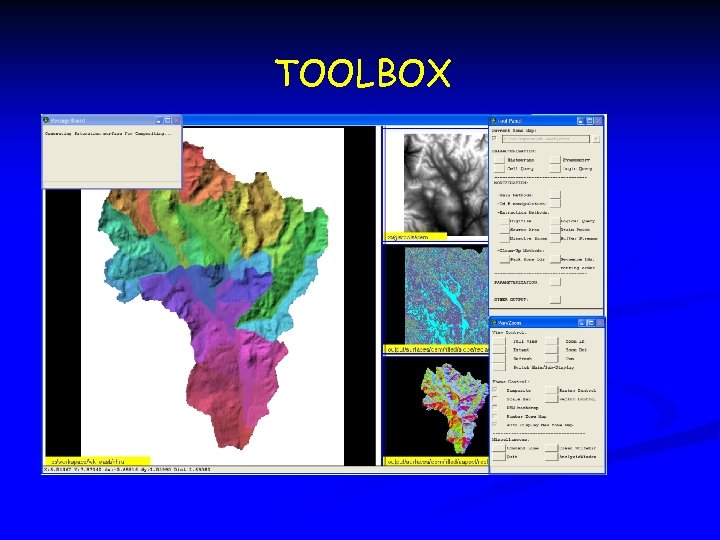

TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel) TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel)

TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel) n Optimizer (Luca) TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel) n Optimizer (Luca)

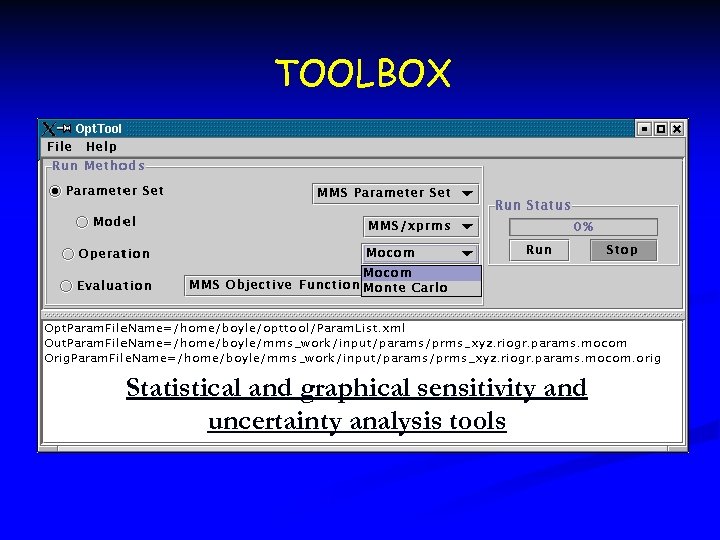

TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel) n Optimizer (Luca) n Analyzer Statistical and TOOLBOX TOOL PITCH n Parameterizer (GIS Weasel) n Optimizer (Luca) n Analyzer Statistical and graphical sensitivity and uncertainty analysis tools

OMS OMS

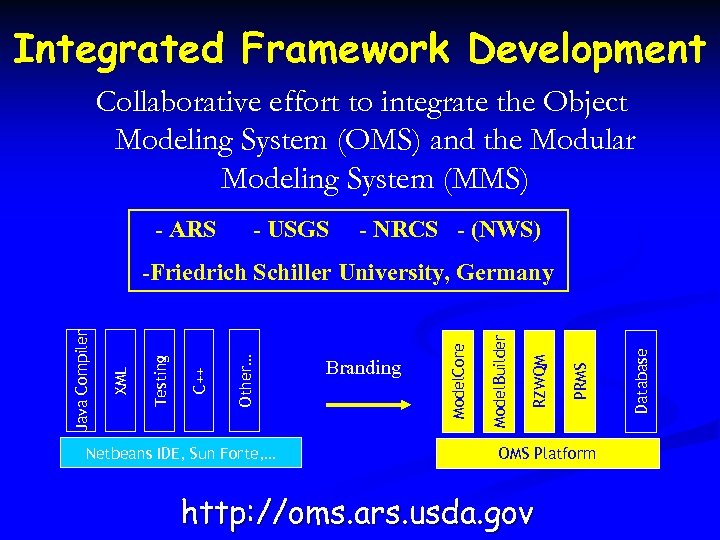

Integrated Framework Development Collaborative effort to integrate the Object Modeling System (OMS) and the Integrated Framework Development Collaborative effort to integrate the Object Modeling System (OMS) and the Modular Modeling System (MMS) - ARS - USGS - NRCS - (NWS) Netbeans IDE, Sun Forte, … OMS Platform http: //oms. ars. usda. gov Database PRMS RZWQM Model. Builder Branding Model. Core Other… C++ Testing XML Java Compiler -Friedrich Schiller University, Germany

Working with the NRCS and NWS to develop a Modular Modeling System forecasting toolbox Working with the NRCS and NWS to develop a Modular Modeling System forecasting toolbox using MMS/OMS and PRMS

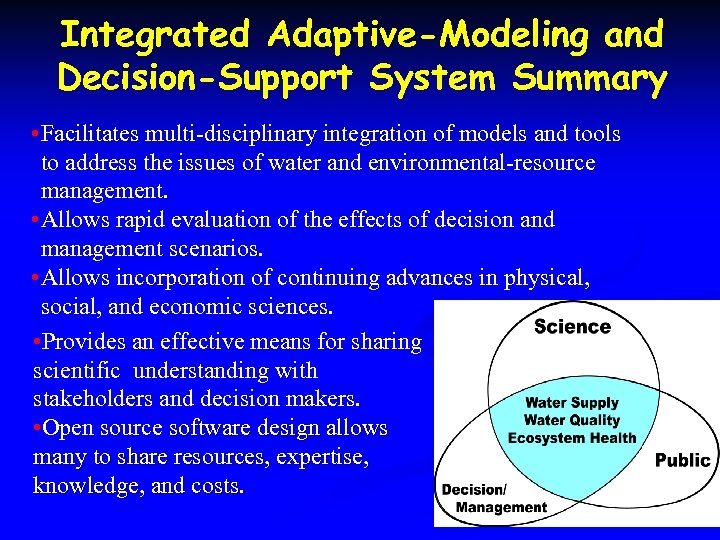

Integrated Adaptive-Modeling and Decision-Support System Summary • Facilitates multi-disciplinary integration of models and tools Integrated Adaptive-Modeling and Decision-Support System Summary • Facilitates multi-disciplinary integration of models and tools to address the issues of water and environmental-resource management. • Allows rapid evaluation of the effects of decision and management scenarios. • Allows incorporation of continuing advances in physical, social, and economic sciences. • Provides an effective means for sharing scientific understanding with stakeholders and decision makers. • Open source software design allows many to share resources, expertise, knowledge, and costs.

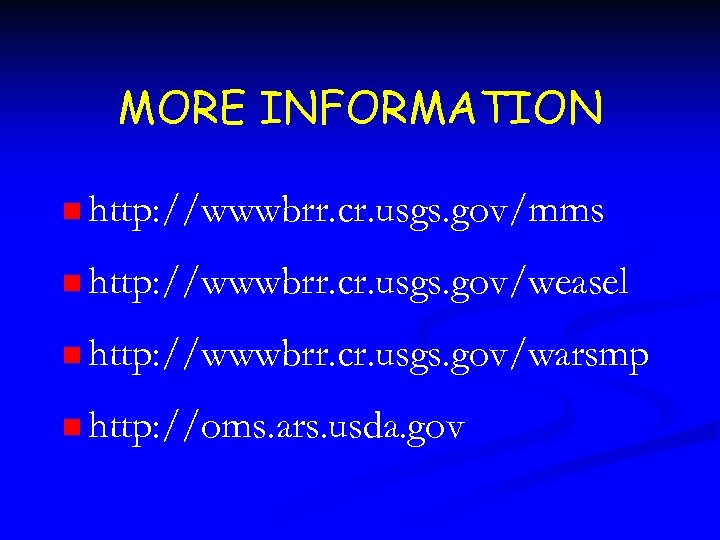

MORE INFORMATION n http: //wwwbrr. cr. usgs. gov/mms n http: //wwwbrr. cr. usgs. gov/weasel MORE INFORMATION n http: //wwwbrr. cr. usgs. gov/mms n http: //wwwbrr. cr. usgs. gov/weasel n http: //wwwbrr. cr. usgs. gov/warsmp n http: //oms. ars. usda. gov
