Pollution Release and Transfer System (PRTR) in the Netherlands From monitoring via validation to Pollution Release and Transfer System (PRTR) in the Netherlands From monitoring via validation to presentation to the general public For EPER, EPRTR and Aarhus Iksan van der Putte Information sources: RIVM (National Institute for Public Health and Environment – the Netherlands and TNO- the Netherlands Wim van der Maas, Netherlands Environmental Assessment Agency Dutch PRTR & e. MJV for Bulgarian delegation, 17 the of November 2004 1

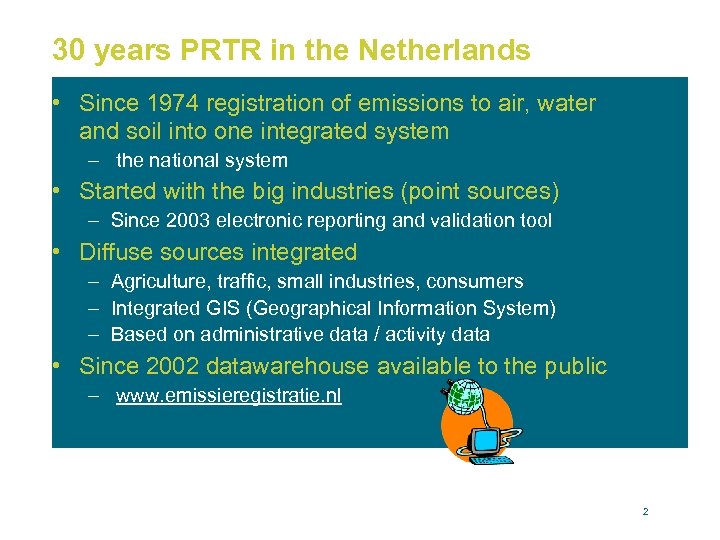

30 years PRTR in the Netherlands • Since 1974 registration of emissions to air, 30 years PRTR in the Netherlands • Since 1974 registration of emissions to air, water and soil into one integrated system – the national system • Started with the big industries (point sources) – Since 2003 electronic reporting and validation tool • Diffuse sources integrated – Agriculture, traffic, small industries, consumers – Integrated GIS (Geographical Information System) – Based on administrative data / activity data • Since 2002 datawarehouse available to the public – www. emissieregistratie. nl 2

General concept: three levels of hierarchy 2. Sources 1. Compounds • Env. Themes • General concept: three levels of hierarchy 2. Sources 1. Compounds • Env. Themes • Profiles & blends >180 • Individual compounds >2000 • Economical sector • Individual industry / activity Emissions >3500 • Grid 5*5 km / point sources • Community / Water catchment area • Provinces 3. Locations 3

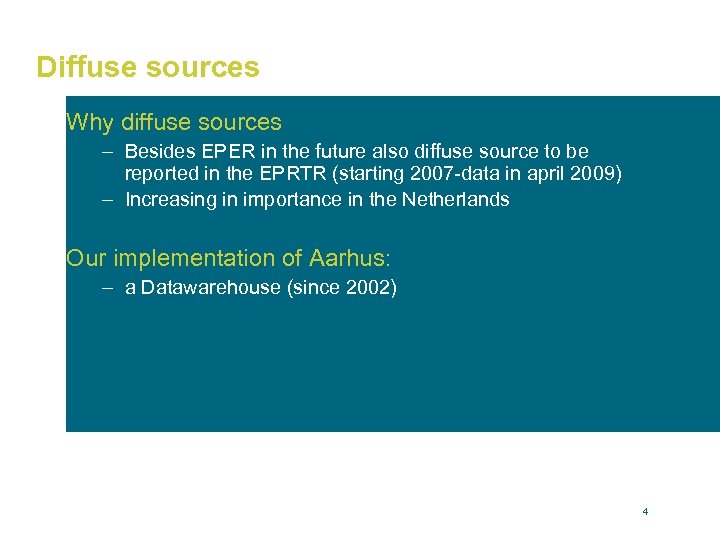

Diffuse sources Why diffuse sources – Besides EPER in the future also diffuse source Diffuse sources Why diffuse sources – Besides EPER in the future also diffuse source to be reported in the EPRTR (starting 2007 -data in april 2009) – Increasing in importance in the Netherlands Our implementation of Aarhus: – a Datawarehouse (since 2002) 4

General principles of the inventory: Major Individual Companies in industry Nonindustrial sources Database Industry General principles of the inventory: Major Individual Companies in industry Nonindustrial sources Database Industry Estimates from special task forces Estimates based on statistical data and environmental reports Emission as reported in mandatory annual environmental reports (AER) 5

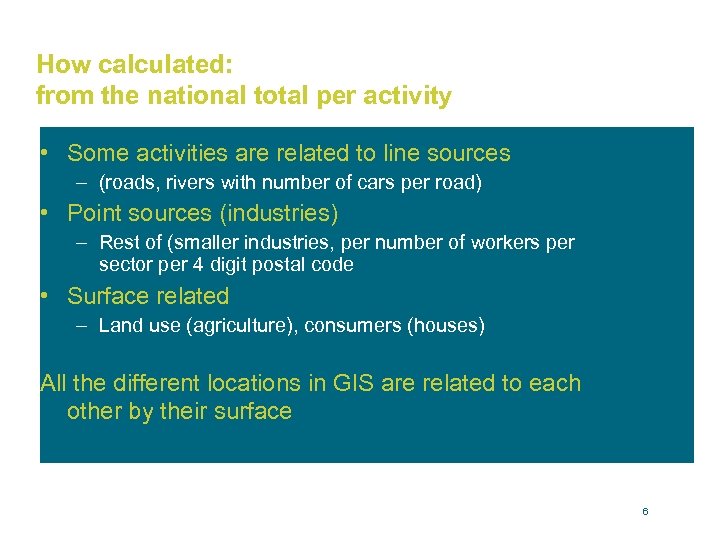

How calculated: from the national total per activity • Some activities are related to How calculated: from the national total per activity • Some activities are related to line sources – (roads, rivers with number of cars per road) • Point sources (industries) – Rest of (smaller industries, per number of workers per sector per 4 digit postal code • Surface related – Land use (agriculture), consumers (houses) All the different locations in GIS are related to each other by their surface 6

Reporting procedures Reporting requirements: (Inter)national • National • IPCC (CRF) • UNECE (LRTAP) • Reporting procedures Reporting requirements: (Inter)national • National • IPCC (CRF) • UNECE (LRTAP) • LCP • IPPC (EPER) Reporting codes Reports Sources/compounds Query Allocation tables: Reporting code per Source/compound/activity 7

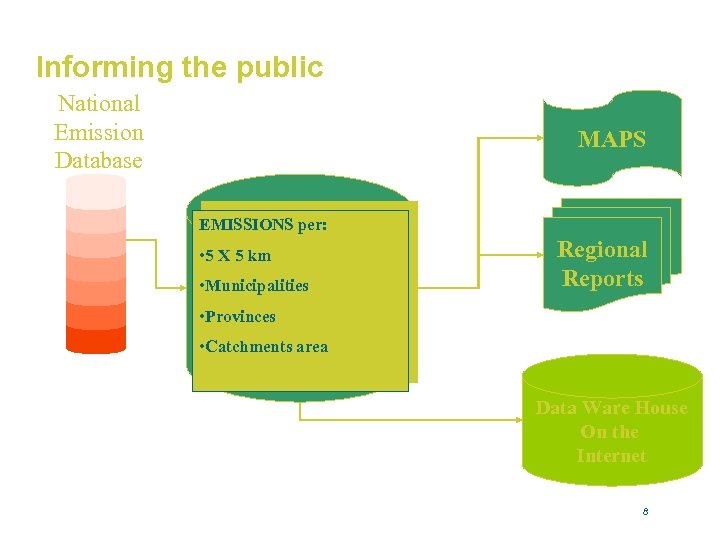

Informing the public National Emission Database MAPS EMISSIONS per: • 5 X 5 km Informing the public National Emission Database MAPS EMISSIONS per: • 5 X 5 km GIS System For • Provinces Spatial distribution • Catchments area of emissions • Municipalities Regional Reports Data Ware House On the Internet 8

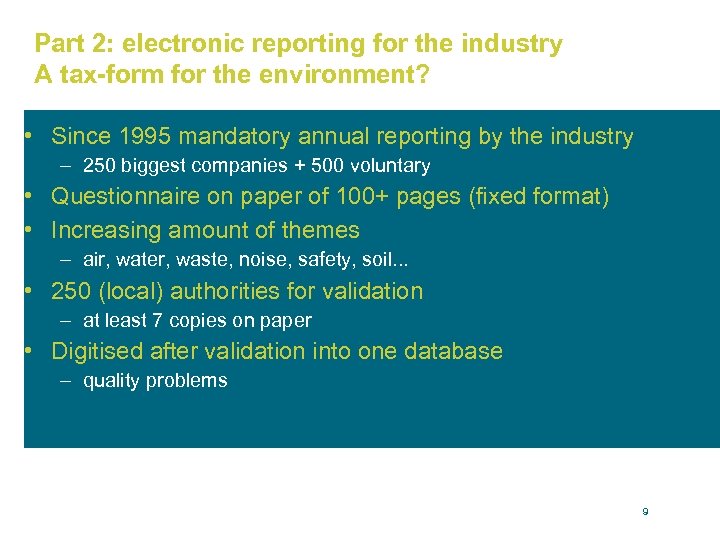

Part 2: electronic reporting for the industry A tax-form for the environment? • Since Part 2: electronic reporting for the industry A tax-form for the environment? • Since 1995 mandatory annual reporting by the industry – 250 biggest companies + 500 voluntary • Questionnaire on paper of 100+ pages (fixed format) • Increasing amount of themes – air, water, waste, noise, safety, soil. . . • 250 (local) authorities for validation – at least 7 copies on paper • Digitised after validation into one database – quality problems 9

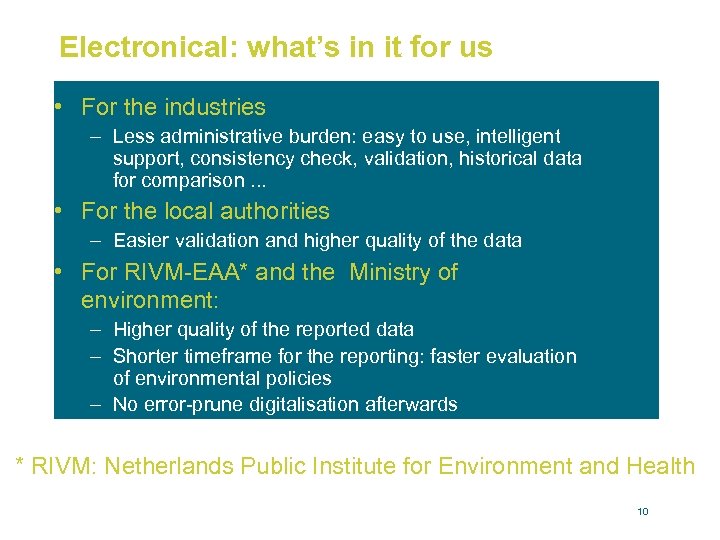

Electronical: what’s in it for us • For the industries – Less administrative burden: Electronical: what’s in it for us • For the industries – Less administrative burden: easy to use, intelligent support, consistency check, validation, historical data for comparison. . . • For the local authorities – Easier validation and higher quality of the data • For RIVM-EAA* and the Ministry of environment: – Higher quality of the reported data – Shorter timeframe for the reporting: faster evaluation of environmental policies – No error-prune digitalisation afterwards * RIVM: Netherlands Public Institute for Environment and Health 10

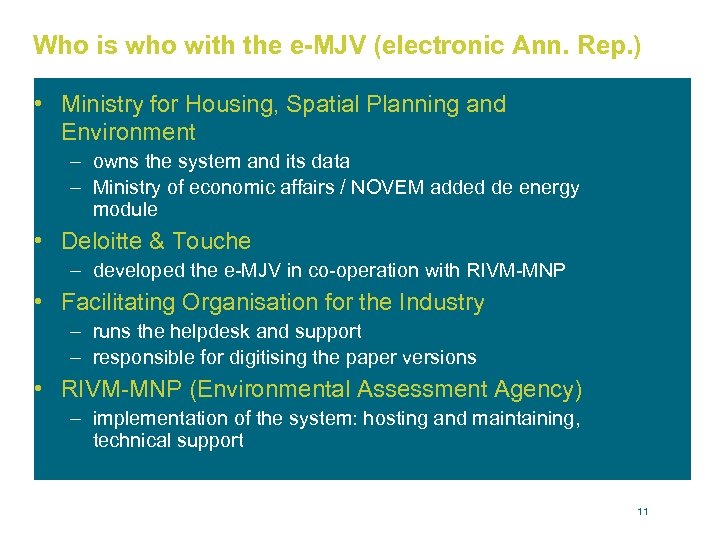

Who is who with the e-MJV (electronic Ann. Rep. ) • Ministry for Housing, Who is who with the e-MJV (electronic Ann. Rep. ) • Ministry for Housing, Spatial Planning and Environment – owns the system and its data – Ministry of economic affairs / NOVEM added de energy module • Deloitte & Touche – developed the e-MJV in co-operation with RIVM-MNP • Facilitating Organisation for the Industry – runs the helpdesk and support – responsible for digitising the paper versions • RIVM-MNP (Environmental Assessment Agency) – implementation of the system: hosting and maintaining, technical support 11

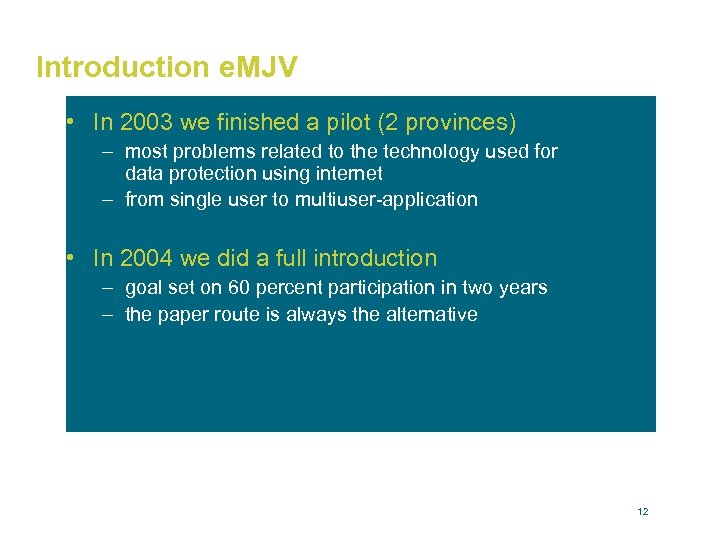

Introduction e. MJV • In 2003 we finished a pilot (2 provinces) – most Introduction e. MJV • In 2003 we finished a pilot (2 provinces) – most problems related to the technology used for data protection using internet – from single user to multiuser-application • In 2004 we did a full introduction – goal set on 60 percent participation in two years – the paper route is always the alternative 12

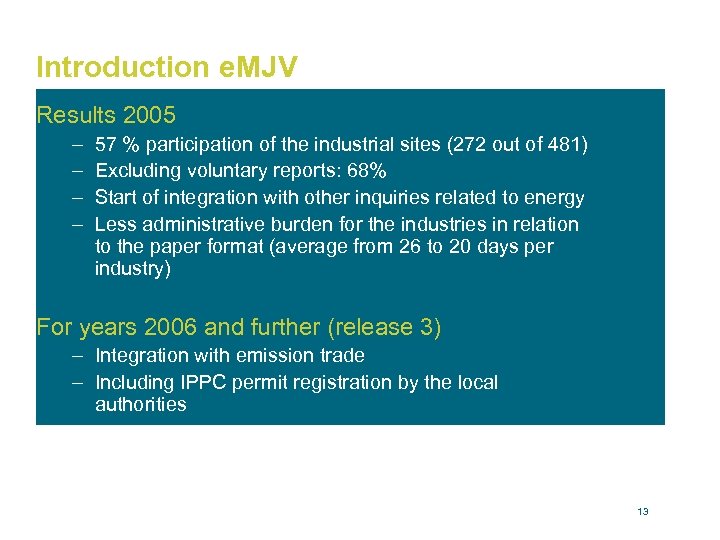

Introduction e. MJV Results 2005 – – 57 % participation of the industrial sites Introduction e. MJV Results 2005 – – 57 % participation of the industrial sites (272 out of 481) Excluding voluntary reports: 68% Start of integration with other inquiries related to energy Less administrative burden for the industries in relation to the paper format (average from 26 to 20 days per industry) For years 2006 and further (release 3) – Integration with emission trade – Including IPPC permit registration by the local authorities 13

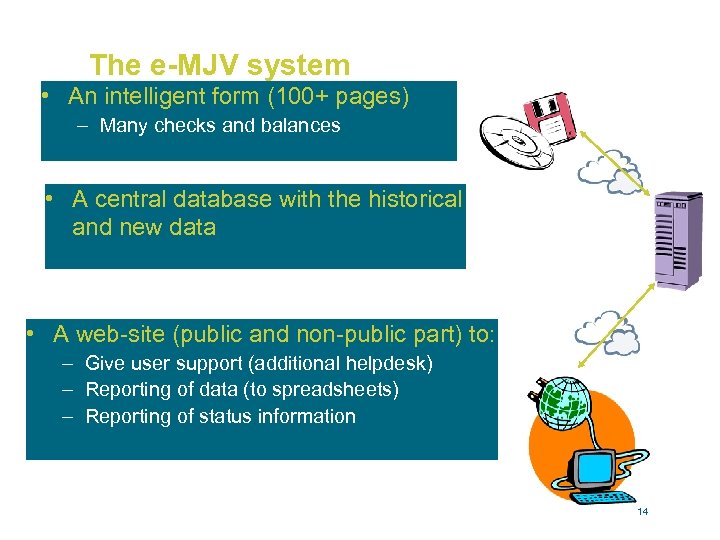

The e-MJV system • An intelligent form (100+ pages) – Many checks and balances The e-MJV system • An intelligent form (100+ pages) – Many checks and balances • A central database with the historical and new data • A web-site (public and non-public part) to: – Give user support (additional helpdesk) – Reporting of data (to spreadsheets) – Reporting of status information 14

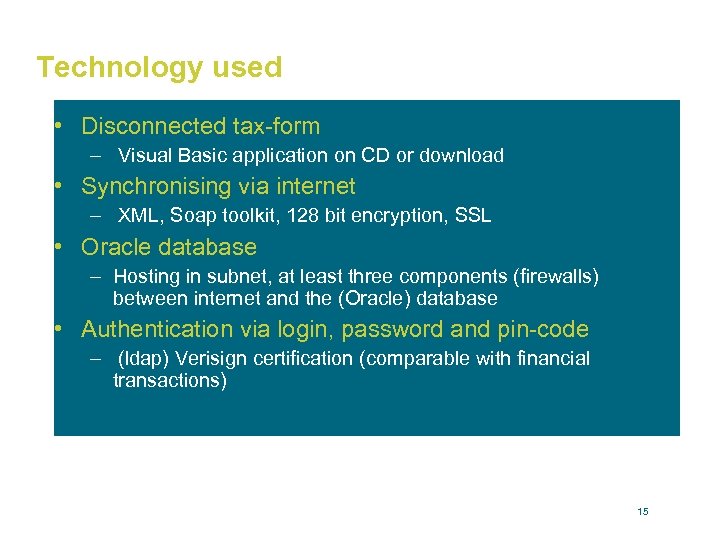

Technology used • Disconnected tax-form – Visual Basic application on CD or download • Technology used • Disconnected tax-form – Visual Basic application on CD or download • Synchronising via internet – XML, Soap toolkit, 128 bit encryption, SSL • Oracle database – Hosting in subnet, at least three components (firewalls) between internet and the (Oracle) database • Authentication via login, password and pin-code – (ldap) Verisign certification (comparable with financial transactions) 15

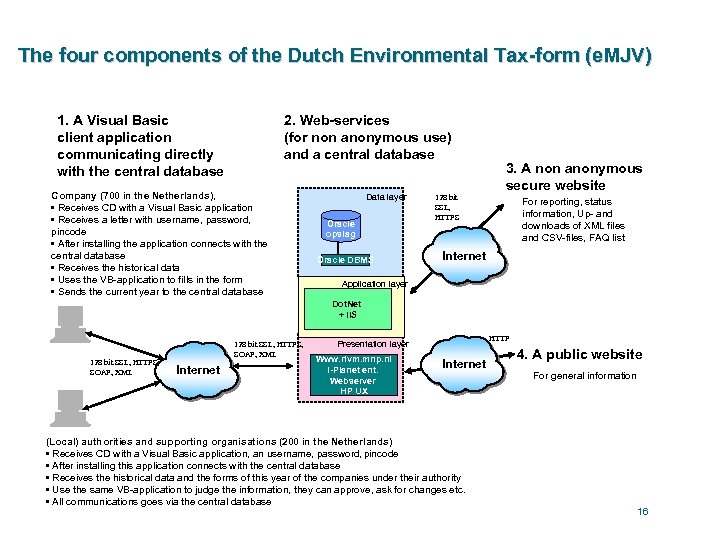

The four components of the Dutch Environmental Tax-form (e. MJV) 1. A Visual Basic The four components of the Dutch Environmental Tax-form (e. MJV) 1. A Visual Basic client application communicating directly with the central database 2. Web-services (for non anonymous use) and a central database Company (700 in the Netherlands), • Receives CD with a Visual Basic application • Receives a letter with username, password, pincode • After installing the application connects with the central database • Receives the historical data • Uses the VB-application to fills in the form • Sends the current year to the central database Data layer Oracle opslag Oracle DBMS 3. A non anonymous secure website 128 bit SSL, HTTPS For reporting, status information, Up- and downloads of XML files and CSV-files, FAQ list Internet Application layer Dot. Net + IIS 128 bit SSL, HTTPS, SOAP, XML Internet HTTP Presentation layer Www. rivm. mnp. nl I-Planet ent. Webserver HP UX Internet (Local) authorities and supporting organisations (200 in the Netherlands) • Receives CD with a Visual Basic application, an username, password, pincode • After installing this application connects with the central database • Receives the historical data and the forms of this year of the companies under their authority • Use the same VB-application to judge the information, they can approve, ask for changes etc. • All communications goes via the central database 4. A public website For general information 16

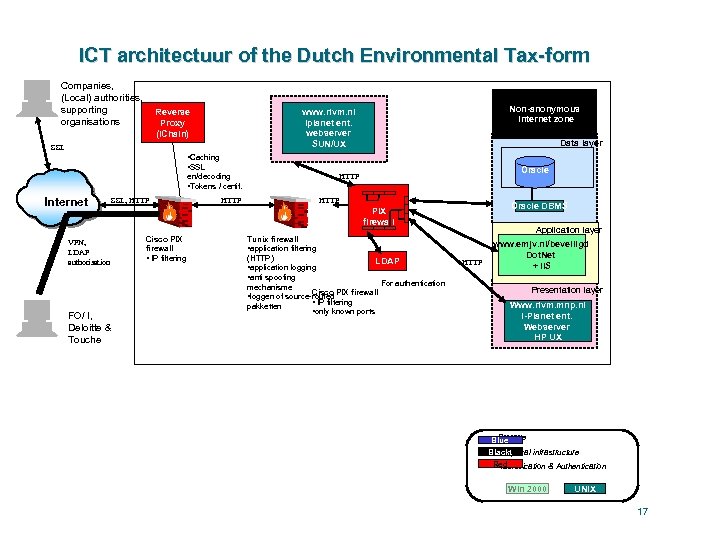

ICT architectuur of the Dutch Environmental Tax-form Companies, (Local) authorities, supporting organisations Non-anonymous internet ICT architectuur of the Dutch Environmental Tax-form Companies, (Local) authorities, supporting organisations Non-anonymous internet zone www. rivm. nl Iplanet ent. webserver SUN/UX Reverse Proxy (i. Chain) SSL Data layer • Caching • SSL en/decoding • Tokens / certif. Internet VPN, LDAP authorisation FO/ I, Deloitte & Touche SSL, HTTP Oracle DBMS PIX firewall Cisco PIX firewall • IP filtering Tunix firewall • application filtering (HTTP) LDAP • application logging • anti spoofing For authentication mechanisme Cisco • loggen of source-routed PIX firewall • IP filtering pakketten • only known ports Application layer HTTP www. emjv. nl/beveiligd Dot. Net + IIS Presentation layer Www. rivm. mnp. nl I-Planet ent. Webserver HP UX Storage Blue Blackt Physical infrastructure Red Identification & Authentication Win 2000 UNIX 17

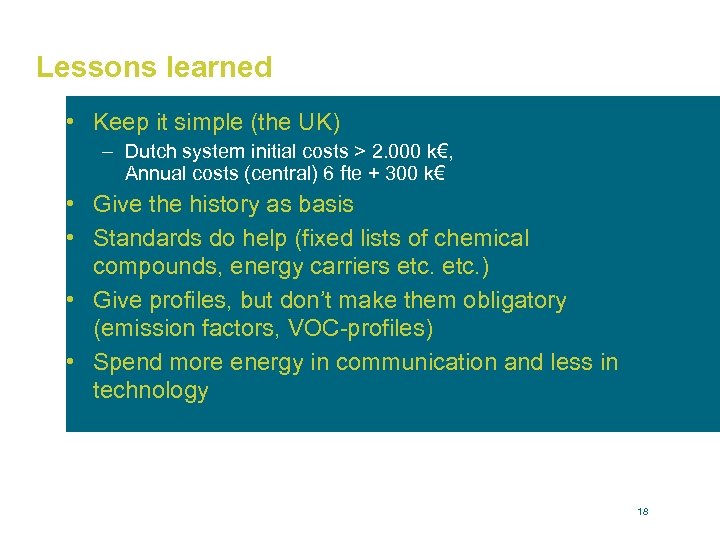

Lessons learned • Keep it simple (the UK) – Dutch system initial costs > Lessons learned • Keep it simple (the UK) – Dutch system initial costs > 2. 000 k€, Annual costs (central) 6 fte + 300 k€ • Give the history as basis • Standards do help (fixed lists of chemical compounds, energy carriers etc. ) • Give profiles, but don’t make them obligatory (emission factors, VOC-profiles) • Spend more energy in communication and less in technology 18
