Learning Objective (s) 11 December 2017 © I-Station Solutions Sdn Bhd 2 Explain to the students about measurement of Piling Works adhering with clauses and codes stipulated in the Malaysia Standard Method(s) of Measurement of building works.

Learning Outcome (s) 11 December 2017 © I-Station Solutions Sdn Bhd 3 On completion of this topic, students must be able use clauses and codes Malaysia Standard Methods of Measurement of Building Works (SMM2) to measure/take off Site Clearance works appropriately.

PILING Building structure that receive load and spread the load to the soil underground Most important element in building structure Can be obtainable in various form and size. Type of piling depends on Soils conditions Design loads Site requirements MEASUREMENT FOR PILING WORKS

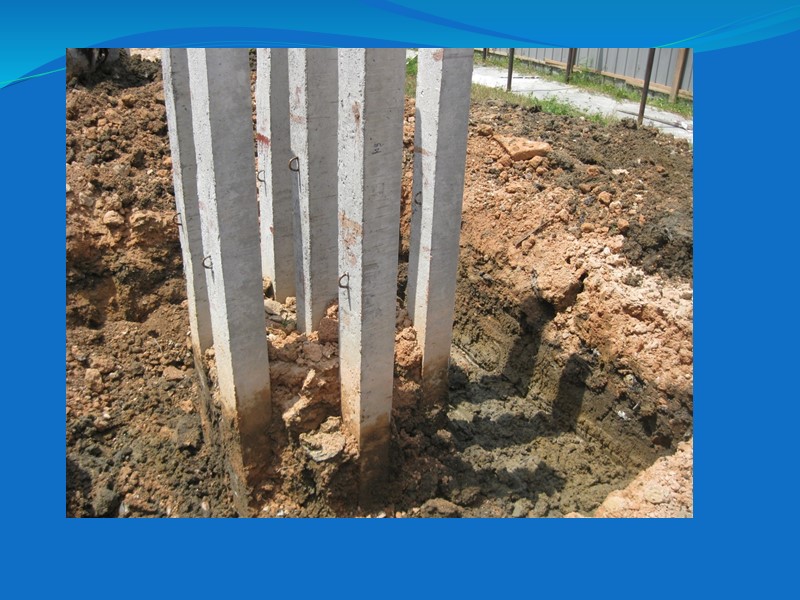

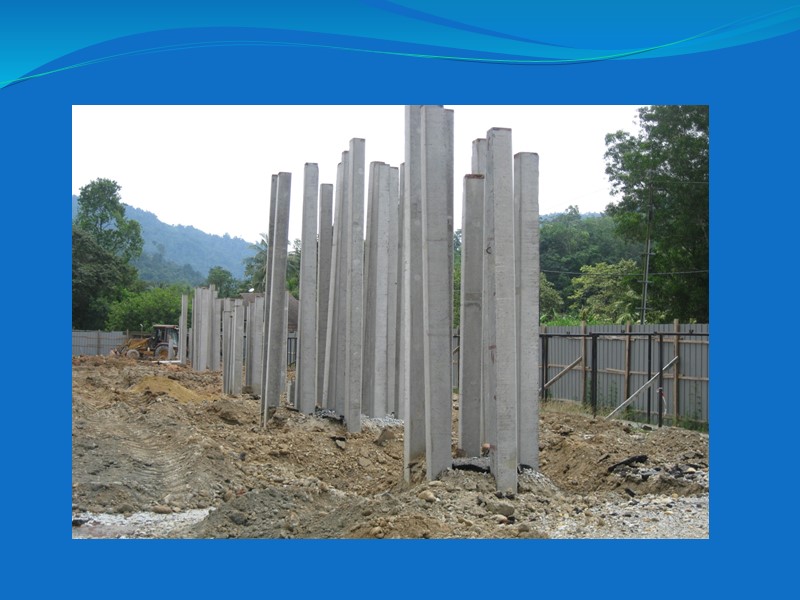

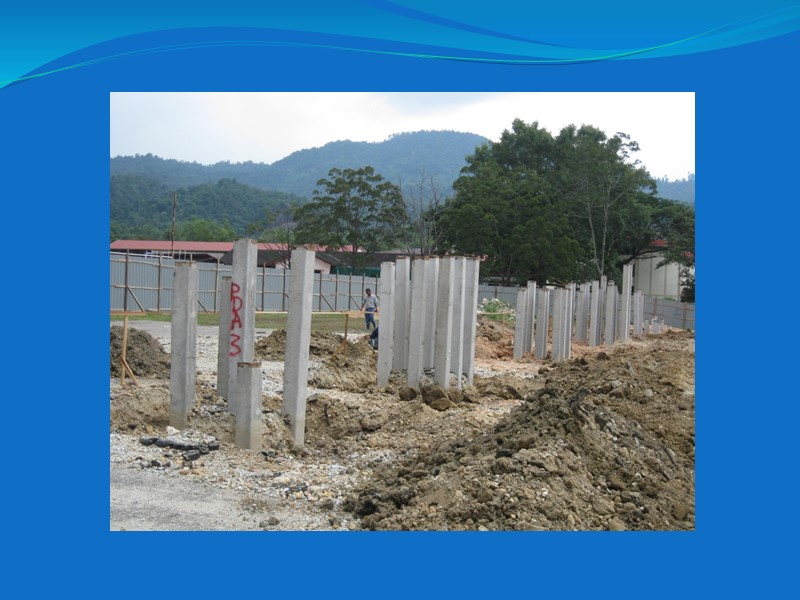

Comes In Various Size 3m, 6m, 9m And 12m Rc Normally Retangular Shape Timber In Circular Shape Source Of Supply Can Be Obtain Direct From Manufacturer Cast On Site Form One Pile Pont In Pile Cap-singular More Than 1 –Cluster MEASUREMENT FOR PILING WORKS

CLASSIFICATION OF PILES CLASSIFICATION OF PILE ACCORDING TO TYPE OF MATERIALS USED : TIMBER STEEL CONCRETE COMPOSITE PILES MEASUREMENT FOR PILING WORKS

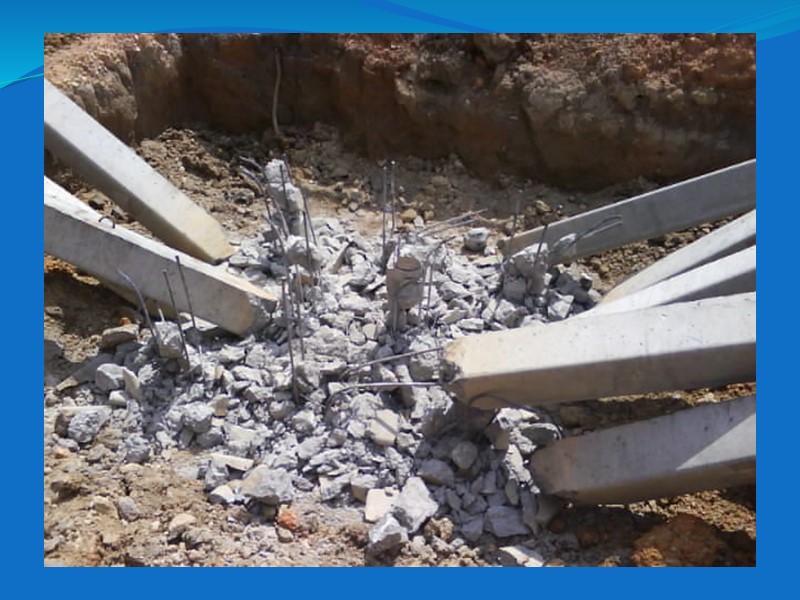

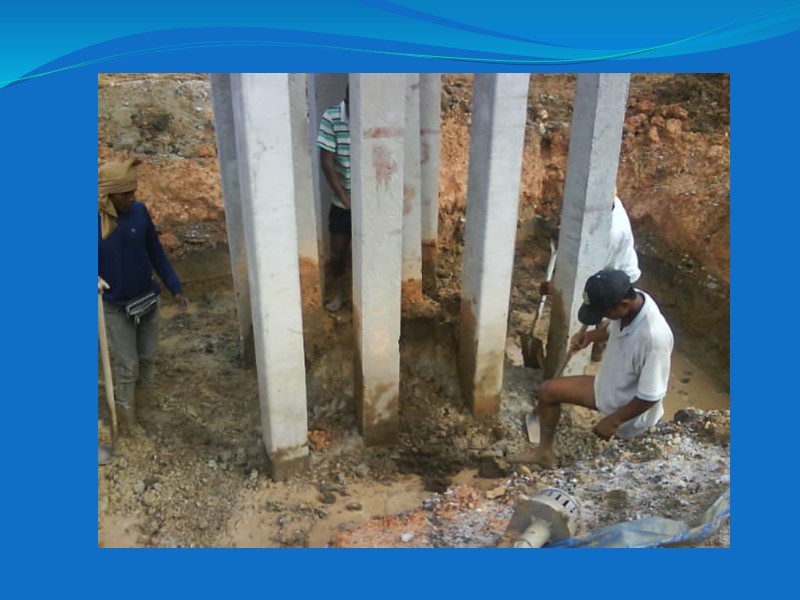

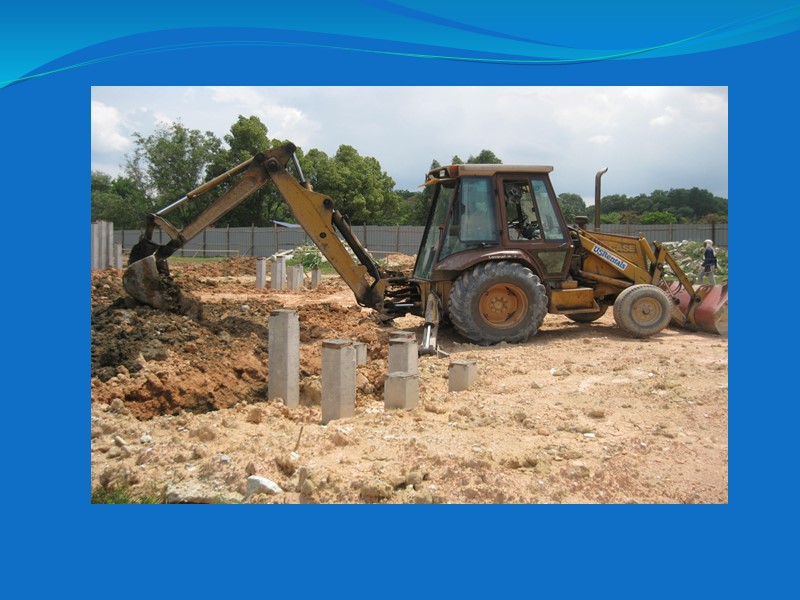

SEQUENCES OF PILING WORK Piling Equipment..\..\Others Support Files\Malaysia SMM2 Second Edition.pdf

LOAD TEST BEING CARRIED OUT

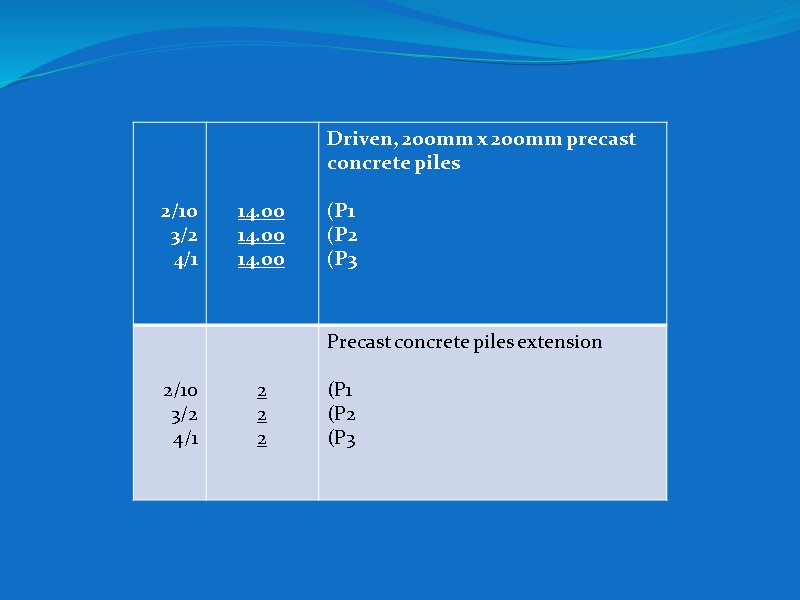

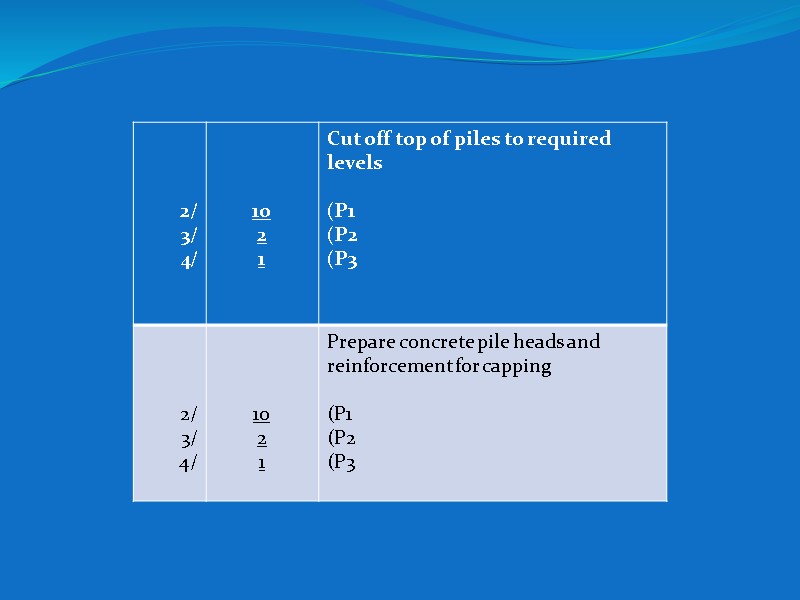

SENARAI PENGUKURAN KUANTITI (TAKING OFF LIST) Definition - List of items that needs to be measured complete with its units Why prepared? To make sure no missing items To cross out the items that already measured so as to avoid doubled measurement

Examples of Taking Of List (TOL)

SENARAI PERTANYAAN (QUERRY LIST) Table of query that needs clarification from architect, engineers regarding inaccurate information, discrepancies in drawing and specification, missing items etc The architect/engineers needs to verify the queries and answers

EXAMPLES OF QUERY LISTS

SCHEDULE OF PILES CAP
