LE TACHYGRAPHE NUMERIQUE ACTIA Network meeting - March 3 and 4 2004 LE TACHYGRAPHE NUMERIQUE ACTIA Network meeting - March 3 and 4 2004

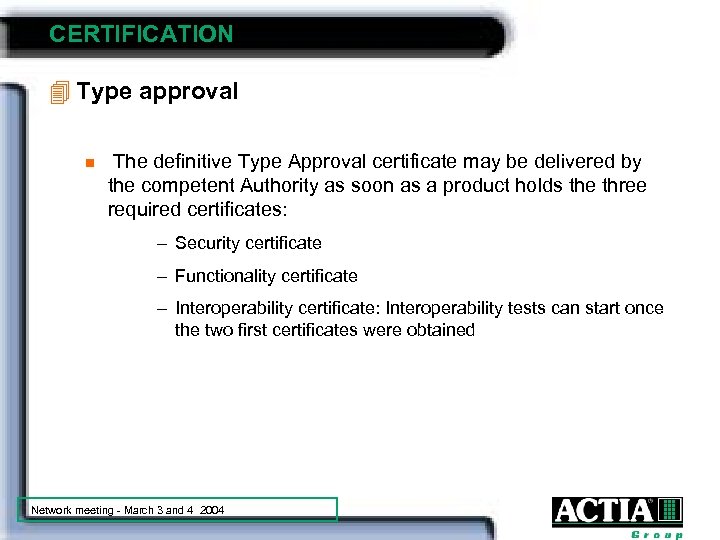

CERTIFICATION 4 Type approval n The definitive Type Approval certificate may be delivered by CERTIFICATION 4 Type approval n The definitive Type Approval certificate may be delivered by the competent Authority as soon as a product holds the three required certificates: – Security certificate – Functionality certificate – Interoperability certificate: Interoperability tests can start once the two first certificates were obtained Network meeting - March 3 and 4 2004

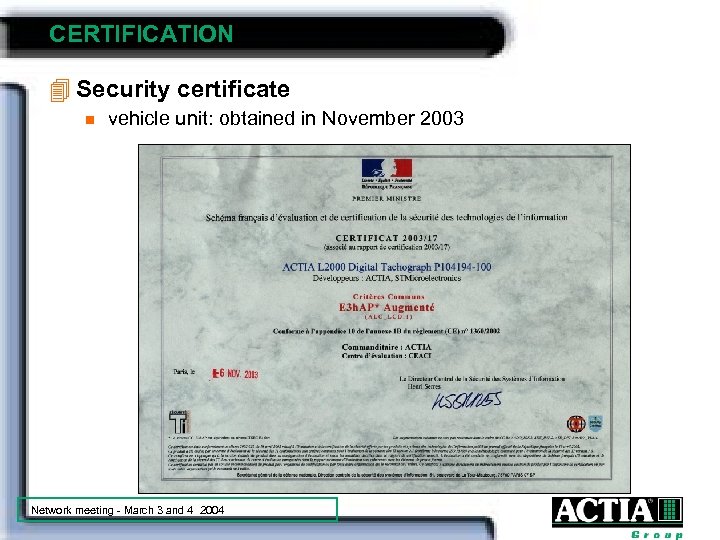

CERTIFICATION 4 Security certificate n vehicle unit: obtained in November 2003 Network meeting - CERTIFICATION 4 Security certificate n vehicle unit: obtained in November 2003 Network meeting - March 3 and 4 2004

CERTIFICATION 4 Security certificate n motion sensor: obtained in November 2003 Network meeting - CERTIFICATION 4 Security certificate n motion sensor: obtained in November 2003 Network meeting - March 3 and 4 2004

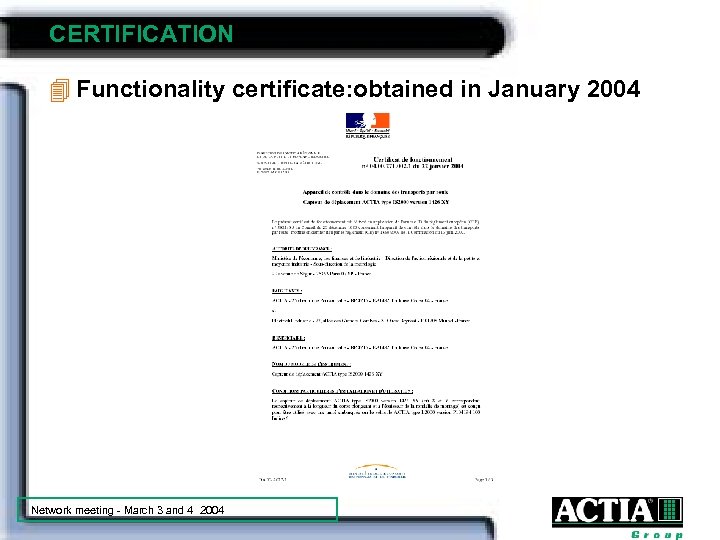

CERTIFICATION 4 Functionality certificate: obtained in January 2004 Network meeting - March 3 and CERTIFICATION 4 Functionality certificate: obtained in January 2004 Network meeting - March 3 and 4 2004

CERTIFICATION 4 Interoperability certificate: obtained in January 2004 Network meeting - March 3 and CERTIFICATION 4 Interoperability certificate: obtained in January 2004 Network meeting - March 3 and 4 2004

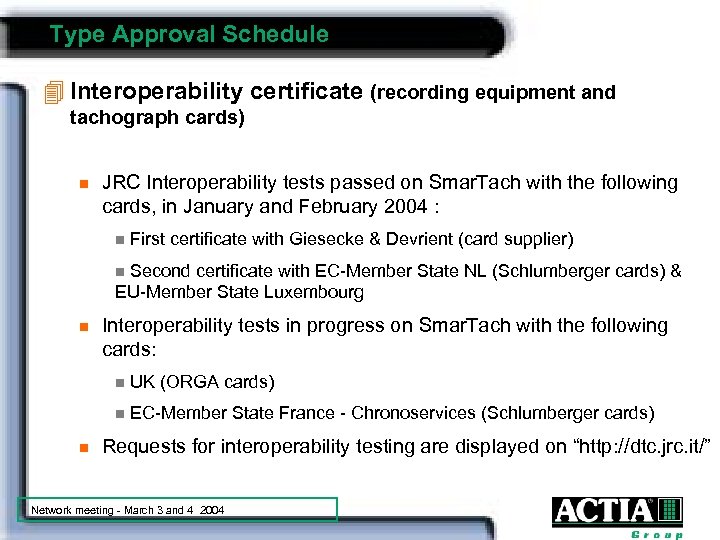

Type Approval Schedule 4 Interoperability certificate (recording equipment and tachograph cards) n JRC Interoperability Type Approval Schedule 4 Interoperability certificate (recording equipment and tachograph cards) n JRC Interoperability tests passed on Smar. Tach with the following cards, in January and February 2004 : n First certificate with Giesecke & Devrient (card supplier) n Second certificate with EC-Member State NL (Schlumberger cards) & EU-Member State Luxembourg n Interoperability tests in progress on Smar. Tach with the following cards: n UK (ORGA cards) n EC-Member State France - Chronoservices (Schlumberger cards) n Requests for interoperability testing are displayed on “http: //dtc. jrc. it/” Network meeting - March 3 and 4 2004

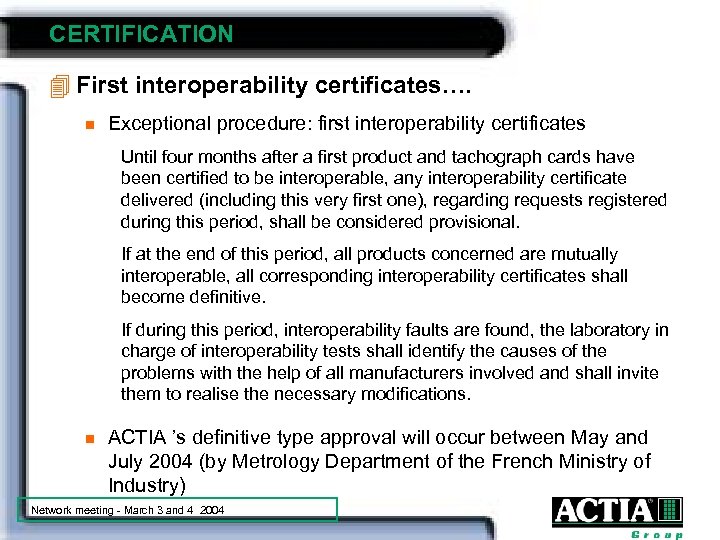

CERTIFICATION 4 First interoperability certificates…. n Exceptional procedure: first interoperability certificates Until four months CERTIFICATION 4 First interoperability certificates…. n Exceptional procedure: first interoperability certificates Until four months after a first product and tachograph cards have been certified to be interoperable, any interoperability certificate delivered (including this very first one), regarding requests registered during this period, shall be considered provisional. If at the end of this period, all products concerned are mutually interoperable, all corresponding interoperability certificates shall become definitive. If during this period, interoperability faults are found, the laboratory in charge of interoperability tests shall identify the causes of the problems with the help of all manufacturers involved and shall invite them to realise the necessary modifications. n ACTIA ’s definitive type approval will occur between May and July 2004 (by Metrology Department of the French Ministry of Industry) Network meeting - March 3 and 4 2004

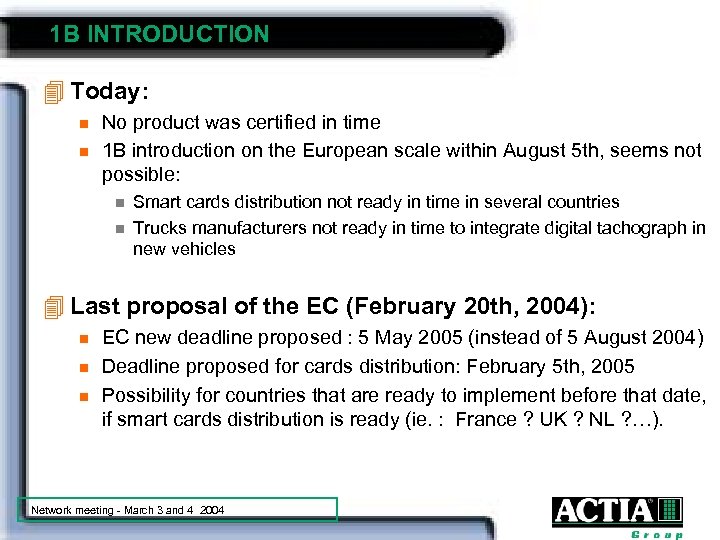

1 B INTRODUCTION 4 Today: n n No product was certified in time 1 1 B INTRODUCTION 4 Today: n n No product was certified in time 1 B introduction on the European scale within August 5 th, seems not possible: n n Smart cards distribution not ready in time in several countries Trucks manufacturers not ready in time to integrate digital tachograph in new vehicles 4 Last proposal of the EC (February 20 th, 2004): n n n EC new deadline proposed : 5 May 2005 (instead of 5 August 2004) Deadline proposed for cards distribution: February 5 th, 2005 Possibility for countries that are ready to implement before that date, if smart cards distribution is ready (ie. : France ? UK ? NL ? …). Network meeting - March 3 and 4 2004

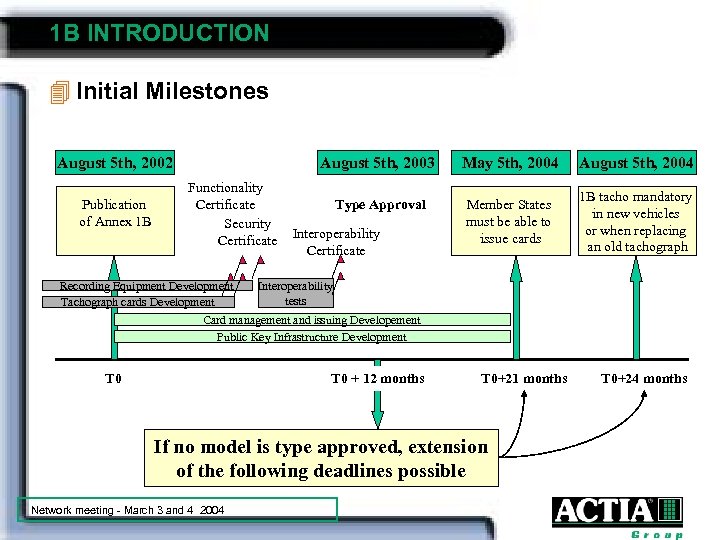

1 B INTRODUCTION 4 Initial Milestones August 5 th, 2002 Publication of Annex 1 1 B INTRODUCTION 4 Initial Milestones August 5 th, 2002 Publication of Annex 1 B August 5 th, 2003 Functionality Certificate Security Certificate May 5 th, 2004 August 5 th, 2004 Type Approval Member States must be able to issue cards 1 B tacho mandatory in new vehicles or when replacing an old tachograph Interoperability Certificate Recording Equipment Development Interoperability tests Tachograph cards Development Card management and issuing Developement Public Key Infrastructure Development T 0 + 12 months T 0+21 months If no model is type approved, extension of the following deadlines possible Network meeting - March 3 and 4 2004 T 0+24 months

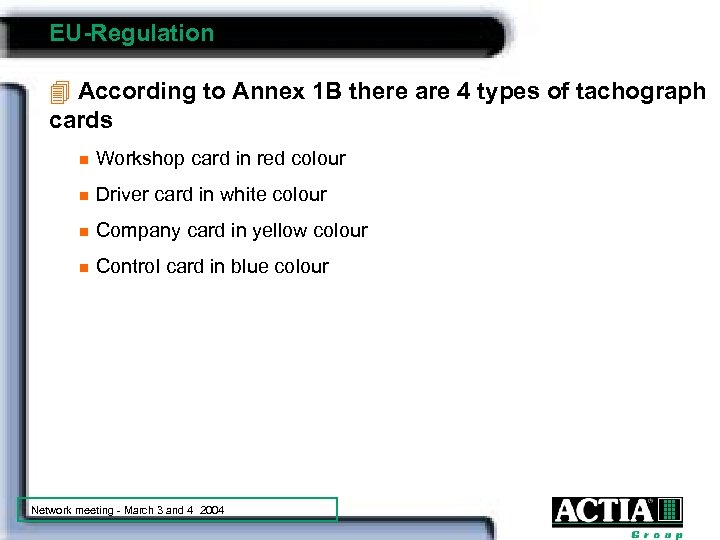

EU-Regulation 4 According to Annex 1 B there are 4 types of tachograph cards EU-Regulation 4 According to Annex 1 B there are 4 types of tachograph cards n Workshop card in red colour n Driver card in white colour n Company card in yellow colour n Control card in blue colour Network meeting - March 3 and 4 2004

EU-Regulation n Workshop card (red) The workshop card identifies the cardholder and allows testing, EU-Regulation n Workshop card (red) The workshop card identifies the cardholder and allows testing, calibration and/or downloading of the recording equipment. It is issued by the authorities of a Member State to a recording equipment manufacturer, a fitter, a vehicle manufacturer or workshop, approved by that Member State. It stores : n A personal identification number (PIN code) n The cryptographic keys needed for pairing motion sensors to vehicle units The period of administrative validity of approved workshop and fitter cards shall not exceed one year. If a card issued to an approved workshop or fitter is to be extended, is damaged, malfunctions, is lost or is stolen, the (competent) authority (of the Member State) shall supply a replacement card within five working days of receiving a detailed request to that effect. Network meeting - March 3 and 4 2004

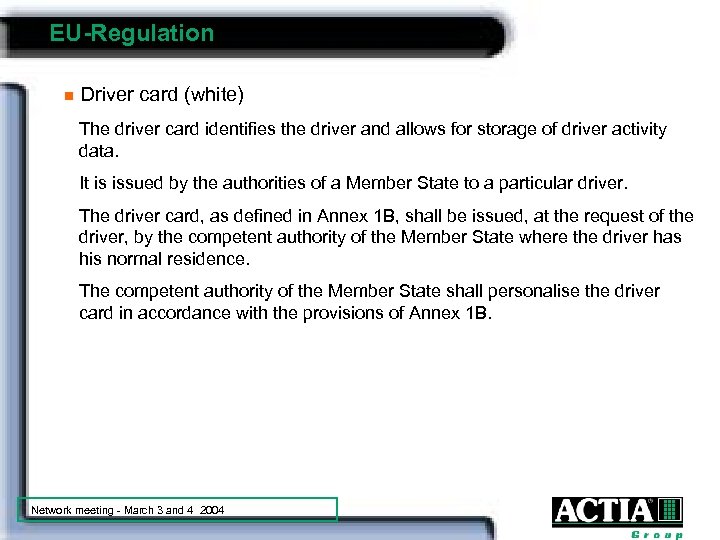

EU-Regulation n Driver card (white) The driver card identifies the driver and allows for EU-Regulation n Driver card (white) The driver card identifies the driver and allows for storage of driver activity data. It is issued by the authorities of a Member State to a particular driver. The driver card, as defined in Annex 1 B, shall be issued, at the request of the driver, by the competent authority of the Member State where the driver has his normal residence. The competent authority of the Member State shall personalise the driver card in accordance with the provisions of Annex 1 B. Network meeting - March 3 and 4 2004

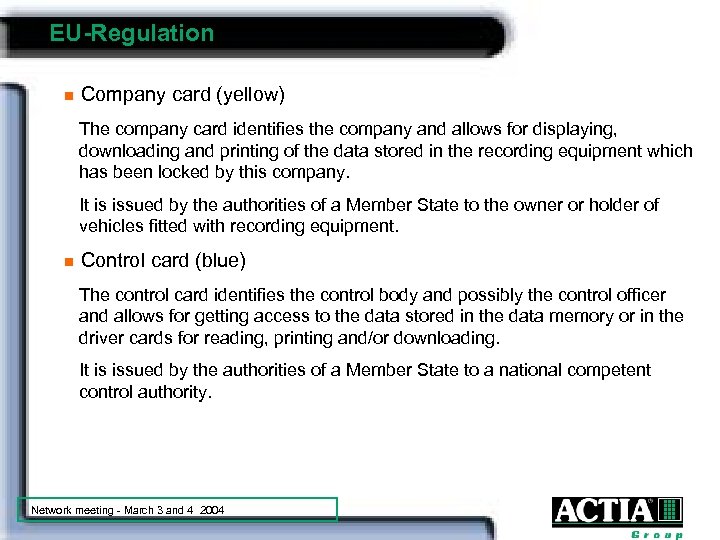

EU-Regulation n Company card (yellow) The company card identifies the company and allows for EU-Regulation n Company card (yellow) The company card identifies the company and allows for displaying, downloading and printing of the data stored in the recording equipment which has been locked by this company. It is issued by the authorities of a Member State to the owner or holder of vehicles fitted with recording equipment. n Control card (blue) The control card identifies the control body and possibly the control officer and allows for getting access to the data stored in the data memory or in the driver cards for reading, printing and/or downloading. It is issued by the authorities of a Member State to a national competent control authority. Network meeting - March 3 and 4 2004

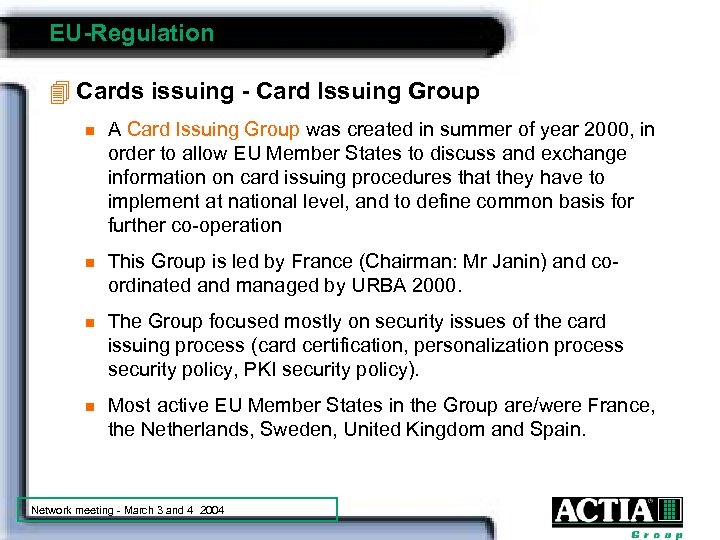

EU-Regulation 4 Cards issuing - Card Issuing Group n A Card Issuing Group was EU-Regulation 4 Cards issuing - Card Issuing Group n A Card Issuing Group was created in summer of year 2000, in order to allow EU Member States to discuss and exchange information on card issuing procedures that they have to implement at national level, and to define common basis for further co-operation n This Group is led by France (Chairman: Mr Janin) and coordinated and managed by URBA 2000. n The Group focused mostly on security issues of the card issuing process (card certification, personalization process security policy, PKI security policy). n Most active EU Member States in the Group are/were France, the Netherlands, Sweden, United Kingdom and Spain. Network meeting - March 3 and 4 2004

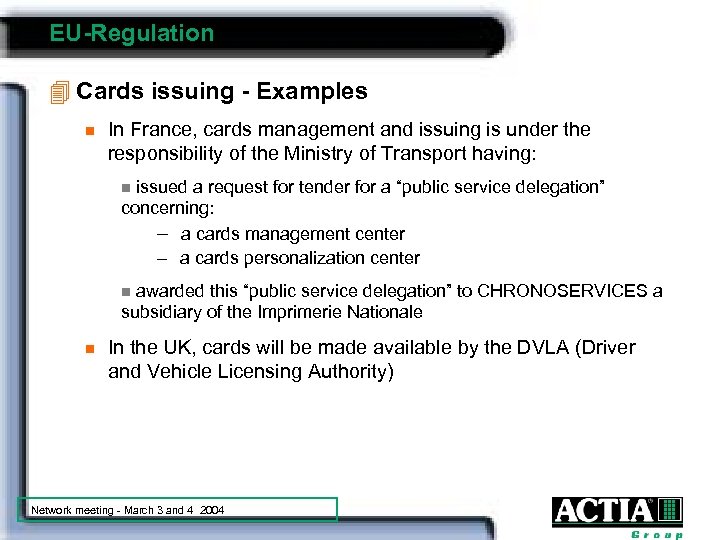

EU-Regulation 4 Cards issuing - Examples n In France, cards management and issuing is EU-Regulation 4 Cards issuing - Examples n In France, cards management and issuing is under the responsibility of the Ministry of Transport having: n issued a request for tender for a “public service delegation” concerning: – a cards management center – a cards personalization center n awarded this “public service delegation” to CHRONOSERVICES a subsidiary of the Imprimerie Nationale n In the UK, cards will be made available by the DVLA (Driver and Vehicle Licensing Authority) Network meeting - March 3 and 4 2004

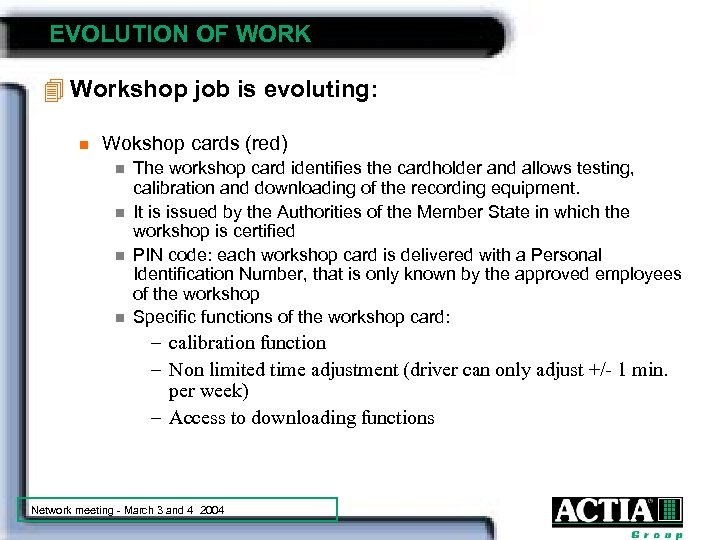

EVOLUTION OF WORK 4 Workshop job is evoluting: n Wokshop cards (red) n n EVOLUTION OF WORK 4 Workshop job is evoluting: n Wokshop cards (red) n n The workshop card identifies the cardholder and allows testing, calibration and downloading of the recording equipment. It is issued by the Authorities of the Member State in which the workshop is certified PIN code: each workshop card is delivered with a Personal Identification Number, that is only known by the approved employees of the workshop Specific functions of the workshop card: – calibration function – Non limited time adjustment (driver can only adjust +/- 1 min. per week) – Access to downloading functions Network meeting - March 3 and 4 2004

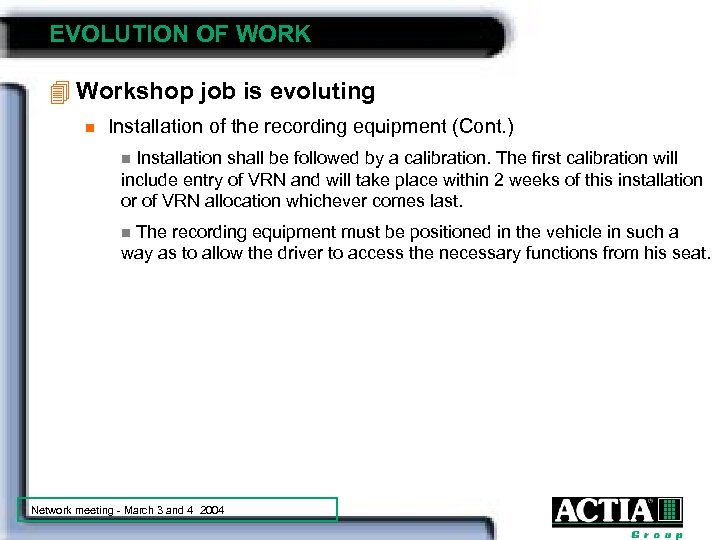

EVOLUTION OF WORK 4 Workshop job is evoluting n Installation of the recording equipment EVOLUTION OF WORK 4 Workshop job is evoluting n Installation of the recording equipment (Cont. ) n Installation shall be followed by a calibration. The first calibration will include entry of VRN and will take place within 2 weeks of this installation or of VRN allocation whichever comes last. n The recording equipment must be positioned in the vehicle in such a way as to allow the driver to access the necessary functions from his seat. Network meeting - March 3 and 4 2004

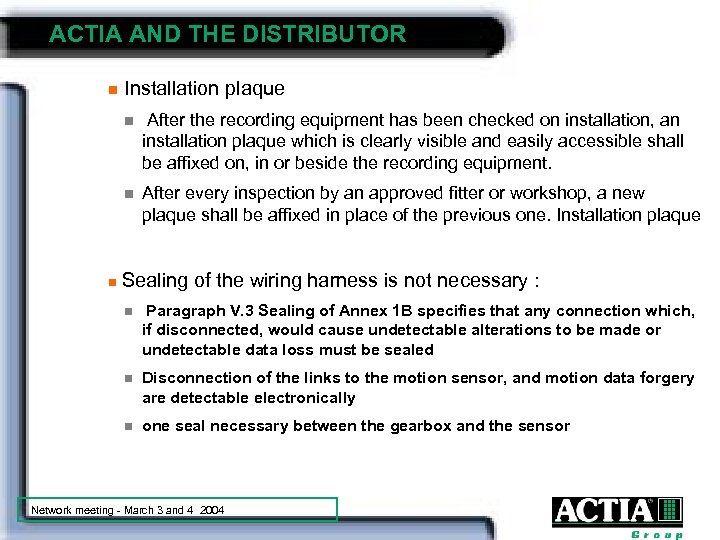

ACTIA AND THE DISTRIBUTOR n Installation plaque n n n After the recording equipment ACTIA AND THE DISTRIBUTOR n Installation plaque n n n After the recording equipment has been checked on installation, an installation plaque which is clearly visible and easily accessible shall be affixed on, in or beside the recording equipment. After every inspection by an approved fitter or workshop, a new plaque shall be affixed in place of the previous one. Installation plaque Sealing of the wiring harness is not necessary : n Paragraph V. 3 Sealing of Annex 1 B specifies that any connection which, if disconnected, would cause undetectable alterations to be made or undetectable data loss must be sealed n Disconnection of the links to the motion sensor, and motion data forgery are detectable electronically n one seal necessary between the gearbox and the sensor Network meeting - March 3 and 4 2004

DISTRIBUTION POLICIES 4 Training n Training sessions are organised on the following subjects: n DISTRIBUTION POLICIES 4 Training n Training sessions are organised on the following subjects: n n ACTIA SMARTACH use Testing tools use, methods D-Box and D-Store use Specific training sessions can be locally organised about workshops security requirements and recommendations: n n in compliance with document issued by EC groups « Guidelines to approve workshops » or with national specific directives Network meeting - March 3 and 4 2004

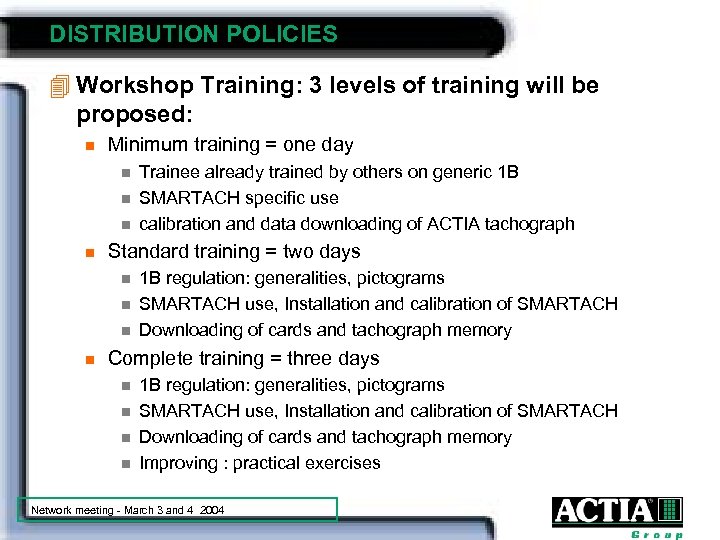

DISTRIBUTION POLICIES 4 Workshop Training: 3 levels of training will be proposed: n Minimum DISTRIBUTION POLICIES 4 Workshop Training: 3 levels of training will be proposed: n Minimum training = one day n n Standard training = two days n n Trainee already trained by others on generic 1 B SMARTACH specific use calibration and data downloading of ACTIA tachograph 1 B regulation: generalities, pictograms SMARTACH use, Installation and calibration of SMARTACH Downloading of cards and tachograph memory Complete training = three days n n 1 B regulation: generalities, pictograms SMARTACH use, Installation and calibration of SMARTACH Downloading of cards and tachograph memory Improving : practical exercises Network meeting - March 3 and 4 2004

DISTRIBUTION POLICIES 4 Warranty and after sales: n n Warranty conditions: No repairs can DISTRIBUTION POLICIES 4 Warranty and after sales: n n Warranty conditions: No repairs can be made by distributors Reasons of the choice: very high entrance cost to become a repair centre: n n n Security process: ITSEC 3. high Materials investment: dedicated and secured premises, stocks of specific seals, safe, testing equipment. . . Rules: n n A sole repair centre: Actia repair centre. Loss of warranty if any tachograph is opened Network meeting - March 3 and 4 2004

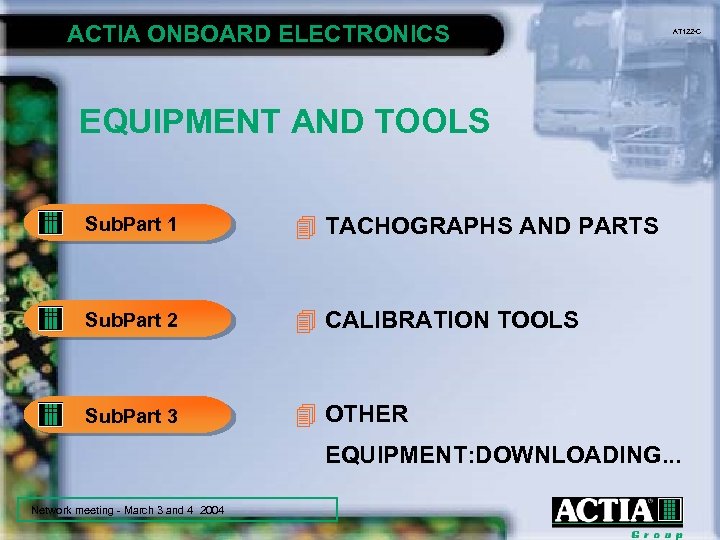

ACTIA ONBOARD ELECTRONICS AT 122 -C EQUIPMENT AND TOOLS Sub. Part 1 4 TACHOGRAPHS ACTIA ONBOARD ELECTRONICS AT 122 -C EQUIPMENT AND TOOLS Sub. Part 1 4 TACHOGRAPHS AND PARTS Sub. Part 2 4 CALIBRATION TOOLS Sub. Part 3 4 OTHER EQUIPMENT: DOWNLOADING. . . Network meeting - March 3 and 4 2004

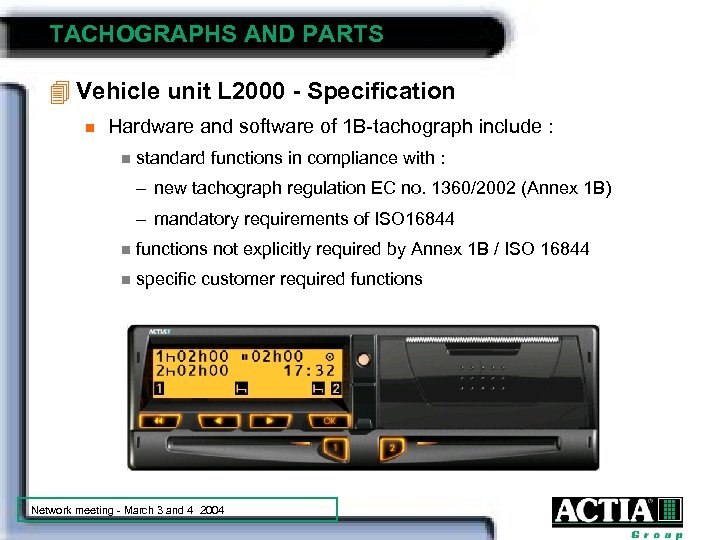

TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Specification n Hardware and software TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Specification n Hardware and software of 1 B-tachograph include : n standard functions in compliance with : – new tachograph regulation EC no. 1360/2002 (Annex 1 B) – mandatory requirements of ISO 16844 n functions not explicitly required by Annex 1 B / ISO 16844 n specific customer required functions Network meeting - March 3 and 4 2004

TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Display n positive LCD technology TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Display n positive LCD technology (negative also available) n 2 lines of 17 characters n 1 line for dynamic visualisation pictograms for: n inserted smart cards n driver activities n customisation available for : n maximum contrast direction (bottom oriented, top oriented) n backlight colour Network meeting - March 3 and 4 2004

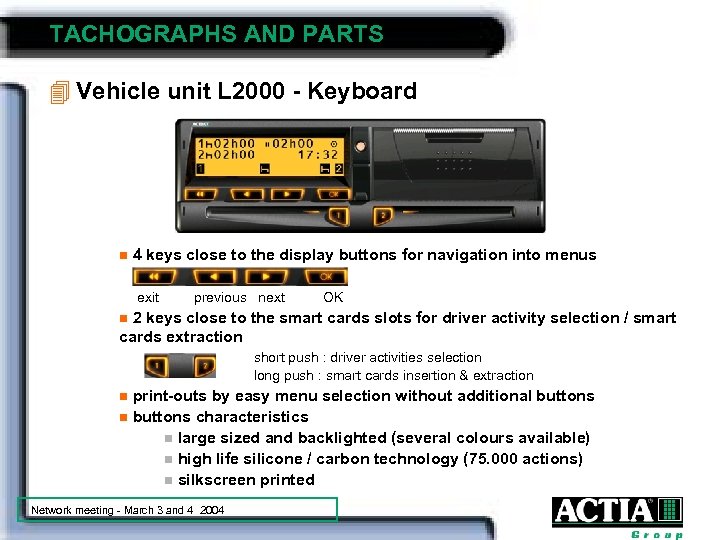

TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Keyboard n 4 keys close TACHOGRAPHS AND PARTS 4 Vehicle unit L 2000 - Keyboard n 4 keys close to the display buttons for navigation into menus exit previous next OK n 2 keys close to the smart cards slots for driver activity selection / smart cards extraction short push : driver activities selection long push : smart cards insertion & extraction n print-outs by easy menu selection without additional buttons n buttons characteristics n large sized and backlighted (several colours available) n high life silicone / carbon technology (75. 000 actions) n silkscreen printed Network meeting - March 3 and 4 2004

TACHOGRAPHS AND PARTS 4 Motion sensor IS 2000 - Specification n Motion sensor complies TACHOGRAPHS AND PARTS 4 Motion sensor IS 2000 - Specification n Motion sensor complies with : n new tachograph regulation EC no. 1360/2002 (Annex 1 B) n ISO 16844 -3 n ADR n Functions : n target Detection (Hall Effect Sensor) n speed signal output n secured data communication with vehicle unit Network meeting - March 3 and 4 2004

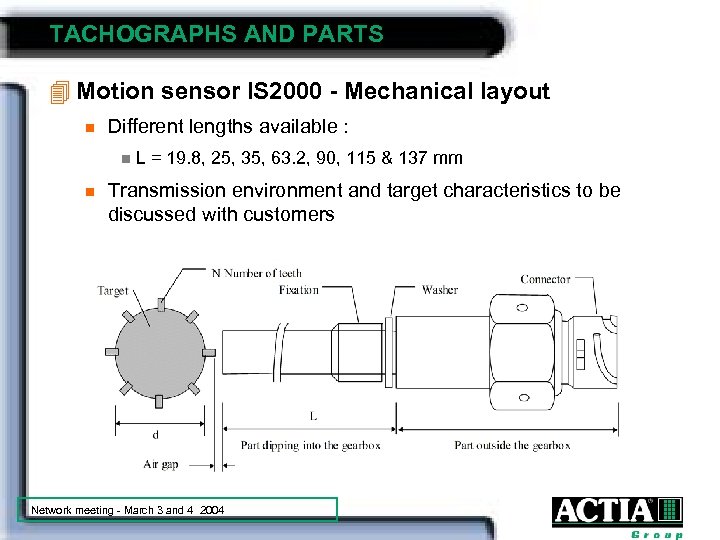

TACHOGRAPHS AND PARTS 4 Motion sensor IS 2000 - Mechanical layout n Different lengths TACHOGRAPHS AND PARTS 4 Motion sensor IS 2000 - Mechanical layout n Different lengths available : n L = 19. 8, 25, 35, 63. 2, 90, 115 & 137 mm n Transmission environment and target characteristics to be discussed with customers Network meeting - March 3 and 4 2004

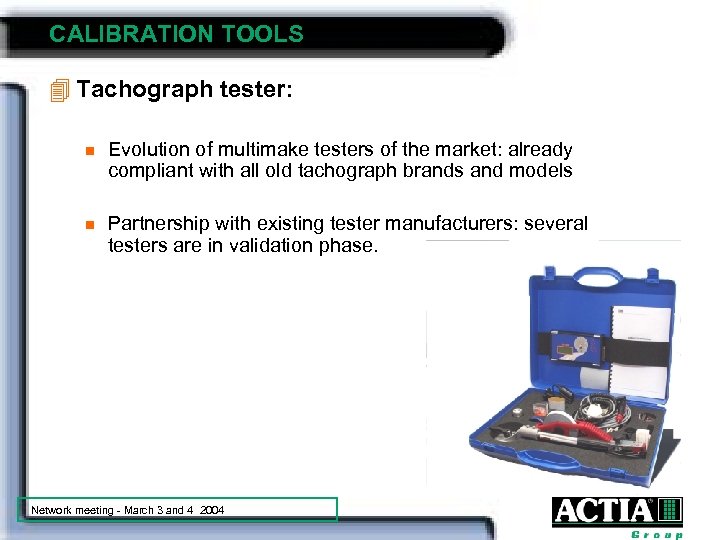

CALIBRATION TOOLS 4 Tachograph tester: n Evolution of multimake testers of the market: already CALIBRATION TOOLS 4 Tachograph tester: n Evolution of multimake testers of the market: already compliant with all old tachograph brands and models n Partnership with existing tester manufacturers: several testers are in validation phase. Network meeting - March 3 and 4 2004

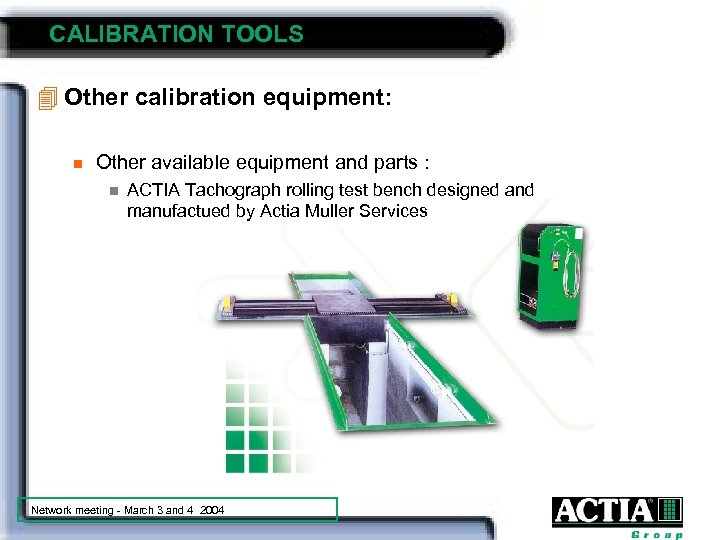

CALIBRATION TOOLS 4 Other calibration equipment: n Other available equipment and parts : n CALIBRATION TOOLS 4 Other calibration equipment: n Other available equipment and parts : n ACTIA Tachograph rolling test bench designed and manufactued by Actia Muller Services Network meeting - March 3 and 4 2004

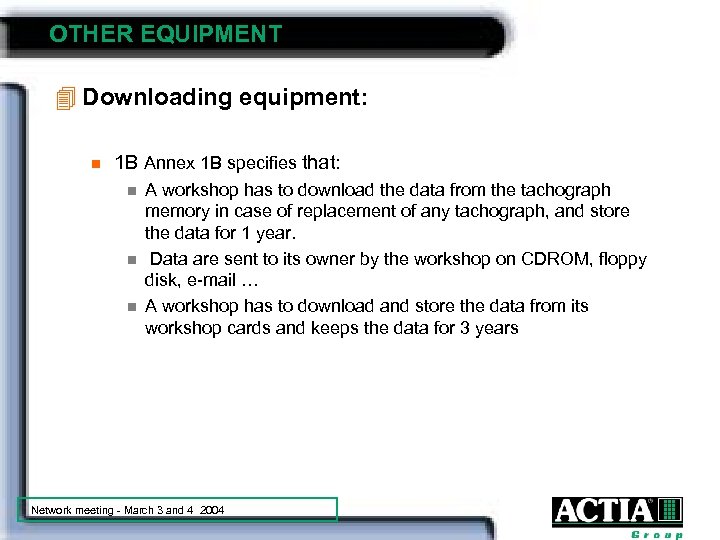

OTHER EQUIPMENT 4 Downloading equipment: n 1 B Annex 1 B specifies that: n OTHER EQUIPMENT 4 Downloading equipment: n 1 B Annex 1 B specifies that: n n n A workshop has to download the data from the tachograph memory in case of replacement of any tachograph, and store the data for 1 year. Data are sent to its owner by the workshop on CDROM, floppy disk, e-mail … A workshop has to download and store the data from its workshop cards and keeps the data for 3 years Network meeting - March 3 and 4 2004

OTHER EQUIPMENT 4 Downloading equipment n D-Store software: data management and storage from the OTHER EQUIPMENT 4 Downloading equipment n D-Store software: data management and storage from the tachograph and cards (in compliance with regulation): n Complete and easy to use data base, that allows the workshop to: – store the data from its workshops cards – transmit the downloaded data to the transport company and store them during the mandatory duration – signature authentification – print a certificate of undownloadability in case of problem n D-Store data base must be secured in a special area n D-Store is multimake compliant : tests to be performed ! Network meeting - March 3 and 4 2004

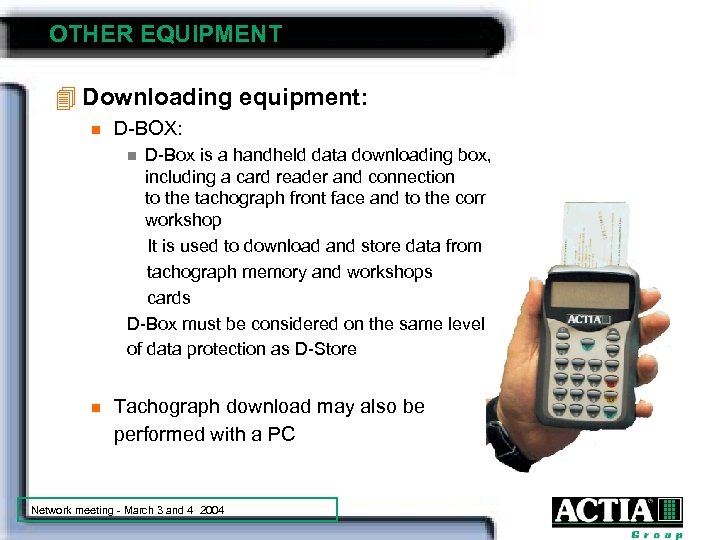

OTHER EQUIPMENT 4 Downloading equipment: n D-BOX: D-Box is a handheld data downloading box, OTHER EQUIPMENT 4 Downloading equipment: n D-BOX: D-Box is a handheld data downloading box, including a card reader and connection to the tachograph front face and to the computer of the workshop It is used to download and store data from tachograph memory and workshops cards D-Box must be considered on the same level of data protection as D-Store n n Tachograph download may also be performed with a PC Network meeting - March 3 and 4 2004

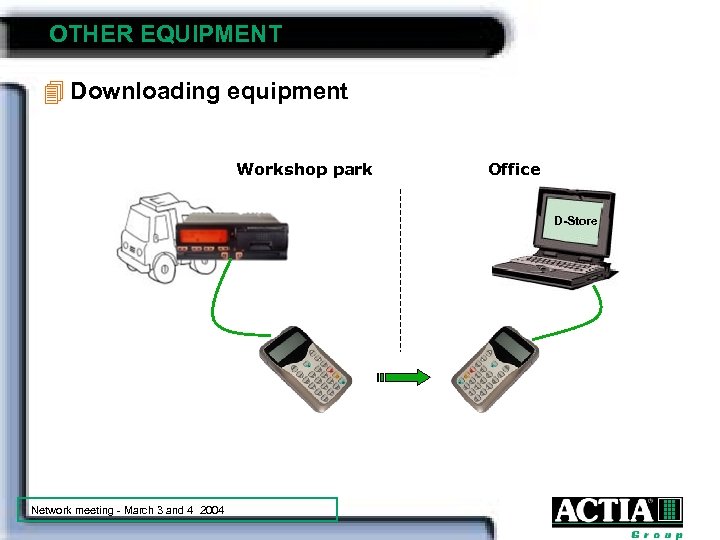

OTHER EQUIPMENT 4 Downloading equipment Workshop park Office D-Store Network meeting - March 3 OTHER EQUIPMENT 4 Downloading equipment Workshop park Office D-Store Network meeting - March 3 and 4 2004

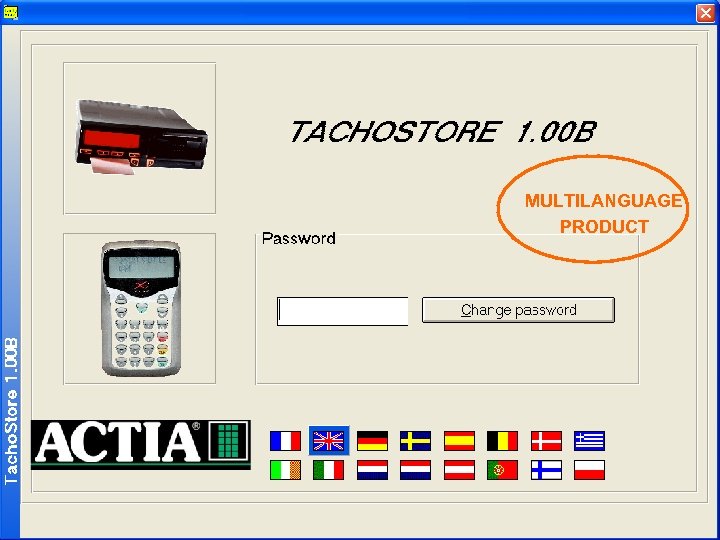

OTHER EQUIPMENT MULTILANGUAGE PRODUCT Network meeting - March 3 and 4 2004 OTHER EQUIPMENT MULTILANGUAGE PRODUCT Network meeting - March 3 and 4 2004

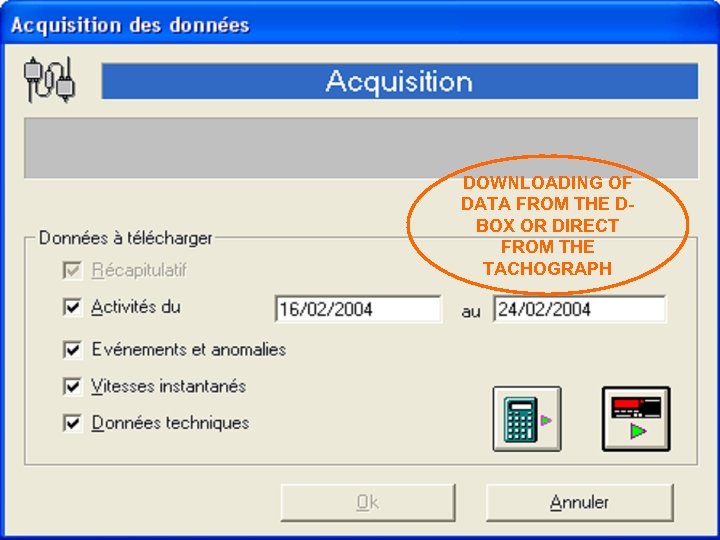

DOWNLOADING OF DATA FROM THE DBOX OR DIRECT FROM THE TACHOGRAPH Network meeting - DOWNLOADING OF DATA FROM THE DBOX OR DIRECT FROM THE TACHOGRAPH Network meeting - March 3 and 4 2004

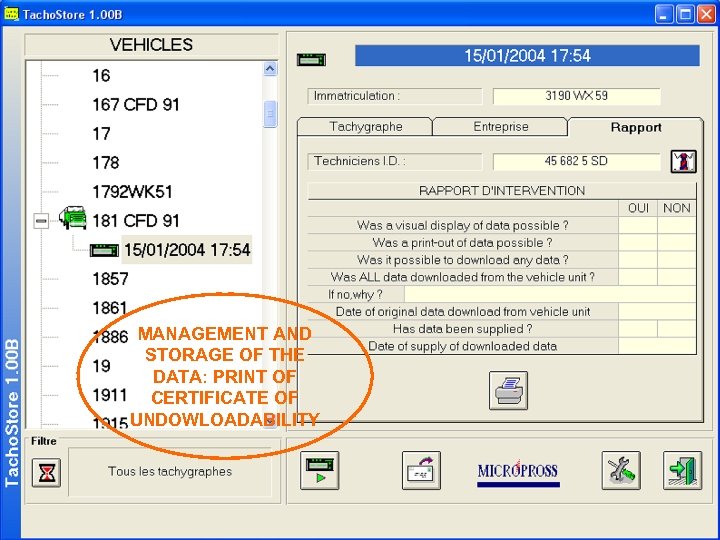

MANAGEMENT AND STORAGE OF THE DATA: PRINT OF CERTIFICATE OF UNDOWLOADABILITY Network meeting - MANAGEMENT AND STORAGE OF THE DATA: PRINT OF CERTIFICATE OF UNDOWLOADABILITY Network meeting - March 3 and 4 2004

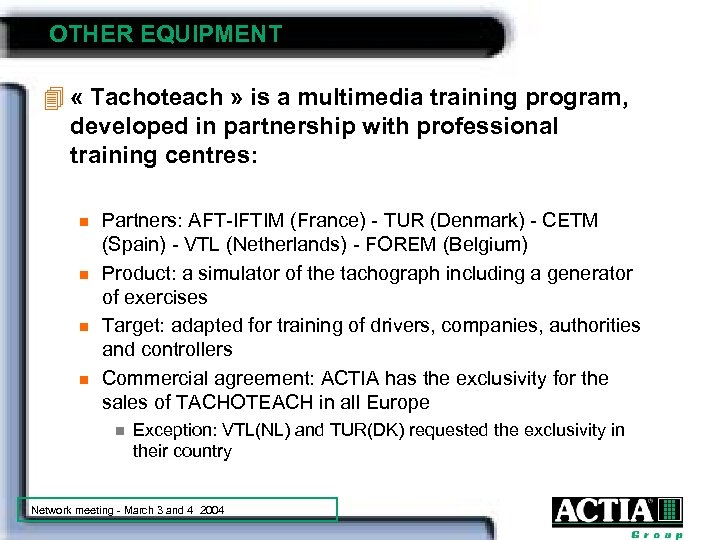

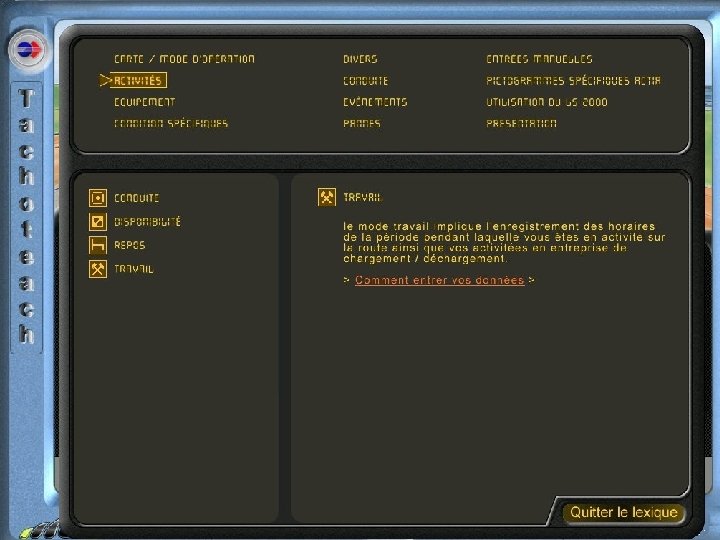

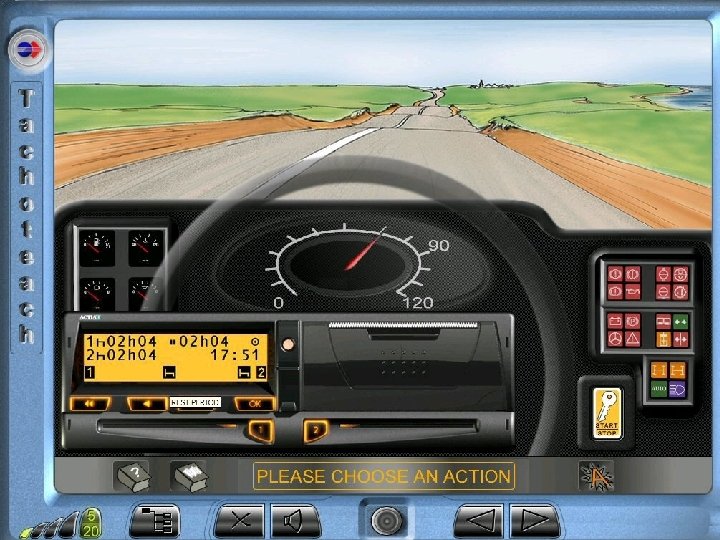

OTHER EQUIPMENT 4 « Tachoteach » is a multimedia training program, developed in partnership OTHER EQUIPMENT 4 « Tachoteach » is a multimedia training program, developed in partnership with professional training centres: n n Partners: AFT-IFTIM (France) - TUR (Denmark) - CETM (Spain) - VTL (Netherlands) - FOREM (Belgium) Product: a simulator of the tachograph including a generator of exercises Target: adapted for training of drivers, companies, authorities and controllers Commercial agreement: ACTIA has the exclusivity for the sales of TACHOTEACH in all Europe n Exception: VTL(NL) and TUR(DK) requested the exclusivity in their country Network meeting - March 3 and 4 2004

 Network meeting - March 3 and 4 2004 Network meeting - March 3 and 4 2004

 Network meeting - March 3 and 4 2004 Network meeting - March 3 and 4 2004

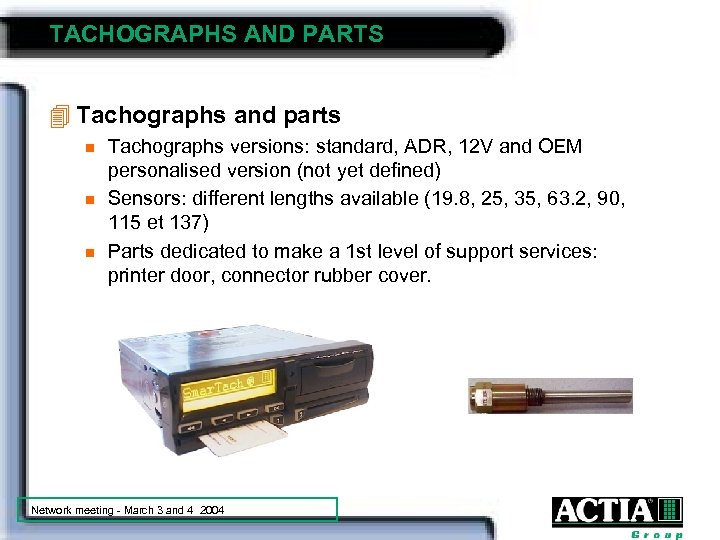

TACHOGRAPHS AND PARTS 4 Tachographs and parts n n n Tachographs versions: standard, ADR, TACHOGRAPHS AND PARTS 4 Tachographs and parts n n n Tachographs versions: standard, ADR, 12 V and OEM personalised version (not yet defined) Sensors: different lengths available (19. 8, 25, 35, 63. 2, 90, 115 et 137) Parts dedicated to make a 1 st level of support services: printer door, connector rubber cover. Network meeting - March 3 and 4 2004
