intelligent e. HID Drivers Market Development intelligent e. HID Drivers Market Development

Intele. Light's - e. HID Drivers Topics • What is an intele. Light e. Intele. Light's - e. HID Drivers Topics • What is an intele. Light e. HID Driver? • Idea Applications for an intele. Light Driver • Technical Overview – Constant Voltage vs. Constant Current – Square Wave – Low-Frequency – Digital Control – Specifications • Performance of intele. Light Driver vs. Others • Lighting Benefits Features • Additional “Features” – Dimming – Power Factor – Size / Wattage – Protection (thermal, environmental) – Software Features – Communication and Control

Applications - intele. Light e. Drivers What Applications Use e. Drivers ? Interior / Applications - intele. Light e. Drivers What Applications Use e. Drivers ? Interior / Exterior lighting applications such as: Auto Dealer Showrooms, Parking Lots, Roadways, Tunnels, Airports, Parks & Recreational Facilities, Stadiums & Arenas and High Bay Buildings (i. e. Big Box Retailers, Warehouses, Manufactures) alike. Intele. Light Electronic Driver Technology creates an immediate 40% to 80% Savings in energy and operating costs all while reducing CO² emissions by HALF (½). intele. Light is the most cost effective solution vs. fluorescent, induction, LED and others as it sustains 90% of its light levels for the entire life of the lamp. Eco. Fos 2 operates guaranteed Long Life Lamps with an amazing 30, 000+ hours of lamp life. Plus: low initial capital costs (nearly ½ of LED), with high performance light and low operating costs (by reducing re-lamping and maintenance costs), all = a very short ROI (Return On Investment).

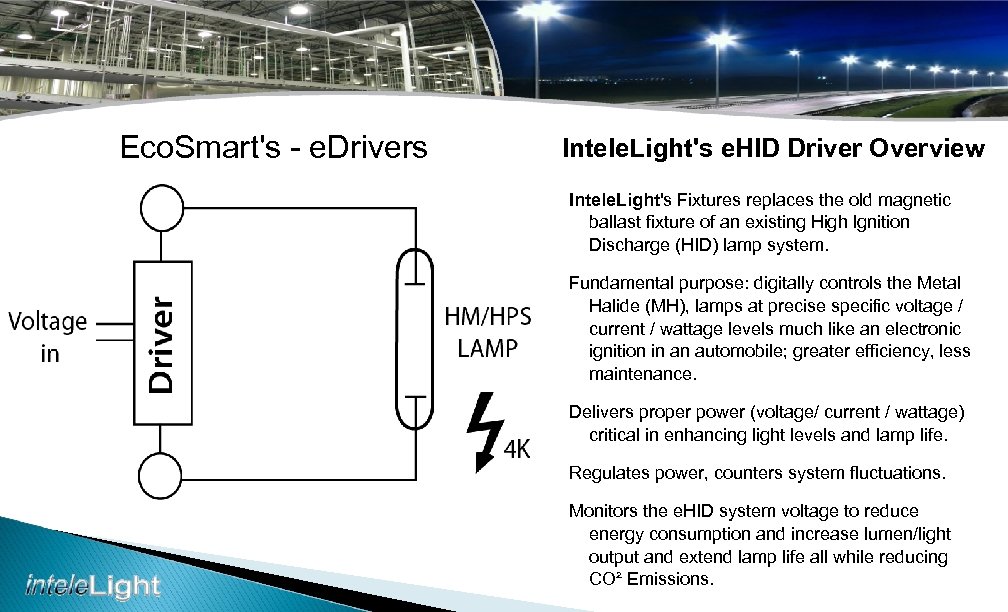

Eco. Smart's - e. Drivers Intele. Light's e. HID Driver Overview Intele. Light's Fixtures Eco. Smart's - e. Drivers Intele. Light's e. HID Driver Overview Intele. Light's Fixtures replaces the old magnetic ballast fixture of an existing High Ignition Discharge (HID) lamp system. Fundamental purpose: digitally controls the Metal Halide (MH), lamps at precise specific voltage / current / wattage levels much like an electronic ignition in an automobile; greater efficiency, less maintenance. Delivers proper power (voltage/ current / wattage) critical in enhancing light levels and lamp life. Regulates power, counters system fluctuations. Monitors the e. HID system voltage to reduce energy consumption and increase lumen/light output and extend lamp life all while reducing CO² Emissions.

intele. Light Drivers - Constant Voltage Technical Overview The e. HID Driver manages and intele. Light Drivers - Constant Voltage Technical Overview The e. HID Driver manages and maintains precise voltage and wattage to the lamp at a precise frequency multiplying the lumen output while increasing the life of the lamp. The computer precision ignition is one of the key advantages of the high performance e. HID Driver. Intele. Light precision ignition also maintains and; optimizes lamp ignition and current control while avoiding acoustic resonance (lamp ignition noise). A soft start-up ignition sequence – creates longer lamp life with Increased control and flexibility. Enhanced dimming and advanced per-programming capabilities. Allows the optional remote control and monitoring software providing complete control over light.

Square-Wave Driver Converter Square-Wave Overview The primary motivation for using Low Frequency (LF) Square-Wave Square-Wave Driver Converter Square-Wave Overview The primary motivation for using Low Frequency (LF) Square-Wave in an electronic driver is to avoid excitation of acoustic resonances; controlling the ignition of the gases in the lamps. The frequencies at which acoustic resonance appears depend on the size of the arc tube, gas pressure and its composition. Therefor the driver and lamp are perfectly matched together for optimum performance. Because the gas that is enclosed in the lamp determines the color of the light, LF offers a more complete spectrum of light and our LF Square-Wave Drivers ignite the gases in a very unique way, extending lamp life and producing superior light distribution.

Lamp Voltage ac low frequency Intele. Light's Square-Wave Overview Standard solutions for the Eco. Lamp Voltage ac low frequency Intele. Light's Square-Wave Overview Standard solutions for the Eco. Smart Square-Wave High-Intensity Discharge (HID) lamp drivers over 100 w require three stages: (1) power factor correction (PFC) stage; (2) current mode controlled dc-dc converter;

Digital Control Circuit Block diagram - digital control circuit The digital control circuit is Digital Control Circuit Block diagram - digital control circuit The digital control circuit is implemented by means of a Complex Programmable Logic Device (CPLD), which allows easy modification of the design, clocked by a 10 MHz crystal oscillator. Three main controllable aspects of Eco. Fos² Drivers: (1) Factory Programed Configuration; (2) Remote Access, wired and wireless; (3) Dimmable, Frequency Control; Advanced electronic drivers allow dimming via pulsewidth modulation or by changing the frequency to a higher value and remote control and monitoring via networks such as Lon. Works, DALI, DMX 512, DSI or simple analog control using a 0 -10 V DC brightness control signal.

Lamps are 65% Smaller than HPS General Features ● Lightweight Compact Design The size Lamps are 65% Smaller than HPS General Features ● Lightweight Compact Design The size of lamp is half dimension of a Metal Halide (MH) and is 65% smaller than High Pressure Sodium Lamps. ● Efficient Saving Energy and CO² Emissions Less pollution to environment, less plumbum (lead), less mercury, UV protection, environment friendly. ● Reliable - Long Lifetime ≥ 60, 000+ hours (>5% failure rate). Wide Operating Ambient Temps: -20°C to +50°C Lighting Technology Independent: 0 -10 V - Dimming Performance Reliability. ● Designed for various Lighting Applications Eco. Smart with its Natural soft white light makes people feel peaceful in mind and more friendly to each other, more sense of safety, helping reducing the criminal rate. Eco. Smart Delivers Standard Voltages and Wattage: International Voltage available: Standard VAC 110 -220 auto-switchable International Wattage: 45 W, 60 W, 90 W, 140 W, 210 W, 315 W

Lamps are 50% Smaller than MH General Features Continued Also, the power to the Lamps are 50% Smaller than MH General Features Continued Also, the power to the lamp now reaches frequency levels of 20, 000 Hz or higher, rather than the 50 Hz / 60 Hz used by magnetic ballasts; this substantially eliminates the stroboscopic effect of flicker traditionally found in the line frequency associated with fluorescent lighting (see photosensitive epilepsy). The higher output frequency of the e. HID Driver refreshes so rapidly that there is no perceptible flicker. The flicker index is used for measuring perceptible light modulation ranges from 0 -1, with 0 indicating lower possibility of flickering and 1 indicating the highest. Lamps operated on magnetic ballasts have a flicker index between 0. 04 -0. 07 while intele. Light's digital drivers have a flicker index of below 0. 01.

140 w Driver Specifications 140 w Driver Specifications

Eco. Smart's Performance vs. Others Eco. Smart's Performance vs. Others

Eco. Smart's Performance vs. Others Eco. Smart's Performance vs. Others

intele. Light's Drivers vs. Magnetic Ballasts Contribution of Driver To The Lamps Long-Life and intele. Light's Drivers vs. Magnetic Ballasts Contribution of Driver To The Lamps Long-Life and Lumen Maintenance Lowers electrode melt-back and shortens glow stage through good control of ignition process. Lamp current - Squared-Wave at Low-Frequency. Faster lamp polarity inversions (minimal intervals at low current values) No re-ignition over voltage required during steady state operations. Criteria For Examination / Selection of intele. Light Electronic Driver for High Intensity Discharge (HID) lamps. Note: When operating the lamp at low frequency square wave, make certain that the high frequency Harmonics content is extremely small.

Lamp Operation Frequency intele. Light's Drivers vs. Magnetic Ballasts Because of the acoustic resonance Lamp Operation Frequency intele. Light's Drivers vs. Magnetic Ballasts Because of the acoustic resonance effect in HID lamps operated at High-Frequency, manufacturer approval is required for each lamp type. Operation of HID lamps at Low-Frequency Square. Wave does not require any specific lamp manufacturer approval. Performance Standard Proposals for HID digital drivers relate only to operation at Low-Frequency Square-Wave. Before After Official standards are now in the advance stages of preparation.

Intele. Light - Your Clear Choice For Light 250 w Standard Pulse. Start Metal Intele. Light - Your Clear Choice For Light 250 w Standard Pulse. Start Metal Halide 140 w Eco. Smart Ceramic Metal Halide

intele. Light Drivers – For Every Application 45 w 112 x 77 x 32 intele. Light Drivers – For Every Application 45 w 112 x 77 x 32 mm Lighting Features 50 K+ Hour Lifetime Average lifetime expectancy, matching the lifetime of the lamp 3 Years Warranty – Extended Warranty Available 60 w 112 x 77 x 32 mm Providing peace of mind Voltage range Available in various international voltages Indoor, Outdoor operation 90 w 112 x 77 x 32 mm IP 65 or better Class Certified – UL / CE Rated for international use

Intele. Light Drivers – For Every Application intle. Light Replacements 140 w VAC (+/- Intele. Light Drivers – For Every Application intle. Light Replacements 140 w VAC (+/- 15%) / 0. 74 A / 50/60 Hz 161 x 89 x 42 mm 0. 55 kg Big Savings by Replacing Old Magnetic Ballast = 210 w VAC (+/- 15%) / 0. 74 A / 50/60 Hz 161 x 89 x 42 mm 0. 55 kg 125 w Existing HID Magnetic Ballast replaced with 60 w = 50% + Savings 90 w Existing HID Magnetic Ballast replaced with 45 w = 50% + Savings 250 w Existing HID Magnetic Ballast replaced with 140 w = 50% + Savings 315 w VAC (+/- 15%) / 0. 74 A / 50/60 Hz 220 x 110 x 69 mm 1. 26 kg 400 w Existing HID Magnetic Ballast replaced with 210 w = 50% + Savings 600 w Existing HID Magnetic Ballast replaced with 315 w = 50% + Savings Adding Dimming can increase your energy savings up to an amazing 80% !!!

See the intele. Light Difference 140 w Drivers Replaced 250 w HPS ● Excellent See the intele. Light Difference 140 w Drivers Replaced 250 w HPS ● Excellent real color rendering and natural true white light. ● Color temperature approaches 2900 K to 3100 K, Ra >66, CDM-Ra>90; Good haze- penetrating capability and nice light penetration. ● Natural white light is the most suitable for our eyes and less driver fatigue improved traffic safety. ● Improving the sensitivity and precision of the camera monitoring systems. ● Maximize lighting source range, 10 -15% longer interval distance between lamp-post than normally street lighting fixtures.

17% More Spacing Between Light Poles With intele. Light See The intele. Light Difference 17% More Spacing Between Light Poles With intele. Light See The intele. Light Difference Improved Optical Performance The improved design and precise light positioning with the locking lamp and socket creates superior optical performance delivering more light in a greater area. This means that your luminaries can be spaced on average 17% further apart, using fewer lights to produce the exact same amount of light distribution for your application. Whether it be a retail operation, warehouse, factory, parking lot or city street, intele. Light produces more light with less fixtures saving you money upfront and over the years. The e. Driver is fully potted, protecting the internal components against moisture, dust and vibration. Along with lightning and surge protection to 10 Kv, the e. Driver assures you that its reliability is maintained under normal and extreme conditions.

intele. Light Benefits intele. Light – Features You Can See White light measurably helps intele. Light Benefits intele. Light – Features You Can See White light measurably helps drivers identify obstacles in front and around them easily. Reduced eyestrain with improved visibility. Warm white light is perceived brighter than yellow light at the same measured luminance at low lighting levels. Warm white light gives you better visibility to see objects, people and more vivid colors to surroundings area providing better orientation and quicker identification.

90 w Driver – 140 w Driver intele. Light Benefits Improvements to the lamp 90 w Driver – 140 w Driver intele. Light Benefits Improvements to the lamp arc tube design and gases have increased luminous efficacy. Simply put you can use the Natural white light to replace high pressure sodium (HPS), mercury vapor (MV) or quartz metal halide (QMH) which is the most suitable light for our eyes. Providing less driver fatigue on long journeys, less stress irritation and improve traffic safety. People also just feel better in natural white light making intelelight the Natural Smart Choice to light the night.

Features You Can See Intele. Lighting Features The smaller compact design is also ideal Features You Can See Intele. Lighting Features The smaller compact design is also ideal for indoor applications. The warm natural white light makes better working conditions increasing production. The brighter light helps in product display in the retail environment. Improved light all while saving energy and cutting CO² emissions in half. Before After

Optional Controllers Controller Features Consists of Software + Concentrator + Single-lamp Controller Intelligent controller Optional Controllers Controller Features Consists of Software + Concentrator + Single-lamp Controller Intelligent controller utilizes a Micro-Processor Control Unit (MCU) to achieve power collection data, lamp on/off control, lumen adjustment control, lamp working state detection electric carrier wave transmission, complete remote control of the lamp / driver telemetry and remote adjustments. Used in commercial and public applications MCU Control Technology, integration, reliable and performance. High efficiency, energy saving Independent Lamp Control: Control of one or more lamps at the same time on the same pole. Dimming Energy Savings: Power Modulation (PWM)

Intele. Light Controllers – Specifications Controller Features Consists of Software + Concentrator + Single-lamp Intele. Light Controllers – Specifications Controller Features Consists of Software + Concentrator + Single-lamp Controller (continued) Widely used in commercial & public applications Internal Time Control: Can be preset at different time periods. Data Management: Collect the working voltage, current, active power, precision rates up to 98%. Remote Control Signal Carrier Technology: Enables long distance control of lighting. Lamp Off Energy Savings: You can turn off lamps when there are more then two lamps installed on the same pole allowing maximum energy savings while maintaining lumen output requirements as stipulated in the street lighting standards guide.

intele. Light Cloud Based Controllers Remote Controlled System (Road Lighting) Lighting System Controlling & intele. Light Cloud Based Controllers Remote Controlled System (Road Lighting) Lighting System Controlling & Monitoring With our Micro-Processor Control Unit (MCU) remote control and monitoring system you monitor and control from a single lamp to a group of lamps through a variety smart solutions. The Controller system series enables digital control of all the parameters via a number of communication protocols. The Communication options currently available include: DALI, PWM and PLC – Power line communication. The benefits of each communication protocol and the factors to be taken into consideration when selecting the appropriate control and monitoring for your lighting system.

Intele. Light Smart Lighting Controllers Intelligent Lighting Control System Dimming control: It can control Intele. Light Smart Lighting Controllers Intelligent Lighting Control System Dimming control: It can control dimming of any lamp, any circuit or any self-defined lighting fixture. Failure warning: When something is wrong with the lighting fixture, the signal light in monitoring center will turn on by itself to send failure notice. On-off control: It can control any lamp, any circuit or any self- defined lighting fixture. Status inquiry: Supports status checking of the lamp, current, voltage, power and other data. Mobile phone remote control: supports mobile phone control to fixture switch, dimming and warning alarm. Theft Guard: If a cable is stolen, it will send an alarm to the monitoring center and show which circuit is stolen. Maintenance and other functions: Supports longdistance (3 km) parameter set-up and expanded function.

Why intele. Light over LED and others? intele. Light's Advantage Our e. HID Drivers Why intele. Light over LED and others? intele. Light's Advantage Our e. HID Drivers Just Perform Better. . . With unparalleled electrical efficiencies outperforms older, conventional magnetic transformer. intele. Light also outperforms fluorescent, induction and even LED lighting technologies. Savings start immediately from the initial buy-in costs of nearly ½ of LED's, ongoing energy efficiencies up to 80%, system reliability and performance, light quality with sustainable brightness over a longer period of time all while minimizing maintenance costs for an overall better product value. Additional Benefits and Capabilities Include the ability to integrate intele. Light's technology into smart-grid applications with remote monitoring, video monitoring or Wi-Fi for an advanced energy management system.

Why intele. Light over LED and others? The intele. Light Advantage Intele. Light's e. Why intele. Light over LED and others? The intele. Light Advantage Intele. Light's e. HID Drivers Technology Advantages with its built in Miro-Processor can: Detect a failed lamp and switch on backup lamp Reduce additional energy consumption at about 1% per minute (which is undetectable to the human eye) while providing up to 80% in energy-savings. Dimming Trends Begins: The City of Los Angeles announced a mandate for the dimming of all their street lights by 2014. Cities around the world are realizing that their lights represent an area to save dramatically as they are facing drastic cuts to their budgets with severe budget shortfalls during these challenging economic times.

Thank You for your interest in our company Obrigado por seu interesse em nossa Thank You for your interest in our company Obrigado por seu interesse em nossa empresa Gracias por su interés en nuestra empresa Grazie per il vostro interesse nella nostra azienda Bringing Better Light to the World Nous vous remercions de votre intérêt pour notre entreprise ﺷﻜﺮﺍ ﻟﻚ ﻋﻠﻰ ﺍﻫﺘﻤﺎﻣﻚ ﻓﻲ ﺷﺮﻛﺘﻨﺎ Спасибо за ваш интерес к нашей компании תודה לך על התעניינותך בחברה שלנו 877 -624 -4203 ● 949 -468 -0909 intele. Light. com [email protected] com
