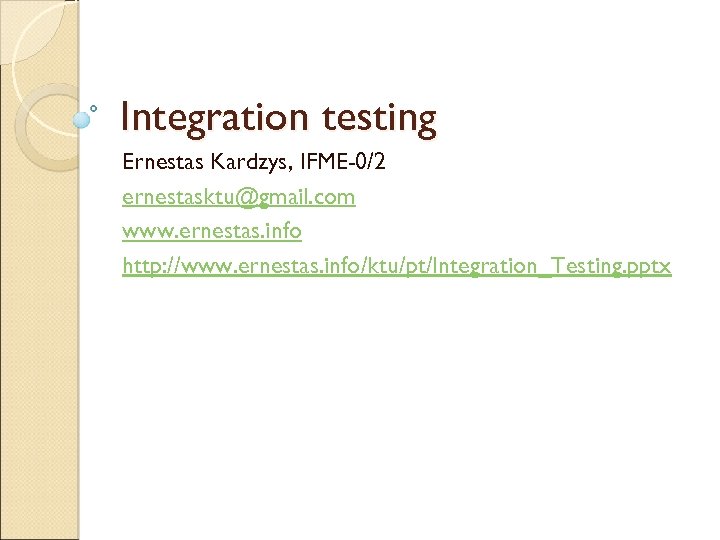

Integration testing Ernestas Kardzys, IFME-0/2 ernestasktu@gmail. com www. ernestas. info http: //www. ernestas. info/ktu/pt/Integration_Testing. Integration testing Ernestas Kardzys, IFME-0/2 [email protected] com www. ernestas. info http: //www. ernestas. info/ktu/pt/Integration_Testing. pptx

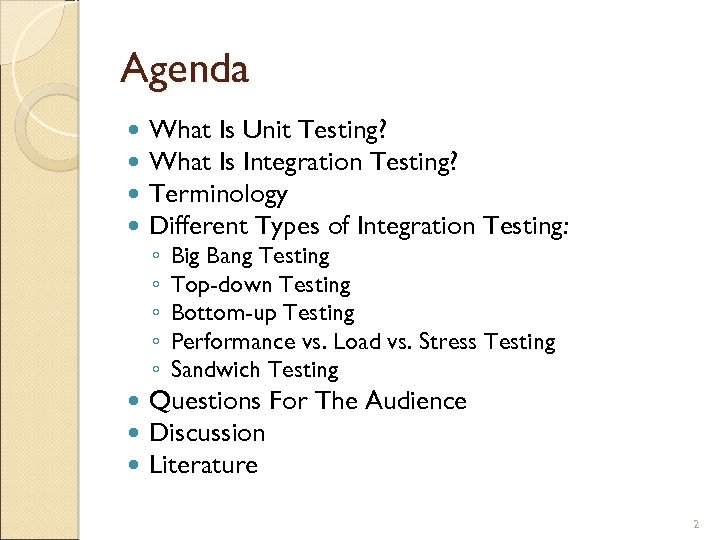

Agenda What Is Unit Testing? What Is Integration Testing? Terminology Different Types of Integration Agenda What Is Unit Testing? What Is Integration Testing? Terminology Different Types of Integration Testing: ◦ ◦ ◦ Big Bang Testing Top-down Testing Bottom-up Testing Performance vs. Load vs. Stress Testing Sandwich Testing Questions For The Audience Discussion Literature 2

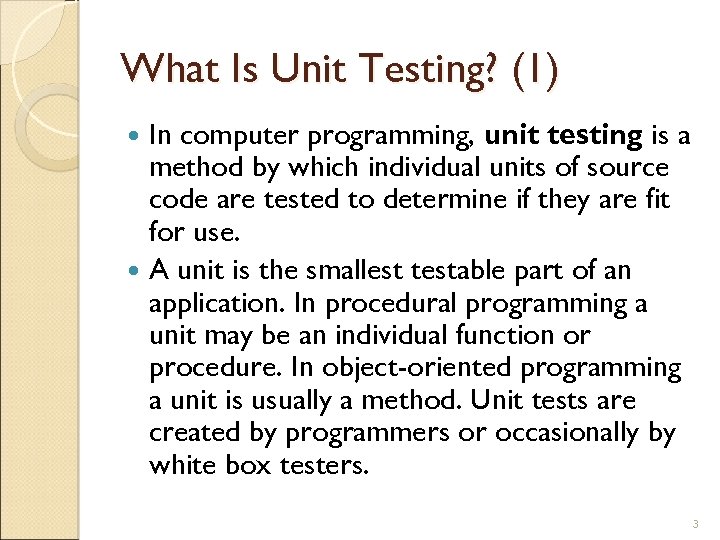

What Is Unit Testing? (1) In computer programming, unit testing is a method by What Is Unit Testing? (1) In computer programming, unit testing is a method by which individual units of source code are tested to determine if they are fit for use. A unit is the smallest testable part of an application. In procedural programming a unit may be an individual function or procedure. In object-oriented programming a unit is usually a method. Unit tests are created by programmers or occasionally by white box testers. 3

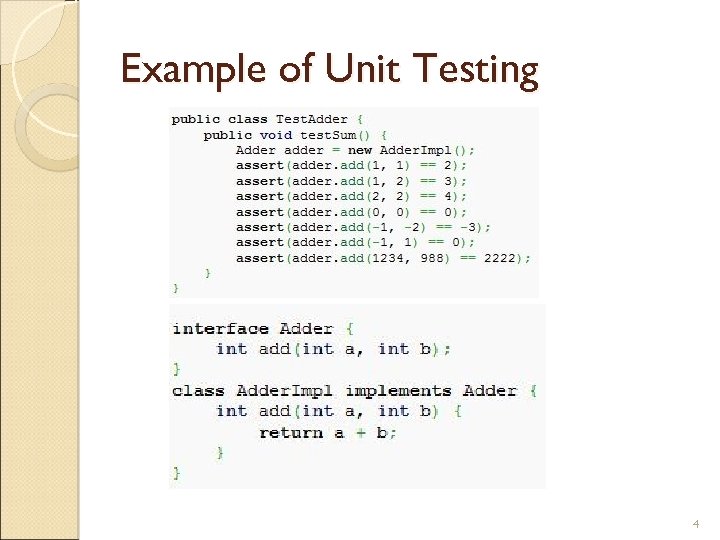

Example of Unit Testing 4 Example of Unit Testing 4

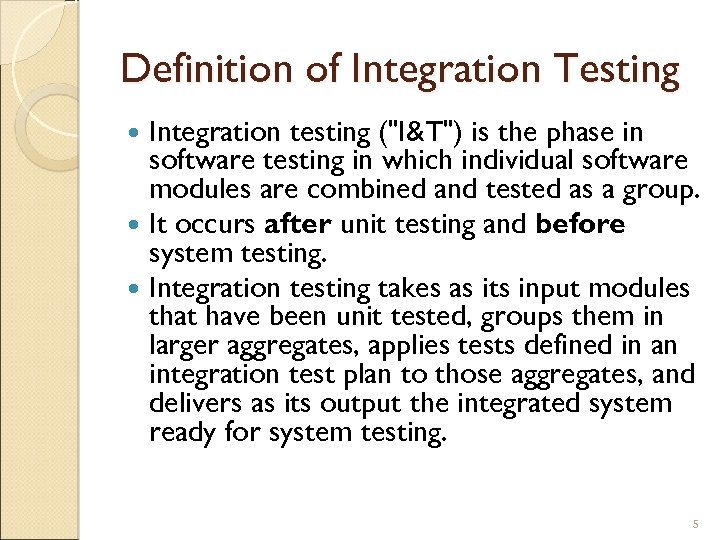

Definition of Integration Testing Integration testing ( Definition of Integration Testing Integration testing ("I&T") is the phase in software testing in which individual software modules are combined and tested as a group. It occurs after unit testing and before system testing. Integration testing takes as its input modules that have been unit tested, groups them in larger aggregates, applies tests defined in an integration test plan to those aggregates, and delivers as its output the integrated system ready for system testing. 5

Why Do You Need Integration Testing? To make sure that your components satisfy the Why Do You Need Integration Testing? To make sure that your components satisfy the fallowing requirements: ◦ Functional. ◦ Performance. ◦ Reliability. 6

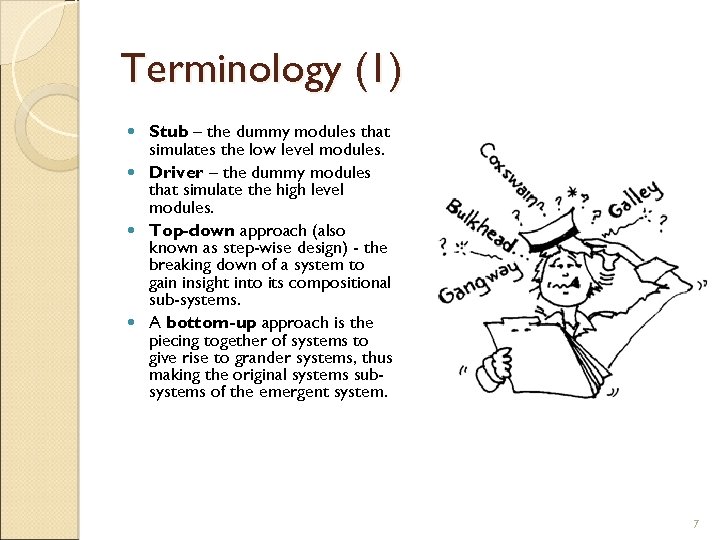

Terminology (1) Stub – the dummy modules that simulates the low level modules. Driver Terminology (1) Stub – the dummy modules that simulates the low level modules. Driver – the dummy modules that simulate the high level modules. Top-down approach (also known as step-wise design) - the breaking down of a system to gain insight into its compositional sub-systems. A bottom-up approach is the piecing together of systems to give rise to grander systems, thus making the original systems subsystems of the emergent system. 7

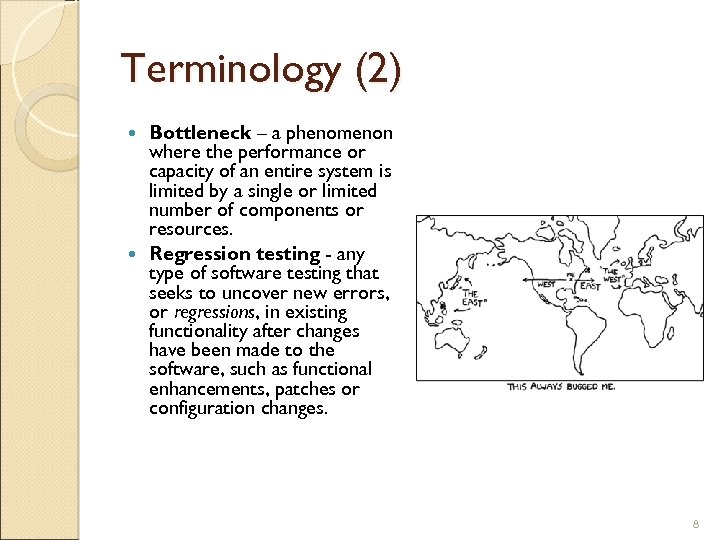

Terminology (2) Bottleneck – a phenomenon where the performance or capacity of an entire Terminology (2) Bottleneck – a phenomenon where the performance or capacity of an entire system is limited by a single or limited number of components or resources. Regression testing - any type of software testing that seeks to uncover new errors, or regressions, in existing functionality after changes have been made to the software, such as functional enhancements, patches or configuration changes. 8

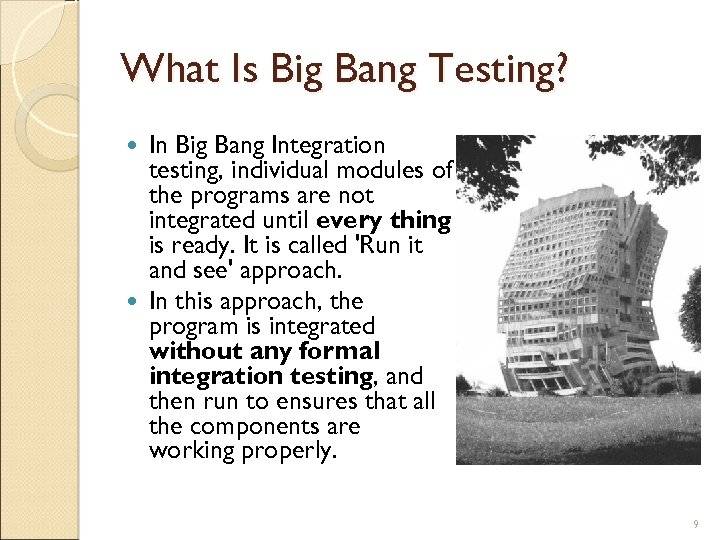

What Is Big Bang Testing? In Big Bang Integration testing, individual modules of the What Is Big Bang Testing? In Big Bang Integration testing, individual modules of the programs are not integrated until every thing is ready. It is called 'Run it and see' approach. In this approach, the program is integrated without any formal integration testing, and then run to ensures that all the components are working properly. 9

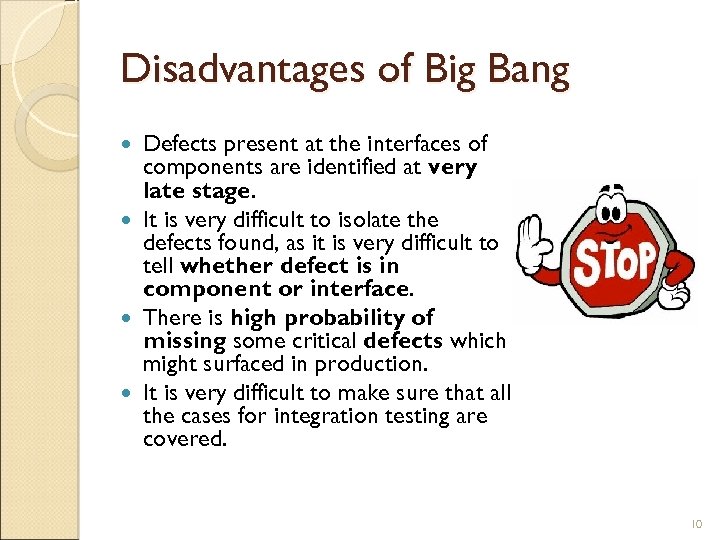

Disadvantages of Big Bang Defects present at the interfaces of components are identified at Disadvantages of Big Bang Defects present at the interfaces of components are identified at very late stage. It is very difficult to isolate the defects found, as it is very difficult to tell whether defect is in component or interface. There is high probability of missing some critical defects which might surfaced in production. It is very difficult to make sure that all the cases for integration testing are covered. 10

Big Bang Testing: Conclusion This is not the way you should integrate and test Big Bang Testing: Conclusion This is not the way you should integrate and test software! But it might be good with this assumption applied: ◦ for small systems, but not for enterprise level applications. 11

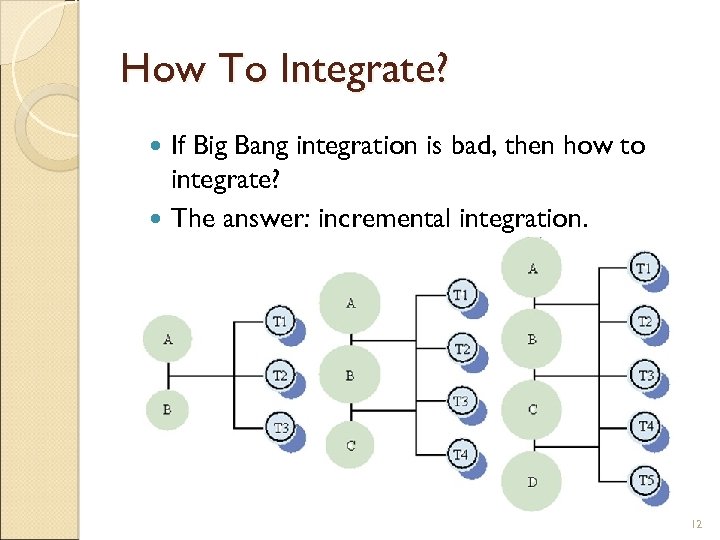

How To Integrate? If Big Bang integration is bad, then how to integrate? The How To Integrate? If Big Bang integration is bad, then how to integrate? The answer: incremental integration. 12

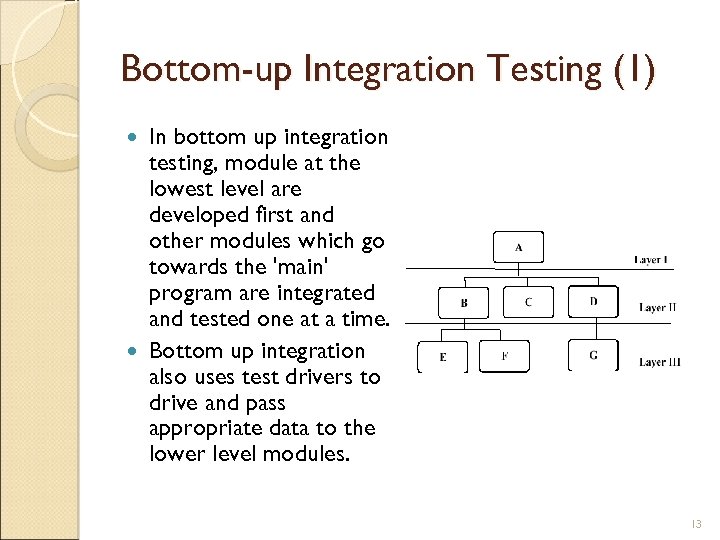

Bottom-up Integration Testing (1) In bottom up integration testing, module at the lowest level Bottom-up Integration Testing (1) In bottom up integration testing, module at the lowest level are developed first and other modules which go towards the 'main' program are integrated and tested one at a time. Bottom up integration also uses test drivers to drive and pass appropriate data to the lower level modules. 13

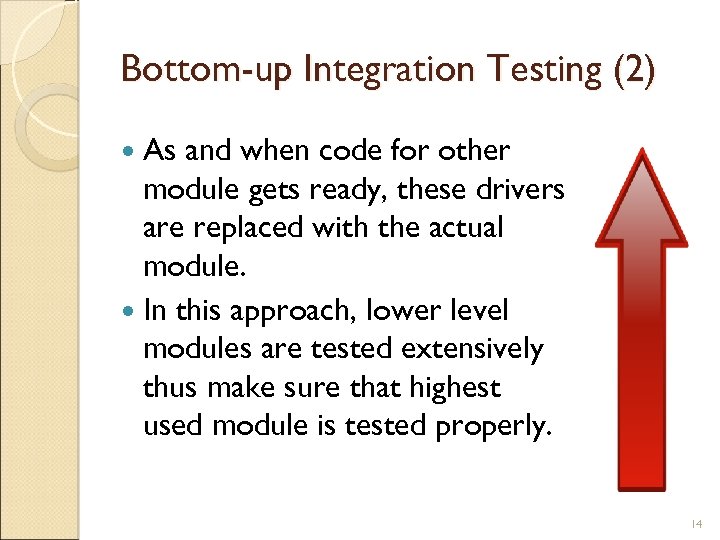

Bottom-up Integration Testing (2) As and when code for other module gets ready, these Bottom-up Integration Testing (2) As and when code for other module gets ready, these drivers are replaced with the actual module. In this approach, lower level modules are tested extensively thus make sure that highest used module is tested properly. 14

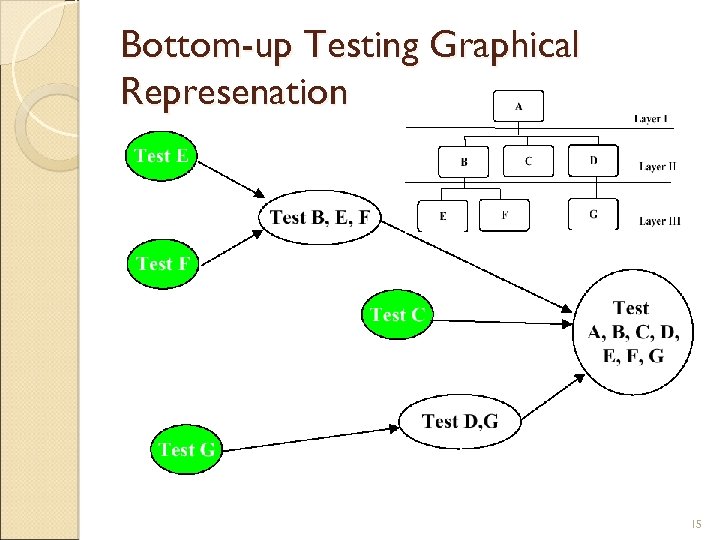

Bottom-up Testing Graphical Represenation 15 Bottom-up Testing Graphical Represenation 15

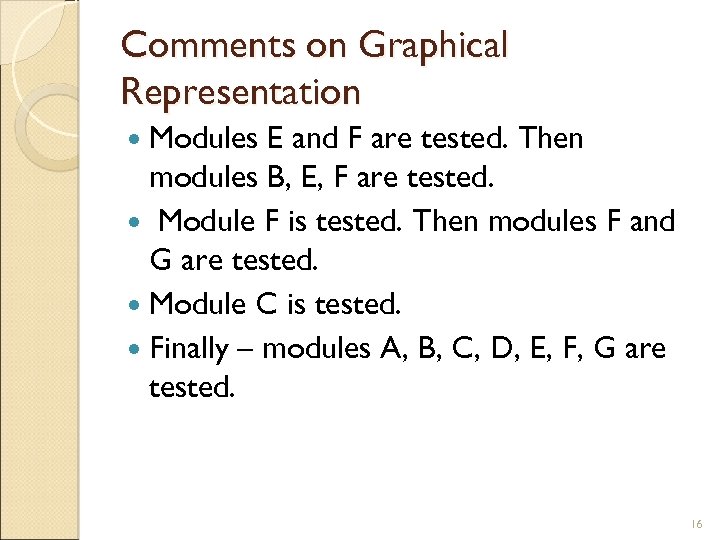

Comments on Graphical Representation Modules E and F are tested. Then modules B, E, Comments on Graphical Representation Modules E and F are tested. Then modules B, E, F are tested. Module F is tested. Then modules F and G are tested. Module C is tested. Finally – modules A, B, C, D, E, F, G are tested. 16

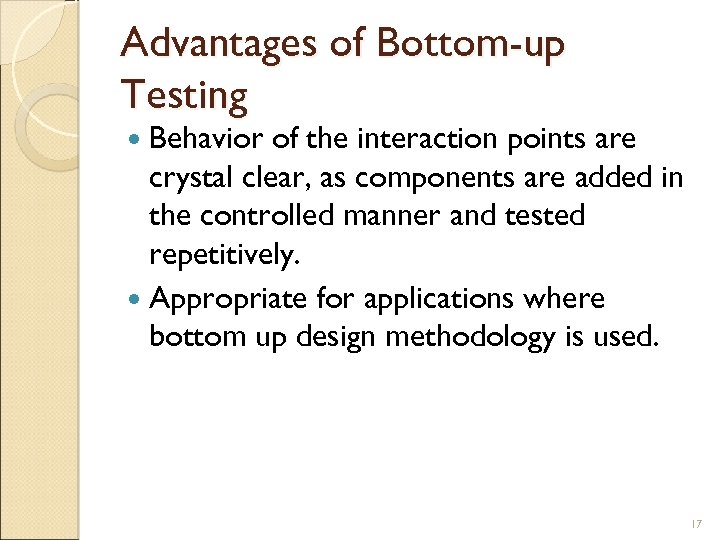

Advantages of Bottom-up Testing Behavior of the interaction points are crystal clear, as components Advantages of Bottom-up Testing Behavior of the interaction points are crystal clear, as components are added in the controlled manner and tested repetitively. Appropriate for applications where bottom up design methodology is used. 17

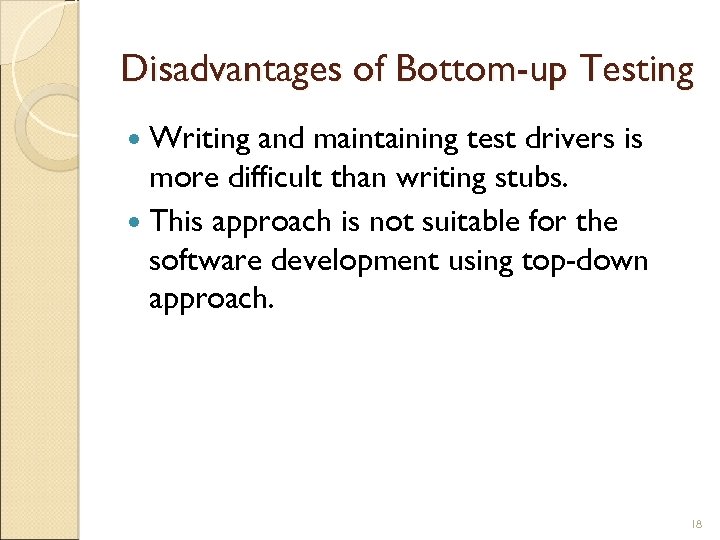

Disadvantages of Bottom-up Testing Writing and maintaining test drivers is more difficult than writing Disadvantages of Bottom-up Testing Writing and maintaining test drivers is more difficult than writing stubs. This approach is not suitable for the software development using top-down approach. 18

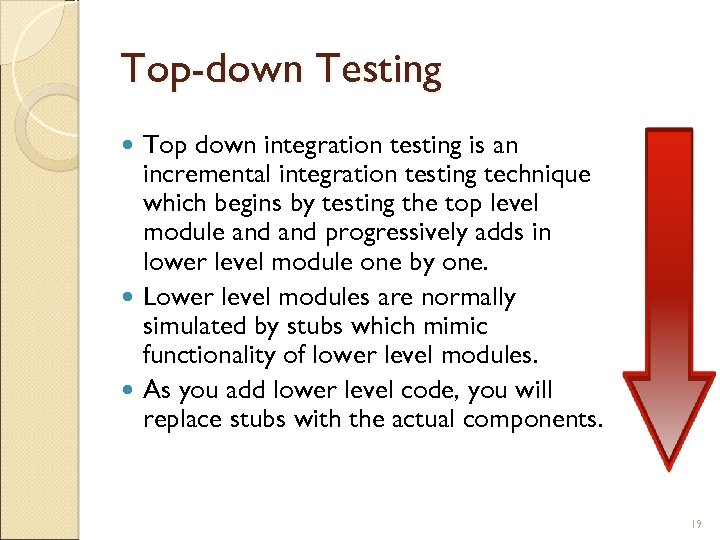

Top-down Testing Top down integration testing is an incremental integration testing technique which begins Top-down Testing Top down integration testing is an incremental integration testing technique which begins by testing the top level module and progressively adds in lower level module one by one. Lower level modules are normally simulated by stubs which mimic functionality of lower level modules. As you add lower level code, you will replace stubs with the actual components. 19

Advantages of Top-down Testing Driver do not have to be written when top down Advantages of Top-down Testing Driver do not have to be written when top down testing is used. It provides early working module of the program and so design defects can be found and corrected early. 20

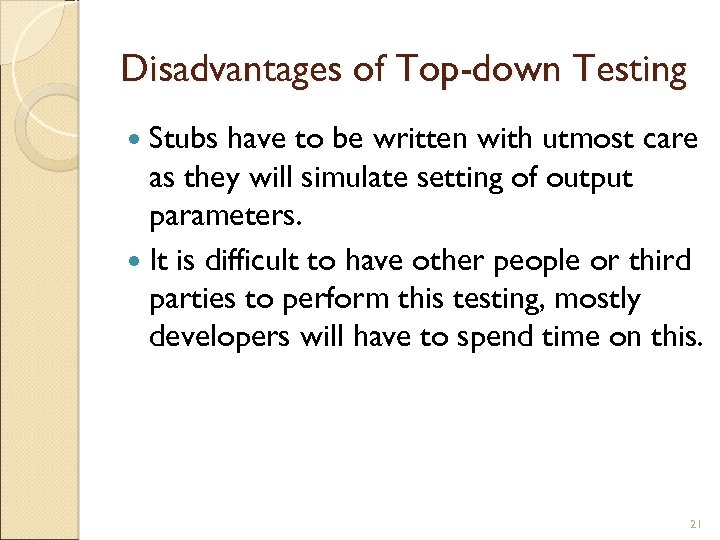

Disadvantages of Top-down Testing Stubs have to be written with utmost care as they Disadvantages of Top-down Testing Stubs have to be written with utmost care as they will simulate setting of output parameters. It is difficult to have other people or third parties to perform this testing, mostly developers will have to spend time on this. 21

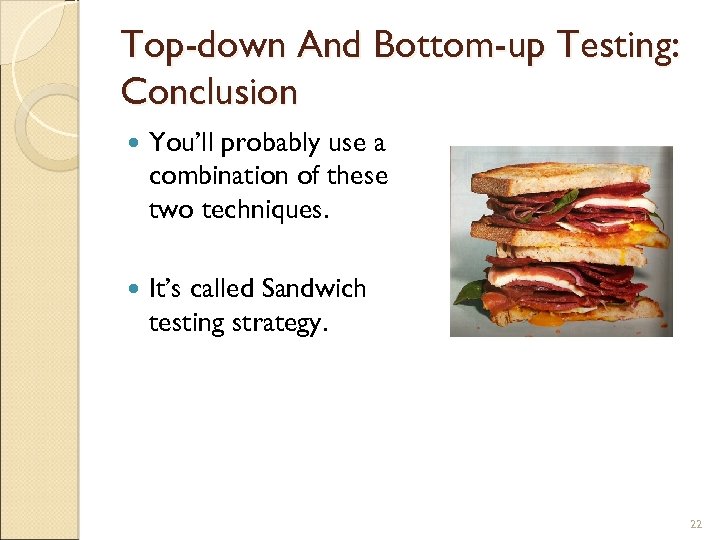

Top-down And Bottom-up Testing: Conclusion You’ll probably use a combination of these two techniques. Top-down And Bottom-up Testing: Conclusion You’ll probably use a combination of these two techniques. It’s called Sandwich testing strategy. 22

Sandwich Testing Strategy Combines top-down strategy with bottom-up strategy The system is view as Sandwich Testing Strategy Combines top-down strategy with bottom-up strategy The system is view as having three layers ◦ A target layer in the middle ◦ A layer above the target ◦ A layer below the target ◦ Testing converges at the target layer How do you select the target layer if there are more than 3 layers? ◦ Heuristic: Try to minimize the number of stubs and drivers 23

Graphical Representation of Sandwich Testing Strategy A E Bottom Level Tests D C B Graphical Representation of Sandwich Testing Strategy A E Bottom Level Tests D C B Test E Level I F G Level II H Level III Test B, E, F Test G Test D, G, H Test A, B, C, D, E, F, G, H Test A, B, C, D Top Level Tests Test A 24

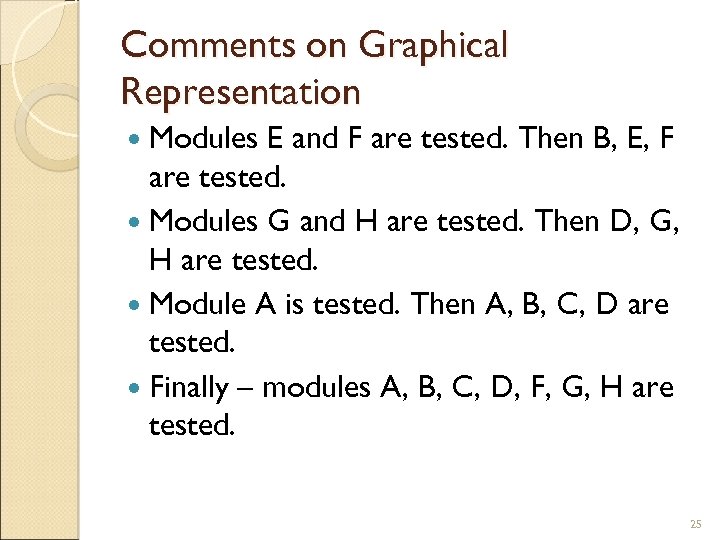

Comments on Graphical Representation Modules E and F are tested. Then B, E, F Comments on Graphical Representation Modules E and F are tested. Then B, E, F are tested. Modules G and H are tested. Then D, G, H are tested. Module A is tested. Then A, B, C, D are tested. Finally – modules A, B, C, D, F, G, H are tested. 25

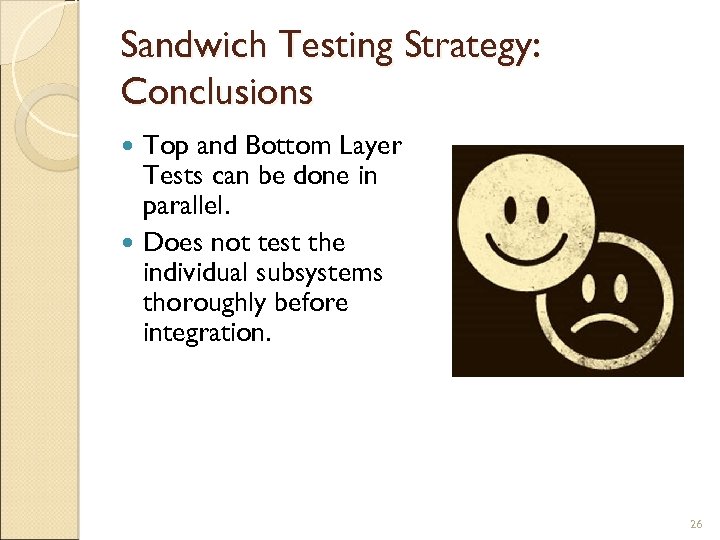

Sandwich Testing Strategy: Conclusions Top and Bottom Layer Tests can be done in parallel. Sandwich Testing Strategy: Conclusions Top and Bottom Layer Tests can be done in parallel. Does not test the individual subsystems thoroughly before integration. 26

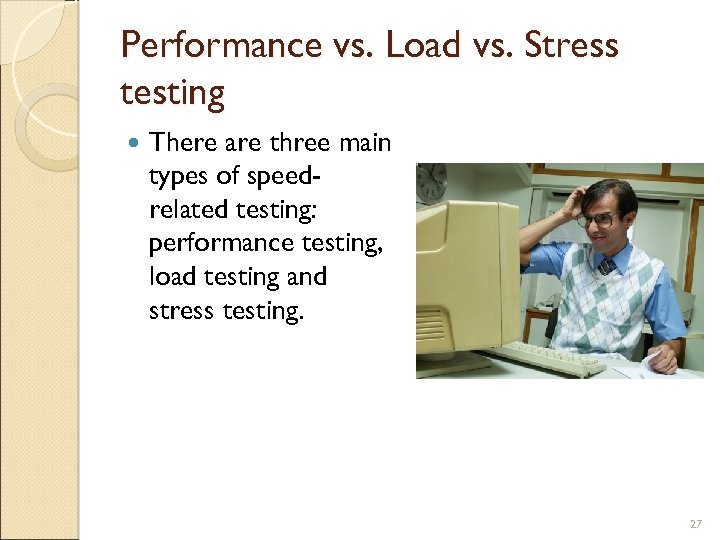

Performance vs. Load vs. Stress testing There are three main types of speedrelated testing: Performance vs. Load vs. Stress testing There are three main types of speedrelated testing: performance testing, load testing and stress testing. 27

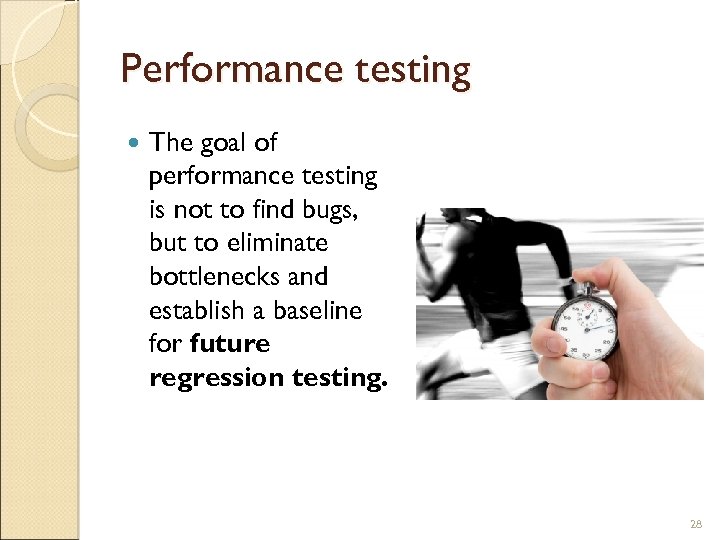

Performance testing The goal of performance testing is not to find bugs, but to Performance testing The goal of performance testing is not to find bugs, but to eliminate bottlenecks and establish a baseline for future regression testing. 28

Load Testing Load testing is usually defined as the process of exercising the system Load Testing Load testing is usually defined as the process of exercising the system under test by feeding it the largest tasks it can operate with. Load testing is sometimes called volume testing, or longevity/endurance testing. 29

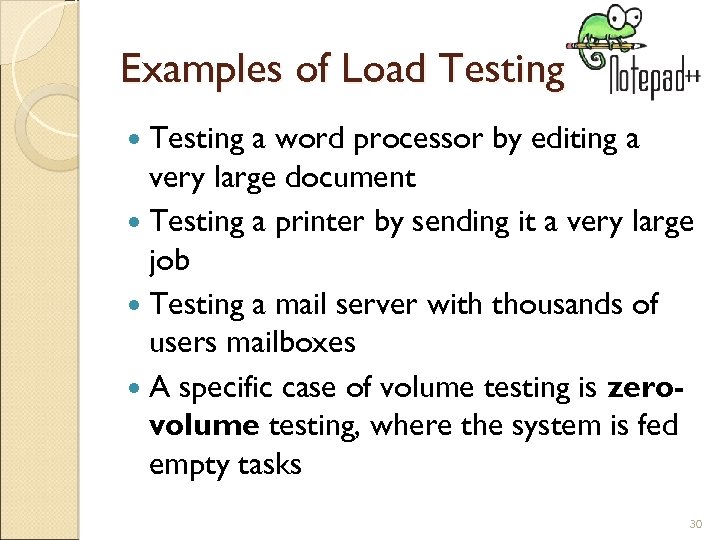

Examples of Load Testing a word processor by editing a very large document Testing Examples of Load Testing a word processor by editing a very large document Testing a printer by sending it a very large job Testing a mail server with thousands of users mailboxes A specific case of volume testing is zerovolume testing, where the system is fed empty tasks 30

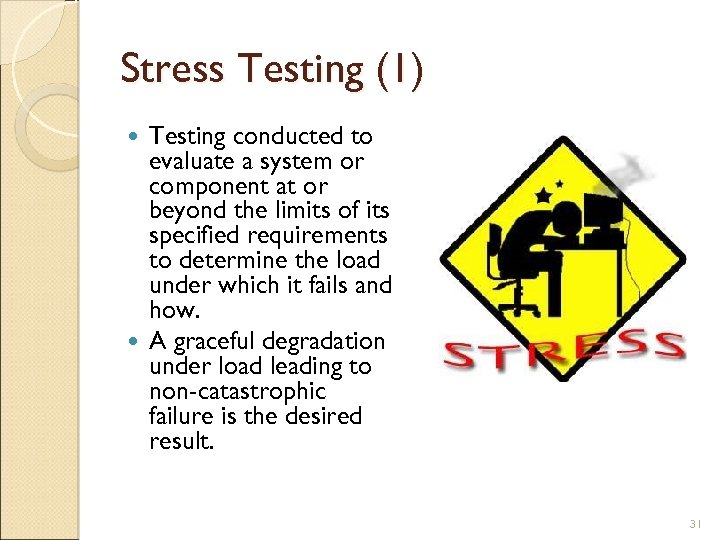

Stress Testing (1) Testing conducted to evaluate a system or component at or beyond Stress Testing (1) Testing conducted to evaluate a system or component at or beyond the limits of its specified requirements to determine the load under which it fails and how. A graceful degradation under load leading to non-catastrophic failure is the desired result. 31

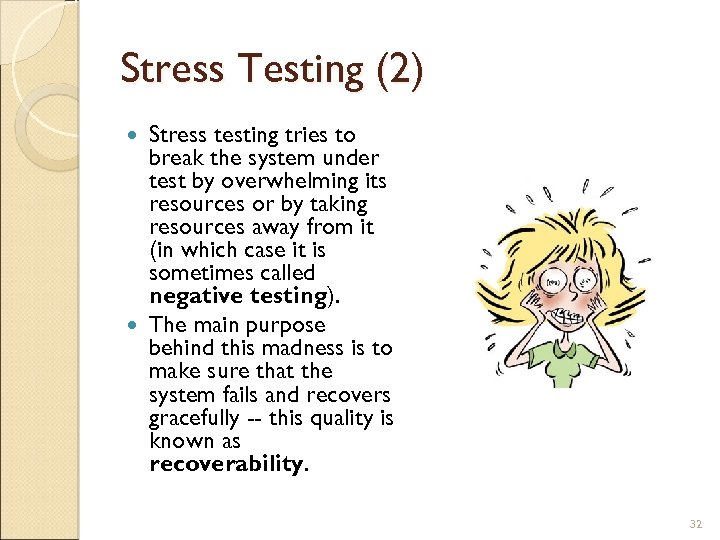

Stress Testing (2) Stress testing tries to break the system under test by overwhelming Stress Testing (2) Stress testing tries to break the system under test by overwhelming its resources or by taking resources away from it (in which case it is sometimes called negative testing). The main purpose behind this madness is to make sure that the system fails and recovers gracefully -- this quality is known as recoverability. 32

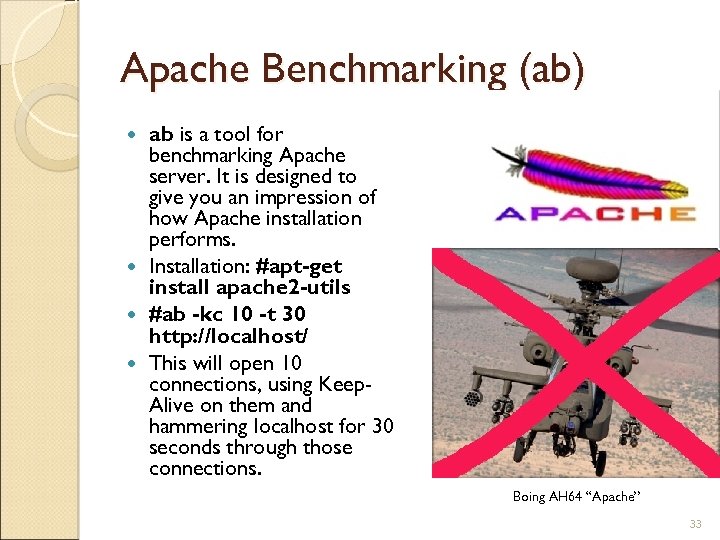

Apache Benchmarking (ab) ab is a tool for benchmarking Apache server. It is designed Apache Benchmarking (ab) ab is a tool for benchmarking Apache server. It is designed to give you an impression of how Apache installation performs. Installation: #apt-get install apache 2 -utils #ab -kc 10 -t 30 http: //localhost/ This will open 10 connections, using Keep. Alive on them and hammering localhost for 30 seconds through those connections. Boing AH 64 “Apache” 33

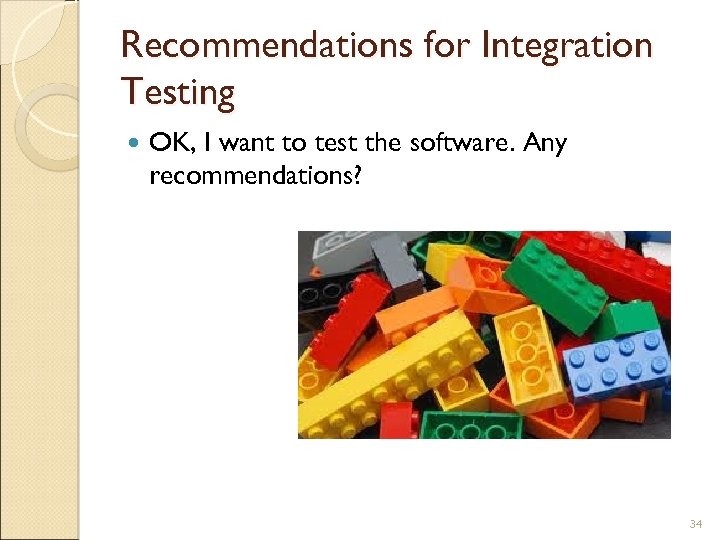

Recommendations for Integration Testing OK, I want to test the software. Any recommendations? 34 Recommendations for Integration Testing OK, I want to test the software. Any recommendations? 34

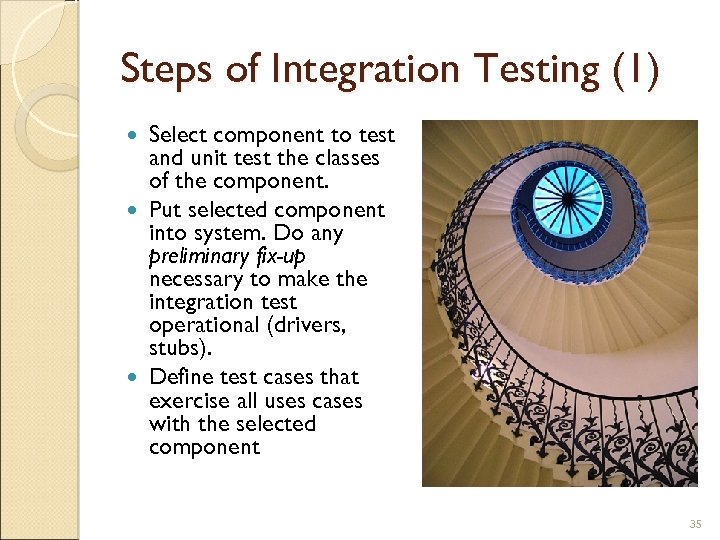

Steps of Integration Testing (1) Select component to test and unit test the classes Steps of Integration Testing (1) Select component to test and unit test the classes of the component. Put selected component into system. Do any preliminary fix-up necessary to make the integration test operational (drivers, stubs). Define test cases that exercise all uses cases with the selected component 35

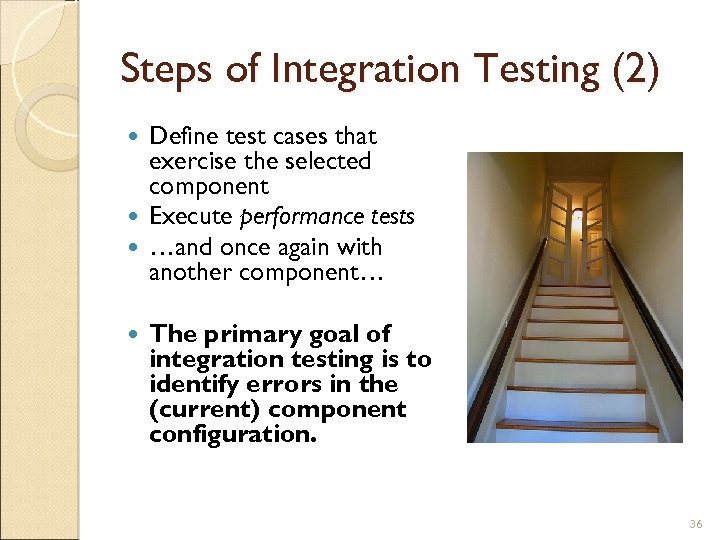

Steps of Integration Testing (2) Define test cases that exercise the selected component Execute Steps of Integration Testing (2) Define test cases that exercise the selected component Execute performance tests …and once again with another component… The primary goal of integration testing is to identify errors in the (current) component configuration. 36

Main Point: Incremental Integration All the units of a system must be integrated consequtively Main Point: Incremental Integration All the units of a system must be integrated consequtively and integrated in step by step process by incrementing the levels of testing at one end to other end. 37

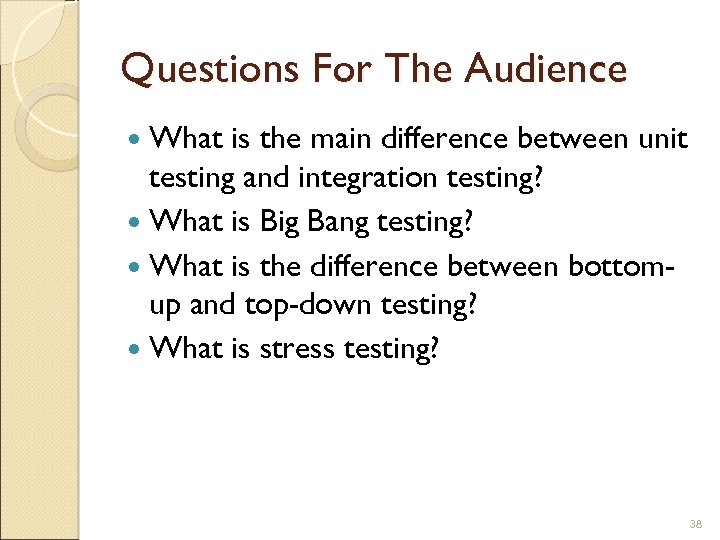

Questions For The Audience What is the main difference between unit testing and integration Questions For The Audience What is the main difference between unit testing and integration testing? What is Big Bang testing? What is the difference between bottomup and top-down testing? What is stress testing? 38

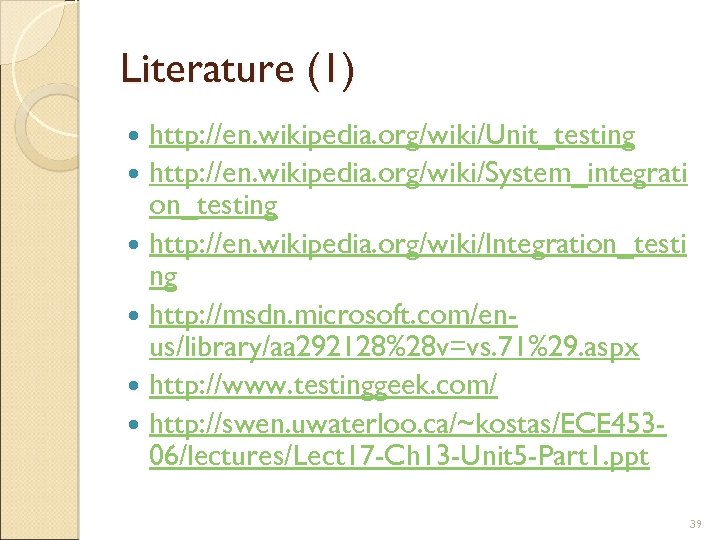

Literature (1) http: //en. wikipedia. org/wiki/Unit_testing http: //en. wikipedia. org/wiki/System_integrati on_testing http: //en. wikipedia. Literature (1) http: //en. wikipedia. org/wiki/Unit_testing http: //en. wikipedia. org/wiki/System_integrati on_testing http: //en. wikipedia. org/wiki/Integration_testi ng http: //msdn. microsoft. com/enus/library/aa 292128%28 v=vs. 71%29. aspx http: //www. testinggeek. com/ http: //swen. uwaterloo. ca/~kostas/ECE 45306/lectures/Lect 17 -Ch 13 -Unit 5 -Part 1. ppt 39

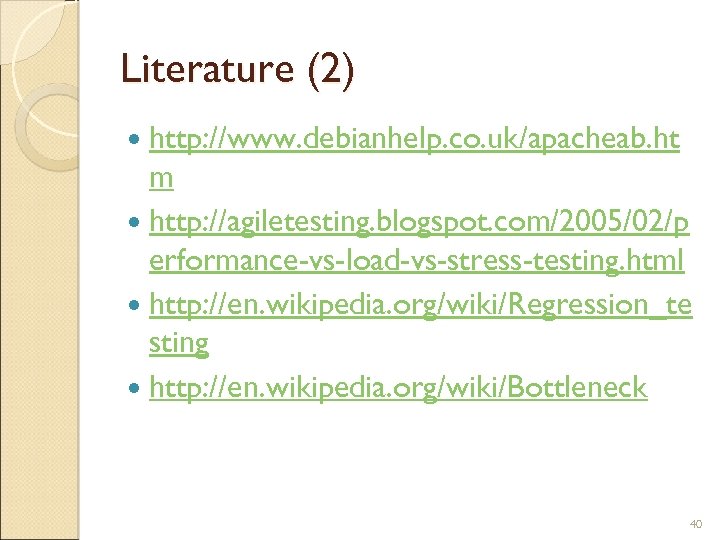

Literature (2) http: //www. debianhelp. co. uk/apacheab. ht m http: //agiletesting. blogspot. com/2005/02/p erformance-vs-load-vs-stress-testing. Literature (2) http: //www. debianhelp. co. uk/apacheab. ht m http: //agiletesting. blogspot. com/2005/02/p erformance-vs-load-vs-stress-testing. html http: //en. wikipedia. org/wiki/Regression_te sting http: //en. wikipedia. org/wiki/Bottleneck 40

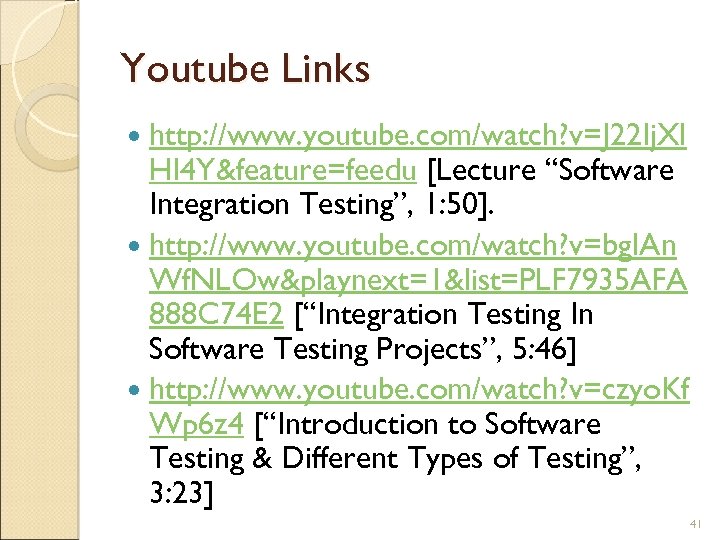

Youtube Links http: //www. youtube. com/watch? v=J 22 Ij. Xl HI 4 Y&feature=feedu [Lecture Youtube Links http: //www. youtube. com/watch? v=J 22 Ij. Xl HI 4 Y&feature=feedu [Lecture “Software Integration Testing”, 1: 50]. http: //www. youtube. com/watch? v=bg. IAn Wf. NLOw&playnext=1&list=PLF 7935 AFA 888 C 74 E 2 [“Integration Testing In Software Testing Projects”, 5: 46] http: //www. youtube. com/watch? v=czyo. Kf Wp 6 z 4 [“Introduction to Software Testing & Different Types of Testing”, 3: 23] 41

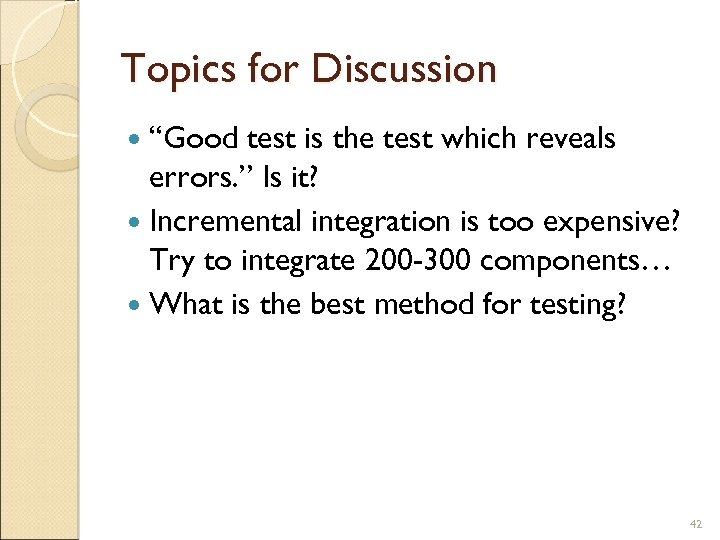

Topics for Discussion “Good test is the test which reveals errors. ” Is it? Topics for Discussion “Good test is the test which reveals errors. ” Is it? Incremental integration is too expensive? Try to integrate 200 -300 components… What is the best method for testing? 42

Thank You For Attention! Ernestas Kardzys, IFME-0/2 ernestasktu@gmail. com, www. ernestas. info http: //www. Thank You For Attention! Ernestas Kardzys, IFME-0/2 [email protected] com, www. ernestas. info http: //www. ernestas. info/ktu/pt/Integration_Testing. pptx 43
