- Количество слайдов: 49

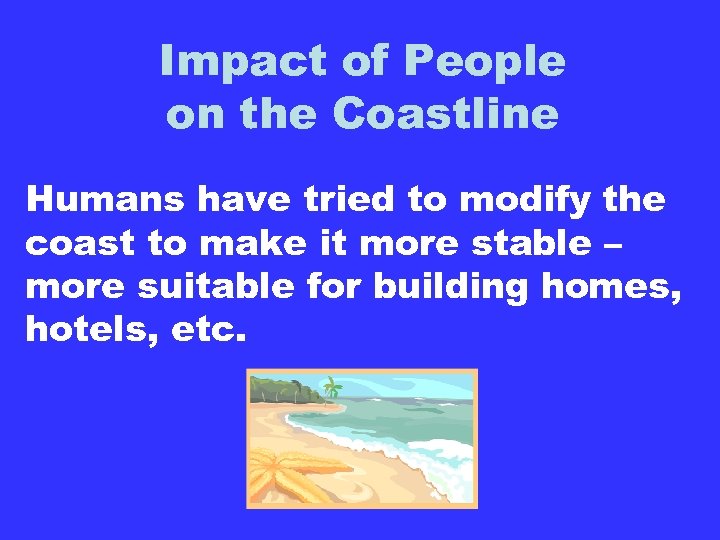

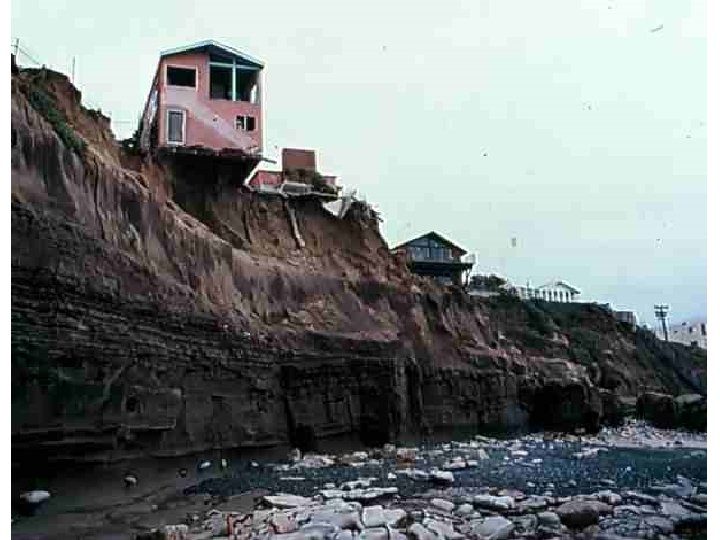

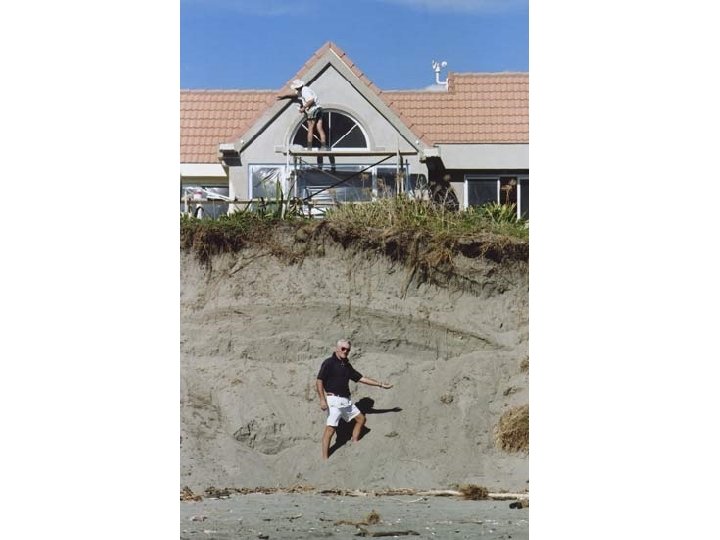

Impact of People on the Coastline Humans have tried to modify the coast to make it more stable – more suitable for building homes, hotels, etc.

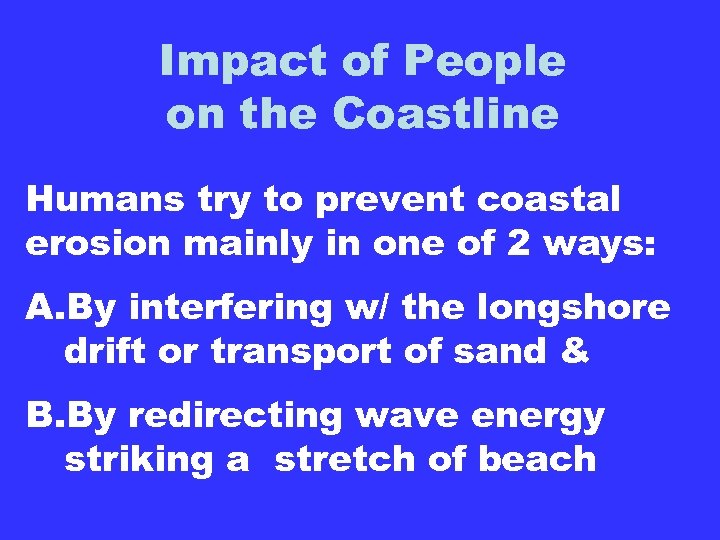

Impact of People on the Coastline Humans try to prevent coastal erosion mainly in one of 2 ways: A. By interfering w/ the longshore drift or transport of sand & B. By redirecting wave energy striking a stretch of beach
Methods of Stabilization A. Breakwaters B. Groins C. Jetties D. Seawalls E. Beach replenishment

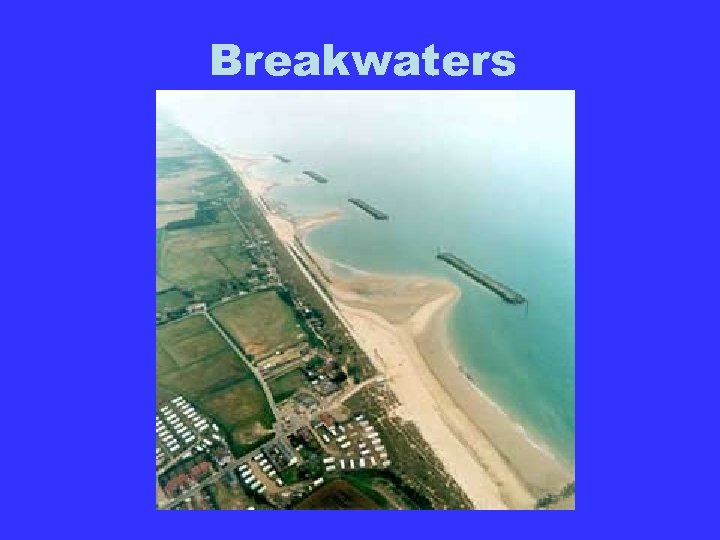

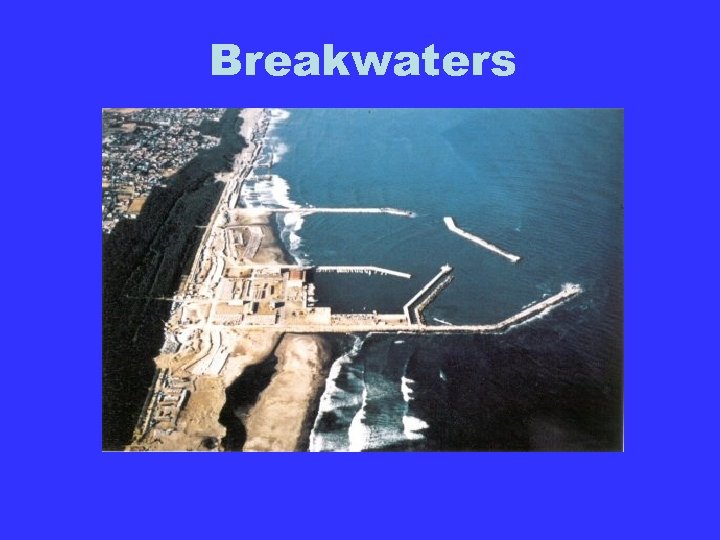

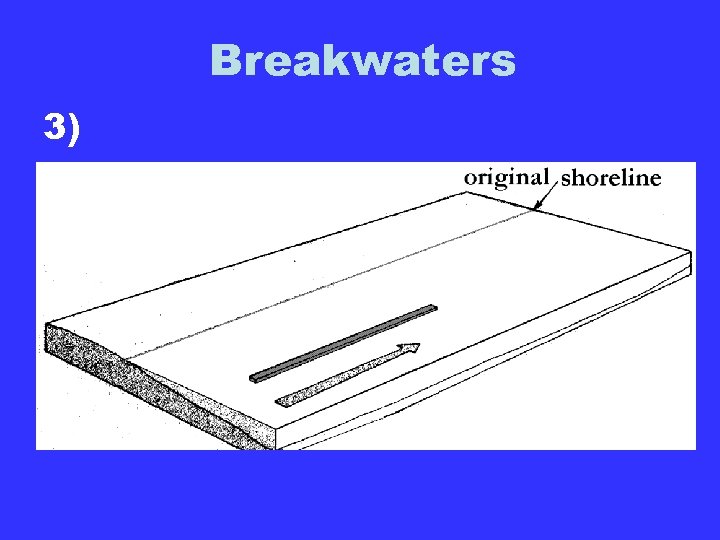

Breakwaters 1)Breakwaters are generally built offshore & parallel to the beach. These long structures protect the beach from wave action. Breakwater
Breakwaters 2)The negative consequence of a breakwater is that when the waves are blocked natural sand movement is also blocked, causing coastal erosion downshore.

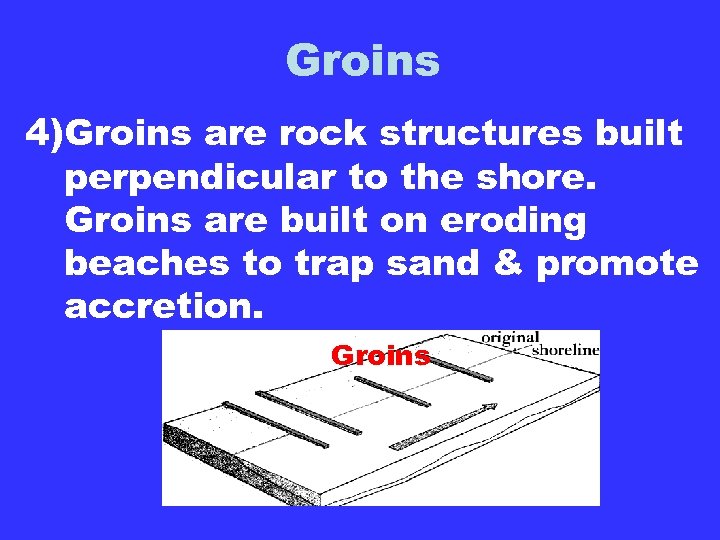

Groins 4)Groins are rock structures built perpendicular to the shore. Groins are built on eroding beaches to trap sand & promote accretion. Groins

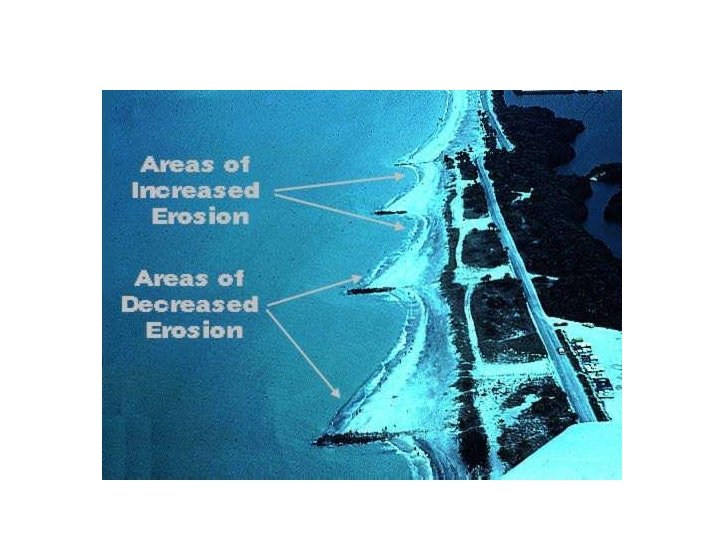

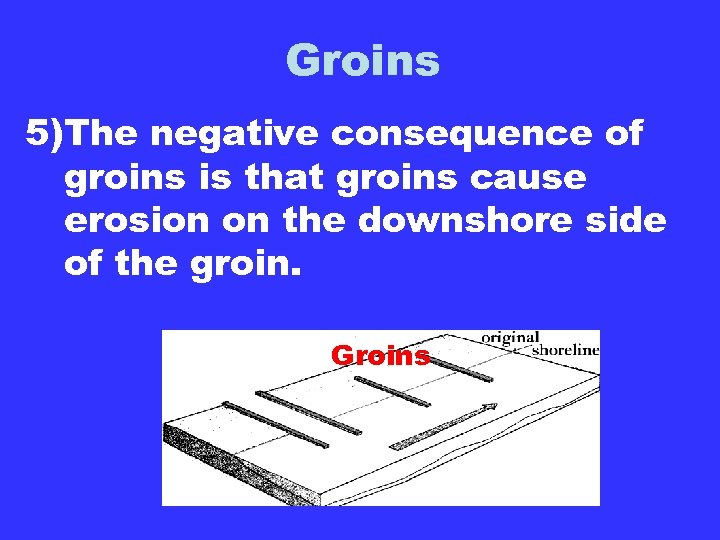

Groins 5)The negative consequence of groins is that groins cause erosion on the downshore side of the groin. Groins

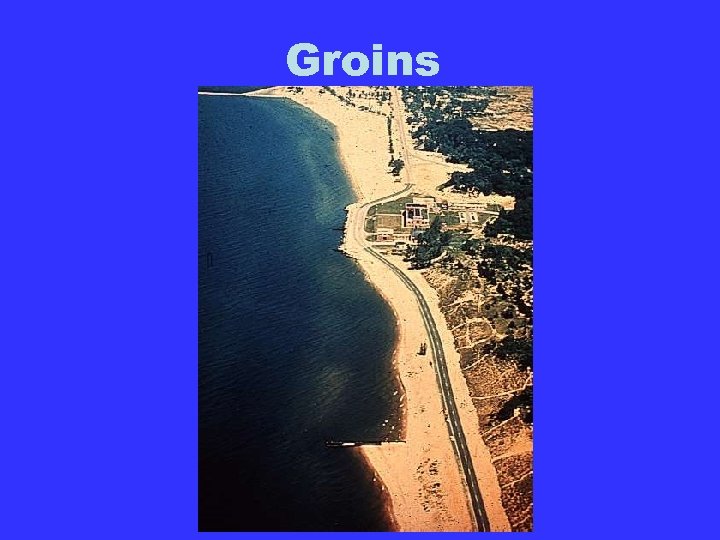

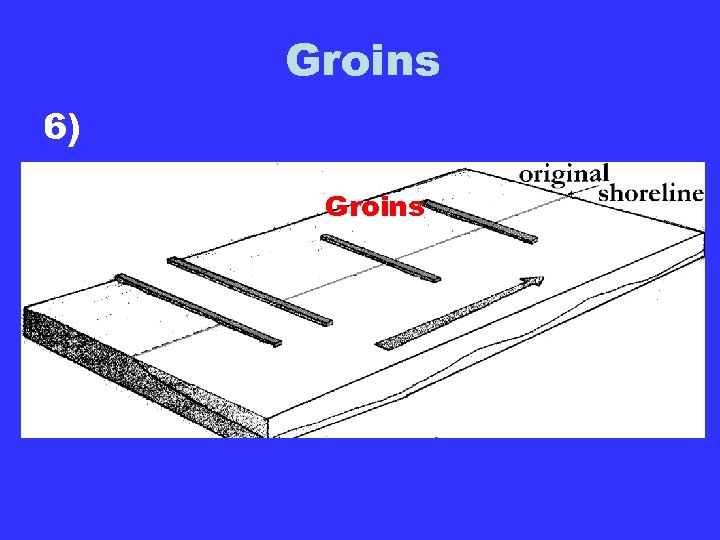

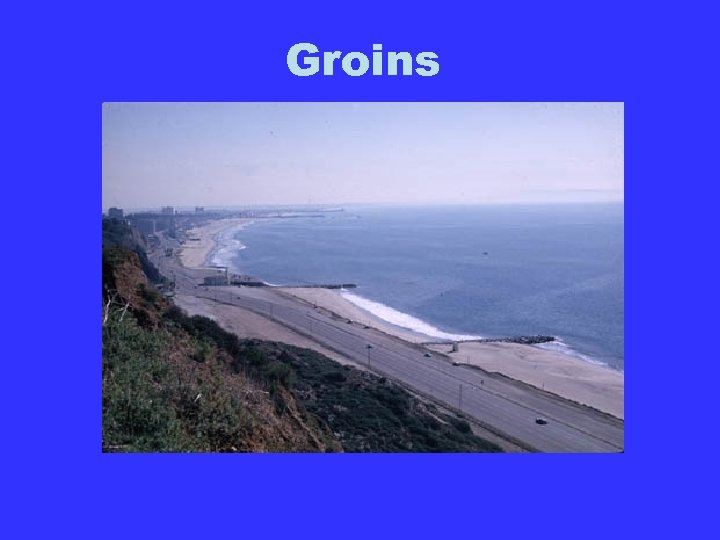

Groins 6) Groins

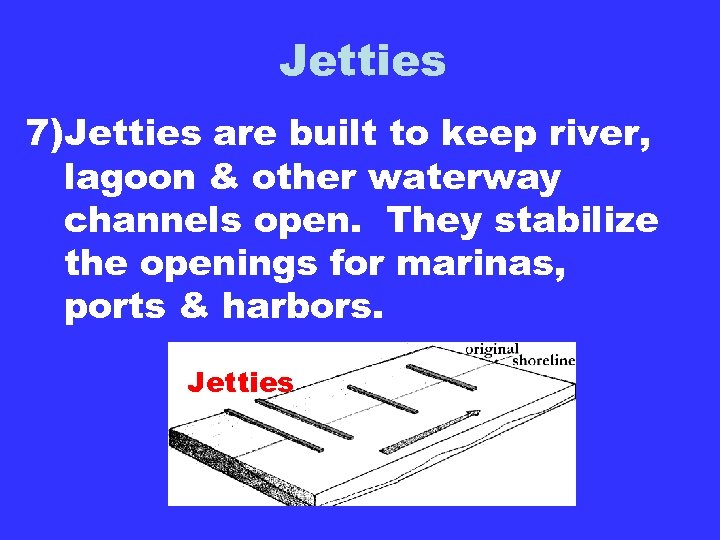

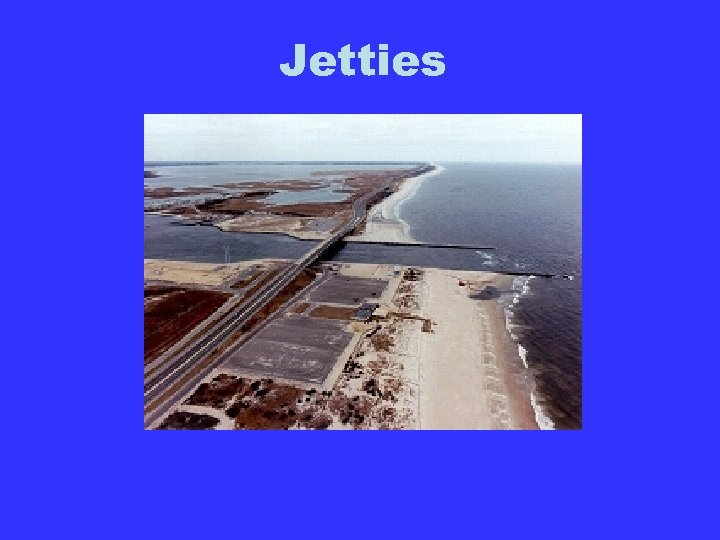

Jetties 7)Jetties are built to keep river, lagoon & other waterway channels open. They stabilize the openings for marinas, ports & harbors. Jetties

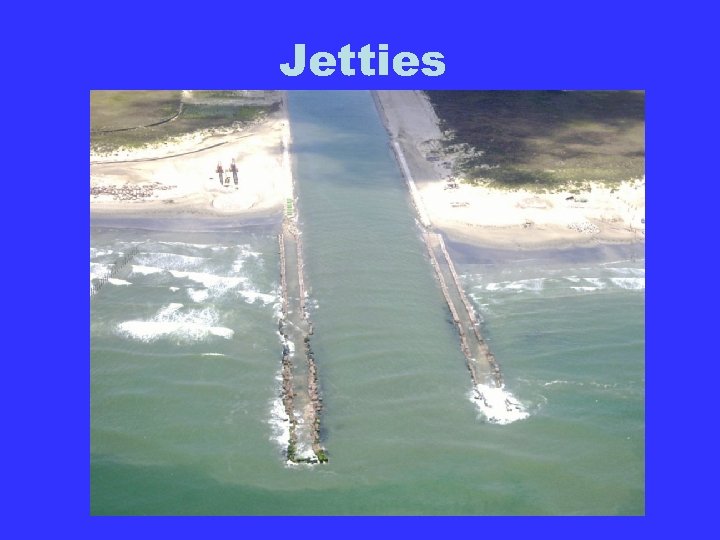

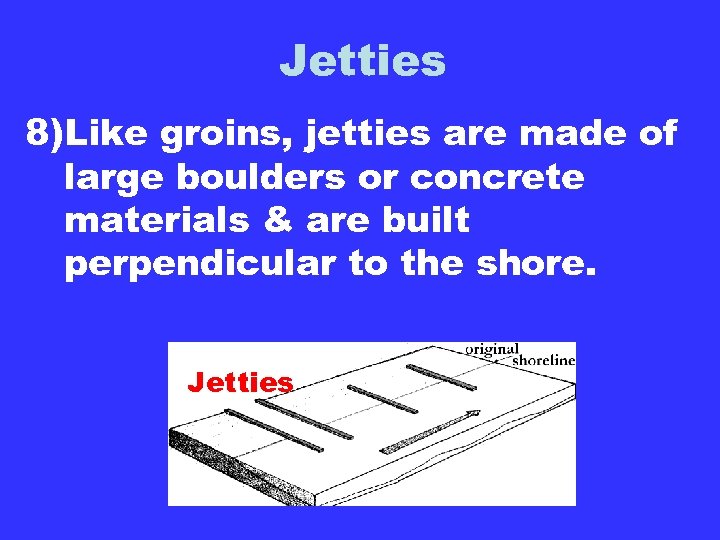

Jetties 8)Like groins, jetties are made of large boulders or concrete materials & are built perpendicular to the shore. Jetties

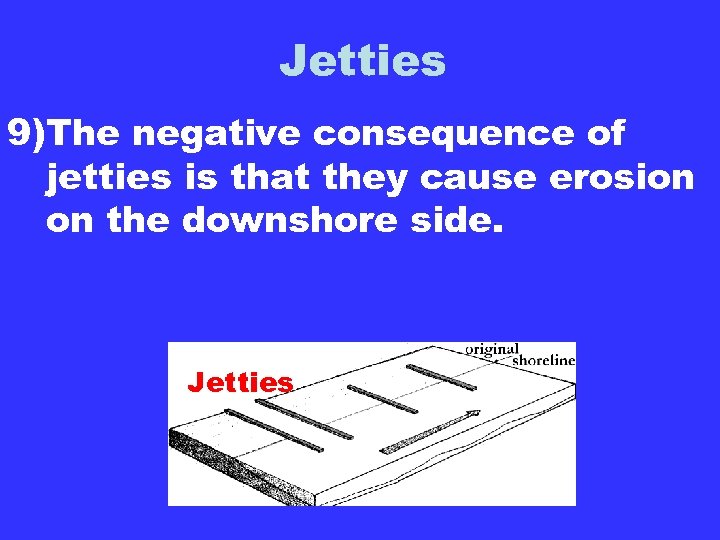

Jetties 9)The negative consequence of jetties is that they cause erosion on the downshore side. Jetties

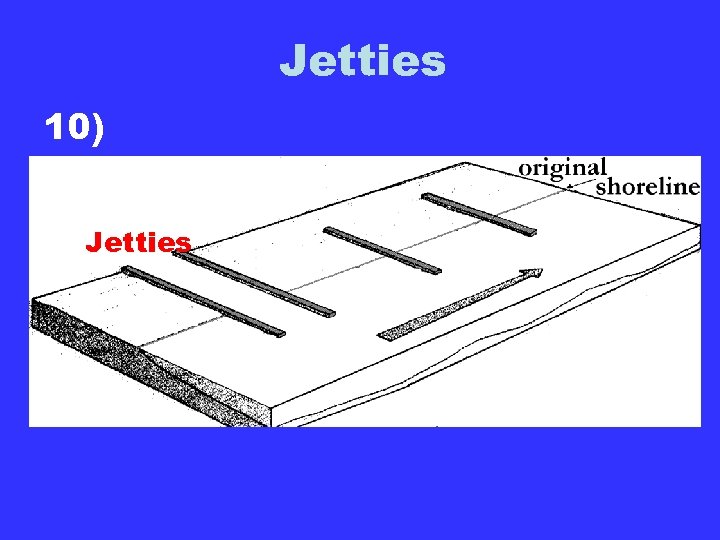

Jetties 10) Jetties

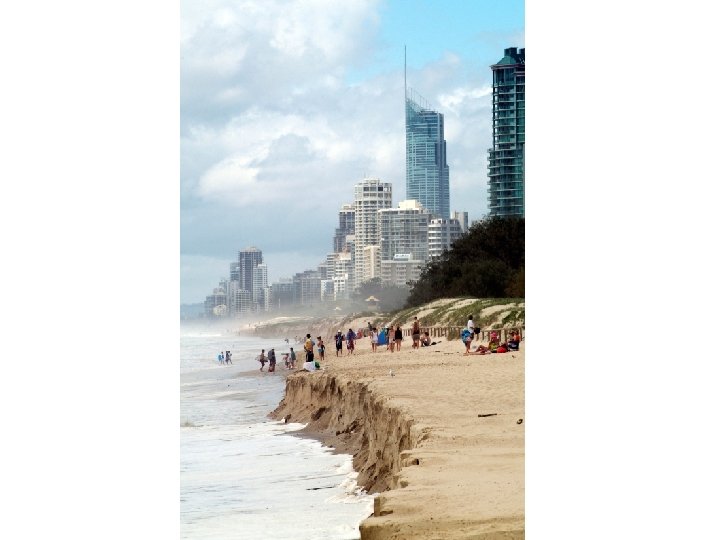

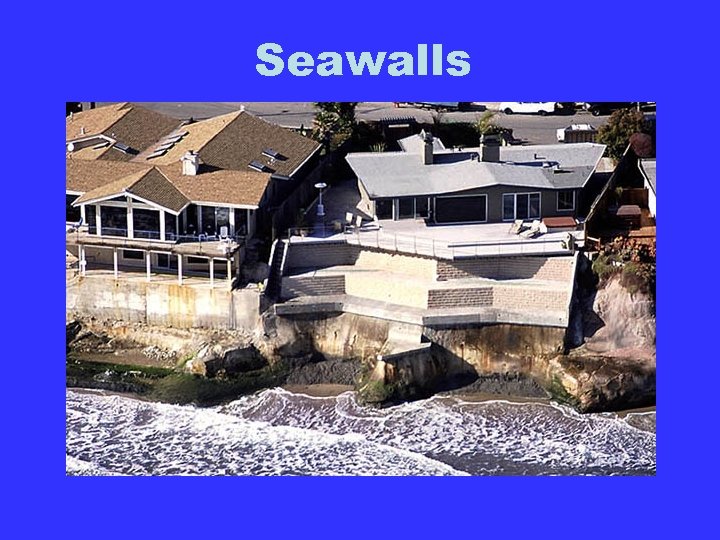

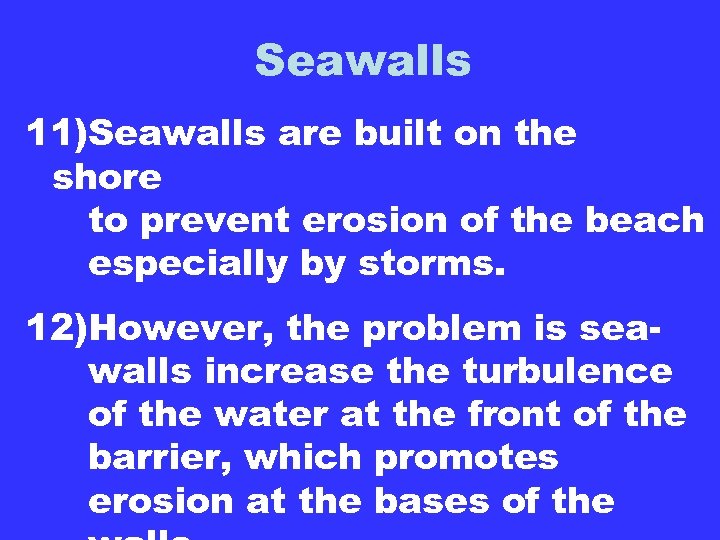

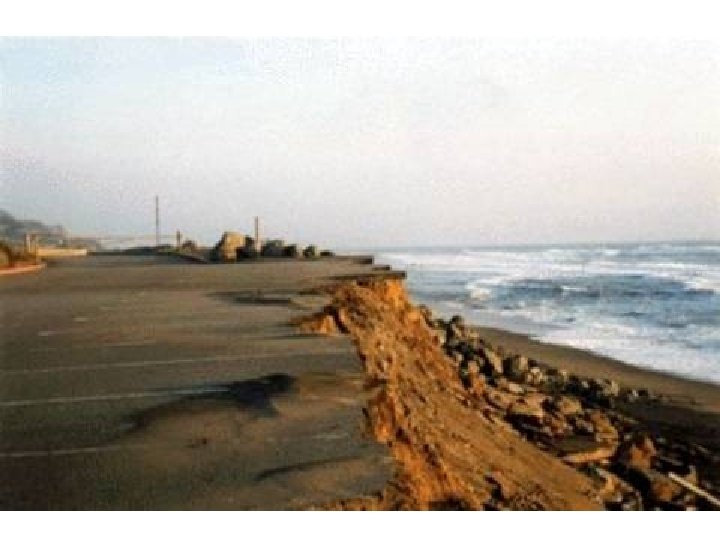

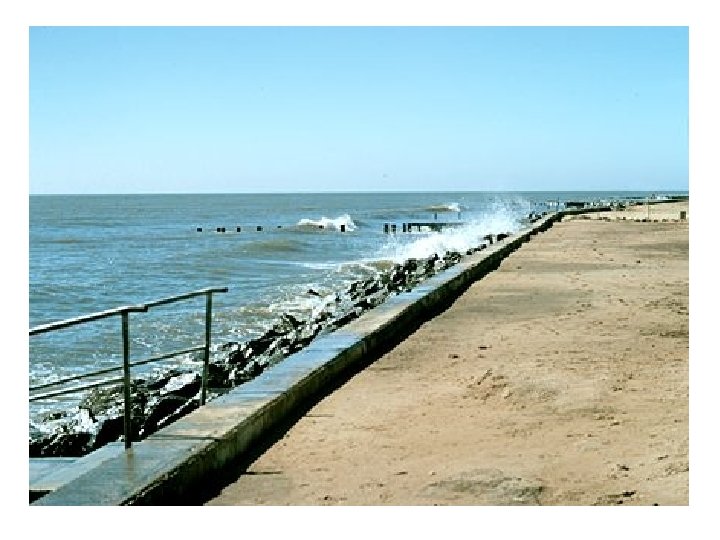

Seawalls 11)Seawalls are built on the shore to prevent erosion of the beach especially by storms. 12)However, the problem is seawalls increase the turbulence of the water at the front of the barrier, which promotes erosion at the bases of the

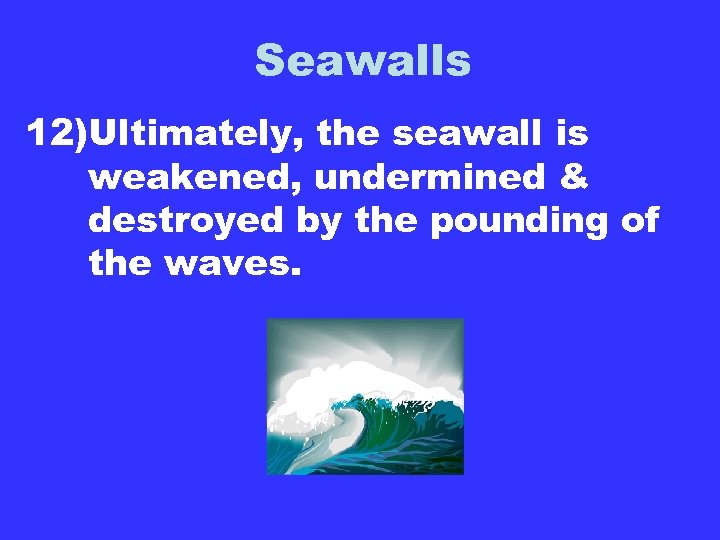

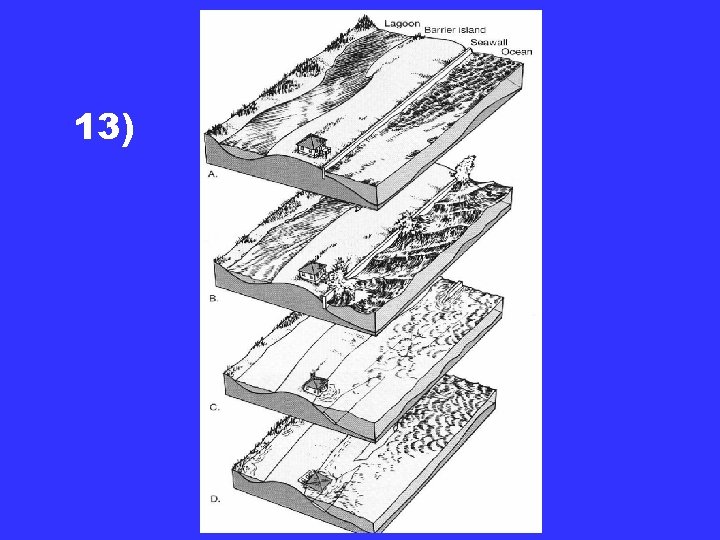

Seawalls 12)Ultimately, the seawall is weakened, undermined & destroyed by the pounding of the waves.
Before After Seawalls
Is there an alternative?

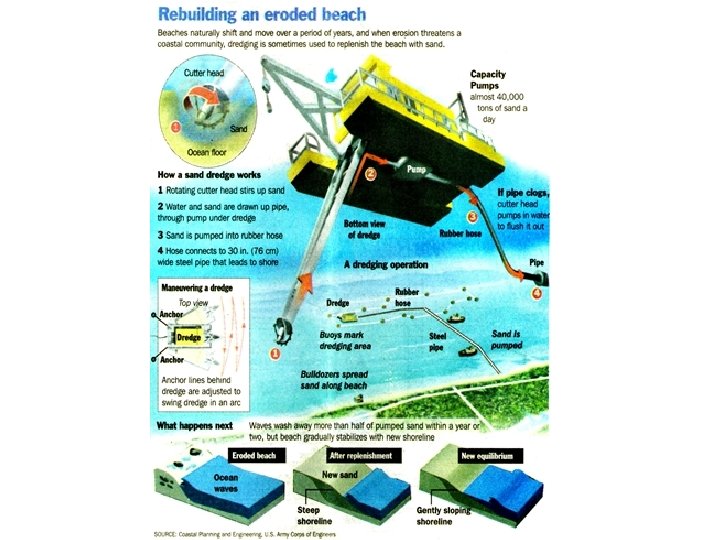

Alternatives to Artificial Barriers 14)Beach replenishment is the process of adding sand to the beaches. Sand is dredged from the continental shelf & pumped onto the beach.

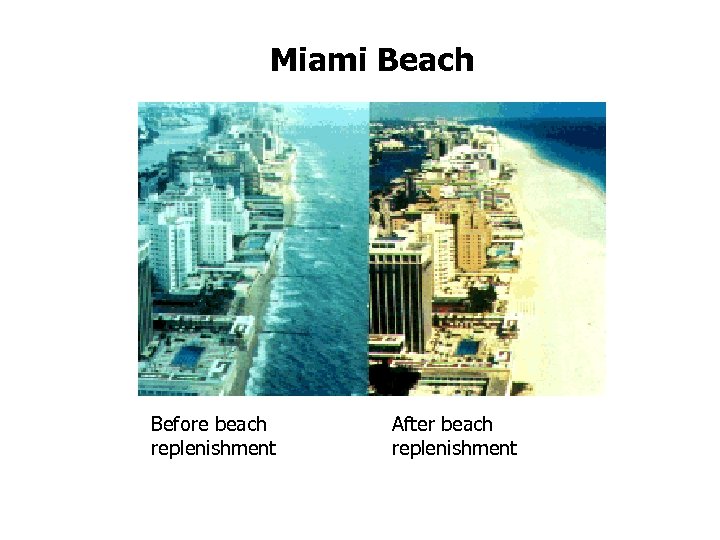

Miami Beach Before beach replenishment After beach replenishment

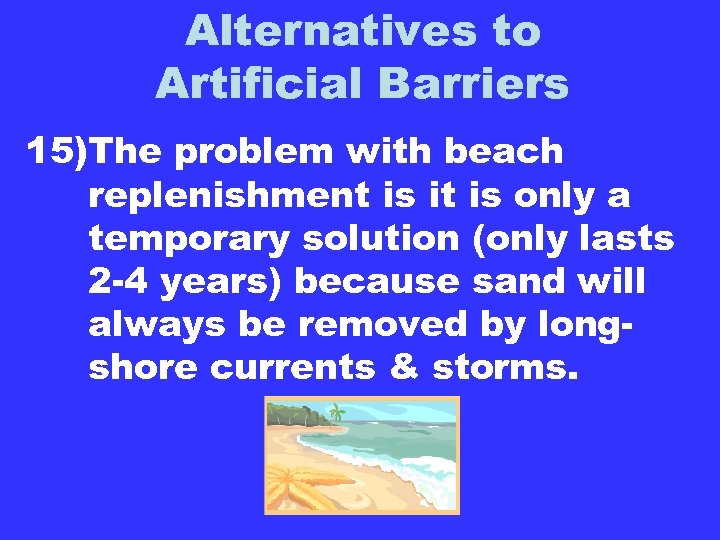

Alternatives to Artificial Barriers 15)The problem with beach replenishment is it is only a temporary solution (only lasts 2 -4 years) because sand will always be removed by longshore currents & storms.
Alternatives to Artificial Barriers 16)Another alternative to artificial barriers is relocation.
Summary 17)The coastal zone is a dynamic environment that results from a variety of natural processes, like waves, currents, tides, storms, multiple sources of sediment, rising sea level, & coastal development by humans.

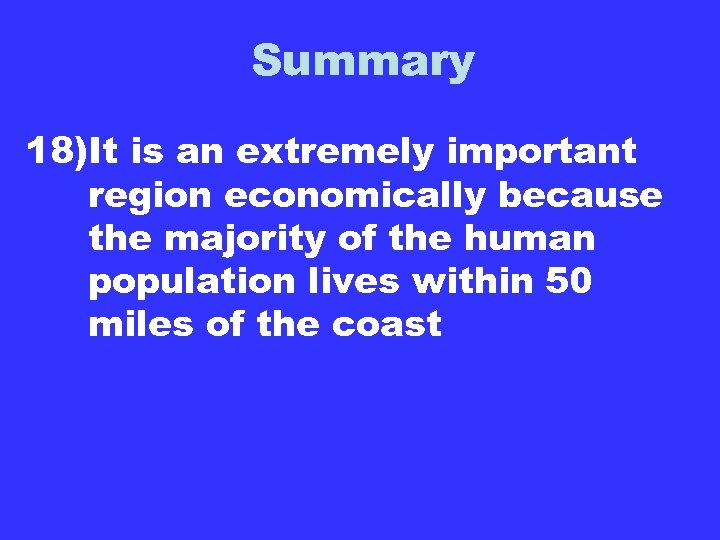

Summary 18)It is an extremely important region economically because the majority of the human population lives within 50 miles of the coast
Summary 19)Unfortunately, human impact on the coast is increasing, interfering with natural processes, and producing unintended ill effects.

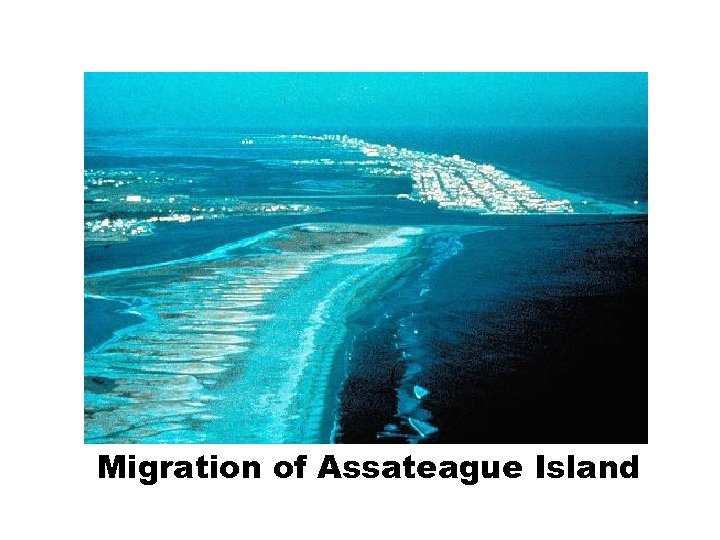

Migration of Assateague Island
