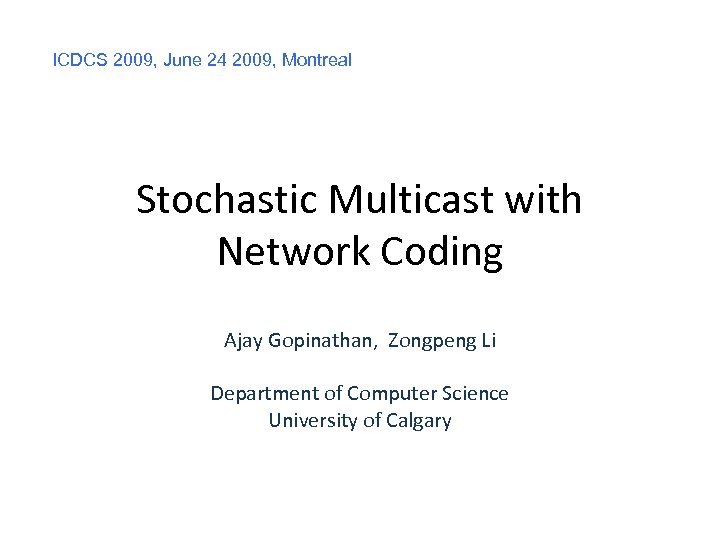

ICDCS 2009, June 24 2009, Montreal Stochastic Multicast with Network Coding Ajay Gopinathan, Zongpeng ICDCS 2009, June 24 2009, Montreal Stochastic Multicast with Network Coding Ajay Gopinathan, Zongpeng Li Department of Computer Science University of Calgary

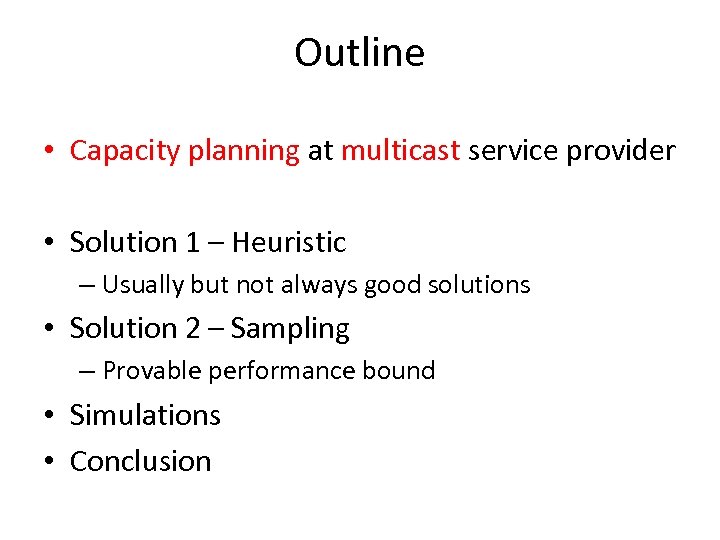

Outline • Capacity planning at multicast service provider • Solution 1 – Heuristic – Outline • Capacity planning at multicast service provider • Solution 1 – Heuristic – Usually but not always good solutions • Solution 2 – Sampling – Provable performance bound • Simulations • Conclusion

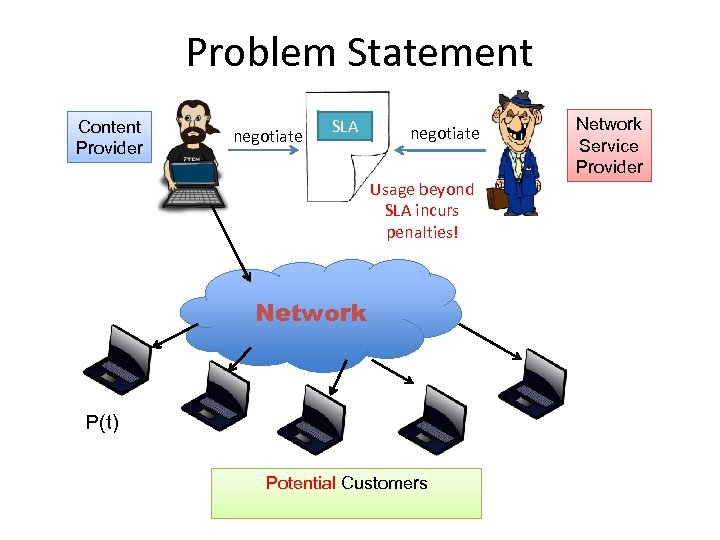

Problem Statement Content Provider negotiate SLA negotiate Usage beyond SLA incurs penalties! Network P(t) Problem Statement Content Provider negotiate SLA negotiate Usage beyond SLA incurs penalties! Network P(t) Potential Customers Network Service Provider

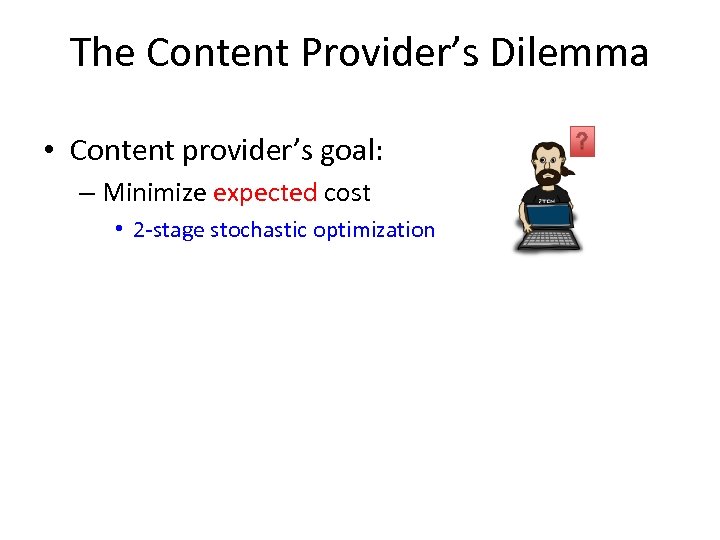

The Content Provider’s Dilemma • Content provider’s goal: – Minimize expected cost • 2 The Content Provider’s Dilemma • Content provider’s goal: – Minimize expected cost • 2 -stage stochastic optimization

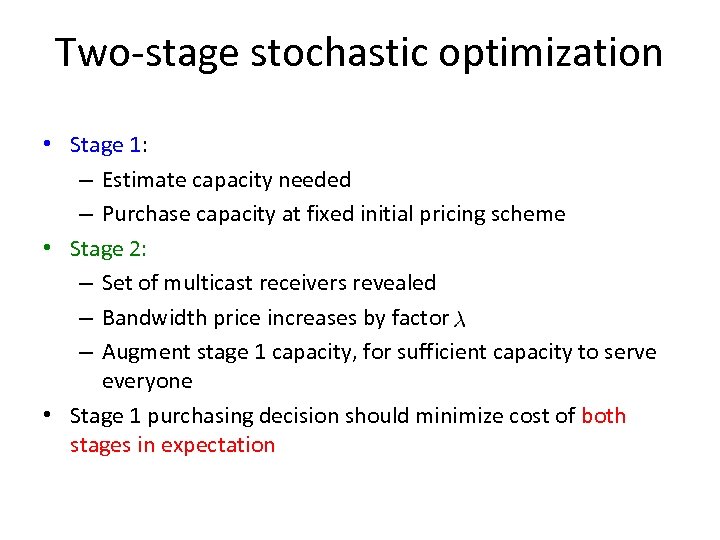

Two-stage stochastic optimization • Stage 1: – Estimate capacity needed – Purchase capacity at Two-stage stochastic optimization • Stage 1: – Estimate capacity needed – Purchase capacity at fixed initial pricing scheme • Stage 2: – Set of multicast receivers revealed – Bandwidth price increases by factor – Augment stage 1 capacity, for sufficient capacity to serve everyone • Stage 1 purchasing decision should minimize cost of both stages in expectation

The Content Provider’s Dilemma • Content provider’s goal: – Minimize expected cost • Obstacles The Content Provider’s Dilemma • Content provider’s goal: – Minimize expected cost • Obstacles – Set of customers is non-deterministic • Assume probability of subscription • Based on market analysis/historical usage patterns – Employ the cheapest method for data delivery • Multicast

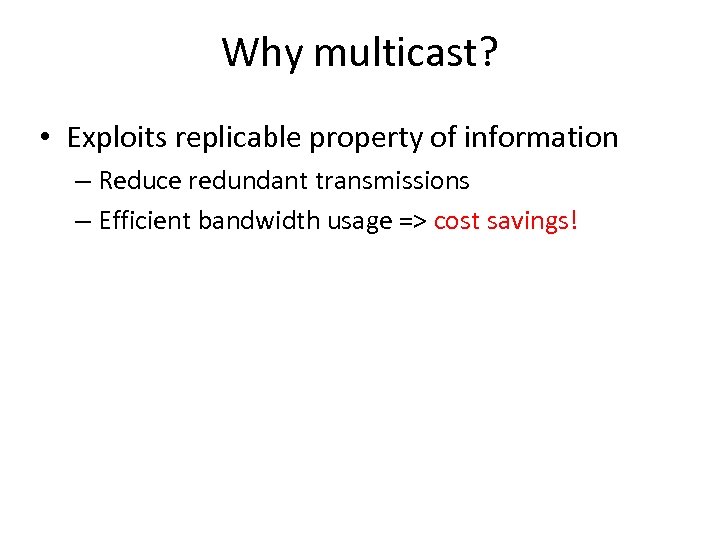

Why multicast? • Exploits replicable property of information – Reduce redundant transmissions – Efficient Why multicast? • Exploits replicable property of information – Reduce redundant transmissions – Efficient bandwidth usage => cost savings!

Content Provider’s Routing Solution Traditional multicast • Finding and packing Steiner trees – NP-Hard! Content Provider’s Routing Solution Traditional multicast • Finding and packing Steiner trees – NP-Hard! Network coding • Exploit encodable property of information • Polynomial time solvable • linear programming formulation

Multicast with network coding “A multicast rate of d is achievable if and only Multicast with network coding “A multicast rate of d is achievable if and only if d is a feasible unicast rate to each multicast receiver separately” • Take home message – Compute multicast as union of unicast flows – Union of flows do not compete for bandwidth • Conceptual flows

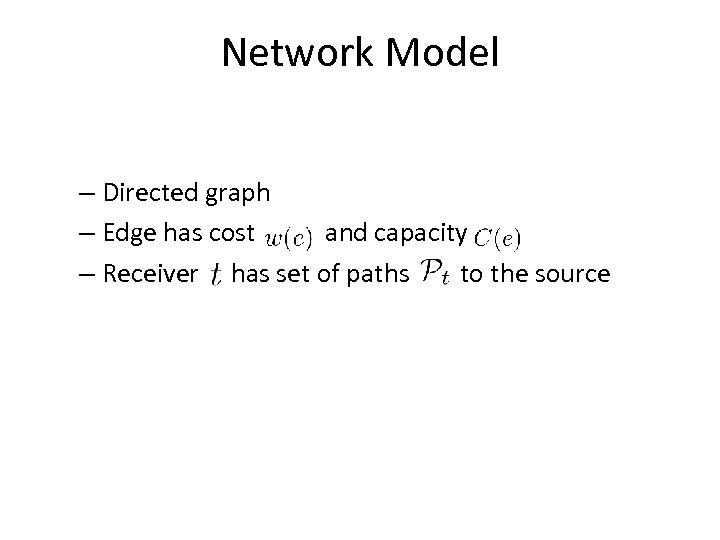

Network Model – Directed graph – Edge has cost and capacity – Receiver has Network Model – Directed graph – Edge has cost and capacity – Receiver has set of paths to the source

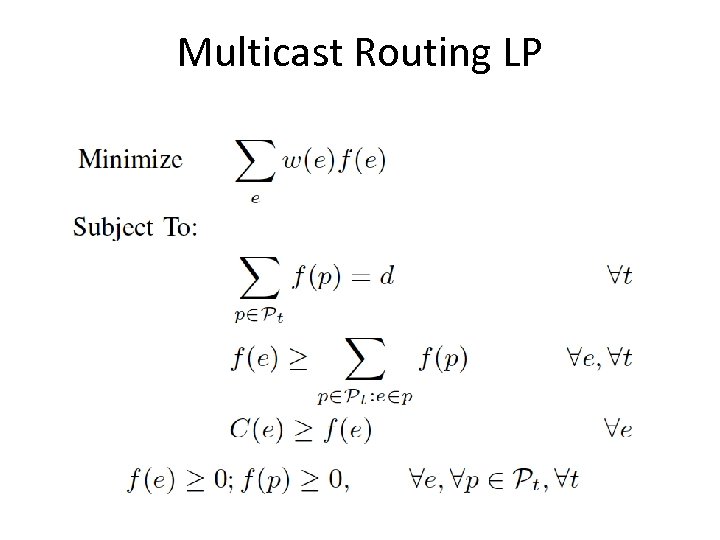

Multicast Routing LP Multicast Routing LP

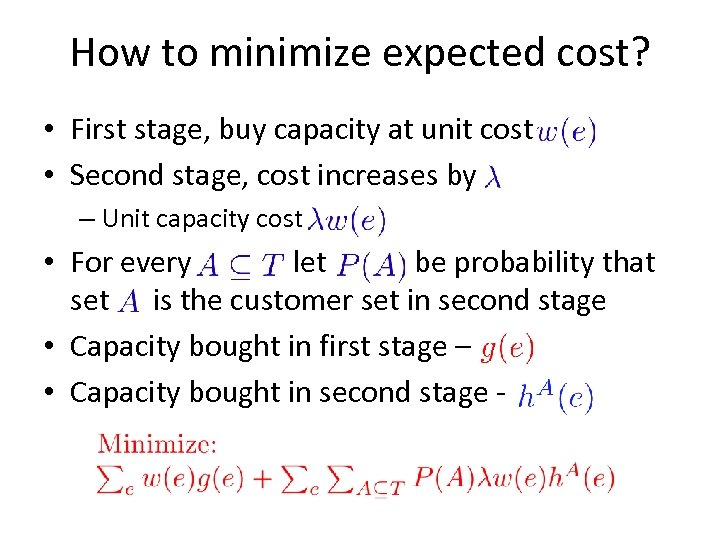

How to minimize expected cost? • First stage, buy capacity at unit cost • How to minimize expected cost? • First stage, buy capacity at unit cost • Second stage, cost increases by – Unit capacity cost • For every let be probability that set is the customer set in second stage • Capacity bought in first stage – • Capacity bought in second stage -

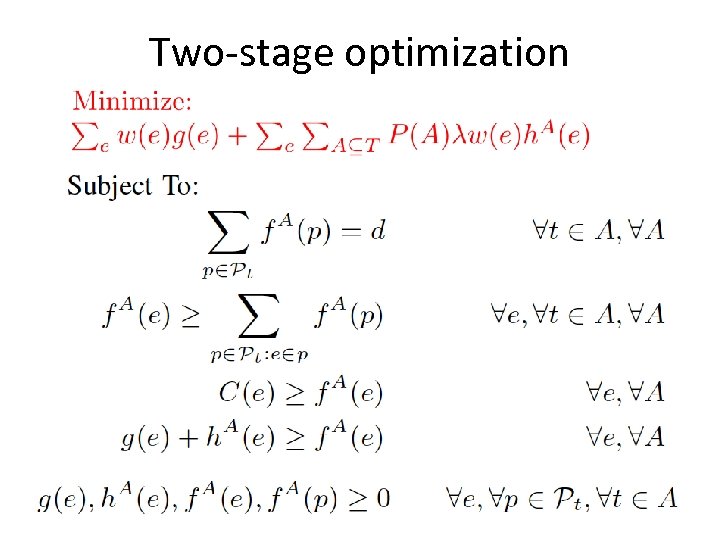

Two-stage optimization Two-stage optimization

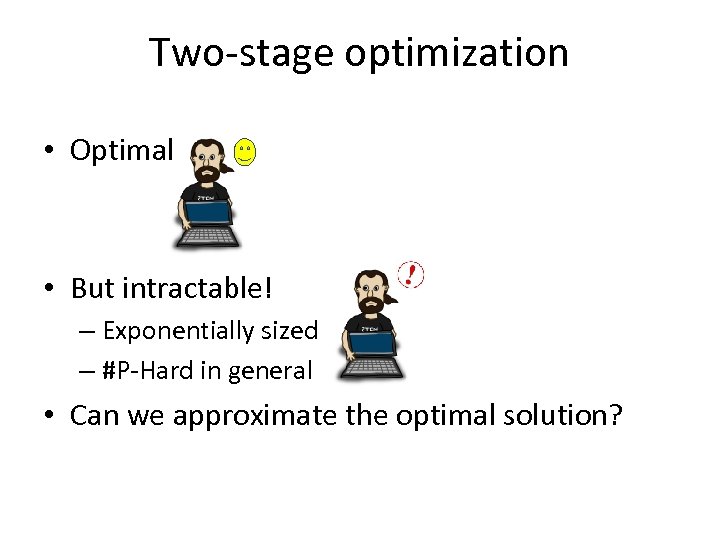

Two-stage optimization • Optimal • But intractable! – Exponentially sized – #P-Hard in general Two-stage optimization • Optimal • But intractable! – Exponentially sized – #P-Hard in general • Can we approximate the optimal solution?

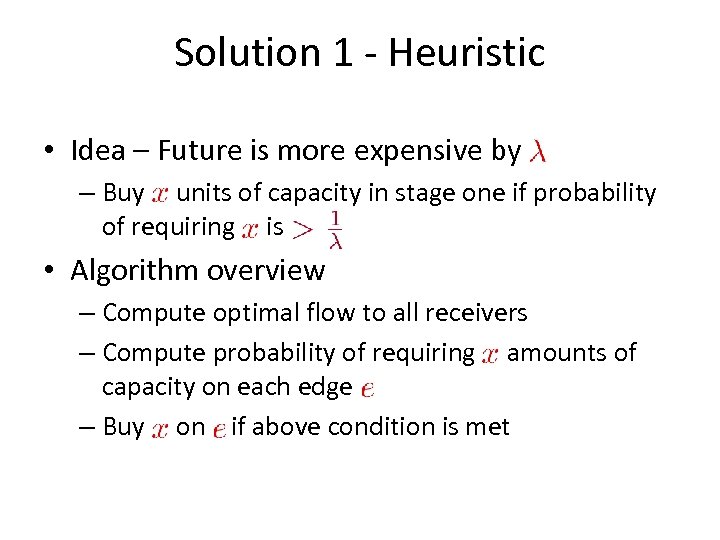

Solution 1 - Heuristic • Idea – Future is more expensive by – Buy Solution 1 - Heuristic • Idea – Future is more expensive by – Buy units of capacity in stage one if probability of requiring is • Algorithm overview – Compute optimal flow to all receivers – Compute probability of requiring amounts of capacity on each edge – Buy on if above condition is met

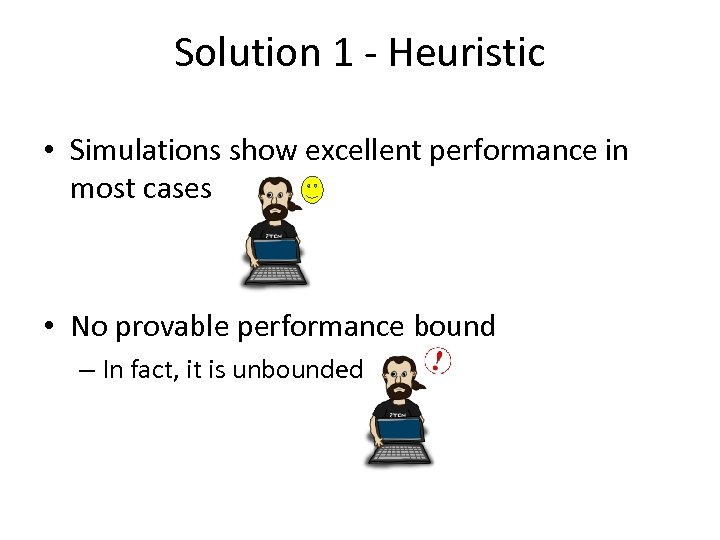

Solution 1 - Heuristic • Simulations show excellent performance in most cases • No Solution 1 - Heuristic • Simulations show excellent performance in most cases • No provable performance bound – In fact, it is unbounded

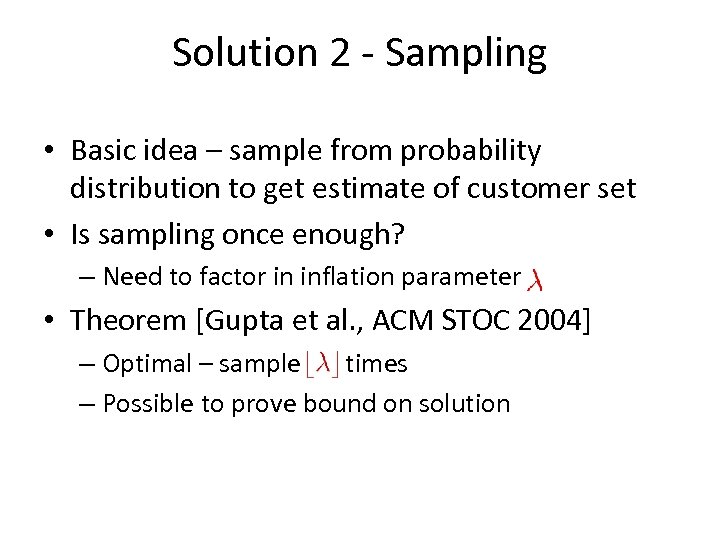

Solution 2 - Sampling • Basic idea – sample from probability distribution to get Solution 2 - Sampling • Basic idea – sample from probability distribution to get estimate of customer set • Is sampling once enough? – Need to factor in inflation parameter • Theorem [Gupta et al. , ACM STOC 2004] – Optimal – sample times – Possible to prove bound on solution

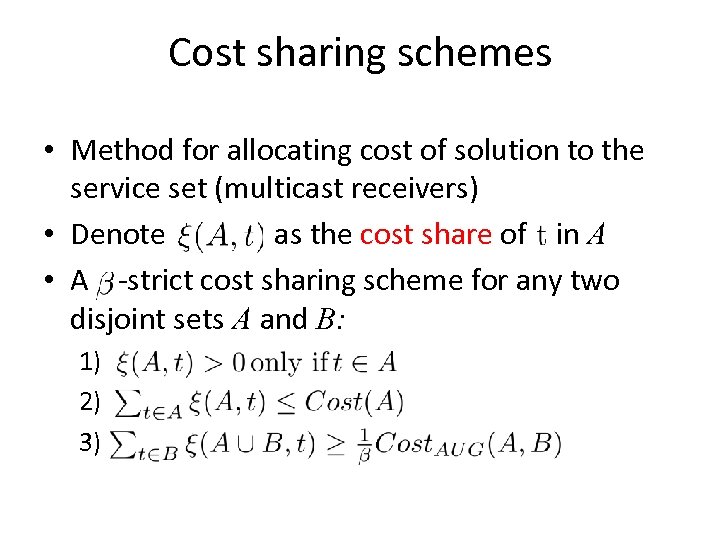

Cost sharing schemes • Method for allocating cost of solution to the service set Cost sharing schemes • Method for allocating cost of solution to the service set (multicast receivers) • Denote as the cost share of in A • A -strict cost sharing scheme for any two disjoint sets A and B: 1) 2) 3)

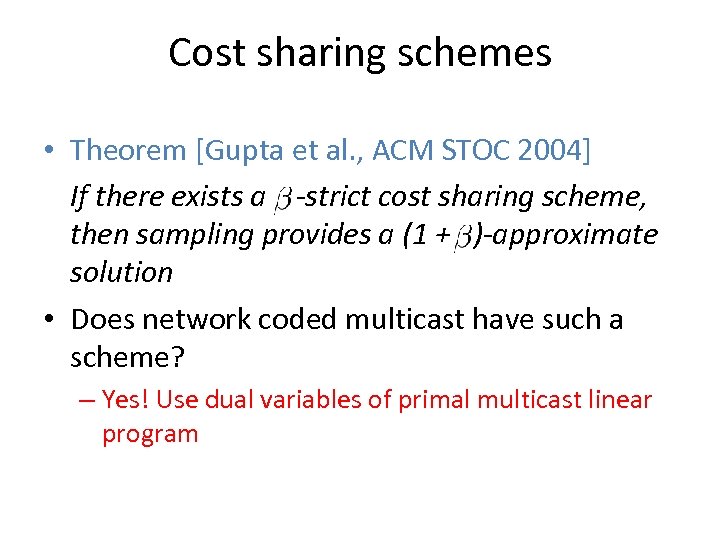

Cost sharing schemes • Theorem [Gupta et al. , ACM STOC 2004] If there Cost sharing schemes • Theorem [Gupta et al. , ACM STOC 2004] If there exists a -strict cost sharing scheme, then sampling provides a (1 + )-approximate solution • Does network coded multicast have such a scheme? – Yes! Use dual variables of primal multicast linear program

Multicast LP dual formulation Multicast LP dual formulation

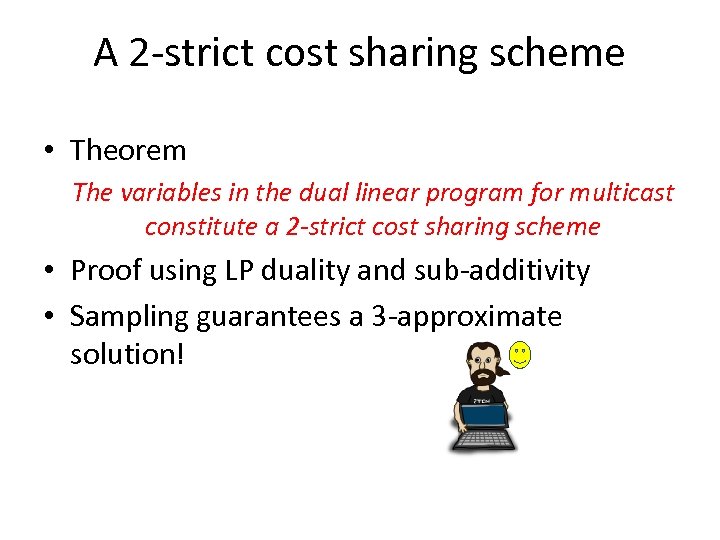

A 2 -strict cost sharing scheme • Theorem The variables in the dual linear A 2 -strict cost sharing scheme • Theorem The variables in the dual linear program for multicast constitute a 2 -strict cost sharing scheme • Proof using LP duality and sub-additivity • Sampling guarantees a 3 -approximate solution!

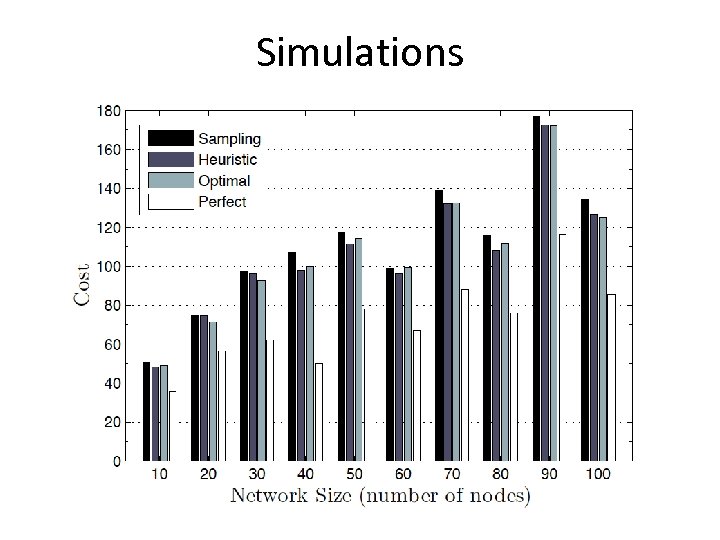

Simulations Simulations

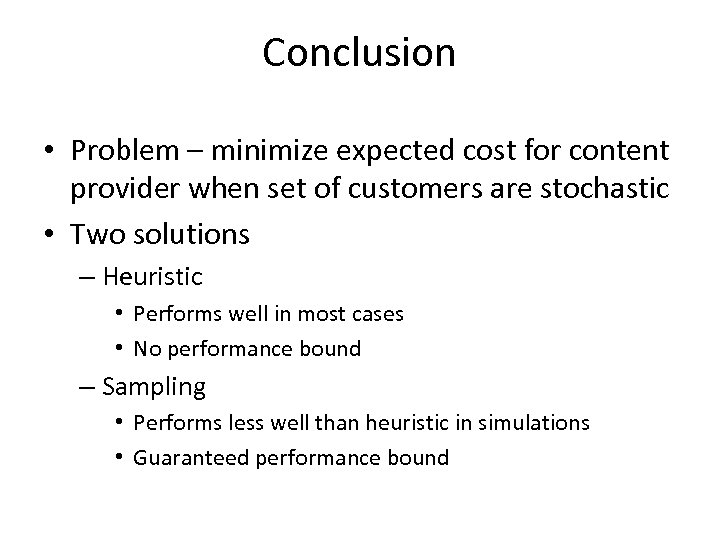

Conclusion • Problem – minimize expected cost for content provider when set of customers Conclusion • Problem – minimize expected cost for content provider when set of customers are stochastic • Two solutions – Heuristic • Performs well in most cases • No performance bound – Sampling • Performs less well than heuristic in simulations • Guaranteed performance bound

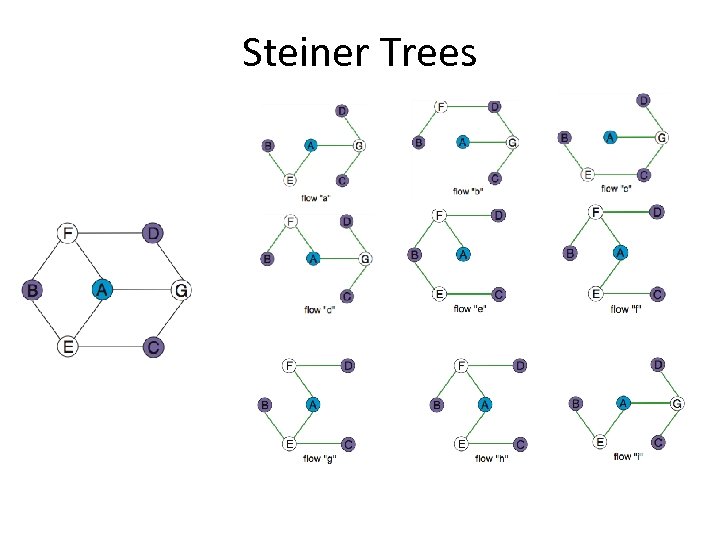

Steiner Trees Steiner Trees
