IBM Http Server Basic Administration IBM Http Server Basic Administration

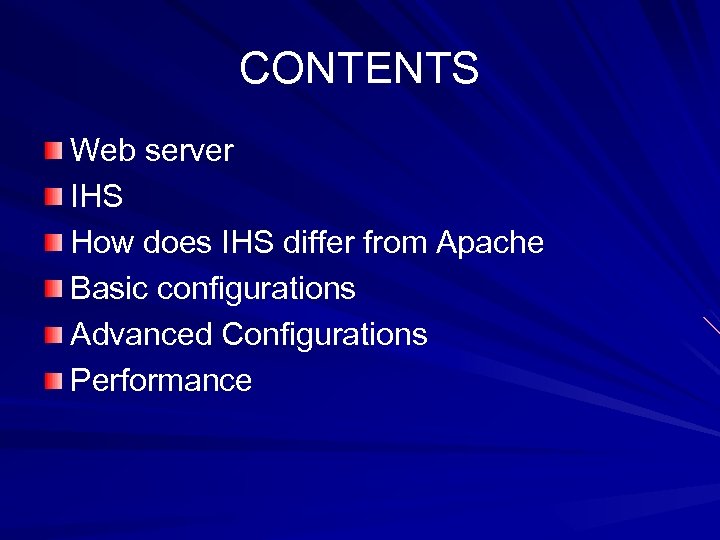

CONTENTS Web server IHS How does IHS differ from Apache Basic configurations Advanced Configurations CONTENTS Web server IHS How does IHS differ from Apache Basic configurations Advanced Configurations Performance

IBM HTTP Server (IHS) is a web server based on the Apache Software Foundation's IBM HTTP Server (IHS) is a web server based on the Apache Software Foundation's Apache HTTP Server that runs on AIX, HP-UX, Linux, Solaris, Windows NT, IBM i and z/OS. It is available for download and use free of charge but without IBM support. The HTTP server is also included in the IBM Web. Sphere Application Server distribution packages. The default web console administration port is 8008. On IBM i, the administration port is 2001 Major releases IBM HTTP Server 8. 5. 0. 0, 15 June 2012 (Apache 2. 2. 8 based) IBM HTTP Server 8. 0. 0. 0, 17 June 2011 (Apache 2. 2. 8 based) IBM HTTP Server 7. 0. 0. 0, 15 March 2009 (Apache 2. 2. 8 based) IBM HTTP Server 6. 0 6. 1. 0. 0, 21 July 2006 (Apache 2. 0. 47 based) 6. 0. 2. 0, 29 July 2005 (Apache 2. 0. 47 based) 6. 0. 1. 0, 15 April 2005 (Apache 2. 0. 47 based)

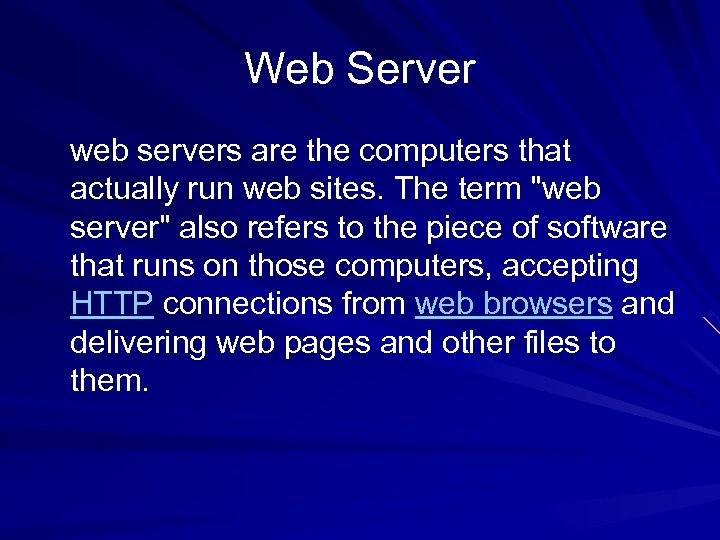

Web Server web servers are the computers that actually run web sites. The term Web Server web servers are the computers that actually run web sites. The term "web server" also refers to the piece of software that runs on those computers, accepting HTTP connections from web browsers and delivering web pages and other files to them.

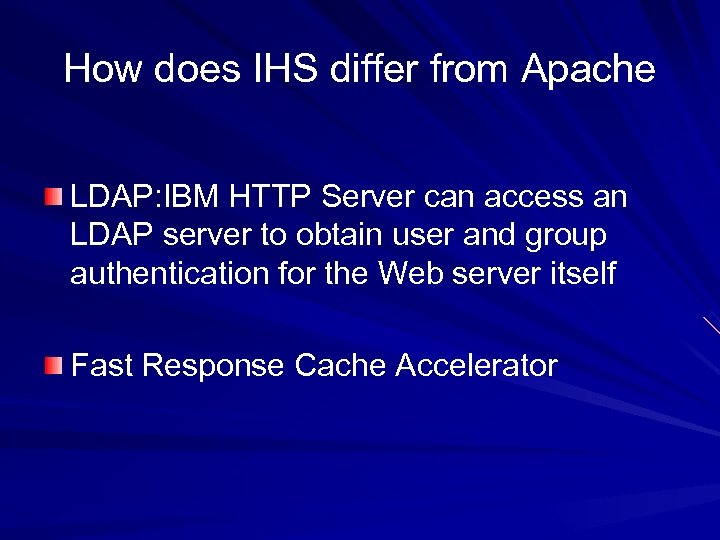

How does IHS differ from Apache LDAP: IBM HTTP Server can access an LDAP How does IHS differ from Apache LDAP: IBM HTTP Server can access an LDAP server to obtain user and group authentication for the Web server itself Fast Response Cache Accelerator

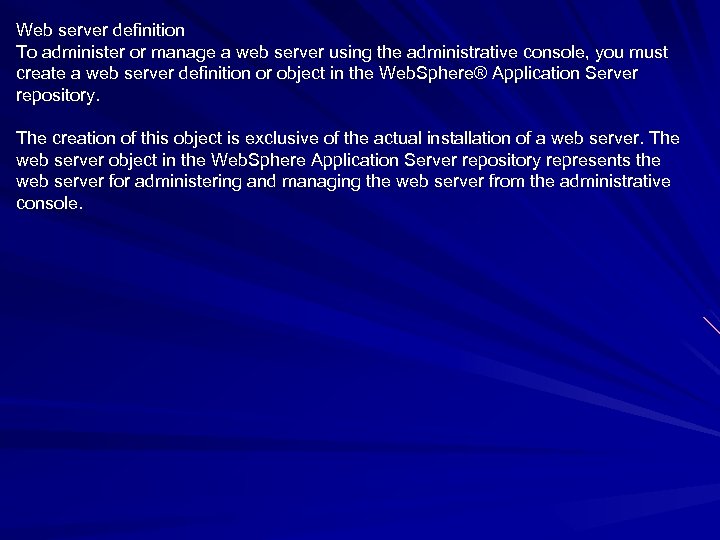

Web server definition To administer or manage a web server using the administrative console, Web server definition To administer or manage a web server using the administrative console, you must create a web server definition or object in the Web. Sphere® Application Server repository. The creation of this object is exclusive of the actual installation of a web server. The web server object in the Web. Sphere Application Server repository represents the web server for administering and managing the web server from the administrative console.

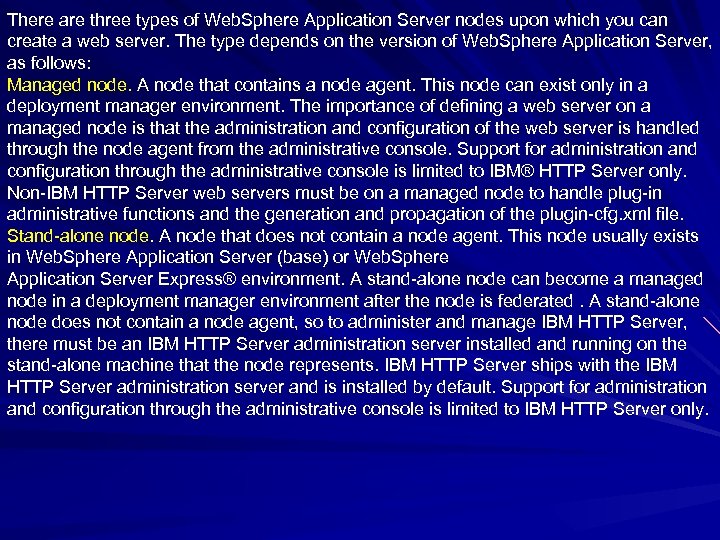

There are three types of Web. Sphere Application Server nodes upon which you can There are three types of Web. Sphere Application Server nodes upon which you can create a web server. The type depends on the version of Web. Sphere Application Server, as follows: Managed node. A node that contains a node agent. This node can exist only in a deployment manager environment. The importance of defining a web server on a managed node is that the administration and configuration of the web server is handled through the node agent from the administrative console. Support for administration and configuration through the administrative console is limited to IBM® HTTP Server only. Non-IBM HTTP Server web servers must be on a managed node to handle plug-in administrative functions and the generation and propagation of the plugin-cfg. xml file. Stand-alone node. A node that does not contain a node agent. This node usually exists in Web. Sphere Application Server (base) or Web. Sphere Application Server Express® environment. A stand-alone node can become a managed node in a deployment manager environment after the node is federated. A stand-alone node does not contain a node agent, so to administer and manage IBM HTTP Server, there must be an IBM HTTP Server administration server installed and running on the stand-alone machine that the node represents. IBM HTTP Server ships with the IBM HTTP Server administration server and is installed by default. Support for administration and configuration through the administrative console is limited to IBM HTTP Server only.

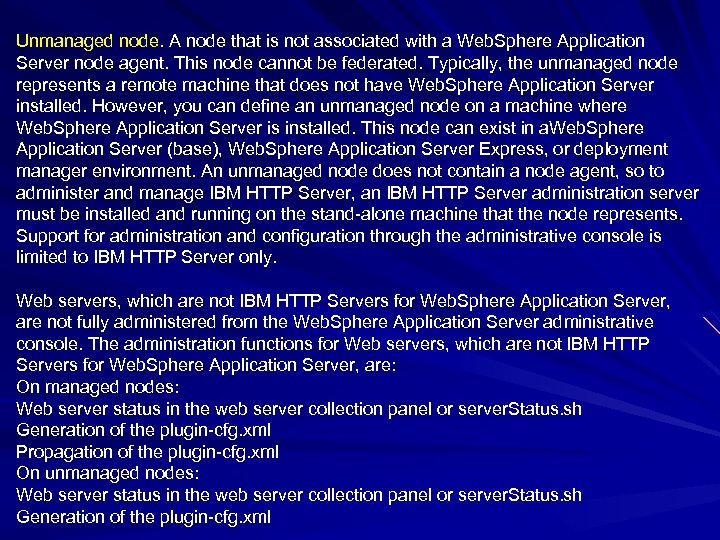

Unmanaged node. A node that is not associated with a Web. Sphere Application Server Unmanaged node. A node that is not associated with a Web. Sphere Application Server node agent. This node cannot be federated. Typically, the unmanaged node represents a remote machine that does not have Web. Sphere Application Server installed. However, you can define an unmanaged node on a machine where Web. Sphere Application Server is installed. This node can exist in a. Web. Sphere Application Server (base), Web. Sphere Application Server Express, or deployment manager environment. An unmanaged node does not contain a node agent, so to administer and manage IBM HTTP Server, an IBM HTTP Server administration server must be installed and running on the stand-alone machine that the node represents. Support for administration and configuration through the administrative console is limited to IBM HTTP Server only. Web servers, which are not IBM HTTP Servers for Web. Sphere Application Server, are not fully administered from the Web. Sphere Application Server administrative console. The administration functions for Web servers, which are not IBM HTTP Servers for Web. Sphere Application Server, are: On managed nodes: Web server status in the web server collection panel or server. Status. sh Generation of the plugin-cfg. xml Propagation of the plugin-cfg. xml On unmanaged nodes: Web server status in the web server collection panel or server. Status. sh Generation of the plugin-cfg. xml

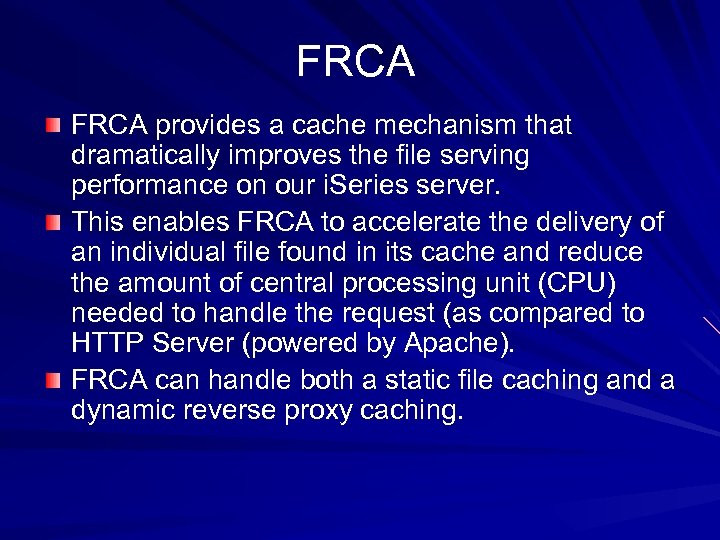

FRCA provides a cache mechanism that dramatically improves the file serving performance on our FRCA provides a cache mechanism that dramatically improves the file serving performance on our i. Series server. This enables FRCA to accelerate the delivery of an individual file found in its cache and reduce the amount of central processing unit (CPU) needed to handle the request (as compared to HTTP Server (powered by Apache). FRCA can handle both a static file caching and a dynamic reverse proxy caching.

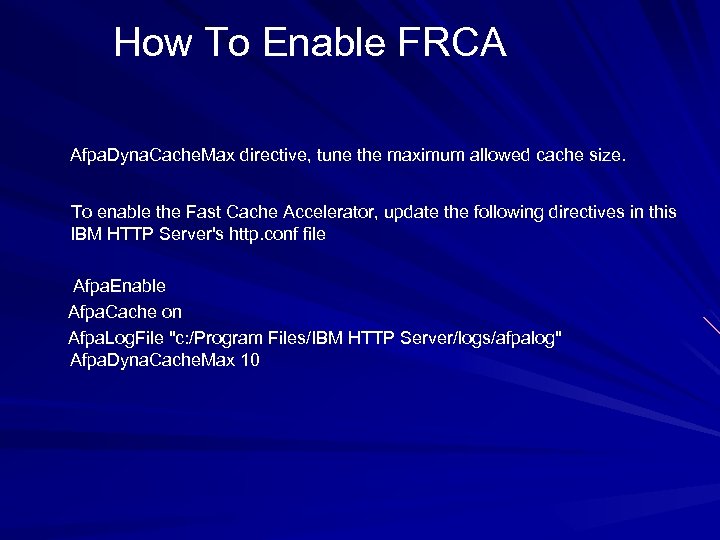

How To Enable FRCA Afpa. Dyna. Cache. Max directive, tune the maximum allowed cache How To Enable FRCA Afpa. Dyna. Cache. Max directive, tune the maximum allowed cache size. To enable the Fast Cache Accelerator, update the following directives in this IBM HTTP Server's http. conf file Afpa. Enable Afpa. Cache on Afpa. Log. File "c: /Program Files/IBM HTTP Server/logs/afpalog" Afpa. Dyna. Cache. Max 10

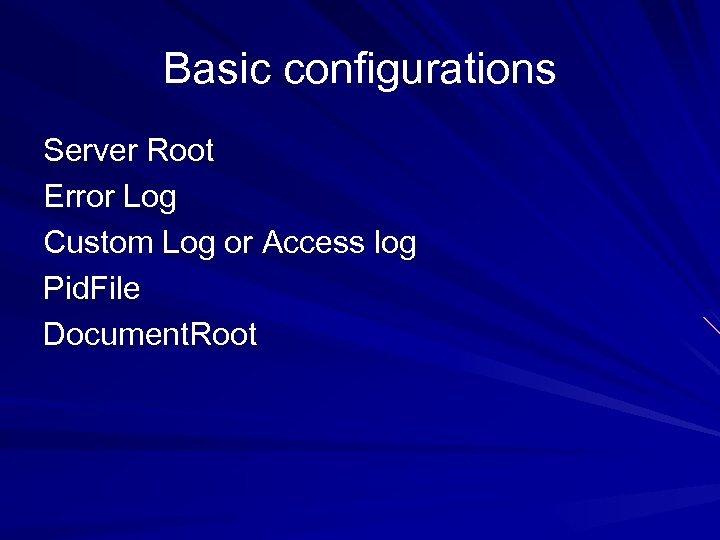

Basic configurations Server Root Error Log Custom Log or Access log Pid. File Document. Basic configurations Server Root Error Log Custom Log or Access log Pid. File Document. Root

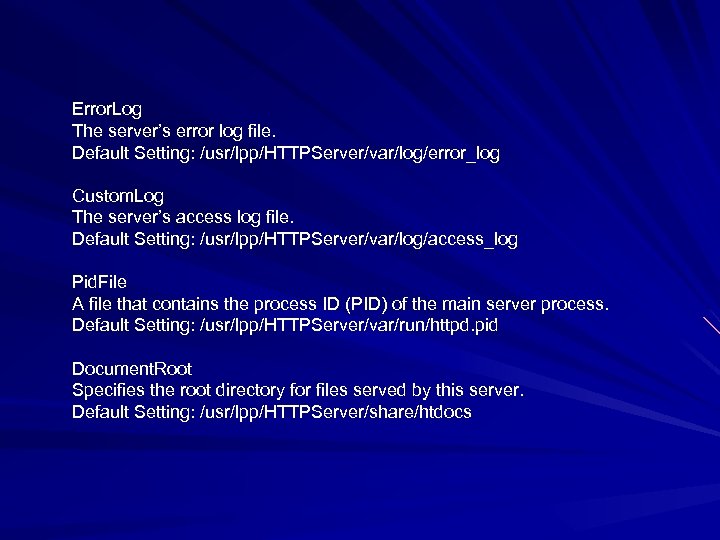

Error. Log The server’s error log file. Default Setting: /usr/lpp/HTTPServer/var/log/error_log Custom. Log The server’s Error. Log The server’s error log file. Default Setting: /usr/lpp/HTTPServer/var/log/error_log Custom. Log The server’s access log file. Default Setting: /usr/lpp/HTTPServer/var/log/access_log Pid. File A file that contains the process ID (PID) of the main server process. Default Setting: /usr/lpp/HTTPServer/var/run/httpd. pid Document. Root Specifies the root directory for files served by this server. Default Setting: /usr/lpp/HTTPServer/share/htdocs

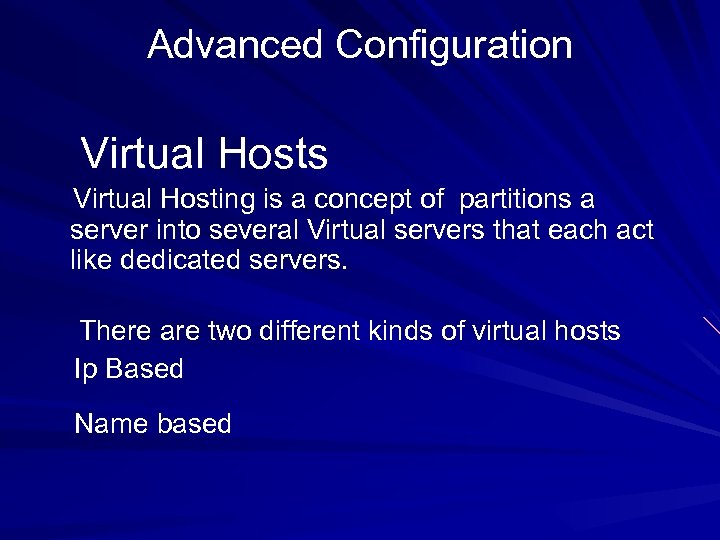

Advanced Configuration Virtual Hosts Virtual Hosting is a concept of partitions a server into Advanced Configuration Virtual Hosts Virtual Hosting is a concept of partitions a server into several Virtual servers that each act like dedicated servers. There are two different kinds of virtual hosts Ip Based Name based

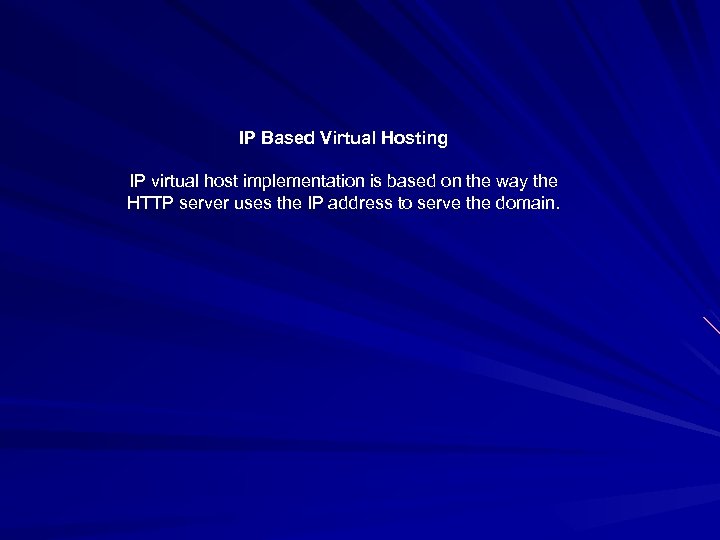

IP Based Virtual Hosting IP virtual host implementation is based on the way the IP Based Virtual Hosting IP virtual host implementation is based on the way the HTTP server uses the IP address to serve the domain.

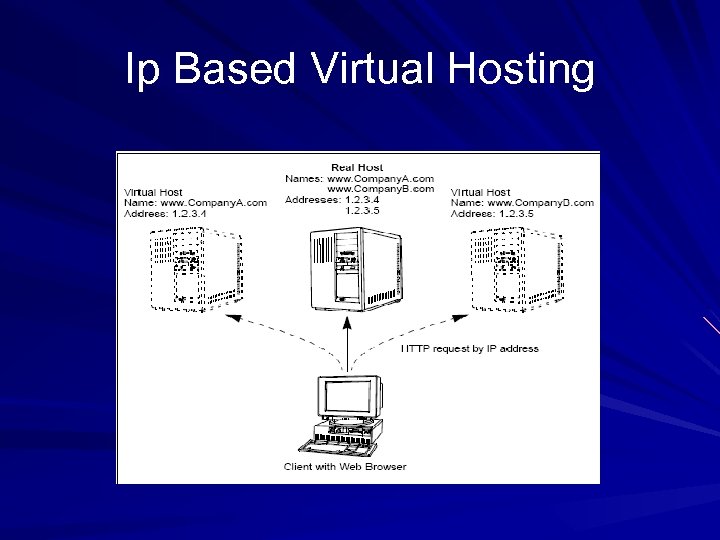

Ip Based Virtual Hosting Ip Based Virtual Hosting

Implementing Ip Based Virtual Hosting Add the followind derivative in the httpd. conf file Implementing Ip Based Virtual Hosting Add the followind derivative in the httpd. conf file Server. Name www. Company. A. com Server. Admin [email protected] A. com Document. Root /www/html/Company. A Error. Log /www/logs/Company. A/error_log Transfer. Log /www/logs/Company. A/access_log Server. Name www. Company. B. com Server. Admin [email protected] B. com Document. Root /www/html/Company. B Error. Log /www/logs/Company. B/error_log Transfer. Log /www/logs/Company. B/access_log

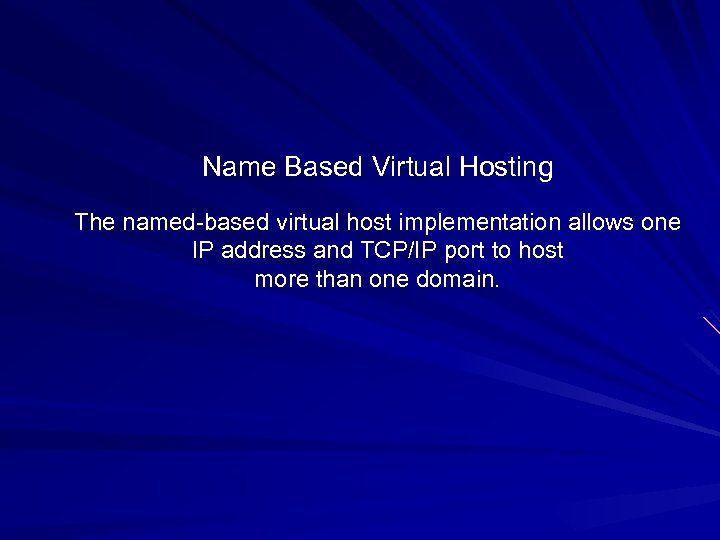

Name Based Virtual Hosting The named-based virtual host implementation allows one IP address and Name Based Virtual Hosting The named-based virtual host implementation allows one IP address and TCP/IP port to host more than one domain.

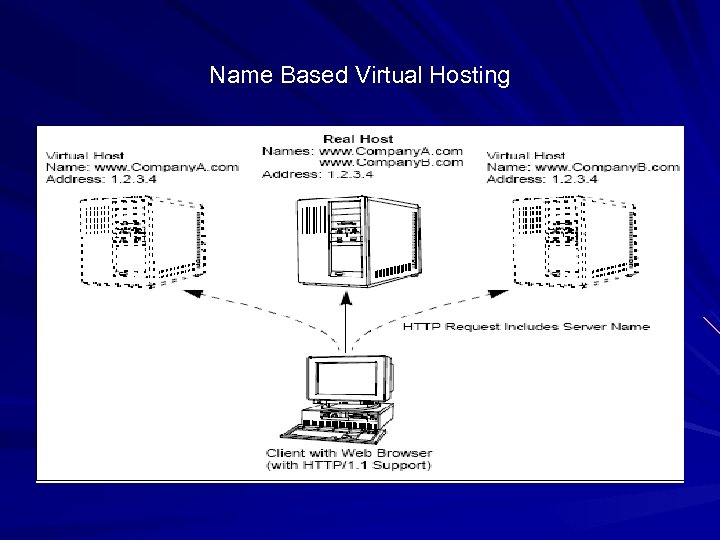

 Name Based Virtual Hosting Name Based Virtual Hosting

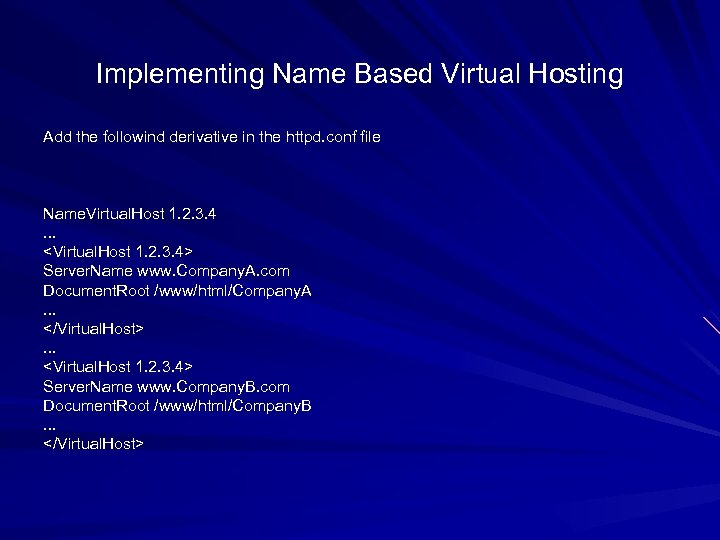

Implementing Name Based Virtual Hosting Add the followind derivative in the httpd. conf file Implementing Name Based Virtual Hosting Add the followind derivative in the httpd. conf file Name. Virtual. Host 1. 2. 3. 4. . . Server. Name www. Company. A. com Document. Root /www/html/Company. A. . . . . . Server. Name www. Company. B. com Document. Root /www/html/Company. B. . .

SSL (Secure Sockets Layer) is a widelyused way to implement transport layer security into SSL (Secure Sockets Layer) is a widelyused way to implement transport layer security into TCP/IP communication used for secure connections between browsers and servers.

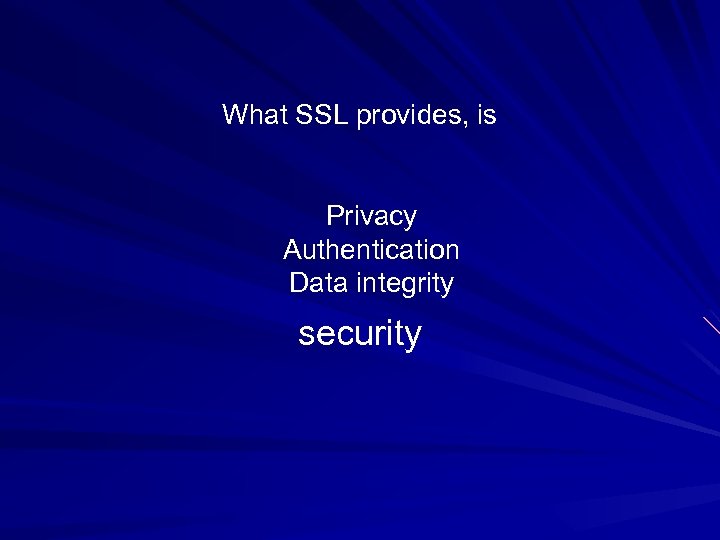

What SSL provides, is Privacy Authentication Data integrity security What SSL provides, is Privacy Authentication Data integrity security

Establishing the SSL Connection Establishing the SSL Connection

Implementing SSL The minimum configuration changes that need to be done are: • Definitions Implementing SSL The minimum configuration changes that need to be done are: • Definitions for loading the mod_ibm_ssl module • Port number for the SSL virtual host • Definition for the SSL virtual host • Keyfile location • SSL timeouts

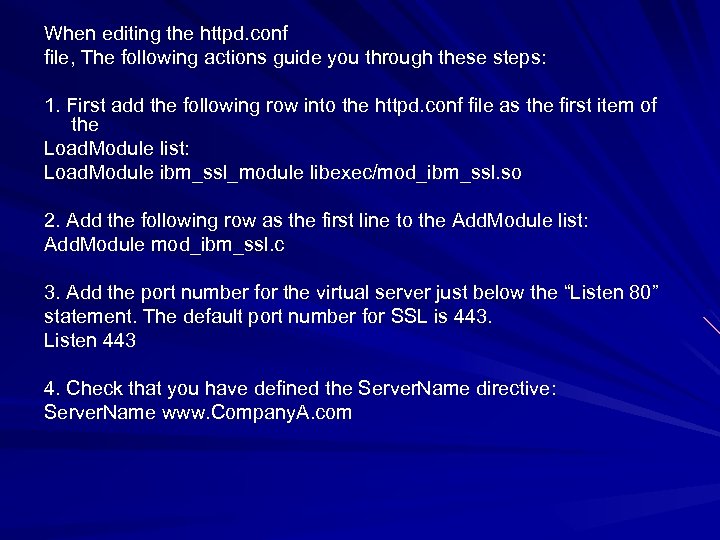

When editing the httpd. conf file, The following actions guide you through these steps: When editing the httpd. conf file, The following actions guide you through these steps: 1. First add the following row into the httpd. conf file as the first item of the Load. Module list: Load. Module ibm_ssl_module libexec/mod_ibm_ssl. so 2. Add the following row as the first line to the Add. Module list: Add. Module mod_ibm_ssl. c 3. Add the port number for the virtual server just below the “Listen 80” statement. The default port number for SSL is 443. Listen 443 4. Check that you have defined the Server. Name directive: Server. Name www. Company. A. com

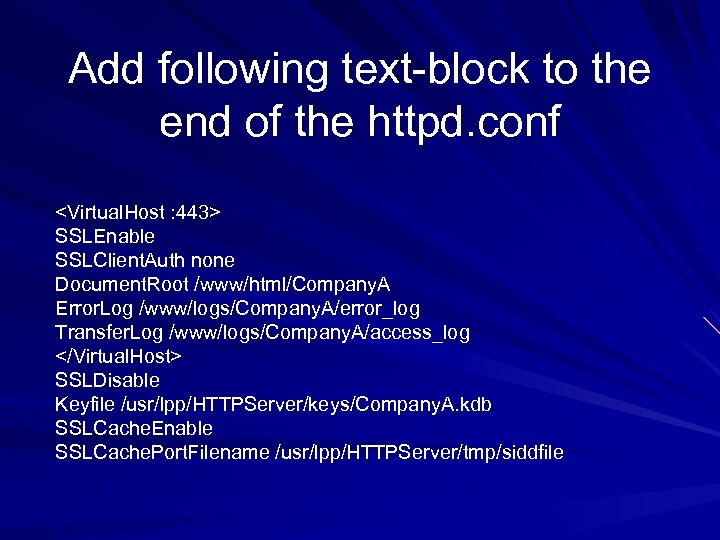

Add following text-block to the end of the httpd. conf <Virtual. Host : 443> Add following text-block to the end of the httpd. conf SSLEnable SSLClient. Auth none Document. Root /www/html/Company. A Error. Log /www/logs/Company. A/error_log Transfer. Log /www/logs/Company. A/access_log SSLDisable Keyfile /usr/lpp/HTTPServer/keys/Company. A. kdb SSLCache. Enable SSLCache. Port. Filename /usr/lpp/HTTPServer/tmp/siddfile

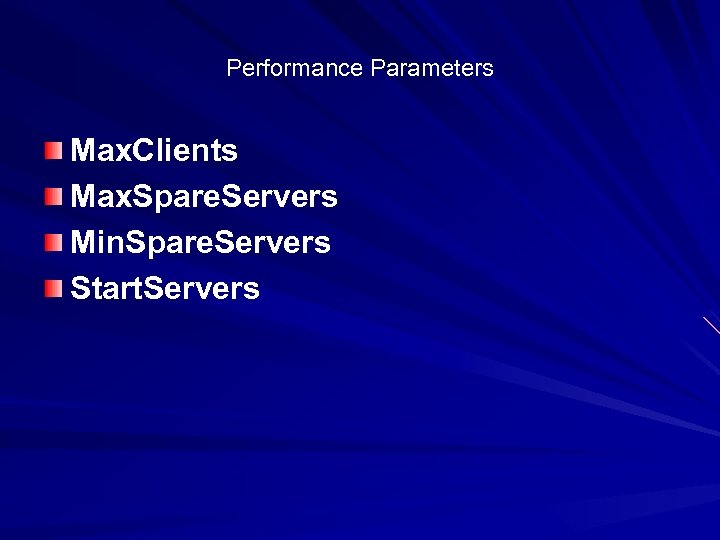

Performance Parameters Max. Clients Max. Spare. Servers Min. Spare. Servers Start. Servers Performance Parameters Max. Clients Max. Spare. Servers Min. Spare. Servers Start. Servers

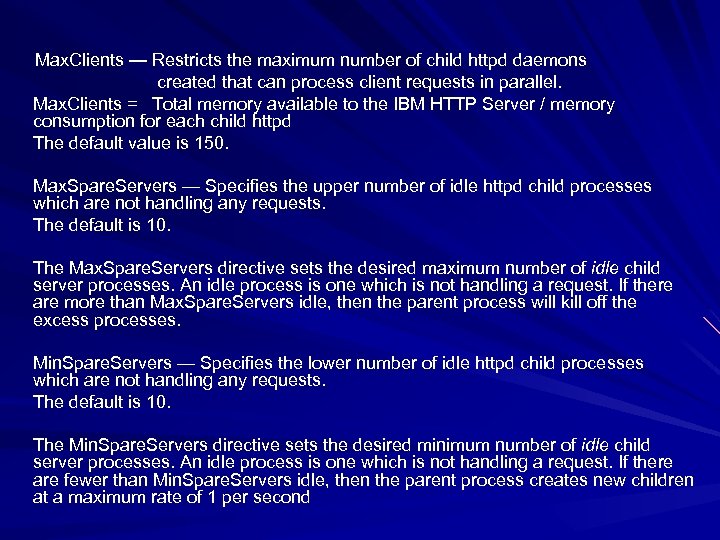

Max. Clients — Restricts the maximum number of child httpd daemons created that can Max. Clients — Restricts the maximum number of child httpd daemons created that can process client requests in parallel. Max. Clients = Total memory available to the IBM HTTP Server / memory consumption for each child httpd The default value is 150. Max. Spare. Servers — Specifies the upper number of idle httpd child processes which are not handling any requests. The default is 10. The Max. Spare. Servers directive sets the desired maximum number of idle child Max. Spare. Servers server processes. An idle process is one which is not handling a request. If there are more than Max. Spare. Servers idle, then the parent process will kill off the Max. Spare. Servers excess processes. Min. Spare. Servers — Specifies the lower number of idle httpd child processes which are not handling any requests. The default is 10. The Min. Spare. Servers directive sets the desired minimum number of idle child Min. Spare. Servers server processes. An idle process is one which is not handling a request. If there are fewer than Min. Spare. Servers idle, then the parent process creates new children Min. Spare. Servers at a maximum rate of 1 per second

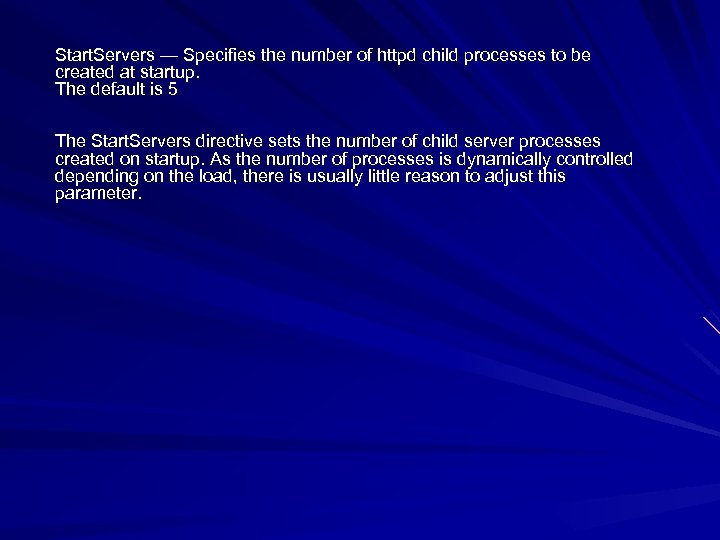

Start. Servers — Specifies the number of httpd child processes to be created at Start. Servers — Specifies the number of httpd child processes to be created at startup. The default is 5 The Start. Servers directive sets the number of child server processes created on startup. As the number of processes is dynamically controlled depending on the load, there is usually little reason to adjust this parameter.

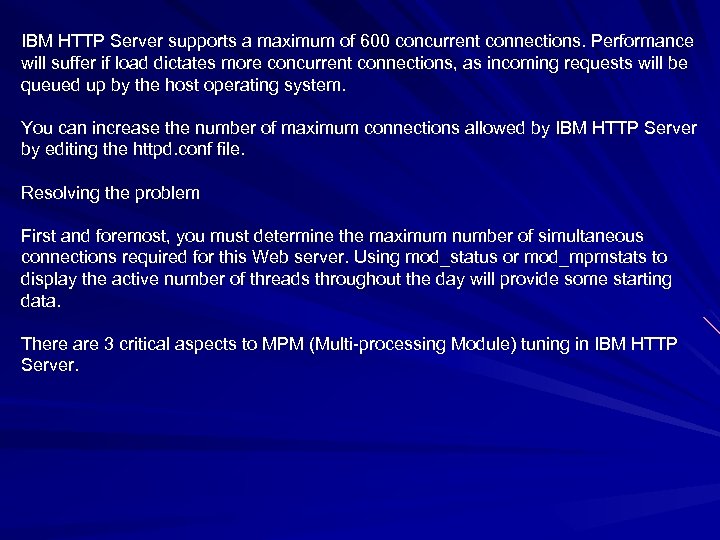

IBM HTTP Server supports a maximum of 600 concurrent connections. Performance will suffer if IBM HTTP Server supports a maximum of 600 concurrent connections. Performance will suffer if load dictates more concurrent connections, as incoming requests will be queued up by the host operating system. You can increase the number of maximum connections allowed by IBM HTTP Server by editing the httpd. conf file. Resolving the problem First and foremost, you must determine the maximum number of simultaneous connections required for this Web server. Using mod_status or mod_mpmstats to display the active number of threads throughout the day will provide some starting data. There are 3 critical aspects to MPM (Multi-processing Module) tuning in IBM HTTP Server.

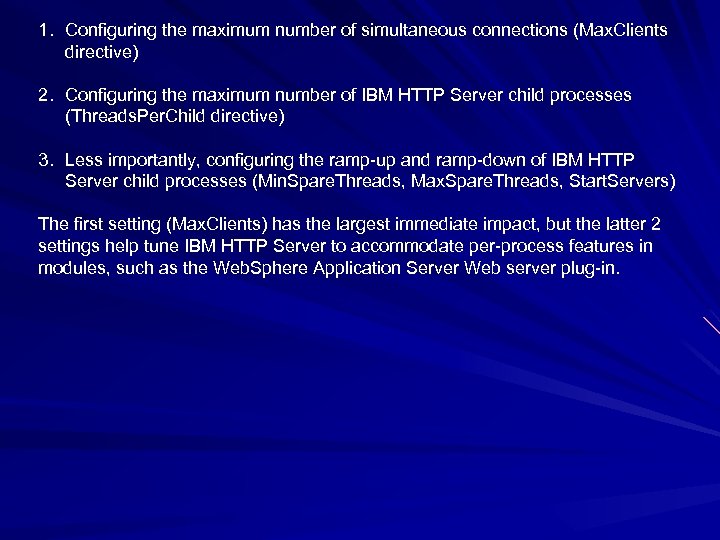

1. Configuring the maximum number of simultaneous connections (Max. Clients directive) 2. Configuring the 1. Configuring the maximum number of simultaneous connections (Max. Clients directive) 2. Configuring the maximum number of IBM HTTP Server child processes (Threads. Per. Child directive) 3. Less importantly, configuring the ramp-up and ramp-down of IBM HTTP Server child processes (Min. Spare. Threads, Max. Spare. Threads, Start. Servers) The first setting (Max. Clients) has the largest immediate impact, but the latter 2 settings help tune IBM HTTP Server to accommodate per-process features in modules, such as the Web. Sphere Application Server Web server plug-in.

Performance Monitoring A benchmarking tool is provided with the IBM HTTP Server package for Performance Monitoring A benchmarking tool is provided with the IBM HTTP Server package for webmasters to analyze how capable the IBM HTTP Server is running on the environment they had configured. This useful tool is called ab Syntax: ab [options] [http: //]hostname[: port]/path Options: -n requests Number of requests to perform -c concurrency Number of multiple requests to make -t timelimit Seconds to max. wait for responses -p postfile File containing data to POST -T content-type Content-type header for POSTing -v verbosity How much troubleshooting info to print -V Print version number and exit -k Use HTTP Keep. Alive feature -h Display usage information (this message)

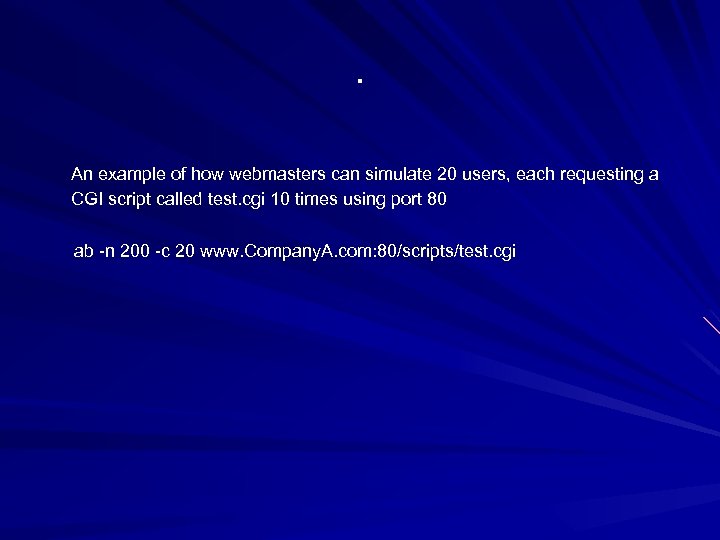

. An example of how webmasters can simulate 20 users, each requesting a CGI . An example of how webmasters can simulate 20 users, each requesting a CGI script called test. cgi 10 times using port 80 ab -n 200 -c 20 www. Company. A. com: 80/scripts/test. cgi

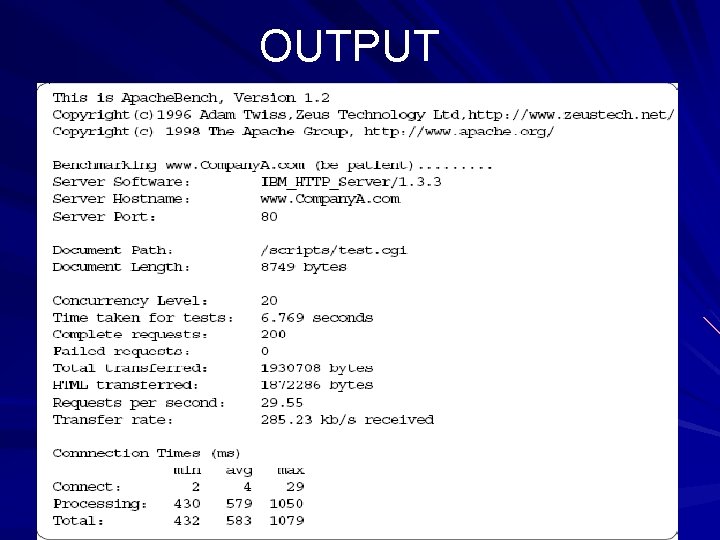

OUTPUT OUTPUT

: THANK YOU : THANK YOU
