GEOG 80 – Transport Geography Professor: Dr. Jean-Paul Rodrigue Topic 4 – Transportation Terminals GEOG 80 – Transport Geography Professor: Dr. Jean-Paul Rodrigue Topic 4 – Transportation Terminals A. B. C. D. The Function of Transport Terminals Ports and Rail Terminals Airport Terminals and Security

A – The Function of Transport Terminals ■ ■ 1. The Nature of Transport A – The Function of Transport Terminals ■ ■ 1. The Nature of Transport Terminals 2. Passengers Terminals 3. Freight Terminals 4. Terminal Costs

1. The Nature of Transport Terminals ■ Concept • All spatial flows, with the 1. The Nature of Transport Terminals ■ Concept • All spatial flows, with the exception of personal vehicular and pedestrian trips, involve movements between terminals. • Modes assembly and distribution: • Cannot travel individually, but in batches. • People have to go to bus terminals and airports first to reach their final destinations. • Freight has to be consolidated at a port or a rail yard before onward shipment. • Terminals are essential links in transportation chains.

1. The Nature of Transport Terminals ■ Definition • Any location where freight and 1. The Nature of Transport Terminals ■ Definition • Any location where freight and passengers either originates, terminates, or is handled in the transportation process. • Central and intermediate locations: • Points of interchange within the same modal system. • Insure a continuity of the flows. • Particularly the case for modern air and port operations. • Require specific facilities to accommodate the traffic they handle. • Points of interchange: within the same mode. • Points of transfer: between modes.

1. The Nature of Transport Terminals ■ Location • Serve a large concentration of 1. The Nature of Transport Terminals ■ Location • Serve a large concentration of population and/or industrial activities. • Specific terminals have specific locational constraints. • New transport terminals tend to be located outside central areas to avoid high land costs and congestion. ■ Convergence • Obligatory points of passage. • Invested on their geographical location which is generally intermediate to commercial flows. • Created by the centrality or the intermediacy of their respective locations.

1. The Nature of Transport Terminals ■ Accessibility • Accessibility to other terminals (at 1. The Nature of Transport Terminals ■ Accessibility • Accessibility to other terminals (at the local, regional and global scale). • How well the terminal is linked to the regional transport system. ■ Infrastructure • Handle and transship freight or passengers. • Must accommodate current traffic and anticipate future trends. • Modern terminal infrastructures consequently require massive investments.

The Function of Transport Terminals Location Local Regional Global Infrastructures Accessibility The Function of Transport Terminals Location Local Regional Global Infrastructures Accessibility

2. Passengers Terminals ■ Overview • Passenger terminals require relatively little specific equipment. • 2. Passengers Terminals ■ Overview • Passenger terminals require relatively little specific equipment. • Simple structures. • Basic amenities (waiting areas, ticket counters, food services). ■ Airports • • Are the exception. The most complex terminals. Passengers may spend several hours in the terminal. Transiting, check-in and security checks, baggage pick up and customs and immigration on international arrivals. • Wide range of services.

Chek Lap Kok Air Terminal, Main Concourse, Hong Kong, China Chek Lap Kok Air Terminal, Main Concourse, Hong Kong, China

3. Freight Terminals ■ Specialized entities • Specific loading and unloading equipment. • Wide 3. Freight Terminals ■ Specialized entities • Specific loading and unloading equipment. • Wide range of handling gear is required. • Differentiated functionally both by the mode involved and the commodities transferred. ■ Distinction by two major types of cargo • Bulk: • Goods that are handled in large quantities, that are unpackaged and are available in uniform dimensions. • Liquid bulk goods: Pumps to move the product along hoses and pipes; limited handling equipment is needed, but significant storage facilities may be required. • Dry bulk: wide range of products, such as ores, coal and cereals; handling equipment is required; utilize specialized grabs and cranes and conveyer-belt systems.

3. Freight Terminals • General cargo: • Goods that are of many shapes, dimensions 3. Freight Terminals • General cargo: • Goods that are of many shapes, dimensions and weights such as machinery and parts. • Because the goods are so uneven and irregular, handling is difficult to mechanize. • General cargo handling usually requires a lot of manpower. ■ Warehousing • Assembling the individual bundles of goods: • Time-consuming and storage may be required. • Need for terminals to be equipped with specialized infrastructures: • Grain silos, storage tanks, and refrigerated warehouses, or simply space to stockpile.

Hong Kong International Distribution Center Hong Kong International Distribution Center

4. Terminal Costs ■ Terminal costs • An important component of transport costs. • 4. Terminal Costs ■ Terminal costs • An important component of transport costs. • Infrastructure costs: • Construction and maintenance costs. • Facilities such as piers, runways, cranes and structures. • Transshipment costs: • Composing, handling and decomposing passengers or freight. • Labor requirement of terminal facilities. • Administration costs: • Managed by institutions such as port or airport authorities or by private companies.

Terminal Costs Cost C 1 d oa R T 3 T 2 T 1 Terminal Costs Cost C 1 d oa R T 3 T 2 T 1 Distance C 2 Rail e Maritim C 3

B – Ports and Rail Terminals ■ 1. Port Sites ■ 2. Port Functions B – Ports and Rail Terminals ■ 1. Port Sites ■ 2. Port Functions ■ 3. Rail Terminals

1. Port Sites ■ Ports • Convergence between two domains of freight circulation: • 1. Port Sites ■ Ports • Convergence between two domains of freight circulation: • Land maritime domains. • Facilitates convergence between land transport and maritime systems. • Handle the largest amounts of freight, more than any other types of terminals combined. • Infrastructures to accommodate transshipment activities. • Administration: • Submitted to authorities. • Regulating infrastructure investments, its organization and development and its relationships with customers using its services.

Port Sites In a delta Margin of a delta Along a river Natural harbors Port Sites In a delta Margin of a delta Along a river Natural harbors In an estuary Near an estuary In a bay Protected

1. Port Sites ■ Port sites • Maritime access: • Physical capacity of the 1. Port Sites ■ Port sites • Maritime access: • Physical capacity of the site to accommodate ship operations. • Tidal range: difference between the high and low tide. Ship operations cannot handle variations of more than 3 meters. • Channel and berth depths: very important to accommodate modern cargo ships. • Panamax ship (65, 000 deadweight tons) requires more than 12 meters (40 feet) of depth. • Many port sites are unable to handle modern maritime access. • Maritime interface: • Amount of space that is available to support maritime access. • Related to the amount of shoreline. • Guarantee its future development and expansion.

1. Port Sites • Infrastructures: • Must have infrastructures such as piers, cranes and 1. Port Sites • Infrastructures: • Must have infrastructures such as piers, cranes and warehouses. • Infrastructures consume land which must be available to insure port expansion. • Land access: • Access from the port to industrial complexes and markets. • Requires efficient inland distribution systems, such as fluvial, rail (mainly for containers) and road transportation.

Post Panamax Containership at the Port of Le Havre Post Panamax Containership at the Port of Le Havre

Basic Constraints of Port Sites Land Access Land Space Port Infrastructures Maritime Space Maritime Basic Constraints of Port Sites Land Access Land Space Port Infrastructures Maritime Space Maritime Access Interface

Harbor Types Coastal Natural Coastal Breakwater River Basins River Tide Gates Coastal Tide Gates Harbor Types Coastal Natural Coastal Breakwater River Basins River Tide Gates Coastal Tide Gates River Natural Canal or Lake Open Roadstead

Number of Large and Medium Ports by Channel Depth Number of Large and Medium Ports by Channel Depth

The American Waterway System The American Waterway System

Channel Depth at Selected North American Ports, 1998 (in feet) Channel Depth at Selected North American Ports, 1998 (in feet)

1. Port Sites ■ Port development • Setting: • • • Dependent on geographical 1. Port Sites ■ Port development • Setting: • • • Dependent on geographical considerations. Furthest point of inland navigation by sailships. Fishing port with trading and shipbuilding activities. Simple terminal facilities. Warehousing and wholesaling, adjacent to the port. • Expansion: • The industrial revolution triggered several changes on port activities. • Quays were expanded and jetties were constructed to handle the growing amounts of freight and passengers as well as larger ships). • Shipbuilding became an activity that required the construction of docks. • Integration of rail lines with port terminals.

1. Port Sites • Specialization: • Construction of specialized piers to handle freight such 1. Port Sites • Specialization: • Construction of specialized piers to handle freight such as containers, ores, grain, petroleum and coal. • Expansion of warehousing needs. • Larger high-capacity ships often required dredging or the construction of long jetties granting access to greater depths. • Downstream migration. • Original port sites became obsolete and were abandoned. • Reconversion opportunities of port facilities to other uses (waterfront parks, housing and commercial developments).

The Evolution of a Port Expansion Setting 2 1 2 Downtown Urban expansion 3 The Evolution of a Port Expansion Setting 2 1 2 Downtown Urban expansion 3 Specialization Terminal facilities Port-related activities 4 5 3 4 Water depth 4 4 4 Rail Highway Reconversion

Evolution of the Port of Rotterdam Evolution of the Port of Rotterdam

2. Port Functions ■ Main functions • Supply services to freight (warehousing, transshipment, etc. 2. Port Functions ■ Main functions • Supply services to freight (warehousing, transshipment, etc. ). • Supply services to ships (piers, refueling, repairs, etc. ). • Concomitantly a maritime and land terminal. • Regional in their dynamics. • Hong Kong: • Natural site. • Geographical position of a transit harbor for southern China. • Singapore: • Outlet of the strategic Strait of Malacca. • Convergence of Southeast Asian transportation. • New York: • Gateway of the North American Midwest.

Port Functions Maritime Space Regional port Foreland Regional port Hinterland Main port Import activity Port Functions Maritime Space Regional port Foreland Regional port Hinterland Main port Import activity Rail transport Road transport Maritime transport FDC Freight distribution center Main port Services to merchandises Export activity FDC Infrastructure Services to ships FDC Land Space

2. Port Functions ■ Port activities • About 4, 600 ports in are in 2. Port Functions ■ Port activities • About 4, 600 ports in are in operation worldwide. • Less than one hundred ports have a global importance. • High level of concentration in a limited number of large ports. • Linked to maritime access and infrastructure development. • Gateways of continental distribution systems. • Containerization has substantially changed port dynamics. ■ Port types • Monofunctionnal ports: • Transit a limited array of commodities, most often dry or

Throughput of the World’s Major Ports, 19972000 (in millions of metric tons) Throughput of the World’s Major Ports, 19972000 (in millions of metric tons)

Container Traffic of the World 15 Largest Ports, 2003 Container Traffic of the World 15 Largest Ports, 2003

Traffic at Major North American Container Ports, 2003 Traffic at Major North American Container Ports, 2003

2. Port Functions ■ Problems related to port infrastructures • Ports along rivers are 2. Port Functions ■ Problems related to port infrastructures • Ports along rivers are continuously facing dredging problems. • Width of rivers is strongly limiting capacity: • Rarely a port along a river has the capacity to handle Post Panamax ships. • Lateral spread of infrastructures (Seaports). • Congestion in central areas. • Port / city competition for land (waterfront development).

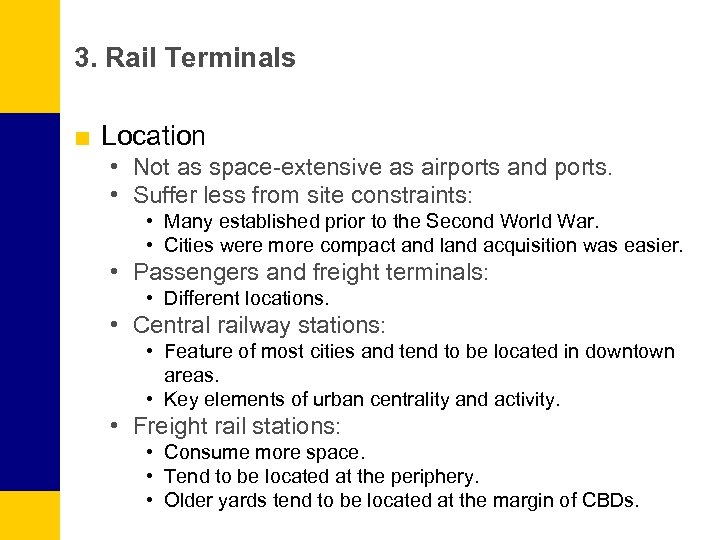

3. Rail Terminals ■ Location • Not as space-extensive as airports and ports. • 3. Rail Terminals ■ Location • Not as space-extensive as airports and ports. • Suffer less from site constraints: • Many established prior to the Second World War. • Cities were more compact and land acquisition was easier. • Passengers and freight terminals: • Different locations. • Central railway stations: • Feature of most cities and tend to be located in downtown areas. • Key elements of urban centrality and activity. • Freight rail stations: • Consume more space. • Tend to be located at the periphery. • Older yards tend to be located at the margin of CBDs.

Centraal Train Station, Amsterdam Centraal Train Station, Amsterdam

TGV Train at Gare de Lyon, Paris, France TGV Train at Gare de Lyon, Paris, France

Quai d'Orsay Museum, Paris, France Quai d'Orsay Museum, Paris, France

C – Airport Terminals ■ 1. Airport Sites ■ 2. Airport Functions C – Airport Terminals ■ 1. Airport Sites ■ 2. Airport Functions

1. Airport Sites ■ Concept • Airports act as the main technical support of 1. Airport Sites ■ Concept • Airports act as the main technical support of air transport. • Increased pressures on terminals: • Existing terminals have been expanded and new terminals have been constructed. • Replace airports no longer able to cope with the increased traffic. • International / Regional: • Role and function in the international and regional urban system. • Centrality (being an origin and destination of air traffic) and intermediacy (a hub or a gateway between destinations). • Local: • Level of accessibility of the airport over the metropolitan area it services.

Geographical Scales of Airport Location International / Regional Local Geographical Scales of Airport Location International / Regional Local

1. Airport Sites ■ Local site requirements. • Airfields: • Runways and parking areas. 1. Airport Sites ■ Local site requirements. • Airfields: • Runways and parking areas. • Long enough to accommodate the takeoff and landing of commercial planes. • About 3, 300 meters (10, 000 feet) are required for a 747 to takeoff. • Slope (less 1%), altitude and meteorological conditions. • About 32 movements (landings and takeoffs) per hour are possible on a commercial runway under optimal conditions. • Terminals: • Freight and passenger transit infrastructures. • Infrastructures for plane accommodation. • Linked with local transport systems.

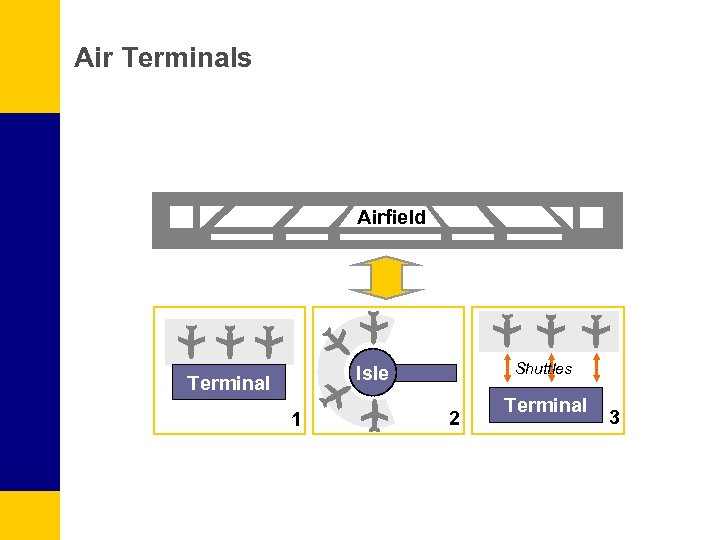

Air Terminals Airfield Shuttles Isle Terminal 1 2 Terminal 3 Air Terminals Airfield Shuttles Isle Terminal 1 2 Terminal 3

Airport Location Factors High Low City Center Commuting radius Benefits Low High Low Externalities Airport Location Factors High Low City Center Commuting radius Benefits Low High Low Externalities Suitability Location Ring

1. Airport Sites ■ Land requirements • Land required by modern airport operations is 1. Airport Sites ■ Land requirements • Land required by modern airport operations is considerable: • Landing and take off of planes. • Buffer between the adjacent urban areas to limit the noise generated. • Parking areas in airports located in car dependent cities. • Peripheral sites: • Sufficient quantities of land available. • The more recently an airport was constructed, the more likely this airport is to be located far from the city center. • Expansion and relocation: • Extremely difficult. • Most airports have grown at locations chosen in the 1950 s and 1960 s. • Most airports are now surrounded.

Site of the Hong Kong Chek Lap Kok Terminal y n ther Nor a Site of the Hong Kong Chek Lap Kok Terminal y n ther Nor a unw r n io stat n Trai al in erm T ture ion Fu ns a Exp er eng ass inal rm te P n ther Sou y nwa ru ea o ar Light Rail System carg nd a tics gis Lo To Kowloon and Hong Kong

Aerial View of Hong Kong Chek Lap Kok Airport Terminal Aerial View of Hong Kong Chek Lap Kok Airport Terminal

Kansai International Airport, Osaka Bay, Japan Kansai International Airport, Osaka Bay, Japan

Aerial View of the Dallas / Fort Worth Airport Aerial View of the Dallas / Fort Worth Airport

Phosavan Airfeild, Laos Phosavan Airfeild, Laos

2. Airport Functions ■ Airport activities • Terminal activities: • Parking, ground transportation, checking 2. Airport Functions ■ Airport activities • Terminal activities: • Parking, ground transportation, checking in, baggageclaiming, restoration, retailing and maintenance. • Provide services to passengers and freight. • Airfield activities: • Loading and unloading planes, maintenance and traffic control. • Provide services to aircrafts. ■ Economic functions • Improved economic opportunities. • Employment (USA): • $500 billion of economic activity. • 1. 9 million direct and 4. 8 million indirect jobs. • Global service activities. • Passengers and freight airports.

Passenger Traffic at the World’s Largest Airports, 2004 Passenger Traffic at the World’s Largest Airports, 2004

Freight Traffic at the World’s Largest Airports, 2004 Freight Traffic at the World’s Largest Airports, 2004

Tons of Landed Freight at Major US Airports, 2003 Tons of Landed Freight at Major US Airports, 2003

D – Terminal Security ■ 1. Passengers ■ 2. Freight D – Terminal Security ■ 1. Passengers ■ 2. Freight

1. Passengers ■ A focus on terminals • Access is monitored and controlled. • 1. Passengers ■ A focus on terminals • Access is monitored and controlled. • Movements are channeled along pathways that provide safe access to and from platforms and gates. • Safety and theft have been a concern for freight terminals. ■ Airports • Focus of security concerns for many decades. • High-jacking aircraft came to the fore in the 1970 s. • Terrorist groups in the Middle East exploited the lack of security to commandeer planes for ransom and publicity. • Established screening procedures for passengers and bags.

1. Passengers ■ Hub-and-spoke networks • Strain on the security process. • Disparities in 1. Passengers ■ Hub-and-spoke networks • Strain on the security process. • Disparities in the effectiveness of passenger screening. ■ Impacts of September 11, 2001 • Department of Homeland Security established the Transportation Security Authority (TSA). • Strict new security measures: • Restricting access to airport facilities. • Fortifying cockpits. • Extensive security screening of passengers. • Screening: • More rigorous inspections of passengers and their baggage at airports. • Biometric identification foreign nationals (fingerprint,

1. Passengers ■ Costs • All screeners (45, 000) are now part of the 1. Passengers ■ Costs • All screeners (45, 000) are now part of the Federal workforce. • Purchase of screening machinery and training of personnel. • Additional delays and aggravation for passengers. • Downturn in air transport. • Some passengers may switch to other modes.

2. Freight ■ Issues • Less regulated and greater international dimensions. • Illegal immigrants, 2. Freight ■ Issues • Less regulated and greater international dimensions. • Illegal immigrants, drug smuggling, piracy. • The container makes it extremely difficult to identify illicit and/or dangerous cargoes. • Hubbing: • Compounds the problem. • Large numbers of containers are required to be handled with minimum delays and inconvenience. • Automated Identity System: • Permanently marked and visible identity number. • Record maintained of flag, port of registry and address of the registered owner.

2. Freight • Each port must undertake a security assessment • Assets and facilities. 2. Freight • Each port must undertake a security assessment • Assets and facilities. • Effects of damages that might be caused. • Evaluate the risks, and identify weaknesses to security. • Customs clearance: • All cargoes destined for the US. • Prior to the departure of the ship. • Biometric identification for seafarers to be implemented and that national databases of sailors to be maintained.
