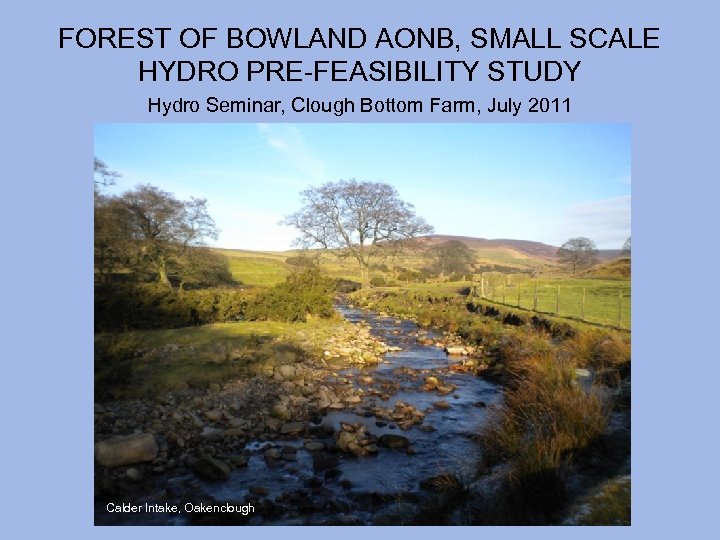

FOREST OF BOWLAND AONB, SMALL SCALE HYDRO PRE-FEASIBILITY STUDY Hydro Seminar, Clough Bottom Farm, FOREST OF BOWLAND AONB, SMALL SCALE HYDRO PRE-FEASIBILITY STUDY Hydro Seminar, Clough Bottom Farm, July 2011 Calder Intake, Oakenclough

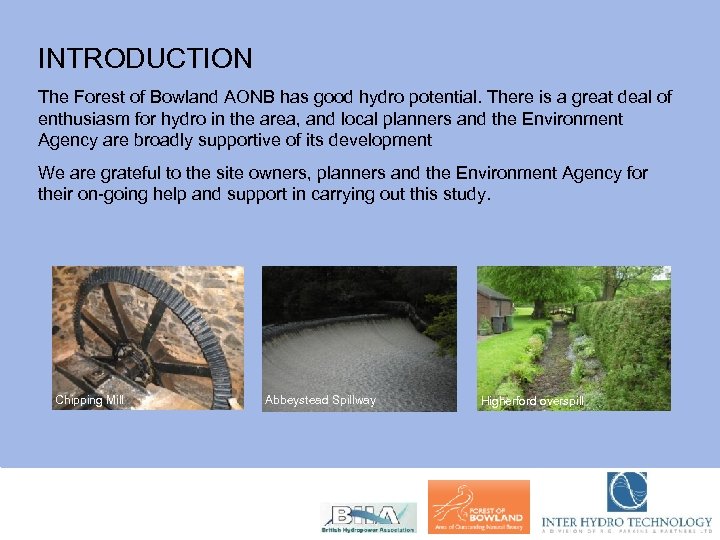

INTRODUCTION The Forest of Bowland AONB has good hydro potential. There is a great INTRODUCTION The Forest of Bowland AONB has good hydro potential. There is a great deal of enthusiasm for hydro in the area, and local planners and the Environment Agency are broadly supportive of its development We are grateful to the site owners, planners and the Environment Agency for their on-going help and support in carrying out this study. Chipping Mill Abbeystead Spillway Higherford overspill

Summary THE STAGE 1 SITES Power: maximum power that can be generated by the Summary THE STAGE 1 SITES Power: maximum power that can be generated by the available water and head Energy: the annual average energy over a year Revenue: average amount of money generated (grid connection and Fi. Ts) Payback: the predicted cost of development divided by average revenue This presentation does not include all the sites we assessed – just the schemes that we deemed feasible in principal (e. g. <50 year payback time). Backsbottom Farm, Wray

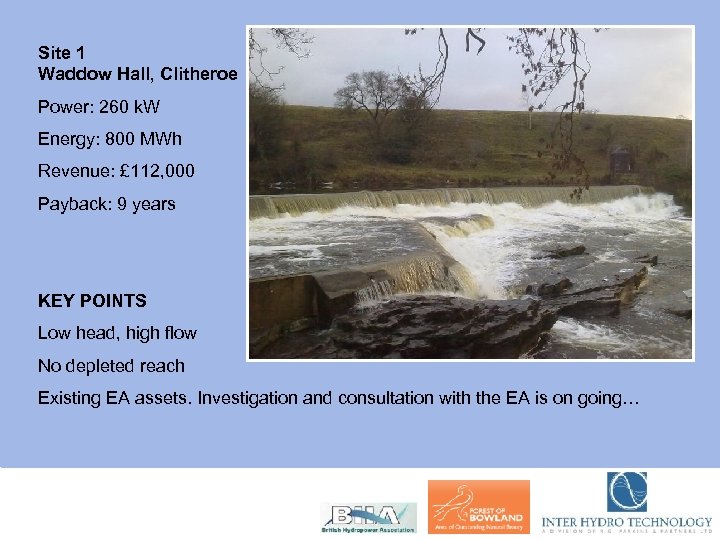

Site 1 Waddow Hall, Clitheroe Power: 260 k. W Energy: 800 MWh Revenue: £ Site 1 Waddow Hall, Clitheroe Power: 260 k. W Energy: 800 MWh Revenue: £ 112, 000 Payback: 9 years KEY POINTS Low head, high flow No depleted reach Existing EA assets. Investigation and consultation with the EA is on going…

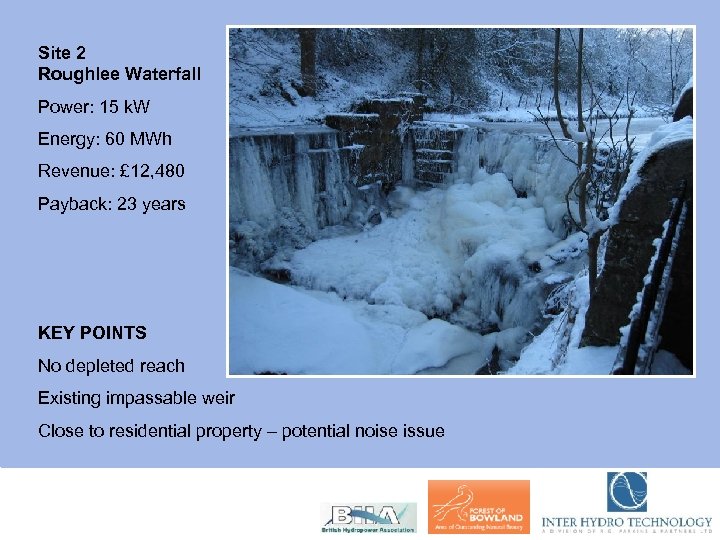

Site 2 Roughlee Waterfall Power: 15 k. W Energy: 60 MWh Revenue: £ 12, Site 2 Roughlee Waterfall Power: 15 k. W Energy: 60 MWh Revenue: £ 12, 480 Payback: 23 years KEY POINTS No depleted reach Existing impassable weir Close to residential property – potential noise issue

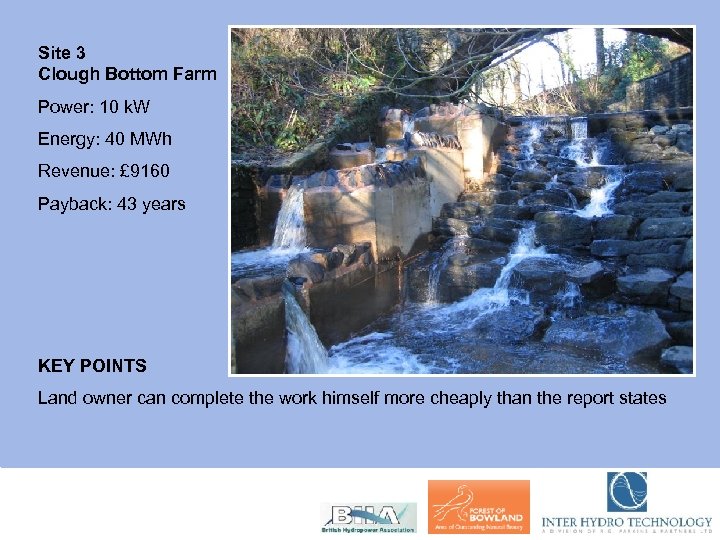

Site 3 Clough Bottom Farm Power: 10 k. W Energy: 40 MWh Revenue: £ Site 3 Clough Bottom Farm Power: 10 k. W Energy: 40 MWh Revenue: £ 9160 Payback: 43 years KEY POINTS Land owner can complete the work himself more cheaply than the report states

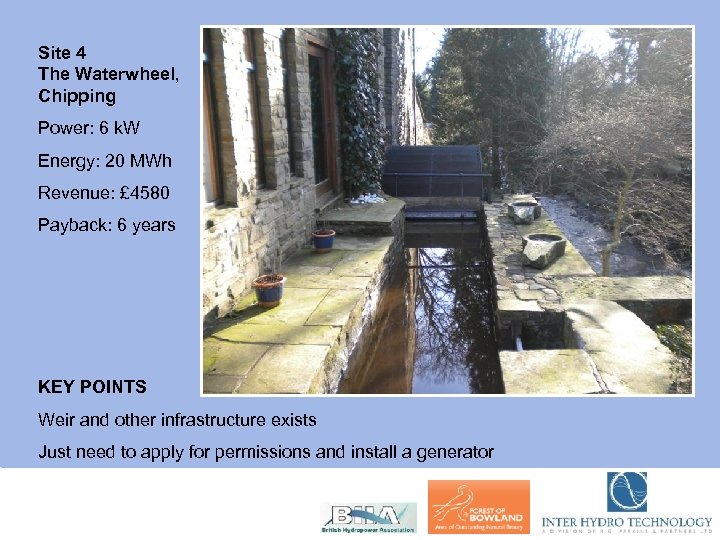

Site 4 The Waterwheel, Chipping Power: 6 k. W Energy: 20 MWh Revenue: £ Site 4 The Waterwheel, Chipping Power: 6 k. W Energy: 20 MWh Revenue: £ 4580 Payback: 6 years KEY POINTS Weir and other infrastructure exists Just need to apply for permissions and install a generator

Site 5 Berry’s, Chipping Power: 7 k. W Energy: 25 MWh Revenue: £ 5611 Site 5 Berry’s, Chipping Power: 7 k. W Energy: 25 MWh Revenue: £ 5611 Payback: 22 years KEY POINTS Good historical value Infrastructure in situ Opportunity for restoration Investigations at this site are on going

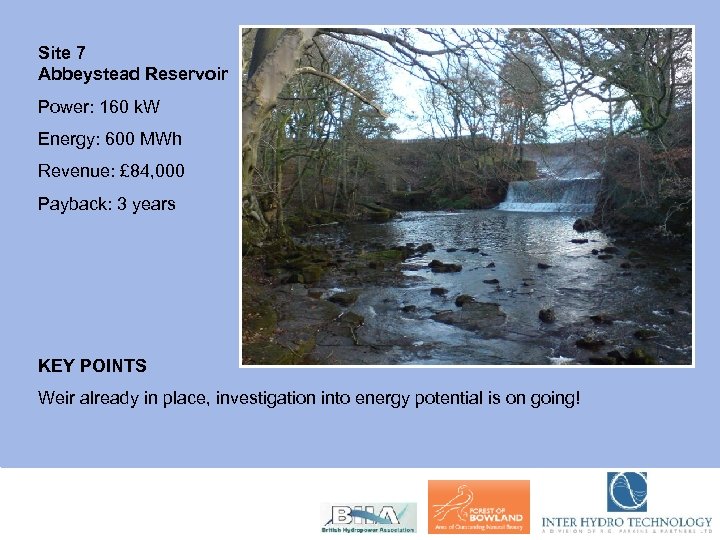

Site 7 Abbeystead Reservoir Power: 160 k. W Energy: 600 MWh Revenue: £ 84, Site 7 Abbeystead Reservoir Power: 160 k. W Energy: 600 MWh Revenue: £ 84, 000 Payback: 3 years KEY POINTS Weir already in place, investigation into energy potential is on going!

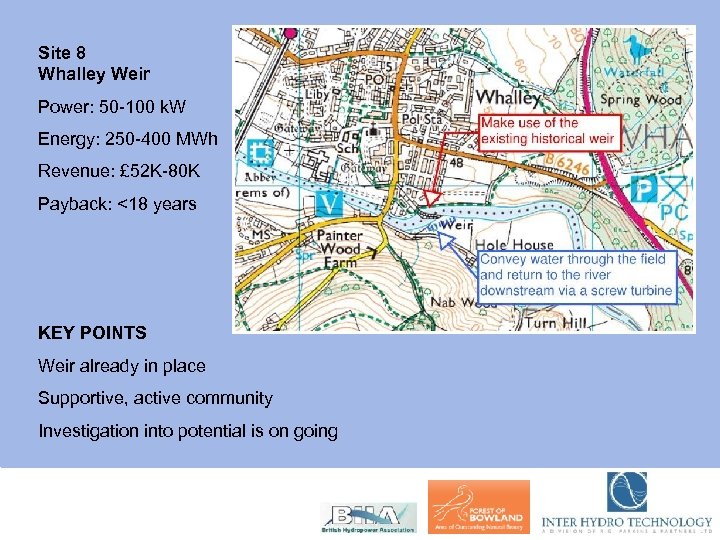

Site 8 Whalley Weir Power: 50 -100 k. W Energy: 250 -400 MWh Revenue: Site 8 Whalley Weir Power: 50 -100 k. W Energy: 250 -400 MWh Revenue: £ 52 K-80 K Payback: <18 years KEY POINTS Weir already in place Supportive, active community Investigation into potential is on going

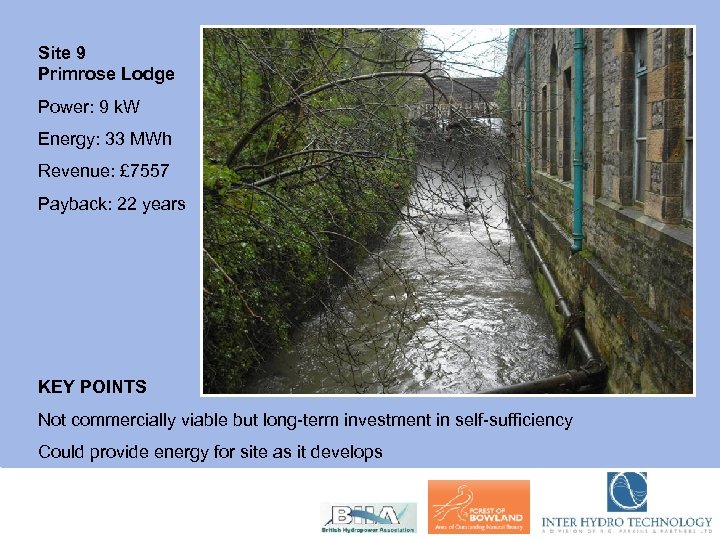

Site 9 Primrose Lodge Power: 9 k. W Energy: 33 MWh Revenue: £ 7557 Site 9 Primrose Lodge Power: 9 k. W Energy: 33 MWh Revenue: £ 7557 Payback: 22 years KEY POINTS Not commercially viable but long-term investment in self-sufficiency Could provide energy for site as it develops

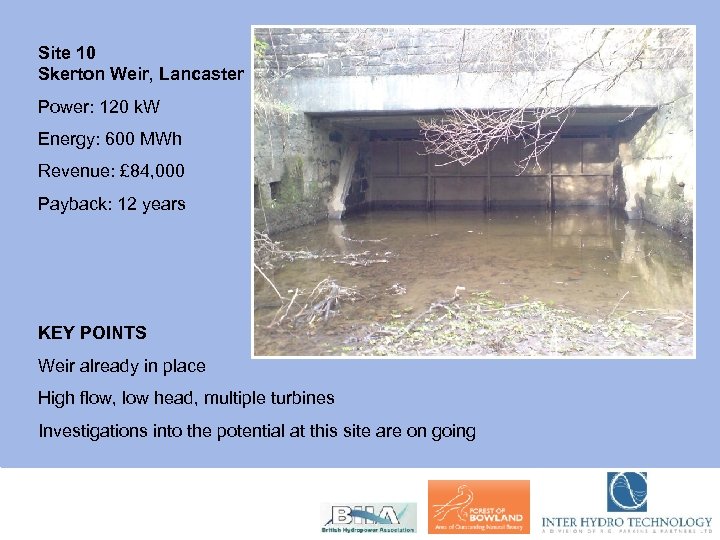

Site 10 Skerton Weir, Lancaster Power: 120 k. W Energy: 600 MWh Revenue: £ Site 10 Skerton Weir, Lancaster Power: 120 k. W Energy: 600 MWh Revenue: £ 84, 000 Payback: 12 years KEY POINTS Weir already in place High flow, low head, multiple turbines Investigations into the potential at this site are on going

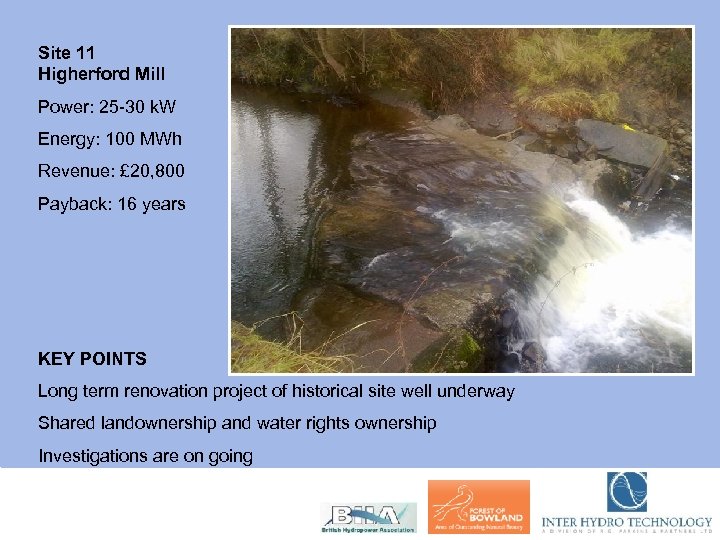

Site 11 Higherford Mill Power: 25 -30 k. W Energy: 100 MWh Revenue: £ Site 11 Higherford Mill Power: 25 -30 k. W Energy: 100 MWh Revenue: £ 20, 800 Payback: 16 years KEY POINTS Long term renovation project of historical site well underway Shared landownership and water rights ownership Investigations are on going

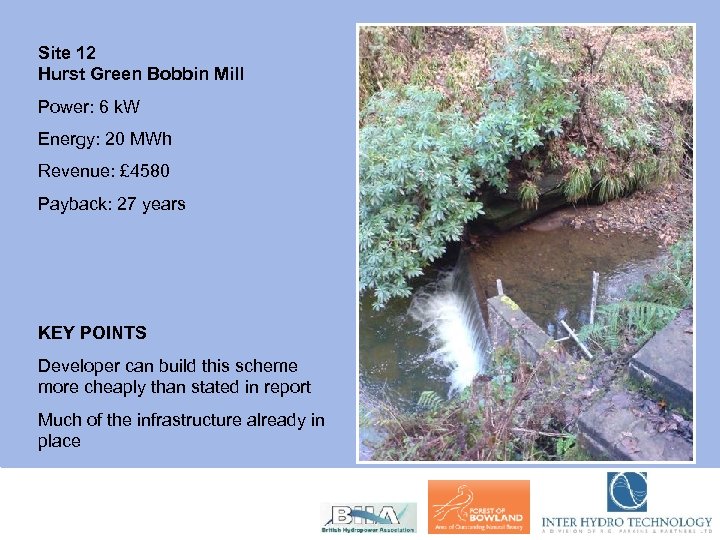

Site 12 Hurst Green Bobbin Mill Power: 6 k. W Energy: 20 MWh Revenue: Site 12 Hurst Green Bobbin Mill Power: 6 k. W Energy: 20 MWh Revenue: £ 4580 Payback: 27 years KEY POINTS Developer can build this scheme more cheaply than stated in report Much of the infrastructure already in place

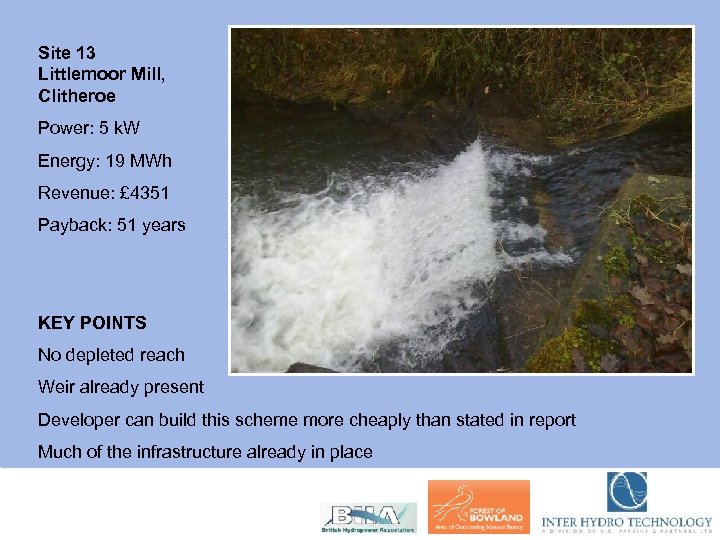

Site 13 Littlemoor Mill, Clitheroe Power: 5 k. W Energy: 19 MWh Revenue: £ Site 13 Littlemoor Mill, Clitheroe Power: 5 k. W Energy: 19 MWh Revenue: £ 4351 Payback: 51 years KEY POINTS No depleted reach Weir already present Developer can build this scheme more cheaply than stated in report Much of the infrastructure already in place

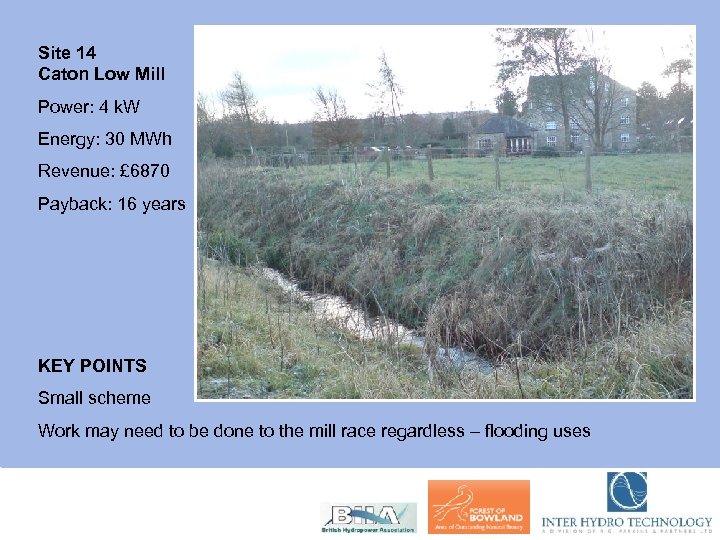

Site 14 Caton Low Mill Power: 4 k. W Energy: 30 MWh Revenue: £ Site 14 Caton Low Mill Power: 4 k. W Energy: 30 MWh Revenue: £ 6870 Payback: 16 years KEY POINTS Small scheme Work may need to be done to the mill race regardless – flooding uses

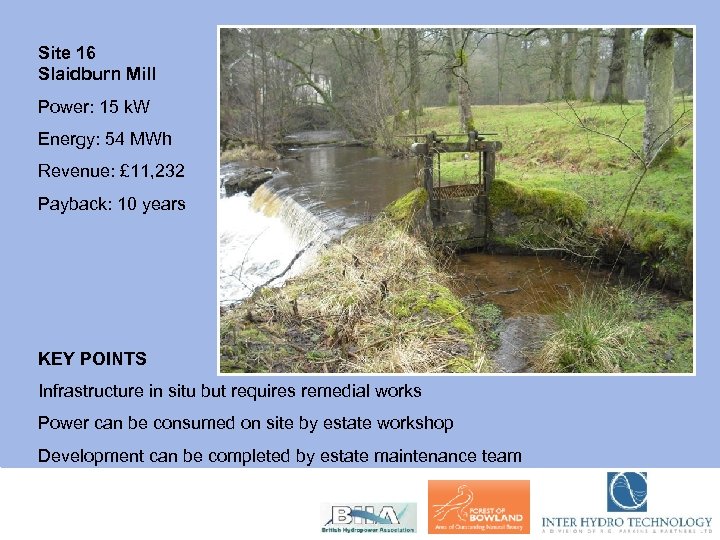

Site 16 Slaidburn Mill Power: 15 k. W Energy: 54 MWh Revenue: £ 11, Site 16 Slaidburn Mill Power: 15 k. W Energy: 54 MWh Revenue: £ 11, 232 Payback: 10 years KEY POINTS Infrastructure in situ but requires remedial works Power can be consumed on site by estate workshop Development can be completed by estate maintenance team

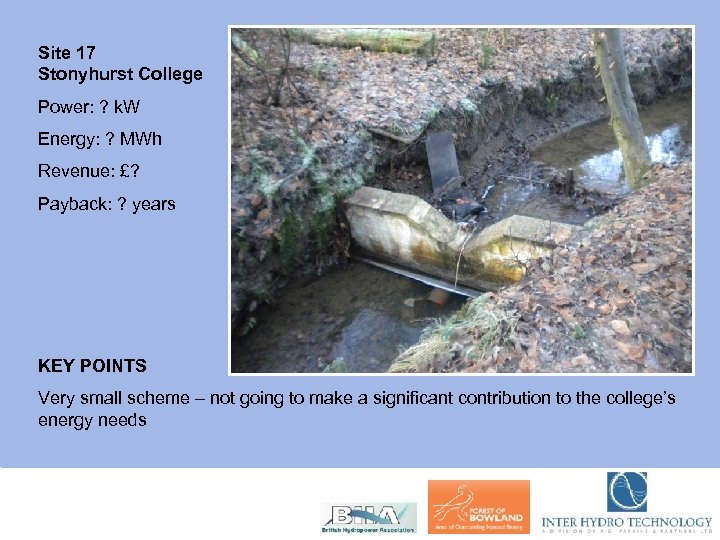

Site 17 Stonyhurst College Power: ? k. W Energy: ? MWh Revenue: £? Payback: Site 17 Stonyhurst College Power: ? k. W Energy: ? MWh Revenue: £? Payback: ? years KEY POINTS Very small scheme – not going to make a significant contribution to the college’s energy needs

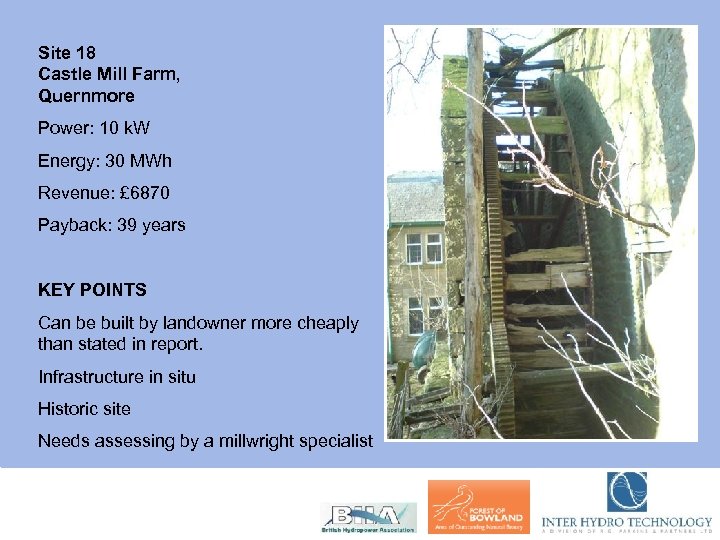

Site 18 Castle Mill Farm, Quernmore Power: 10 k. W Energy: 30 MWh Revenue: Site 18 Castle Mill Farm, Quernmore Power: 10 k. W Energy: 30 MWh Revenue: £ 6870 Payback: 39 years KEY POINTS Can be built by landowner more cheaply than stated in report. Infrastructure in situ Historic site Needs assessing by a millwright specialist

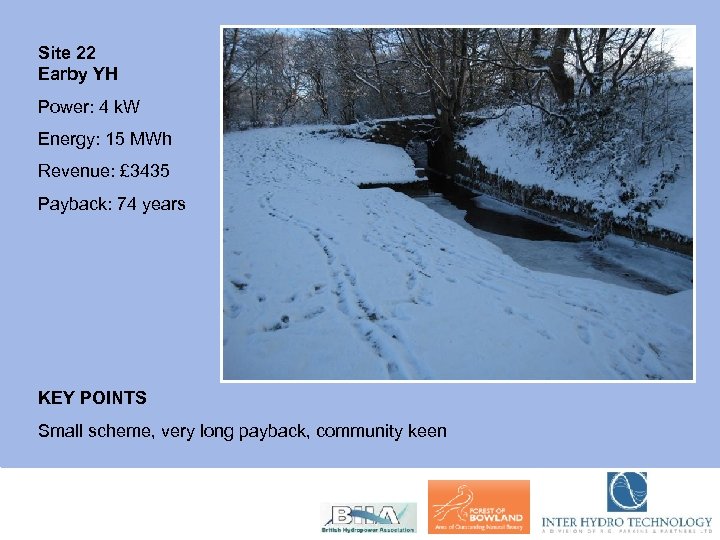

Site 22 Earby YH Power: 4 k. W Energy: 15 MWh Revenue: £ 3435 Site 22 Earby YH Power: 4 k. W Energy: 15 MWh Revenue: £ 3435 Payback: 74 years KEY POINTS Small scheme, very long payback, community keen

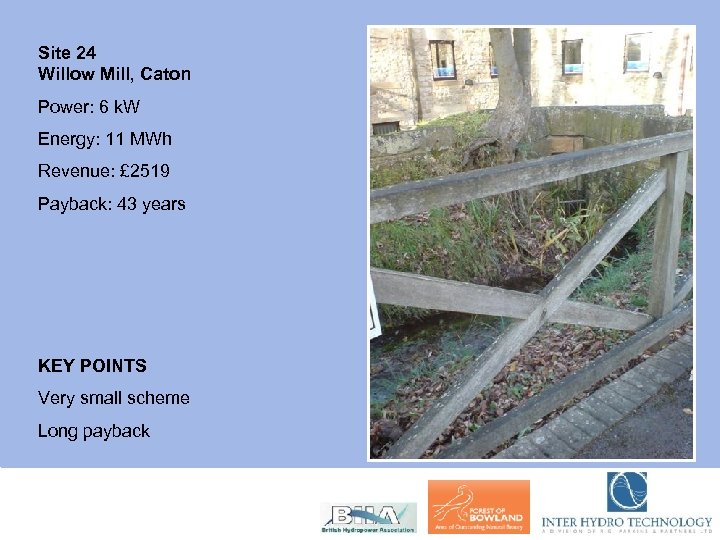

Site 24 Willow Mill, Caton Power: 6 k. W Energy: 11 MWh Revenue: £ Site 24 Willow Mill, Caton Power: 6 k. W Energy: 11 MWh Revenue: £ 2519 Payback: 43 years KEY POINTS Very small scheme Long payback

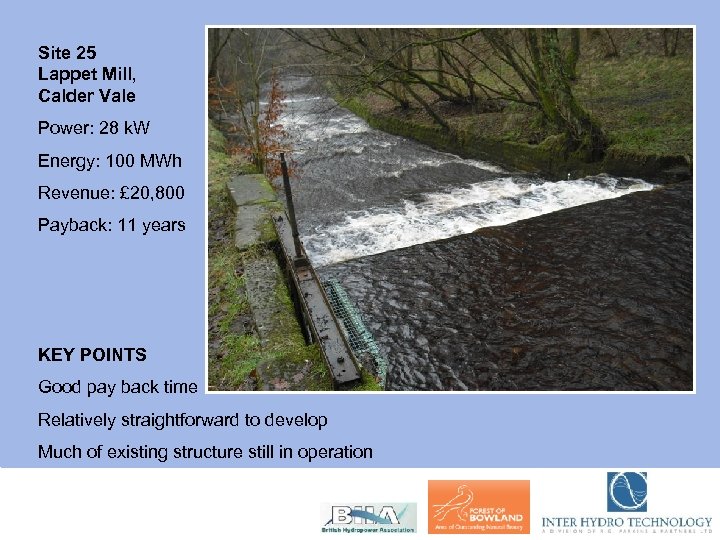

Site 25 Lappet Mill, Calder Vale Power: 28 k. W Energy: 100 MWh Revenue: Site 25 Lappet Mill, Calder Vale Power: 28 k. W Energy: 100 MWh Revenue: £ 20, 800 Payback: 11 years KEY POINTS Good pay back time Relatively straightforward to develop Much of existing structure still in operation

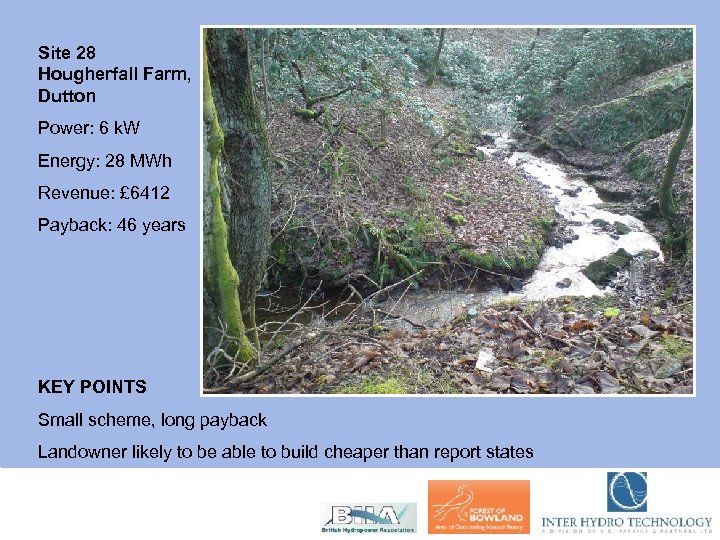

Site 28 Hougherfall Farm, Dutton Power: 6 k. W Energy: 28 MWh Revenue: £ Site 28 Hougherfall Farm, Dutton Power: 6 k. W Energy: 28 MWh Revenue: £ 6412 Payback: 46 years KEY POINTS Small scheme, long payback Landowner likely to be able to build cheaper than report states

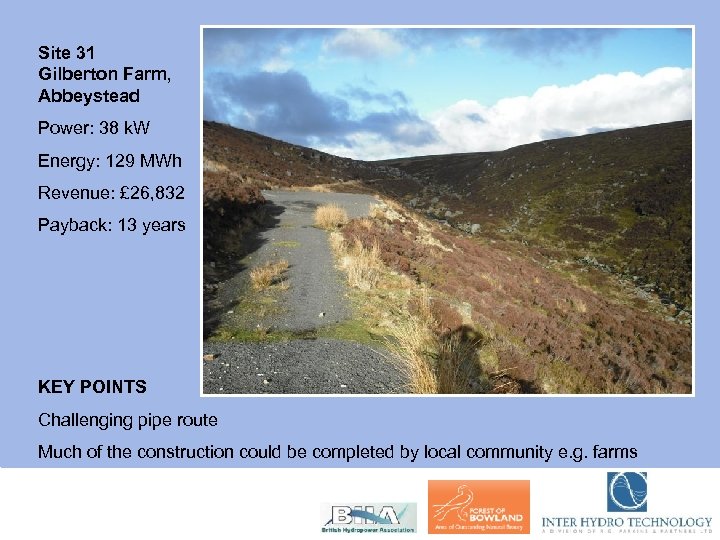

Site 31 Gilberton Farm, Abbeystead Power: 38 k. W Energy: 129 MWh Revenue: £ Site 31 Gilberton Farm, Abbeystead Power: 38 k. W Energy: 129 MWh Revenue: £ 26, 832 Payback: 13 years KEY POINTS Challenging pipe route Much of the construction could be completed by local community e. g. farms

Site 32 Low Mill Fisheries Power: <1 k. W Energy: 6 MWh Revenue: £ Site 32 Low Mill Fisheries Power: <1 k. W Energy: 6 MWh Revenue: £ 840 Payback: 20 years KEY POINTS Tiny scheme, no permissions required, proximal use for energy

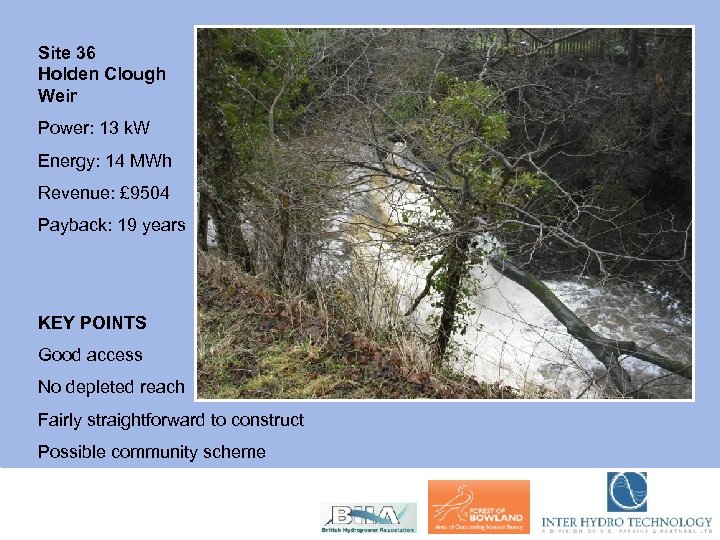

Site 36 Holden Clough Weir Power: 13 k. W Energy: 14 MWh Revenue: £ Site 36 Holden Clough Weir Power: 13 k. W Energy: 14 MWh Revenue: £ 9504 Payback: 19 years KEY POINTS Good access No depleted reach Fairly straightforward to construct Possible community scheme

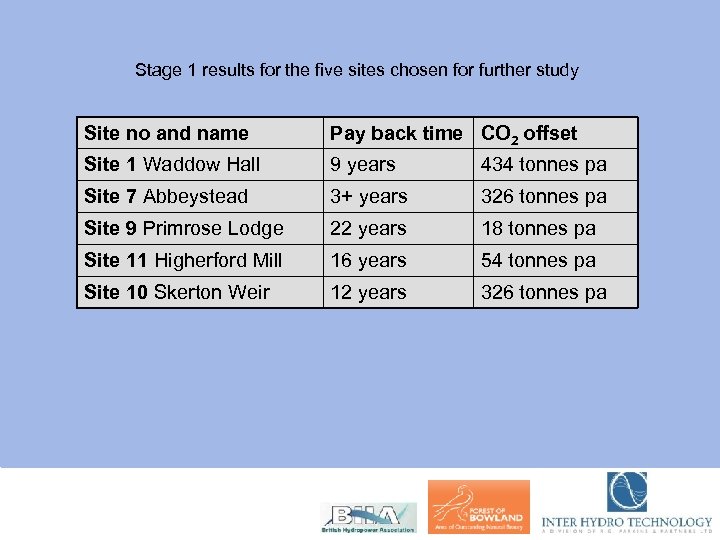

Stage 1 results for the five sites chosen for further study Site no and Stage 1 results for the five sites chosen for further study Site no and name Pay back time CO 2 offset Site 1 Waddow Hall 9 years 434 tonnes pa Site 7 Abbeystead 3+ years 326 tonnes pa Site 9 Primrose Lodge 22 years 18 tonnes pa Site 11 Higherford Mill 16 years 54 tonnes pa Site 10 Skerton Weir 12 years 326 tonnes pa
