DINO PDR 3/17/2018 Structures Shilling, Tim Lowrey, Anthony Mc. Arthur, Grayson DINO PDR 3/17/2018 Structures Shilling, Tim Lowrey, Anthony Mc. Arthur, Grayson

DINO PDR 3/17/2018 Introduction • Structures is to interface and house all components onto DINO PDR 3/17/2018 Introduction • Structures is to interface and house all components onto a common chasse. • Structures will protect components from the space and launch environment, including but not limited to vibration, impact and radiation hazards. • Structures is to interface to the ICU via Lightband as well as provide interface for the Tip mass. • Structures will provide casing and structural connection for all components (Electronics, batteries, solar arrays, ect. ) Colorado Space Grant Consortium

DINO PDR 3/17/2018 Subsystem Requirements Imposed on Structures • • • Entire Structure with DINO PDR 3/17/2018 Subsystem Requirements Imposed on Structures • • • Entire Structure with mechanisms will be less then 9. 19 Kg Fixed base Natural Frequency > 100 Hz at the Shuttle interface plane (SIP). Center of mass is to be no more then. 25 in from centerline and 12 in from the SIP. Structural Ground will be isolated from Electrical Ground Structure must be electrically continuous (less then 1 ohm resistance) Structure will be coated to ensure against electrical shorting The completed satellite must fit within ICU envelope Structures must provide enclosures (As necessitated) and structural support to all electrical components. Structures must provide mounting for surface mounted solar arrays, aerofins, FITS and antennas (As necessitated) Meet all Safety concerns applicable to shuttle flight Colorado Space Grant Consortium

DINO PDR 3/17/2018 Subsystem Requirements Imposing on Others • All systems will meet allocated DINO PDR 3/17/2018 Subsystem Requirements Imposing on Others • All systems will meet allocated size and mass budgets • No component may have a width > 8. 5 in or a height > 11 in • Components may not be greater then 2 in deep without prior approval from Structures and Systems Colorado Space Grant Consortium

DINO PDR 3/17/2018 ICU Envelope Colorado Space Grant Consortium DINO PDR 3/17/2018 ICU Envelope Colorado Space Grant Consortium

DINO PDR 3/17/2018 Exploded View • Anthony Colorado Space Grant Consortium DINO PDR 3/17/2018 Exploded View • Anthony Colorado Space Grant Consortium

DINO PDR 3/17/2018 Main Structure • • • Mass: 5. 54 kg Height: 12. DINO PDR 3/17/2018 Main Structure • • • Mass: 5. 54 kg Height: 12. 5 in Diameter: 17. 76 in Material: Al 6061 Similar design to Three Corner Satellite Colorado Space Grant Consortium

DINO PDR 3/17/2018 Nadir and Zenith Plate • Iso-Grid Design • Mounting plate for DINO PDR 3/17/2018 Nadir and Zenith Plate • Iso-Grid Design • Mounting plate for Lightband systems Colorado Space Grant Consortium

DINO PDR 3/17/2018 Side Panels Colorado Space Grant Consortium DINO PDR 3/17/2018 Side Panels Colorado Space Grant Consortium

DINO PDR 3/17/2018 Box Design Tall Components Height > 2 in Short Components Benefits DINO PDR 3/17/2018 Box Design Tall Components Height > 2 in Short Components Benefits * Less wasted material = Lower Cost * Internal components more accessible * Mounting is more flexible Colorado Space Grant Consortium

DINO PDR 3/17/2018 Camera Box Pieces Outer Box -Holds camera at 30 deg angle DINO PDR 3/17/2018 Camera Box Pieces Outer Box -Holds camera at 30 deg angle -Allows access to USB port and power supply -Protects circuit board -Dimensions: 1. 50 in. X 4. 07 in. - 1/8 in. thick walls Camera Bracket -Secures camera in box -Supports circuit board Colorado Space Grant Consortium

DINO PDR 3/17/2018 Camera Box Pieces Con. Mounting Plate -Adapts to mounting holes in DINO PDR 3/17/2018 Camera Box Pieces Con. Mounting Plate -Adapts to mounting holes in structure -Secures to Outer Box -Allows for camera lens to look out of the box Colorado Space Grant Consortium

DINO PDR 3/17/2018 Complete Camera Box Complete Assembly -Encloses camera -Mounts to earth facing DINO PDR 3/17/2018 Complete Camera Box Complete Assembly -Encloses camera -Mounts to earth facing plate -Holds camera at 30 deg angle -Manufacturing done as a short component Full assembly of camera box Colorado Space Grant Consortium

DINO PDR 3/17/2018 Comm Box • Use already designed and tested box • Mounting DINO PDR 3/17/2018 Comm Box • Use already designed and tested box • Mounting plate allows connection to Satellite isogrid. • Constructed of Al 6061 and anodized Colorado Space Grant Consortium

DINO PDR 3/17/2018 C&DH and ADCS Box • Two in one box • 3/8 DINO PDR 3/17/2018 C&DH and ADCS Box • Two in one box • 3/8 inches thick wall between circuits with connection wholes. • Box will be placed in the middle of the Nadir side. Colorado Space Grant Consortium

DINO PDR 3/17/2018 C&DH and ADCS Box • Using 7 screw holes to secure DINO PDR 3/17/2018 C&DH and ADCS Box • Using 7 screw holes to secure the box • Total size of 5 x 7 x 3. 4 inches Colorado Space Grant Consortium

DINO PDR 3/17/2018 Testing Plans Colorado Space Grant Consortium DINO PDR 3/17/2018 Testing Plans Colorado Space Grant Consortium

DINO PDR 3/17/2018 Testing • FEA (Finite Element Analysis) – Based on CAPE requirements DINO PDR 3/17/2018 Testing • FEA (Finite Element Analysis) – Based on CAPE requirements – Guidance provided in UN-SPEC-12311, Stress Analysis Guidelines. • Envelope Verification • Mass Properties • Sine Sweep Test – 20 -2000 Hz at. 25 g – Verified through modal surveys and sine sweep vibration – Conducted before and after sine burst and random vibe tests Colorado Space Grant Consortium

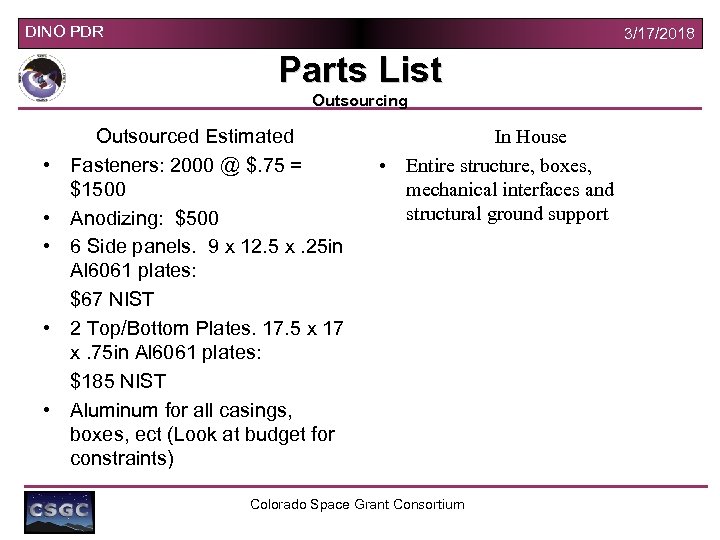

DINO PDR 3/17/2018 Parts List Outsourcing • • • Outsourced Estimated Fasteners: 2000 @ DINO PDR 3/17/2018 Parts List Outsourcing • • • Outsourced Estimated Fasteners: 2000 @ $. 75 = $1500 Anodizing: $500 6 Side panels. 9 x 12. 5 x. 25 in Al 6061 plates: $67 NIST 2 Top/Bottom Plates. 17. 5 x 17 x. 75 in Al 6061 plates: $185 NIST Aluminum for all casings, boxes, ect (Look at budget for constraints) In House • Entire structure, boxes, mechanical interfaces and structural ground support Colorado Space Grant Consortium

DINO PDR 3/17/2018 Budgeted Component Unit Price Quantity Side Panels 15 Bulkheads 6 Boxes DINO PDR 3/17/2018 Budgeted Component Unit Price Quantity Side Panels 15 Bulkheads 6 Boxes $780. 00 $2, 400. 00 $0. 75 $1, 500. 00 1 $278. 55 $130. 00 2000 Anodizing Total: $18. 57 30 Fastners Total Price $500. 00 Colorado Space Grant Consortium $500. 00 $5, 458. 55

DINO PDR 3/17/2018 Issues and Concerns (Things to be done) • Continued Finite Element DINO PDR 3/17/2018 Issues and Concerns (Things to be done) • Continued Finite Element Analysis of Structure and Boxes • Sizing and dimensions to reduce mass and increase structural stability • Dimensions of all subsystems needed for box design and construction • Box and component placement to meet center of Gravity requirements • Radiation shielding Colorado Space Grant Consortium
