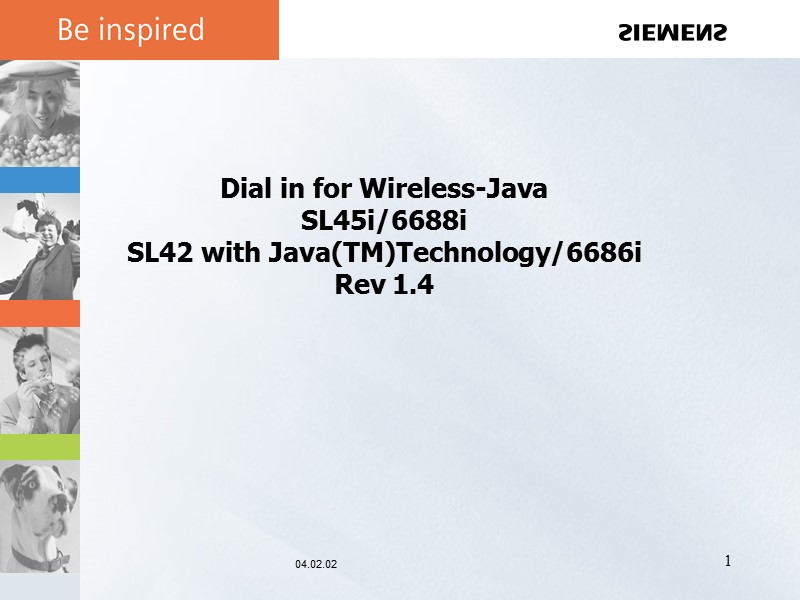

Dial in for Wireless-Java SL45i/6688i SL42 with Java(TM)Technology/6686i

Dial in for Wireless-Java SL45i/6688i SL42 with Java(TM)Technology/6686i Rev 1.4

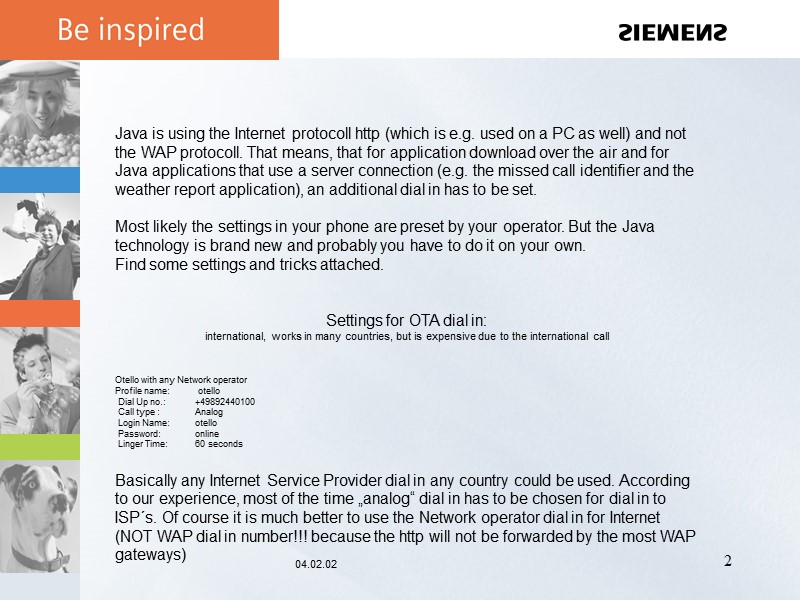

Java is using the Internet protocoll http (which is e.g. used on a PC as well) and not the WAP protocoll. That means, that for application download over the air and for Java applications that use a server connection (e.g. the missed call identifier and the weather report application), an additional dial in has to be set. Most likely the settings in your phone are preset by your operator. But the Java technology is brand new and probably you have to do it on your own. Find some settings and tricks attached. Settings for OTA dial in: international, works in many countries, but is expensive due to the international call Otello with any Network operator Profile name: otello Dial Up no.: +49892440100 Call type : Analog Login Name: otello Password: online Linger Time: 60 seconds Basically any Internet Service Provider dial in any country could be used. According to our experience, most of the time „analog“ dial in has to be chosen for dial in to ISP´s. Of course it is much better to use the Network operator dial in for Internet (NOT WAP dial in number!!! because the http will not be forwarded by the most WAP gateways)

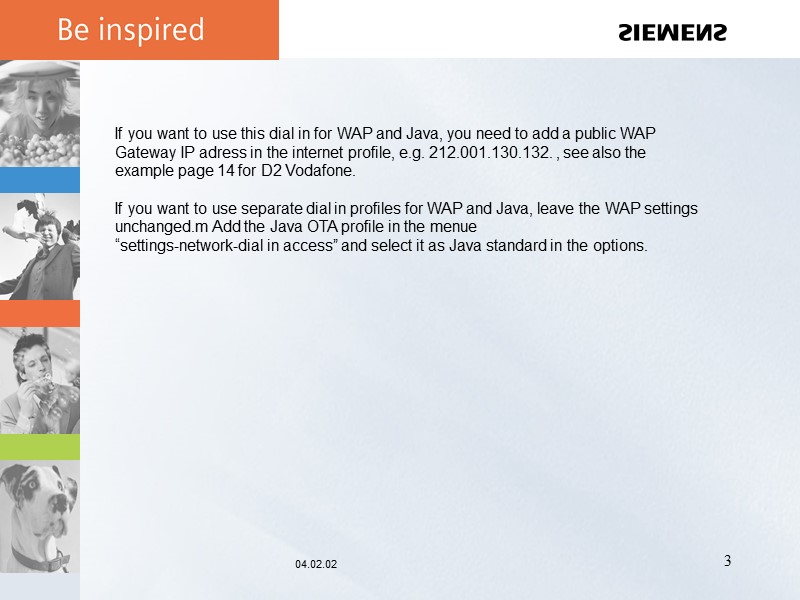

If you want to use this dial in for WAP and Java, you need to add a public WAP Gateway IP adress in the internet profile, e.g. 212.001.130.132. , see also the example page 14 for D2 Vodafone. If you want to use separate dial in profiles for WAP and Java, leave the WAP settings unchanged.m Add the Java OTA profile in the menue “settings-network-dial in access” and select it as Java standard in the options.

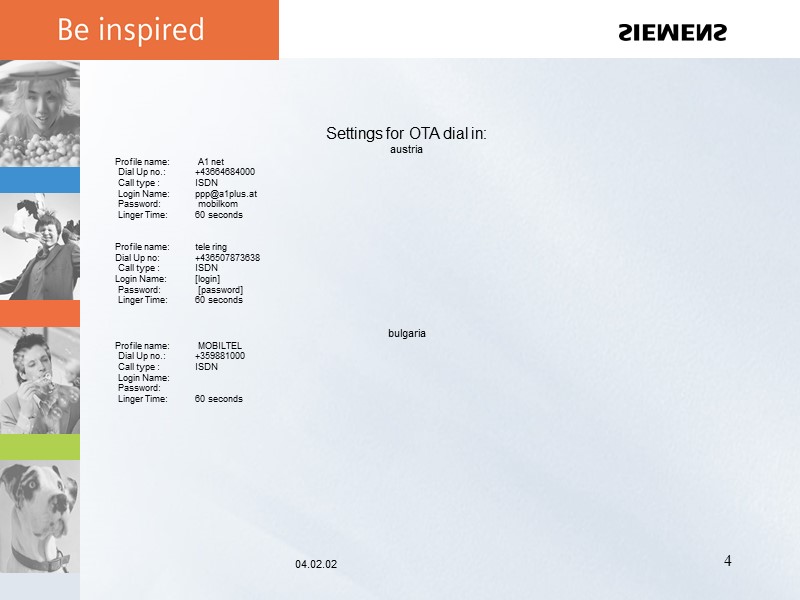

Settings for OTA dial in: austria Profile name: A1 net Dial Up no.: +43664684000 Call type : ISDN Login Name: [email protected] Password: mobilkom Linger Time: 60 seconds Profile name: tele ring Dial Up no: +436507873638 Call type : ISDN Login Name: [login] Password: [password] Linger Time: 60 seconds bulgaria Profile name: MOBILTEL Dial Up no.: +359881000 Call type : ISDN Login Name: Password: Linger Time: 60 seconds

Settings for OTA dial in: Czech Republik Profile name: VOL via RDM Dial Up no.: +420603124670 Call type : ISDN Login Name: Password: Linger Time: 60 seconds Profile name: Nextra via rdm Dial Up no.: +420603124666 Call type : ISDN Login Name: Password: Linger Time: 60 seconds Profile name: Eurotel Dial Up no.: +420602900009 Call type : ISDN Login Name: Password: Linger Time: 60 seconds Danmark Profile name: sonofon Dial Up no.: +45101540900090 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds Profile name: Tele Danmark Dial Up no.: +4587311111 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds

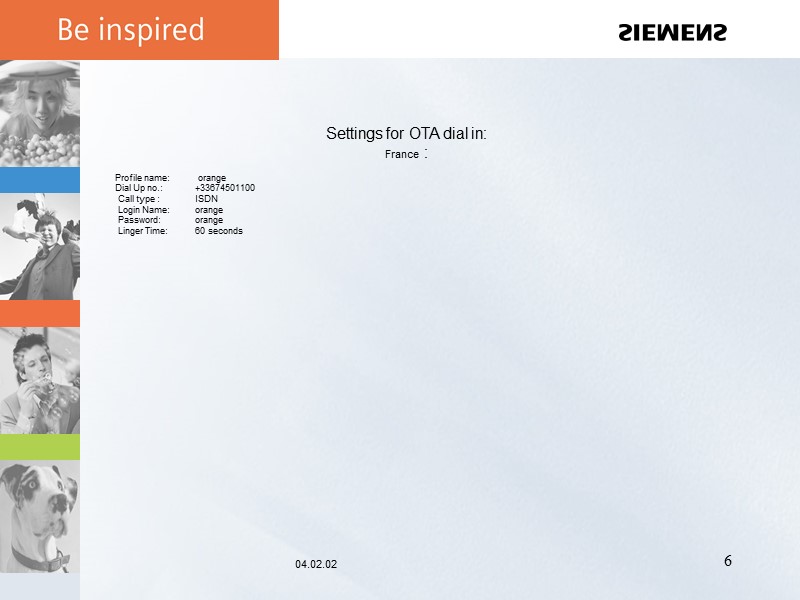

Settings for OTA dial in: France : Profile name: orange Dial Up no.: +33674501100 Call type : ISDN Login Name: orange Password: orange Linger Time: 60 seconds

Settings for OTA dial in: germany Profile name: D2 Vodafone Dial Up no.: +49172229000 Call type : ISDN Login Name: any Password: any Linger Time: 60 seconds Profile name: D1 Dial Up no: 4122 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds Profile name: E Plus Dial Up no: 123100 Call type : ISDN Login Name: Password: Linger Time: 60 seconds Profile name: Viag Interkom Dial Up no: +49179464638 Call type : ISDN Login Name: [email protected] Password: internet Linger Time: 60 seconds Otello with any Network operator Profile name: otello Dial Up no.: +49892440100 Call type : Analog Login Name: otello Password: online Linger Time: 60 seconds

Settings for OTA dial in: hungary Profile name: Westel Dial Up no.: +36309301301 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds

Settings for OTA dial in: italy Profile name: TIM Dial Up no.: 8000 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds Profile name: Wind Dial Up no.: 5588 Call type : ISDN Login Name: otello Password: online Linger Time: 60 seconds Profile name: OMNITEL Dial Up no: +393492002800 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds Profile name: BLU Dial Up no: +393800004448 Call type : ISDN Login Name: user specific Password: user specific Linger Time: 60 seconds

Settings for OTA dial in: Luxemburg Profile name: P&T Kiosque Dial Up no.: +35290070710 Call type : ISDN Login Name: guest Password: Linger Time: 60 seconds Poland Profile name: era Dial Up no.: +48604010101 Call type : analog Login Name: erainternet Password: erainternet Linger Time: 60 seconds

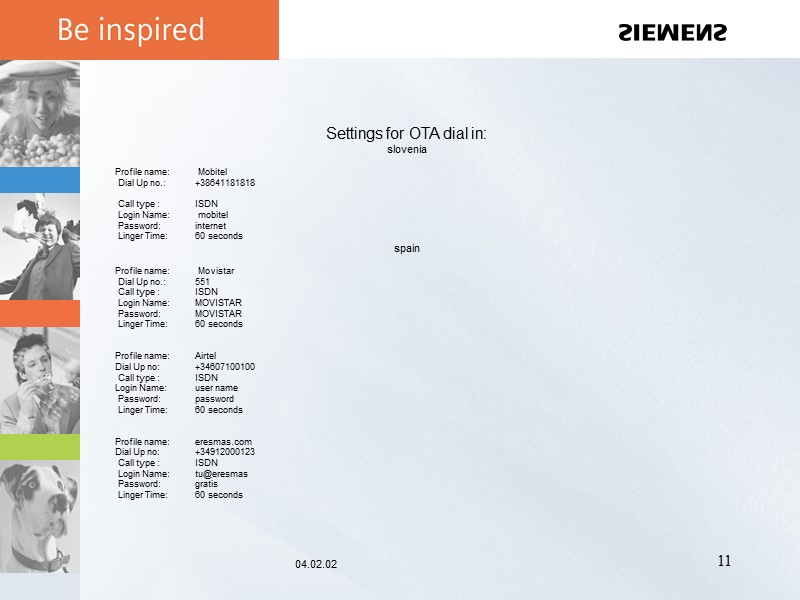

Settings for OTA dial in: slovenia Profile name: Mobitel Dial Up no.: +38641181818 Call type : ISDN Login Name: mobitel Password: internet Linger Time: 60 seconds spain Profile name: Movistar Dial Up no.: 551 Call type : ISDN Login Name: MOVISTAR Password: MOVISTAR Linger Time: 60 seconds Profile name: Airtel Dial Up no: +34607100100 Call type : ISDN Login Name: user name Password: password Linger Time: 60 seconds Profile name: eresmas.com Dial Up no: +34912000123 Call type : ISDN Login Name: tu@eresmas Password: gratis Linger Time: 60 seconds

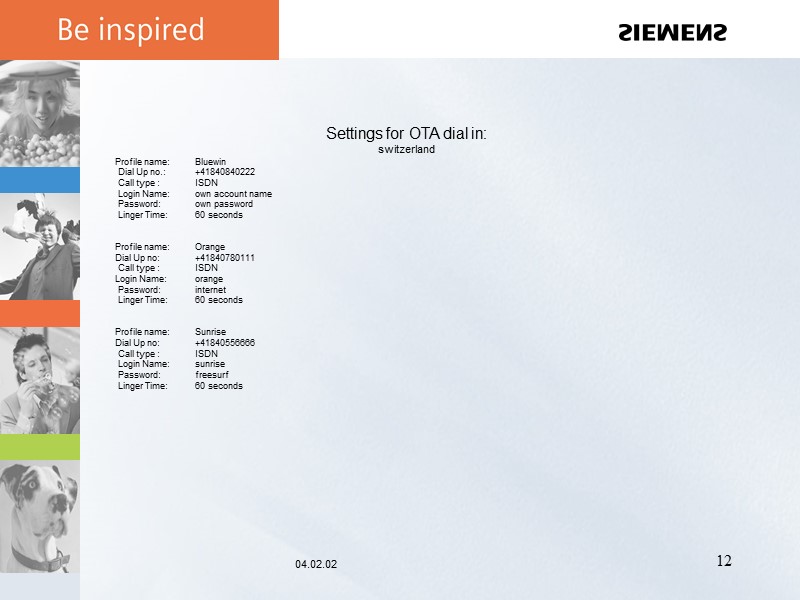

Settings for OTA dial in: switzerland Profile name: Bluewin Dial Up no.: +41840840222 Call type : ISDN Login Name: own account name Password: own password Linger Time: 60 seconds Profile name: Orange Dial Up no: +41840780111 Call type : ISDN Login Name: orange Password: internet Linger Time: 60 seconds Profile name: Sunrise Dial Up no: +41840556666 Call type : ISDN Login Name: sunrise Password: freesurf Linger Time: 60 seconds

Configuration of the OTA settings Example D2-Vodafone with single dial in number for WAP and http

Go to Surf/Fun-Internet then go to Profiles create a Profile, e.g. D2 Java create a new dial in Access put in the Internet dial in number from your network operator. DO NOT use the dial in number for WAP, because this dial in number most likely cannot be used for http. For the WAP Gateway, e.g. type in this IP adress from a public WAP gateway
