Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Mike Seyboth Tim Walker Tomas Krones

Tim Walker Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tim Walker Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Mr. Tee - Automated Golf Buddy, an automated golf ball teeing system, automatically replaces golf ball onto tee.

Tim Walker Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tim Walker Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy

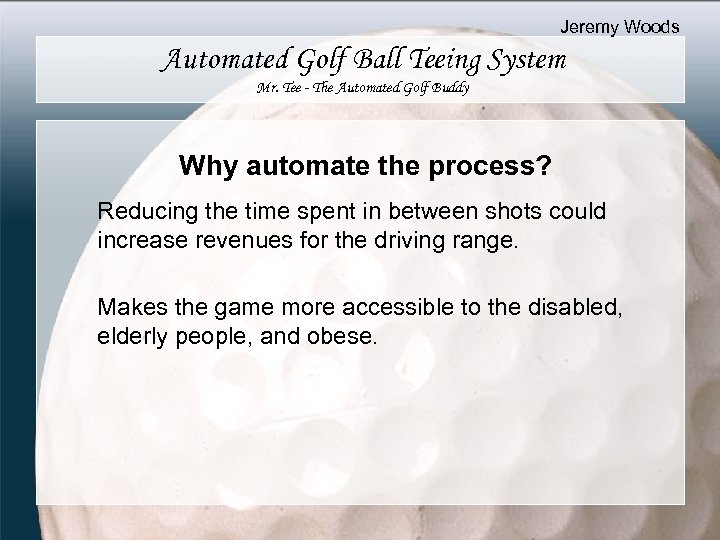

Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Why automate the process? Reducing the time spent in between shots could increase revenues for the driving range. Makes the game more accessible to the disabled, elderly people, and obese.

Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Quantitative Requirements Maximum 30 second ball replacement cycle time. A cycle is from the moment the system detects a ball’s absence until the system is ready for the player to hit the next golf ball. Places golf ball on the tee 95% of the ball placement attempts. Detects the presence of the golf ball on the tee 95% of the time.

Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Qualitative Requirements Electrical power source. System will operate with wet golf balls. Machine on/off switch. In the case of a ball detection failure, a reset interface is available to restart the system. System is for use with a standard golf ball.

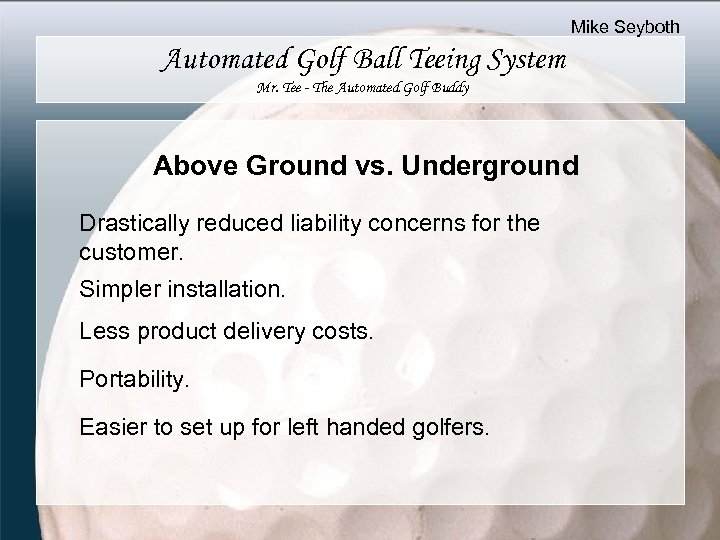

Mike Seyboth Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Mike Seyboth Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Above Ground vs. Underground Drastically reduced liability concerns for the customer. Simpler installation. Less product delivery costs. Portability. Easier to set up for left handed golfers.

Mike Seyboth Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Mike Seyboth Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Final Design Solution Above ground device. Chosen concept is tube delivery system. Ball detection sensors used for full automation. On/off and reset switches implemented as user interfaces. Stepper motor allows for rapid replacement of ball onto tee.

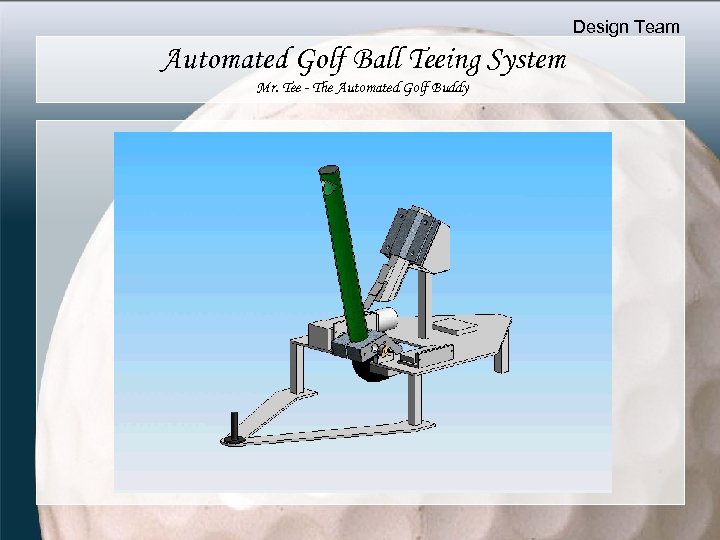

Design Team Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Design Team Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy

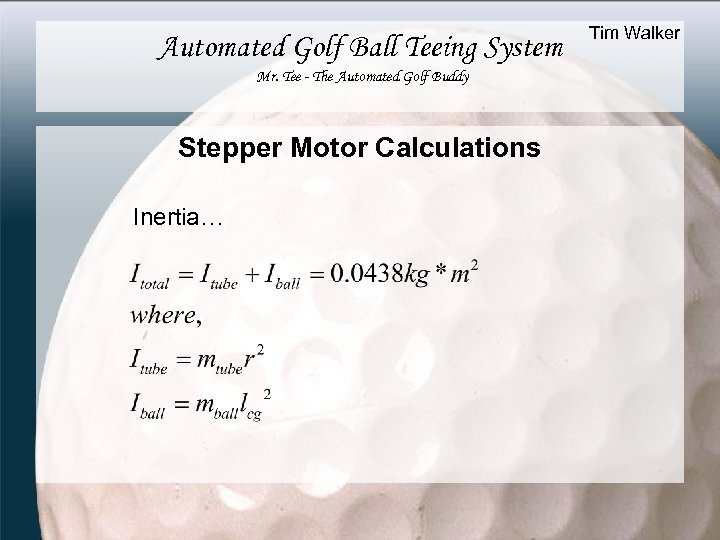

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Calculations Inertia… Tim Walker

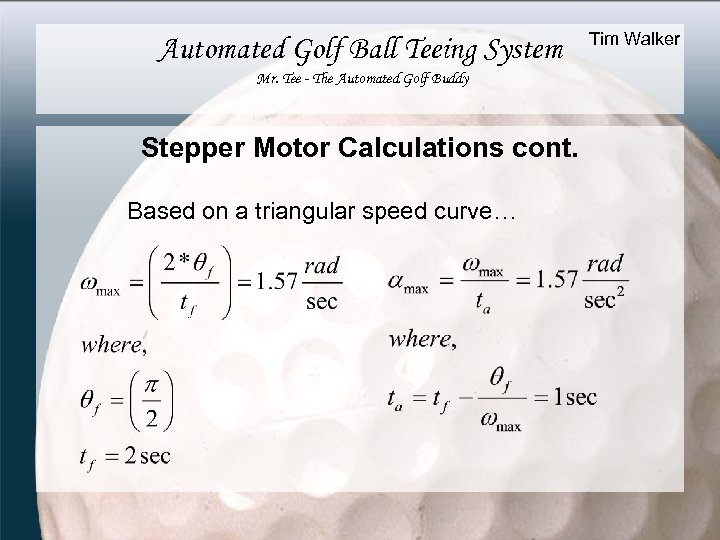

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Calculations cont. Based on a triangular speed curve… Tim Walker

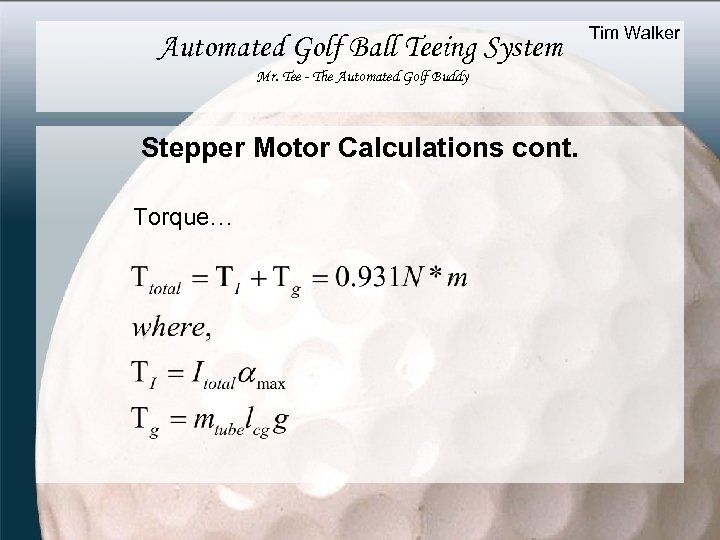

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Calculations cont. Torque… Tim Walker

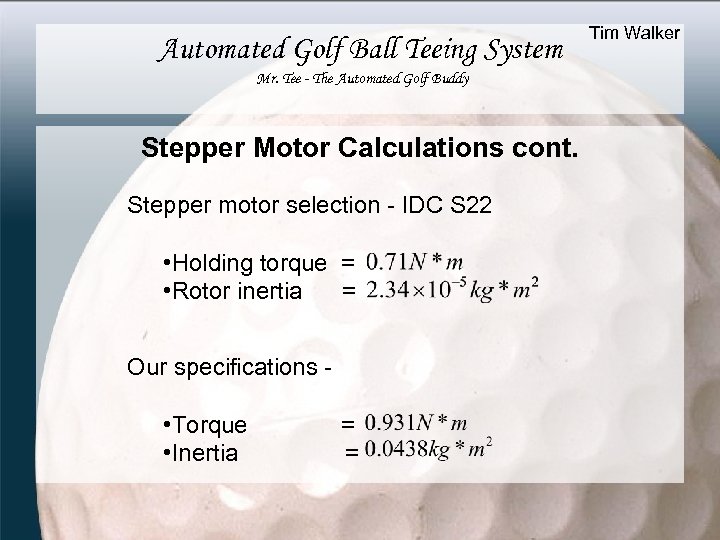

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Calculations cont. Stepper motor selection - IDC S 22 • Holding torque = • Rotor inertia = Our specifications - • Torque • Inertia = = Tim Walker

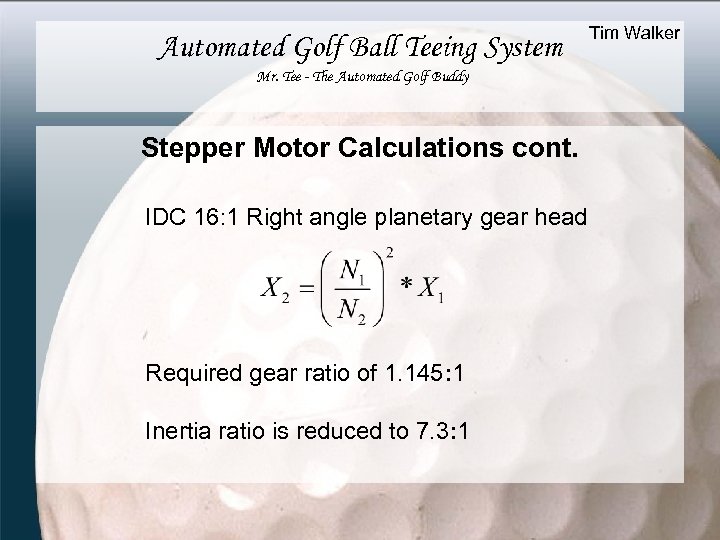

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Stepper Motor Calculations cont. IDC 16: 1 Right angle planetary gear head Required gear ratio of 1. 145: 1 Inertia ratio is reduced to 7. 3: 1 Tim Walker

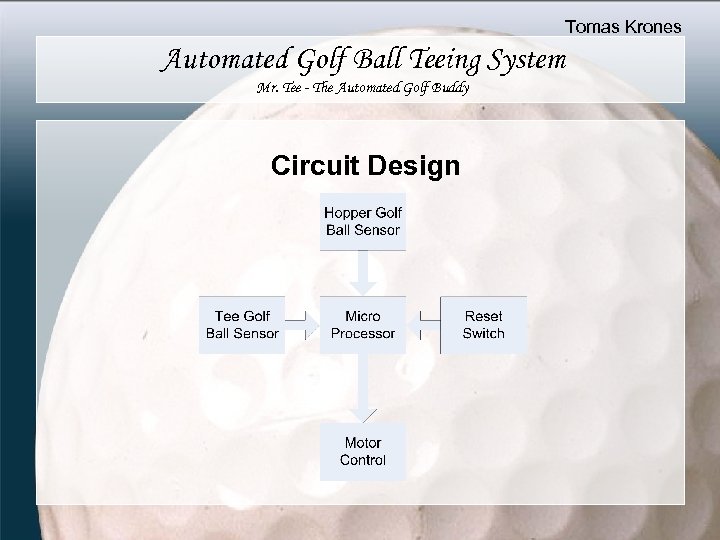

Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Circuit Design

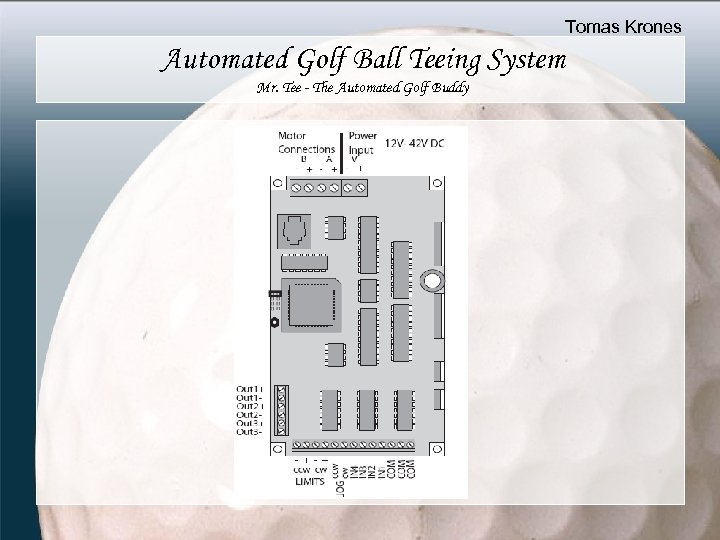

Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy

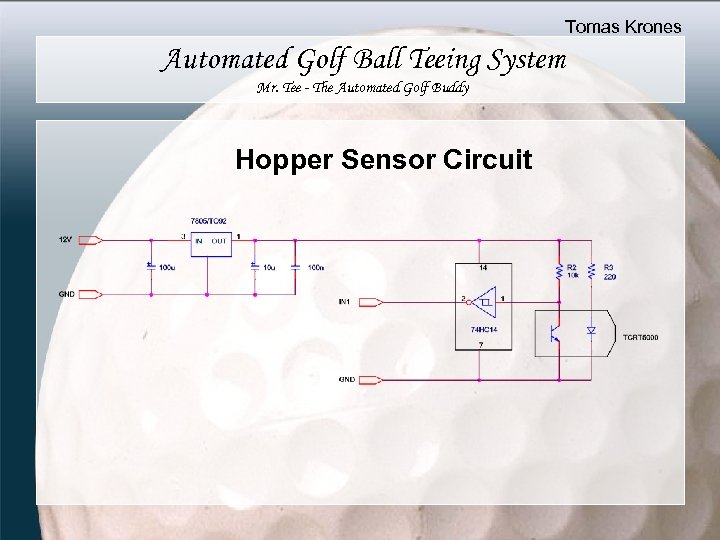

Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Hopper Sensor Circuit

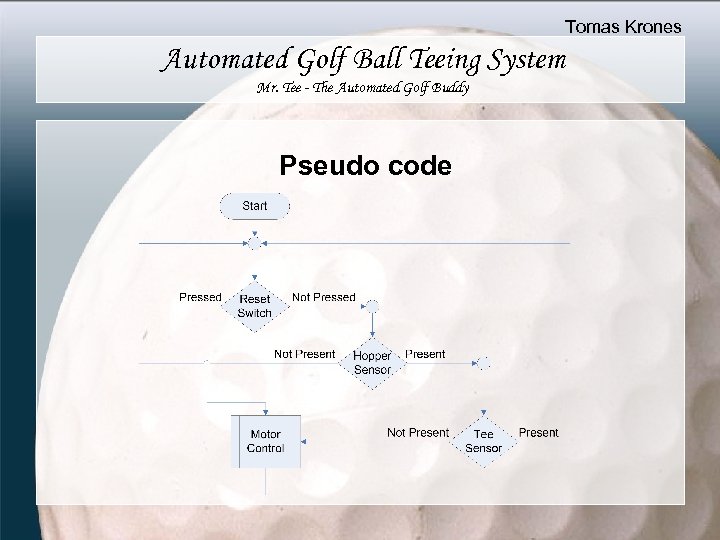

Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Pseudo code

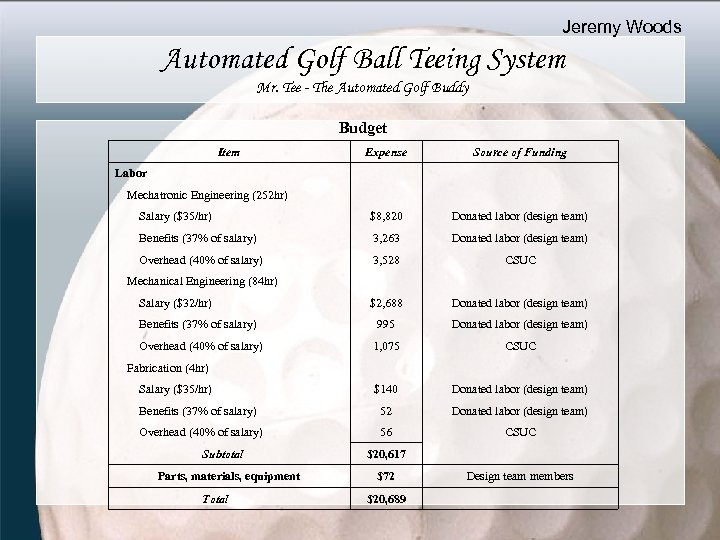

Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Budget Item Expense Source of Funding Labor Mechatronic Engineering (252 hr) Salary ($35/hr) $8, 820 Donated labor (design team) Benefits (37% of salary) 3, 263 Donated labor (design team) Overhead (40% of salary) 3, 528 CSUC $2, 688 Donated labor (design team) Benefits (37% of salary) 995 Donated labor (design team) Overhead (40% of salary) 1, 075 CSUC Fabrication (4 hr) Salary ($35/hr) $140 Donated labor (design team) Benefits (37% of salary) 52 Donated labor (design team) Overhead (40% of salary) 56 CSUC $20, 617 $72 Design team members $20, 689 Mechanical Engineering (84 hr) Salary ($32/hr) Subtotal Parts, materials, equipment Total

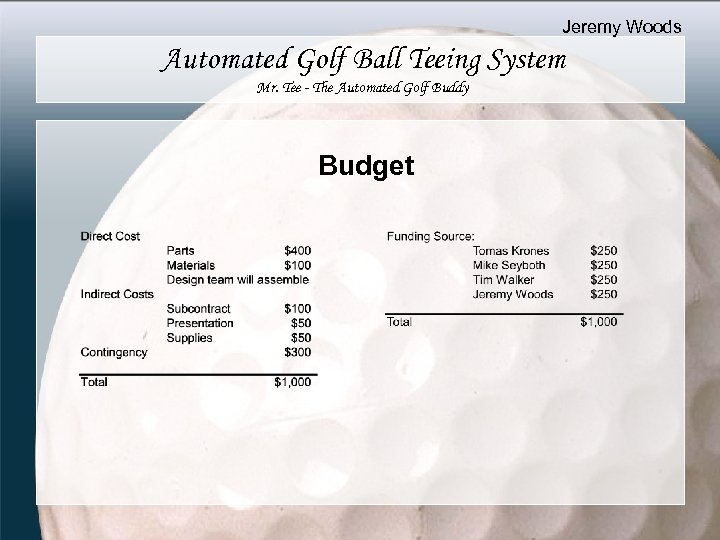

Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Jeremy Woods Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Budget

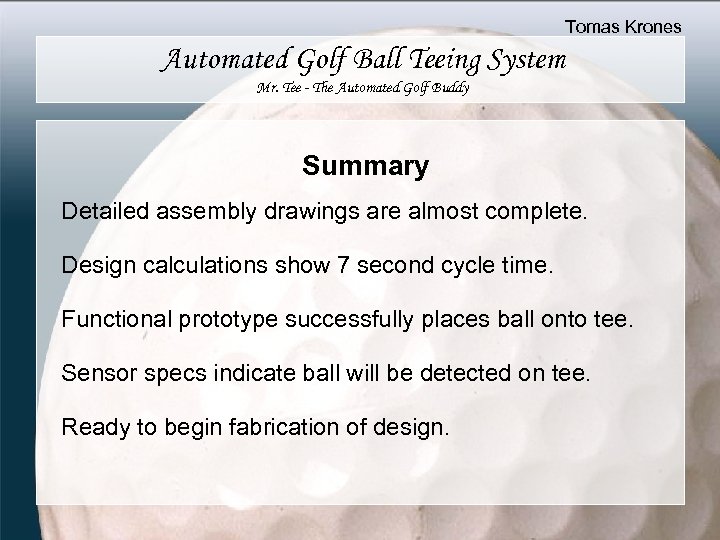

Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Tomas Krones Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Summary Detailed assembly drawings are almost complete. Design calculations show 7 second cycle time. . Functional prototype successfully places ball onto tee. Sensor specs indicate ball will be detected on tee. Ready to begin fabrication of design.

Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Questions ? Automated Golf Ball Teeing System Mr. Tee - The Automated Golf Buddy Questions ? Jeremy Woods Mike Seyboth Tim Walker Tomas Krones
