A Modular Checker for Multithreaded Programs Cormac Flanagan HP Systems Research Center Joint work A Modular Checker for Multithreaded Programs Cormac Flanagan HP Systems Research Center Joint work with Shaz Qadeer Sanjit A. Seshia 1

Multithreaded programs • Operating systems, databases, web servers, file systems, web browsers – Large Multithreaded programs • Operating systems, databases, web servers, file systems, web browsers – Large programs, many threads • Correctness problem: – for all inputs and interleavings, program satisfies specification • Testing ? – Frangipani filesystem took 1 year of testing – Linux kernel version 2. 2 -> 2. 4 • fine-grained locking to support multiprocessors • 2. 4. * change log has 36 synchronization bug fixes 2

Verifying multithreaded programs • • Ashcroft 75 Shared-memory Owicki-Gries 76 Many threads Lamport 77 Verifying multithreaded programs • • Ashcroft 75 Shared-memory Owicki-Gries 76 Many threads Lamport 77 Jones 83 Many procedures. . . Many synchronization idioms Sequential checkers: – locks (mutex, reader-writer). . . – semaphores • Many lines of code(binary, counting) Extended Static Checking – changes features • Many language in locking discipline. Dijkstra’s weakest precond. Automatic theorem proving dynamic creation – interrupt levels heap objects, unbounded # objs. . . – pointers, pointer chasing, pointer smashing, . . . – aliasing, arrays, arithmetic – classes, method, inheritance, overriding, . . . 3

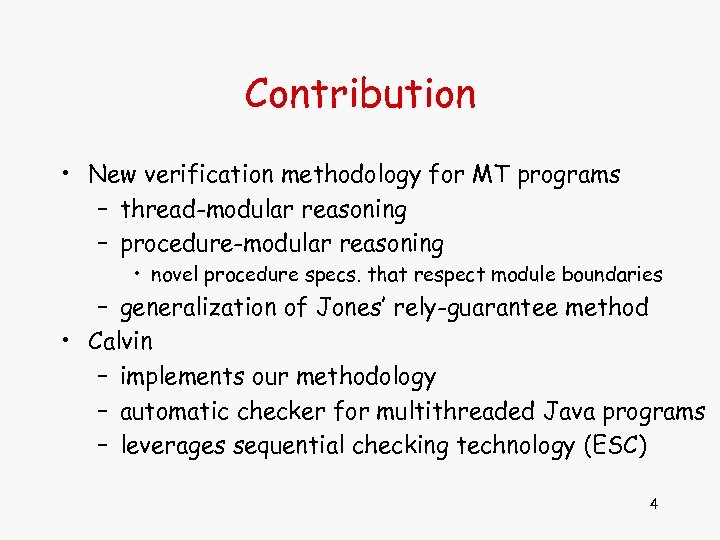

Contribution • New verification methodology for MT programs – thread-modular reasoning – procedure-modular reasoning Contribution • New verification methodology for MT programs – thread-modular reasoning – procedure-modular reasoning • novel procedure specs. that respect module boundaries – generalization of Jones’ rely-guarantee method • Calvin – implements our methodology – automatic checker for multithreaded Java programs – leverages sequential checking technology (ESC) 4

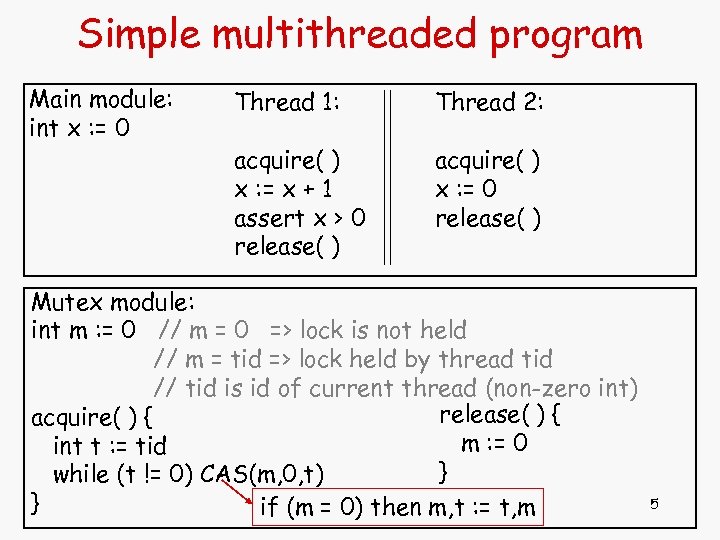

Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: acquire( ) x : = x + 1 assert x > 0 release( ) acquire( ) x : = 0 release( ) Mutex module: int m : = 0 // m = 0 => lock is not held // m = tid => lock held by thread tid // tid is id of current thread (non-zero int) release( ) { acquire( ) { m : = 0 int t : = tid } while (t != 0) CAS(m, 0, t) } if (m = 0) then m, t : = t, m 5

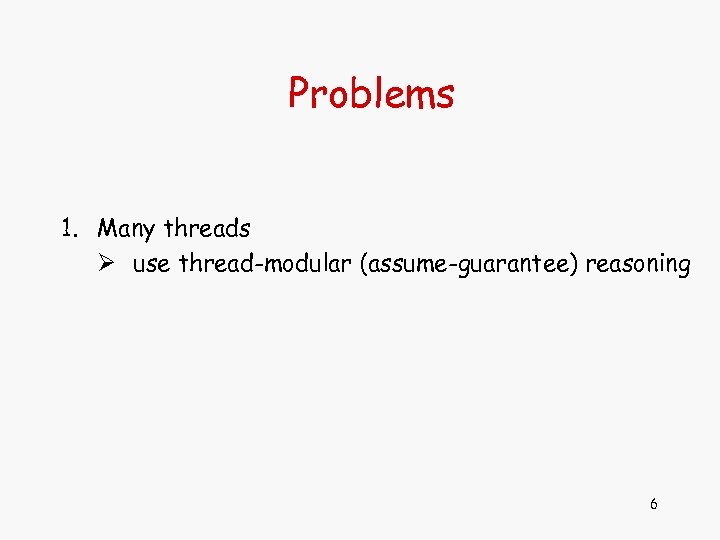

Problems 1. Many threads Ø use thread-modular (assume-guarantee) reasoning 6 Problems 1. Many threads Ø use thread-modular (assume-guarantee) reasoning 6

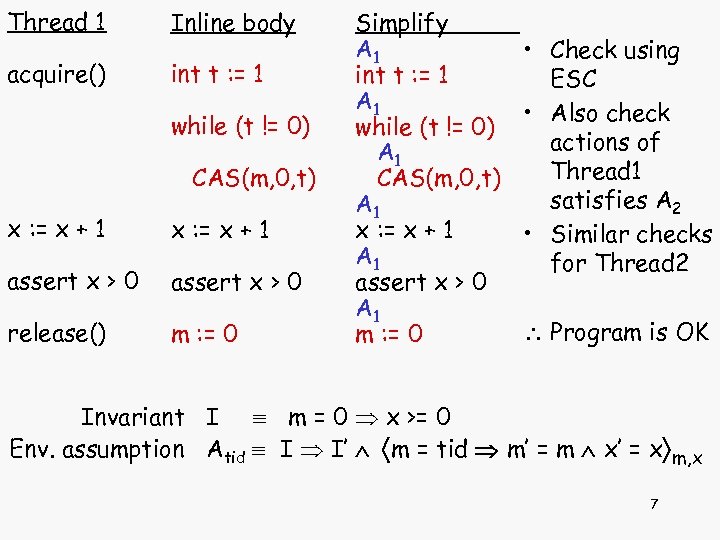

Thread 1 Inline body acquire() int t : = 1 while (t != 0) Thread 1 Inline body acquire() int t : = 1 while (t != 0) CAS(m, 0, t) x : = x + 1 assert x > 0 release() m : = 0 Other threads Env assumption Simplify A 1* • Check using 1* int t : = 1 ESC A 1* 1* • Also check while (t != 0) actions of A 1 * 1 Thread 1 CAS(m, 0, t) satisfies A 2 A 1* 1* x : = x + 1 • Similar checks A 1* 1* for Thread 2 assert x > 0 A 1* 1* Program is OK m : = 0 Invariant I m = 0 x >= 0 Env. assumption Atid I I’ m = tid m’ = m x’ = x m, x 7

Calvin version 1 • Verifies multithreaded Java programs • Inlines procedures • Thread-modular reasoning Calvin version 1 • Verifies multithreaded Java programs • Inlines procedures • Thread-modular reasoning – requires environment assumption – reduces correctness of MT program to correctness of sequential programs • Leverages Extended Static Checker for Java – generates VC for sequential programs – uses automatic theorem prover to check VC 8

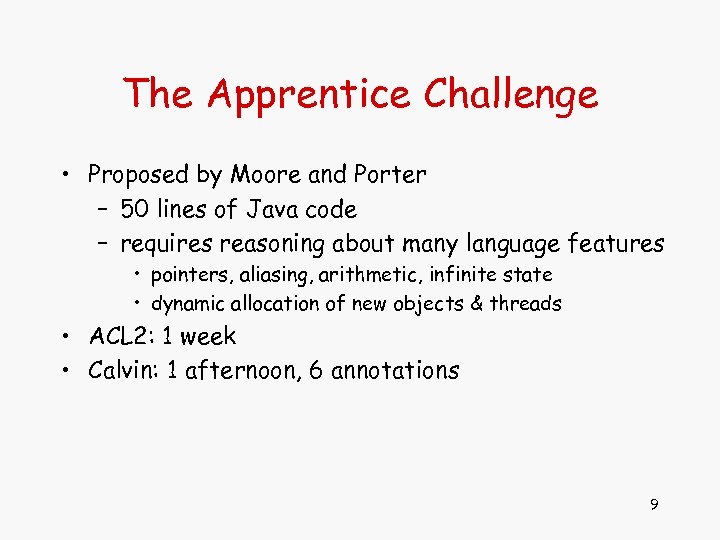

The Apprentice Challenge • Proposed by Moore and Porter – 50 lines of Java The Apprentice Challenge • Proposed by Moore and Porter – 50 lines of Java code – requires reasoning about many language features • pointers, aliasing, arithmetic, infinite state • dynamic allocation of new objects & threads • ACL 2: 1 week • Calvin: 1 afternoon, 6 annotations 9

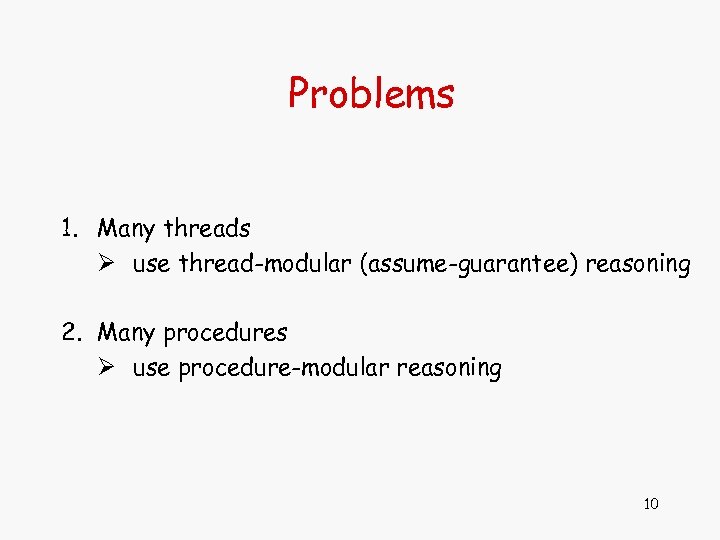

Problems 1. Many threads Ø use thread-modular (assume-guarantee) reasoning 2. Many procedures Ø use Problems 1. Many threads Ø use thread-modular (assume-guarantee) reasoning 2. Many procedures Ø use procedure-modular reasoning 10

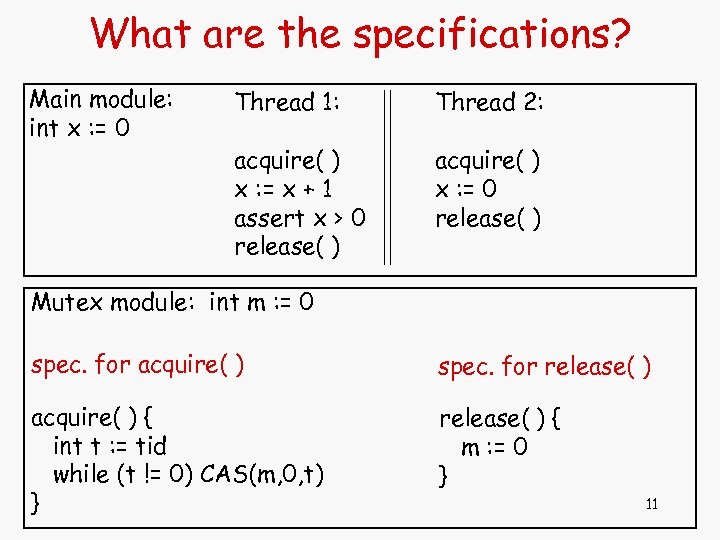

What are the specifications? Main module: int x : = 0 Thread 1: Thread What are the specifications? Main module: int x : = 0 Thread 1: Thread 2: acquire( ) x : = x + 1 assert x > 0 release( ) acquire( ) x : = 0 release( ) Mutex module: int m : = 0 spec. for acquire( ) spec. for release( ) acquire( ) { int t : = tid while (t != 0) CAS(m, 0, t) } release( ) { m : = 0 } 11

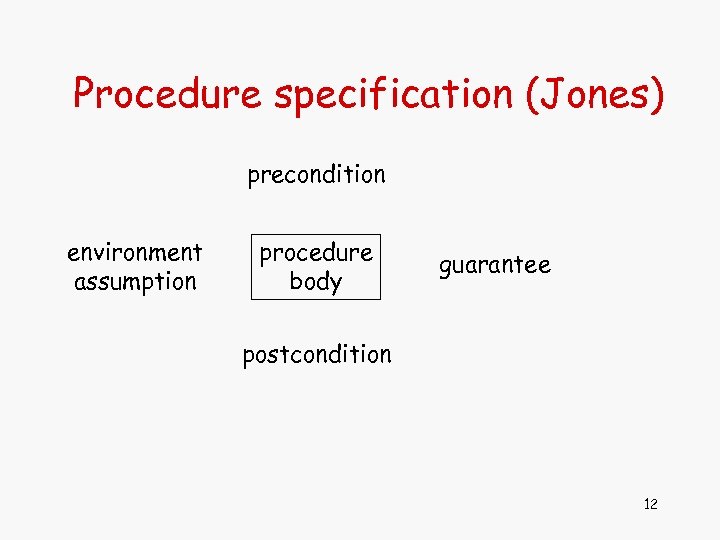

Procedure specification (Jones) precondition environment assumption procedure body guarantee postcondition 12 Procedure specification (Jones) precondition environment assumption procedure body guarantee postcondition 12

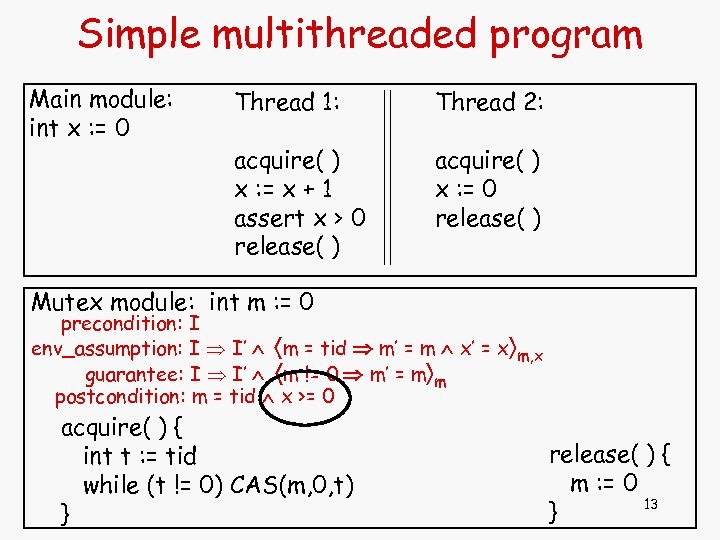

Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: acquire( ) x : = x + 1 assert x > 0 release( ) acquire( ) x : = 0 release( ) Mutex module: int m : = 0 precondition: I env_assumption: I I’ m = tid m’ = m x’ = x m, x guarantee: I I’ m != 0 m’ = m m postcondition: m = tid x >= 0 acquire( ) { int t : = tid while (t != 0) CAS(m, 0, t) } release( ) { m : = 0 13 }

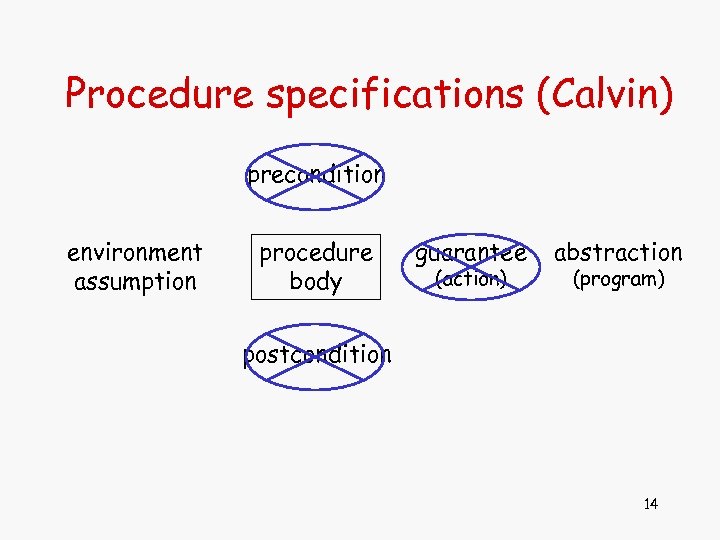

Procedure specifications (Calvin) precondition environment assumption procedure body guarantee (action) abstraction (program) postcondition 14 Procedure specifications (Calvin) precondition environment assumption procedure body guarantee (action) abstraction (program) postcondition 14

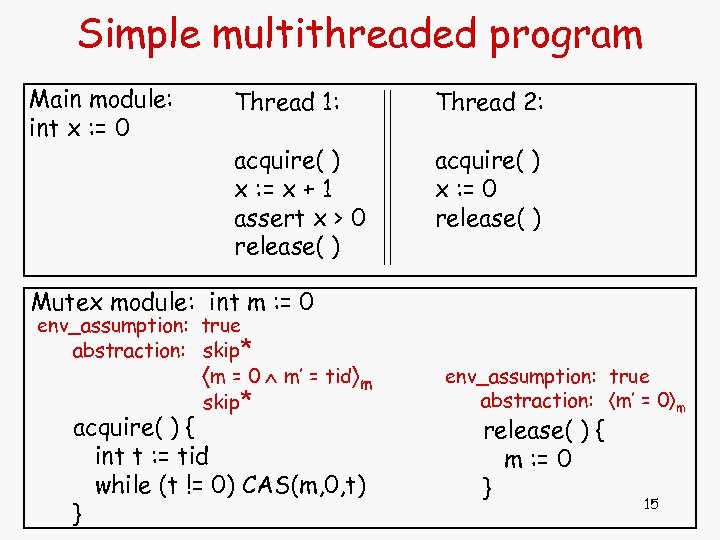

Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: Simple multithreaded program Main module: int x : = 0 Thread 1: Thread 2: acquire( ) x : = x + 1 assert x > 0 release( ) acquire( ) x : = 0 release( ) Mutex module: int m : = 0 env_assumption: true abstraction: skip* m = 0 m’ = tid m skip* acquire( ) { int t : = tid while (t != 0) CAS(m, 0, t) } env_assumption: true abstraction: m’ = 0 m release( ) { m : = 0 } 15

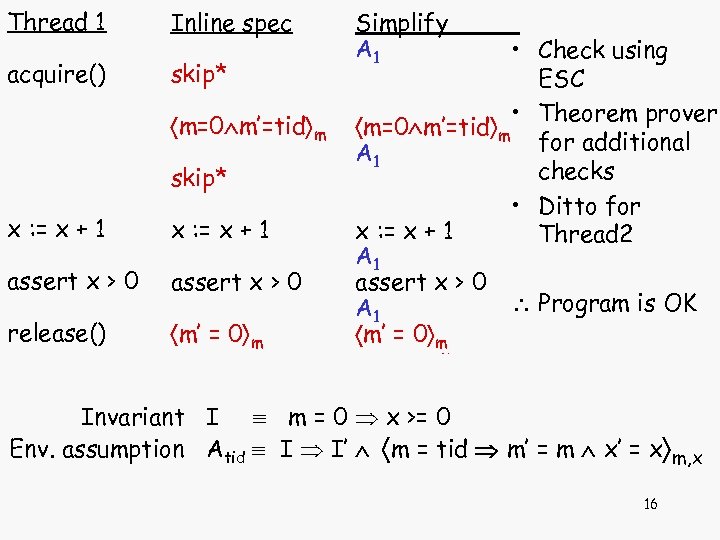

Thread 1 Inline spec acquire() skip* m=0 m’=tid m skip* x : = x Thread 1 Inline spec acquire() skip* m=0 m’=tid m skip* x : = x + 1 assert x > 0 release() m’ = 0 m Env assumption Other threads Simplify A 1* • Check using 1* skip* ESC A 1* * • Theorem prover m=0 m’=tid m m for additional A 1 * * 1 checks skip* • Ditto for A 1* * x : = x + 1 Thread 2 x : = x + 1 A 1* 1* assert x > 0 Program is OK A 1* 1* m’ = 0 m m Invariant I m = 0 x >= 0 Env. assumption Atid I I’ m = tid m’ = m x’ = x m, x 16

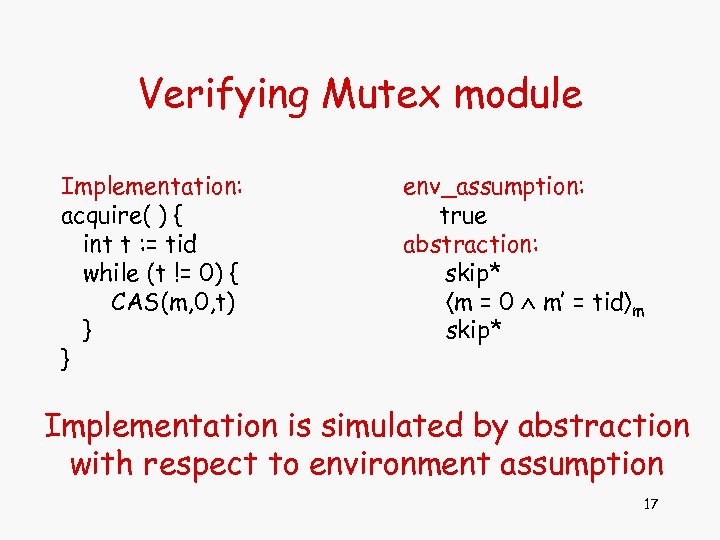

Verifying Mutex module Implementation: acquire( ) { int t : = tid while (t Verifying Mutex module Implementation: acquire( ) { int t : = tid while (t != 0) { CAS(m, 0, t) } } env_assumption: true abstraction: skip* m = 0 m’ = tid m skip* Implementation is simulated by abstraction with respect to environment assumption 17

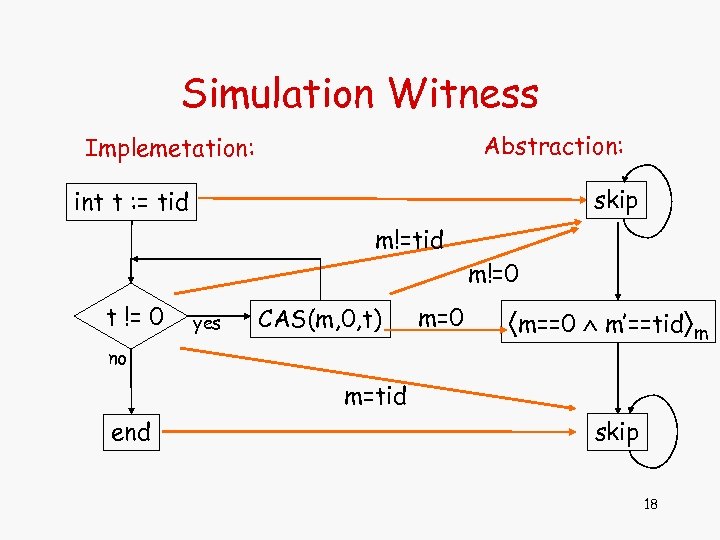

Simulation Witness Abstraction: Implemetation: skip int t : = tid m!=0 t != 0 Simulation Witness Abstraction: Implemetation: skip int t : = tid m!=0 t != 0 yes CAS(m, 0, t) m=0 m==0 m’==tid m no m=tid end skip 18

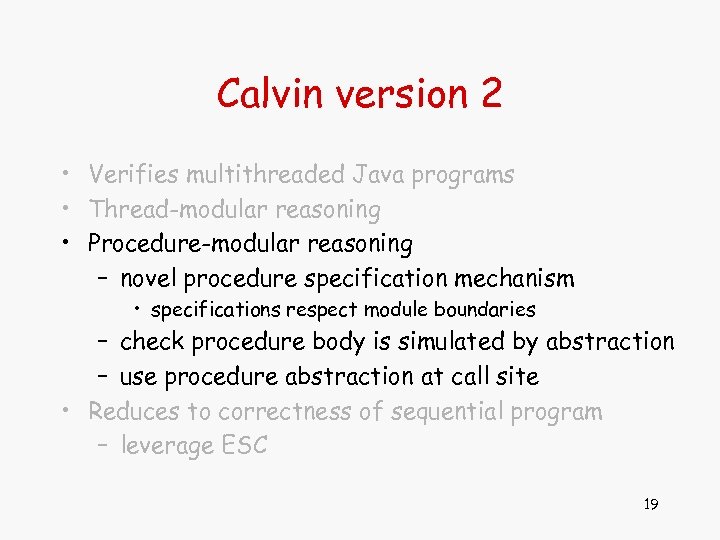

Calvin version 2 • Verifies multithreaded Java programs • Thread-modular reasoning • Procedure-modular reasoning Calvin version 2 • Verifies multithreaded Java programs • Thread-modular reasoning • Procedure-modular reasoning – novel procedure specification mechanism • specifications respect module boundaries – check procedure body is simulated by abstraction – use procedure abstraction at call site • Reduces to correctness of sequential program – leverage ESC 19

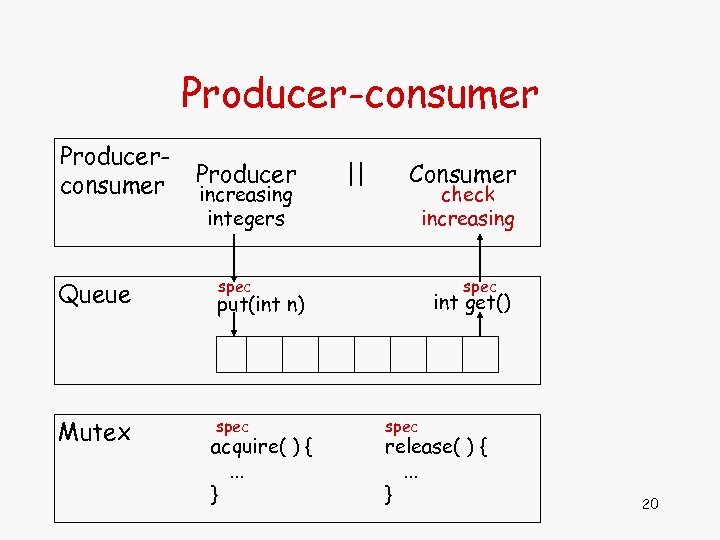

Producer-consumer Producerconsumer Queue Mutex Producer increasing integers || Consumer check increasing spec int get() Producer-consumer Producerconsumer Queue Mutex Producer increasing integers || Consumer check increasing spec int get() put(int n) spec acquire( ) {. . . } spec release( ) {. . . } 20

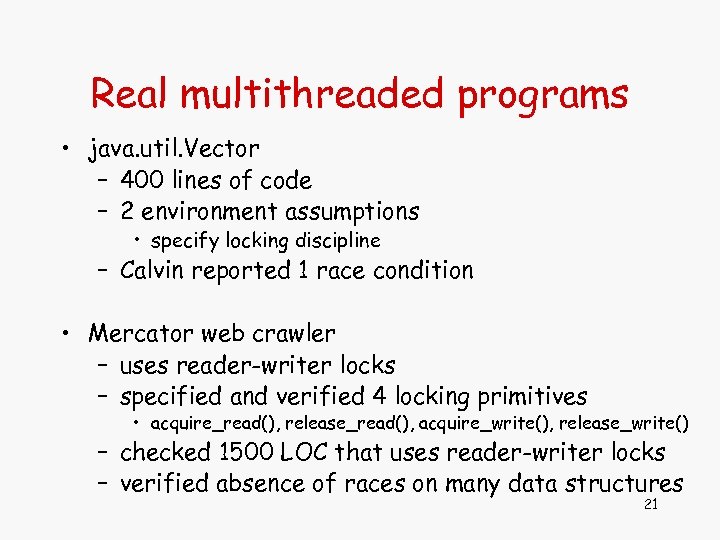

Real multithreaded programs • java. util. Vector – 400 lines of code – 2 Real multithreaded programs • java. util. Vector – 400 lines of code – 2 environment assumptions • specify locking discipline – Calvin reported 1 race condition • Mercator web crawler – uses reader-writer locks – specified and verified 4 locking primitives • acquire_read(), release_read(), acquire_write(), release_write() – checked 1500 LOC that uses reader-writer locks – verified absence of races on many data structures 21

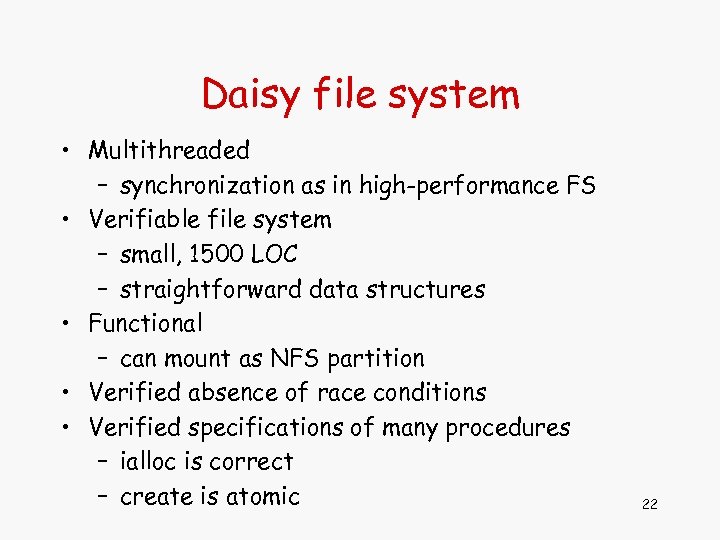

Daisy file system • Multithreaded – synchronization as in high-performance FS • Verifiable file Daisy file system • Multithreaded – synchronization as in high-performance FS • Verifiable file system – small, 1500 LOC – straightforward data structures • Functional – can mount as NFS partition • Verified absence of race conditions • Verified specifications of many procedures – ialloc is correct – create is atomic 22

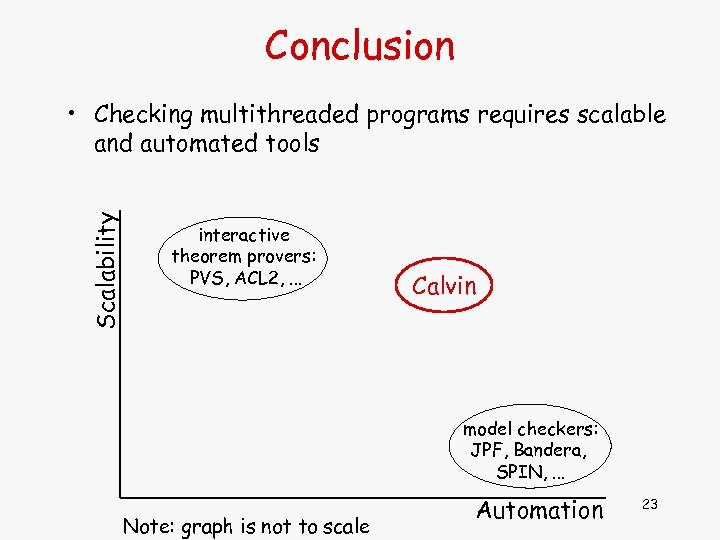

Conclusion Scalability • Checking multithreaded programs requires scalable and automated tools interactive theorem provers: Conclusion Scalability • Checking multithreaded programs requires scalable and automated tools interactive theorem provers: PVS, ACL 2, . . . Calvin model checkers: JPF, Bandera, SPIN, . . . Note: graph is not to scale Automation 23
