4 D/RCS: AN AUTONOMOUS INTELLIGENT CONTROL SYSTEM FOR ROBOTS AND COMPLEX SYSTEMS OF SYSTEMS 4 D/RCS: AN AUTONOMOUS INTELLIGENT CONTROL SYSTEM FOR ROBOTS AND COMPLEX SYSTEMS OF SYSTEMS Presented By: Dr. Robert Finkelstein President, Robotic Technology Inc. and Collegiate Professor, University of Maryland University College 301 -983 -4194 Robert. [email protected] com Presented To: The George Washington University Seminar On Complex Systems 23 September 2008

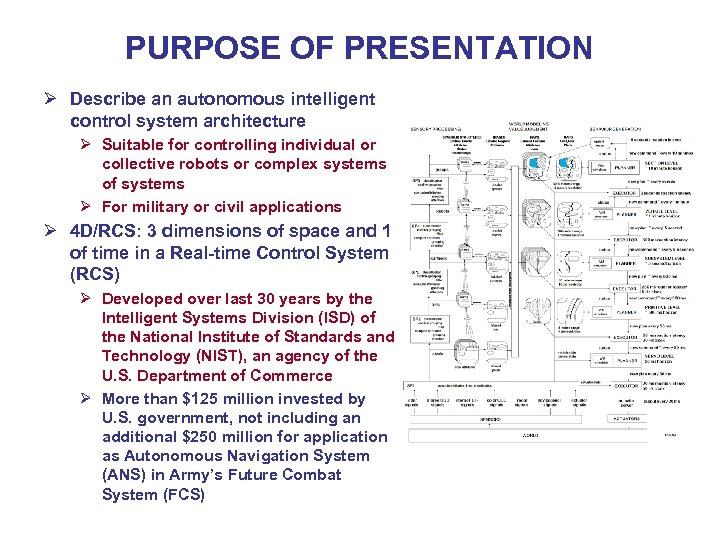

PURPOSE OF PRESENTATION Ø Describe an autonomous intelligent control system architecture Ø Suitable for PURPOSE OF PRESENTATION Ø Describe an autonomous intelligent control system architecture Ø Suitable for controlling individual or collective robots or complex systems of systems Ø For military or civil applications Ø 4 D/RCS: 3 dimensions of space and 1 of time in a Real-time Control System (RCS) Ø Developed over last 30 years by the Intelligent Systems Division (ISD) of the National Institute of Standards and Technology (NIST), an agency of the U. S. Department of Commerce Ø More than $125 million invested by U. S. government, not including an additional $250 million for application as Autonomous Navigation System (ANS) in Army’s Future Combat System (FCS)

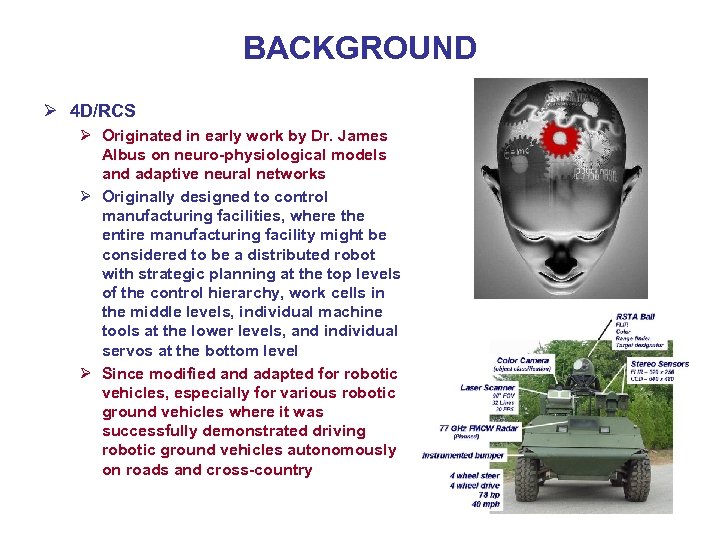

BACKGROUND Ø 4 D/RCS Ø Originated in early work by Dr. James Albus on BACKGROUND Ø 4 D/RCS Ø Originated in early work by Dr. James Albus on neuro-physiological models and adaptive neural networks Ø Originally designed to control manufacturing facilities, where the entire manufacturing facility might be considered to be a distributed robot with strategic planning at the top levels of the control hierarchy, work cells in the middle levels, individual machine tools at the lower levels, and individual servos at the bottom level Ø Since modified and adapted for robotic vehicles, especially for various robotic ground vehicles where it was successfully demonstrated driving robotic ground vehicles autonomously on roads and cross-country

EXTENSION TO COMPLEX SYSTEMS Ø 4 D/RCS Ø A framework in which sensors, sensor EXTENSION TO COMPLEX SYSTEMS Ø 4 D/RCS Ø A framework in which sensors, sensor processing, databases, computer models, and machine controls may be linked and operated such that the system behaves as if it were intelligent Ø Can be designed to permeate a system or a system of systems, where the systems may be fully autonomous, or human supervisors can interface with the 4 D/RCS in a number of ways via communications and command control links Ø Can also interact with distant databases, machines, and control centers Ø Can serve as a decision tool for decision-makers, for complex systems of systems

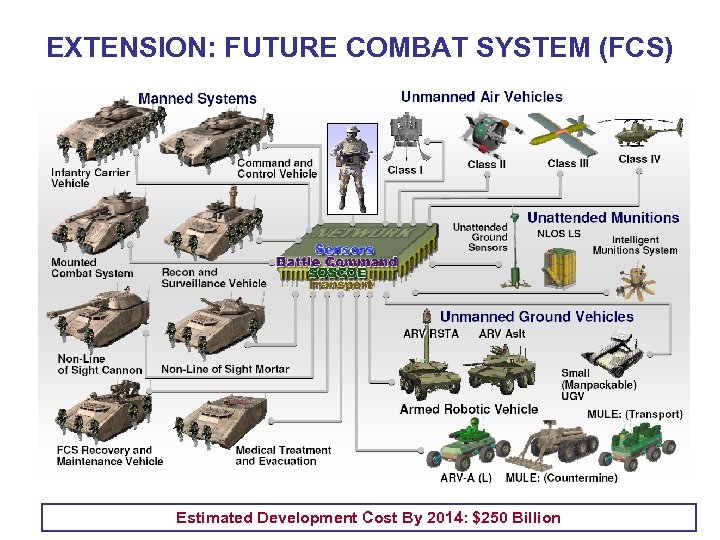

EXTENSION: FUTURE COMBAT SYSTEM (FCS) Estimated Development Cost By 2014: $250 Billion EXTENSION: FUTURE COMBAT SYSTEM (FCS) Estimated Development Cost By 2014: $250 Billion

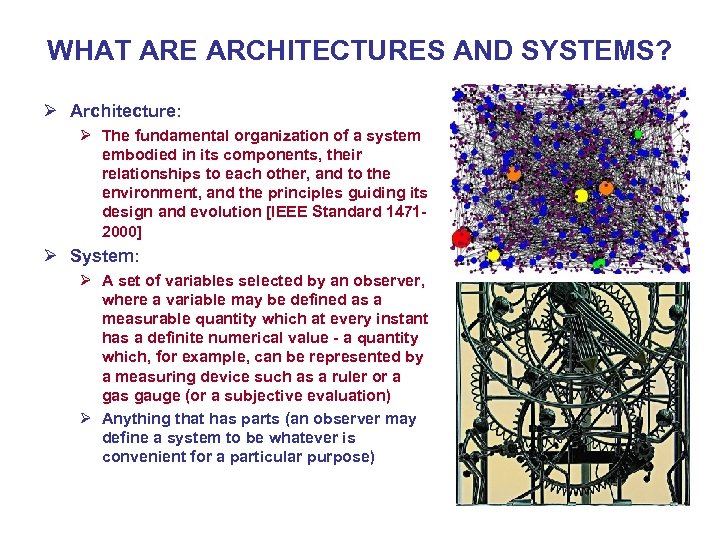

WHAT ARE ARCHITECTURES AND SYSTEMS? Ø Architecture: Ø The fundamental organization of a system WHAT ARE ARCHITECTURES AND SYSTEMS? Ø Architecture: Ø The fundamental organization of a system embodied in its components, their relationships to each other, and to the environment, and the principles guiding its design and evolution [IEEE Standard 14712000] Ø System: Ø A set of variables selected by an observer, where a variable may be defined as a measurable quantity which at every instant has a definite numerical value - a quantity which, for example, can be represented by a measuring device such as a ruler or a gas gauge (or a subjective evaluation) Ø Anything that has parts (an observer may define a system to be whatever is convenient for a particular purpose)

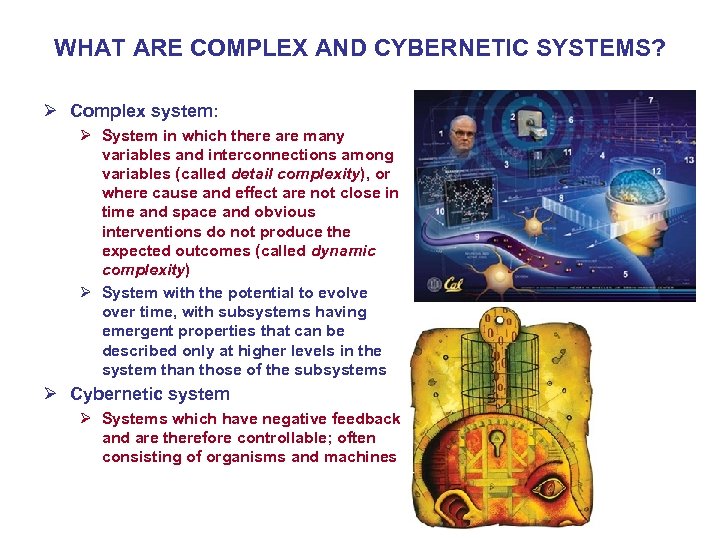

WHAT ARE COMPLEX AND CYBERNETIC SYSTEMS? Ø Complex system: Ø System in which there WHAT ARE COMPLEX AND CYBERNETIC SYSTEMS? Ø Complex system: Ø System in which there are many variables and interconnections among variables (called detail complexity), or where cause and effect are not close in time and space and obvious interventions do not produce the expected outcomes (called dynamic complexity) Ø System with the potential to evolve over time, with subsystems having emergent properties that can be described only at higher levels in the system than those of the subsystems Ø Cybernetic system Ø Systems which have negative feedback and are therefore controllable; often consisting of organisms and machines

INTELLIGENCE AND AUTONOMY Ø The question is not how smart a robot should be, INTELLIGENCE AND AUTONOMY Ø The question is not how smart a robot should be, but how dumb can it be and still do its job?

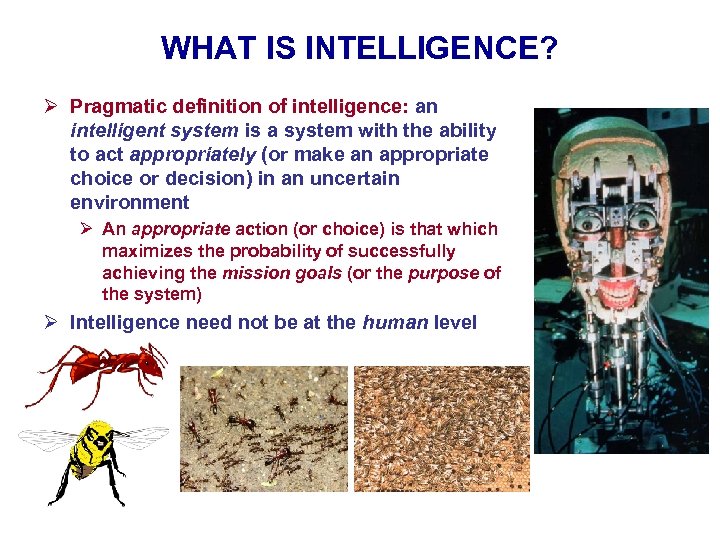

WHAT IS INTELLIGENCE? Ø Pragmatic definition of intelligence: an intelligent system is a system WHAT IS INTELLIGENCE? Ø Pragmatic definition of intelligence: an intelligent system is a system with the ability to act appropriately (or make an appropriate choice or decision) in an uncertain environment Ø An appropriate action (or choice) is that which maximizes the probability of successfully achieving the mission goals (or the purpose of the system) Ø Intelligence need not be at the human level

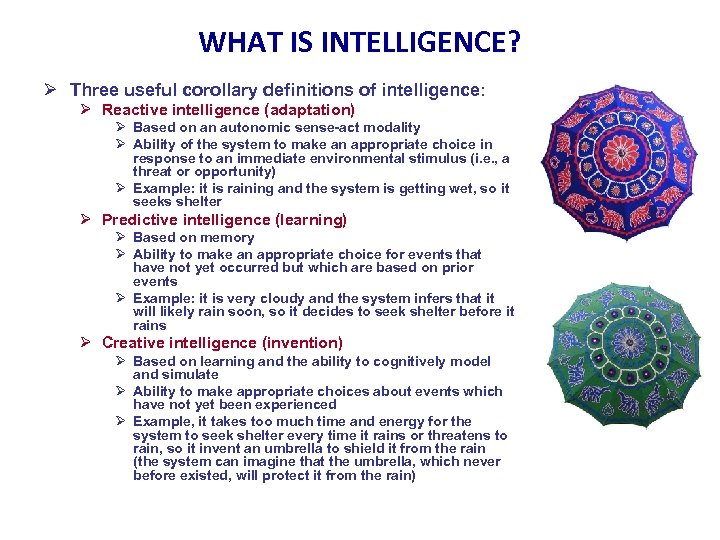

WHAT IS INTELLIGENCE? Ø Three useful corollary definitions of intelligence: Ø Reactive intelligence (adaptation) WHAT IS INTELLIGENCE? Ø Three useful corollary definitions of intelligence: Ø Reactive intelligence (adaptation) Ø Based on an autonomic sense-act modality Ø Ability of the system to make an appropriate choice in response to an immediate environmental stimulus (i. e. , a threat or opportunity) Ø Example: it is raining and the system is getting wet, so it seeks shelter Ø Predictive intelligence (learning) Ø Based on memory Ø Ability to make an appropriate choice for events that have not yet occurred but which are based on prior events Ø Example: it is very cloudy and the system infers that it will likely rain soon, so it decides to seek shelter before it rains Ø Creative intelligence (invention) Ø Based on learning and the ability to cognitively model and simulate Ø Ability to make appropriate choices about events which have not yet been experienced Ø Example, it takes too much time and energy for the system to seek shelter every time it rains or threatens to rain, so it invent an umbrella to shield it from the rain (the system can imagine that the umbrella, which never before existed, will protect it from the rain)

WHAT IS LEARNING? Ø Learning: the acquisition of knowledge, skill, ability, or understanding by WHAT IS LEARNING? Ø Learning: the acquisition of knowledge, skill, ability, or understanding by study, instruction, or experience, as evidenced by achieving growing success (improved behavior), with respect to suitable metrics, in a fixed environment Ø Learning takes place when the system’s behavior increases the efficiency with which data, information, and knowledge is processed so that desirable states are reached, errors avoided, or a portion of the system’s environment is controlled

WHAT IS ADAPTATION? Ø Adaptation: A change in behavior (or structure) in response to WHAT IS ADAPTATION? Ø Adaptation: A change in behavior (or structure) in response to a changed environment Ø Able to maintain critical or essential variables within physical (or physiological) limits (e. g. , homeostasis) Ø Where the changed behavior (or structure) increases the probability that the system can achieve its function or purpose (e. g. , maintain homeostasis) by adjusting to the new or changed environment Learning – fixed environment Adaptation – changed environment

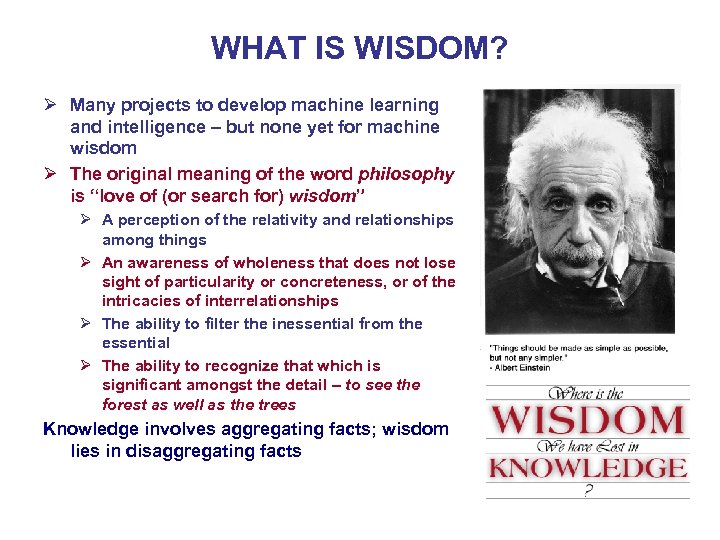

WHAT IS WISDOM? Ø Many projects to develop machine learning and intelligence – but WHAT IS WISDOM? Ø Many projects to develop machine learning and intelligence – but none yet for machine wisdom Ø The original meaning of the word philosophy is “love of (or search for) wisdom” Ø A perception of the relativity and relationships among things Ø An awareness of wholeness that does not lose sight of particularity or concreteness, or of the intricacies of interrelationships Ø The ability to filter the inessential from the essential Ø The ability to recognize that which is significant amongst the detail – to see the forest as well as the trees Knowledge involves aggregating facts; wisdom lies in disaggregating facts

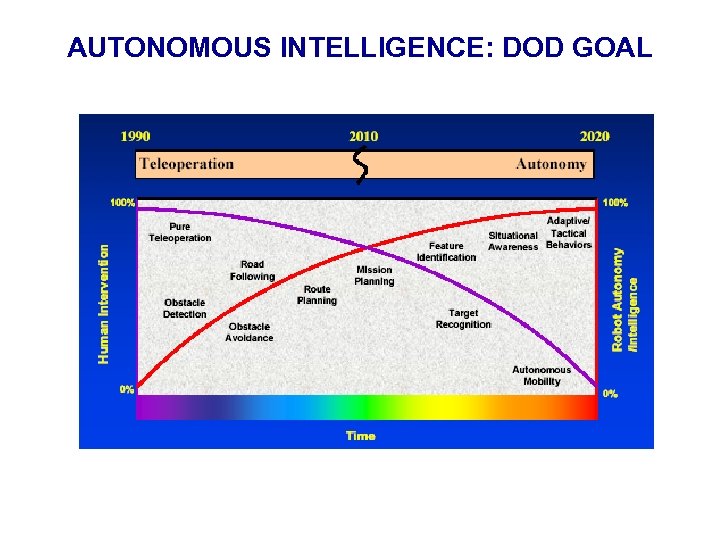

AUTONOMOUS INTELLIGENCE: DOD GOAL AUTONOMOUS INTELLIGENCE: DOD GOAL

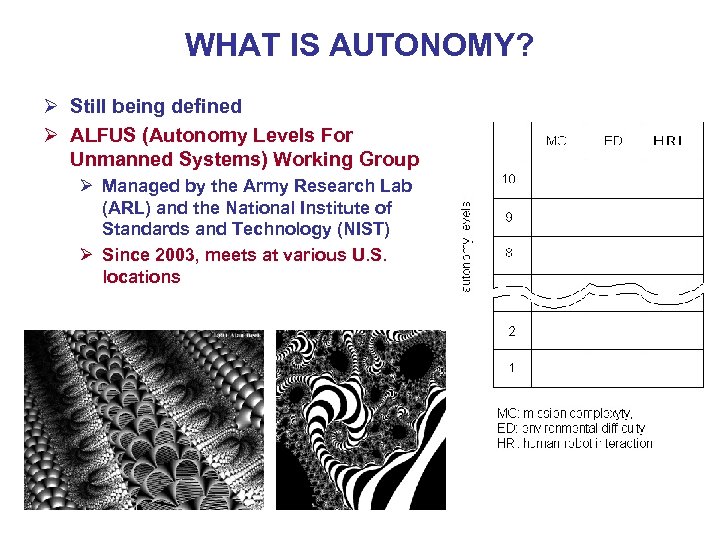

WHAT IS AUTONOMY? Ø Still being defined Ø ALFUS (Autonomy Levels For Unmanned Systems) WHAT IS AUTONOMY? Ø Still being defined Ø ALFUS (Autonomy Levels For Unmanned Systems) Working Group Ø Managed by the Army Research Lab (ARL) and the National Institute of Standards and Technology (NIST) Ø Since 2003, meets at various U. S. locations

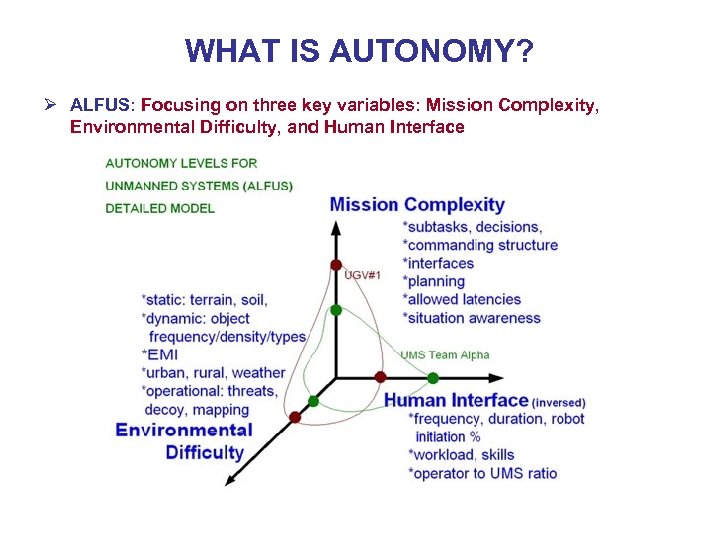

WHAT IS AUTONOMY? Ø ALFUS: Focusing on three key variables: Mission Complexity, Environmental Difficulty, WHAT IS AUTONOMY? Ø ALFUS: Focusing on three key variables: Mission Complexity, Environmental Difficulty, and Human Interface

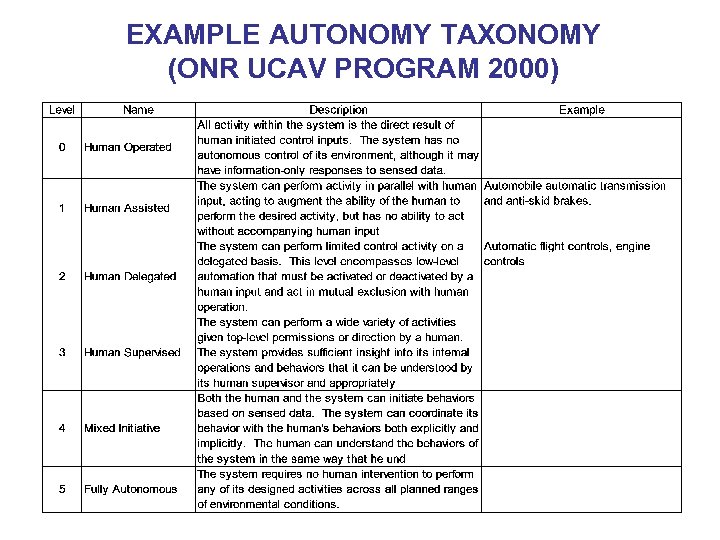

EXAMPLE AUTONOMY TAXONOMY (ONR UCAV PROGRAM 2000) EXAMPLE AUTONOMY TAXONOMY (ONR UCAV PROGRAM 2000)

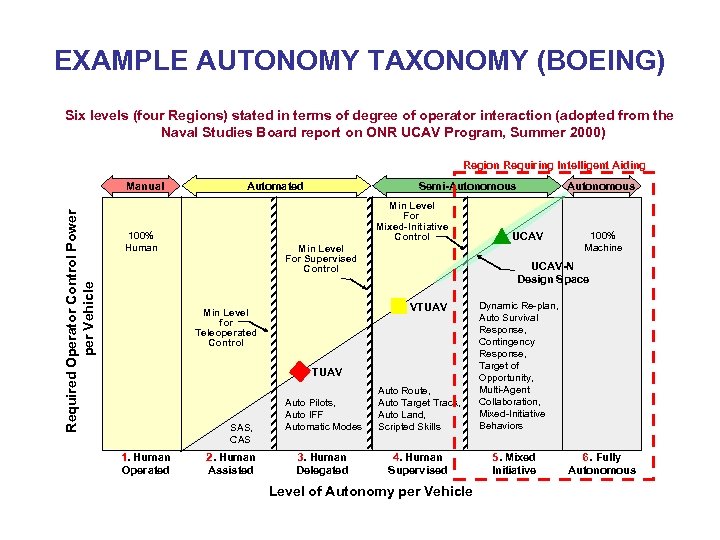

EXAMPLE AUTONOMY TAXONOMY (BOEING) Six levels (four Regions) stated in terms of degree of EXAMPLE AUTONOMY TAXONOMY (BOEING) Six levels (four Regions) stated in terms of degree of operator interaction (adopted from the Naval Studies Board report on ONR UCAV Program, Summer 2000) Region Requiring Intelligent Aiding Required Operator Control Power per Vehicle Manual Automated Semi-Autonomous Min Level For Mixed-Initiative Control 100% Human Min Level For Supervised Control TUAV SAS, CAS 1. Human Operated 2. Human Assisted UCAV 100% Machine UCAV-N Design Space VTUAV Min Level for Teleoperated Control Autonomous Auto Pilots, Auto IFF Automatic Modes Auto Route, Auto Target Track, Auto Land, Scripted Skills 3. Human Delegated 4. Human Supervised Level of Autonomy per Vehicle Dynamic Re-plan, Auto Survival Response, Contingency Response, Target of Opportunity, Multi-Agent Collaboration, Mixed-Initiative Behaviors 5. Mixed Initiative 6. Fully Autonomous

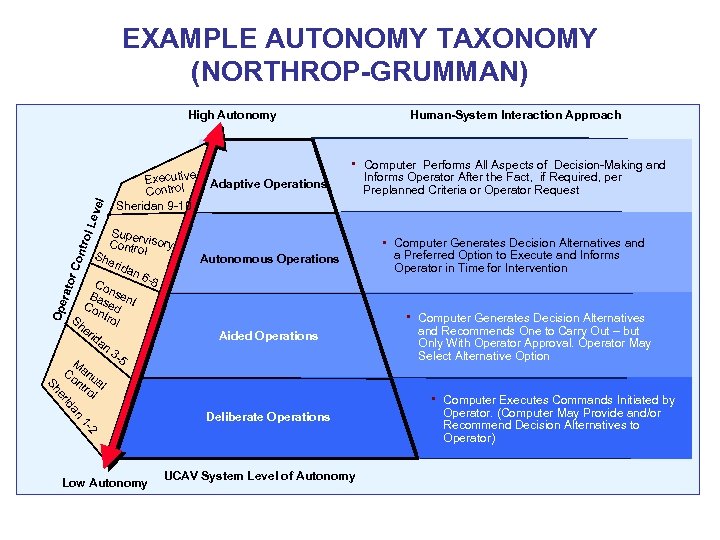

EXAMPLE AUTONOMY TAXONOMY (NORTHROP-GRUMMAN) ntro l Le vel High Autonomy Executive Control Sheridan 9 EXAMPLE AUTONOMY TAXONOMY (NORTHROP-GRUMMAN) ntro l Le vel High Autonomy Executive Control Sheridan 9 -10 • Computer Performs All Aspects of Decision-Making and Adaptive Operations Autonomous Operations a Preferred Option to Execute and Informs Operator in Time for Intervention • Computer Generates Decision Alternatives Aided Operations e Sh and Recommends One to Carry Out – but Only With Operator Approval. Operator May Select Alternative Option • Computer Executes Commands Initiated by an rid Deliberate Operations 2 1 Low Autonomy Informs Operator After the Fact, if Required, per Preplanned Criteria or Operator Request • Computer Generates Decision Alternatives and Ope rato r Co Super Controvisory l Sh erid an 6 -8 Co nse Ba n Co sed t Sh ntrol er id an 35 M Co anu nt al ro l Human-System Interaction Approach UCAV System Level of Autonomy Operator. (Computer May Provide and/or Recommend Decision Alternatives to Operator)

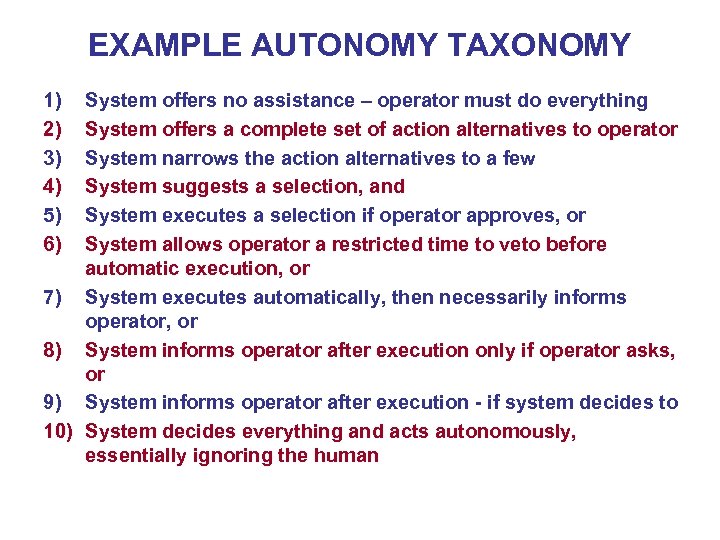

EXAMPLE AUTONOMY TAXONOMY 1) 2) 3) 4) 5) 6) System offers no assistance – EXAMPLE AUTONOMY TAXONOMY 1) 2) 3) 4) 5) 6) System offers no assistance – operator must do everything System offers a complete set of action alternatives to operator System narrows the action alternatives to a few System suggests a selection, and System executes a selection if operator approves, or System allows operator a restricted time to veto before automatic execution, or 7) System executes automatically, then necessarily informs operator, or 8) System informs operator after execution only if operator asks, or 9) System informs operator after execution - if system decides to 10) System decides everything and acts autonomously, essentially ignoring the human

Control System Architecture Software Tools Computer Control Systems Sensory Perception Databases & World Modeling Control System Architecture Software Tools Computer Control Systems Sensory Perception Databases & World Modeling Internal & External Communications Mobility Hardware Architecture Internal & External Sensors Robotic System Sensor Systems Sensor Processing Sensor Architecture Platform & Mobility Design Functional Diagram Structural Dynamics/Kinematics Effector Systems Weapons Systems Manipulators & End Effectors Propulsion Systems Human Interface Systems Controls & Displays Testing Maintenance & Support Training

AUTONOMOUS INTELLIGENT CONTROL Ø Many prospective autonomous intelligent control system architectures Ø NIST 4 AUTONOMOUS INTELLIGENT CONTROL Ø Many prospective autonomous intelligent control system architectures Ø NIST 4 D/RCS most advanced Ø 30 years development and $100 million invested Ø Demos I, III, and many other successful demonstrations Ø Used by GDRS for FCS Autonomous Navigation System (ANS)

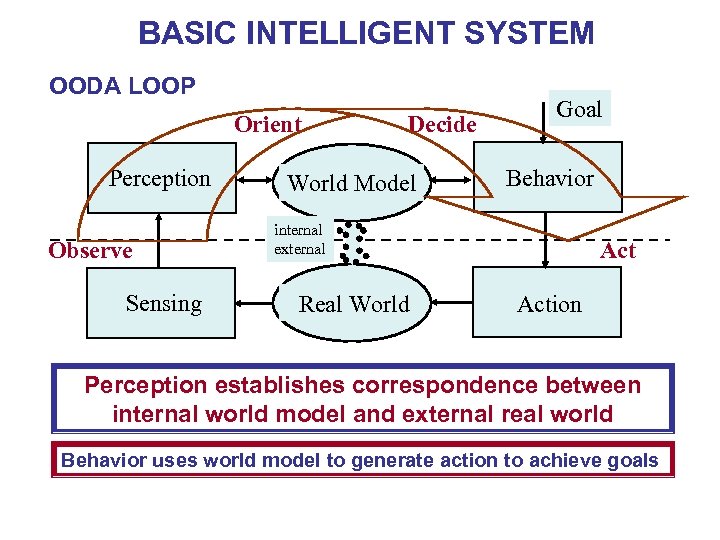

BASIC INTELLIGENT SYSTEM OODA LOOP Orient Perception Observe Sensing Decide World Model Goal Behavior BASIC INTELLIGENT SYSTEM OODA LOOP Orient Perception Observe Sensing Decide World Model Goal Behavior internal external Real World Action Perception establishes correspondence between internal world model and external real world Behavior uses world model to generate action to achieve goals

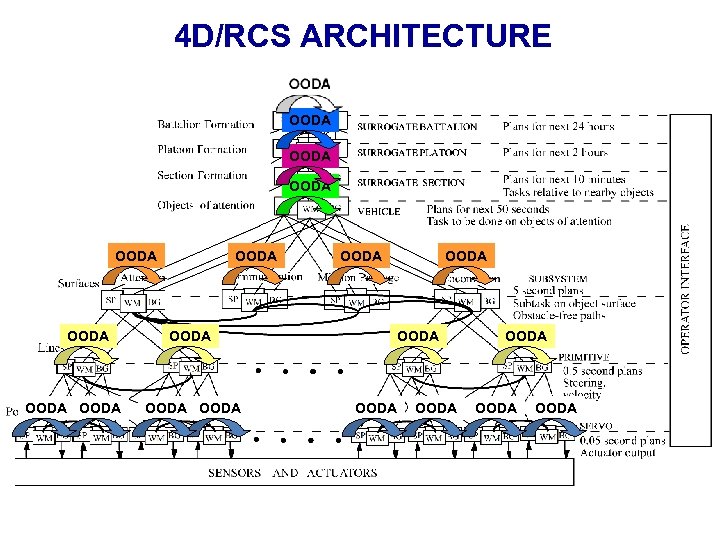

4 D/RCS ARCHITECTURE OODA OODA OODA OODA OODA 4 D/RCS ARCHITECTURE OODA OODA OODA OODA OODA

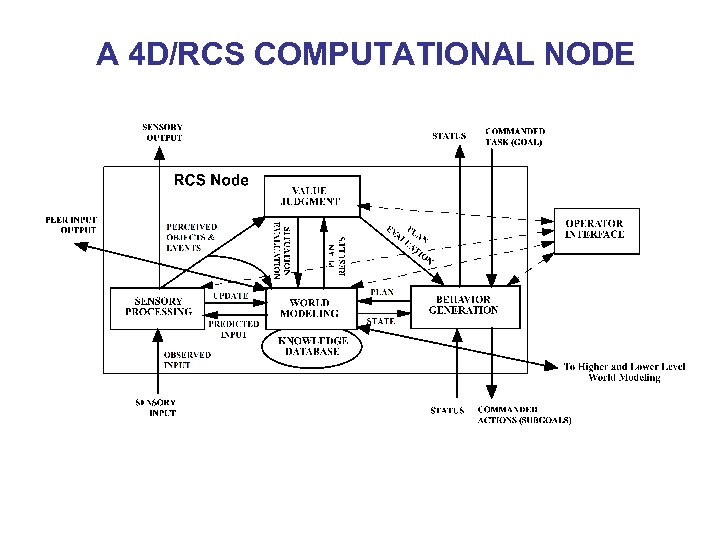

A 4 D/RCS COMPUTATIONAL NODE A 4 D/RCS COMPUTATIONAL NODE

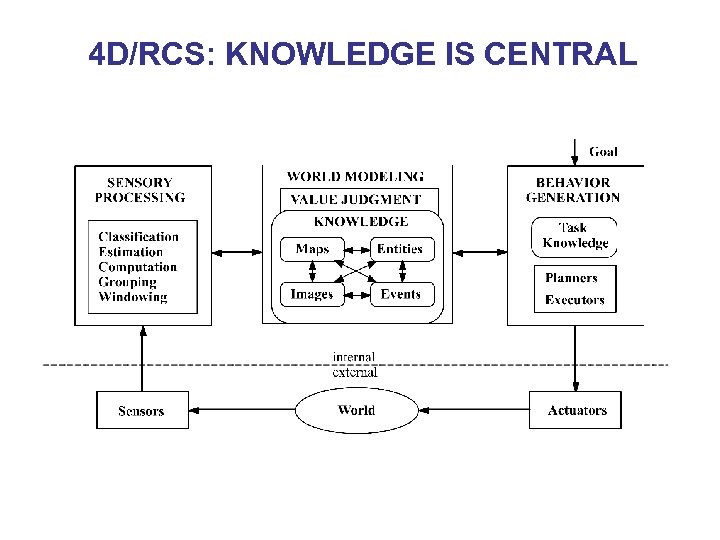

4 D/RCS: KNOWLEDGE IS CENTRAL 4 D/RCS: KNOWLEDGE IS CENTRAL

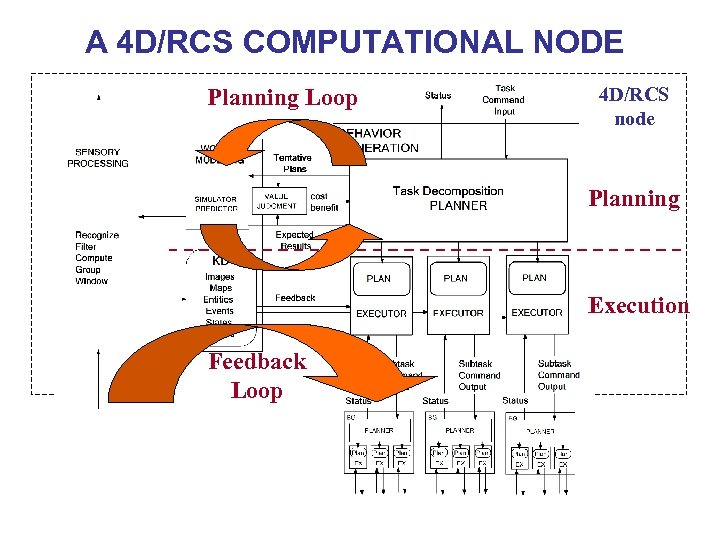

A 4 D/RCS COMPUTATIONAL NODE Planning Loop 4 D/RCS node Planning Execution Feedback Loop A 4 D/RCS COMPUTATIONAL NODE Planning Loop 4 D/RCS node Planning Execution Feedback Loop

4 D/RCS ARCHITECTURE 4 D/RCS ARCHITECTURE

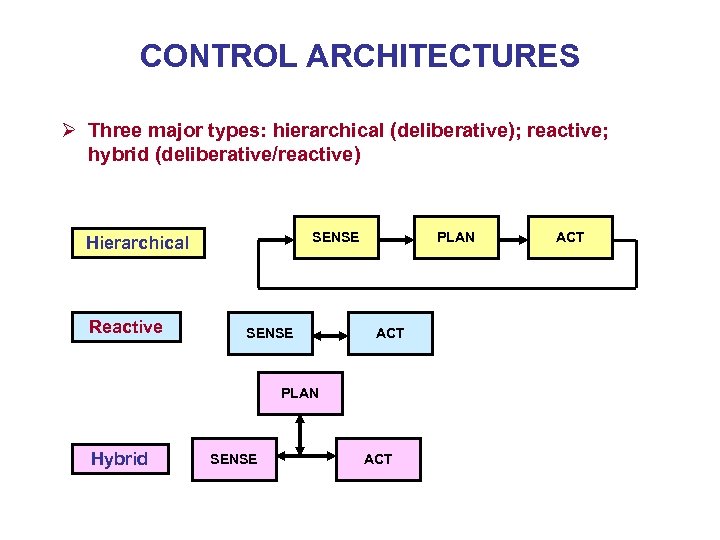

CONTROL ARCHITECTURES Ø Three major types: hierarchical (deliberative); reactive; hybrid (deliberative/reactive) SENSE Hierarchical Reactive CONTROL ARCHITECTURES Ø Three major types: hierarchical (deliberative); reactive; hybrid (deliberative/reactive) SENSE Hierarchical Reactive SENSE PLAN ACT PLAN Hybrid SENSE ACT

CONTROL ARCHITECTURES Ø In addition to deliberative and reactive behaviors, an intelligent control system CONTROL ARCHITECTURES Ø In addition to deliberative and reactive behaviors, an intelligent control system could also be reflective Ø Able to monitor and alter its behavior (i. e. , its critical variables) to better adapt Ø A meta-control system controls the intelligent control system

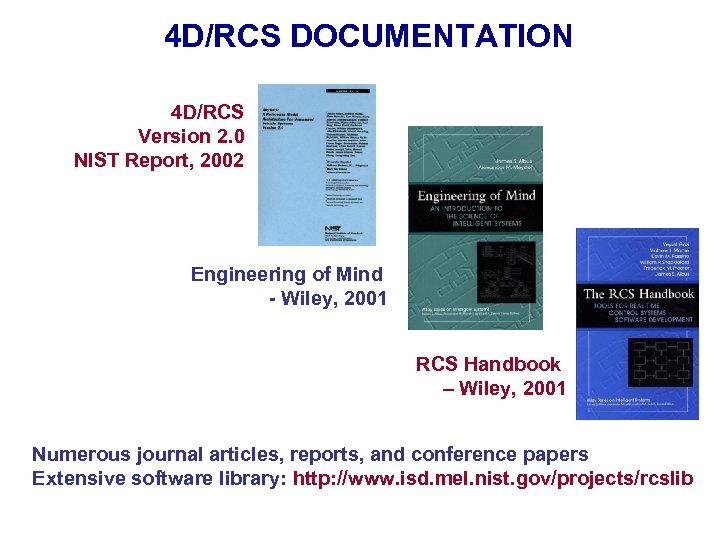

4 D/RCS DOCUMENTATION 4 D/RCS Version 2. 0 NIST Report, 2002 Engineering of Mind 4 D/RCS DOCUMENTATION 4 D/RCS Version 2. 0 NIST Report, 2002 Engineering of Mind - Wiley, 2001 RCS Handbook – Wiley, 2001 Numerous journal articles, reports, and conference papers Extensive software library: http: //www. isd. mel. nist. gov/projects/rcslib

MOST RECENT BOOK: 2007 MOST RECENT BOOK: 2007
